Novastar TB20 Plus New Generation Multimedia Player Box Support Sync & Async Modes For Indoor Outdoor LED Display
Introduction
The TB20 Plus is a new generation of multimedia player designed for full-color LED displays. This multimedia player integrates playback and sending capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with the superior cloud-based publishing and monitoring platforms, the TB20 Plus enables users to manage LED displays from an Internet-connected device anywhere, anytime.
The TB20 Plus supports synchronous and asynchronous modes and can play content from a USB drive, satisfying various playback demands. Multiple protection measures such as terminal authentication and player verification are taken to keep the playback secure.
Thanks to its reliability, ease of use, and intelligent control, the TB20 Plus becomes a winning choice for commercial LED displays and smart city applications such as fixed displays, lamp-post displays, chain store displays, advertisement players, retail store displays, door head displays, shelf displays, and much more.
Certifications
CQC
Features
Input and Output
● Loading capacity up to 650,000 pixels
Maximum width：2048 pixels, maximum height: 2048 pixels
● Maximum width of an ultra-long screen: 8192 pixels, maximum height of an ultra-long screen: 2048 pixels (maximum capacity per Ethernet port: 650,000 pixels)
●1x Gigabit Ethernet output
●1x Stereo audio output connector
The audio sample rate is fixed at 48 kHz. If NovaStar’s multifunction card is used for audio output, audio with a sample rate of 48kHz is required.
Control
●1x USB 2.0 ( Type A) port
Allows for USB playback, firmware upgrade and storage expansion.
●1x USB (Type B) port
Connects to the control computer for content publishing and screen control.
● 1x Fast Ethernet port
Connects to the control computer, or connects to a LAN or public network for content publishing and screen control.
Performance
● Powerful processing capacity
− Quad-core ARM A53 processor @1.4GHz
− Support for hardware decoding of 4K videos
− 2 GB of RAM
− 32 GB of internal space
● Flawless playback
Support for playback of 1x 4K, 3x 1080p, 8x 720p, 16x 480p, or 20x 360p videos
Functionality
● All-round control plans
− Enables users to publish content and control screens from a computer, mobile phone, or tablet.
− Allows users to publish content and control screens from anywhere, anytime.
− Allows users to monitor screens from anywhere, anytime.
● Wi-Fi AP and Wi-Fi Sta can be turned on at the same time
− Wi-Fi AP
User terminal devices can connect to the built-in Wi-Fi hotspot of the multimedia player. The default SSID is “AP+Last 8 digits of SN” and the default password is printed on the SSID label .
− Wi-Fi AP+Wi-Fi Sta
● Ultra-long-screen solution playback
● Synchronous and Asynchronous modes
− In asynchronous mode, the internal video source is used.
− In asynchronous mode, HDMI is used as the video source.
● Synchronous playback across multiple screens
− NTP time synchronization
− GPS time synchronization (The specified 4G module must be installed.)
− RF time synchronization (The specified RF module must be installed.)
● Support for 4G modules
Appearance

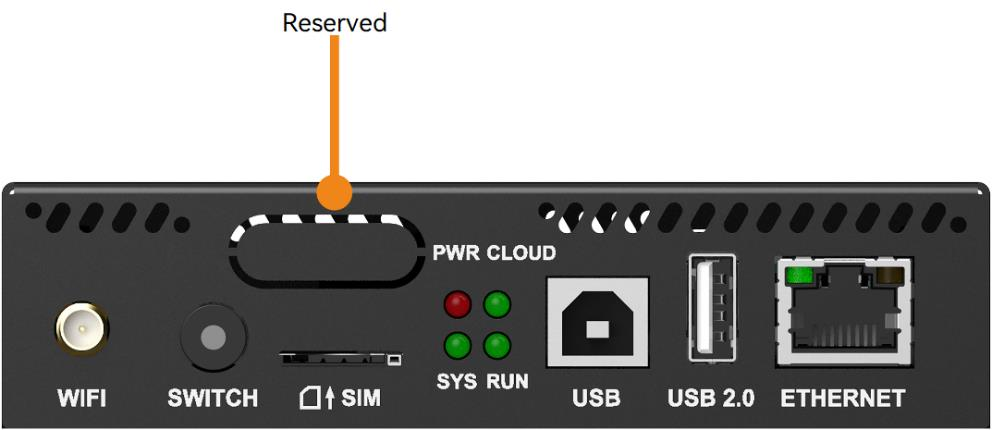

Front Panel
| Name | Description |
| WIFI | Wi-Fi antenna connector (2.4GHz Wi-Fi supported) |
| Reserved | Sensor connectorConnects to a light sensor or temperature and humidity sensor. |
| Switch | Press the button to switch between synchronous and asynchronous mode.
. Solid green: Synchronous mode . Off: Asynchronous mode |
| SIM | SIM card slotCapable of preventing users from inserting a SIM card in the wrong orientation. |
| USB | USB(Type B)portConnects to the control computer for content publishing and screen control. |
| USB 2.0 | USB 2.0(Type A)portAllows for USB playback,firmware upgrade and storage expansion(up to 128 GB).
Ext4 and FAT32 file systems are supported,with FAT32 allowing a maximum file size of 4GB.exFAT and FAT16 are not supported. |
| ETHERNET | Fast Ethernet portStandard RJ45 connector(with built-in LEDs)connecting to the control computer or connecting to a LAN or public network for content publishing and screen control. |

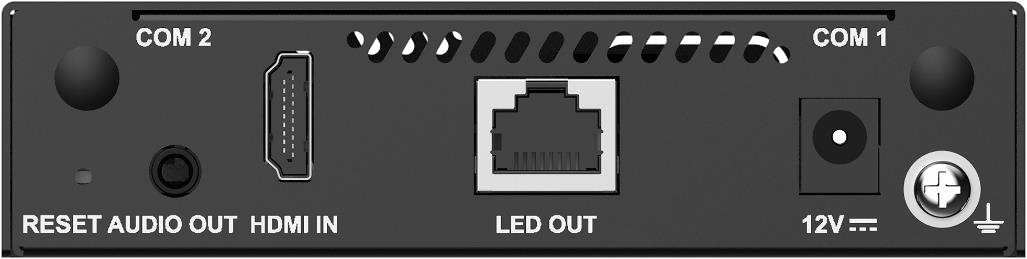

Rear Panel
| Name | Description |
| COM 2 | GPS antenna connector |
| RESET | Factory reset buttonPress and hold this button for 5s to reset the product to its factory settings |
| AUDIO OUT | 3.5mm audio output connectorNote:3-pole audio connectors are supported. |
| HDMI IN | 1x HDMI 1.3 input connector
. Maximum input resolution: The pixel clock cannot exceed 164 MHz. . Maximum input: 2048×1024@60Hz . HDCP 1.4 compliant, backwards compatible with HDCP 1.3 . No support for interlaced signal input . Support for custom resolutions: - Custom width range: 64~2048 pixels (64×64@60Hz~2048×1024@60Hz) - Custom height range: 64~2048 pixels (64×64@60Hz~1024×2048@60Hz) Note: The resolution of HDMI IN can be customized by changing the preset EDID, so the external source must support custom resolutions. . In synchronous mode, HDMI is used as the video source and users can enable full-screen scaling to make the image fit the screen automatically. Requirements for full-screen scaling in synchronous mode: - 64 pixels ≤ video source width ≤ 2048 pixels - 64 pixels ≤ video source height ≤ 2048 pixels - Maximum resolution: 2048 ×1024@60Hz - Images can only be scaled down and cannot be scaled up. Note: The pixel width and height of the video source must be greater than or equal to the pixel width and height of the screen, respectively. |
| LED OUT | Gigabit Ethernet outputStandard RJ45 connector(with no built-in LEDs) |
| 12V-. | Power input connector |
| COM1 | 4G antenna connector |
Indicators
| Name | Color | Status | Description |
| PWR | Red | Staying on | The power supply is working properly. |
| SYS | Green | Staying on/off | The operating system is malfunctioning. |
| Flashing once every 2s | The operating system is functioning normally. | ||
| Flashing once every second | Failed to reset the USB drive. | ||
| Flashing once every 0.5s | The USB drive is reset successfully. | ||
| CLOUD | Green | Staying on | The device is connected to the Internet and the connection is available. |
| Flashing once every 2s | The device is connected to VNNOX and the connection is available. | ||
| Flashing once every second | The operating system is being upgraded. | ||
| Flashing once every 0.5s | The device is copying the upgrade package or files from a USB drive. | ||
| RUN | Green | Flashing once every 4s | The FPGA has no video source. |
| Flashing once every 0.5s | The FPGA is functioning normally. | ||
| Staying on/off | The FPGA loading is abnormal. |
Dimensions
Tolerance: ±0.3 Unit: mm
Specifications
| Electrical Parameters | Input voltage | DC 5 V~12 V |
| Maximum power consumption | 15 W | |
| Storage Capacity | RAM | 2 GB |
| Internal storage | 32 GB | |
| Storage Environment | Temperature | –40°C to +80°C |
| Humidity | 5% RH to 95% RH, non-condensing | |
| Operating Environment | Temperature | –20ºC to +60ºC |
| Humidity | 5% RH to 85% RH, non-condensing | |
| Packing Information | Dimensions (L×W×H) |
333.0 mm × 196.0 mm × 70.0 mm |
| Accessorise | 1x Wi-Fi omnidirectional antenna 1x Power adapter
2x Racks 4x Phillips countersunk head screws 1x Quick Start Guide 1x Certificate of Approval |
|
| Dimensions (L×W×H) | 141.2 mm × 120.0 mm × 33.5 mm | |
| Net Weight | 470.3 g | |
| Gross Weight | 776.1 g | |
| IP Rating | IP20Please prevent the product from water intrusion and do not wet or wash the product. | |
| System Software | Android 10.0 operating system software Android terminal application software
FPGA program |
|
Media Decoding Specifications
| Codec | Max Resolution | Format | Remarks |
| BMP | 4096×2304 pixels | BMP | N/A |
| GIF | 4096×2304 pixels | GIF | N/A |
| JPG | 4096×2304 pixels | JPG | N/A |
| JPEG | 4096×2304 pixels | JPEG | N/A |
| PNG | 4096×2304 pixels | PNG | N/A |
Video
| Codec | Resolution | Max Frame Rate | Max Bit Rate(Ideal Case) | Format |
| H.265 | 64×64 pixels to 4096×2304 pixels | 60fps | 100Mbps | MP4, AVI, RMVB, FLV, MKV, MOV |
| H.264 | 64×64 pixels to 4096×2304 pixels | 30fps | 60Mbps | MP4, AVI, RMVB, FLV, MKV, MOV |
| MPEG-4 | 64×64 pixels to 1920×1088 pixels | 60fps | 29Mbps | MP4, AVI, RMVB, FLV, MKV, MOV |
| VP9 | 64×64 pixels to 4096×2304 pixels | 30fps | 49Mbps | MP4, AVI, RMVB, FLV, MKV, MOV |
| MJPEG | 64×64 pixels to 1920×1088 pixels | 22fps | 6Mbps | MP4, AVI, RMVB, FLV, MKV, MOV |
| AVS2 | 64×64 pixels to 3840×2160 pixels | 25fps | 20Mbps | MP4, AVI, RMVB, FLV, MKV, MOV |
| H.263 | 64×64 pixels to 1920×1088 pixels | 60fps | 60Mbps | MP4, AVI, RMVB, FLV, MKV, MOV |
| VP8 | 64×64 pixels to 1920×1088 pixels | 60fps | 60Mbps | MP4, AVI, RMVB, FLV, MKV, MOV |
| MPEG-2 | 64×64 pixels to 1920×1088 pixels | 60fps | 60Mbps | MP4, AVI, RMVB, FLV, MKV, MOV |
| MPEG-1 | 64×64 pixels to 1920×1088 pixels | 60fps | 60Mbps | MP4, AVI, RMVB, FLV, MKV, MOV |
| VC-1 | 64×64 pixels to 1920×1088 pixels | 60fps | 60Mbps | MP4, AVI, RMVB, FLV, MKV, MOV |
| Sorenson Spark | 64×64 pixels to 1920×1088 pixels | 60fps | 60Mbps | MP4, AVI, RMVB, FLV, MKV, MOV |
| CAVS | 64×64 pixels to 1920×1088 pixels | 60fps | 30Mbps | MP4, AVI, RMVB, FLV, MKV, MOV |
