Meanwell LRS-300E-5 LED Switch 5V 60A Power Supply

Short Description:

AC Input:180~264VAC
Protection mode：Short circuit/Over load/Over voltage
Altitude only 30mm
LED indicator for power on
High efficiency,long life,high reliability
100% full load burn-in test
1 year warranty

DC Voltage: 5V

Rated Current: 60A

Protection: Over load/Over voltage/Short circuit

Dimensions: 215*115*30mm (L*W*H)

Warranty: 1 years

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

Specification

MODEL		LRS-300E-5	LRS-300E-4.2
OUTPUT	DC VOLTAGE	5V	4.2V
	RATED CURRENT	60A	60A
	CURRENT RANGE	0 ~ 60A	0 ~ 60A
	RATED POWER	300W	252W
	PEAK POWER (max.)	300W	252W
	RIPPLE & NOISE (max.) Note.2	150mVp-p	150mVp-p
	VOLTAGE ADJ. RANGE	4.5 ~ 5.5V	3.6 ~ 4.4V
	VOLTAGE TOLERANCE Note.3	±3.0%	±3.0%
	LINE REGULATION	±0.5%	±0.5%
	LOAD REGULATION	±2.0%	±2.0%
	SETUP, RISE TIME	1500ms,50ms/230VAC
	HOLD UP TIME (Typ.)	16ms/230VAC
INPUT	VOLTAGE RANGE	180 ~ 264VAC 254 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	80%	78%
	AC CURRENT (Typ.)	3.5A/230VAC
	INRUSH CURRENT(Typ.)	70A/230VAC
PROTECTION	OVER LOAD	110% ~140% rated output power
		Hiccup mode, recovers automatically after fault condition is removed.
	OVER VOLTAGE	5.6 ~ 7V	4.6 ~ 5.4V
		Hiccup mode, recovers automatically after fault condition is removed.
ENVIRONMENT	WORKING TEMP.	-20～+60℃ ( Refer to "Derating Curve" )
	WORKING HUMIDITY	20 ~ 90% RH,non-condensing
	STORAGE TEMP.，HUMIDITY	-20 ~ +85℃, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/℃ (0～50℃)
	VIRATION	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY	SAFETY STANDARDS
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
OTHERS	MTBF	235K hrs. MIL-HDBK-217F (25℃)

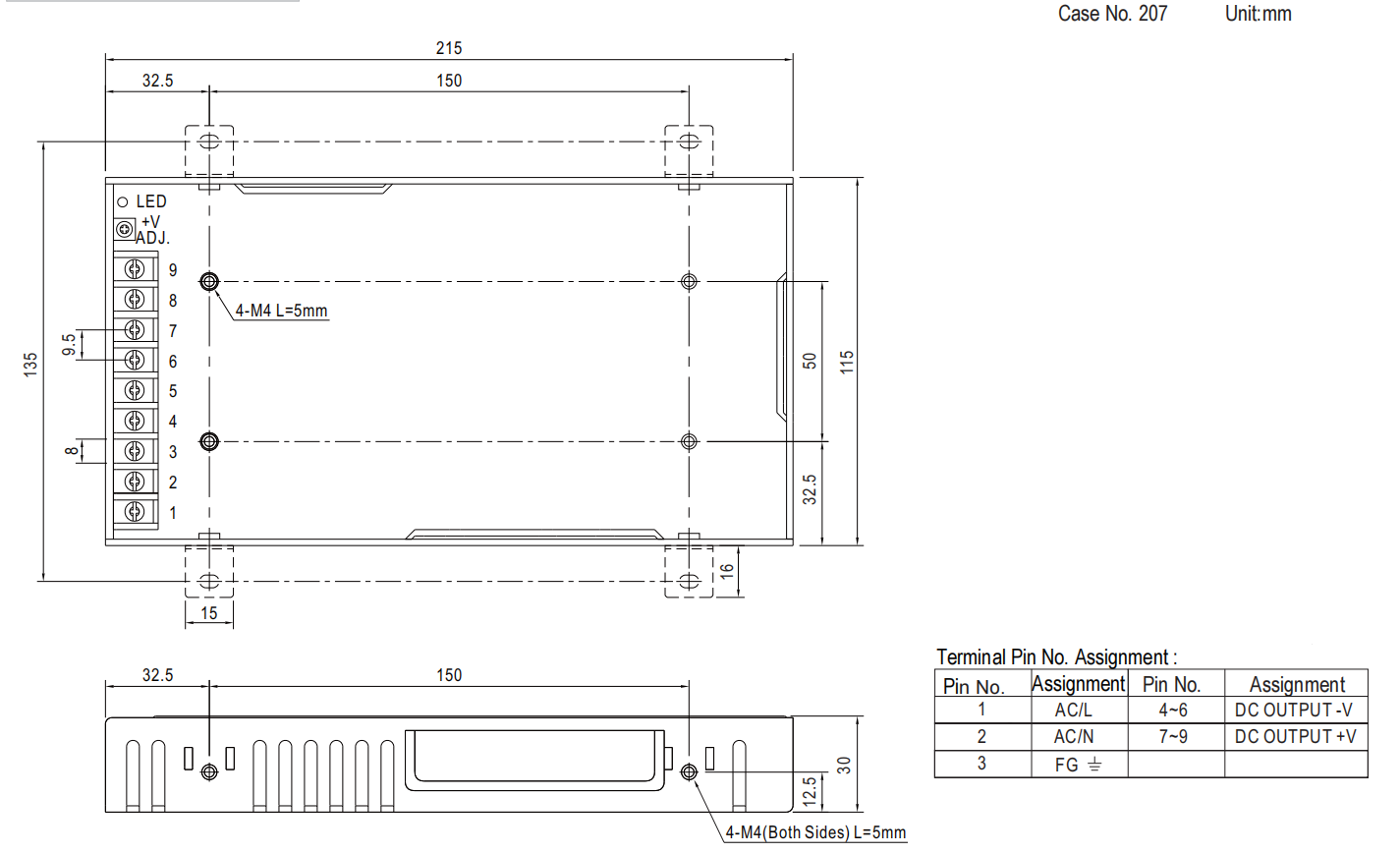

	DIMENSION	21511530mm (LWH)
	PACKING	0.75Kg;15pcs/12.3Kg/0.78CUFT
NOTE	All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. Tolerance:includes set up tolerance,line regulation and load regulation.
