Huidu VP620A Two-in-One Controller LED Video Processor Supports 5-way Synchronous Signal Input for LED Display Screen

Short Description:

HD-VP 620A is a two-in-one video processor that integrates a traditional video processor and 6 -way Gigabit Ethernet output. It not only simplifies the on-site environment construction, but also improves the reliability of the product. It supports 5- way synchronous signal input and can be used in various occasions that require synchronous playback, such as hotels, shopping malls, conference rooms, exhibitions, studios, etc. In addition, the device also supports point-to-point input/output, allowing the LED display to display clearer images.


Product Detail

Product Tags

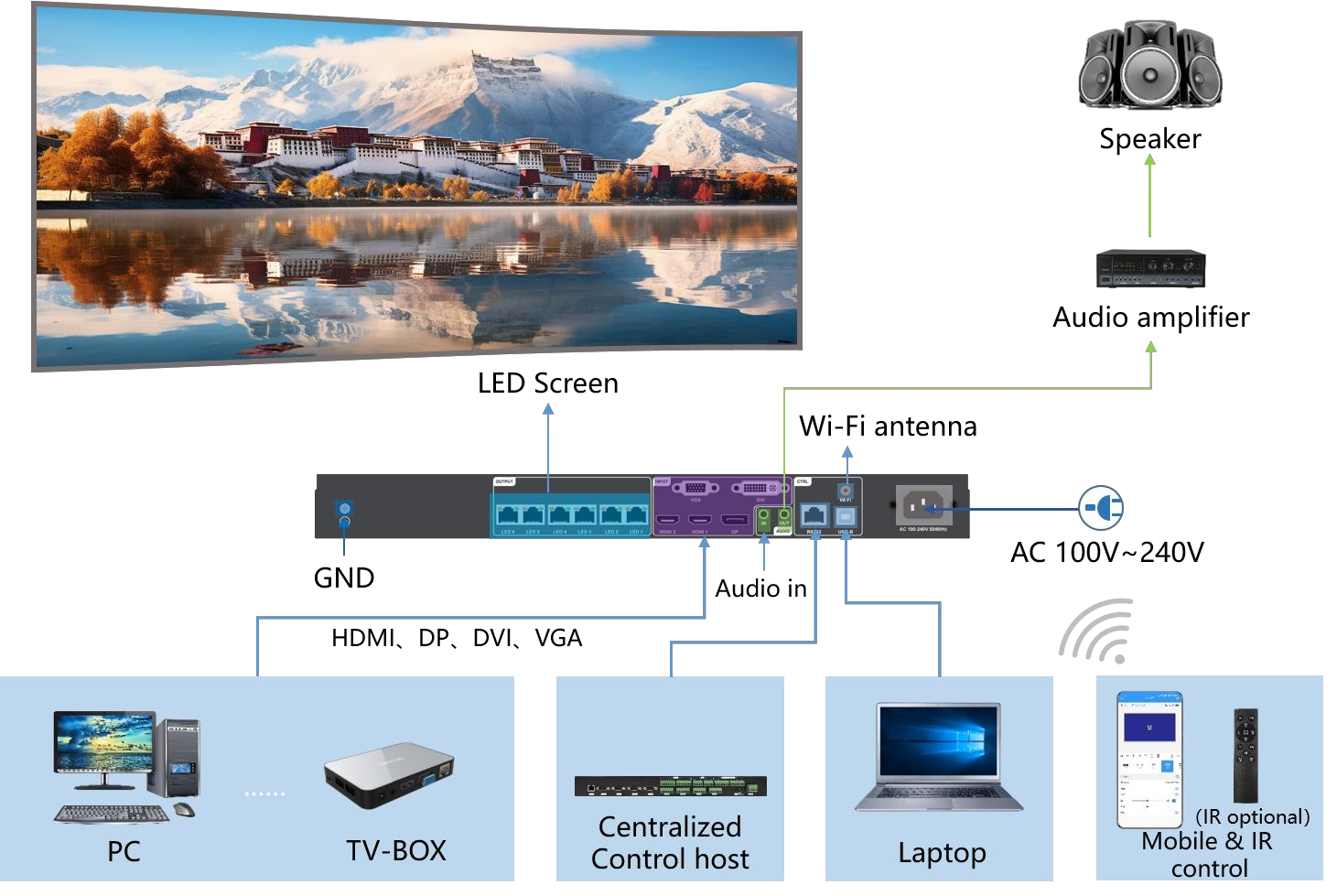

Connection Diagram

Connection Diagram

Product Characteristics

Input

. Supports up to 4096*2160 @60Hz synchronous signal input ;
. Supports 2-channel HDMI, 1-channel DP, 1-channel DVI, and 1-channel VGA signal input, and can switch
multiple video signals at will;
. Supports 1-way TRS 3.5mm standard two-channel audio input and HDMI/DP audio input.



Output

. Supports two-screen layout, maximum support 2×4K windows;
. Standard 6-channel Gigabit Ethernet port, cascaded with receiving card;
. The maximum control is 3.9 million pixels, the maximum horizontal support is 8192 pixels, and the
maximum vertical support is 4000 pixels ;
. 1 TRS 3.5mm standard two-channel audio output.



Function

. Video signals can be switched, cropped, and scaled at will;
. Support 16 scene presets and calls ;
. Support brightness adjustment, color temperature adjustment and key lock functions ;
. Support arbitrary overlapping of network ports and non-rectangular load;
. Support point-to-point display and limited to full conversion;
. Support RS232 serial port protocol control and docking with central control equipment;
. Support Wi -Fi Station mode, AP mode, Wi-Fi Station + AP mode;
. Support mobile phone APP wireless control;
. Support infrared remote control (optional).

Appearance

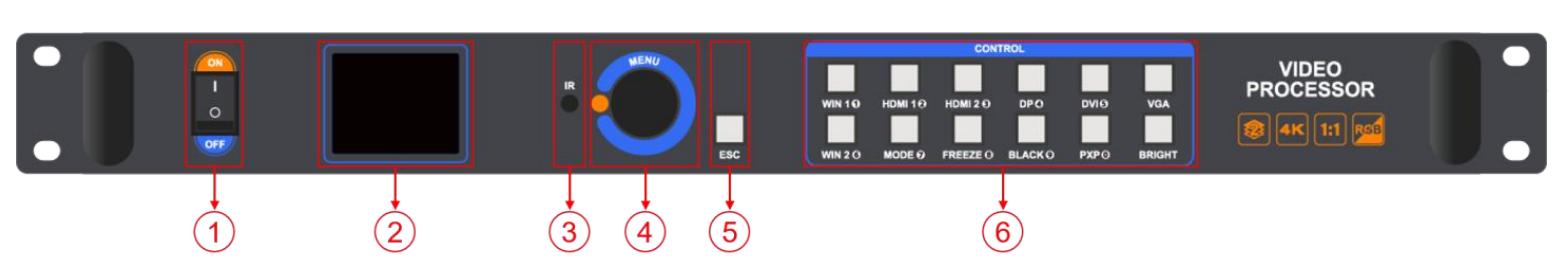

Front panel:

图2
Key Description
Serial number button illustrate
1 Power switch Control AC power input
2 LCD display screen Debug display menu, screen parameters and other information
3 IR (infrared) remote control receiver Infrared remote control receiver
4 MENU knob Press the knob to enter a submenu or confirm a selection

Rotate the knob to select menu items or adjust parameters

5 ESC Exit key /Back key




6



WIN1~WIN2

Select an open window

Function key: The key multiplexing function is digital selection,

generally used when setting the resolution



HDMI1

Select HDMI 1 signal playback

Function key: The key multiplexing function is digital selection,

generally used when setting the resolution



HDMI2

Select HDMI 2 signal playback

Function key: The key multiplexing function is digital selection,

generally used when setting the resolution



DP

Select DP signal to play

Function key: The key multiplexing function is digital selection,

generally used when setting the resolution





DVI

Select DVI signal playback

Function key: The key multiplexing function is digital selection,

generally used when setting the resolution

VGA Select VGA signal playback


MODE

Quickly call up the preset mode call menu

Function key: The key multiplexing function is digital selection,

generally used when setting the resolution



FREEZE

click freeze button

Function key: The key multiplexing function is digital selection,

generally used when setting the resolution



BLACK

One-touch black screen button

Function key: The key multiplexing function is digital selection,

generally used when setting the resolution



PXP

Quickly enter the two- screen layout menu

Function key: The key multiplexing function is digital selection,

generally used when setting the resolution

BRIGHT Quickly call out the brightness setting button

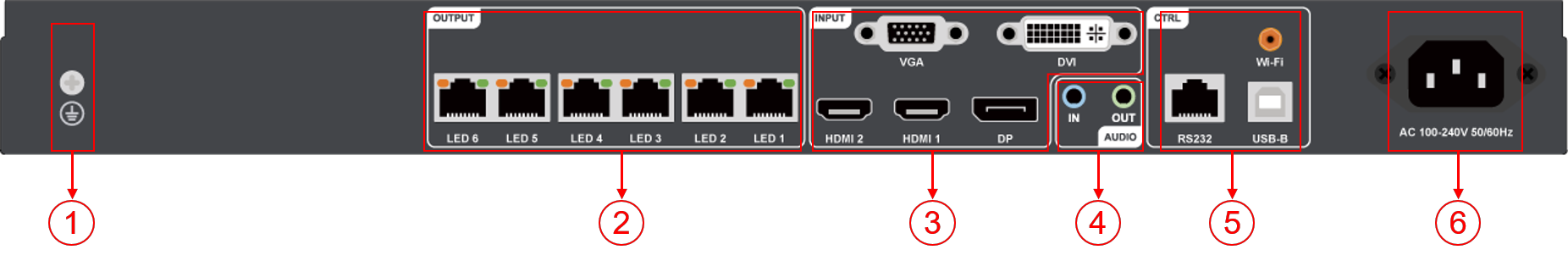

Rear panel

图3
Input Interface
Serial number Interface

Name

quantity illustrate


3



DP1.2



1

DP input interface

Interface type: DP

Signal standard: DP1.2 backward compatible

      Resolution: VESA standard,  ≥720×480@60Hz,  ≤4096×

2160@60Hz

Support audio input

























HDMI1~2

























2

HDMI 2.0 input interface  ×  1 (HDMI 1)

Interface type: HDMI-A

Signal standard: HDMI 2.0 backward compatible



Resolution: VESA standard,  ≥800×600@60Hz,  ≤4096×

2160@60Hz

Support audio input



HDMI 1.4 input interface  ×  1 (HDMI 2)

Interface type: HDMI-A

Signal standard: HDMI 1.4 backward compatible



Resolution: VESA standard,  ≥800×600@60Hz,  ≤

4096x2160@30Hz

Support audio input









DVI









1

DVI input interface

Interface type: DVI-I socket

Signal standard: DVI1.0, HDMI1.3 backward compatible    Resolution: VESA standard,  ≥800×600@60Hz,  ≤1920×

1200@60Hz











VGA











1

VGA input

Interface type: DB15 socket



Signal standard: R, G, B, Hsync, Vsync: 0 to1Vpp±3dB (0.7V

Video+0.3v Sync)

75 ohm black level: 300mV Sync-tip: 0V

      Resolution: VESA standard,  ≥720×480@60Hz,  ≤1920×

1080@60Hz

4 AUDIO IN 1 TRS 3.5mm dual channel audio input interface
6 power supply 1 AC 100 ~ 240V 50/60Hz
Output Interface
Serial number Interface Name quantity illustrate
1 Grounding interface 1 Anti-static/leakage protection, personal safety protection and equipment normal operation protection
2 Gigabit Ethernet 8 Used for cascading receiving cards, transmitting RGB data stream, each network port controls 650,000 images, supports docking multi-function cards
4 AUDIO OUT 1 TRS 3.5mm dual-channel audio output interface

Connect to an audio amplifier for high-power external speakers



Control interface
Serial number Interface Name quantity illustrate


5

RS232 1 R J45 interface, connected to the central control device
USB-B 1 Connect to a computer for debugging the device
Wi-Fi antenna interface 1 Connect the Wi-Fi antenna, , enhance Wi-Fi signal

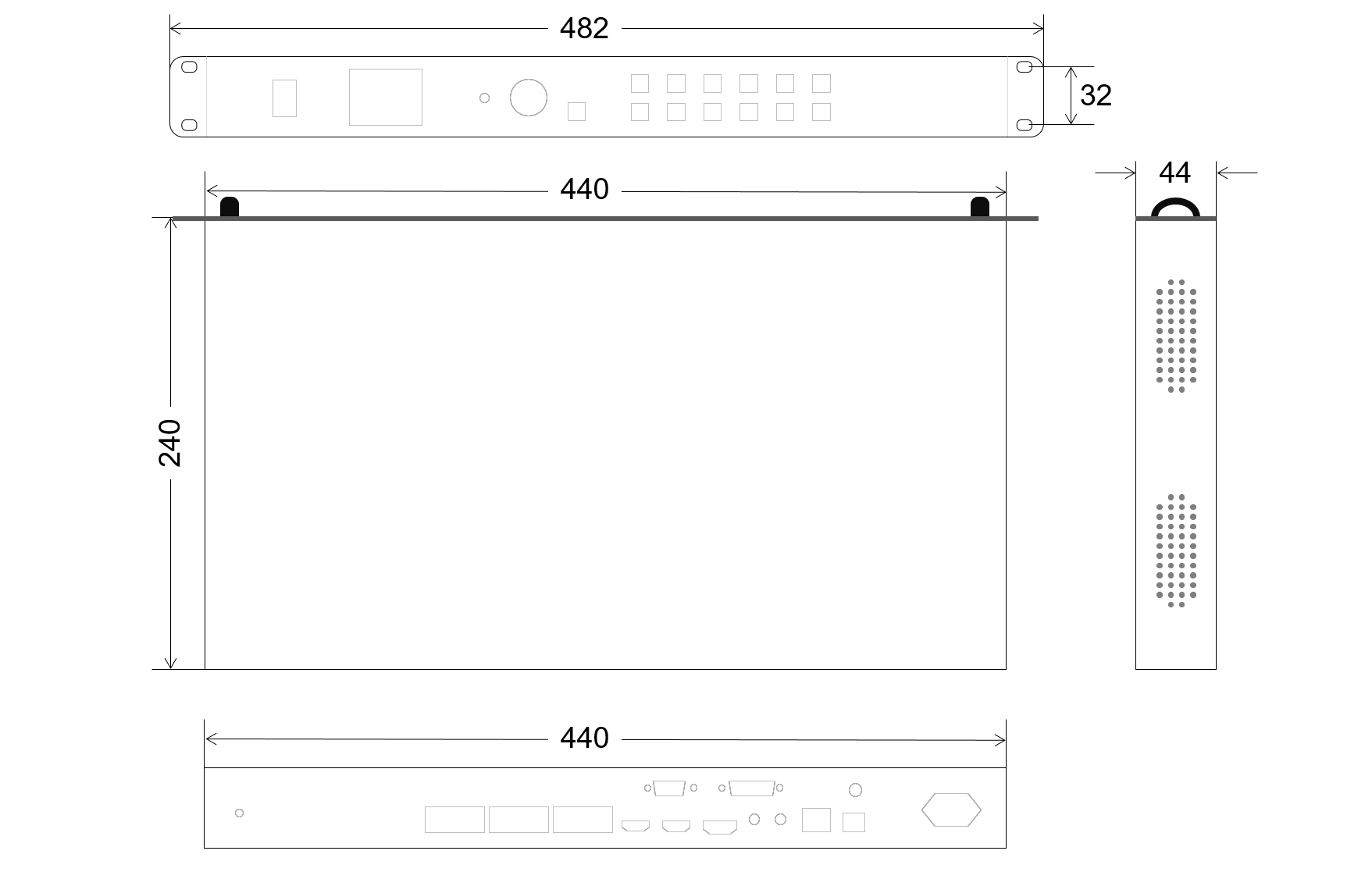

Dimensions

Dimension

Basic Parameters

Parameters Parameter Value
Chassis specifications 1U Standard
Electrical specifications power supply AC 100~240V 50/60Hz
Power consumption 50W


Work Environment

Operating temperature

 (。C)



-20  ℃ ~55  ℃

Operating

humidity (RH)

20%RH~90%RH (no condensation)


Storage Environment

Storage temperature (℃)

-20  ℃ ~60  ℃

Storage humidity

(RH)

10%RH~95%RH (no condensation)
Equipment Specifications size W×H×D/482mm×44mm×240mm
net weight 2.9kg
Packing specifications Packing size W×H×D/ 515mm×82mm×355mm
Packing weight 4 kg
