Huidu LED Controller VP1220C All-in-One Video Processor with 12Gigabit Ethernet Output 4K Sync & Multi-Screen Control for LED Displays

Huidu LED Controller VP1220C All-in-One Video Processor with 12Gigabit Ethernet Output 4K Sync & Multi-Screen Control for LED Displays Featured Image
  • Huidu LED Controller VP1220C All-in-One Video Processor with 12Gigabit Ethernet Output 4K Sync & Multi-Screen Control for LED Displays

Short Description:

HD-VP1220C is a two-in-one video processor that integrates a traditional video processor and 12 -way Gigabit Ethernet output. It not only simplifies the on-site environment construction, but also improves the reliability of the product. It supports 5- way synchronous signal input and can be used in hotels, shopping malls, conference rooms, exhibitions, studios and other occasions that require synchronous playback; In addition, the device also supports point-to-point input/output, allowing the LED screen to display clearer images.




Whatsapp Email

Product Detail

Product Tags

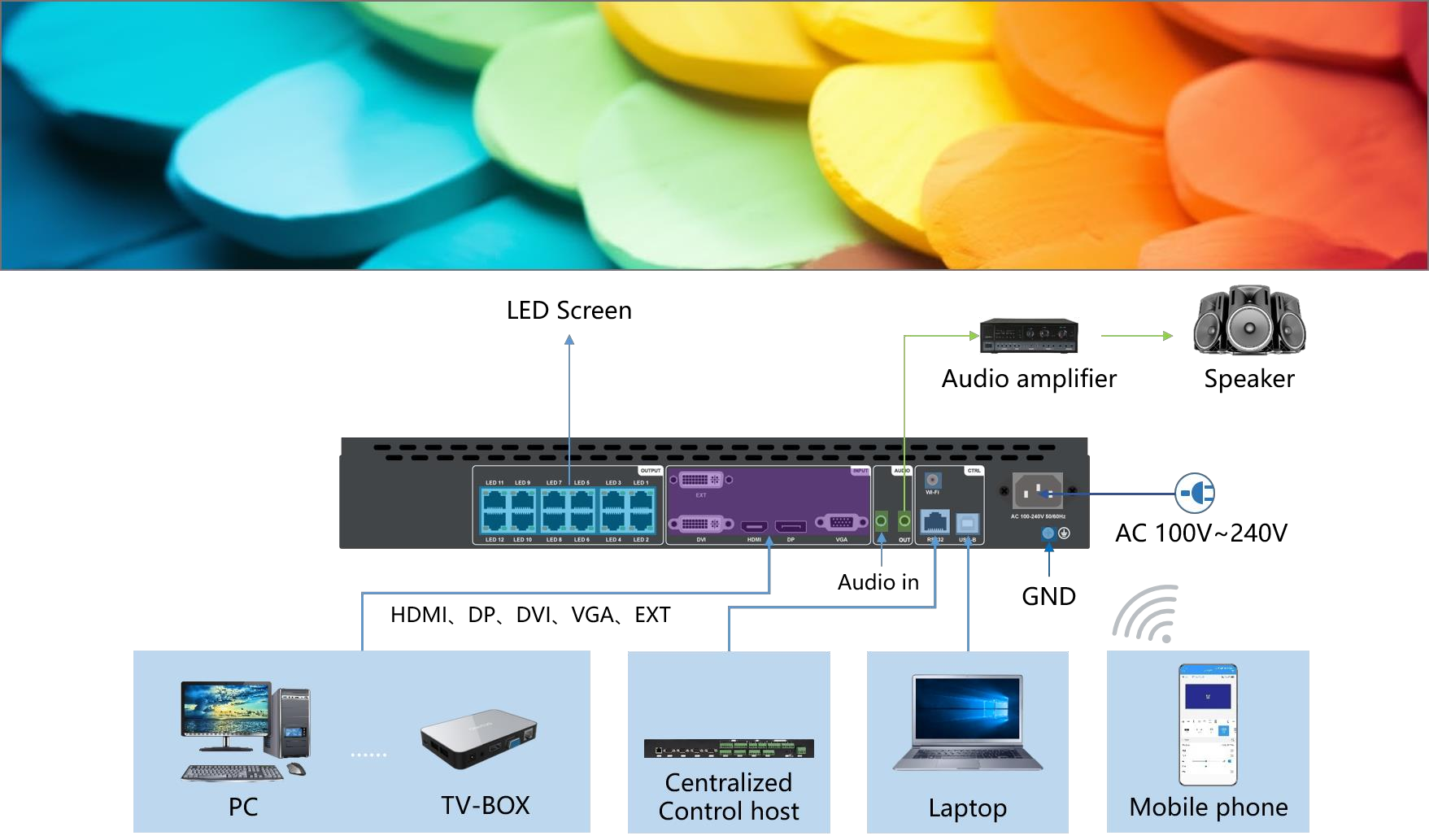

Connection Diagram

Connection Diagram

Product Characteristics

Input

. Supports up to 3840*2160 @60Hz synchronous signal input ;
. Supports 1-channel HDMI, 1-channel DP, 1-channel DVI, 1-channel VGA and 1-channel EXT signal input and can switch multiple video signals at will;
. Supports 1-way TRS 3.5mm standard dual-channel audio input and HDMI /DP audio input.



Output

. Supports two-screen layout, maximum support 2×4K windows;
. Standard 12-channel Gigabit network port, directly cascade receiving card;
. The maximum control is 7.8 million pixels, the maximum horizontal support is 16000 pixels, and the maximum vertical support is 4000 pixels ;
. 1 TRS 3.5mm standard two-channel audio output.


Function

. Video signals can be switched, cropped, and scaled at will;
. Support 8 scene presets and calls ;
. Support brightness adjustment, color temperature adjustment and key lock functions ;
. Support arbitrary overlapping of network ports and non-rectangular load;
. Support point-to-point display and limited to full conversion;
. Support RS232 serial port protocol control and docking with central control equipment;
. Support Wi -Fi Station mode, AP mode, Wi-Fi Station + AP mode;
. Support mobile phone APP wireless control;
. Supports equipment binding.

Appearance

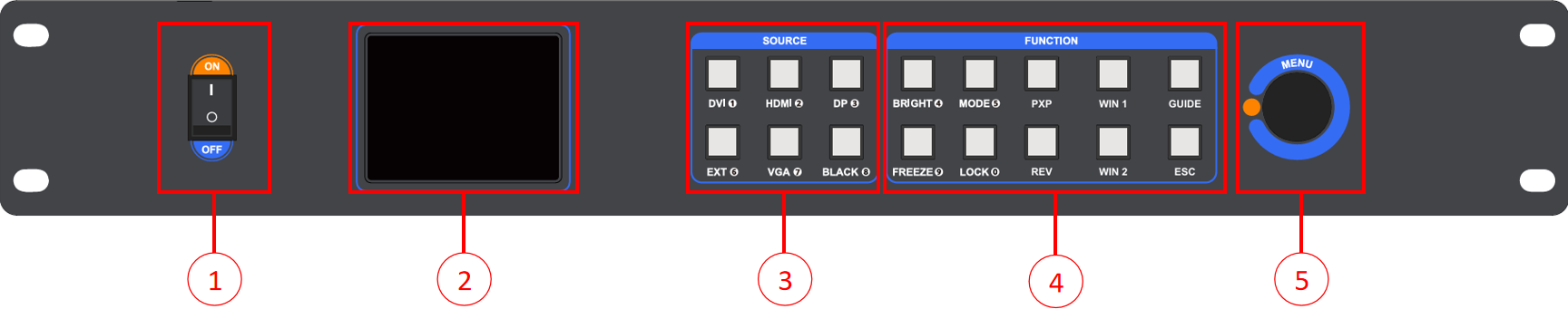

Front panel：

Front panel
Key Description
Serial number button illustrate
1 Power switch Control AC power input
2 LCD display screen Debug display menu, screen parameters and other information






















3



DVI

 Select DVI signal playback

Function key: The key multiplexing function is digital selection, generally used when setting the resolution


HDMI

 Select HDMI signal playback

Function key: The key multiplexing function is digital selection, generally used when setting the resolution


DP

 Select DP signal to play

Function key: The key multiplexing function is digital selection, generally used when setting the resolution


EXT

 Select EXT signal playback

Function key: The key multiplexing function is digital selection, generally used when setting the resolution


VGA

 Select VGA signal playback

Function key: The key multiplexing function is digital selection, generally used when setting the resolution


BLACK

 One-touch black screen button

Function key: The key multiplexing function is digital selection, generally used when setting the resolution






4



BRIGHT

 Quickly call out the brightness setting button

Function key: The key multiplexing function is digital selection, generally used when setting the resolution


MODE

 Quickly call up the preset mode call menu

Function key: The key multiplexing function is digital selection, generally used when setting the resolution



  PXP Quickly enter the two- screen layout menu
WIN1~WIN2 Select an open window
GUIDE Quickly call out the "intelligent navigation" setting interface


FREEZE

 click freeze button

Function key: The key multiplexing function is digital selection, generally used when setting the resolution


LOCK

 Button lock to prevent misoperation.

Function key: The key multiplexing function is digital selection, generally used when setting the resolution
REV Retain the function keys.
ESC Exit key /Back key
5 MENU knob Press the knob to enter a submenu or confirm a selection

Rotate the knob to select menu items or adjust parameters

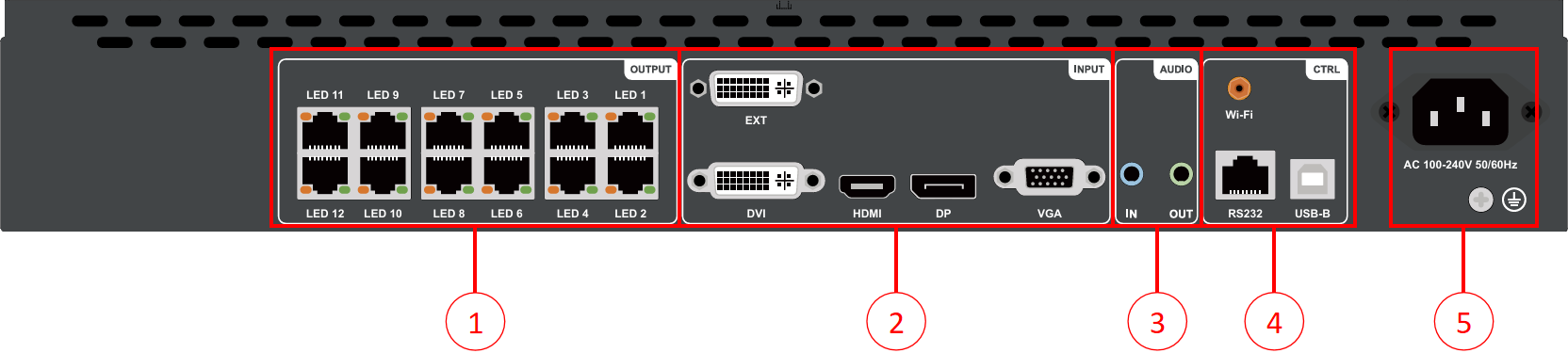

Rear panel：

rear panel
Input Interface
Serial number Interface

Name

 quantity illustrate
2

DP1.2



1

 DP input interface

Interface type: DP

Signal standard: DP1.2 backward compatible

Resolution: VESA standard,  ≥800×600@60Hz，≤3840×2160@60Hz

Support audio input


HDMI2.0



1

 HDMI input interface

Interface type: HDMI-A

Signal standard: HDMI 2.0 backward compatible
      Resolution: VESA standard,≥800×600@60Hz，≤3840×2160@60Hz

Support audio input






VGA







1

 VGA input interface

Interface type: DB15 socket

Signal standard: R, G, B, Hsync, Vsync: 0 to1Vpp±3dB (0.7V

Video+0.3v Sync)

75 ohm black level: 300mV Sync-tip: 0V

Resolution: VESA standard,  ≥800×600@60Hz，≤1920×

1080p@60Hz


DVI



1

 DVI input interface

Interface type: DVI-I socket

Signal standard: DVI1.0 backward compatible

Resolution: VESA standard,  ≥800×600@60Hz,  ≤1920×1200@60Hz




EXT





1

 Expansion interface: DVI is the default standard configuration.

DVI input interface

Interface type: DVI-I socket

Signal standard: DVI1.0 backward compatible

Resolution: VESA standard,  ≥800×600@60Hz，≤1920×1200@60Hz
3 AUDIO IN 1 TRS 3.5mm dual channel audio input interface
5 Power supply 1 AC 100~240V 50/60Hz



Output Interface
Serial  number Interface Name quantity illustrate
1 Gigabit

Ethernet

 12 Used for cascading receiving cards, transmitting RGB data stream, each

network port controls 650,000 pixels, supports docking multi-function cards
3 AUDIO

OUT

 1 TRS 3.5mm dual-channel audio output interface

Connect to an audio amplifier for high-power external speakers
5 Grounding interface 1 Anti-static/leakage  protection,  personal  safety  protection  and  equipment normal operation protection



Control interface
Serial number Interface

Name

 quantity illustrate






4

 Wi-Fi antenna interface 1 Connect a Wi-Fi antenna to enhance Wi-Fi signal
RS232 1 RJ45 interface, connected to the central control device
USB-B 1 Connect to a computer for debugging the device

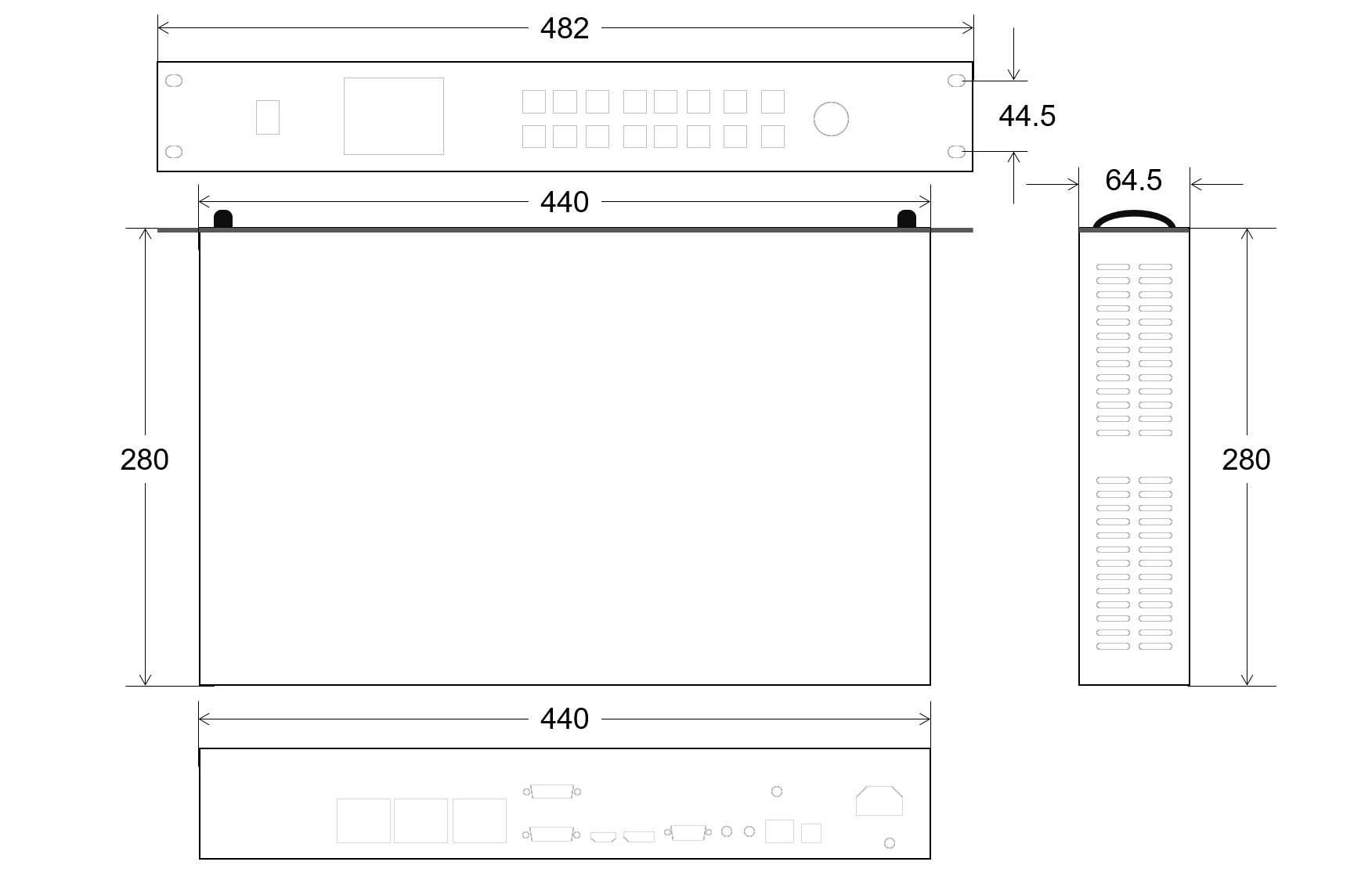

Dimensions

Dimensions

Basic Parameters

Parameters Parameter Value
Chassis specifications 1.5U Standard
Electrical specifications power supply AC 100~240V 50/60Hz
Power consumption 50W
Work Environment Operating temperature (。C) -20℃ ~55℃
Operating humidity (RH) 20%RH~90%RH (no condensation)
Storage Environment Storage temperature (℃) -20℃~60℃
Storage humidity (RH) 10%RH~95%RH (no condensation)
Equipment Specifications size W×H×D/482mm×64.5mm×280mm
net weight 3.65kg
Packing specifications Packing size W×H×D/ 515mm×120mm×380mm
Packing weight 4.7kg
