GOB LED Module P1.53 P1.86 P2 P2.5 P3.076 Indoor Fine Pitch LED Display Screen for Commercial Space & Public Service

Short Description:

GOB (Glue on Board) LED modules represent an advanced packaging solution for indoor and semi-outdoor visual displays, integrating full-surface adhesive encapsulation technology with high-performance LED optoelectronic design. Engineered to address the pain points of traditional LED modules, this product delivers superior reliability, stunning visual quality and wide adaptability, making it a preferred choice for high-standard display projects.

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

Product Customization Process

If you are interested in our products, please communicate with our customer service in time. We will customize the most suitable LED display solution for you based on your needs.

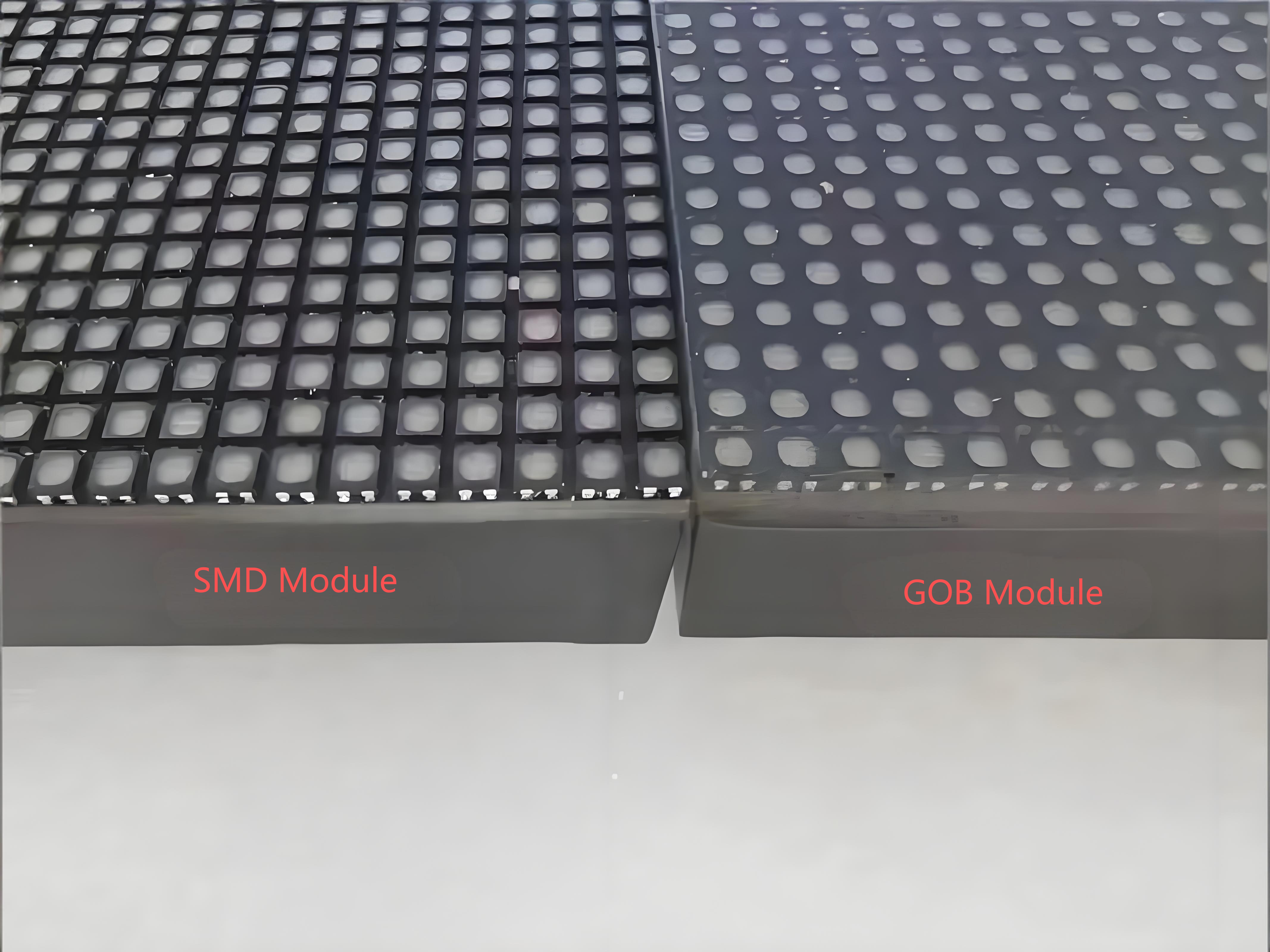

GOB & SMD

Structure & Protection

SMD modules use independent surface-mounted lamp beads, with exposed chips and circuits, offering basic protection only.

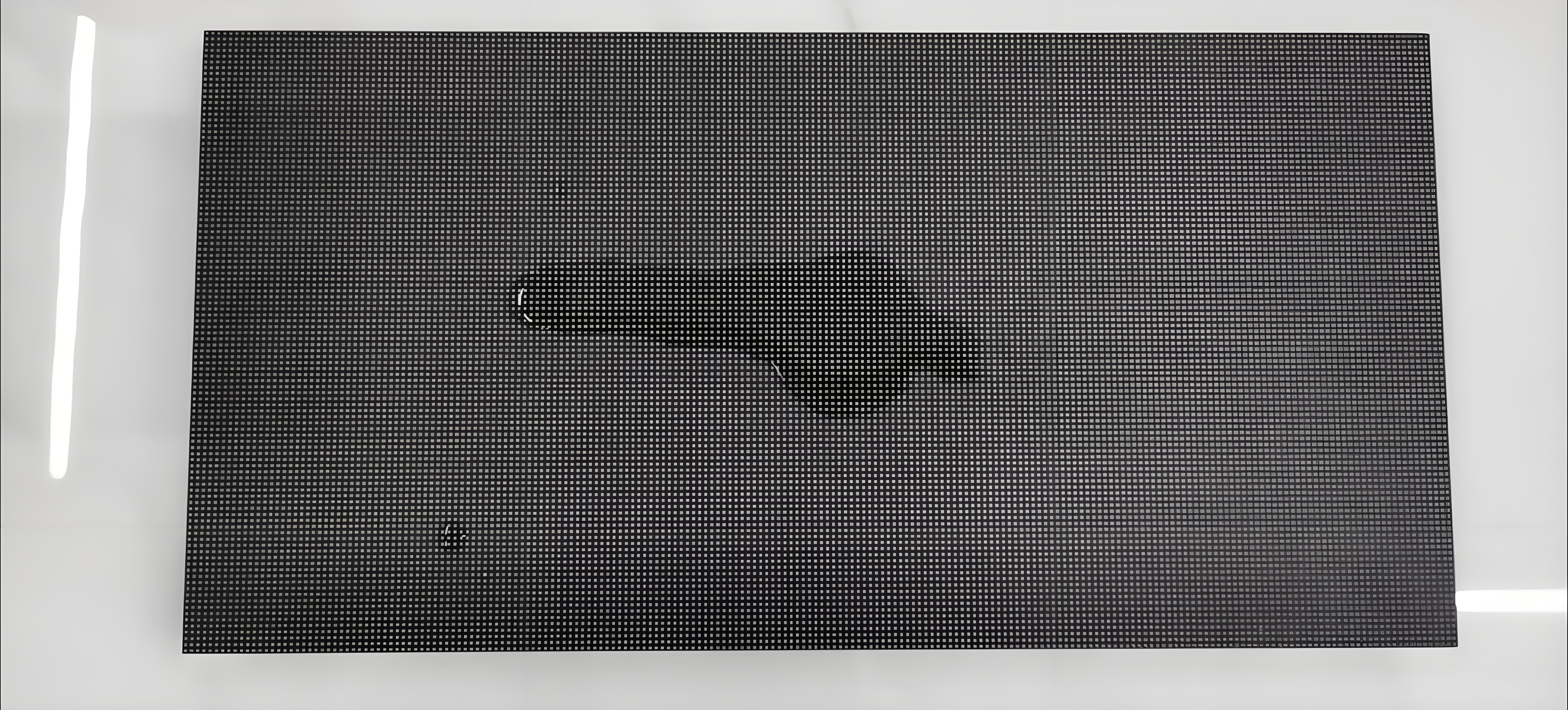

GOB modules add a full-surface optical glue layer on the basis of SMD, forming a fully sealed protective structure with higher waterproof, dustproof, shockproof and impact-resistant performance.

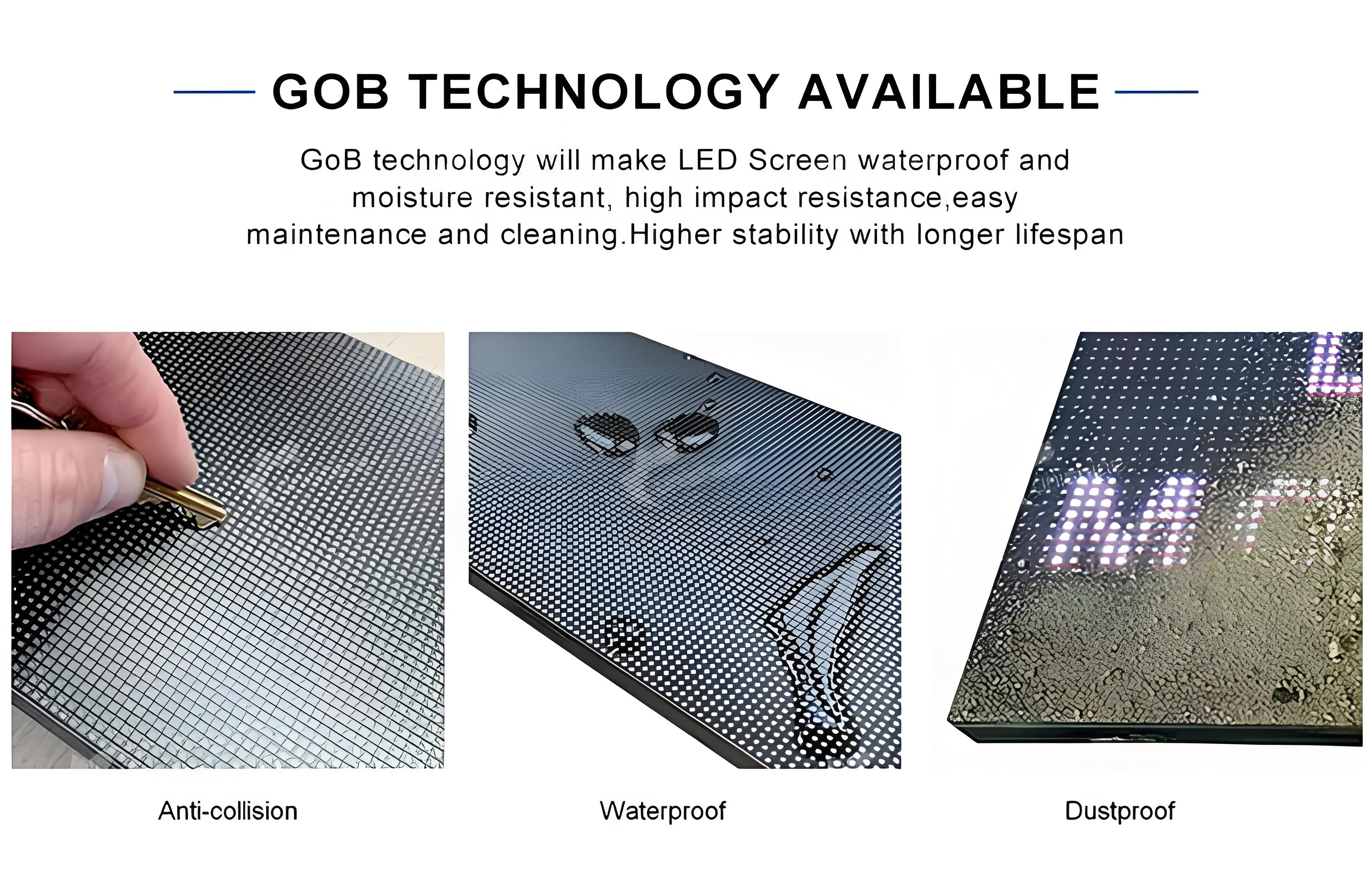

The GOB (Glue On Board) process is a technology used in the manufacturing of LED displays. The primary step involves filling the light surface of LED modules with specialized adhesive. Upon drying, the adhesive forms a robust protective layer on the module's light surface. This protective layer not only enhances the protective capability of LED displays but also offers impact resistance, water resistance, dust resistance, and shock resistance.

Product Parameters

Fine Pitch LED Display Module
Model	P1.538	P1.86	P2	P2.5
Pixel Pitch	1.536mm	1.86mm	2mm	2.5mm
Module Size	320*160mm
Module Resolution	208*104 Dots	172*86 Dots	160*80 Dots	128*64 Dots
LED Lamp	SMD1212	SMD1515	SMD1515	SMD2020
Drive Modes	1/52	1/43	1/40	1/32
Refresh Rate	≥3840Hz
IP Rating	IP5X
Brightness	≥500nit
Best Viewing Angle	H：160° V：140°

Product Features

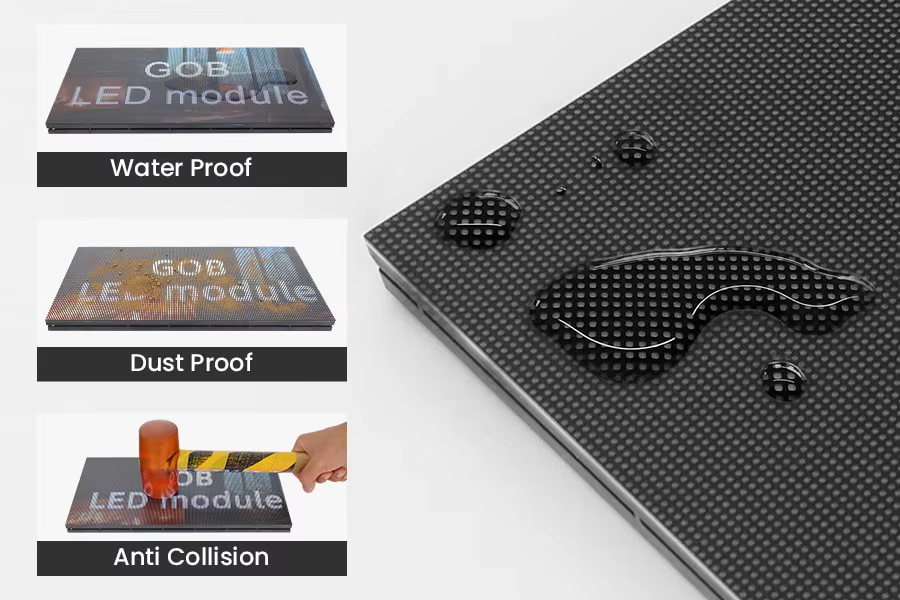

1.Enhanced Reliability & Durability

The full encapsulation structure effectively prevents LED chip damage, dust accumulation and moisture penetration, reducing failure rates and maintenance costs. Compared with standard SMD modules, the service life is extended by nearly 30%, adapting to long-term uninterrupted operation.

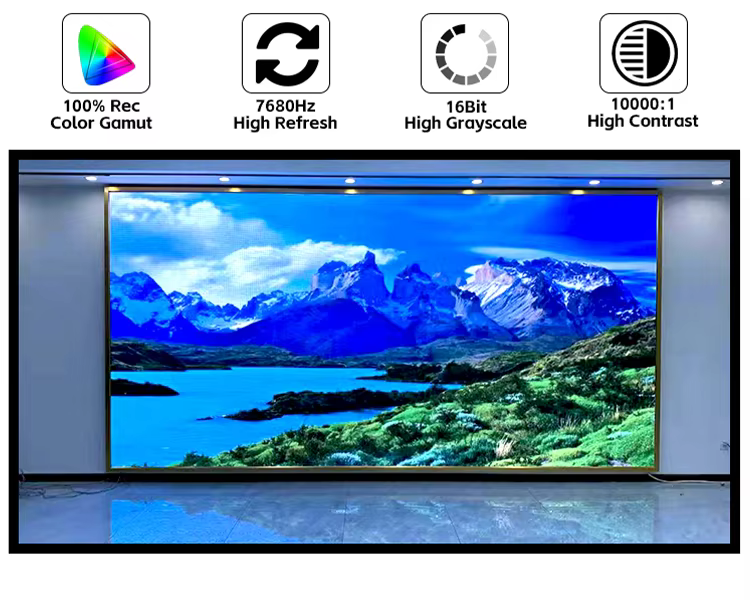

2.Superior Visual Experience

High refresh rate and wide color gamut ensure realistic color reproduction and smooth dynamic video playback. The seamless design eliminates the grid effect, delivering a more immersive and comfortable viewing experience for audiences.

High Brightness High refresh High gray scale

3.Energy Efficiency & Cost Savings

High luminous efficiency LED chips reduce power consumption by 30% compared with conventional LED modules. Intelligent brightness adjustment and low-power standby mode further optimize energy use, lowering long-term operating costs.

4.Wide Environmental Adaptability

Resistant to dust, humidity, mild impact and temperature fluctuations, suitable for high-traffic public spaces and semi-outdoor covered areas where traditional LED modules are prone to damage.

Application Scenarios

GOB LED modules are widely applied in high-standard indoor and semi-outdoor display projects, covering major industries with strict requirements for display quality and reliability.

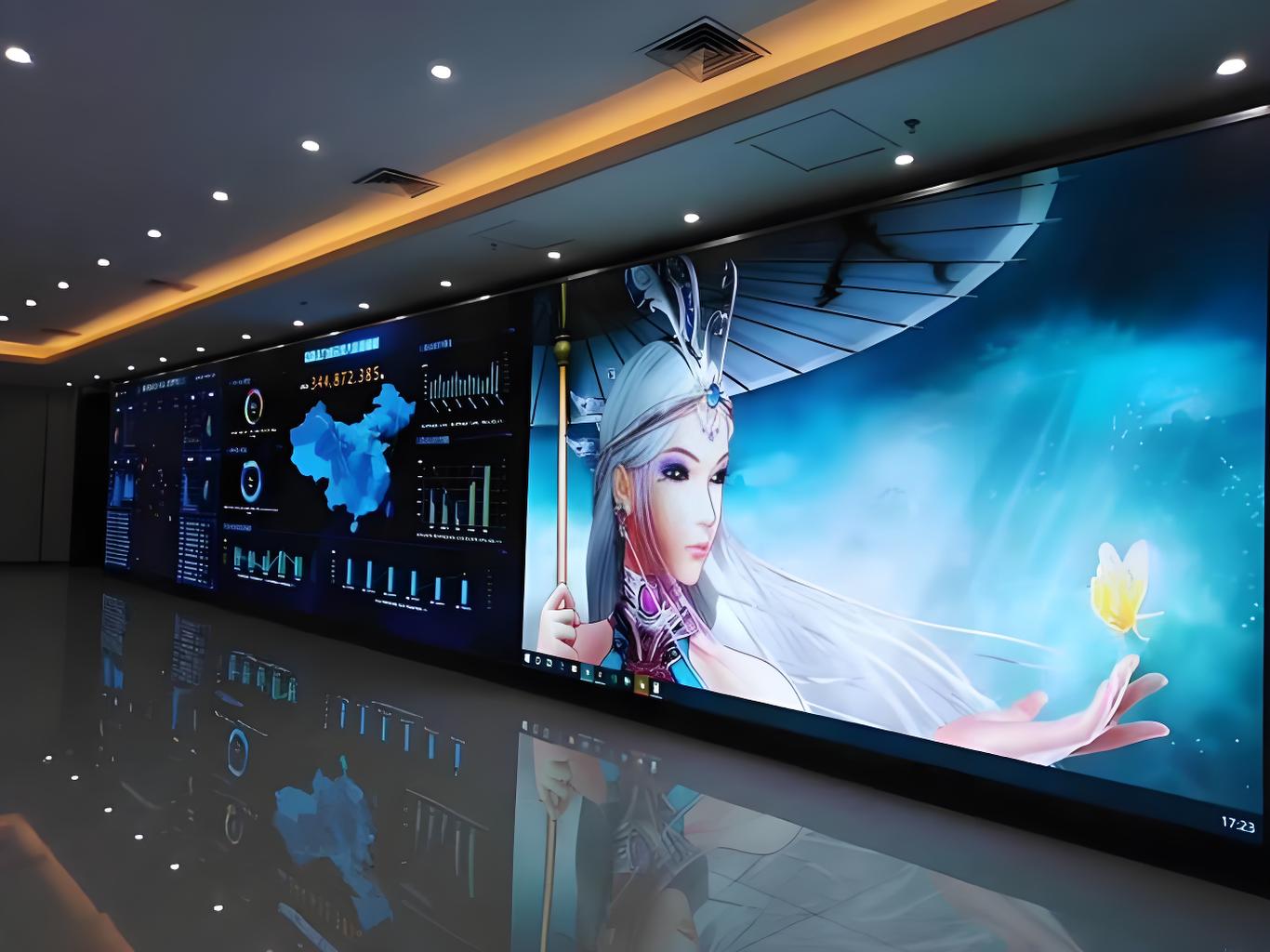

1、Commercial & Retail Spaces

High-end shopping malls, luxury brand stores, hotel lobbies, chain retail stores, advertising light boxes and brand display walls, used for product promotion and brand image building.

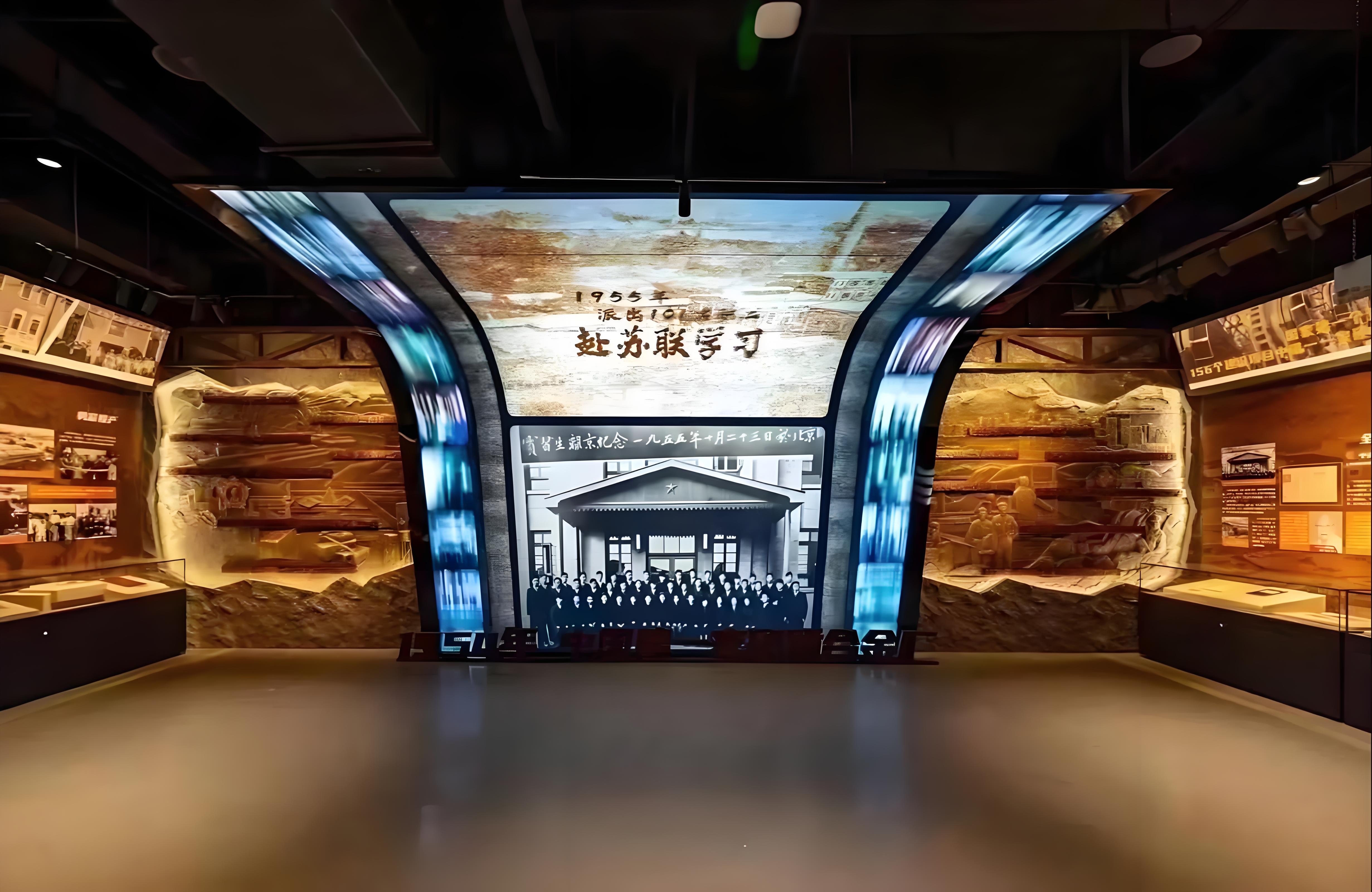

2、Cultural & Exhibition Venues

Museums, art galleries, exhibition halls, science and technology centers, providing immersive display for cultural relics, artworks and exhibition content with high-definition and stable visuals.

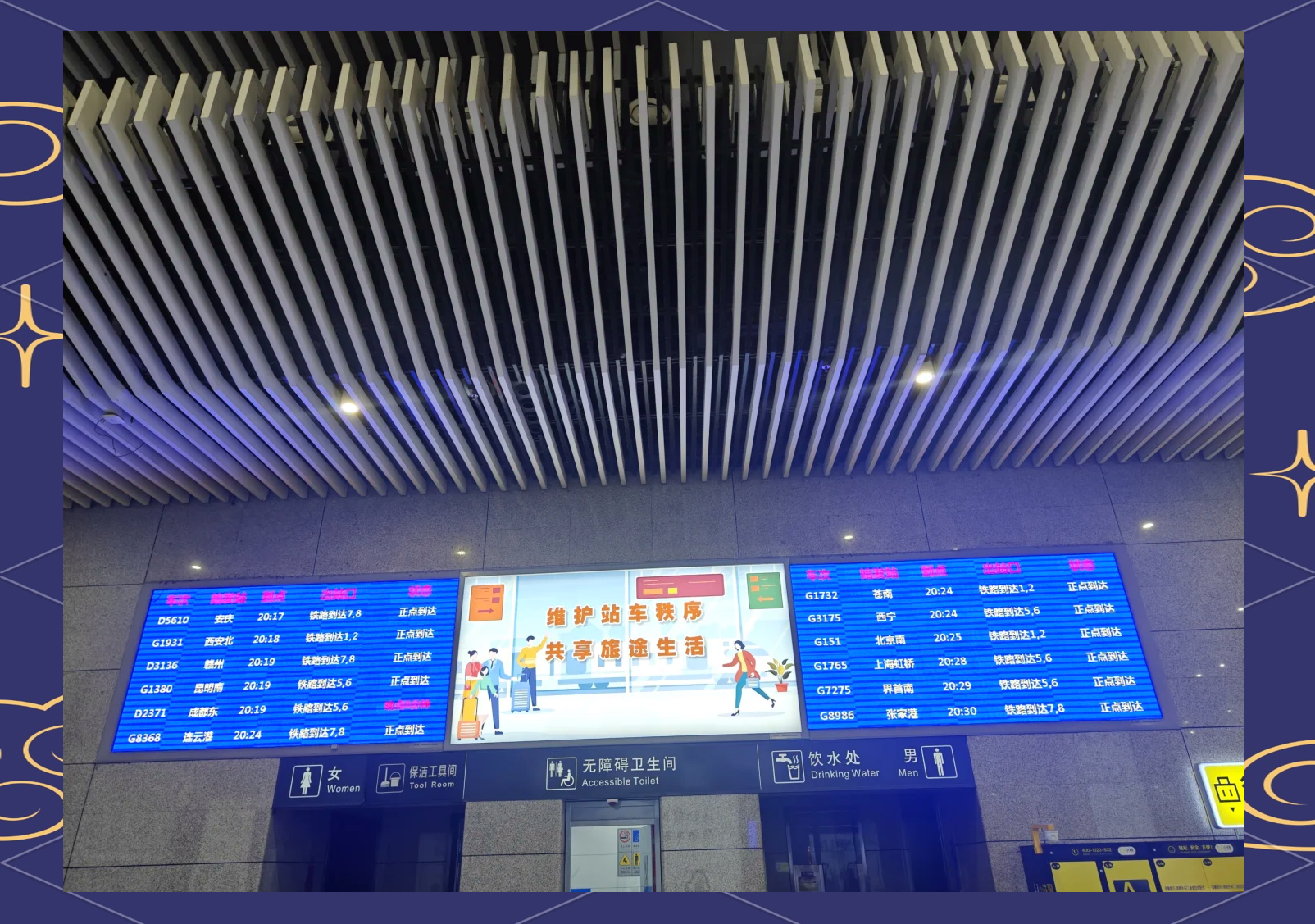

3、Public Service & Transportation Hubs

Government service halls, airports, high-speed rail stations, subway stations, bus terminals, displaying real-time information, service guidelines and public announcements.

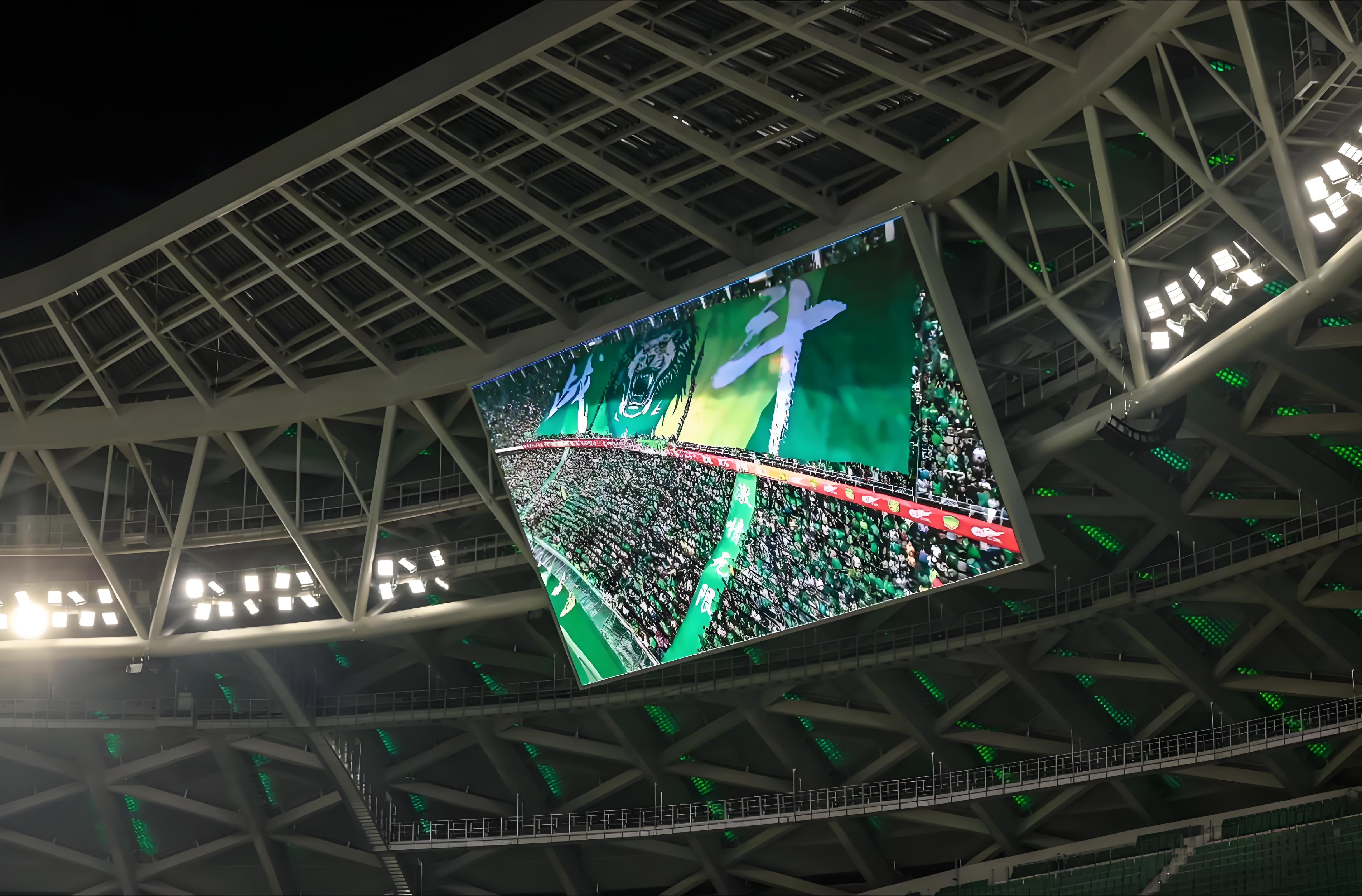

4、Entertainment & Sports Venues

Stadiums, concert halls, theater stage backdrops, banquet halls, delivering high-speed dynamic visuals and enhancing on-site interactive experience.

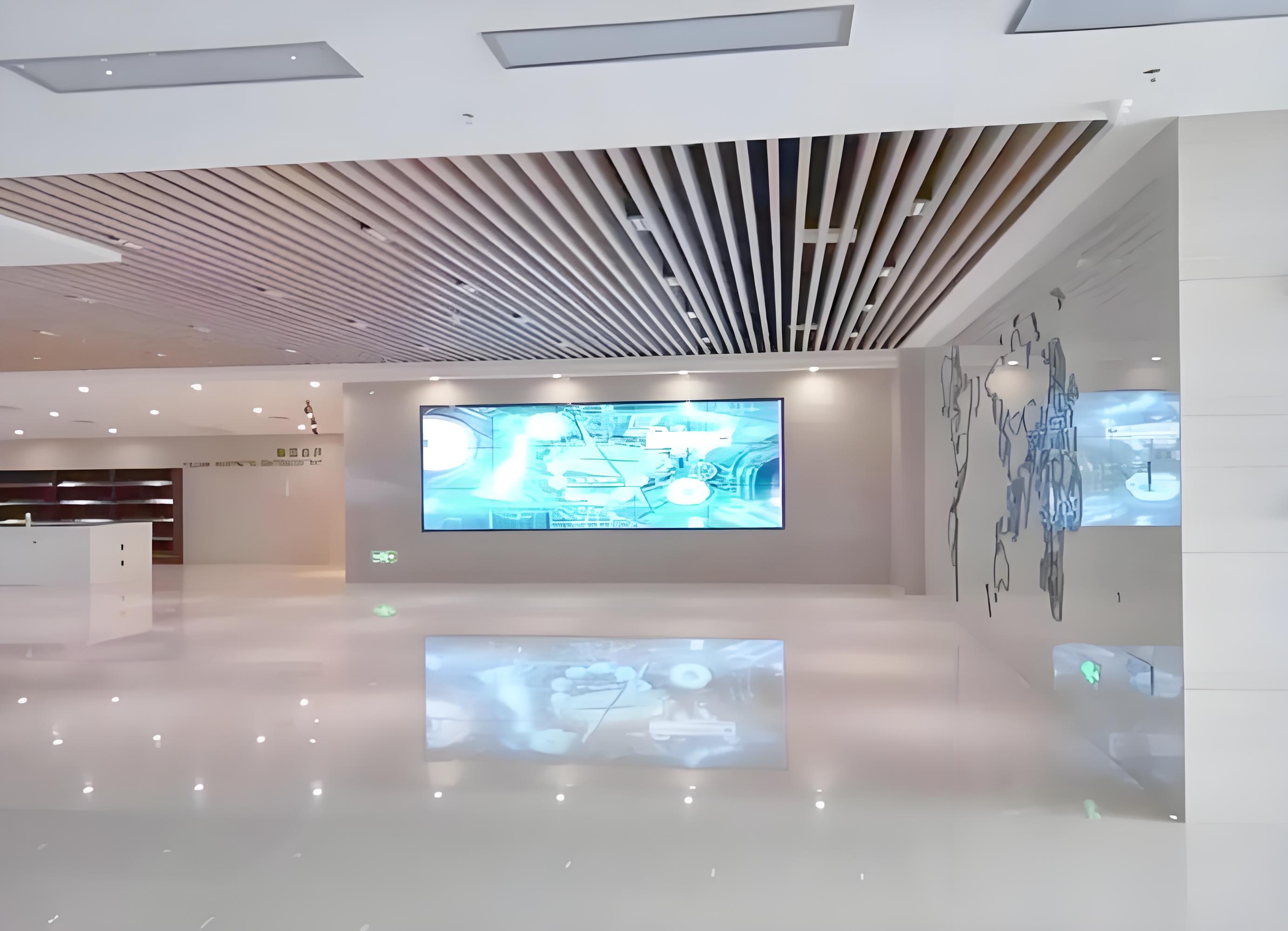

5、Enterprise & Command Centers

Conference rooms, monitoring command centers, corporate exhibition halls, office lobby screens, realizing real-time data visualization and efficient information display.

Diversified Installation

There are multiple installation methods for LED rental displays, and you can choose the most suitable installation method according to your needs. We will also provide professional guidance based on your requirements, so please feel free to contact us.

Production Process

We have professional LED display production equipment and assembly personnel. You only need to provide your needs, and we will provide you with comprehensive professional services from scratch. From developing production plans to the production and assembly of displays, we will ensure quality and quantity. You can rest assured to cooperate with us.
