High-Performance LED Flexible Modules Any Structure can be Customized for Indoor Outdoor Shopping Malls, Concert Stages & Creative Architecture

Short Description:

LED flexible modules, also known as flexible LED modules or bendable LED display modules, are innovative display components designed to break the limitations of traditional rigid LED modules. Unlike conventional rigid panels, they adopt flexible substrates and advanced manufacturing technology, enabling them to bend, curve, and fit irregular surfaces while delivering high-quality visual performance. Widely used in creative displays, architectural decoration, stage design and other fields, they have become a core choice for high-impact, customized display solutions.

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

Product customization process

As a professional LED display manufacturer, we have many years of manufacturing and sales experience, with a professional pre-sales and after-sales team. You only need to tell us your needs, and we will provide you with professional customized solutions according to your actual situation. You don't need to worry, so if you have any needs, please contact us immediately!

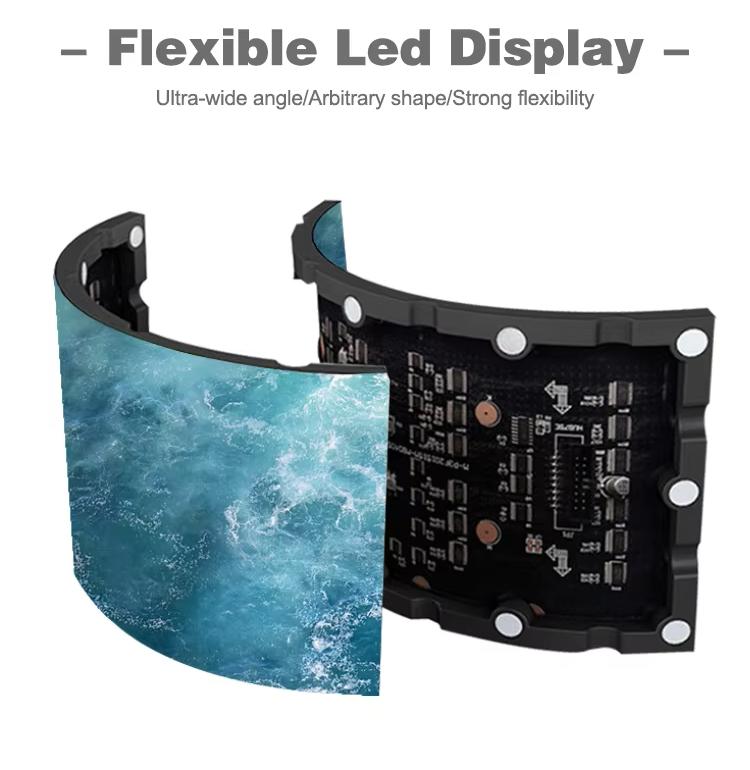

LED flexible modules represent a cutting-edge category of display technology, distinguished by their exceptional flexibility and adaptability. Unlike traditional rigid panels, they utilize advanced flexible substrates and encapsulation materials, enabling them to bend, curve, and conform to irregular surfaces with precision. This core characteristic makes them ideal for creating dynamic, customized visual displays in architectural, stage, and commercial environments.

Compare with Standard LED Module

Comparison Dimension	LED Flexible Module	Traditional Rigid LED Module

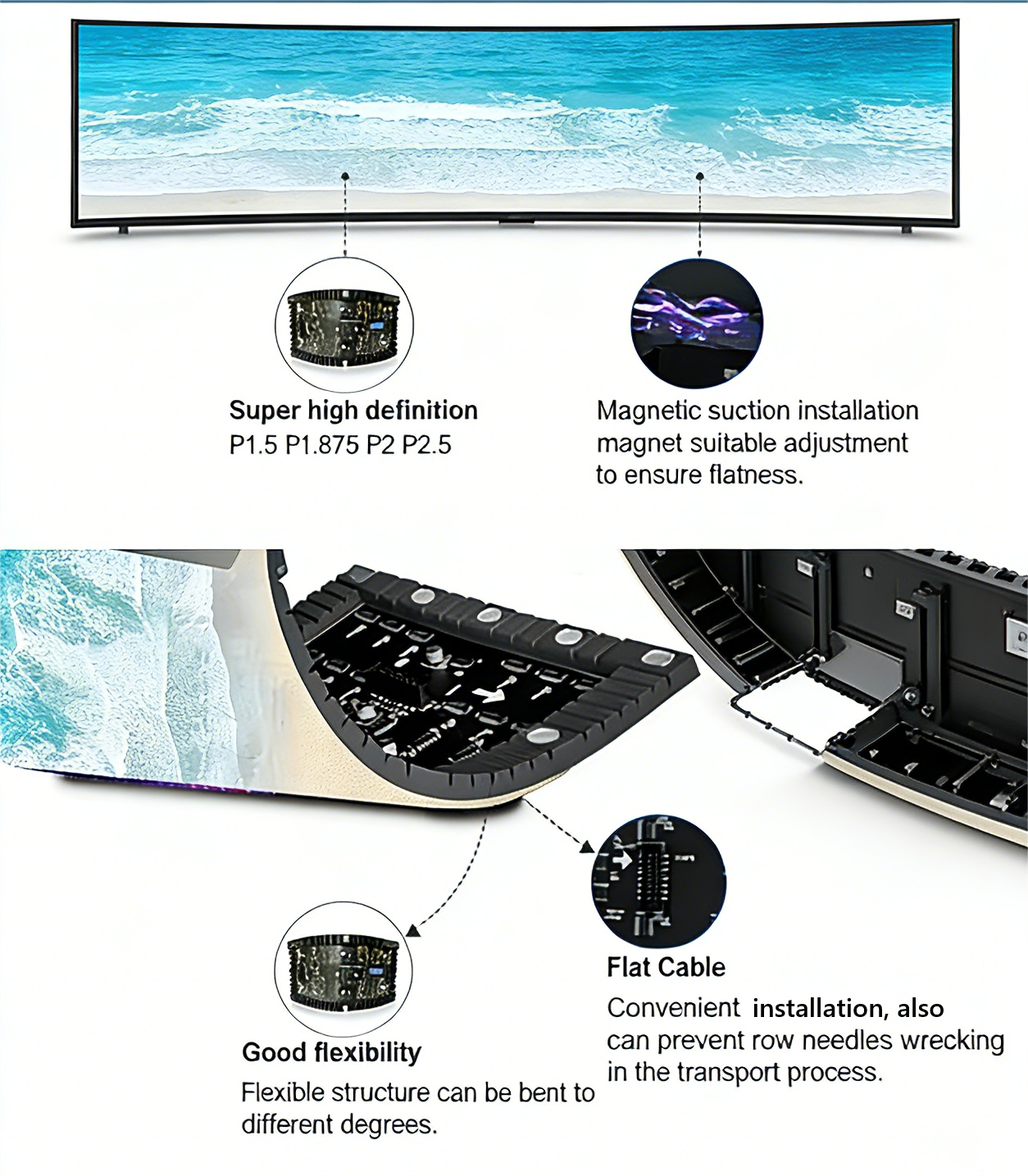

Structure & Material	Adopts flexible FPC (flexible PCB) and silicone housing, soft and bendable, no metal cabinet required.	Uses hard PCB and plastic frame, supported by metal cabinet, rigid and non-bendable.

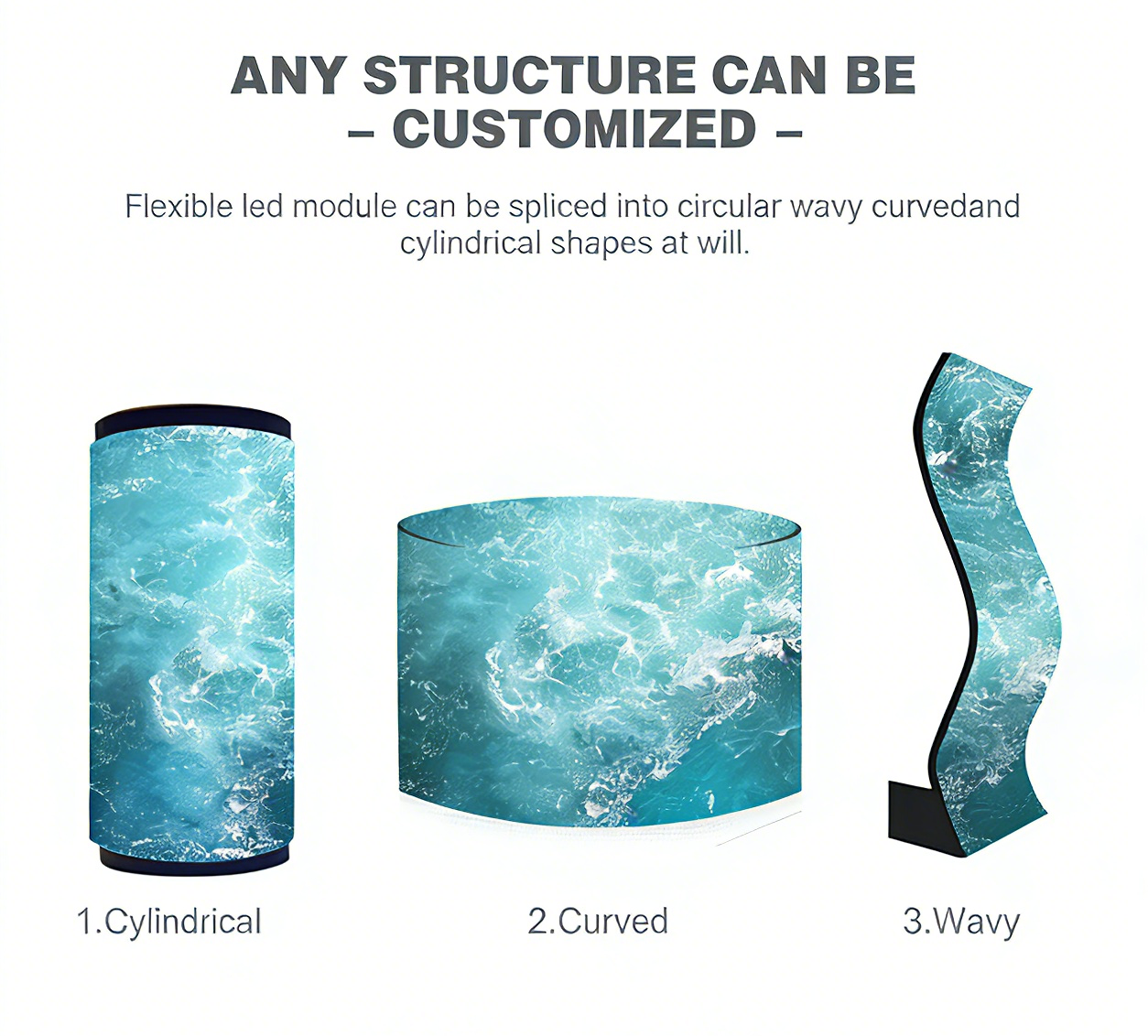

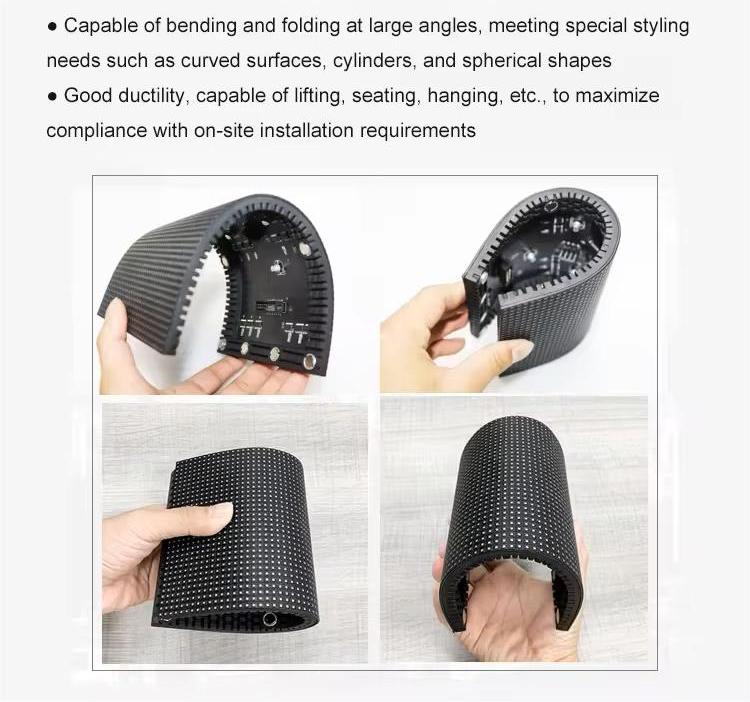

Shape Adaptability	Can be bent into any shape (cylinder, wave, concave, convex), suitable for irregular surfaces.	Only suitable for flat surfaces, cannot adapt to curved or irregular structures.
Weight & Thickness	Ultra-light (0.17-0.3kg/module) and ultra-thin (8-13mm), reducing structural load.	Heavier (with metal cabinet) and thicker, requiring stronger installation support.
Installation & Maintenance	Magnetic adsorption installation, quick and easy; supports front and rear maintenance, easy to replace single modules.	Requires cabinet assembly, more installation steps; maintenance is more cumbersome, limited by installation position.
Application Scenario	Focus on creative, customized displays, architectural integration and temporary events.	Focus on large-scale flat displays, such as outdoor billboards and fixed indoor screens.
Cost & Technology	Higher cost due to advanced materials and manufacturing processes; higher technical requirements for installation.	Lower cost, mature production process; lower technical requirements for installation and maintenance.

Indoor Flexible LED Module

Flexible LED Display Module
Model	P1.579	P1.667	P1.875	P2	P2.5	P3	P4
Pixel Pitch	1.579mm	1.667mm	1.875mm	2mm	2.5mm	3mm	4mm
Module Size	240*120mm
Module Resolution（Dots）	152*76	144*72	128*64	120*60	96*48	80*40	60*30
LED Lamp	SMD1212	SMD1212	SMD1515	SMD1515	SMD1515	SMD2020	SMD2020
Pixels Density（Dots/㎡）	401111	360000	284444	250000	160000	111111	62500
Refresh Rate	≥3840Hz
Working Environment	Temperature：-20~50℃，Humility：10%~90%
Life Span	≤100000 Hours
Brightness（cd）	≥650	≥650	≥750	≥750	≥750	≥750	≥750
Horizontal/Vertical Viewing Angle	H：≥160° V：≥140°
IP Level	IP30

Features

Application Scenarios

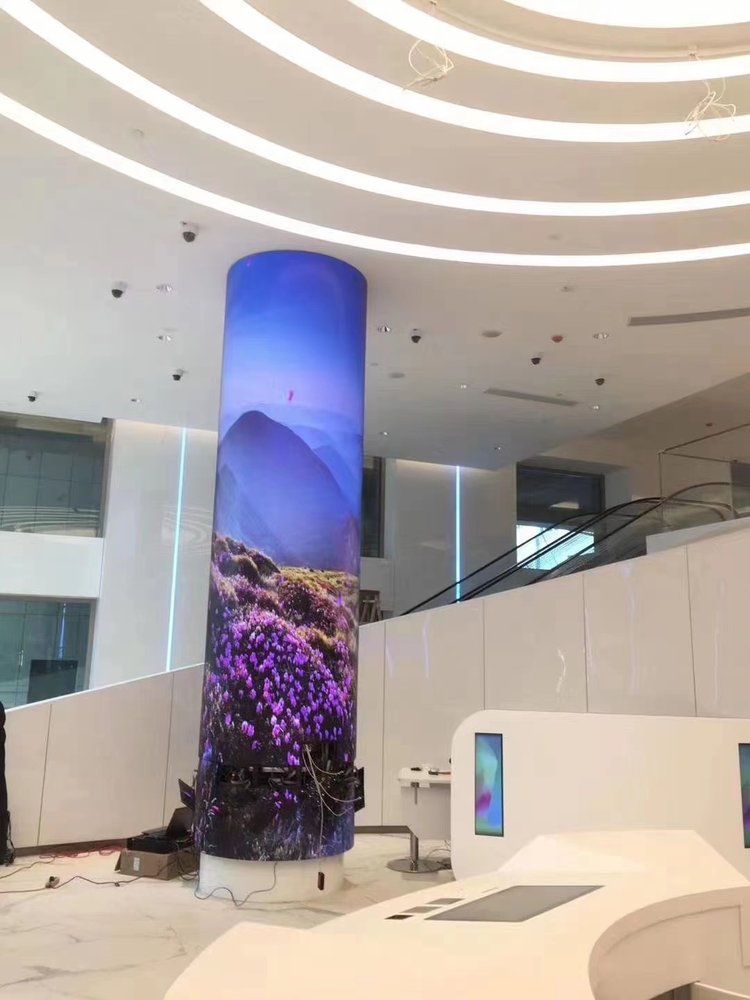

1、Architectural Decoration

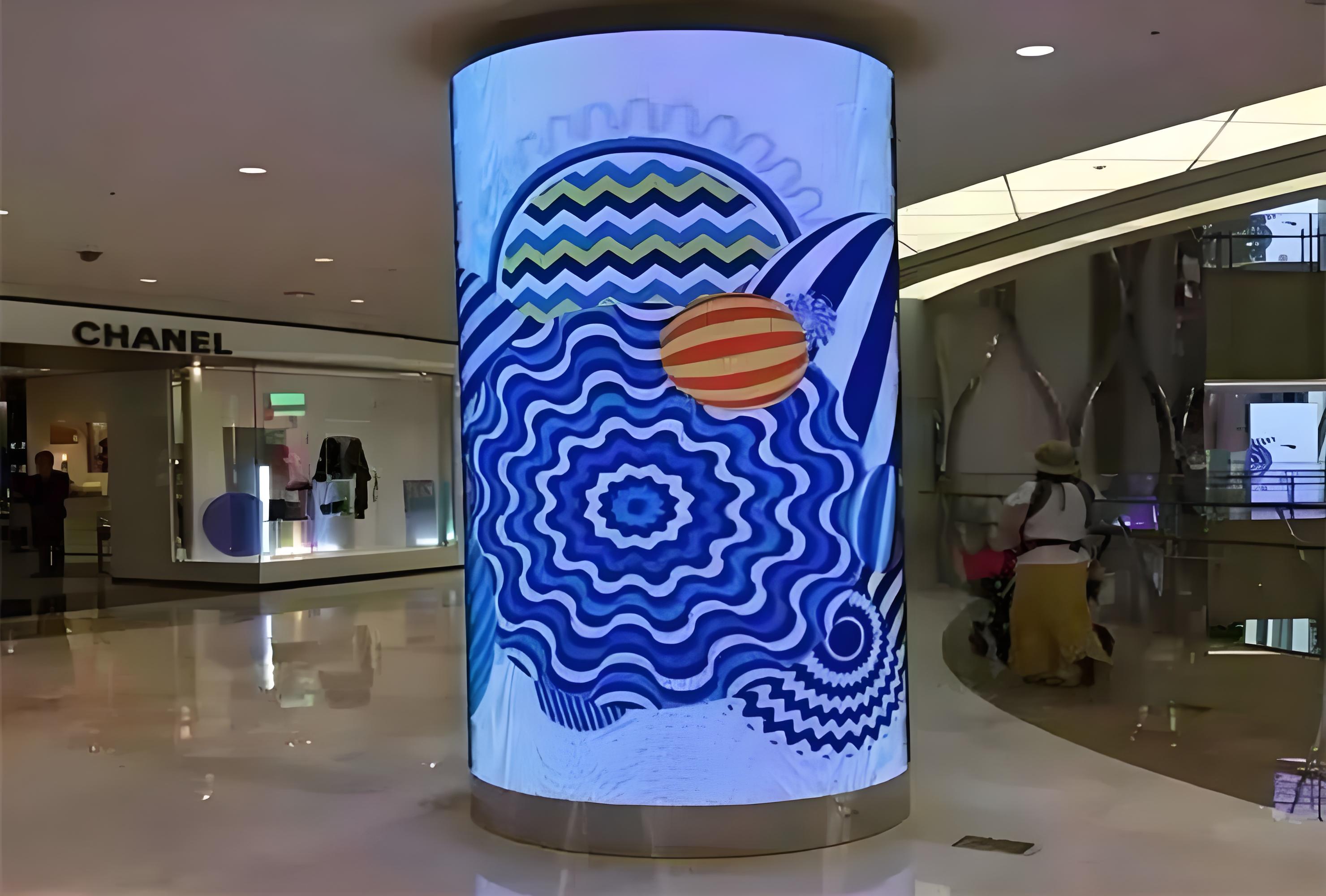

Integrated into building facades, curved walls, columns and atriums, they transform static architectural structures into dynamic visual highlights. Suitable for shopping malls, office buildings, hotels, museums and cultural centers. For example, wrapping around pillars in shopping malls to display promotional content, or installing on curved building facades to create night lighting effects.

2、Stage & Event Design

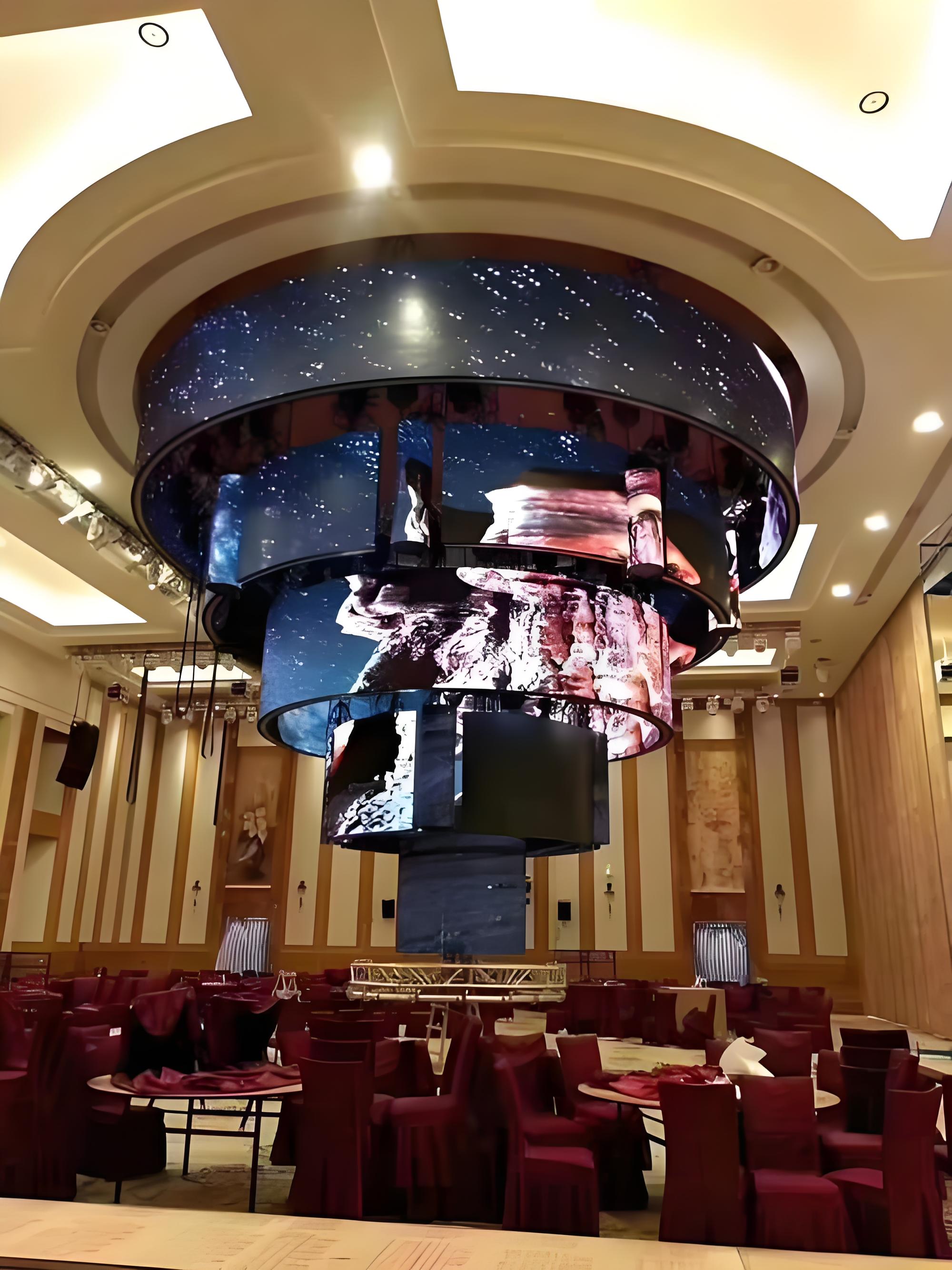

Ideal for concert stages, theater backdrops, exhibition booths and wedding venues. They can be bent into wave, cylindrical or irregular shapes to create immersive visual effects, matching the stage atmosphere and performance themes. The lightweight and quick-installation features make them perfect for temporary events and rental scenarios.

3、Retail & Commercial Spaces

Used in retail flagship stores, boutique windows, shopping mall corridors and brand experience centers. They can be made into curved feature walls, wave-shaped display surfaces or product backdrops, attracting customer attention and enhancing brand image. The flexible design allows them to fit irregular store spaces, maximizing display effects.

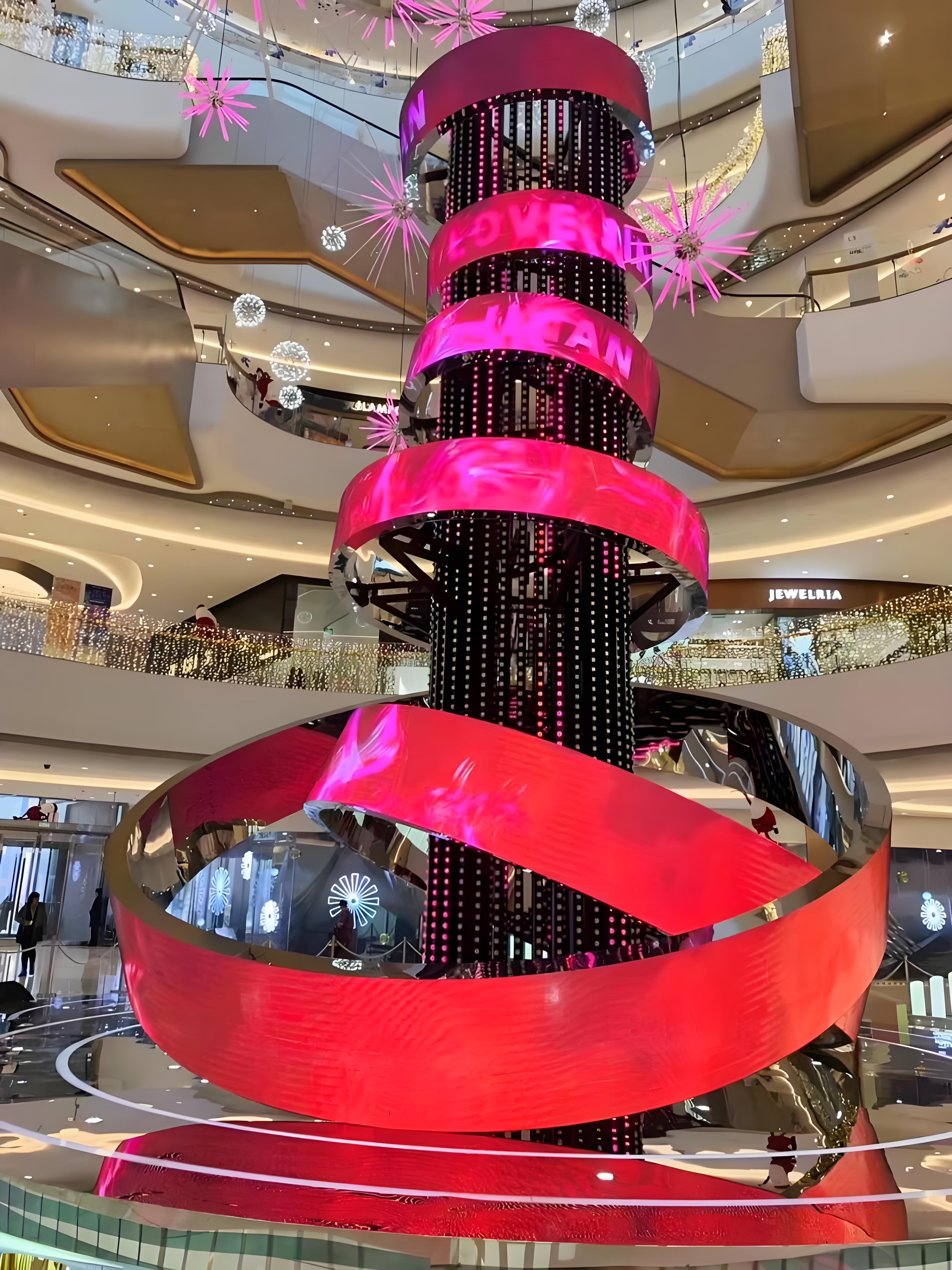

LED Flexible Screen In Commercial Spaces

4、Museums & Experience Centers

Applied to curved timeline walls, interactive digital exhibits and themed immersive rooms, helping to tell cultural and educational stories in a vivid way. The ability to conform to unique spaces makes them particularly valuable in cultural and educational projects.

5、Other Special Scenarios

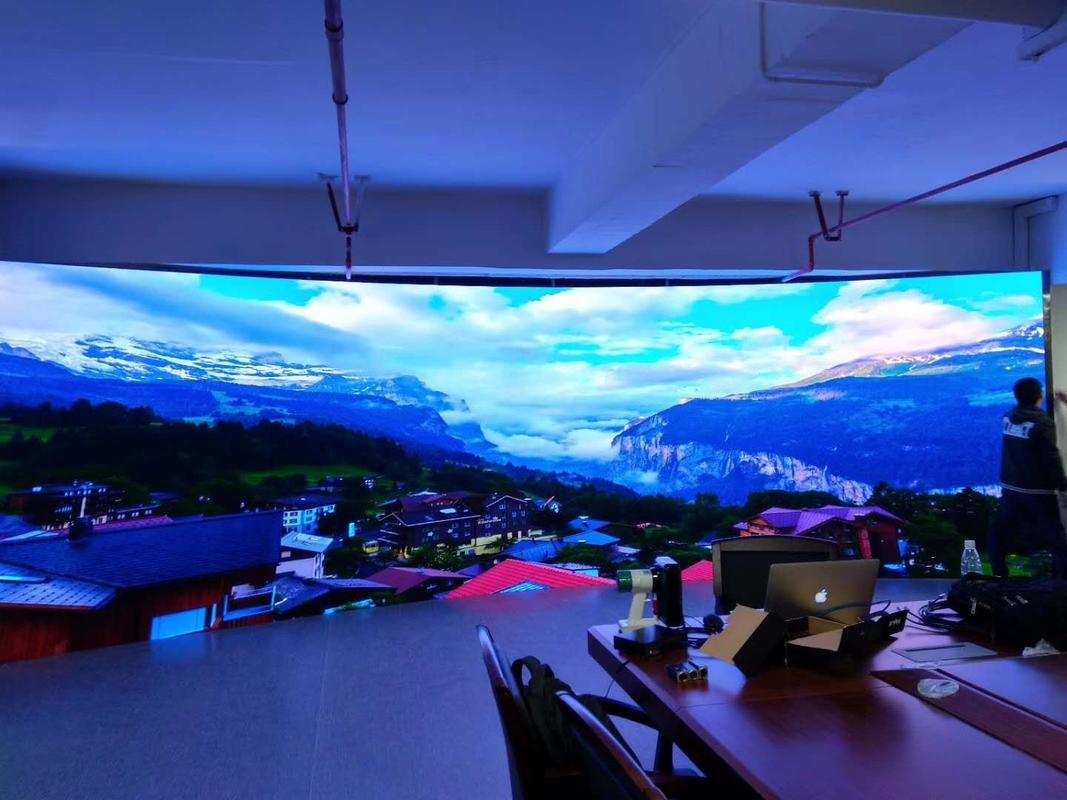

Indoor spaces such as corporate lobbies, airport terminals and subway stations (for information display and navigation); outdoor scenarios such as scenic spots, stadiums and city squares (for public service announcements and live event broadcasts); also suitable for custom-shaped displays such as 3D installations and digital artworks.

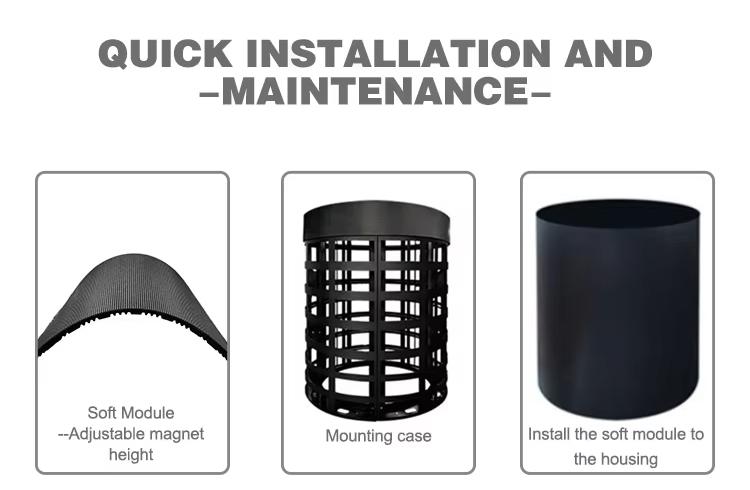

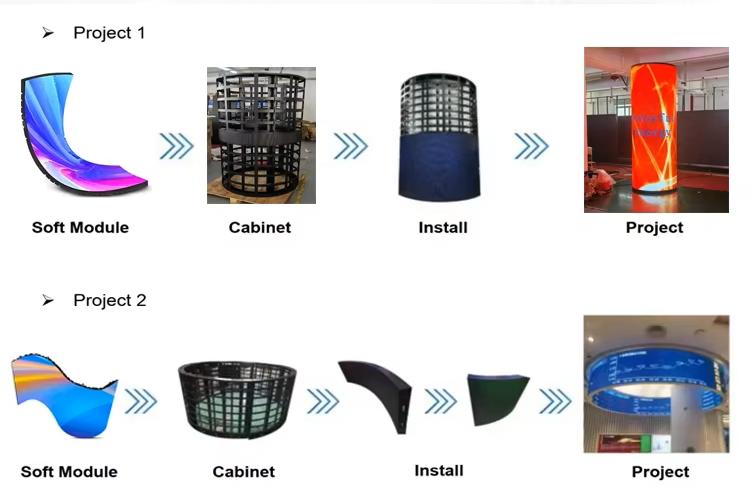

Installation

Production Process

We have professional LED display production equipment and assembly personnel. You only need to provide your needs, and we will provide you with comprehensive professional services from scratch. From developing production plans to the production and assembly of displays, we will ensure quality and quantity. You can rest assured to cooperate with us.

LED Display Aging and Testing

Aging and testing of LED display modules involves simulating long-term operation to ensure reliability and stability. This process is critical to identifying and resolving potential issues, ultimately improving the efficiency and stability of the LED display.

Conducting burn-in testing is a critical step in quality control to ensure the overall performance and service life of the LED display.
