GKGD Outdoor LED Module P5 IP65 Waterproof Level LED Display for Large Stand Digital Billboard Outdoor LED Display

Short Description:

GKGD P5 Outdoor Full-Color LED Module is a cost-effective, engineering-grade outdoor display unit specially developed for medium and long-distance outdoor viewing scenarios. It balances stable display performance, strong environmental adaptability and economical project cost, and is widely recognized as one of the most mainstream choices in the outdoor LED display industry. Adopting mature packaging technology and optimized circuit design, the module maintains stable playback effect all year round in complex outdoor climate, and is suitable for large-area fixed installation projects with high cost-performance requirements.

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

Product Customization Process

If you are interested in our products, please communicate with our customer service in time. We will customize the most suitable LED display solution for you based on your needs.

Product Parameters

Item		Outdoor P5
Module	Panel Dimension	320*160MM
	Pixel Pitch	5mm
	Pixel Density	40000 pixels/m²
	Pixel Configuration	1R1G1B
	LED Specification	SMD1921
	Pixel Resolution	64*32 dots
	Average Power	Module 12.5W/pcs@5V Screen 271W/m²
	Panel Weight	0.45KG
Technical Signal Index	Supply Voltage	High Refresh：4.5~5V Middle Refresh：5V
	Scan Rate	1/8S
	Refresh Frequency	High Refresh：≥3840Hz Middle Refresh：≥1920Hz
	Maximum Current	7.5A
	Brightness	≥4500cd/m²
	Life Span	100000Hours
	Control Distance	＜100M
	Operating Humidity	10%-60% RH No knot dew
	IP Protective Index	IP65

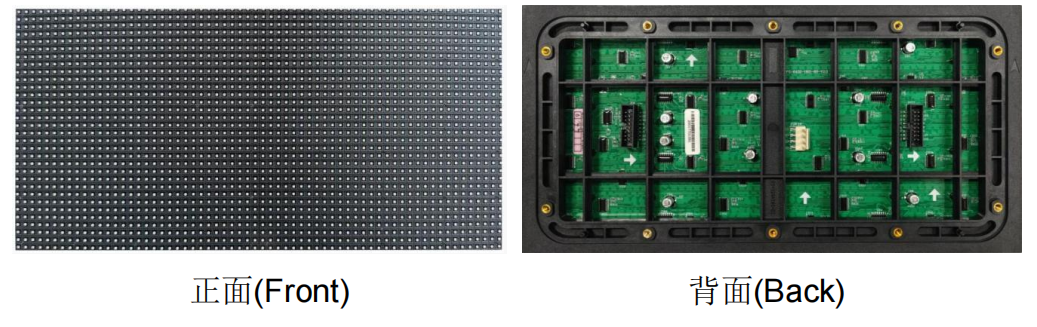

Featuring a standard 5mm pixel pitch, the GKGD P5 outdoor module comes in a regular size of 320mm×160mm, with module resolution of 64×32 pixels and pixel density of 40,000 dots per square meter. The optimal viewing distance ranges from 5 meters to 50 meters, perfectly matching conventional outdoor advertising, urban public screens and large plaza display needs. The module adopts high-quality outdoor dedicated SMD lamp beads, equipped with constant current drive IC and optimized optical mask design, presenting natural color restoration, high screen flatness and even mixing effect. It supports standard high refresh rate and 14-bit grayscale level, ensuring smooth video dynamic playback, clear text presentation and stable overall picture layering under long-term continuous operation.

Product Features

1、High Brightness with Clear Daylight Visibility

The GKGD P5 module adopts high-lumen outdoor grade LED lamp beads, with stable high brightness output that can still maintain clear and recognizable picture layers under strong outdoor direct sunlight. With excellent contrast and color saturation performance, it avoids whitening and fading under strong light, ensuring stable advertising and information display effect both day and night. The overall optical design optimizes light divergence, making the picture delicate and uniform, effectively improving audience viewing experience and information communication efficiency in medium and long-distance outdoor environments.

2、IP65 Full Protection & All-Weather Weather Resistance

The module adopts fully enclosed integral sealing technology, reaching IP65 front protection level, which can effectively isolate rainwater, dust, sand and fog intrusion. The whole machine uses anti-UV, anti-aging mask and high-temperature resistant raw materials, which can slow down brightness attenuation and color deviation caused by long-term sunlight exposure. It adapts to a wide operating temperature range of -20℃ to +60℃, maintaining stable circuit and light-emitting performance in cold northern winters and hot humid southern summers. The drive board is coated with three-proof treatment to enhance moisture-proof, anti-corrosion and anti-static ability, greatly extending the overall service life of the module.

3、Ultra-Wide Viewing Angle & Consistent Picture Performance

Designed with ultra-wide viewing angle optics, the horizontal viewing angle reaches 160° and vertical viewing angle reaches 140°, realizing no color difference, no dark corner and no brightness attenuation in multi-directional viewing. Whether audiences watch from front, side or low angle positions, they can obtain consistent color and clear picture effect. This feature is very suitable for open-air plazas, road-side billboards and building exterior wall screens with scattered crowd distribution, maximizing the coverage and publicity value of the display screen.

4、Standardized Structure & Convenient Installation and Maintenance

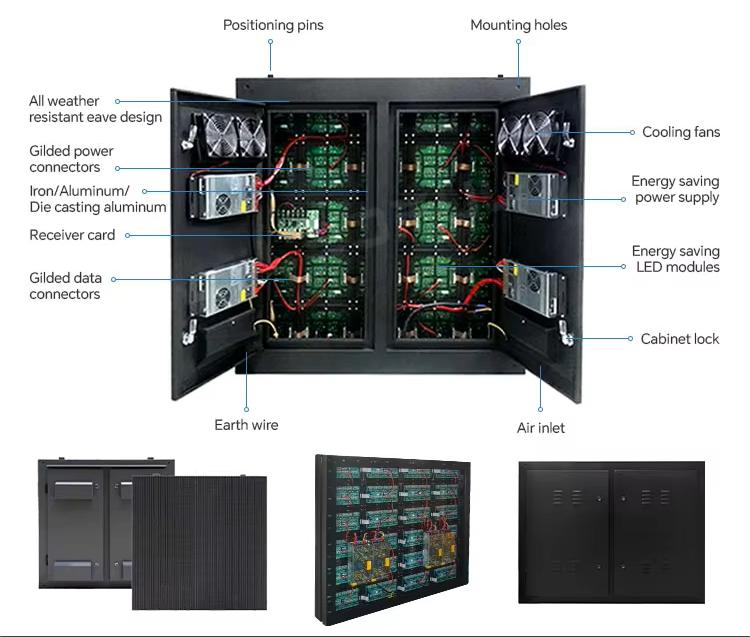

With industry-standard 320×160mm dimensions, the P5 module is highly compatible with mainstream outdoor die-cast aluminum cabinets and control system equipment, supporting accurate seamless splicing with tiny splicing gaps and high overall flatness. It adopts mature rear maintenance design, which facilitates quick inspection, replacement and fault handling without dismounting the whole screen frame. Each module undergoes strict factory aging test, point-by-point brightness and chromaticity calibration, ensuring high consistency of batch products, low overall failure rate and effectively reducing later operation and maintenance labor and time costs.

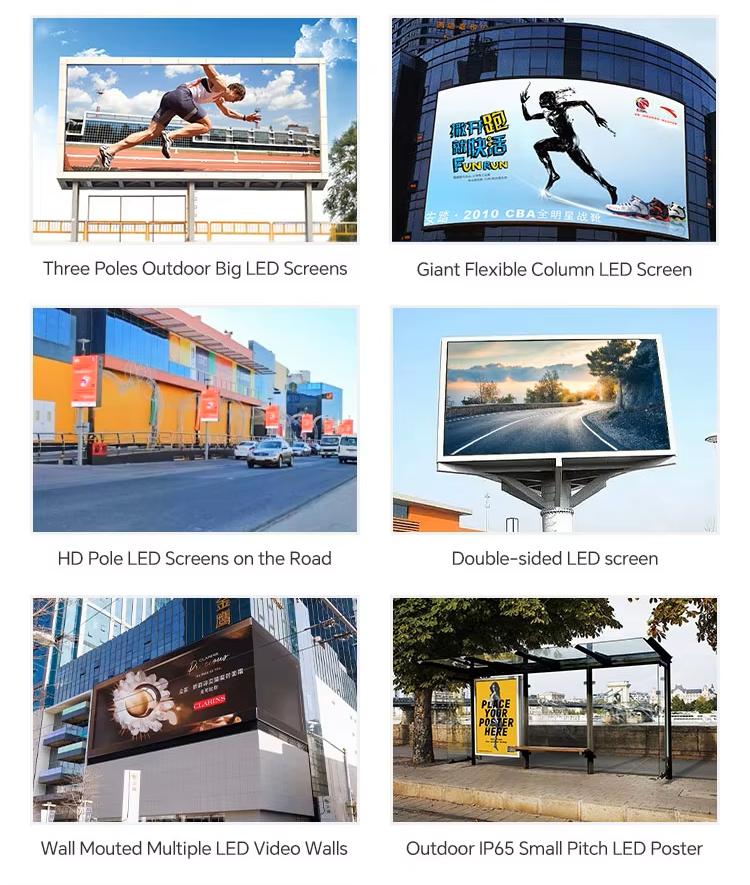

Application Scenarios

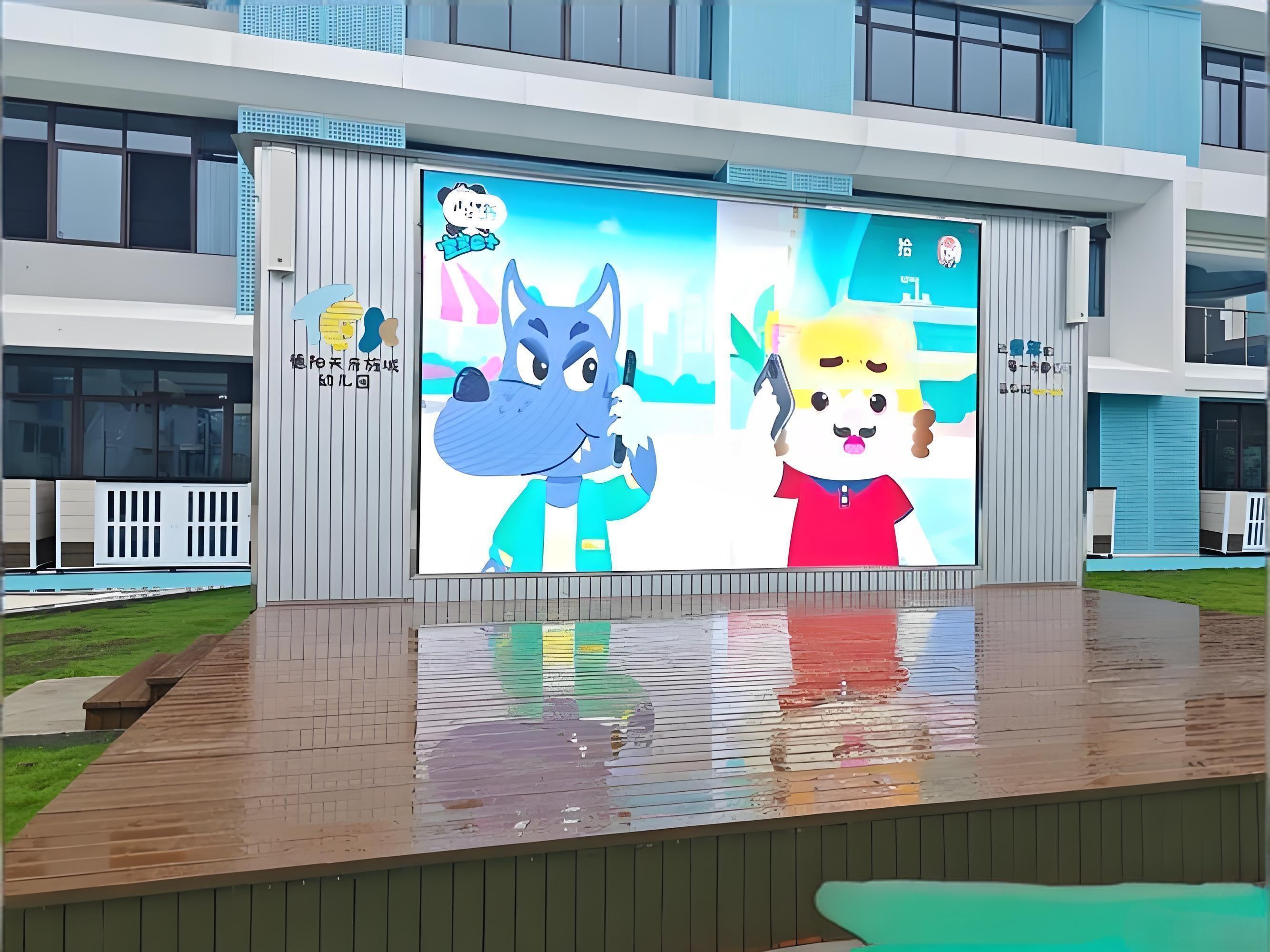

GKGD P5 Outdoor LED Module is widely applicable to various medium and large fixed outdoor display projects relying on its reliable stability and outstanding cost performance. It is commonly used in urban outdoor large advertising billboards, road roadside media screens, commercial street and pedestrian street landscape display walls, bringing stable dynamic advertising and brand promotion for commercial operators. In commercial real estate and shopping mall exterior walls, it is used for image publicity, activity notice and atmosphere rendering, enriching urban business landscape.

In transportation infrastructure such as highway service areas, toll stations, bus stations and railway stations, the module undertakes real-time traffic prompt, public service information release and safety publicity functions, providing clear and intuitive information guidance for passengers and pedestrians. It is also widely applied in urban square public welfare screens, community propaganda screens, government exterior wall announcement displays, as well as scenic spots and theme parks for cultural introduction and tourism promotion. In addition, it can meet the display needs of stadium peripheral screens, outdoor event temporary background screens and industrial park public information release platforms, covering almost all mainstream medium and long-distance outdoor display scenarios.
