GKGD Outdoor LED Module P4 High Brightness LED Screen IP65 Protection Rating for Outdoor Full Color LED Billboard

Short Description:

GKGD P4 Outdoor Full-Color LED Module is a high-performance, professional outdoor display component designed for stable, long-term operation in complex outdoor environments. Built with robust materials, precision engineering, and GKGD’s strict quality control, this module delivers outstanding visual performance, strong weather resistance, and reliable durability. It is widely used in large-scale fixed outdoor displays, commercial advertising, urban media projects, public information release, and various engineering applications. By balancing excellent display effect, stable operation, and cost efficiency, the GKGD P4 module has become a preferred solution for outdoor LED projects worldwide.

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

Product Customization Process

If you are interested in our products, please communicate with our customer service in time. We will customize the most suitable LED display solution for you based on your needs.

Product Parameters

Item		Outdoor P4
Module	Panel Dimension	320*160MM
	Pixel Pitch	4mm
	Pixel Density	62500 pixels/m²
	Pixel Configuration	1R1G1B
	LED Specification	SMD1921
	Pixel Resolution	80*40 dots
	Average Power	Module 12.5W/pcs@5V Screen 271W/m²
	Panel Weight	0.45KG
Technical Signal Index	Supply Voltage	High Refresh：4.5~5V Middle Refresh：5V
	Scan Rate	1/10S
	Refresh Frequency	High Refresh：≥3840Hz Middle Refresh：≥1920Hz
	Maximum Current	7.5A
	Brightness	≥4500cd/m²
	Life Span	100000Hours
	Control Distance	＜100M
	Operating Humidity	10%-60% RH No knot dew
	IP Protective Index	IP65

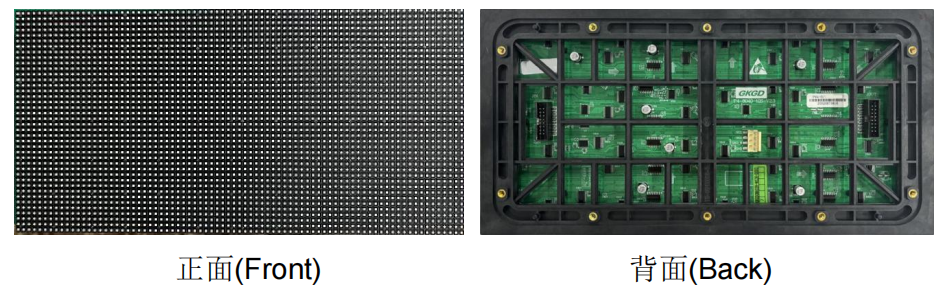

The GKGD P4 outdoor module features a 4mm pixel pitch, with a standard dimension of 320mm×160mm, a resolution of 80×40 dots, and a pixel density of 62,500 dots per square meter. This configuration provides ideal definition for viewing distances from 4 meters to 40 meters, making it highly suitable for medium to large outdoor screens. The module uses high-quality outdoor-grade full-color LED lamp beads and a stable constant-current drive system, ensuring bright, uniform, and natural image performance. It supports high refresh rate and 14-bit grayscale, delivering smooth video playback, clear text display, and realistic color reproduction even under strong sunlight or long hours of continuous operation.

Product Features

1、High Brightness & Excellent Sunlight Visibility

The GKGD P4 module is equipped with high-brightness outdoor LED chips, providing sufficient luminous intensity to maintain clear, sharp, and visible images even under direct strong sunlight. With high contrast and professional optical design, it ensures stable and excellent display performance during daytime and nighttime, making commercial content, information, and videos clearly recognizable from a long distance. This high-brightness feature greatly improves the communication effect of outdoor advertising and public information release.

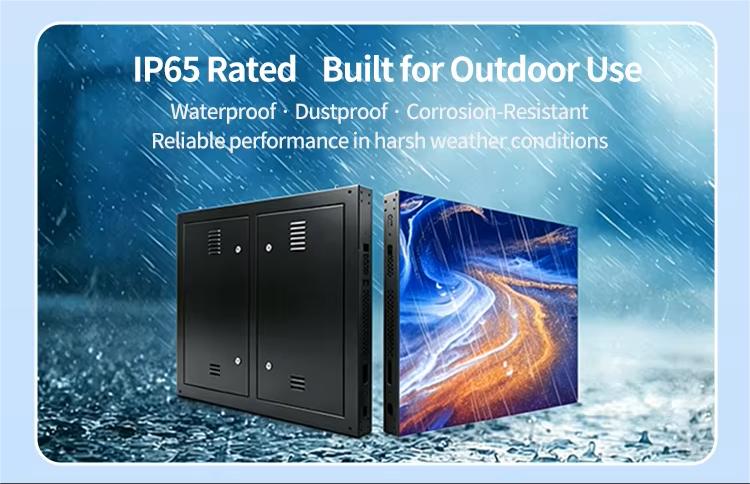

2、IP65 Waterproof & Outstanding Weather Resistance

Designed specifically for harsh outdoor conditions, this module adopts a fully sealed, professional waterproof structure with a front protection rating of IP65, effectively blocking rainwater, moisture, dust, sand, and fog. It uses anti-UV and anti-aging materials on the surface and internal components to prevent brightness attenuation, color shift, and material degradation caused by long-term sun exposure. The module supports a wide operating temperature range from -20℃ to +60℃, maintaining stable performance in extreme cold winter and hot summer environments, ensuring long-term reliable use.

3、High Refresh Rate & Smooth, Stable Display

The module supports a high refresh rate and 14-bit grayscale display, delivering ultra-smooth dynamic video playback without flicker, ghosting, or blurring. It provides clear, delicate, and stable images for both static text and dynamic video content. With a wide viewing angle (horizontal≥160°, vertical≥140°), the screen maintains consistent brightness and color from almost any direction, ensuring excellent visual experience for audiences in different positions. This feature makes it ideal for high-demand outdoor scenarios such as advertising, live events, and public display.

4、Standard Structure, Easy Installation & Low Maintenance

The GKGD P4 module uses a universal 320mm×160mm standard size, which is highly compatible with mainstream outdoor cabinets and control systems, supporting fast and seamless splicing to build large-size display walls. The module is designed for convenient construction and efficient after-sales service, with a rear maintenance structure that allows quick, safe, and easy module replacement without complicated operation. Each module undergoes strict aging testing, brightness calibration, and color consistency inspection before leaving the factory, ensuring high uniformity, low failure rate, and reduced long-term operation and maintenance costs.

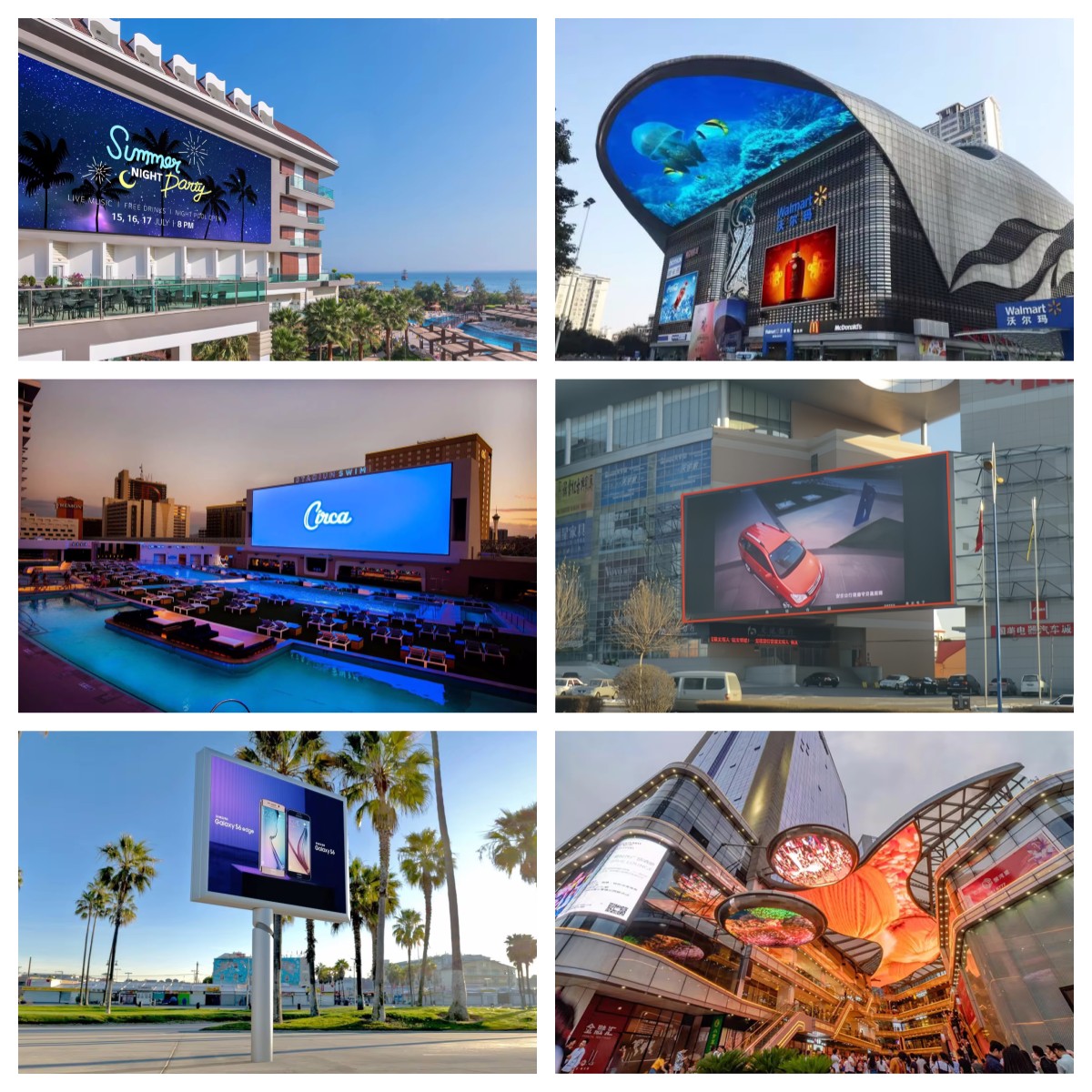

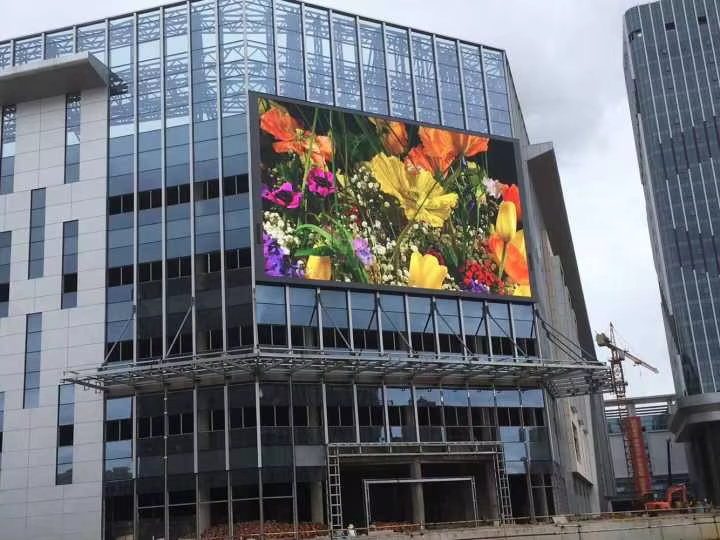

Application Scenarios

GKGD P4 Outdoor LED Module is widely applied in a variety of mainstream outdoor scenarios due to its high reliability, strong environmental adaptability, and stable display performance. It is commonly used in large outdoor commercial advertising billboards, media screens on shopping mall facades, and brand display walls on commercial building exterior walls, providing dynamic and attractive visual promotion for businesses. In transportation hubs such as airports, railway stations, subway stations, and bus terminals, the module is used for real-time information release, flight and train schedules, route guidance, and public service announcements, offering clear and convenient information for passengers.

In addition, the module is widely used in stadium perimeter screens, large event live broadcast screens, and urban square public display systems, supporting live sports events, cultural performances, emergency announcements, and city image promotion. It also plays an important role in scenic spots, theme parks, cultural tourism areas, and urban public service platforms, presenting scenic introductions, activity promotions, and cultural publicity content. Furthermore, it can be seen in community information boards, government publicity screens, industrial park displays, and logistics center information systems, providing stable and efficient visual services for various outdoor fixed display needs.

Production Process

We have professional LED display production equipment and assembly personnel. You only need to provide your needs, and we will provide you with comprehensive professional services from scratch. From developing production plans to the production and assembly of displays, we will ensure quality and quantity. You can rest assured to cooperate with us.
