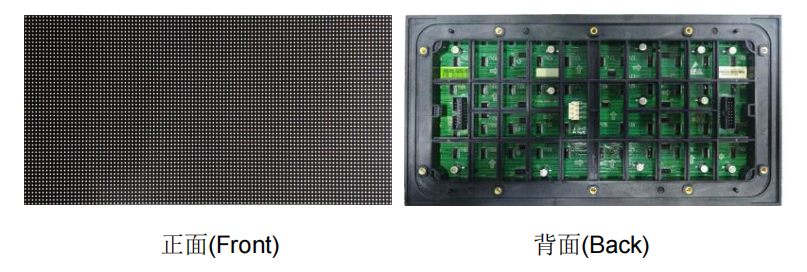

GKGD Outdoor LED Module P3.076 Waterproof IP65 Protection Rating for Outdoor Full Color Commercial Advertising LED Display

Short Description:

As a core product in GKGD’s outdoor display series, the GKGD P3.076 Outdoor Full-Color LED Module is engineered to tackle the harshest outdoor environments while delivering high-definition, vivid visual performance. Unlike indoor modules that prioritize close-view clarity, this P3.076 (3.076mm pixel pitch) outdoor module focuses on extreme weather resistance, strong sunlight adaptability, efficient heat dissipation, and long-term operational stability—addressing the core pain points of outdoor display projects such as rain erosion, UV damage, temperature fluctuations, and glare. Built with GKGD’s self-developed core technologies, premium outdoor-grade components, and innovative protective craftsmanship, it redefines the reliability and practicality of outdoor LED modules, becoming the preferred choice for fixed outdoor advertising, cultural and tourist scenic spots, sports venues, and smart city information displays worldwide.

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

Product Customization Process

If you are interested in our products, please communicate with our customer service in time. We will customize the most suitable LED display solution for you based on your needs.

Product Parameters

Item		Outdoor P3.076
Module	Panel Dimension	320*160MM
	Pixel Pitch	3.076mm
	Pixel Density	105625 pixels/m²
	Pixel Configuration	1R1G1B
	LED Specification	SMD1415
	Pixel Resolution	104*52 dots
	Average Power	Module 12.8W/pcs@5V Screen 278W/m²
	Panel Weight	0.45KG
Technical Signal Index	Supply Voltage	High Refresh：4.5~5V Middle Refresh：5V
	Scan Rate	1/13S
	Refresh Frequency	High Refresh：≥3840Hz Middle Refresh：≥1920Hz
	Maximum Current	7.7A
	Brightness	≥4500cd/m²
	Life Span	100000Hours
	Control Distance	＜100M
	Operating Humidity	10%-60% RH No knot dew
	IP Protective Index	IP65

The GKGD P3.076 outdoor module is designed for fixed outdoor large-screen applications, balancing high-definition display effects with extreme environmental adaptability. Targeting the sweet spot between pixel density and outdoor viewing distance (optimal viewing distance: 3-30m), its 3.076mm pixel pitch delivers sharp, detailed visuals without excessive pixel waste, making it ideal for medium-to-large outdoor displays ranging from 10㎡ to 500㎡. What sets it apart from conventional outdoor modules is its integrated protective design—waterproof, dustproof, and with triple-proof coating on the drive surface—combined with GKGD’s exclusive energy-saving drive technology and heat dissipation optimization, ensuring stable operation in -20℃ to +60℃ environments, resisting heavy rain, strong wind, and UV radiation. Note: This product should not be used in high temperature, high humidity, high salinity or alkali environments. This design philosophy prioritizes "low maintenance, high durability, and cost-saving operation," perfectly matching the long-term use needs of outdoor engineering projects.

Product Features

1. Extreme Weather Resistance – Built for Outdoor Harsh Environments

Unlike indoor modules, the GKGD P3.076 outdoor module adopts a multi-layer protective structure to combat outdoor challenges. The drive surface is coated with a triple-proof coating process, enhancing the module’s resistance to moisture, dust, and corrosion. The module uses a flame-retardant V-0 grade PCB and PC housing, ensuring safe and stable operation even in complex outdoor environments. The edge is sealed with professional waterproof strips, achieving IP65 front protection (lamp surface), effectively preventing rainwater and dust from entering the module and causing damage. This comprehensive protective design ensures the module’s stability and durability in outdoor scenarios, in line with the product specification requirements.

2. Sunlight-Readable Brightness & Intelligent Dimming – Energy-Saving & Eye-Protective

To solve the problem of unclear display under strong sunlight, the module is equipped with high-brightness SMD1415 LED chips, with a white balance brightness of ≥4500 cd/m², ensuring clear visibility even in direct sunlight at noon. The 14-bit grayscale and high contrast ratio (8000:1) ensure that colors remain vivid and true even in strong light, solving the problem of color fading in traditional outdoor modules. The module supports stepless dimming, which can be adjusted according to ambient light intensity, not only saving energy but also avoiding light pollution to surrounding residents. Additionally, the color temperature can be adjusted between 3000~21000K, adapting to different outdoor display scenarios and meeting diverse user needs.

3. Efficient Passive Heat Dissipation – No Fan, No Noise, High Stability

Outdoor modules face severe heat accumulation under long-term sun exposure, which easily leads to lamp bead burnout and IC failure. The GKGD P3.076 module uses a high-strength aluminum alloy bottom shell with integrated heat dissipation ribs, combined with a copper substrate and thermal conductive silicone, to quickly transfer heat to the cabinet . The passive heat dissipation design (no fan) eliminates noise and avoids dust entry through fan vents, ensuring stable operation in dusty or sandy outdoor environments . Through thermal simulation optimization, the module’s operating temperature is controlled within 55℃ even in 60℃ outdoor high temperatures, significantly reducing failure rates and extending service life.

4. Standardized Compatibility & Easy Engineering Deployment

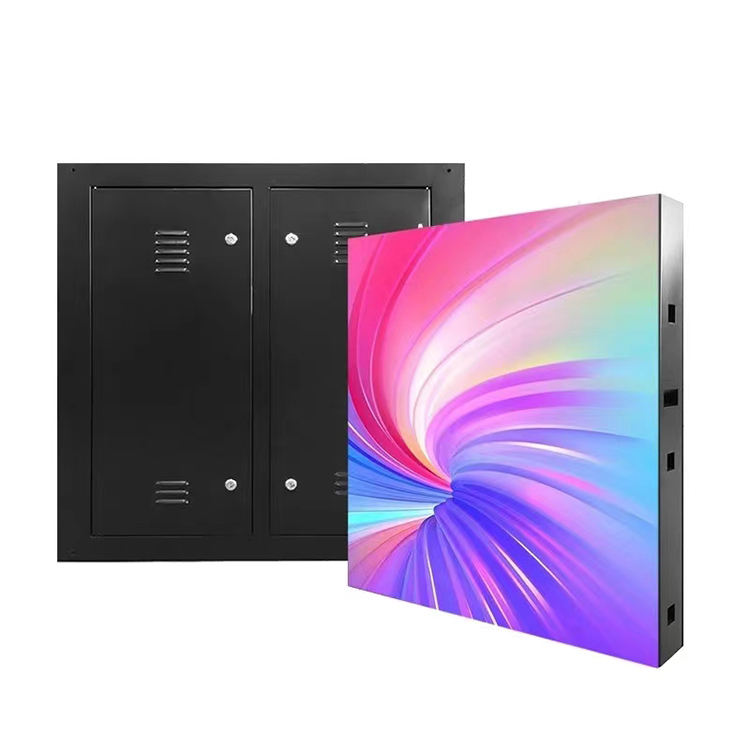

The module adopts the standard 320mm×160mm size, which is perfectly compatible with 960×960mm die-cast magnesium alloy cabinets (3 modules horizontally × 6 modules vertically per cabinet), enabling seamless splicing with a gap of <±0.1mm. The quick-lock splicing design allows installers to complete cabinet assembly in 10 seconds per unit, significantly improving construction efficiency. For large-scale projects, the module supports batch calibration (pixel-by-pixel, module-by-module, cabinet-by-cabinet), ensuring consistent brightness and color across the entire screen. The back maintenance design allows quick replacement of damaged modules without disassembling the entire screen, reducing maintenance costs and downtime—especially suitable for high-altitude outdoor installations.

5. GKGD Self-Encapsulated LED Chips – Higher Consistency & Lower Failure Rate

The GKGD P3.076 outdoor module adopts high-quality SMD1415 full-color LED lamp beads, which undergo strict brightness and color calibration before leaving the factory. The brightness uniformity is ≥97%, and the chromaticity uniformity is ≤±0.003 Cx, Cy, ensuring uniform display effects across all modules. The chips are also tested for 72 hours of continuous aging and extreme temperature cycling, with a full-screen pixel out-of-control rate ≤1/10000 and an area pixel out-of-control rate ≤3/10000—far lower than the industry average, ensuring stable performance and reducing after-sales maintenance costs for long-term outdoor use.

Application Scenarios

Typical Outdoor Applications (Tailored to Module Performance)

The GKGD P3.076 outdoor LED module is designed for fixed outdoor scenarios that require long-term stability and high-definition display, widely applicable to various outdoor scenarios as specified in the product specification:

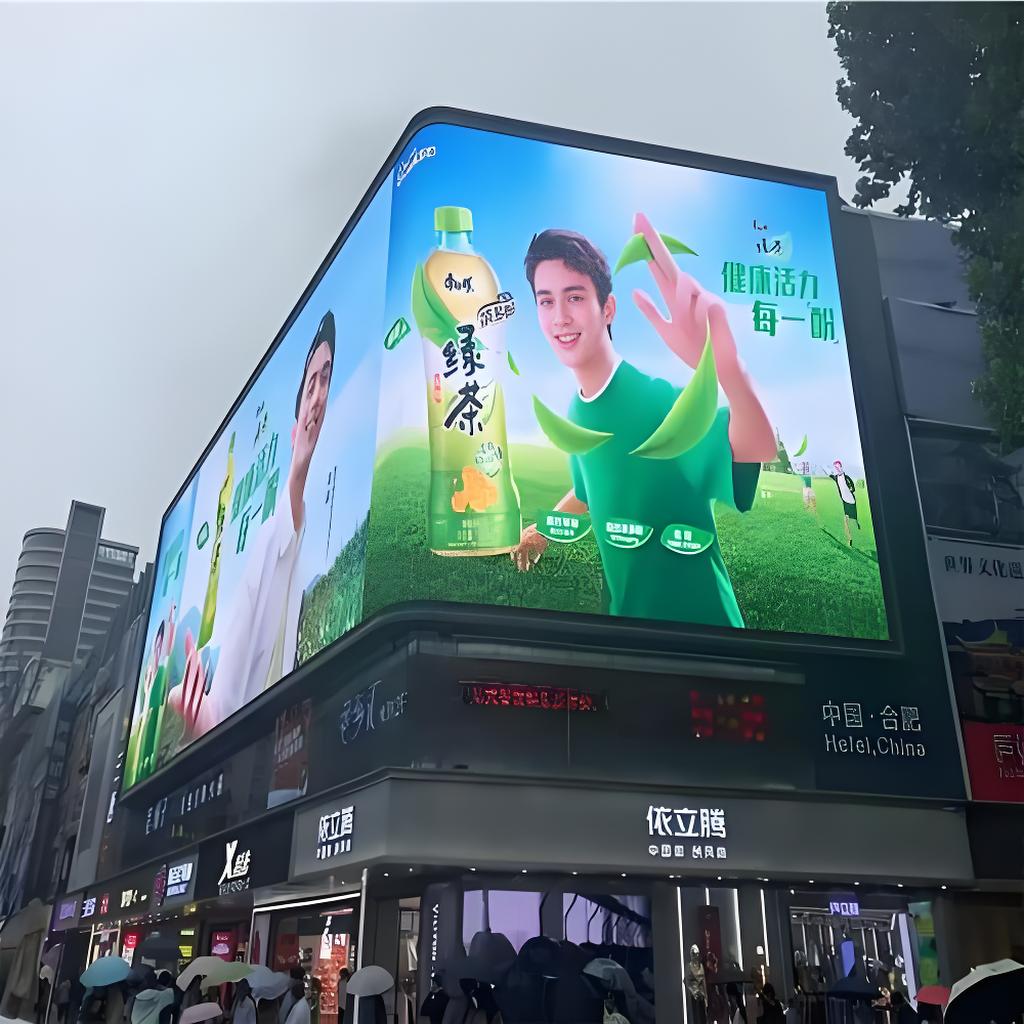

1、Outdoor Commercial Advertising: Shopping mall exterior walls, street billboards, commercial complex entrance screens—delivering vivid dynamic advertisements that attract passers-by and boost brand exposure .

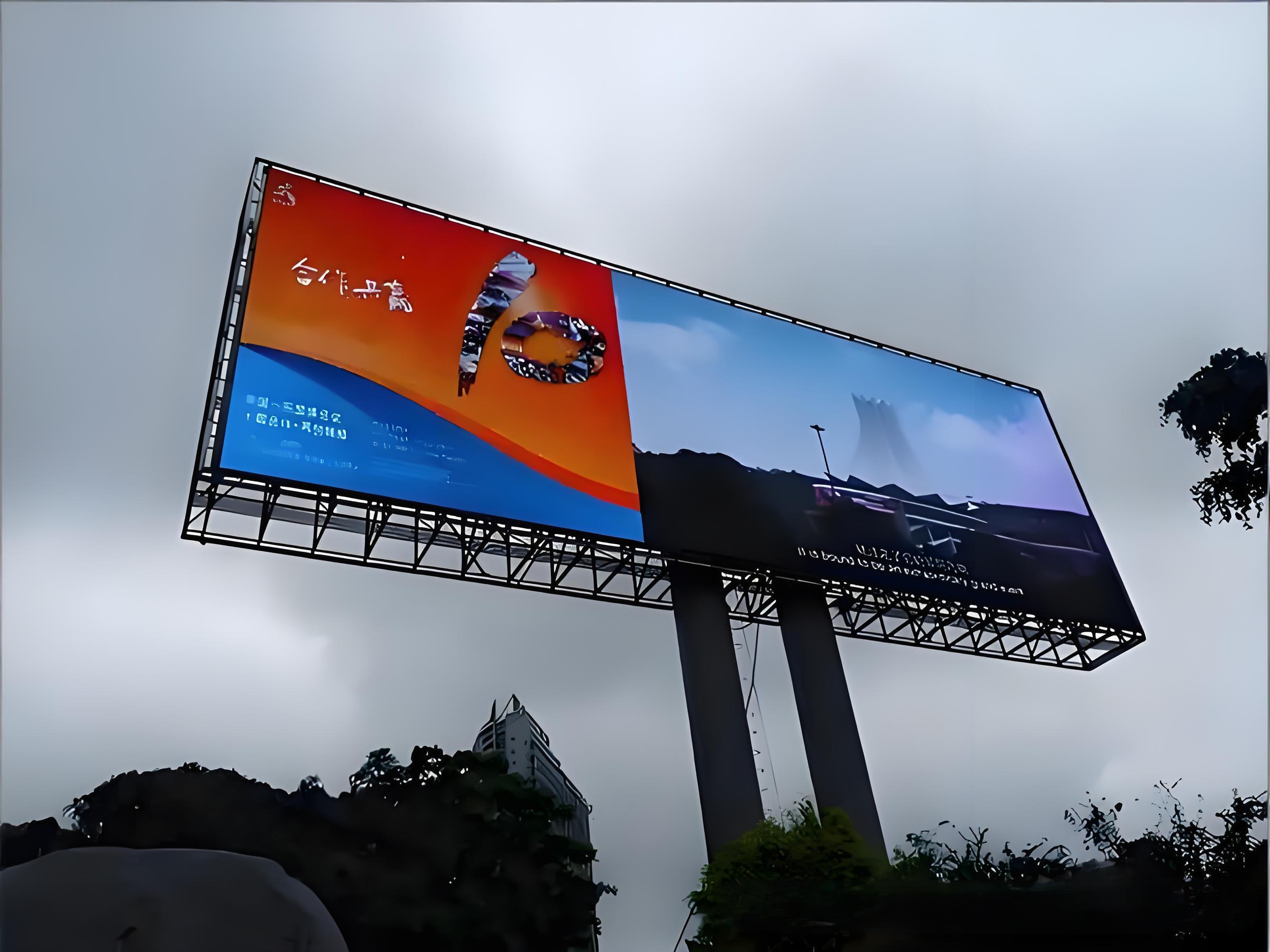

2、Cultural & Tourist Scenic Spots: Scenic area information displays, cultural relic introductions, night scene light shows—integrating with natural landscapes to enhance the tourist experience .

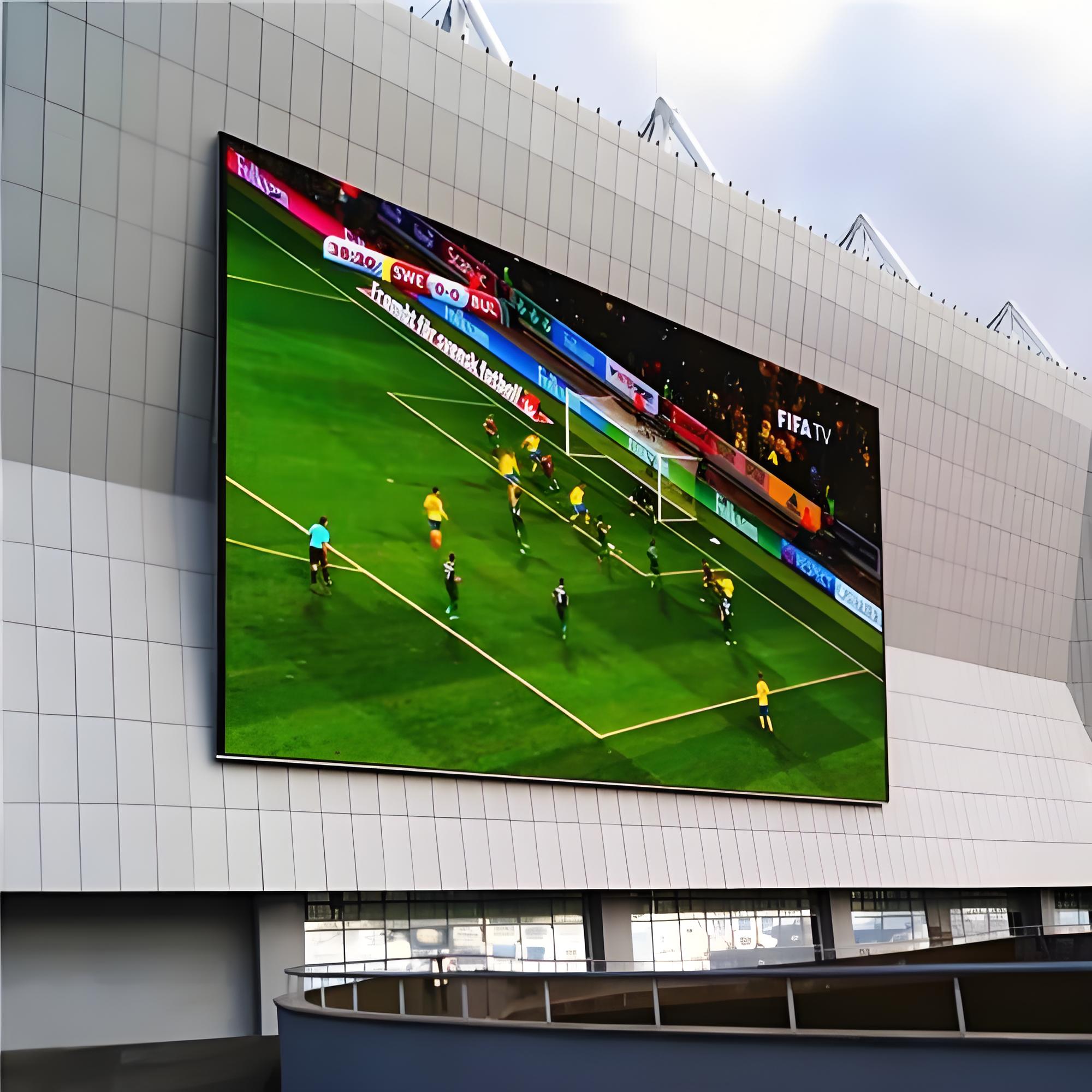

3、Sports Venues: Stadium perimeter screens, outdoor sports event live streaming screens—displaying game highlights, event information, and audience interaction content .

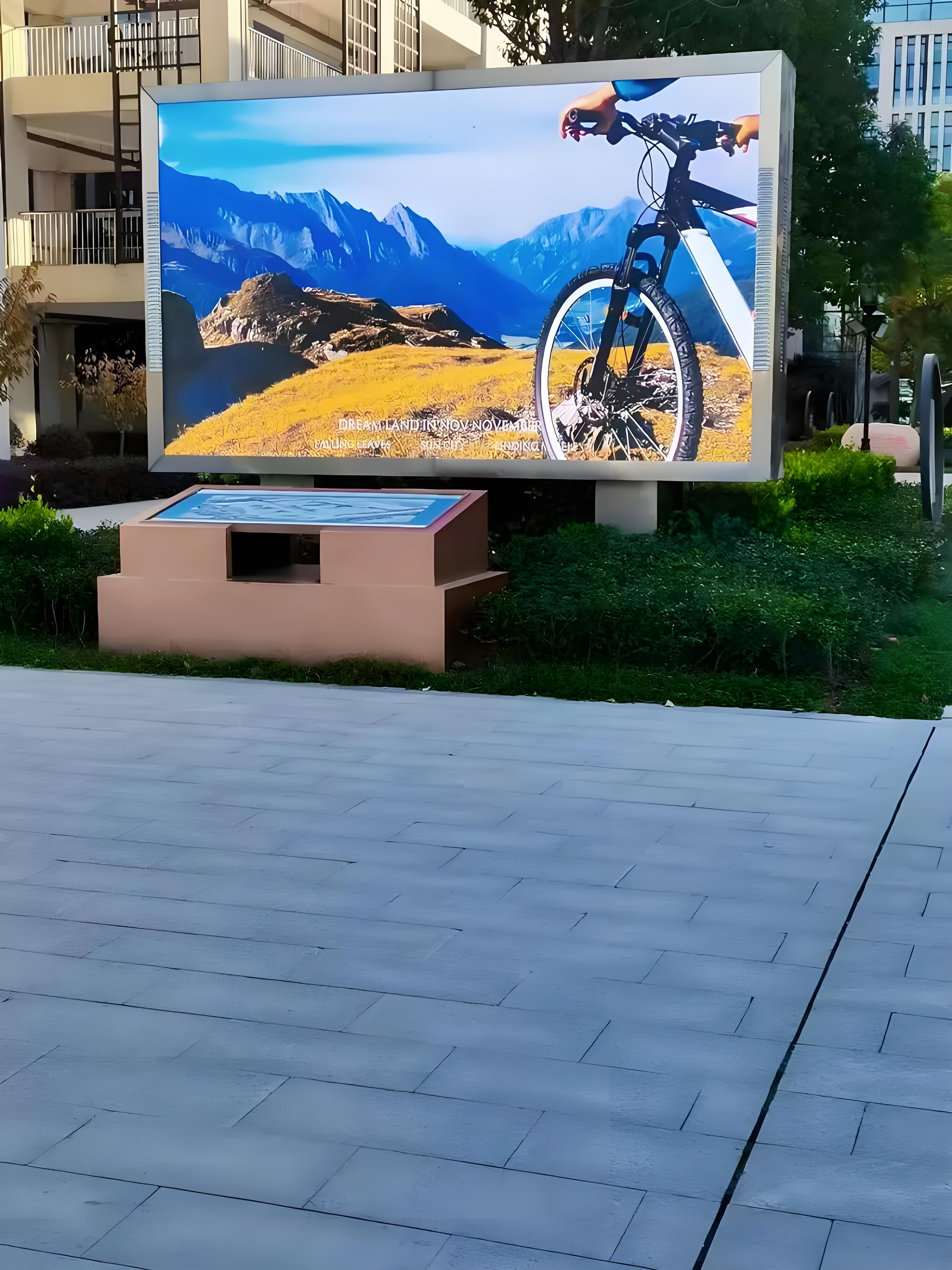

4、Smart City & Public Spaces: Roadside information screens, bus stations, square displays, traffic control centers—releasing public service announcements, traffic information, and emergency alerts, meeting the needs of traffic command scenarios.

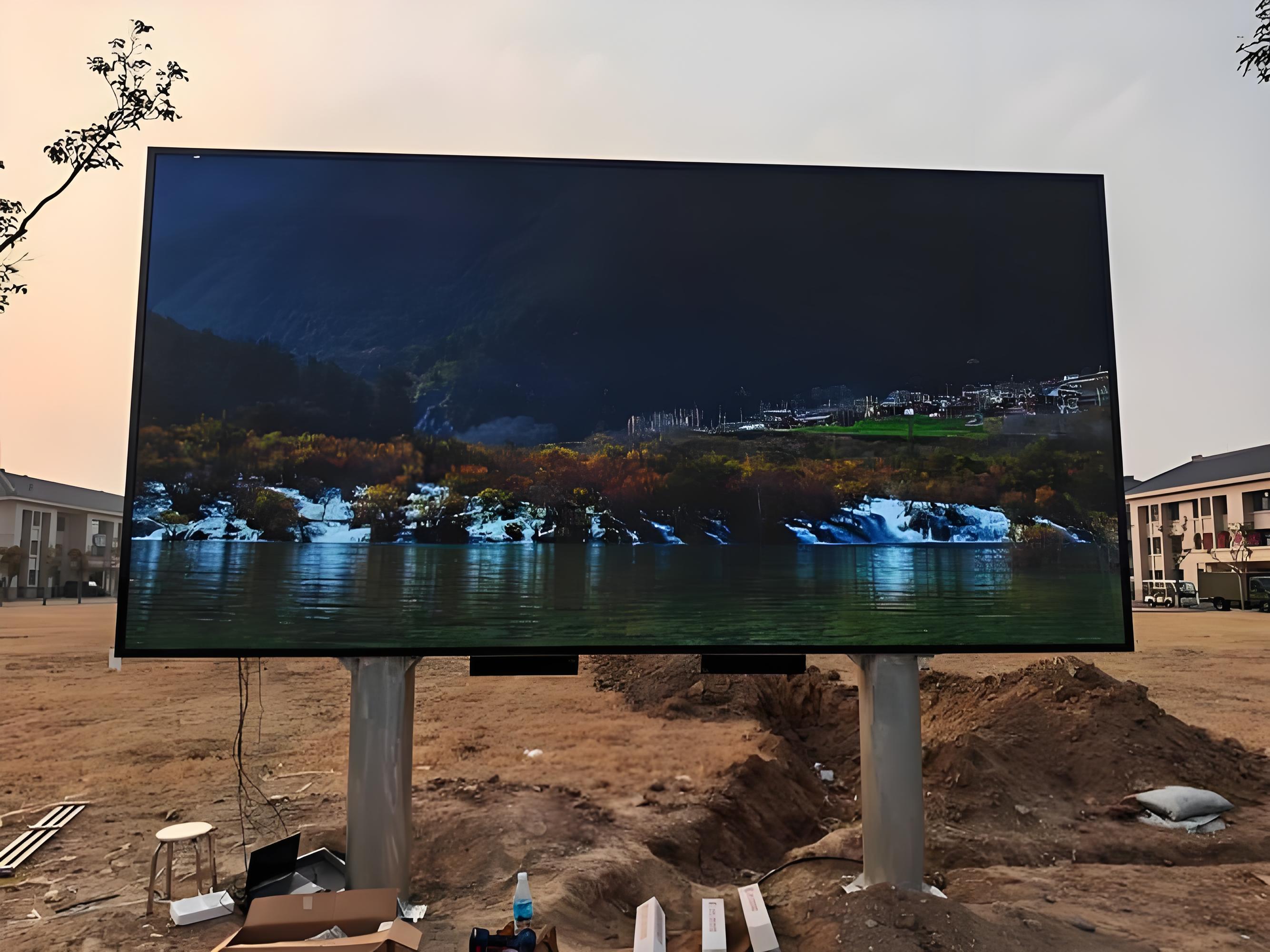

5、Industrial & Logistics Parks: Outdoor monitoring screens, production information displays—withstanding harsh industrial outdoor environments and ensuring stable 24/7 operation.
