GKGD Indoor P2.5 64S Fine Pixel Pitch LED Module for Full Color LED Screen Conference Meeting Advertising LED Display

Short Description:

GKGD P2.5 64S Indoor Full-Color LED Module is a high-performance, cost-effective fine-pitch display component developed by GKGD, tailored specifically for professional indoor visual communication scenarios. Integrating advanced SMD technology, precision manufacturing processes, and stable 1/64 scan mode (64S) driving performance, this module delivers clear, vivid visuals, reliable long-term operation, and flexible installation. It strikes an ideal balance between display quality, operational stability, and cost-effectiveness, making it the preferred choice for medium-to-high-end indoor display projects across various industries. As a core product in GKGD’s indoor standard series, it inherits the brand’s strict quality control standards and mature production experience, ensuring consistent performance and durability for commercial and professional long-term use.

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

Product Customization Process

If you are interested in our products, please communicate with our customer service in time. We will customize the most suitable LED display solution for you based on your needs.

Product Parameters

Item		Indoor P2.5
Module	Panel Dimension	320*160MM
	Pixel Pitch	2.5mm
	Pixel Density	160000 pixels/m²
	Pixel Configuration	1R1G1B

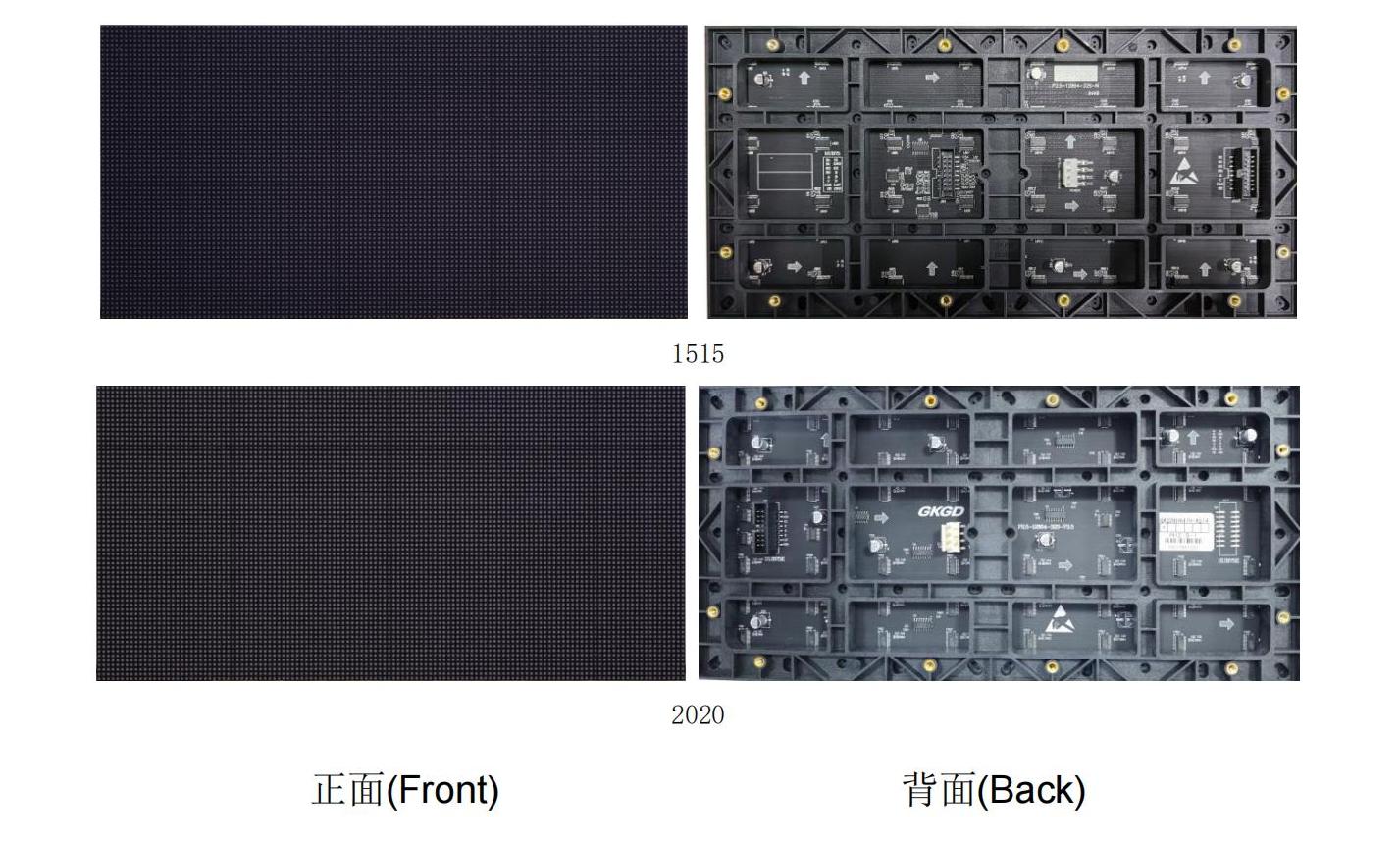

	LED Specification	SMD1515/2020
	Pixel Resolution	128*64 dots
	Average Power	Module 5.8W/pcs@5V Screen 126W/m²
	Panel Weight	0.45KG
Technical Signal Index	Supply Voltage	5V
	Scan Rate	1/64S
	Refresh Frequency	High refresh：≥3840Hz
	Maximum Current	3.5A
	Brightness	≥400cd/m²
	Life Span	100000Hours
	Control Distance	＜100M
	Operating Humidity	10%-60% RH No knot dew
	IP Protective Index	IP45

The GKGD P2.5 64S module takes the2.5mm pixel pitch as its core advantage, complemented by a 1/64 constant current scan mode that enhances display stability, reduces power consumption, and ensures ultra-smooth dynamic image playback. Adopting industry-standard SMD1515/2020 full-color LED chips and high-performance PWM drive ICs, it achieves uniform color reproduction, smooth grayscale transitions, and flicker-free display, effectively eliminating moiré patterns and scan lines—even in close-viewing scenarios (≥2.5m). Designed with a standardized 320mm×160mm module size, it supports seamless splicing to build large-format video walls, easily replacing traditional LCD splicing screens and DLP projection systems in conference rooms, exhibition halls, retail spaces, and corporate lobbies. The module features a lightweight, slim structure with magnetic front maintenance, simplifying installation and later maintenance, while its high-quality components and advanced thermal management ensure stable 24/7 continuous operation, meeting the demands of high-frequency commercial use.

Product Features

1. Stable & Smooth Display Performance

The module adopts a 1/64 constant current scan mode, which ensures more uniform current distribution compared to lower scan modes, effectively reducing power consumption while enhancing the fluency of dynamic images. This design eliminates dead lights and color cast caused by unstable current, while the high refresh rate of ≥3840Hz ensures flicker-free display—even when captured by professional cameras. The 16-bit grayscale further optimizes color transitions, making dynamic videos smoother and static images more vivid, providing a comfortable viewing experience for long durations, which is critical for conference rooms, control centers, and retail spaces that require extended use.

2. High-Definition Visuals & Superior Color Performance

With a 2.5mm pixel pitch and 160,000 dots/㎡ pixel density, the module presents sharp, detailed images and clear text, with no visible pixel grid at close viewing distances (≥2.5m). Equipped with high-quality SMD1515 full-color LED chips, it achieves a wide color gamut and high contrast ratio, delivering lifelike color reproduction that accurately restores the original color of images and videos. The 170° ultra-wide viewing angle ensures consistent visual quality from any perspective, eliminating color distortion and brightness loss even when viewed from the side—perfect for large conference halls and commercial spaces where viewers are distributed in different positions.

High Contrast High Refresh Rate High Grey scale

3. Premium Quality & Long-Term Reliability

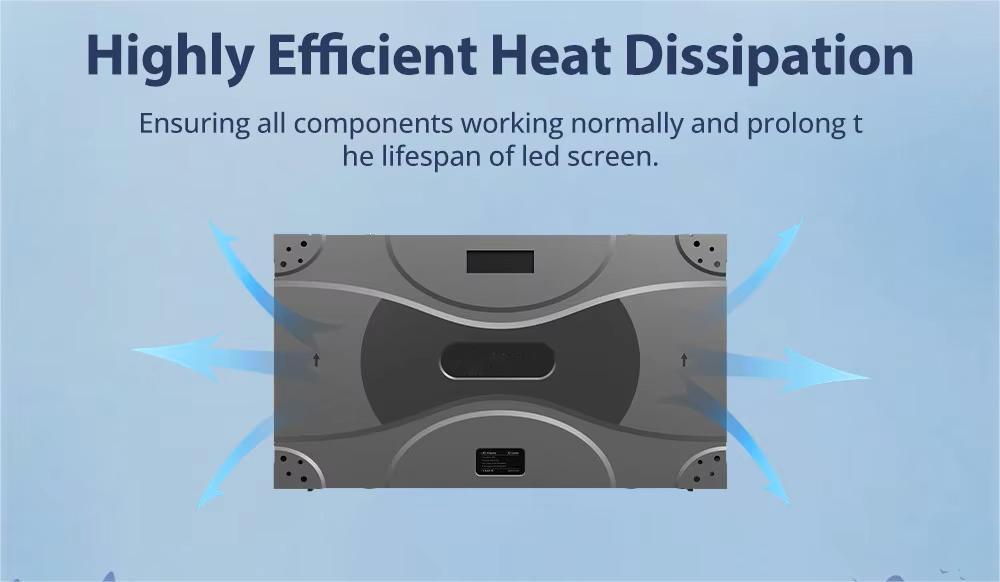

GKGD strictly selects high-quality LED chips and components, which undergo 72-hour continuous aging testing, extreme temperature tests (-20°C to +40°C), and vibration tests to ensure no dead lamps and stable performance. The module uses a high-strength PCB board with reinforced design to prevent deformation and enhance overall durability. Oxygen-free pure copper wires and gold-plated connectors ensure stable current and signal transmission, reducing signal loss and failure rates. Advanced PCB design and efficient thermal management effectively reduce heat generation, ensuring stable 24/7 operation and extending the service life to more than 100,000 hours. Additionally, built-in over-heat, over-load, and lightning protection circuits further enhance operational safety and reliability.

4. Slim, Lightweight & Easy Installation

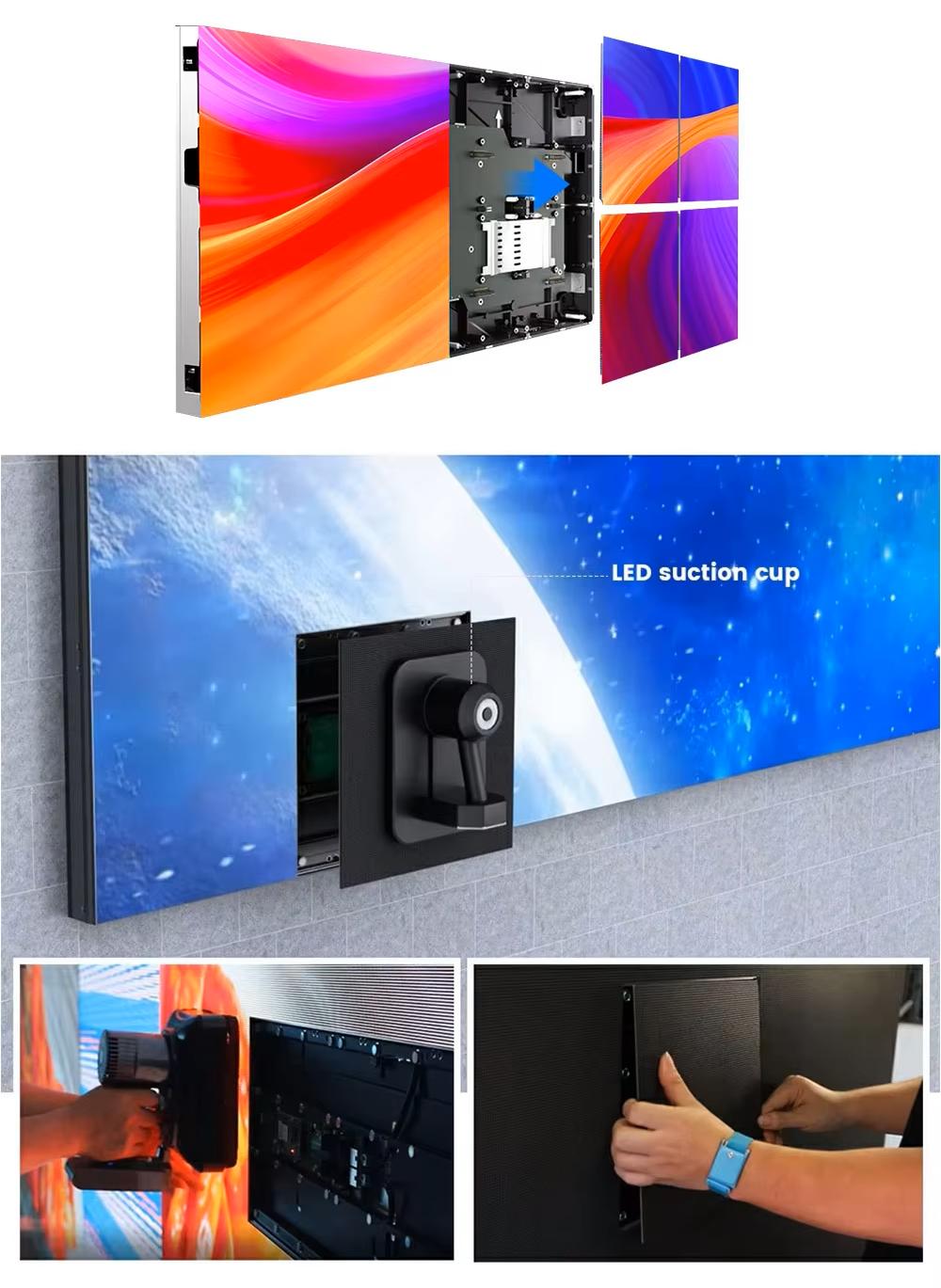

With a slim profile (≤14.5mm thickness) and lightweight design (422g ±5g per module), the P2.5 64S module reduces the load on installation structures and saves indoor space. The standardized 320mm×160mm golden ratio size ensures high compatibility, seamless splicing (gap <±0.1mm), and efficient assembly, which can be perfectly matched with 640×640mm die-casting aluminum cabinets for use. The magnetic mounting system enables quick, tool-less module replacement from the front, eliminating the need to disassemble the entire screen, significantly reducing maintenance time and labor costs—ideal for narrow installation spaces and high-frequency maintenance scenarios.

Application Scenarios

The GKGD P2.5 64S indoor LED module is widely applicable to various professional indoor scenarios, thanks to its balanced performance and cost-effectiveness:

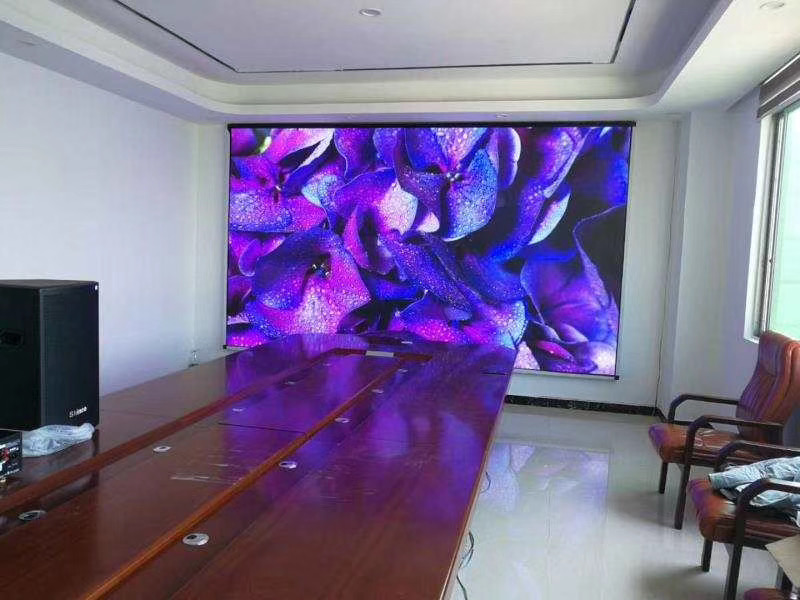

1、Conference Rooms & Auditoriums: High-definition video conferences, presentations, multimedia collaboration, and speech displays, providing clear visuals for small to medium-sized meeting spaces and ensuring comfortable viewing for all participants.

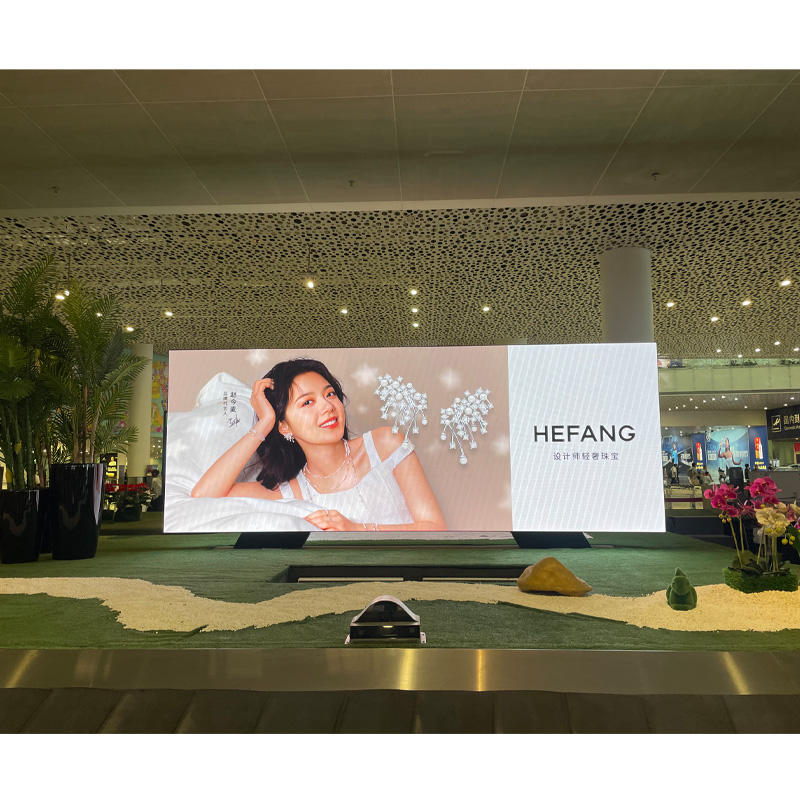

2、Retail & Commercial Spaces: Brand showcases, product promotions, new arrival displays, and dynamic advertising in shopping malls, boutiques, and supermarket checkout areas, attracting customer attention and boosting brand exposure.

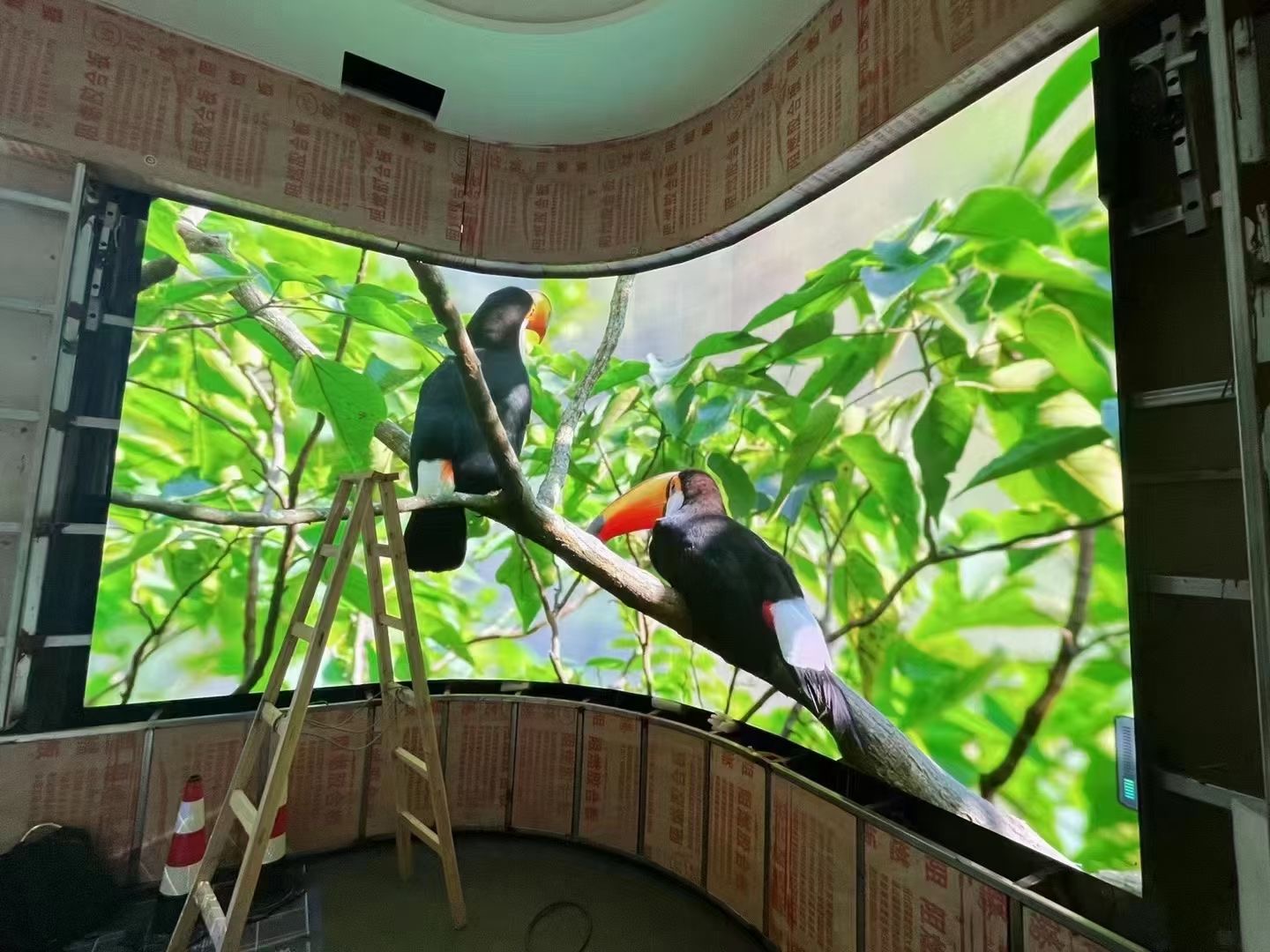

3、Exhibition Halls & Museums: Digital art displays, interactive exhibitions, cultural relic introductions, and information dissemination, creating an immersive viewing experience for visitors.

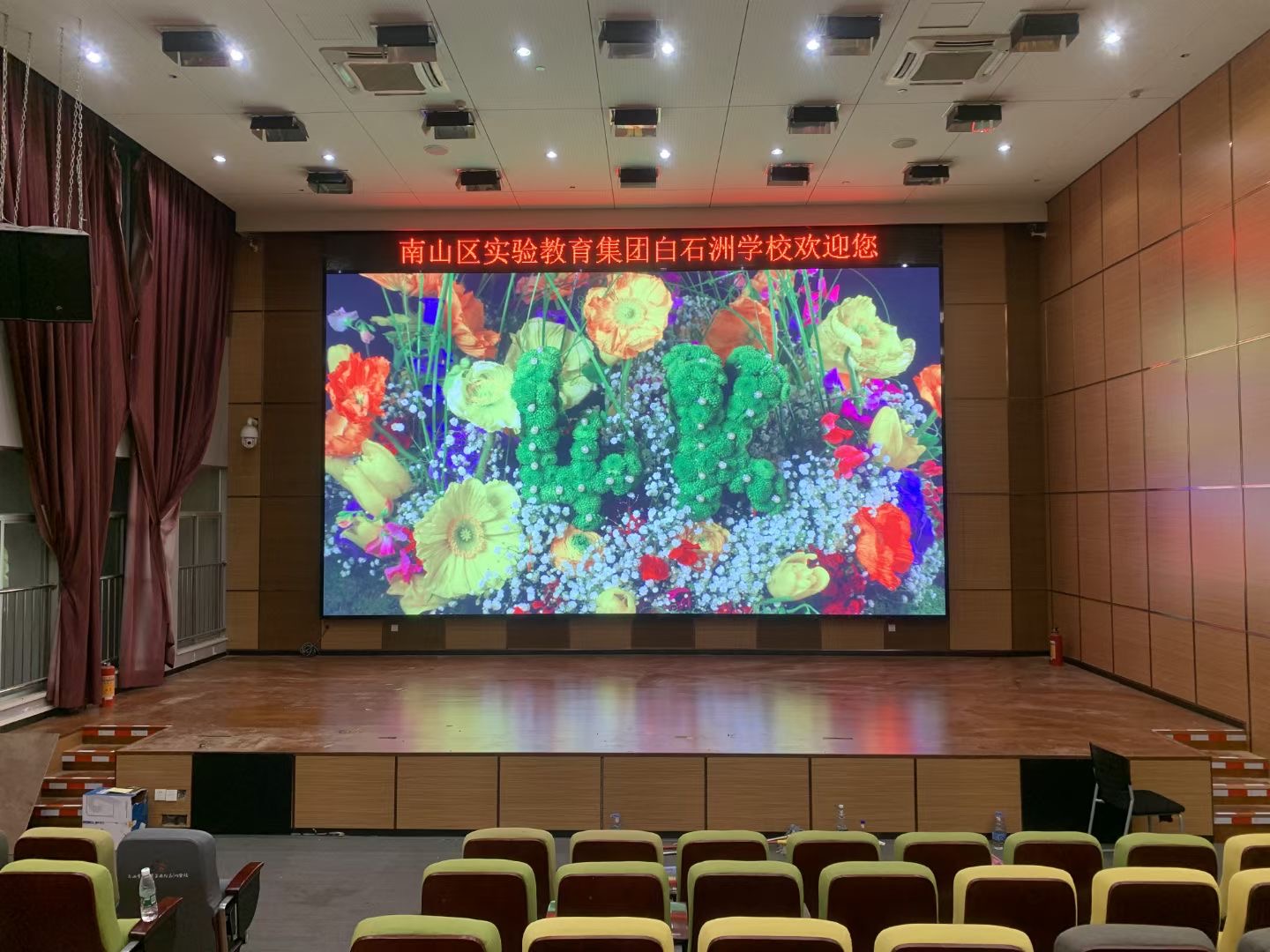

4、Schools & Lecture Halls: Teaching displays, academic reports, and multimedia teaching aids, facilitating efficient knowledge dissemination and improving teaching efficiency.
