GKGD Indoor Fine Pixel Pitch LED Module P1.538 for Full Color LED Display Indoor Command Centers/Conference rooms

Short Description:

GKGD P1.538 Indoor Full-Color LED Module is a high-end fine-pitch display component engineered by GKGD (Gaoke Optoelectronics), designed for premium indoor visual applications that demand ultra-high definition, exceptional clarity, and stable long-term performance. Built with advanced SMD packaging, precision manufacturing, and GKGD’s proprietary optical and thermal technologies, this module delivers industry-leading image quality, uniformity, and reliability, making it an ideal solution for high-end command centers, conference rooms, broadcast studios, high-end retail spaces, and immersive exhibition environments.

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

Product Customization Process

If you are interested in our products, please communicate with our customer service in time. We will customize the most suitable LED display solution for you based on your needs.

Product Parameters

Item		Indoor P1.538
Module	Panel Dimension	320*160MM
	Pixel Pitch	1.538mm
	Pixel Density	422500pixels/m²
	Pixel Configuration	1R1G1B
	LED Specification	SMD1212
	Pixel Resolution	208*104 dots
	Average Power	Module 10W/pcs@5V Screen 224W/m²
	Panel Weight	0.25KG
Technical Signal Index	Supply Voltage	4.5~5V
	Scan Rate	1/52S
	Refresh Frequency	≥3840Hz
	Maximum Current	6.2A
	Brightness	≥500cd/m²
	Life Span	100000Hours
	Control Distance	＜100M
	Operating Humidity	10-90%
	IP Protective Index	IP43

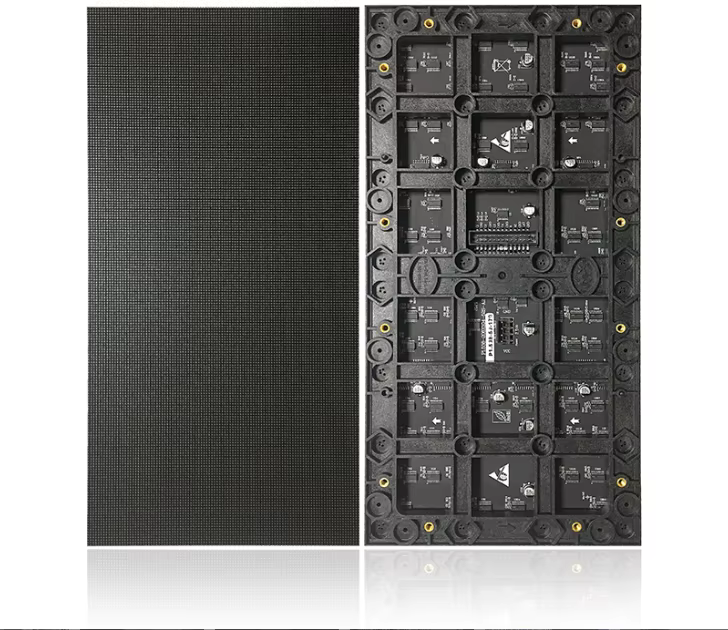

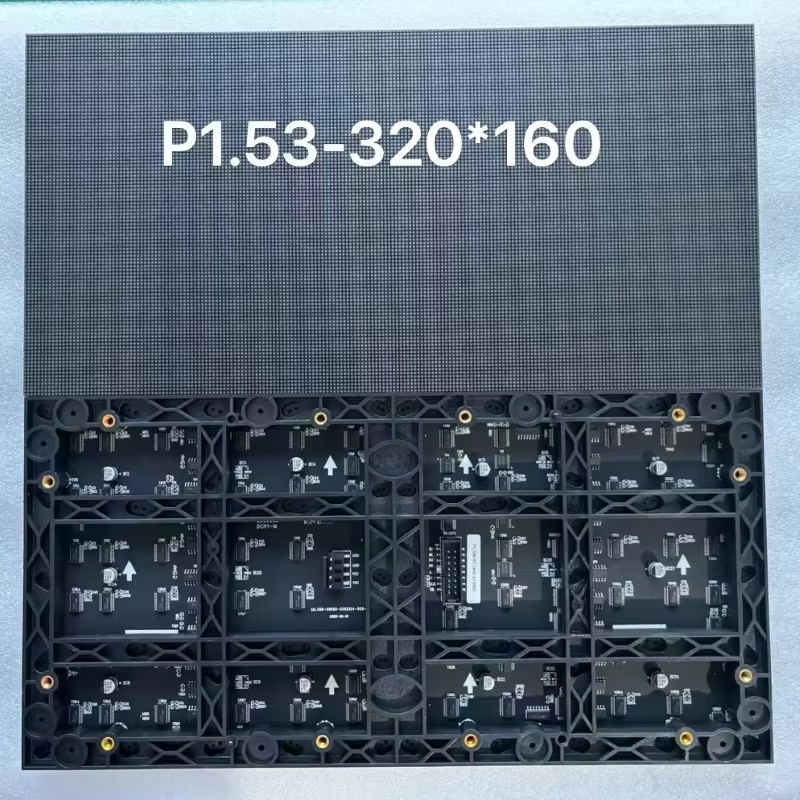

The GKGD P1.538 module features a 1.538mm pixel pitch, representing a cutting-edge solution in the small-pitch LED market. Adopting a standardized dimension of 320mm × 160mm and a resolution of 208 × 104 pixels per module, it offers an ultra-high pixel density of 422,500 dots/m², enabling the reproduction of incredibly sharp, detailed, and lifelike visuals with no visible pixel grid at close viewing distances. Powered by GKGD’s self-encapsulated SMD1212 black-face LEDs and high-performance PWM driver ICs, the module achieves superior contrast, color fidelity, and refresh performance, perfectly meeting the stringent requirements of professional indoor display scenarios.

Product Features

1. Ultra-High Definition & Exceptional Image Clarity

With a 1.538mm fine pixel pitch and 422,500 pixels per square meter, the module delivers 4K+ ultra-high resolution on large screens, presenting intricate details, crisp text, and realistic imagery. The high contrast ratio (3000:1+) and deep black levels, achieved via black SMD LEDs and matte light-absorbing masks, ensure vivid colors, sharp edges, and excellent readability even in bright indoor environments.

2. High Refresh & Flicker-Free Performance

Equipped with a high-speed PWM driver IC, the module supports a refresh rate of ≥3840Hz and a 16-bit gray scale. This eliminates screen flicker, moiré patterns, and scan lines, even when captured by professional cameras—critical for broadcast studios, live streaming rooms, and high-speed video content. The image remains smooth, stable, and artifact-free during both dynamic video playback and static content display.

3. Robust Reliability & Longevity

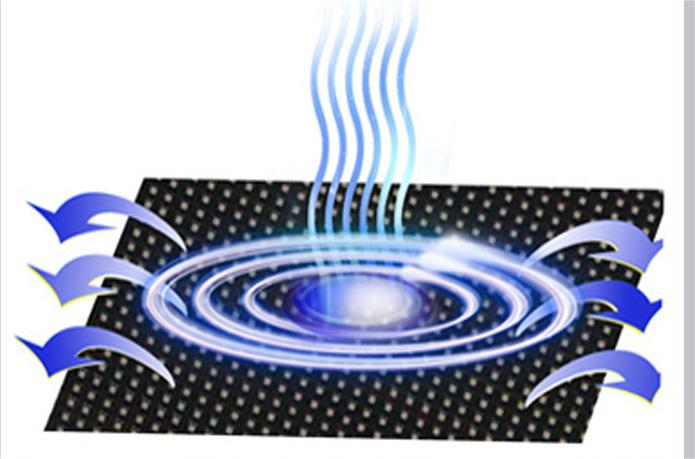

Built with high-quality components and GKGD’s mature manufacturing processes, the module offers an MTBF of over 100,000 hours and an industry-leading bad pixel rate of less than 0.0001%. The multi-layer PCB design and efficient thermal management system ensure stable performance and prevent component degradation under 24/7 continuous operation. Anti-static and anti-interference engineering further enhance operational stability in demanding environments.

4. Slim, Lightweight & Flexible Installation

Featuring a slim profile (≤15mm) and lightweight construction, the module reduces structural load and simplifies installation. The standardized 320×160mm "golden ratio" size ensures high compatibility, seamless splicing, and easy system upgrades. Magnetic front-maintenance design allows for quick, tool-less module replacement from the front, significantly reducing maintenance time and complexity without dismantling the entire screen structure.

5. Energy-Efficient & Eco-Friendly

Utilizing high-efficiency constant-current drive technology and low-power components, the module achieves excellent energy savings compared to standard displays. The average power consumption is only 16W per module, reducing operational costs and heat generation, which contributes to a longer service life and a more comfortable indoor environment.

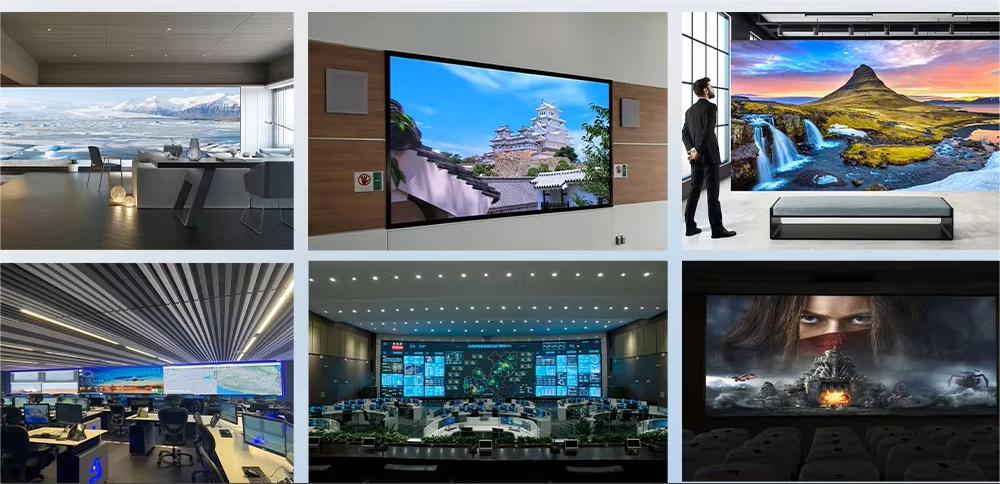

Application Scenarios

1、Command & Control Centers: Real-time data visualization, monitoring, and high-precision signal display for traffic, security, and energy management.

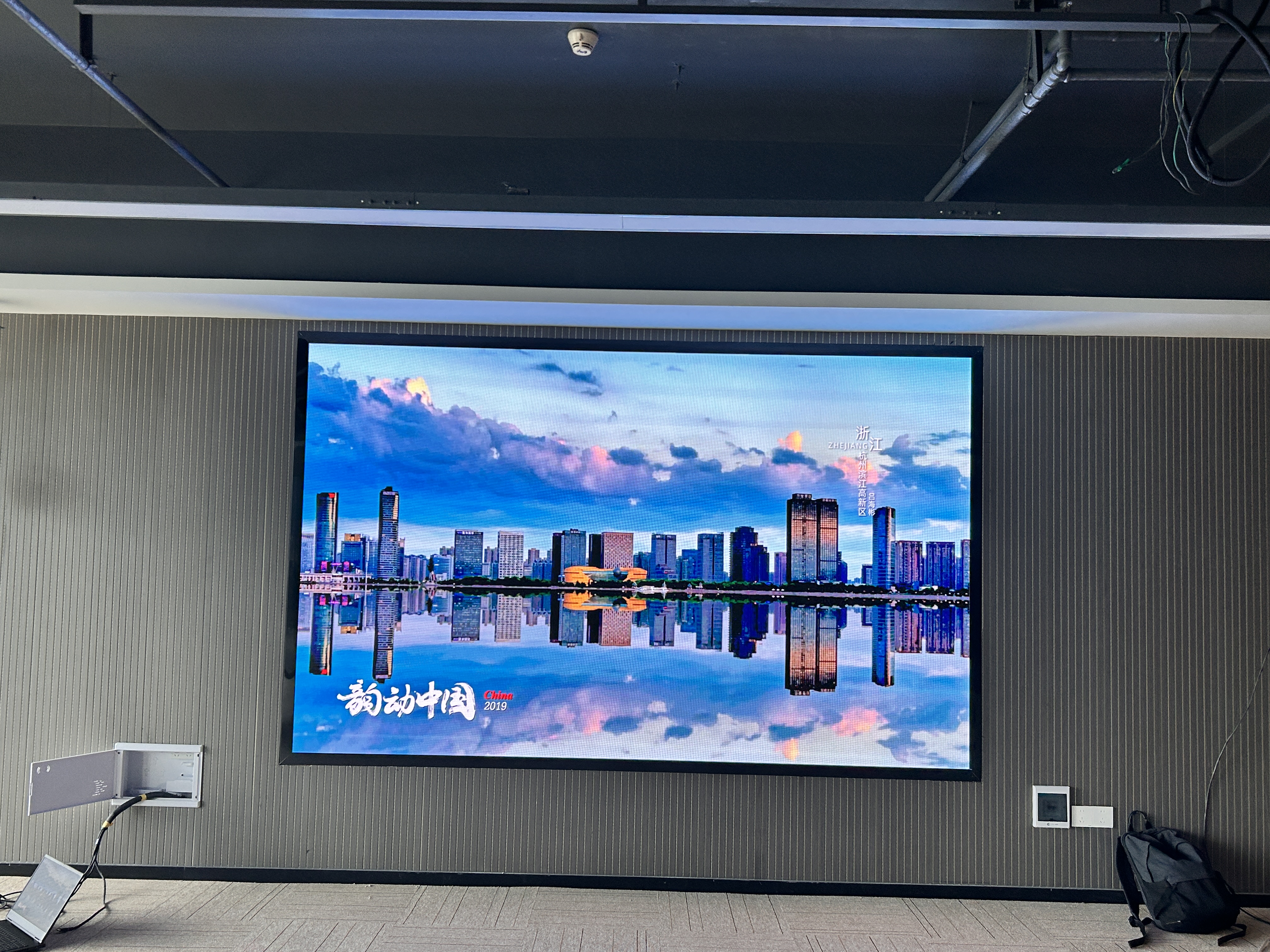

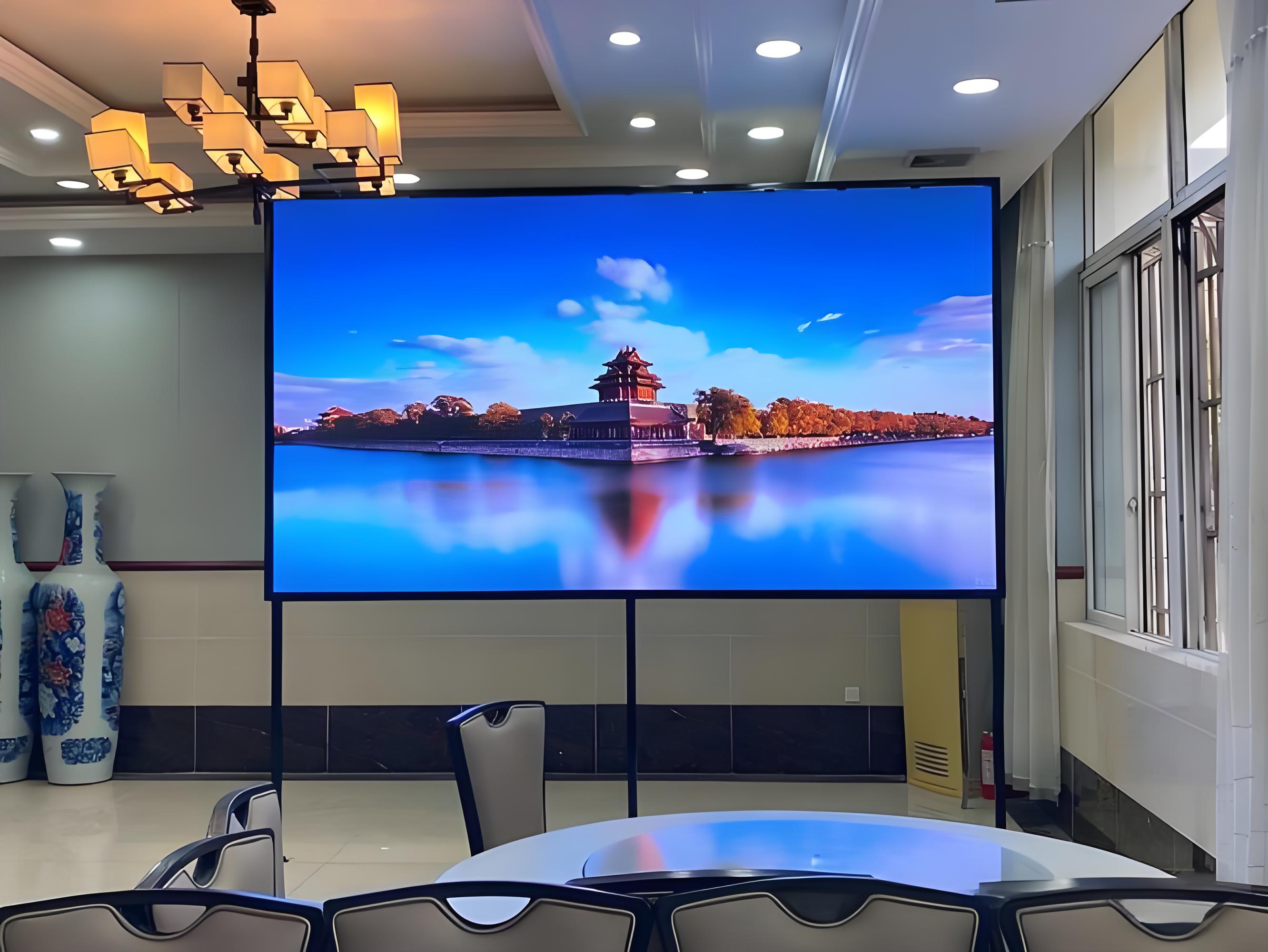

2、High-End Conference Rooms & Boardrooms: Crystal-clear video conferencing, presentations, and multimedia collaboration.

3、Broadcast Studios & Live Streaming: Flicker-free, camera-friendly display for TV studios, newsrooms, and professional live broadcasts.

4、Museums & Science & Technology Exhibitions: Immersive, high-definition content display for cultural relics, interactive exhibitions, and digital art.

5、Luxury Retail & Brand Stores: High-impact product showcases, dynamic advertising, and brand storytelling.

6、Medical & Industrial Control: High-accuracy imaging, precision data readouts, and industrial monitoring systems.

7、Smart Auditoriums & Lecture Halls: Large-format, clear viewing for presentations, lectures, and multimedia events.
