GKGD Indoor LED Module P1.86 Small Pixel Pitch LED Display for Conference Meeting/Commercial Advertising LED Screen

Short Description:

GKGD P1.86 Indoor Full-Color LED Module is a high-end fine-pitch display solution engineered for professional indoor visual communication. Combining advanced LED technology, precision manufacturing, and reliable performance, this module delivers ultra-high-definition imagery, exceptional color fidelity, and stable operation, making it the optimal choice for premium indoor display projects.

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

Product Customization Process

If you are interested in our products, please communicate with our customer service in time. We will customize the most suitable LED display solution for you based on your needs.

Product Parameters

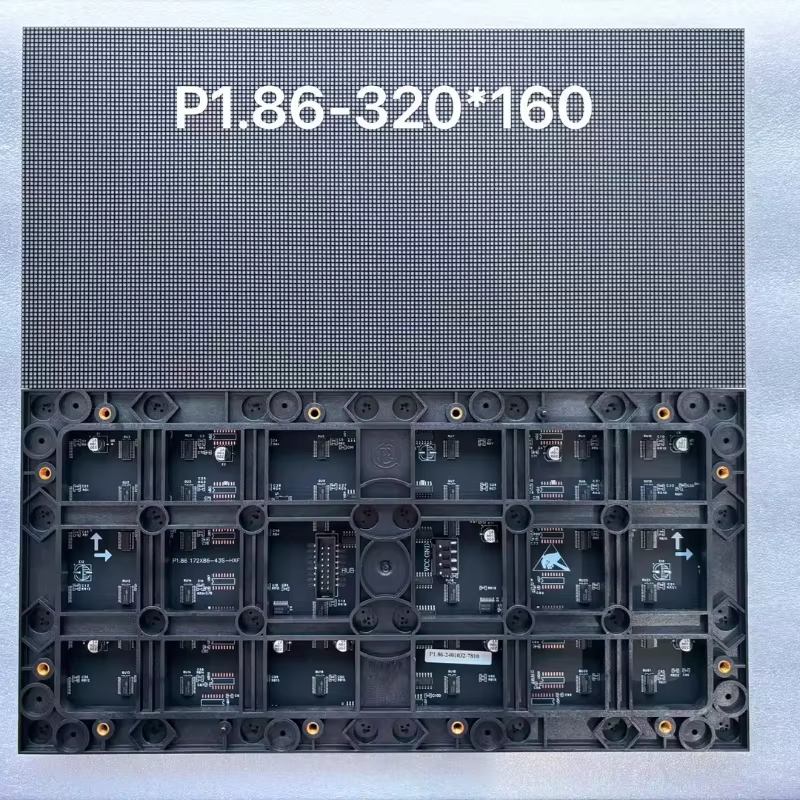

Item		Indoor P1.86
Module	Panel Dimension	320*160MM
	Pixel Pitch	1.86mm
	Pixel Density	288906pixels/m²
	Pixel Configuration	1R1G1B
	LED Specification	SMD1515
	Pixel Resolution	172*86 dots
	Average Power	Module 8W/pcs@5V Screen 180W/m²
	Panel Weight	0.45KG
Technical Signal Index	Supply Voltage	4.5~5V
	Scan Rate	1/43S
	Refresh Frequency	≥3840Hz
	Maximum Current	5.0A
	Brightness	≥500cd/m²
	Life Span	100000Hours
	Control Distance	＜100M
	Operating Humidity	10-90%
	IP Protective Index	IP43

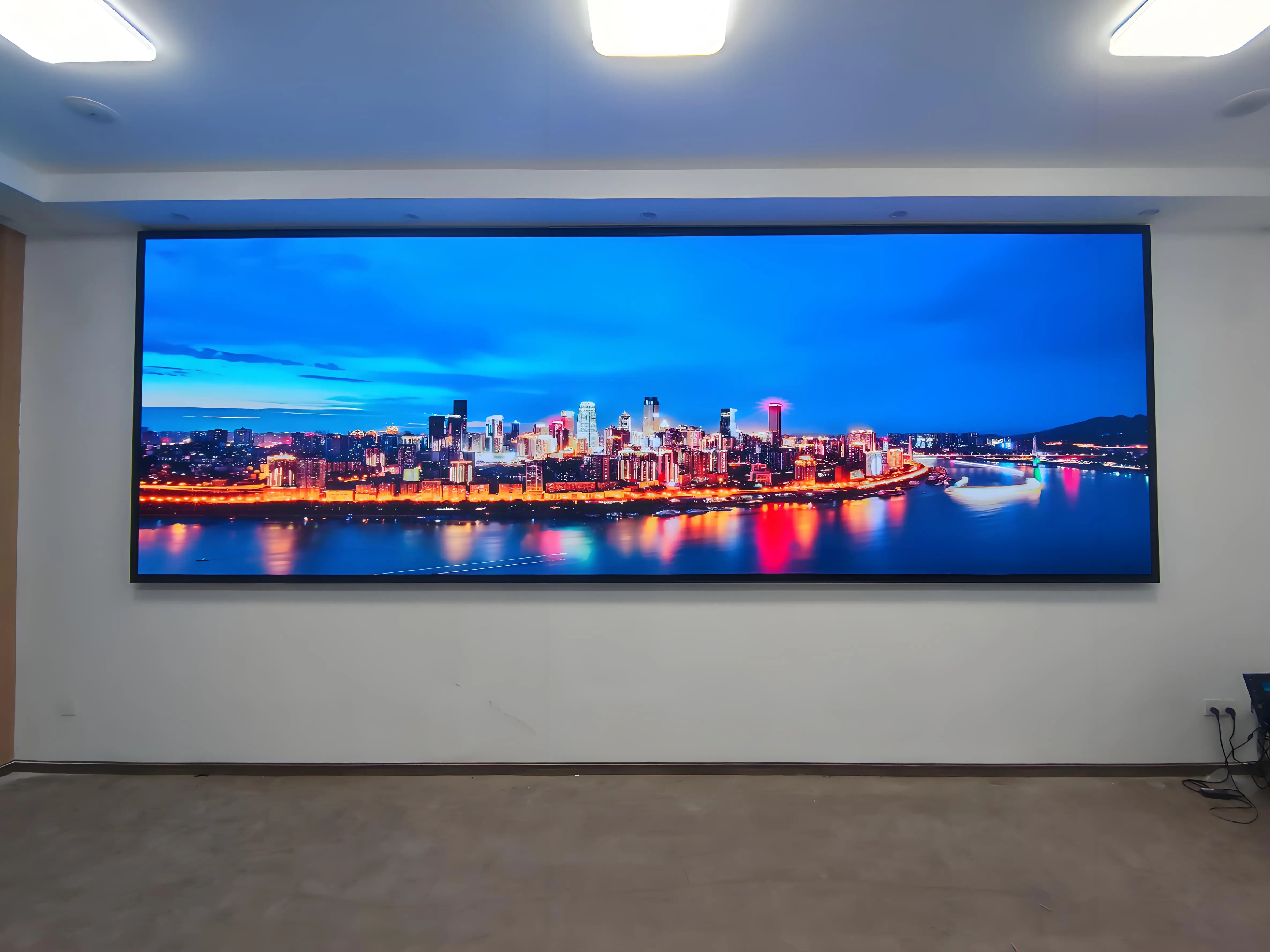

As a flagship product in GKGD’s indoor fine-pitch series, the P1.86 module features a 1.86mm pixel pitch and a high-density pixel array, providing extraordinary clarity for close-viewing scenarios. Adopting industry-leading SMD three-in-one LED chips and high-performance drive ICs, it achieves seamless, flicker-free visuals with vibrant color reproduction. Designed with die-casting aluminum kits and magnetic mounting, it ensures easy installation, front maintenance, and long-term durability. This module is ideal for building large-format, seamless video walls that replace traditional LCD splicing walls and DLP projection systems.

Product Features

1. Ultra-High Definition & Superior Visual Performance

With a 1.86mm fine pixel pitch and ultra-high pixel density, the module presents sharp, detailed images and smooth video playback, perfect for close-range viewing. The 16-bit gray scale and wide color gamut deliver lifelike color reproduction, natural transitions, and high contrast ratios, ensuring every detail is vividly displayed. The high refresh rate of ≥3840Hz eliminates screen flicker and moiré patterns, making it camera-friendly for broadcast, conference, and studio environments.

2. Premium Components & Reliable Quality

GKGD selects high-quality LED chips undergoing strict testing including thermal shock and high-temperature aging. The module uses oxygen-free pure copper wires and gold-plated connectors for stable current and signal transmission. Advanced PCB design and efficient thermal management ensure low heat generation and stable 24/7 operation, significantly reducing failure rates.

3. Slim, Lightweight & Flexible Installation

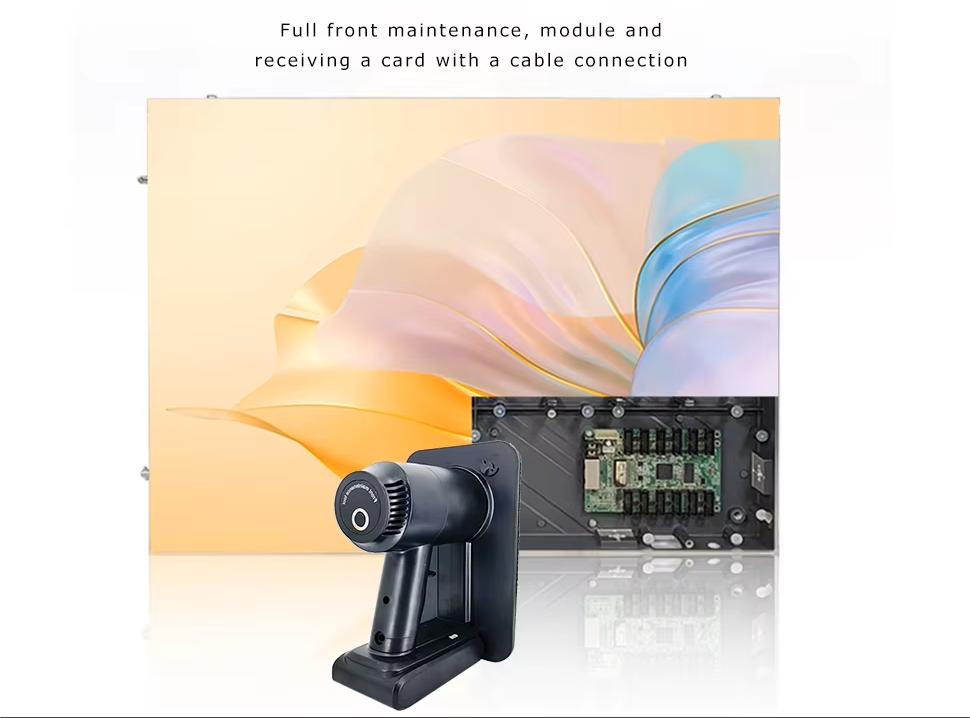

The module features a slim profile (≤15mm thickness) and lightweight die-casting aluminum structure, reducing overall screen weight and simplifying installation. It supports magnetic front installation and maintenance, allowing quick module replacement without accessing the rear—ideal for narrow installation spaces. It supports various setups: wall-mounted, embedded, and stacked, adapting to diverse spatial requirements.

4. Energy-Saving & Eco-Friendly

Adopting energy-efficient drive ICs and low-power LED technology, the module reduces power consumption by up to 30% compared to conventional indoor displays. Intelligent brightness adjustment automatically optimizes power use based on ambient light, lowering long-term operating costs and supporting green, sustainable projects.

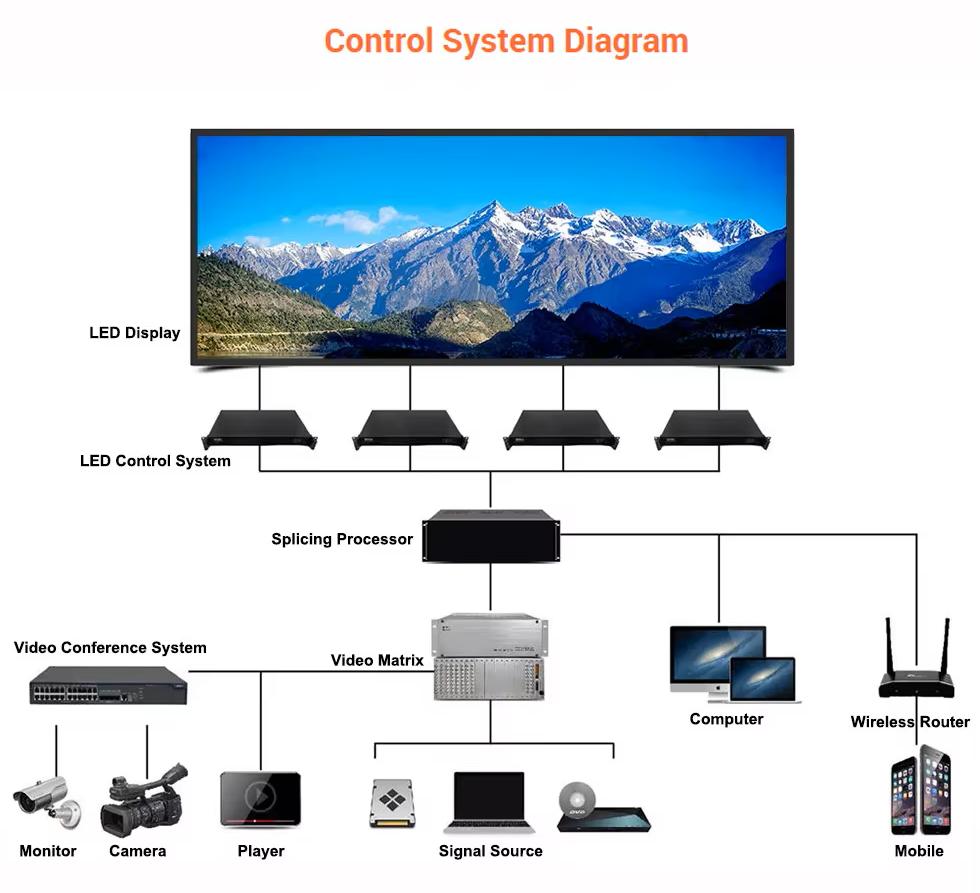

5. Wide Compatibility & Easy Control

Fully compatible with mainstream control systems (NovaStar, Colorlight, Linsn), the module supports various signal inputs (HDMI, DVI, SDI, IP). It supports both synchronous real-time control and asynchronous playback, with remote content management via WiFi/4G/cloud. Uniform brightness and color calibration ensure seamless splicing and consistent display across large video walls.

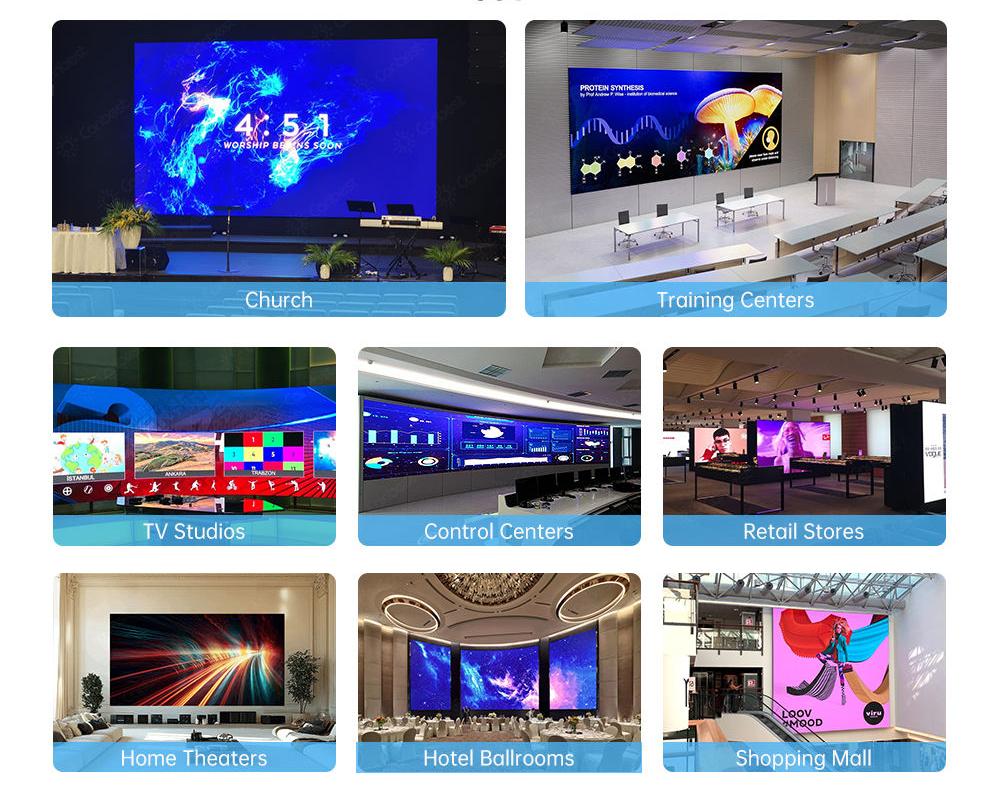

Application Scenarios

- Conference Rooms & Auditoriums: High-definition video conferences, presentations, and multi-media collaboration

- Command & Control Centers: Real-time data monitoring, security surveillance, and emergency dispatch

- Exhibition Halls & Museums: Art displays, interactive exhibitions, and immersive digital experiences

- Shopping Malls & Retail: Brand showcases, product launches, and dynamic advertising

- TV Studios & Broadcasting: Camera-friendly backgrounds, live broadcast walls

- Corporate Lobbies & High-End Hotels: Brand image displays, welcome signage, and information dissemination
