Colorlight VX20 LED Video Processor with 13.1 Million Pixel for Full Color LED Display
Overview
VX20 is capable of handling up to 13.1 million pixels, and features HDMl 2.0,DP 1.2, 12G-SDl, and HDMl 1.4 input ports for 4K video input. lt can alsotransmit processed video content to LED displays via 1G Ethernet or 10Gfiber ports. lt supports 8/10/12-bit video input and 8/10-bit video output atsuper high definition, and allows for scaling and cropping of videos whilemaintaining high visual fidelity. Moreover, the device supports the display ofBKG, OSD, and logos, and provides Multiviewer at high resolution.
In terms of signal reliability and data security, the VX20 delivers robust features such as hot backup, fiber port backup or copying, and Ethernet port redundancy configurations. Such versatility positions VX20 as an optimal companion for high-end rental scenarios and fine-pitch video walls.
When it comes to operation, VX20 offers intuitive Web-based controls, and is compatible with multiple operation systems including Windows, macOS,and Linux, With a single network cable, users can control VX20 and manage the display on the screen without the need for extra software installation,which can best meet the demands of stage rental applications.
Features
Multiple ports
Provides multiple ports for inputting and looping out various signals,including:
● 2×HDMI 2.0+2×HDMI2.0_LOOP
● 2×DP1.2
● 2×12G-SDI+2×12G-SDI_LOOP
● 4×HDMI1.4*+4×HDMI 1.4_LOOP
*Only supports 2×HDMI1.4 or 4×HDMI1.3 inputs at the same time.
Large load capacity
● Total capacity: up to 13.1 million pixels
● Max.width: 16,384 pixels; Max.height: 8192 pixels
● 20×Gigabit Ethernet ports for output
● 4×10G fiber ports for output
-Fiber 1 and Fiber 2 work as the primary fiber output ports,respectively serving as the alternatives to the Ethernet port1~10 and Ethernet port 11~20.The fiber ports take precedence as the output ports over the Ethernet ports when both these 2 types of ports are connected.
-Fiber 3 and Fiber 4 work as the backup fiber output ports,either copying or backing up the output from Fiber 1 and Fiber 2 respectively
● 1×HDMI 2.0 port for output
-Connects to a monitor for viewing the image of PVW,PGM,and all input signals.
High image quality,true 4K
● True 4K: 4096×2160@60Hz
● True HDR
-Supports HDR10 and complies with SMPTE 2086/2084
-Supports HLG
● Input color depth: 8/10/12 bit
● Output color depth: 8/10 bit
● Frame rate: up to 240Hz
Versatile
● Supports multiple working modes
-Video processor mode:receives and processes multiple video sources,3 of which can be selected and outputted to the receiving cards
with 1 frame delay by default.
-Fiber optc transceiver mode:uses Fiber1/Fiber2 as the input ports for receiving the video signal from another VX-series device,and
outputs the signal via the Ethernet ports to the screen.
-Bypass mode:receives multiple video sources,1 of which can be selected and outputted to the screen with O frame delay.
Powerful video processing
● Canvas view: PVW&PGM/PGM Only
-PVW&PGM: The PVW image can be viewed and edited in Multiviewer. Next,it can be sent to the area of PGM for displaying on the
screen via the Take/Cut button.
-PGM Only:Modifications to layers on the PGM area can be viewed in Multiviewer, and will be simultaneously applied to the display.
-The loading capacities of the Ethernet ports for these two views are both 13.1 million pixels.
● Multi-layer display: supports displaying 3 layers(all at 4K resolution at a time, and allows for image splicing and Picture-in-Picture(PiP).
● Supports scaling and cropping of video sources.
● Supports opacity settings for overlays.
● Supports fade in/out.
● Supports precise color management.
● Multiple supported color formats: RGB, YCbCr444, and YCbCr422.
Customizable display
● Image library:
-Supports uploading PNG or JPG images(total storage: 1GB).
-The stored images can be applied to BKG/Logo.
● Supports setting BKG(HD or solid-color)
-Not use layer resources;up to 4 stored images can be added to BKG list.
-Supports 1:1 display(max.width:16,384 pixels; max.height: 8192 pixels)
● Supports logo display
-Not use layer resources; up to 10 stored images can be added to logo list.
-Resolution:up to 512×512(max.width:512;max.height:512)
-Supports setting opacity.
● Supports OSD text
-Not use layer resources;supports up to 4 OSDs in the list.
-Resolution:up to 2 million pixels(max.width:16,384;max.height:8192 pixels)
-Supports scrolling text.
-Supports opacity settings for overlays.
-Supports setting scrolling direction,speed,and OSD style.
● Provides advanced test pattern,with 15 test patterns supporting customizable colors.
All-round preview and monitoring
●1×HDMI2.0 port for preview and monitoring the image of PVW,PGM,and all input signals.
● Supports device control and preview and monitoring using the matching software, with a single network cable connecting the
device and the host PC.
● HD PVW display available on the front panel LCD,supporting preview and switching of the image displayed on screen without
the need for any external control device.
Intuitive Ul interaction,easy operation
● Supports cross-platform Web control with optimized UI design and user experience.
● Compatible with iSet, providing professional and powerful features to ensure optimal display control.
● Supports both single and dual canvas user interfaces,ensuring flexibility for different application scenarios.
● Supports saving up to 1000 presets for easy application and switching.
● Supports selection of audio output in both auto and manual modes.
-Auto audio output: automatically selects audio source from the topmost layer that has valid audio for output.
-Manual audio output:manually selects desired audio for output.
Multiple redundancy solutions,stable and reliable
● Supports Ethernet port loop redundancy(manually configured).
● Built-in fiber port redundancy(Fiber 3/4 for Fiber 1/2).
● Supports processor redundancy,allowing for automatic switching to the backup device if failure occurs to the primary device.
● Supports video source input redundancy,ensuring seamless switching to the backup signal if failure occurs during the transmission
of the primary video source.
Appearance

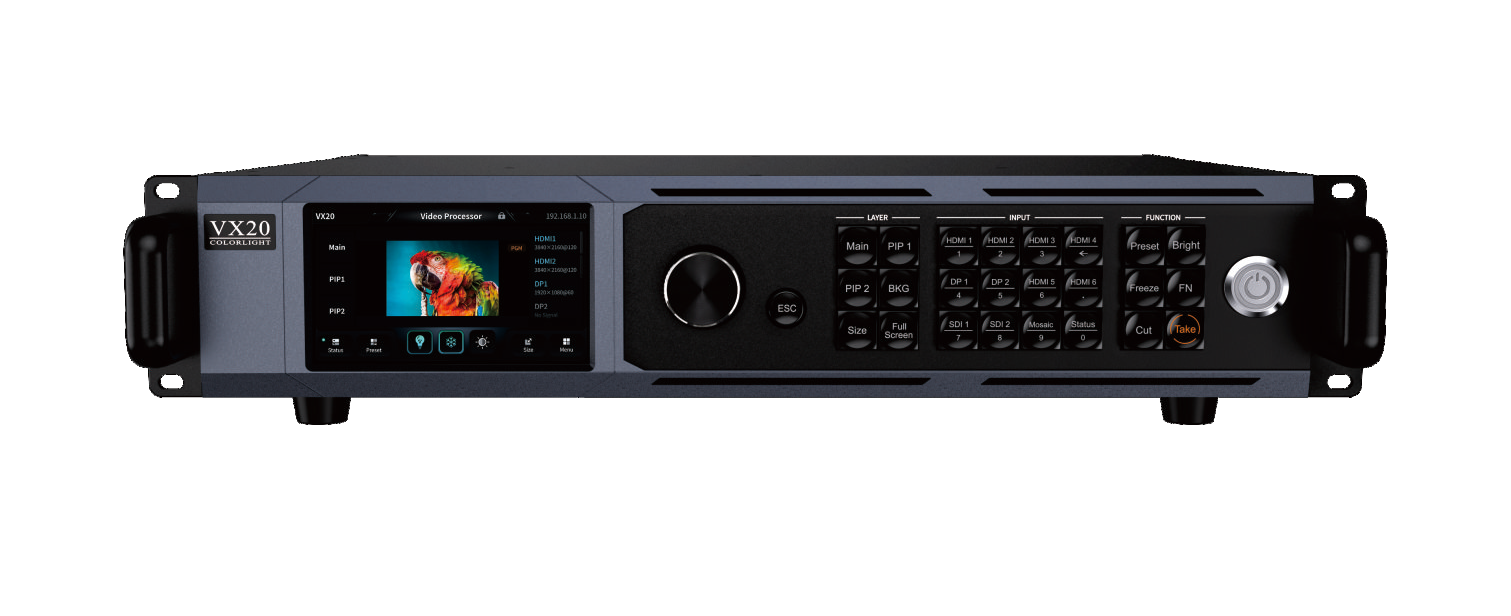

Front Panel
| NO. | Name | Description |
| 1 | Touch screen | Displays device status and provides menus for parameters settings and device control. |
| 2 | Knob | ● Press this knob to access sub-menu or confirm selection.
● Rotate this knob to select menu items or tune parameters. |
| 3 | ESC | Press this button to exit the current touch screen interface and return to the previous interface. |
| 4 | Function buttons | ● Main/PIP 1/PIP 2:Press these layer buttons to view status of the corresponding layers;supports switching between layers for corresponding signal image.
● BKG: Press this button to switch to the background image. ● SIZE:Button for setting the size and position of the layers. ● Full Screen:Press this button to scale the top layer to full screen. ●HDMI 1/HDMI 2/DP 1/DP 2/SDI 1/SDI 2/HDMI 3/HDMI 4/ HDMI 5/HDMI 6 / Mosaic: Press these video source buttons to switch between signals for a selected layer. ● 0~9:Press these number buttons to enter corresponding numbers. ●←:Deletion button/Backspace button. ●.:Press this button to enter a space character. ● Status:Press this button to view device's status. ● Preset:Press this button to select a preset. ● Bright:Press this button to adjust the output brightness. ● Freeze:Press this button to pause the incoming video signal and hold the final frame indefinitely. ● FN:Function for this button can be defined by users. ● Cut:Press this button to output the current PVW image to the screen. ● Take:Press this button to output the current PVW image to the screen with a set effect. |
| 5 | Power button | Press this button to power on/off the device. |

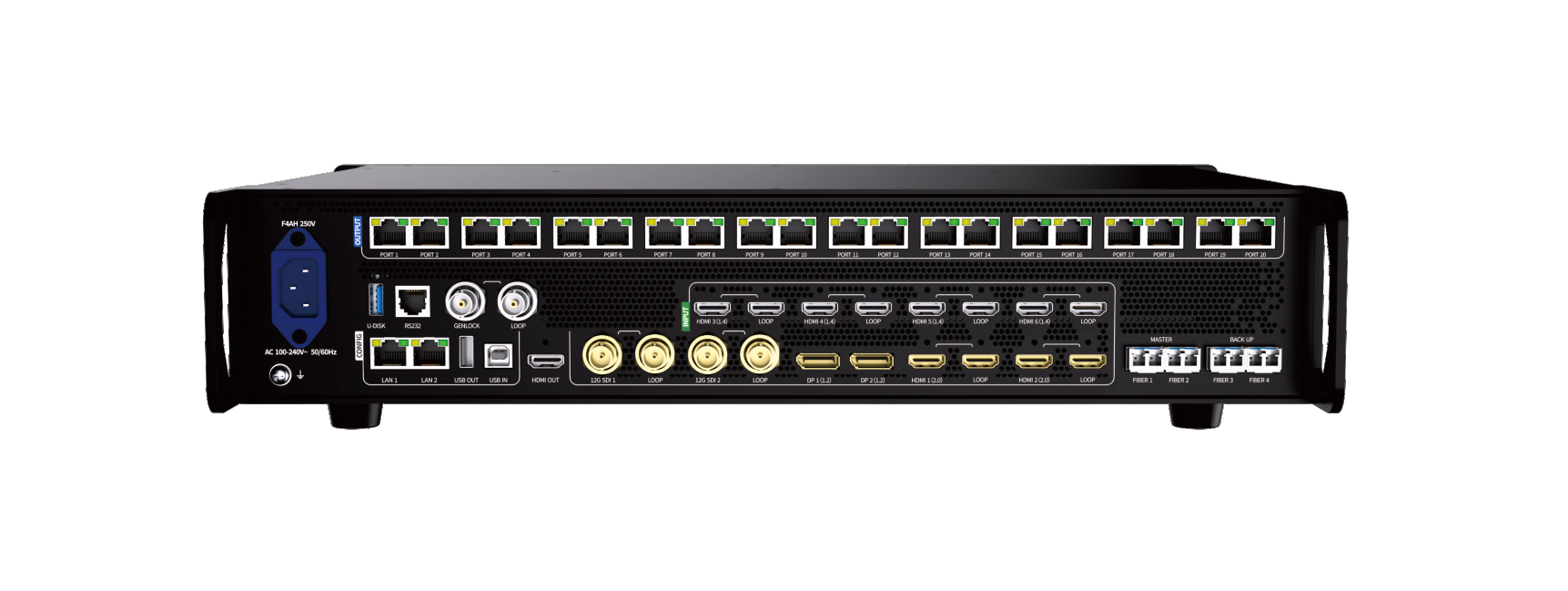

Rear Panel
| No. | Name | Description |
| Control | ||
|
1 |
LAN 1/2 |
● RJ45 Gigabit Ethernet ports;both can be connected to a host PC for device control.
● Supports bridge function(connects to another VX20 to realize a virtual LAN). |
| 2 | RS232 | RJ11(6P6C)port for connection to a central control. |
|
3 |
USB IN | USB 2.0(type B);connects to the PC for parameter debugging or for cascading input. |
| USB OUT | USB 2.0(typeA)for cascading output. | |
| Genlock | ||
|
4 |
GENLOCK |
● 1×BNC male connector for sync signal input.
● Supports Black Burst,Bi-level,and Tri-level;supported frame rate: 23.98Hz~60Hz |
| GENLOCK LOOP |
1×BNC male connector for looping out the GENLOCK sync signal. |
|
| Input | ||
|
5 |
2×12G SDI |
● Compatible with 6G-SDI,3G-SDI (LEVELA/B)and HD-SDI.
● Supports SMPTE-2082-1(12G),ST-2081-1(6G),ST-424(3G)and ST-292(HD)video source. ● Supports up to 4096×2160@60Hz video input per port |
| No. | Name | Description |
|
5 |
2×12G SDI |
● Not support custom EDID.
● Supports 10-bit video source. ● Supports 23.98Hz~60Hz video source. ● Supports YCbCr422 color format. ● Supports interlace processing(12G SDI 1only). |
| 2×12G-SDI _LOOP | 2×12G-SDI loop out ports | |
|
6 |
2×DP1.2 |
● Compatible with DP1.1.
● The maximum pixel clock rate is 600MHz;supports up to 4096× 2160@60Hz or 8192×1080@60Hz video source. ● Supports setting custom resolution via the EDID: -Max.width:4096(4096×2160@60Hz) -Max.height:4096(2160×4096@60Hz) ● For video input: -Max.width:8192 -Max.height:8192 ● Supports 8/10/12-bit video source. ● Supports 23.98Hz~240Hz video source. ● Supports HDR10 and HLG. ● Supports RGB,YCbCr444,and YCbCr422 color formats. ● Supports HDCP 2.2 and HDCP1.4. ● Supports embedded audio input. ● Not support interlaced signal input. |
|
7 |
2×HDMI2.0 |
● Compatible with HDMI 1.4 and HDMI 1.3.
● Max.pixel clock rate:600MHz;supports up to 4096×2160@60Hz or 8192×1080@60Hz video source. ● Supports setting custom resolution via the EDID: -Max.width:4096(4096×2160@60Hz) -Max.height:4096(2160×4096@60Hz ● For video input: -Max.width:8192 -Max.height:8192 ● Supports 8/10/12-bit video source. ● Supports 23.98Hz~240Hz. ● Supports HDR10 and HLG. ● Supports RGB,YCbCr444,and YCbCr422 color formats. ● Supports HDCP2.2 and HDCP1.4. ● Not support interlaced signal input. |
| No. | Name | Description |
| 7 | 2×HDMI2.0 _LOOP | 2×HDMI 2.0 loop out ports |
|
8 |
4×HDMI1.4 |
● Max.pixel clock frequency: 330MHz
● Max.resolution:4096×1080@60Hz or 4096×2160@30Hz ● Min.resolution:800×600@60Hz ● Supports setting custom resolution via the EDID: -Max.width:4096(4096×1080@60Hz) -Max.height:4096(1080×4096@60Hz) ● Supports 8bit video source. ● Supports inputs at 23.98Hz~120Hz. ● Supports RGB,YCbCr444,and YCbCr422. ● Supports HDCP1.4. ● Supports audio input(HDMI3 only). ● Not support HDR. ● Not support interlaced signal input |
| 4×HDMI1.4 _LOOP | 4×HDMI 1.4 loop out ports | |
| 9 | U-DISK | USB driver connector;supports import and configuration of receiving card parameters. |
| Output | ||
|
10 |
PORT 1-20 |
● Total load capacity:13.1 million pixels
-Max.width:16,384 pixels;Max.height:8192 pixels -8-bit@60Hz:13.1 million pixels;10-bit@60Hz:9.8million pixels -8-bit@120Hz:6.55 million pixels;10-bit@120Hz:4.9 million pixels -8-bit@240Hz:3.27 million pixels;10-bit@240Hz:2.45million pixels ● Load capacity per port:650,000 pixels -8-bit@60Hz:650,000 pixels;10-bit@60Hz:490,000 pixels -8-bit@120Hz:320,000 pixels;10-bit@120Hz:240,000 pixels -8-bit@240Hz:160,000 pixels;10-bit@240Hz:120,000 pixels ● Communication distance:the recommended maximum cable (CAT5e)run length is 100 meters. ● Supports Ethernet ports loop redundancy. |
|
11 |
Fiber 1-4 |
● 4×10G fiber ports (optional 10G SFP+Optical module,the
transmission distance depends on the specification of the optical module) ● Fiber l/Fiber2 -When used with a fiber optic transceiver,the fiber ports serve as the output ports automatically. |
| No. | Name | Description |
|
11 |
Fiber 1-4 |
-When Fiber 1 and any one of the Ethernet port 1~10 are connected at a time,Fiber 1 takes precedence for output;when Fiber 2 and any one of the Ethernet port 11~20 are connected at a time,Fiber
2 takes precedence for output. -When no fiber port is connected while any of the 20 Ethernet ports is connected,the Ethernet port works. ● Fiber 3/Fiber 4 In Copy mode by default and can be set to Backup mode; respectively copies or backs up the data transmitted via Fiber 1and Fiber 2. |
|
12 |
HDMI OUT |
● 1×HDMI 2.0
● Connects to a monitor for viewing the image of PVW,PGM,and all input signals. |
| Power | ||
| 13 | AC100-240V | Port for power input;100-240V;50/60Hz. |
Application

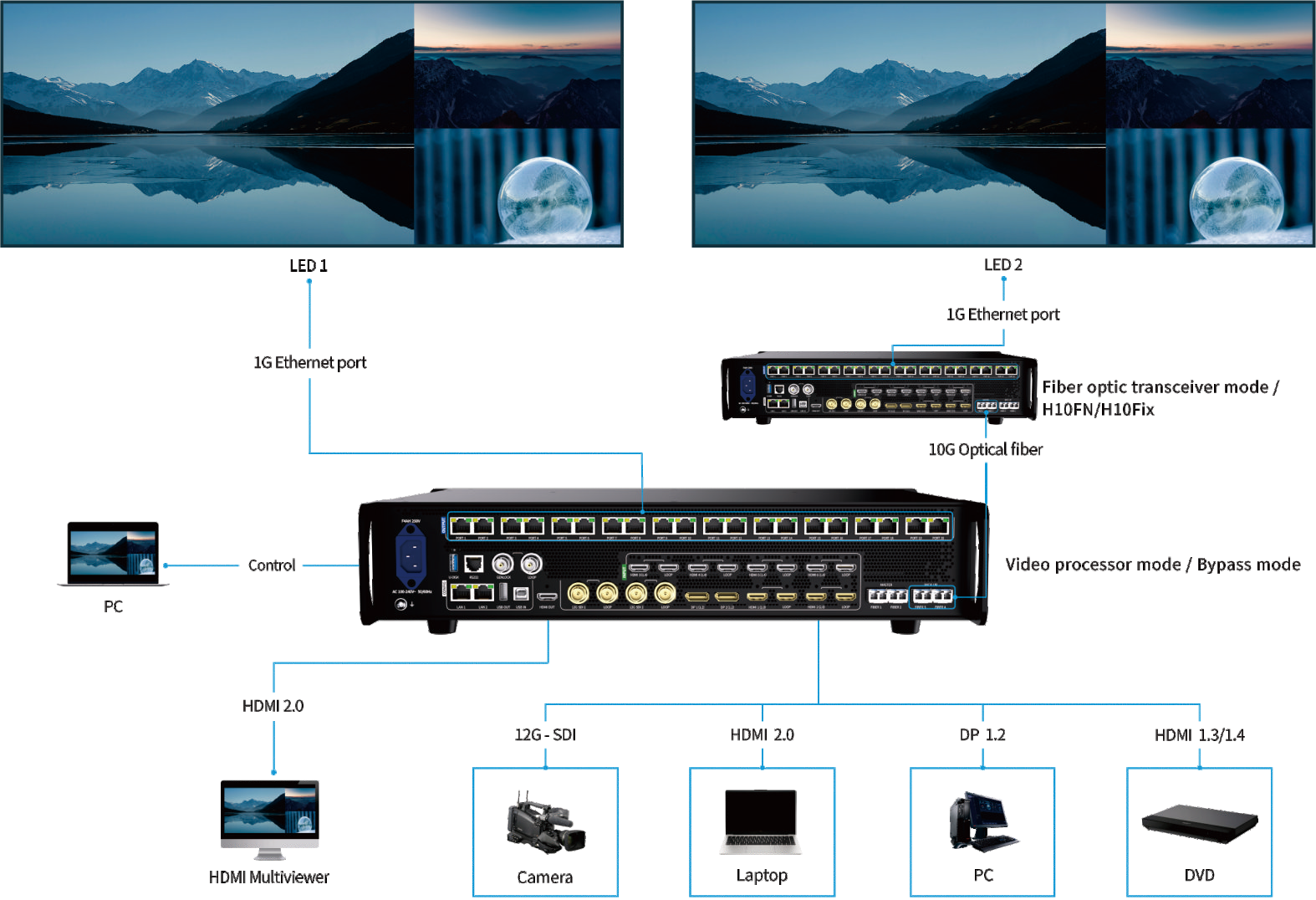

Video Processor Mode&Bypass Mode

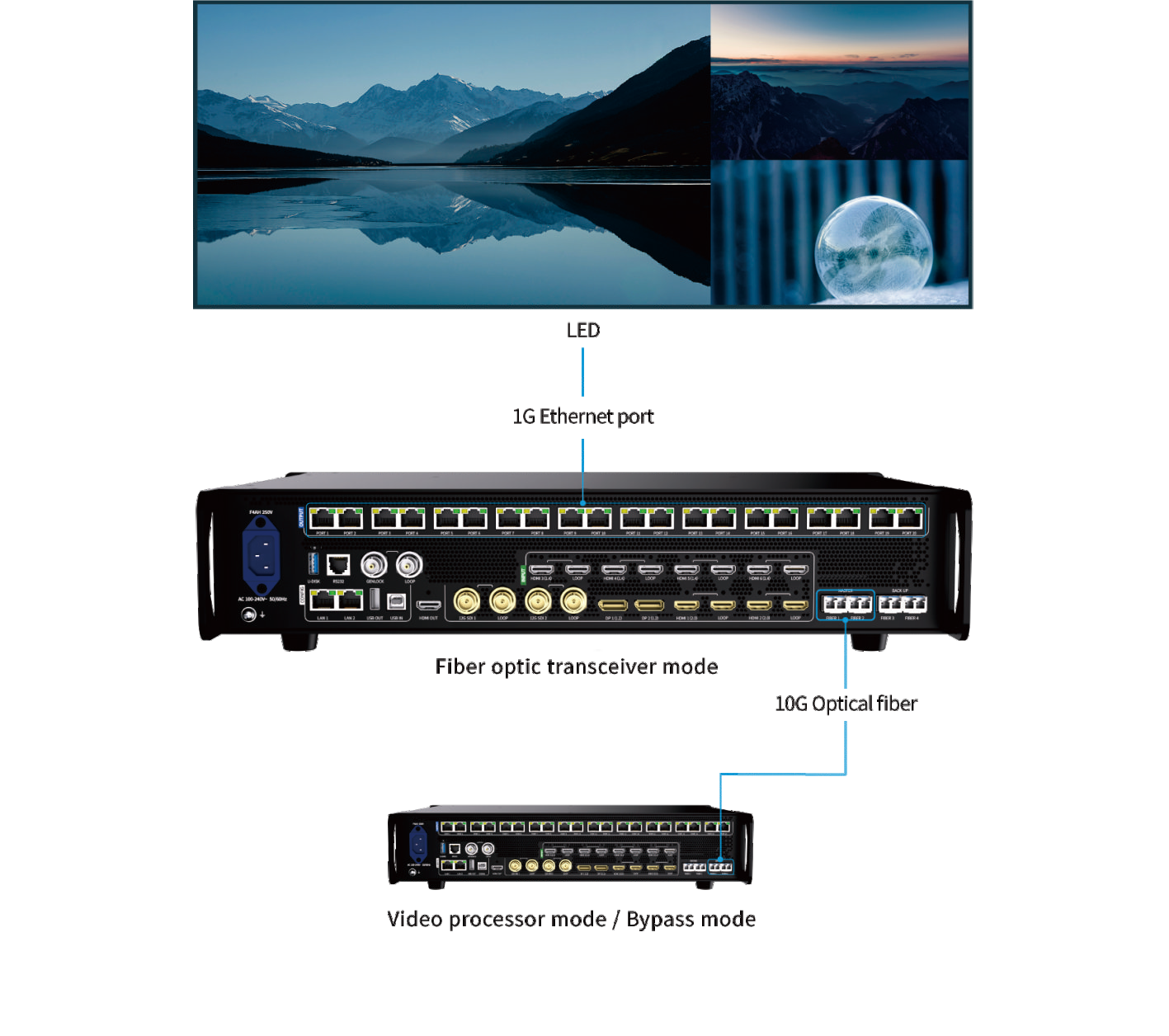

Fiber Optic Transceiver Mode
Parameters
| Dimensions(W×H×D) | ||
| Device |
482.6mm(19.0")×88.0mm(3.5")×412.1mm(16.2"),2U(without rubber feet) |
|
| Packing | 525.0mm(20.7")×150.0mm(5.9")×495mm(19.5") | |
| Weight | ||
| Net | 5.65kg(12.45lbs) | |
| Gross | 9.10kg(20.06lbs) | |
| Electrical parameters | ||
| Power supply | AC100-240V,50/60Hz | |
| Rated power | 92W | |
| Operating environment | ||
| Temperature | -20℃-50℃(-4°F~122°F) | |
| Humidity | 0%RH-90%RH,non-condensing | |
| Storage environment | ||
| Temperature | -30℃-80℃(-22°F~176°F) | |
| Humidity | 0%RH-90%RH,non-condensing | |
| Flight case | Optional | |
|
Packing list |
VX20 | 1PC |
| User Manual | 1PC | |
| After-Sales Service Card | 1PC | |
| Gigabit Ethernet cable | 1PC | |
| USBA/B cable | 1PC | |
| Power cord | 1PC | |
| HDMI 2.0 cable | 1PC | |
| DP1.2 cable | 1PC | |
| 10G FIBER optical module | Optional | |

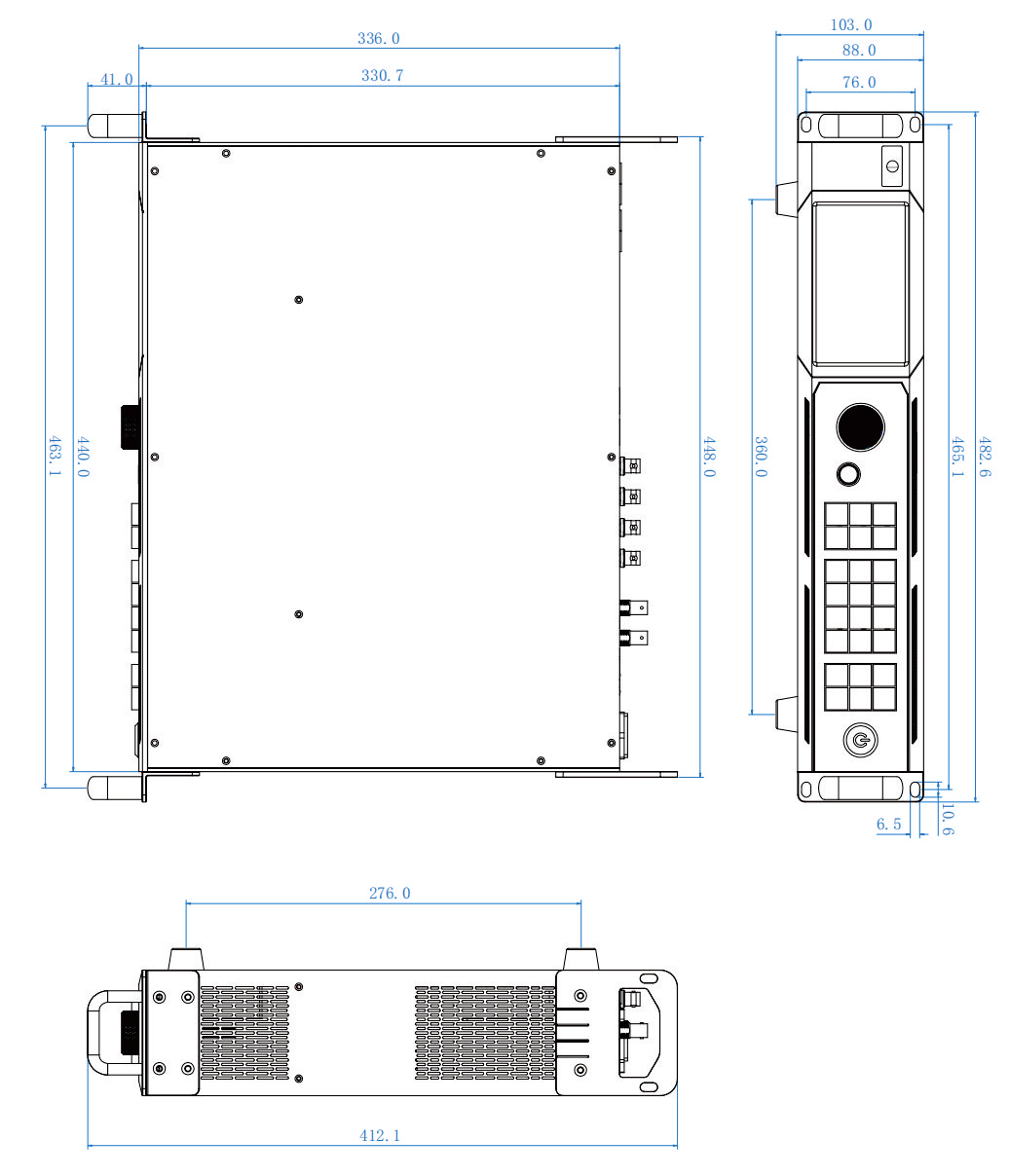

Reference Dimensions
