Ultra HD LED Flexible Module: Seamless Curved Display Support Custom Shape for Malls, Stages & Creative Architecture

Short Description:

Introducing our high-definition LED Flexible Module, designed to break the boundaries of traditional rigid displays. Featuring an ultra-fine pixel pitch and a seamless, bezel-less design, this module delivers crystal-clear, lifelike visuals without any visible grain or gaps. Its exceptional flexibility allows it to bend to any curve, perfectly fitting cylindrical columns, wave-shaped walls, and creative architectural structures. Experience smooth, gap-free video playback and stunning image quality that transforms any space into a dynamic visual centerpiece.

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

Product customization process

As a professional LED display manufacturer, we have many years of manufacturing and sales experience, with a professional pre-sales and after-sales team. You only need to tell us your needs, and we will provide you with professional customized solutions according to your actual situation. You don't need to worry, so if you have any needs, please contact us immediately!

Overview

Our LED Flexible Module is a revolutionary flexible display solution, functioning similarly to standard LED screens but featuring exceptional bendability. Integrating high-precision LED display chips with a flexible base, this product delivers vivid visuals, stable performance, and versatile shape adaptability, making it an ideal choice for custom-shaped display scenarios both indoors and partially outdoors. Below is a detailed overview of its parameters, features, advantages, and application scenarios.

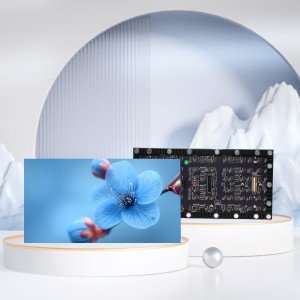

Indoor Flexible LED Module

LED Flexible Module Parameters
Module	P1.25	P1.53	P1.86	P2.0	P2.5
Pixel Pitch(mm)	1.25	1.53	1.86	2.0	2.5
Module Size(mm)	320*160	320*160	192*192	320*160	320*160
Module Resolution(dots)	267*133	209*104	172*86	160*80	128*64
Pixel Density(dots/㎡)	694441	427186	289050	250000	160000
Lamp Model	SMD1010	SMD1212	SMD1515	SMD1515	SMD2020
Brightness	≤500cd/㎡
Driving Mode	1/64	1/52	1/43	1/40	1/32
Best Viewing Distance	≥1.25m	≥1.53m	≥1.86m	≥2.0m	≥2.5m
Refresh Frequency	3840Hz
Flatness	≥98%
Best Viewing Angle	H：110° V：110°
Life Span	100000h
Working Humidity	10%~70%
IP Level（Front/Rear）	IP30

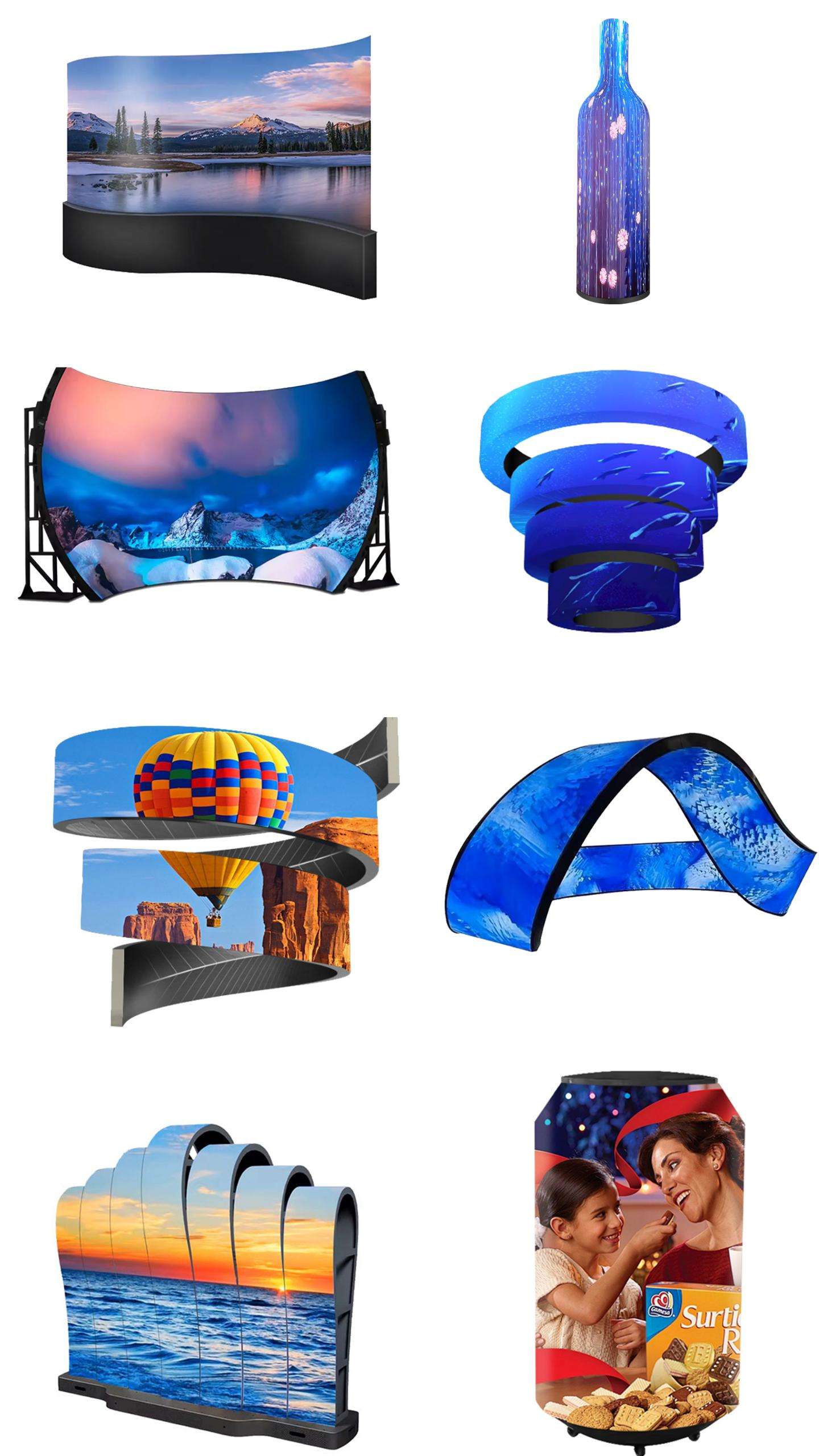

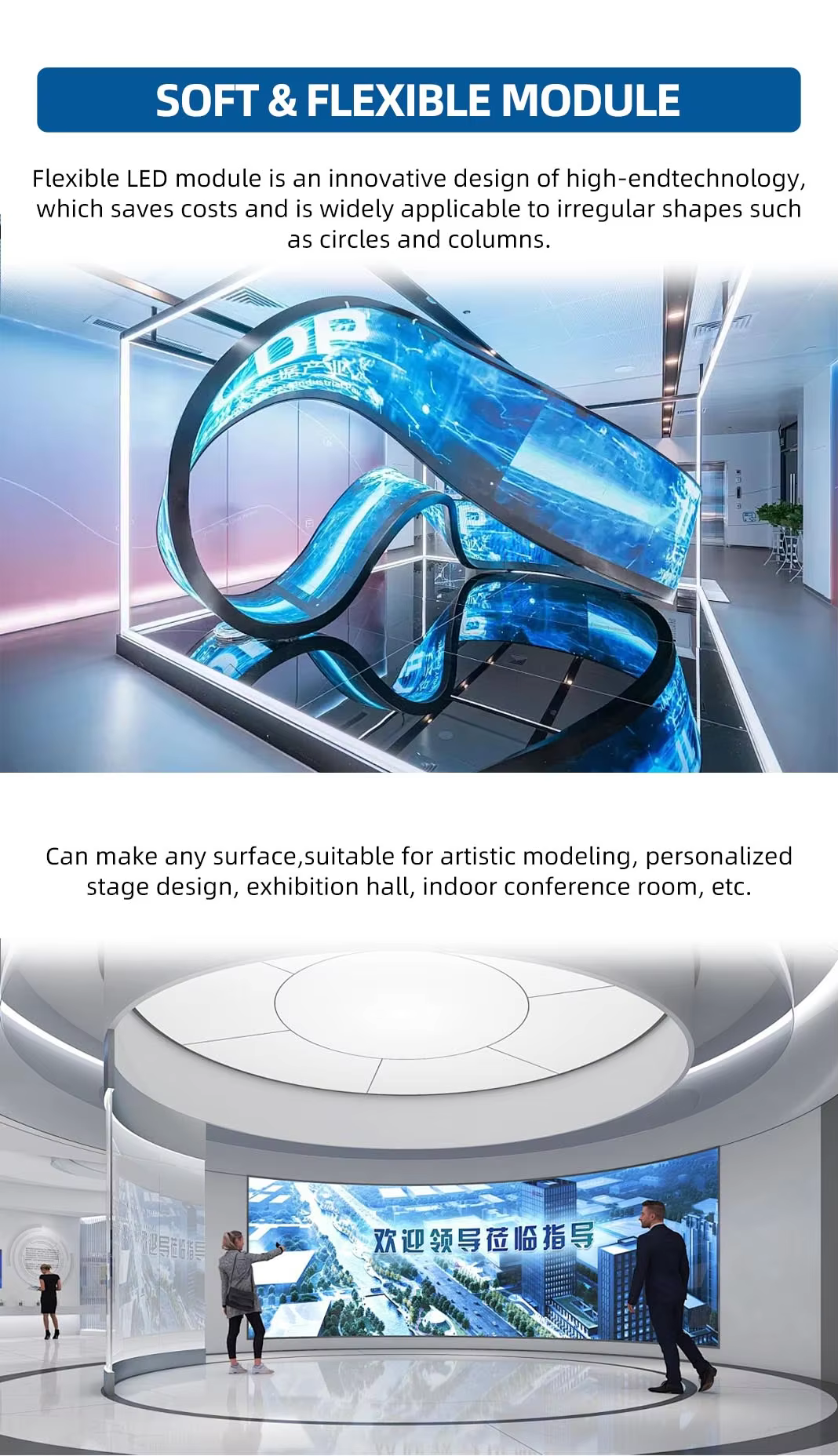

Application Scenarios

1、Commercial Spaces: Shopping malls, brand stores, restaurants, hotels, and exhibition halls. It can be used for curved showcase displays, wall-mounted advertising screens, countertop displays, and signboard displays to create an attractive and high-end commercial atmosphere.

2、Architectural Decoration: Indoor curved walls, cylindrical columns, arc ceilings, and staircase handrails in office buildings, museums, art galleries, and theaters. The flexible feature can perfectly match the architectural shape, serving as a creative display medium to enhance the artistic sense of the space.

3、Entertainment Venues: Bars, nightclubs, KTVs, and game halls. The RGB full-color version can create dynamic video effects, cooperate with music and on-site atmosphere to play videos, animations, and dynamic patterns, greatly enhancing the entertainment experience.

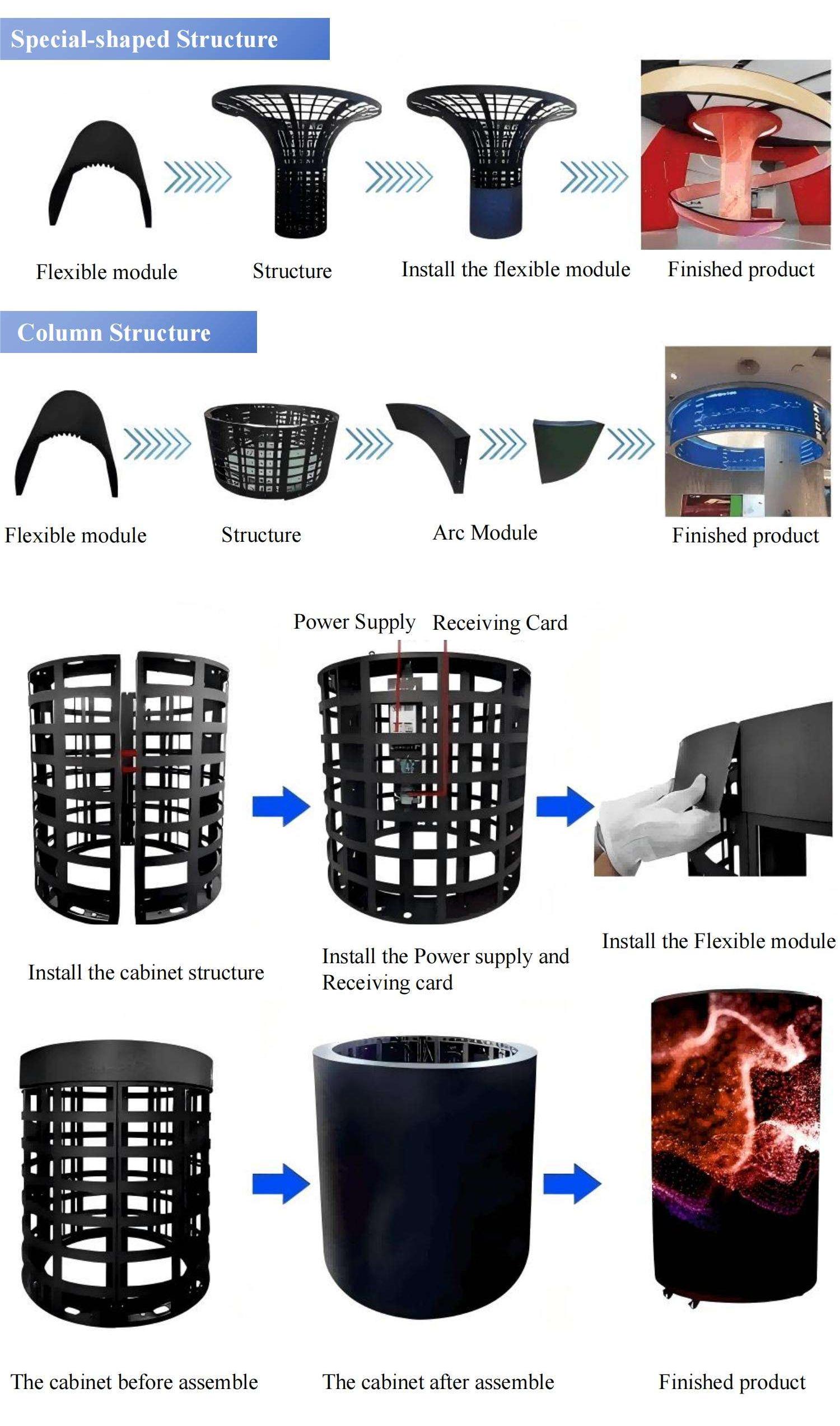

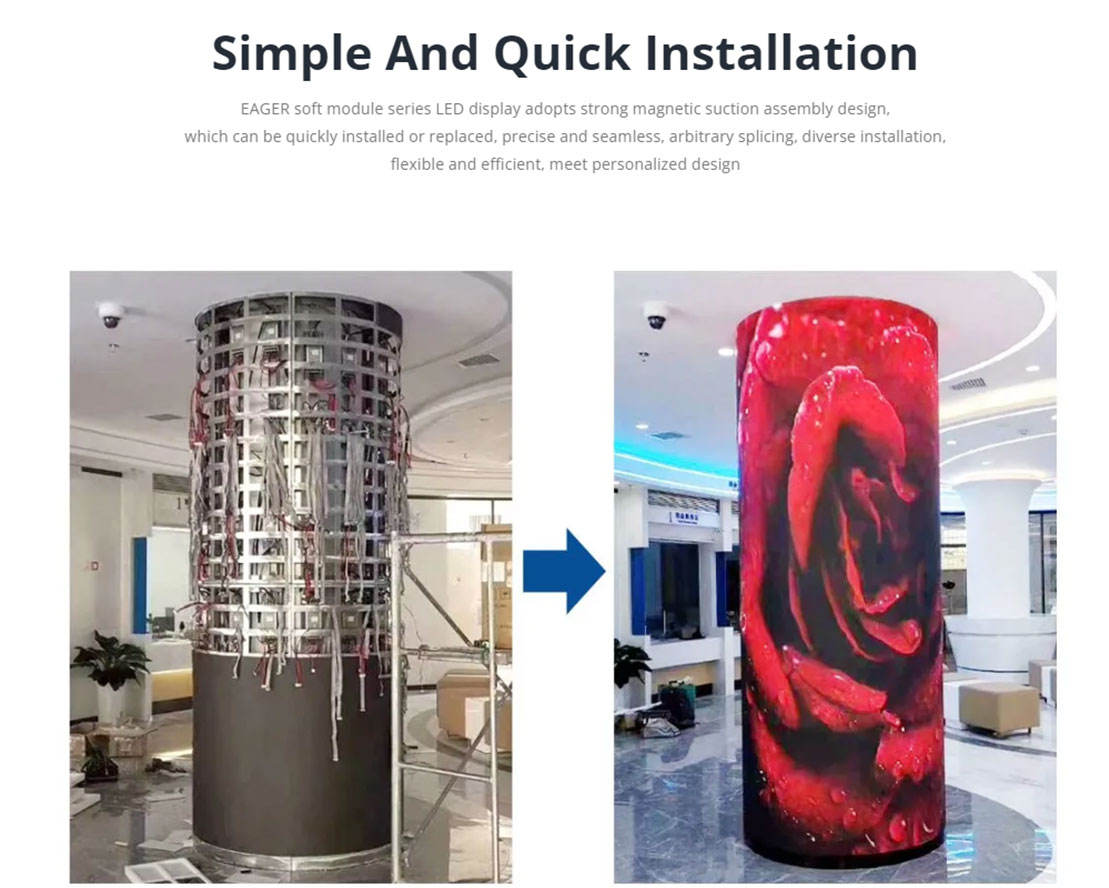

Various installation

Production Process

We have professional LED display production equipment and assembly personnel. You only need to provide your needs, and we will provide you with comprehensive professional services from scratch. From developing production plans to the production and assembly of displays, we will ensure quality and quantity. You can rest assured to cooperate with us.

LED Display Aging and Testing

Aging and testing of LED display modules involves simulating long-term operation to ensure reliability and stability. This process is critical to identifying and resolving potential issues, ultimately improving the efficiency and stability of the LED display.

Conducting burn-in testing is a critical step in quality control to ensure the overall performance and service life of the LED display.
