P1.2 P1.538 P1.8 P2 Indoor Small Pixel Pitch LED Displays for Full Color LED Video Wall
Product customization process
As a professional LED display manufacturer, we have many years of manufacturing and sales experience, with a professional pre-sales and after-sales team. You only need to tell us your needs, and we will provide you with professional customized solutions according to your actual situation. You don't need to worry, so if you have any needs, please contact us immediately!

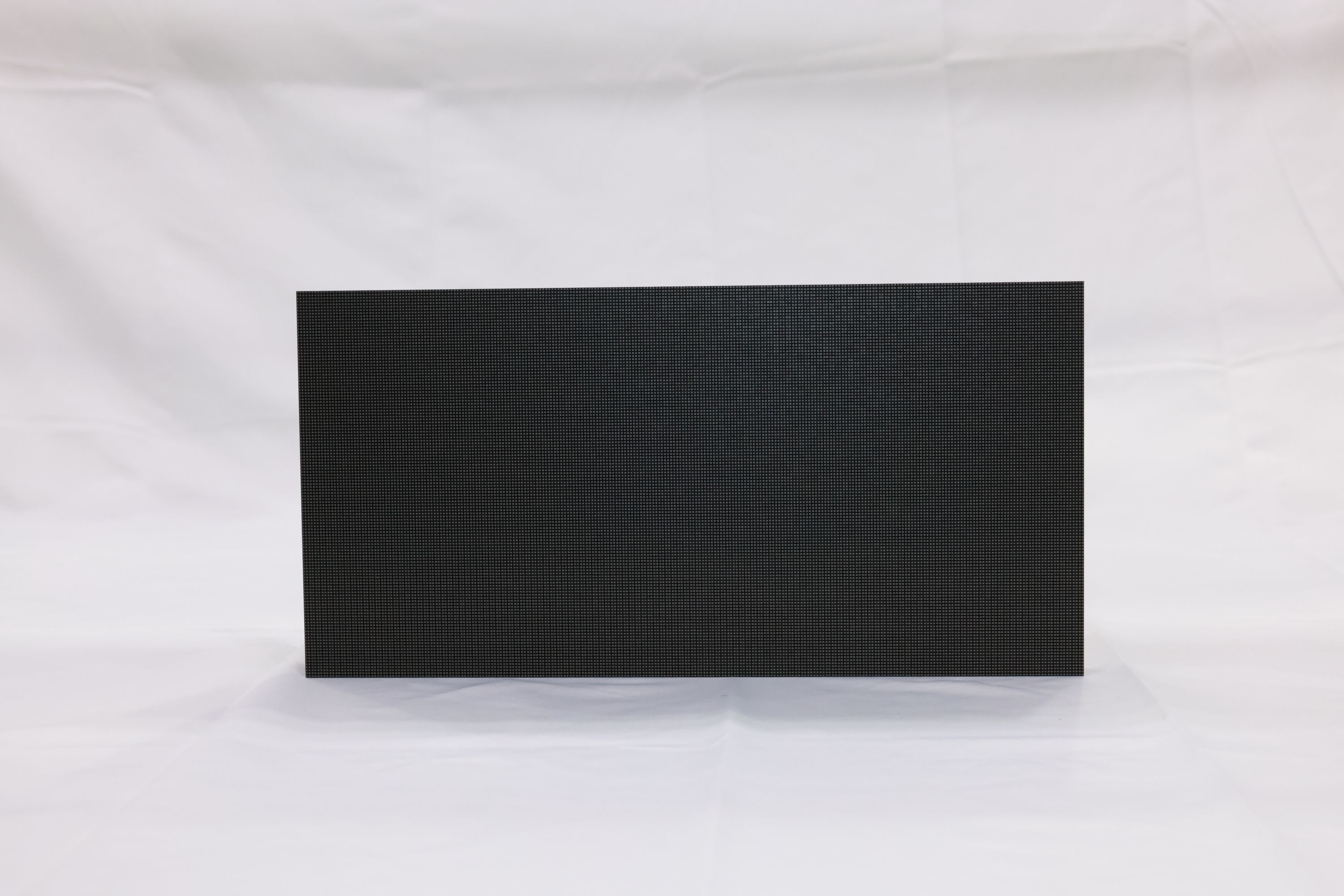

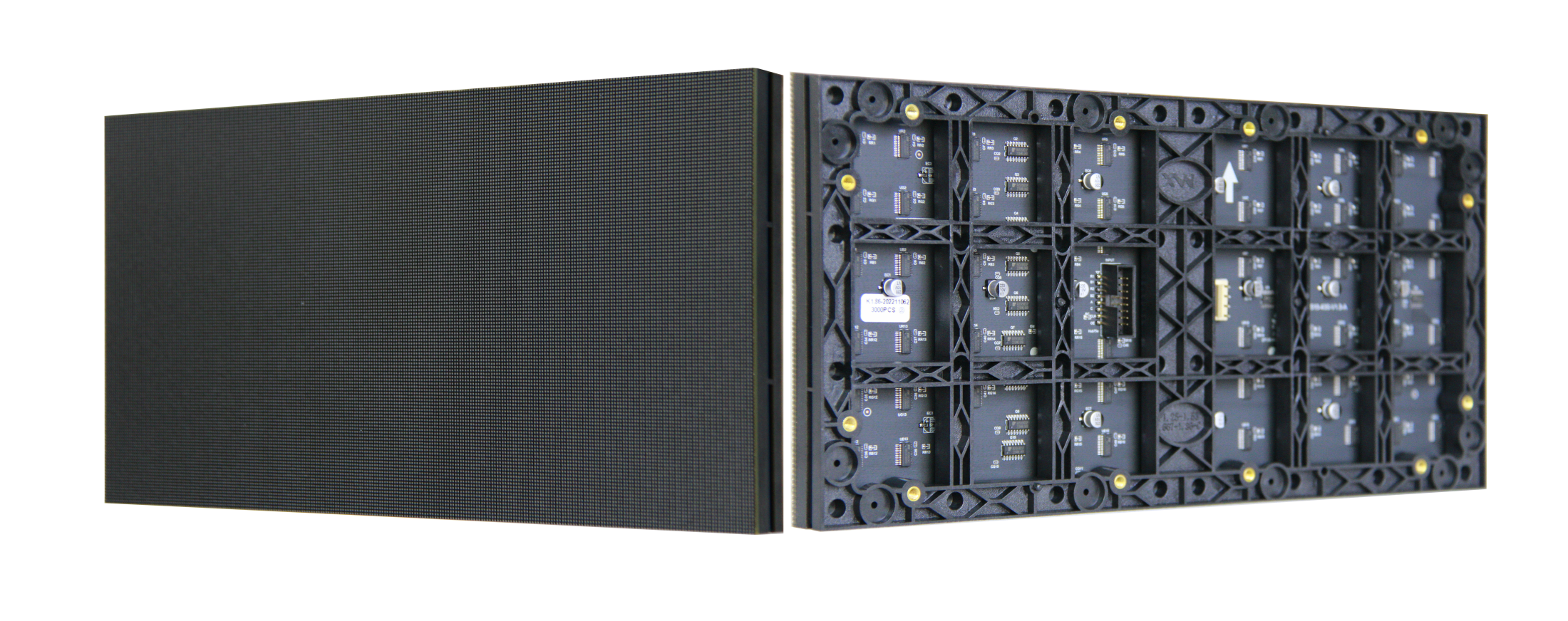

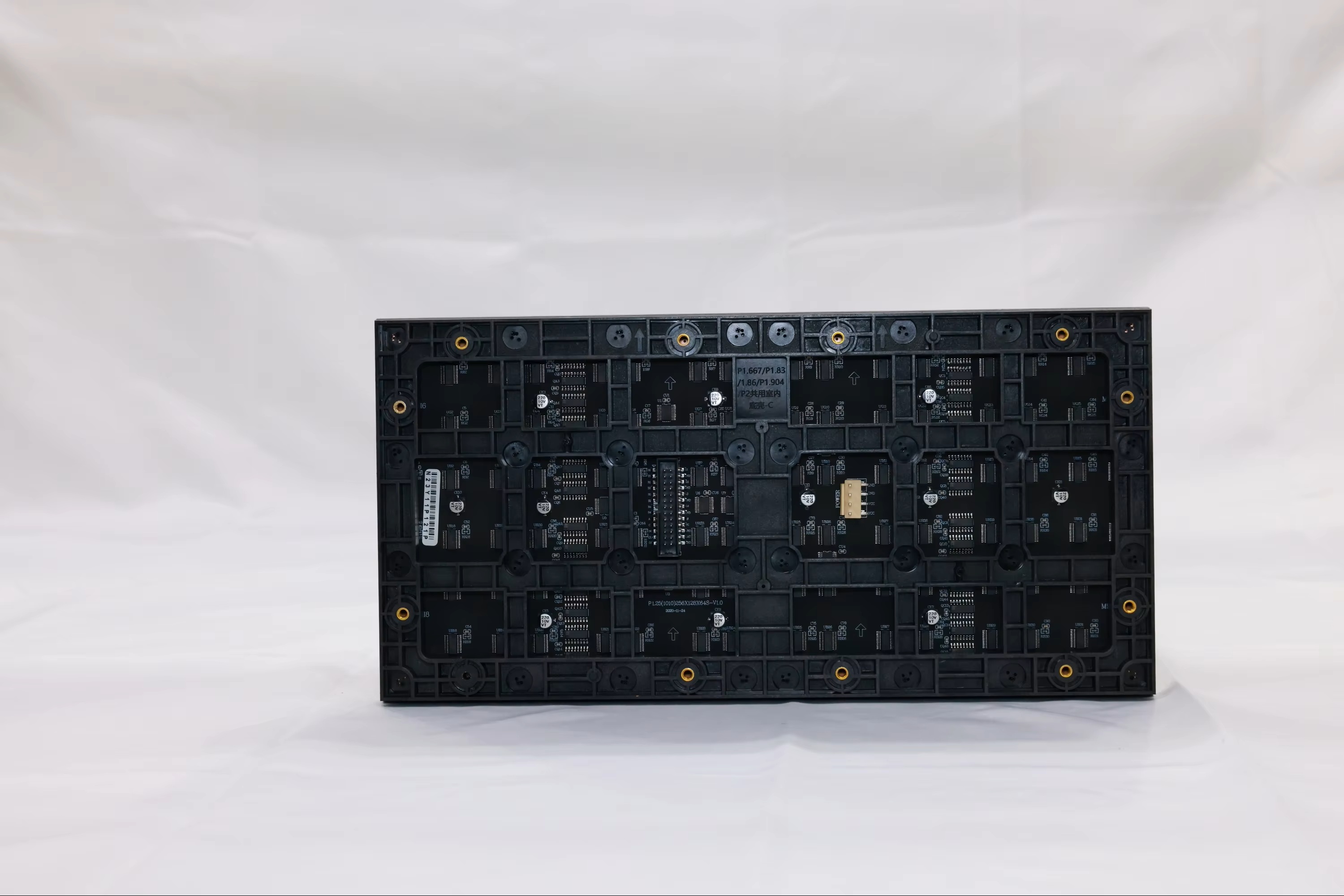

Small Pixel Pitch LED Module Parameters
|
Fine Pitch LED Display Module |
||||
|
Model |
P1.25 |
P1.538 |
P1.86 |
P2 |
|
Pixel Pitch |
1.25mm |
1.536mm |
1.86mm |
2mm |
|
Module Size |
320*160mm |
|||
|
Module Resolution |
256*128 Dots |
208*104 Dots |
172*86 Dots |
160*80 Dots |
|
LED Lamp |
SMD1010 |
SMD1212 |
SMD1515 |
SMD1515 |
|
Drive Modes |
1/64 |
1/52 |
1/43 |
1/40 |
|
Refresh Rate |
≥3840Hz |
|||
|
Cabinet Size |
640*480mm |
|||
|
Cabinet Resolution |
512*384 Dots |
416*312 Dots |
344*258 Dots |
320*240 Dots |
|
IP Rating |
IP5X |
|||
|
Brightness |
≥500nit |
|||
|
Best Viewing Angle |
H：160° V：160° |
|||

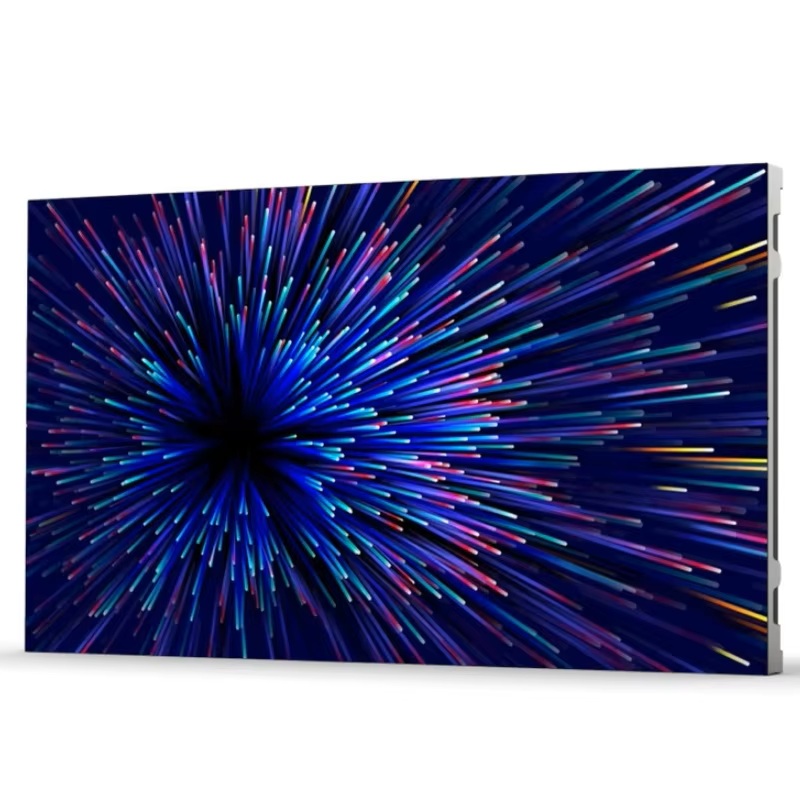

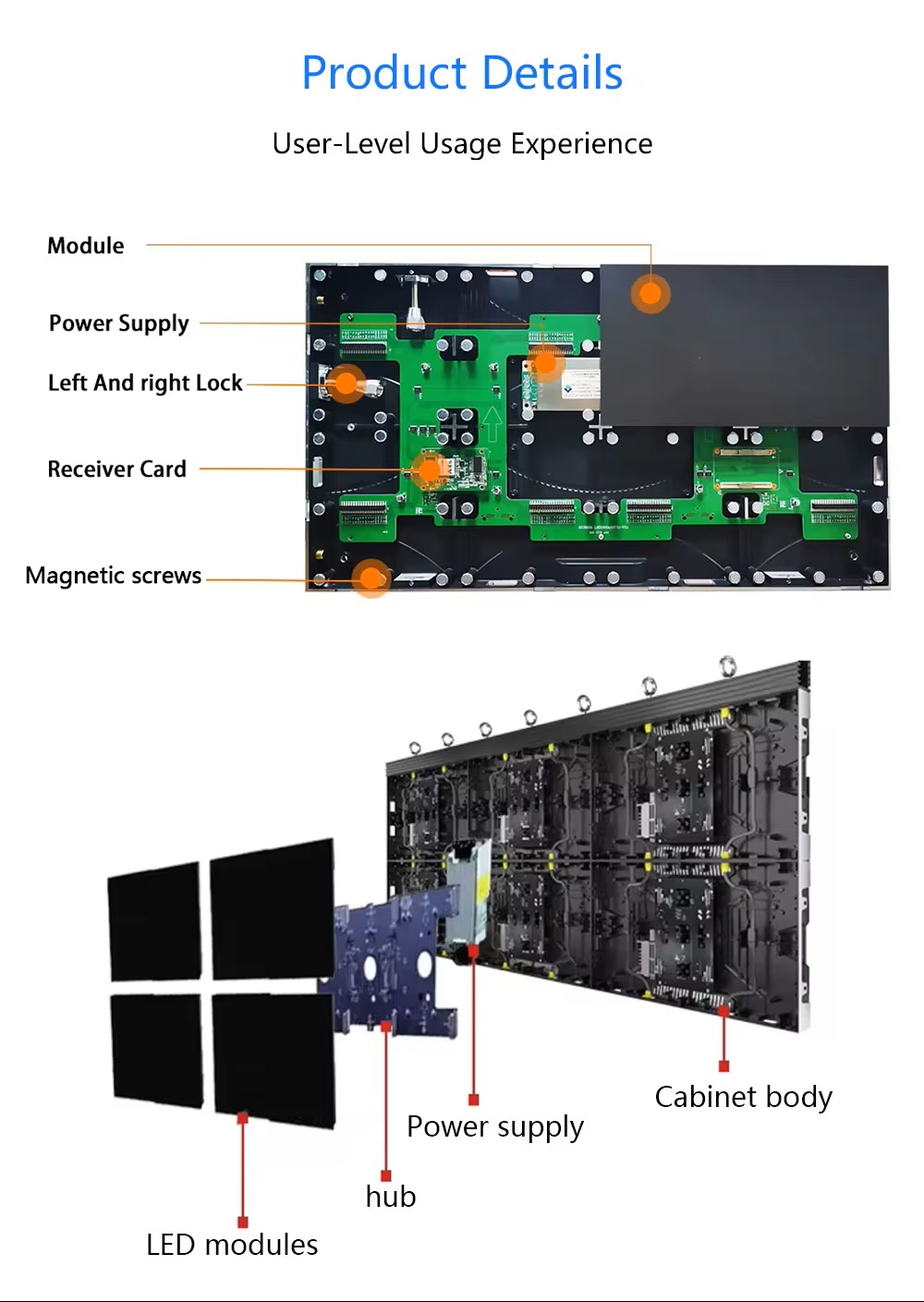

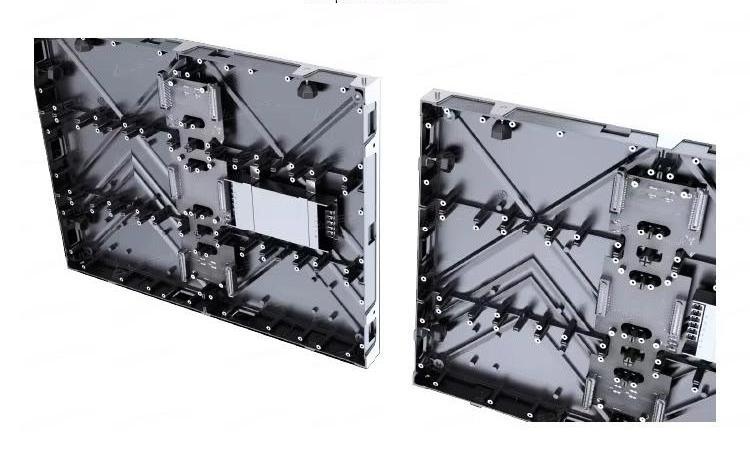

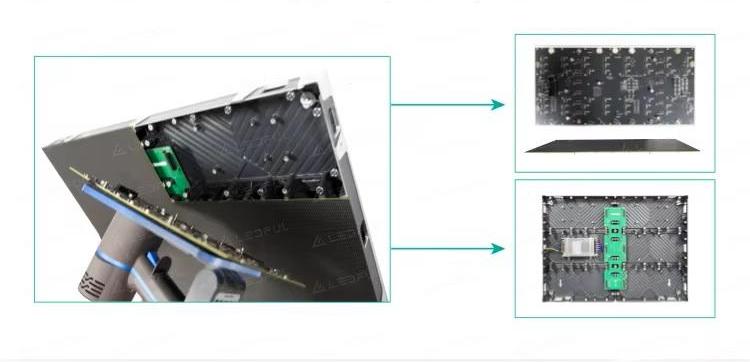

Cabinet Type: Die-Cast Aluminum Ultra-Thin Cabinet
Lightweight & Rigid: Precision die-cast aluminum construction provides an excellent strength-to-weight ratio, allowing for larger screen sizes and easier structural support.
Ultra-Thin Profile: The slim depth of the cabinet (e.g., < 90mm) allows for flexible installation options, including flush wall mounting and elegant video walls.
Front Serviceable (Front Maintenance): Modules and components can be installed, serviced, and replaced entirely from the front, eliminating the need for rear access. This is ideal for spaces with limited room behind the screen.
Precision Manufacturing: Cabinet tolerance is kept within ±0.1mm, ensuring a perfectly flat screen surface with no visible seams or bumps between cabinets for a truly seamless image.
Advanced Cooling System: Features a silent and efficient passive convection cooling system (no fans), reducing noise, power consumption, and potential points of failure.
Quick Locking Mechanism: Integrated magnetic or quick-lock modules and cabinets enable fast, tool-free installation and dismantling, drastically reducing labor time and costs.
Built-in Redundancy: Power supplies and receiving cards are often configured with built-in redundancy to ensure the display continues to operate seamlessly even in the event of a single component failure.
Features
1. Ultra-Fine Pixel Pitch: Available in a range of fine pitches (e.g., P0.9, P1.2, P1.5, P1.8) to suit various viewing distances and resolution requirements. This ensures crystal-clear images even at extremely close ranges.
2. High Brightness & Automatic Adjustment: Boasts a high brightness level of ≥ 800 nits, ensuring perfect visibility even in well-lit indoor environments. Equipped with an ambient light sensor for automatic brightness adjustment, enhancing viewing comfort and reducing power consumption.
3. Exceptional Color Performance: Features a wide color gamut (≥ 110% NTSC), delivering vibrant and accurate colors. 16-bit processing depth enables smooth color gradients and eliminates banding for a true-to-life visual experience.
4. High Refresh Rate & Gray Scale: A refresh rate of ≥ 3840Hz eliminates flicker and ensures stable image capture on camera. A high gray scale level (≥ 16bit) provides exquisite detail in the darkest and brightest parts of an image.
5. Low Brightness & Energy Efficiency: Utilizes advanced LED drive IC technology to achieve excellent display performance even at low brightness levels, significantly improving energy efficiency and extending LED lifespan.

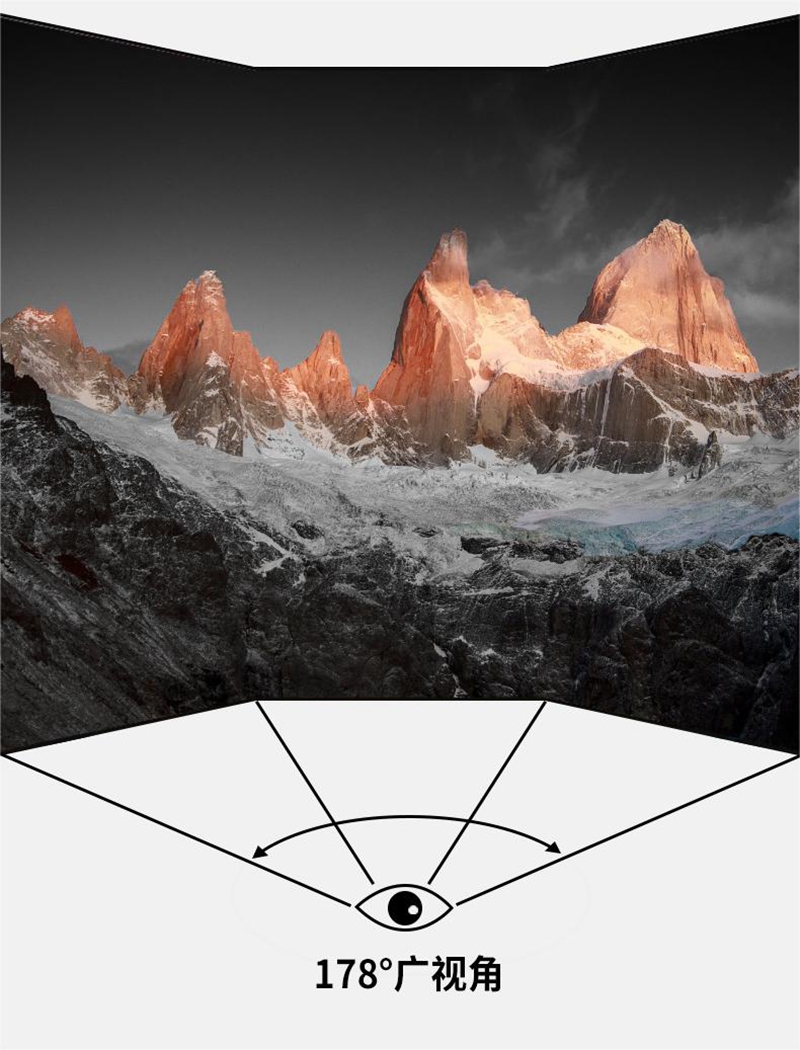

6. Seamless Viewing Experience: 178° wide viewing angle guarantees consistent color and brightness from almost any position in the room.
Application Scenarios
The Fine-Pitch LED Display is versatile and perfect for high-end indoor environments where image quality is paramount.

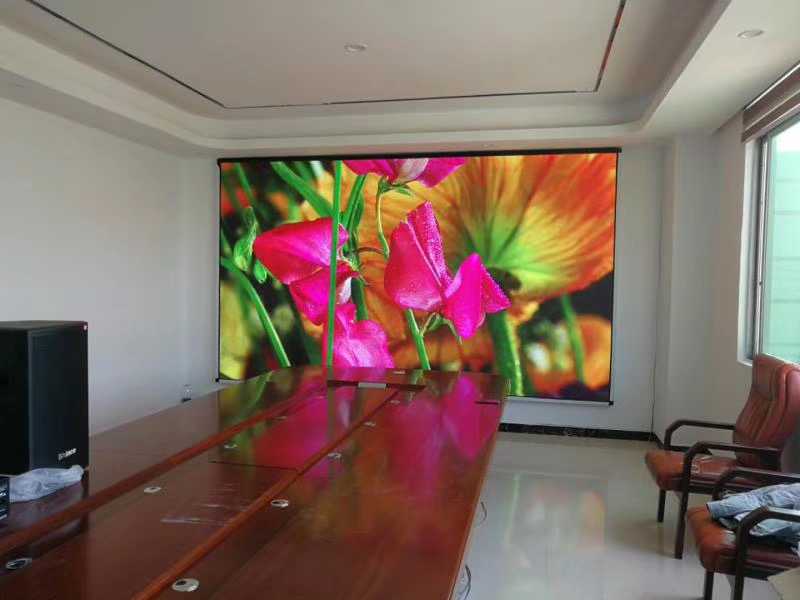

Corporate & Executive Boardrooms: Replaces traditional projectors for superior brightness, clarity, and video conferencing experiences. Ideal for presenting data, charts, and high-resolution content.

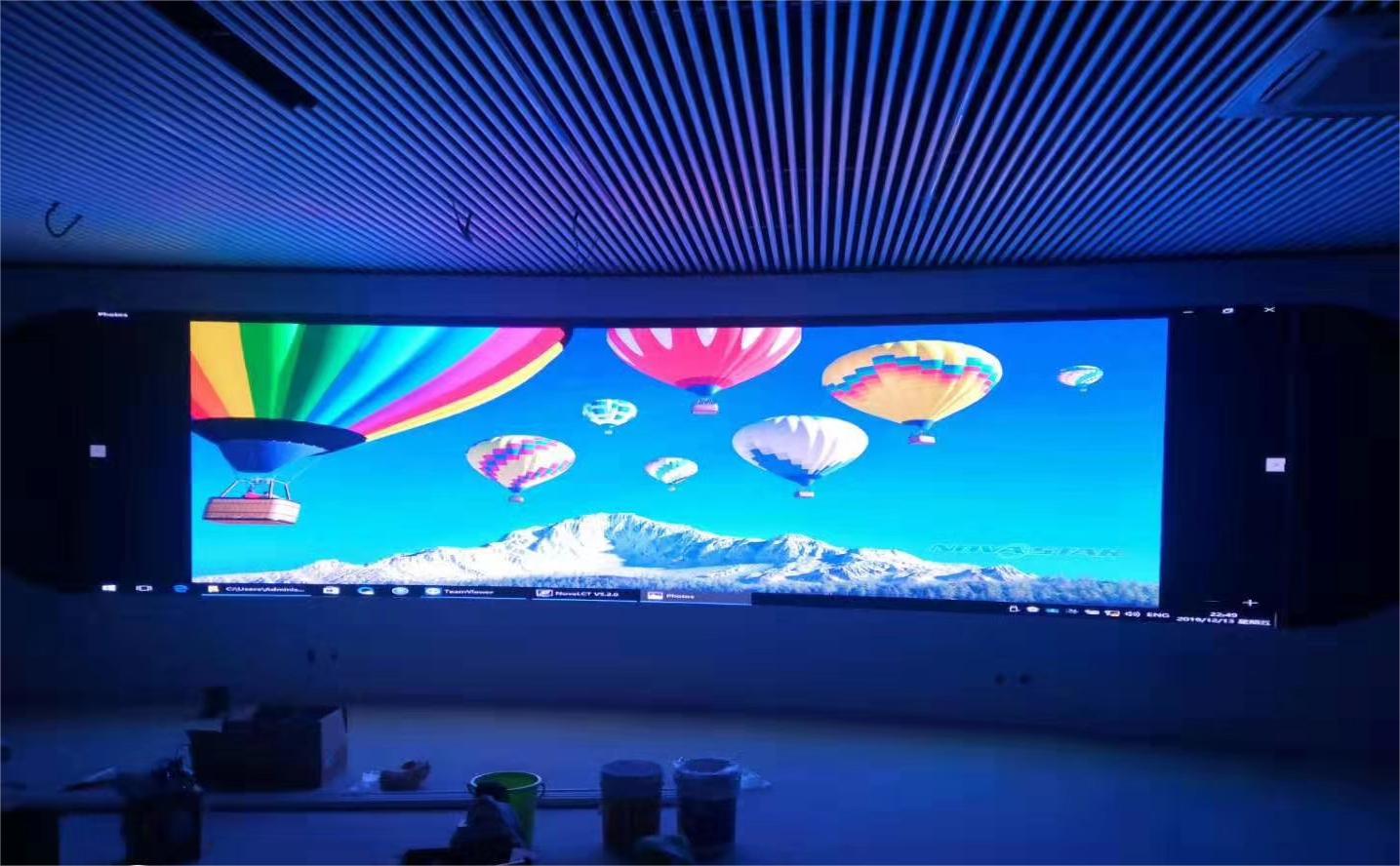

Broadcast & Television Studios: Serves as a dynamic, high-resolution backdrop for news, weather, and talk shows. Its high refresh rate ensures flawless performance under studio lights and cameras.

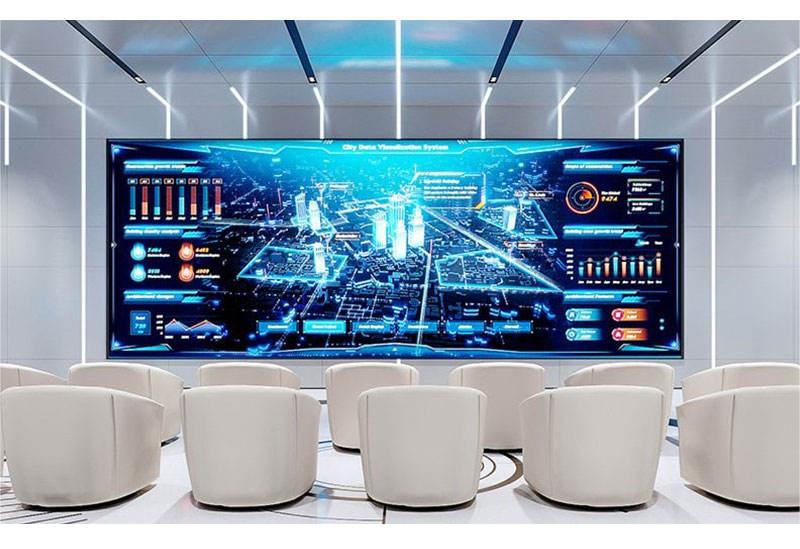

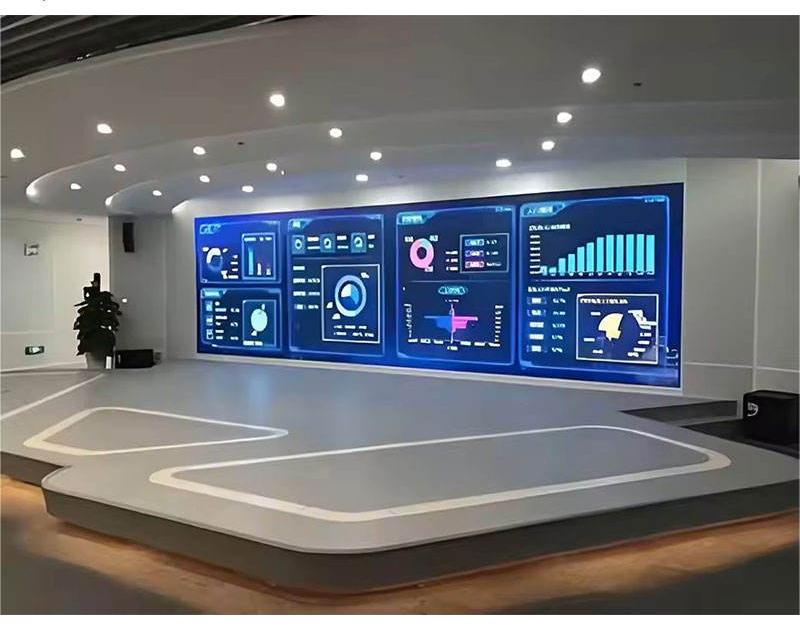

Command & Control Centers: Provides critical information visualization with flawless reliability for monitoring complex operations in fields like security, transportation, and energy management.

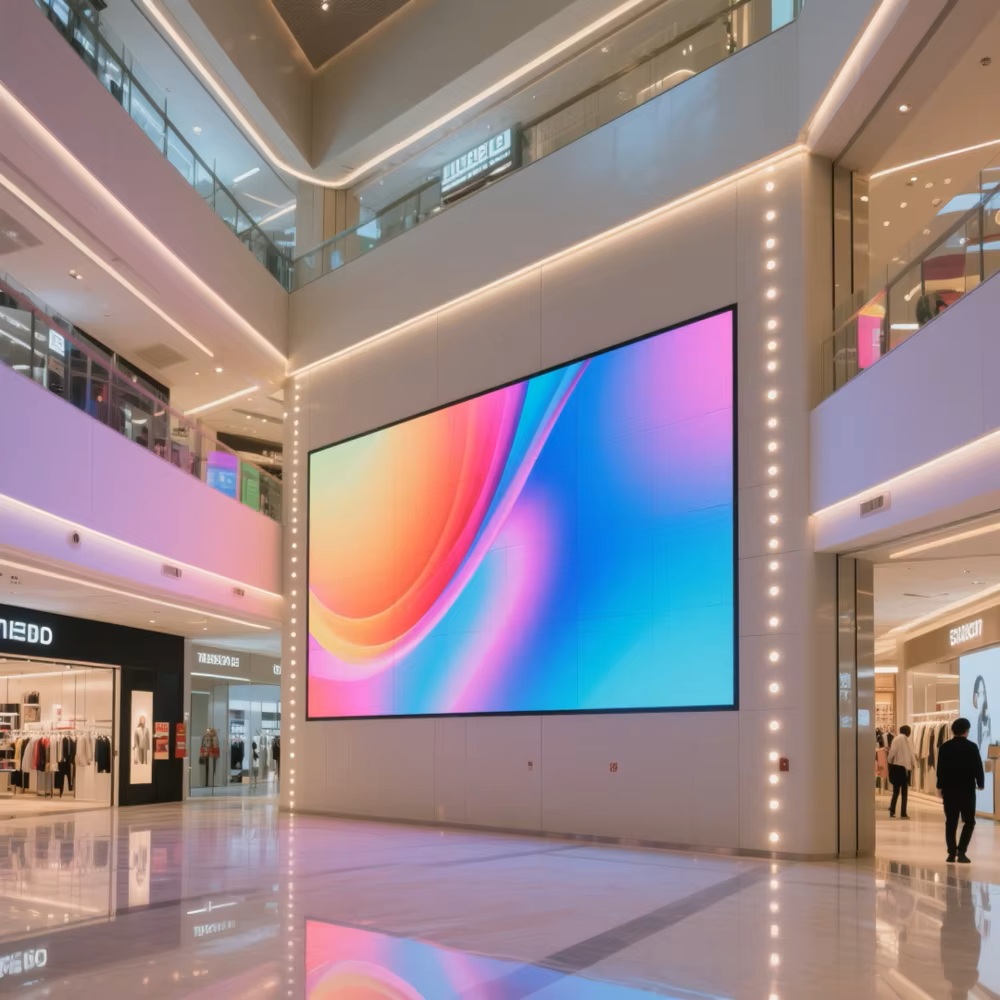

Retail & Luxury Brands: Creates captivating digital signage and brand experiences in flagship stores, shopping malls, and showrooms to attract and engage customers.
Lobbies & Reception Areas: Enhances corporate identity with stunning welcome messages, company information, and promotional content.
Simulation & Visualization: Used in high-end simulation environments (e.g., flight simulators, virtual design review) for its seamless and highly detailed imagery.

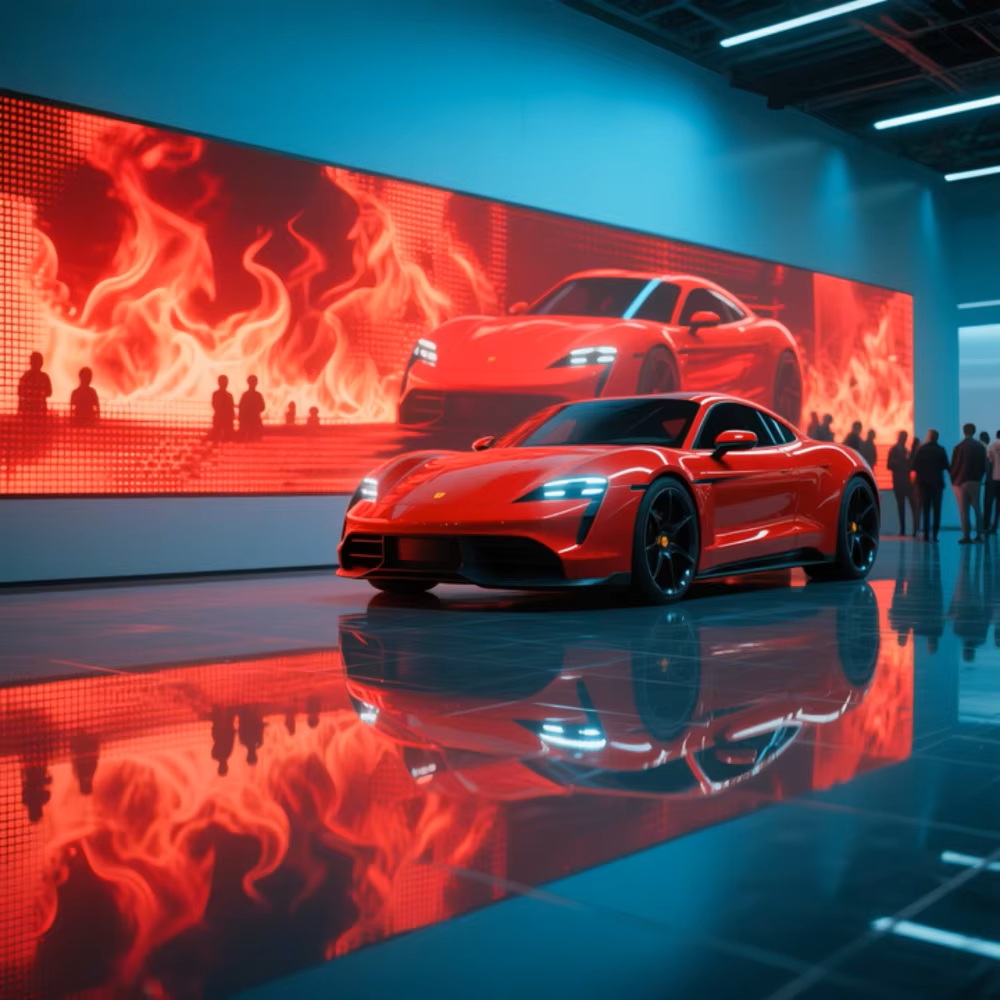

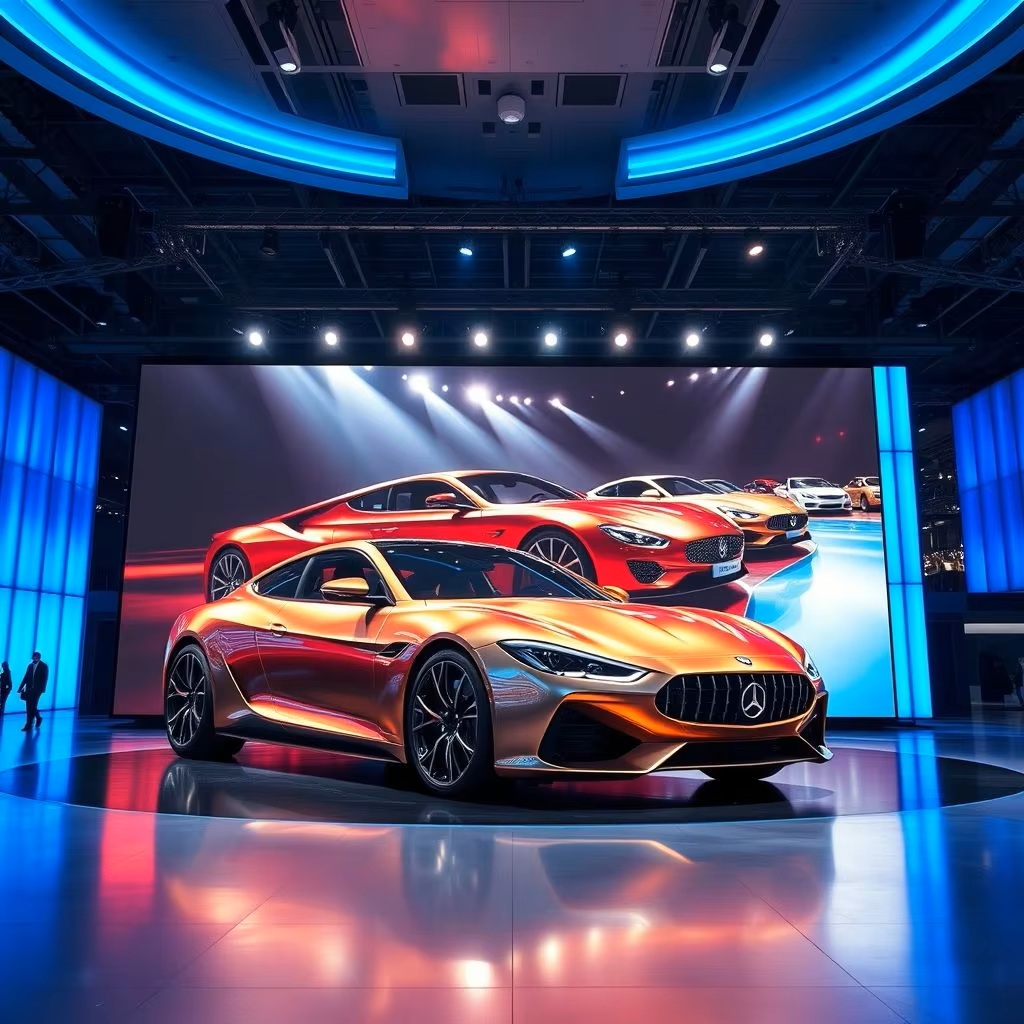

Event Spaces & Concert Halls: Although primarily indoor, certain models can be used in controlled environment events for high-impact stage backgrounds.
Display screen connection topology diagram
As a professional LED display manufacturer, if you have any questions related to LED displays, you can contact us and we will provide you with the most professional answers.
Production Process
We have professional LED display production equipment and assembly personnel. You only need to provide your needs, and we will provide you with comprehensive professional services from scratch. From developing production plans to the production and assembly of displays, we will ensure quality and quantity. You can rest assured to cooperate with us.
LED Display Aging and Testing
Aging and testing of LED display modules involves simulating long-term operation to ensure reliability and stability. This process is critical to identifying and resolving potential issues, ultimately improving the efficiency and stability of the LED display.
Conducting burn-in testing is a critical step in quality control to ensure the overall performance and service life of the LED display.
The process of LED display aging test includes the following steps:
1. Verify that all LED display modules are installed correctly.
2. Check for any potential short circuits.
3. Make sure the modules are flat and arranged neatly.
4. Inspect the overall appearance for any damage or defects.
5. Use the online LED control system to light up the display.
This process is essential to evaluate the functionality and quality of the LED display and ensure its reliable and efficient operation.
Package
Flight case
Wooden Case
