Outdoor Waterproof LED Display P2.5 P3 P4 P5 P6 P8 P10 High Brightness LED Display Screen for Large Outdoor Events

Short Description:

Designed for the complexity and harshness of outdoor environments, the outdoor LED display boasts a series of professional advantages that distinguish it from conventional display products, ensuring long-term stable operation and superior visual effects in various extreme conditions.

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

Product Customization Process

If you are interested in our products, please communicate with our customer service in time. We will customize the most suitable LED display solution for you based on your needs.

Product Parameters

Outdoor LED Module Parameters
Module	P3.076	P4	P5	P6.67	P8	P10
Pixel Pitch(mm)	3.076	4	5	6.67	8	10
Module Size(mm)	320*160	320*160	320*160	192*192	320*160	320*160
Module Resolution(dots)	104*52	80*40	64*32	32*32	40*20	32*16
Pixel Density(dots/㎡)	105656	62500	40000	27777	15625	10000
Lamp Model	SMD1515	SMD1921	SMD1921	SMD3535	SMD3535	SMD3535
Brightness	≥6500nit
Driving Mode	1/13	1/10	1/8	1/8	1/5	1/2 or 1/4
Best Viewing Distance	≥3m	≥4m	≥5m	≥6.67m	≥8m	≥10m
Refresh Frequency	3840Hz/1920Hz
Working Temperature	-10℃~60℃
Best Viewing Angle	H：160° V：160°
Life Span	100000h
Working Humidity	10%~70%
IP Level（Front/Rear）	IP65

The outdoor LED display is a high-performance digital visual display system specifically engineered for open-air environments, integrating advanced LED packaging technology, weatherproof structural design and intelligent control systems. Unlike indoor LED displays, it is rigorously optimized to withstand harsh outdoor conditions such as extreme temperatures, strong sunlight, rain, dust and strong winds, while delivering stable, high-definition visual performance. As a core carrier of outdoor information dissemination, brand promotion and scene rendering, it has been widely applied in various outdoor scenarios, relying on its professional technical advantages to meet the diversified needs of commercial, public and cultural fields.

Product Features

1. Superior Weather Resistance & Environmental Adaptability

Adopting a fully sealed modular cabinet structure and high-grade waterproof and dustproof encapsulation technology, the product achieves an industry-leading protection level of IP65 or above, and can reach IP67 for special harsh environments, effectively preventing dust, rainwater, salt spray and other corrosive substances from entering the internal components. The screen body is made of high-temperature resistant, low-temperature resistant and UV-resistant materials, with an operating temperature range of -30℃ to +60℃, which can stably operate in extremely cold, extremely hot and high-humidity environments without performance degradation or component damage. For coastal areas with high salt spray, optional 316L stainless steel cabinets and nano anti-corrosion coatings are available to enhance durability.

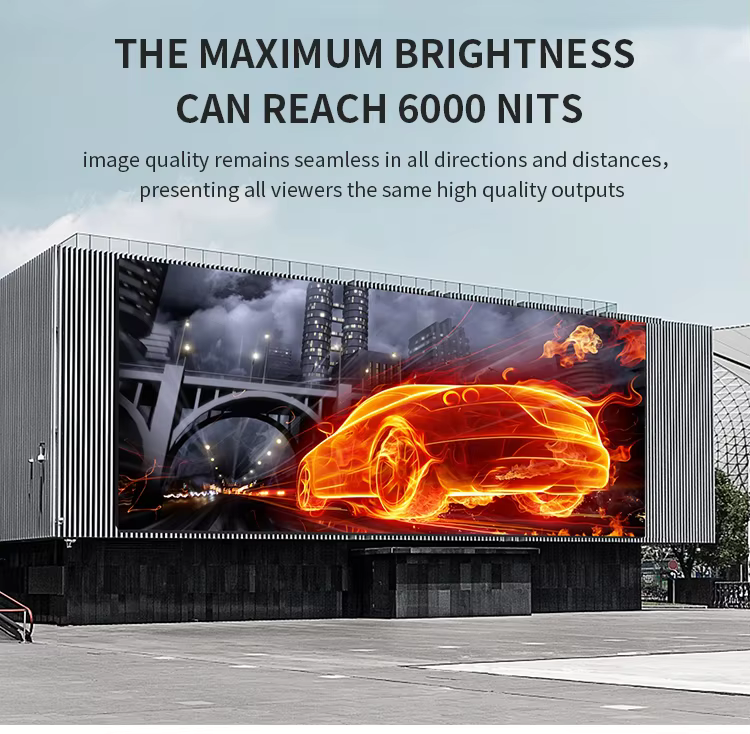

2. High Brightness & Anti-Glare Visual Performance

Equipped with high-brightness LED chips, the display achieves a luminance of 5000 nits to 10000 nits, which is far higher than indoor displays, ensuring clear and vivid visual effects even under direct sunlight at noon without overexposure or blurring. The screen adopts matte anti-glare mask design and black lamp technology, which reduces the surface reflectivity to less than 5% and effectively eliminates glare and moiré patterns, ensuring comfortable viewing from all angles and improving the readability of the screen in strong light environments. With 16-bit grayscale and a wide color gamut covering DCI-P3, it realizes smooth color transition and high-fidelity color reproduction, making dynamic images more layered and realistic.

3. High Stability & Long Service Life

The product adopts advanced COB or GOB packaging technology, which enhances the stability of the screen body by 50% compared with traditional SMD packaging, and effectively avoids failures such as dead lights and short circuits caused by external impact or environmental erosion. The intelligent heat dissipation system, including built-in fans or air conditioning modules, realizes efficient heat conduction and temperature control, preventing component aging caused by overheating and ensuring 24/7 uninterrupted stable operation. The average service life of the screen body is more than 100,000 hours, and the failure rate is lower than 0.1% per 10,000 hours, greatly reducing later maintenance costs and frequency. Dual power supply and UPS backup power supply are configured to ensure continuous operation for more than 30 minutes in case of sudden power failure, avoiding information interruption.

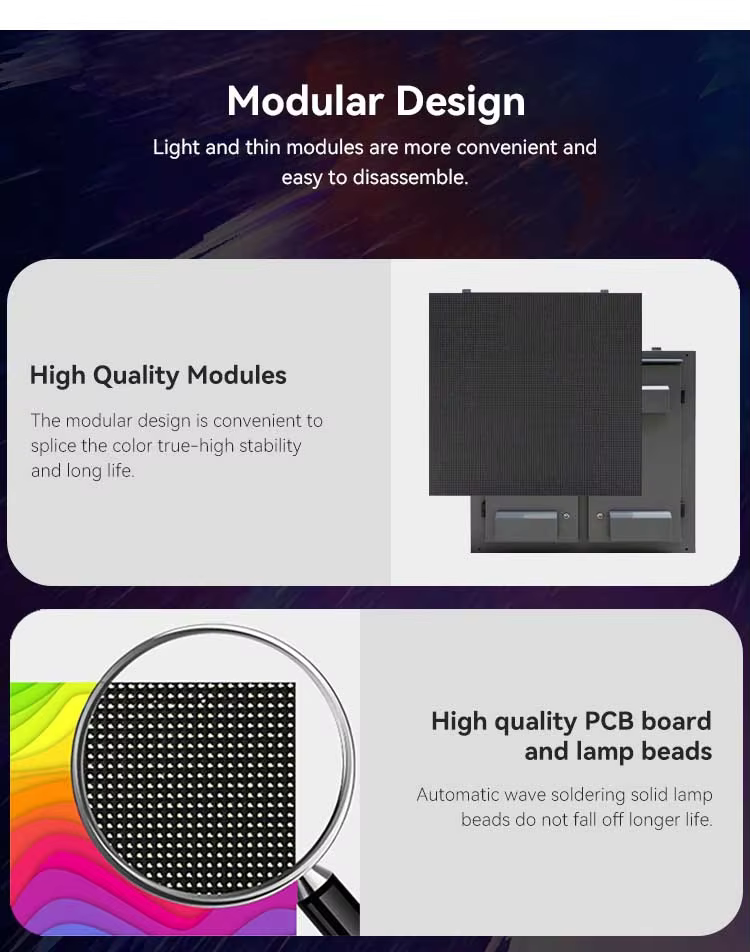

4. Modular Design & Flexible Installation

The display adopts a lightweight modular design, with each module and cabinet being independently detachable, which is convenient for transportation, installation and on-site maintenance. The magnesium alloy cabinet design reduces the weight by 40% while improving heat dissipation efficiency, reducing the load-bearing pressure of the installation structure. It supports front and rear maintenance, and damaged modules can be quickly disassembled and replaced without dismantling the entire screen, shortening the maintenance time by 70%. The screen can be flexibly spliced into different sizes and shapes according to the installation site, supporting wall-mounted, pole-mounted, roof-mounted and floor-mounted installation methods, adapting to various outdoor spatial constraints.

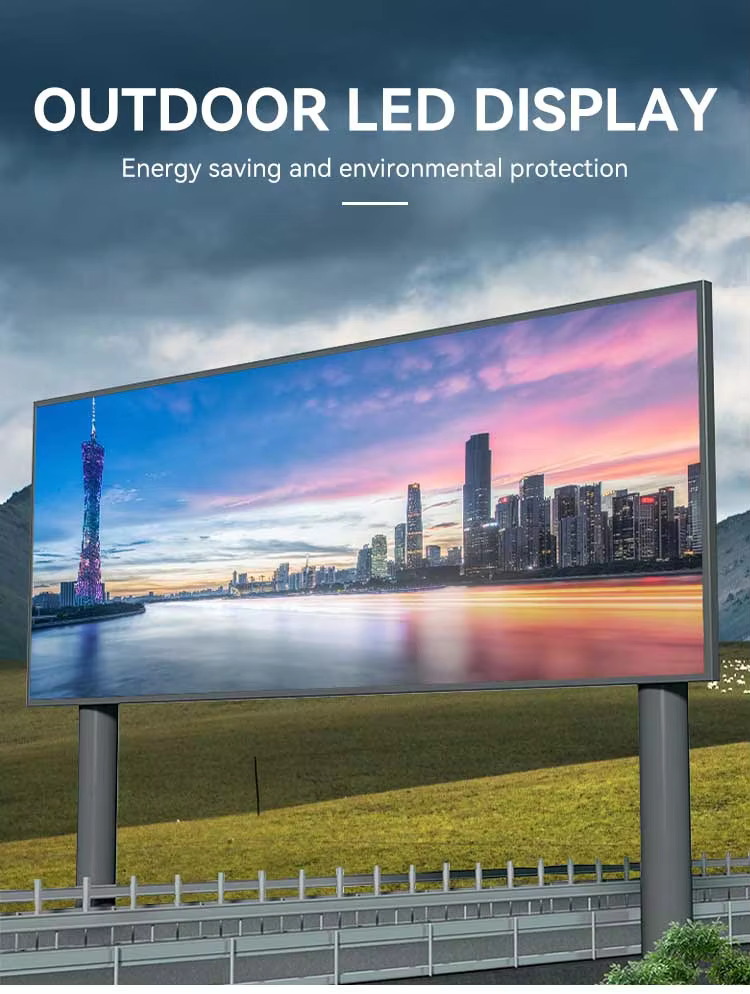

5. Energy Saving & Intelligent Control

Adopting common-cathode drive technology and dynamic energy-saving mode, the product can automatically adjust the screen brightness according to the ambient light intensity, reducing power consumption by 25% to 40% compared with traditional outdoor displays, which is more energy-saving and environmentally friendly. It is equipped with an intelligent control system, which supports remote operation, real-time monitoring, fault alarm and content update through WiFi, 4G, 5G or LAN, realizing centralized management of multiple screens and improving operation efficiency. The system supports HDR10+ and high refresh rate (up to 7680Hz), ensuring flicker-free playback during live shooting and making dynamic content smoother and more stable.

Application Scenarios

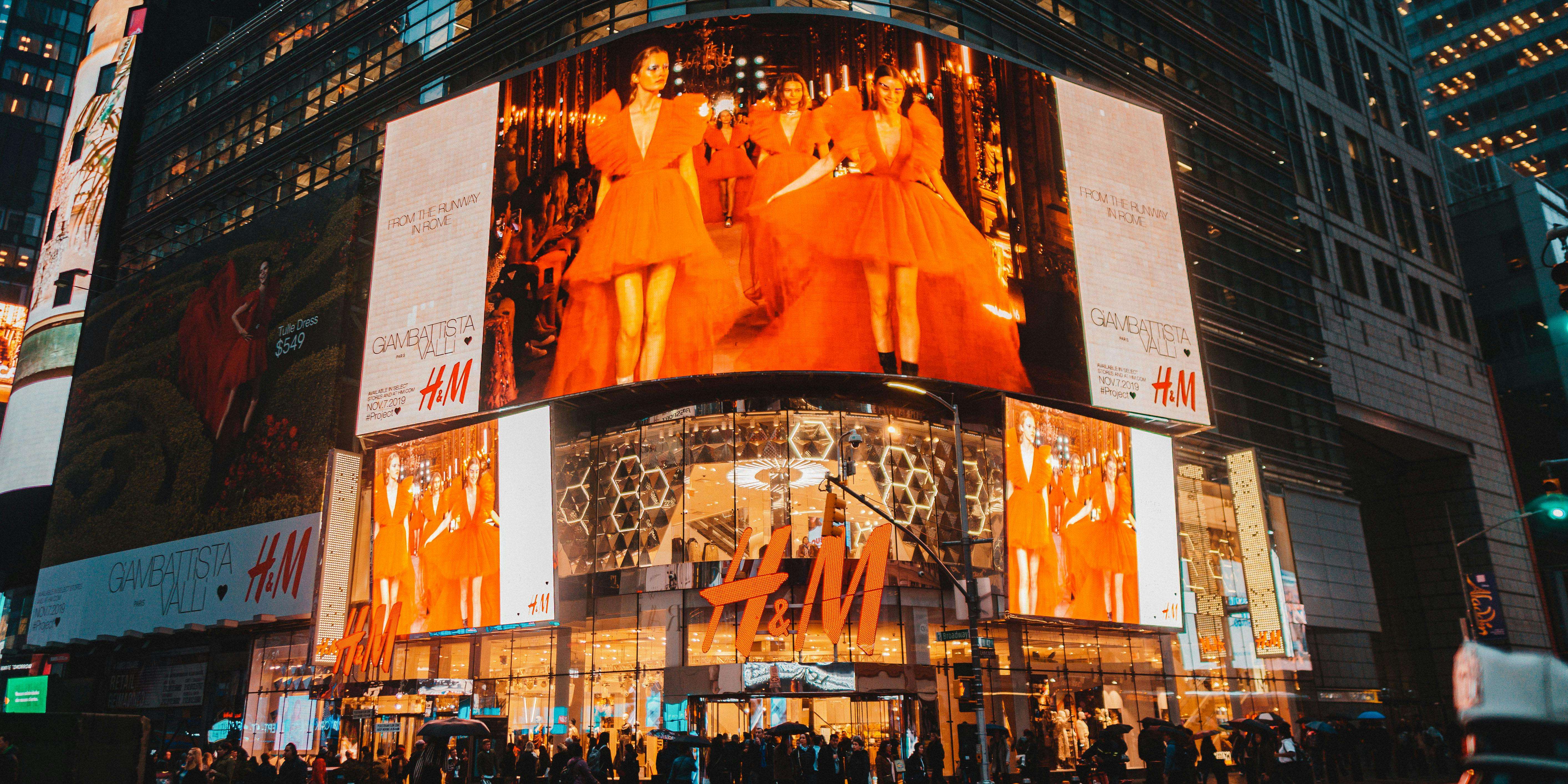

1. Commercial Advertising & Brand Promotion

It is widely used in high-traffic areas such as urban commercial streets, shopping mall facades, building roof billboards and highway billboards. It displays dynamic advertisements, brand promotional videos and product displays, with strong visual impact and high attention, helping brands improve exposure and influence. The dynamic content displayed by the screen has a 72-hour retention rate of more than 65%, which is much higher than that of static advertisements, and can realize precise content push according to different time periods and audience groups, improving the conversion rate of advertising investment.

2. Sports Venues & Large-Scale Outdoor Events

In outdoor stadiums, football fields, basketball courts and other sports venues, it is used as a large-scale scoreboard, live broadcast screen and audience interaction screen, displaying real-time scores, game highlights, player information and sponsor advertisements, enhancing the on-site viewing experience of the audience. In outdoor concerts, music festivals, cultural celebrations and other large-scale activities, it serves as a stage background screen and event information display screen, cooperating with lights and sound to create an immersive on-site atmosphere and enrich the expression form of the event.

3. Urban Public Services & Smart City Construction

Installed in urban squares, municipal buildings, parks and other public spaces, it is used to release public service announcements, emergency alerts, weather forecasts and urban image promotional videos, playing an important role in guiding public opinion and improving civic quality. In transportation hubs such as airports, railway stations, bus stops and highway interchanges, it displays real-time traffic information, train/bus arrival and departure times, route guidance and other content, providing convenient services for citizens' travel and helping to ease traffic pressure. It is an important part of smart city infrastructure, supporting connection with IoT systems to realize intelligent information release.

4. Industrial & Enterprise Outdoor Display

In industrial parks, factory gates and large enterprise campuses, it is used to display enterprise culture, production information, safety warnings and welcome messages, helping to shape the corporate image and standardize on-site management. In high-altitude, high-cold and other special industrial areas, it can be customized with pressure-compensated heat dissipation systems to ensure stable operation in harsh industrial environments.

5. Cultural & Scenic Spot Display

In scenic spots, historical and cultural blocks and cultural squares, it is used to display scenic spot introductions, cultural and historical stories, tourist guides and night scene lighting effects, integrating with the natural and cultural environment to enhance the tourist experience and cultural connotation of the scenic spot. Some scenic spots use it to create creative light shows, combining with architectural facades to form unique urban night scene landmarks, attracting tourists and promoting cultural dissemination.

Production Process

We have professional LED display production equipment and assembly personnel. You only need to provide your needs, and we will provide you with comprehensive professional services from scratch. From developing production plans to the production and assembly of displays, we will ensure quality and quantity. You can rest assured to cooperate with us.
