Outdoor LED Fixed Display 960*960MM Die-Cast Aluminum Cabinet LED Screen Perfect for High-Impact Visual Communication

Short Description:

Outdoor fixed LED display with 960*960MM die-cast aluminum cabinet (iron option available). Features P3-P10 pixel pitch, ≥1920Hz refresh rate, 5000-8000 nits brightness & IP65 waterproof. Seamless, durable, energy-saving, ideal for traffic, public info, commerce & sports—reliable outdoor visual communication.

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

Product customization process

As a professional LED display manufacturer, we have many years of manufacturing and sales experience, with a professional pre-sales and after-sales team. You only need to tell us your needs, and we will provide you with professional customized solutions according to your actual situation. You don't need to worry, so if you have any needs, please contact us immediately!

Overview

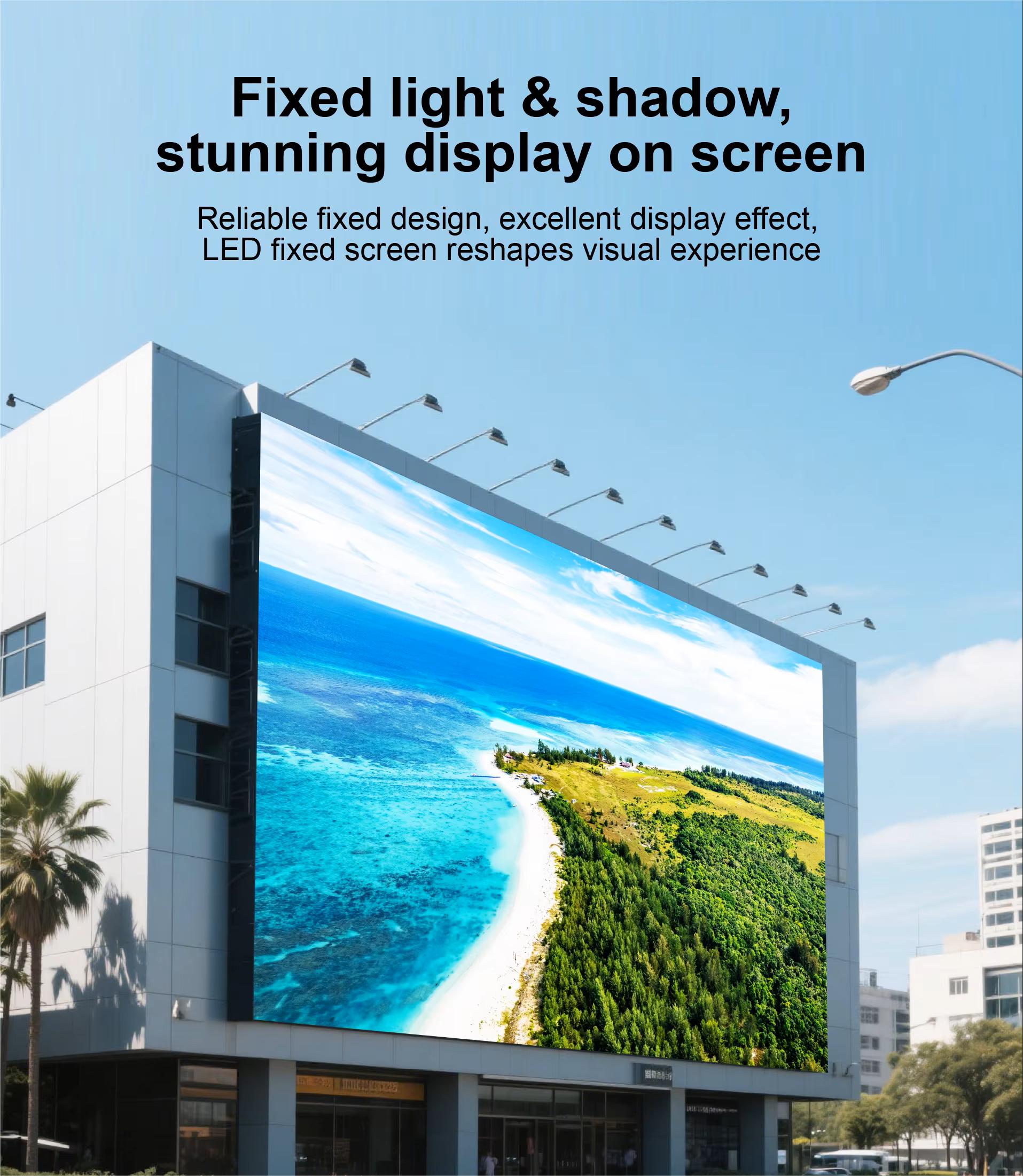

In the era of information explosion, outdoor LED fixed display screens have emerged as indispensable visual communication tools in public spaces. Combining robust structural design, excellent display performance, and wide adaptability, they deliver clear, vivid, and stable visual experiences even under harsh outdoor conditions such as strong sunlight, heavy rain, and extreme temperatures. Whether for commercial advertising, public information release, or cultural and sports event broadcasting, these screens play a pivotal role in enhancing information transmission efficiency and brand influence.

Outdoor LED Module

Pixel Pitch: Ranging from P3 to P10 (and above), the pixel pitch refers to the distance between adjacent pixels. Smaller pitches (e.g., P3-P4) are suitable for close-viewing scenarios such as building facades and commercial plazas, delivering finer images; larger pitches (e.g., P5-P10) are ideal for long-distance viewing, such as highway billboards and large stadiums, balancing cost and visibility.

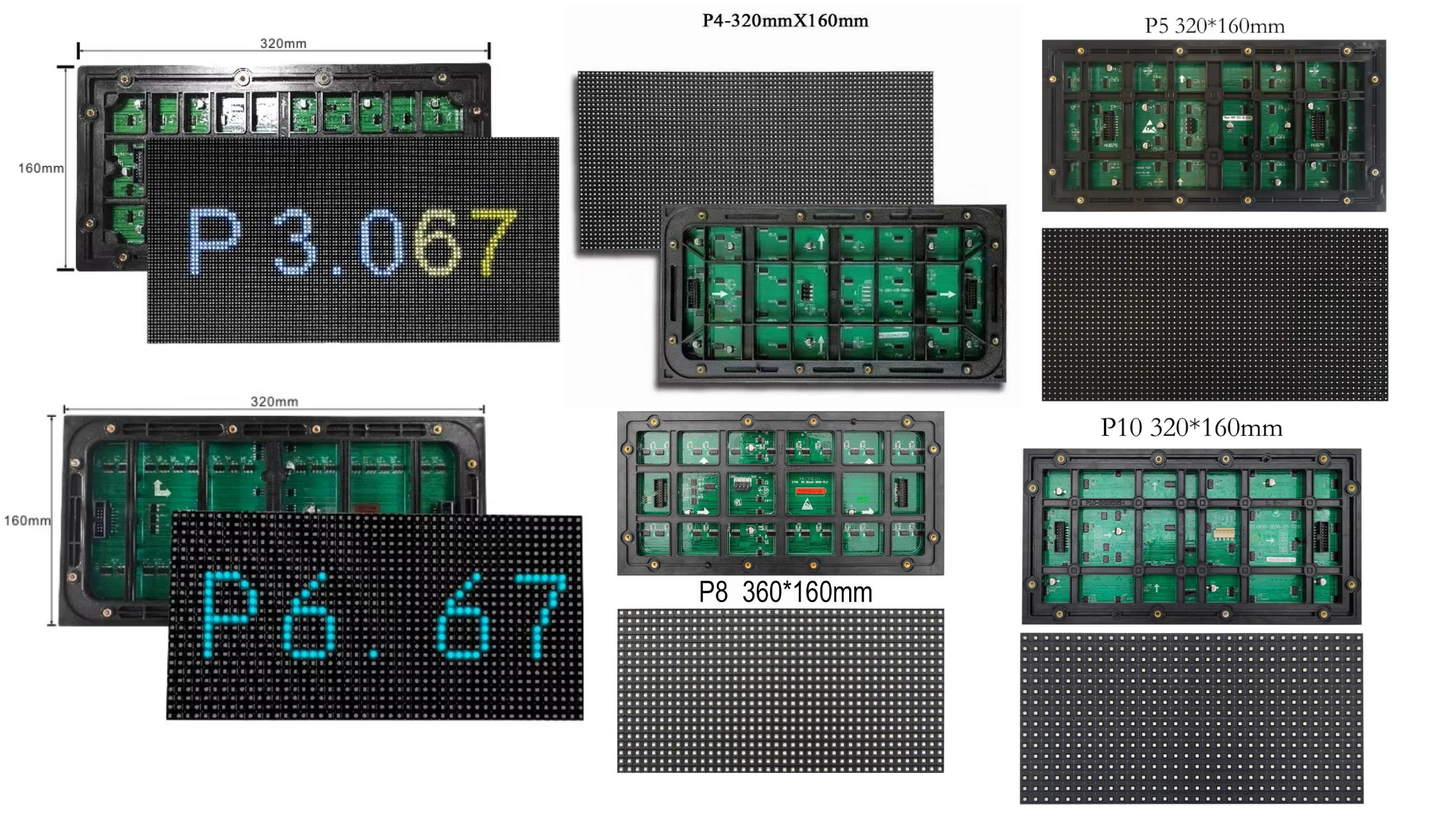

Outdoor LED Module Parameters
Module	P3.076	P4	P5	P6.67	P8	P10
Pixel Pitch(mm)	3.076	4	5	6.67	8	10
Module Size(mm)	320*160	320*160	320*160	192*192	320*160	320*160
Module Resolution(dots)	104*52	80*40	64*32	32*32	40*20	32*16
Pixel Density(dots/㎡)	105656	62500	40000	27777	15625	10000
Lamp Model	SMD1515	SMD1921	SMD1921	SMD3535	SMD3535	SMD3535
Brightness	≥6500nit
Driving Mode	1/13	1/10	1/8	1/8	1/5	1/2 or 1/4
Best Viewing Distance	≥3m	≥4m	≥5m	≥6.67m	≥8m	≥10m
Refresh Frequency	3840Hz/1920Hz
Working Temperature	-10℃~60℃
Best Viewing Angle	H：160° V：160°
Life Span	100000h
Working Humidity	10%~70%
IP Level（Front/Rear）	IP65

Screen Features

The cabinet is the core structural component of the outdoor LED fixed display screen, responsible for protecting internal electronic components and ensuring stable installation. Its design emphasizes durability, waterproofness, and ease of maintenance:

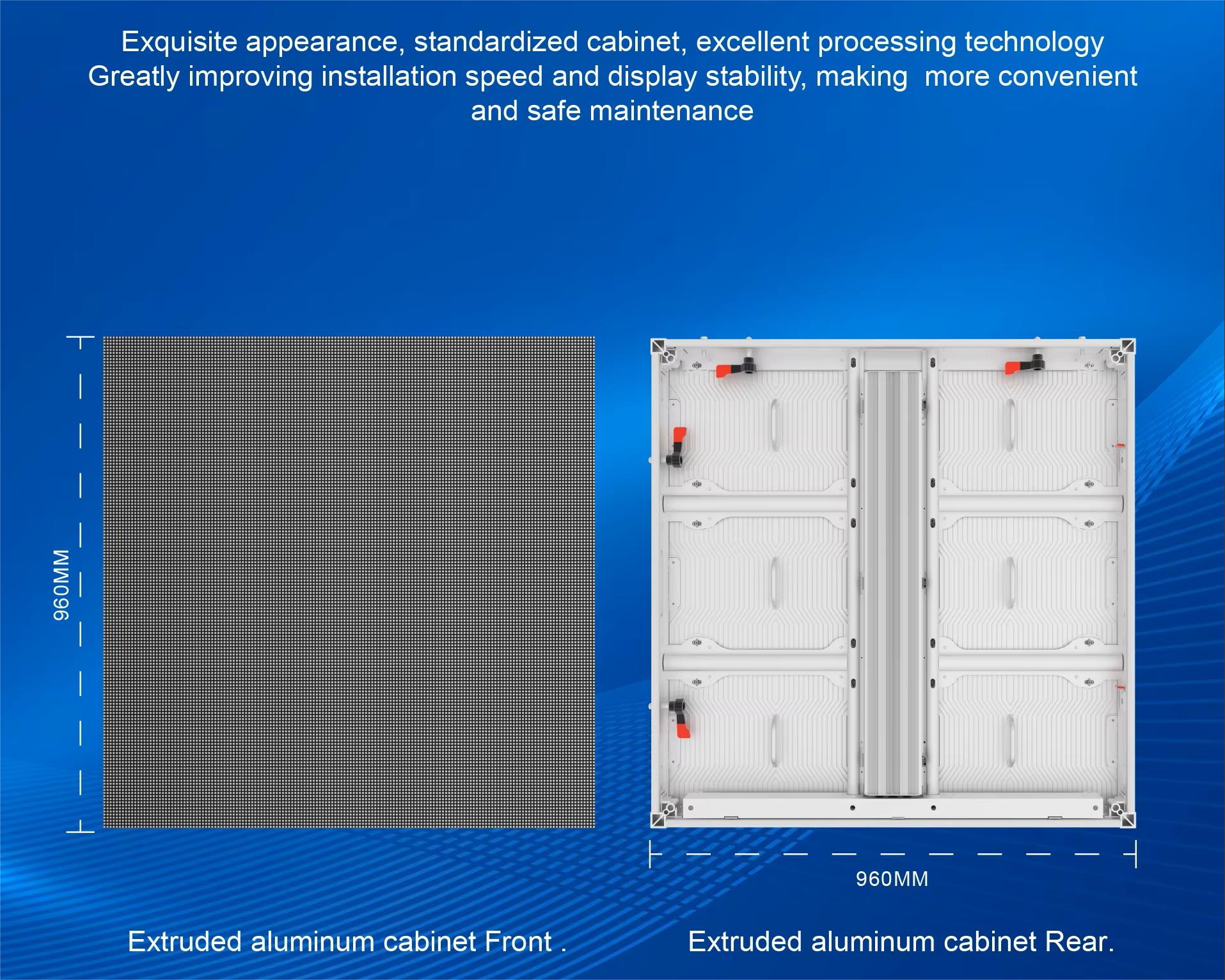

For outdoor use, the 960*960MM LED cabinet is mainly available in iron and die-cast aluminum. Below is a focus on the die-cast aluminum type.

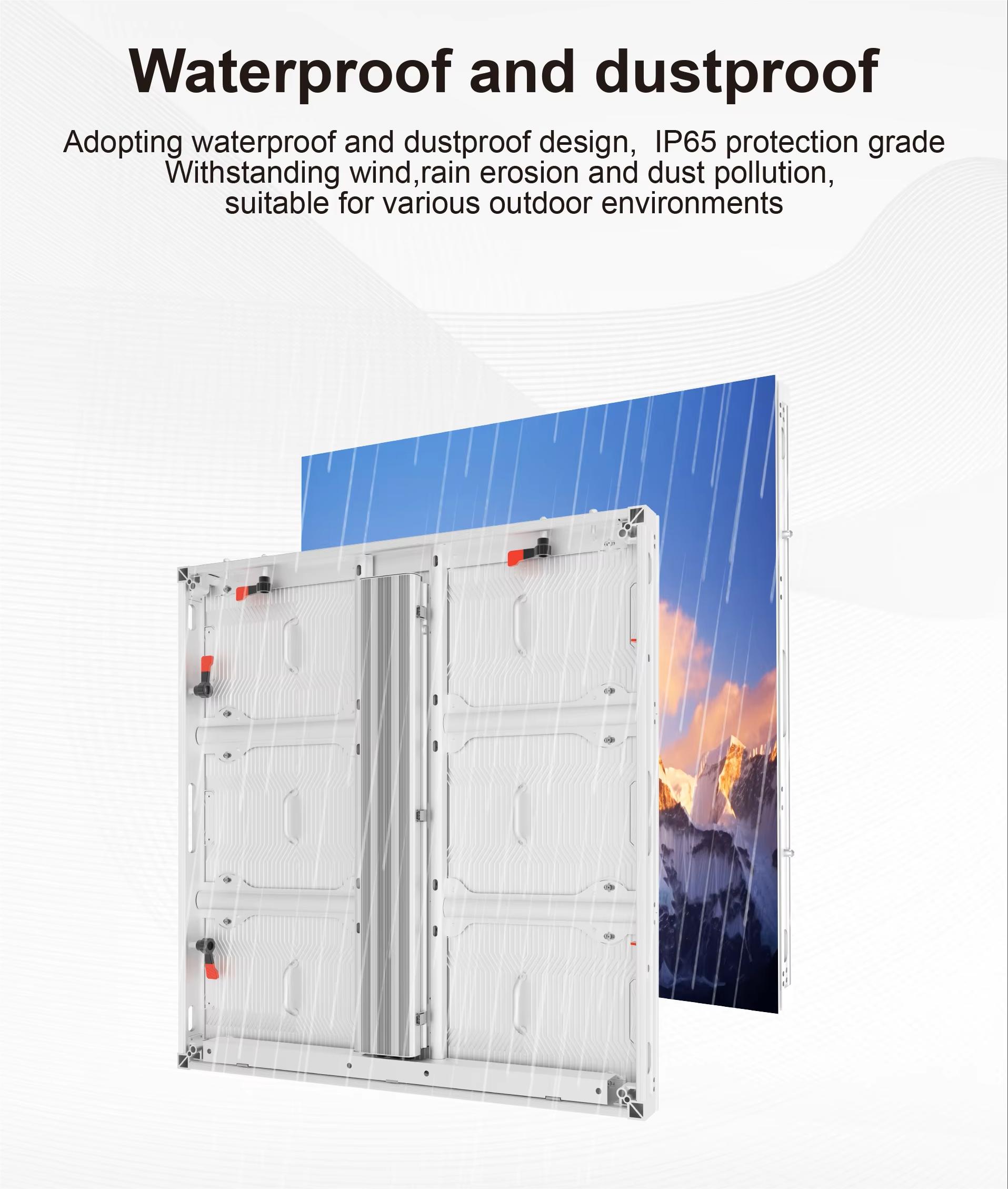

1. Robust and Waterproof Design: Adopting high-strength aluminum alloy or steel material, the cabinet has excellent anti-corrosion and anti-oxidation properties. It reaches an IP65 or higher waterproof rating, effectively preventing rainwater, dust, and moisture from entering the internal circuit, ensuring stable operation in rainy, snowy, or dusty environments.

2. Lightweight and High Rigidity: The aluminum alloy cabinet is lightweight, reducing the load on the installation structure (such as building facades and steel frames) while maintaining high structural rigidity, resisting wind pressure and external impacts. This makes the installation safer and more reliable, especially for high-altitude installations.

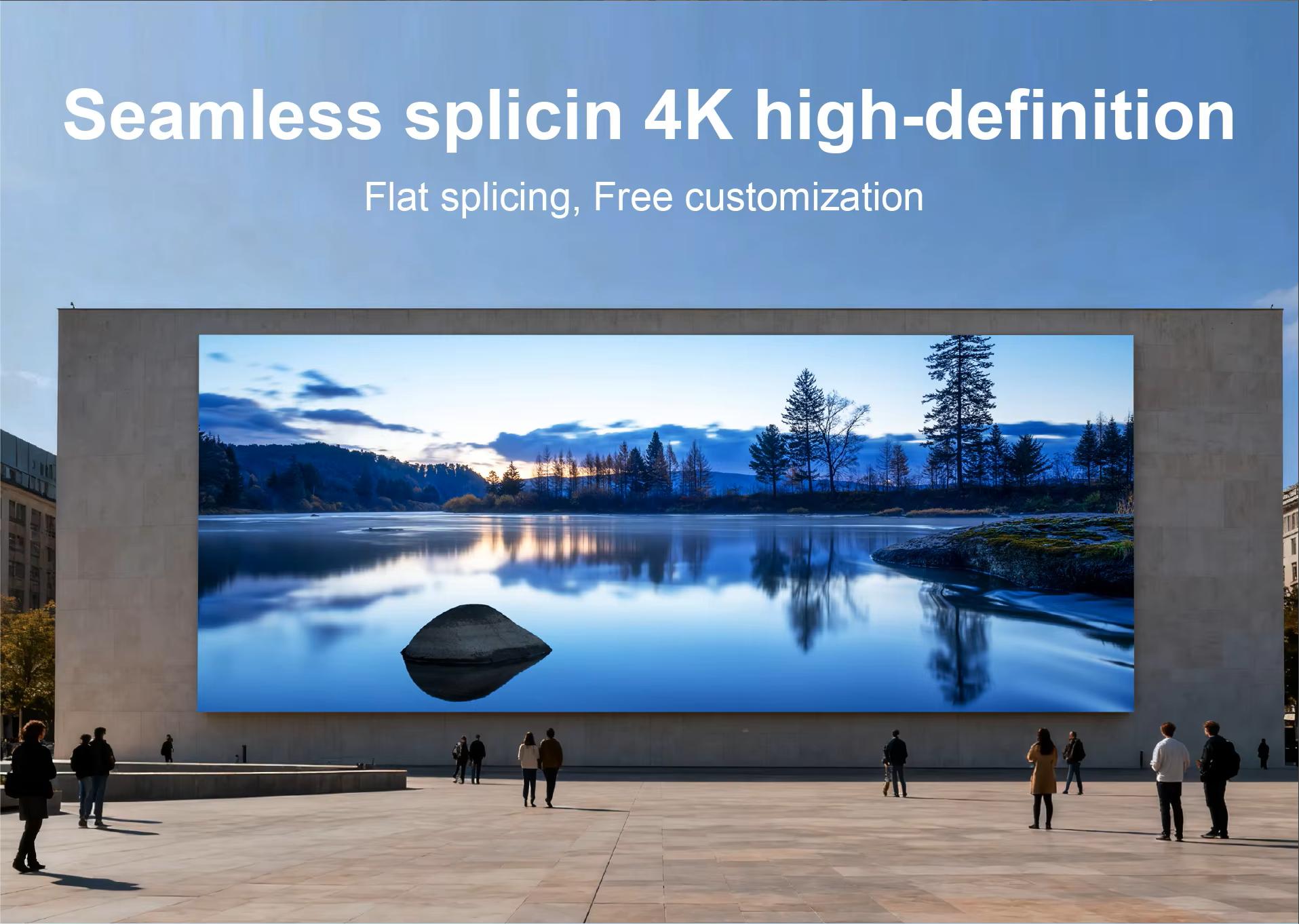

3. Precise Seamless Splicing: The cabinet adopts a precision machining process, with a splicing gap of less than 0.1mm. This ensures that the entire screen forms a complete and smooth display surface without obvious splicing traces, avoiding affecting the overall visual effect.

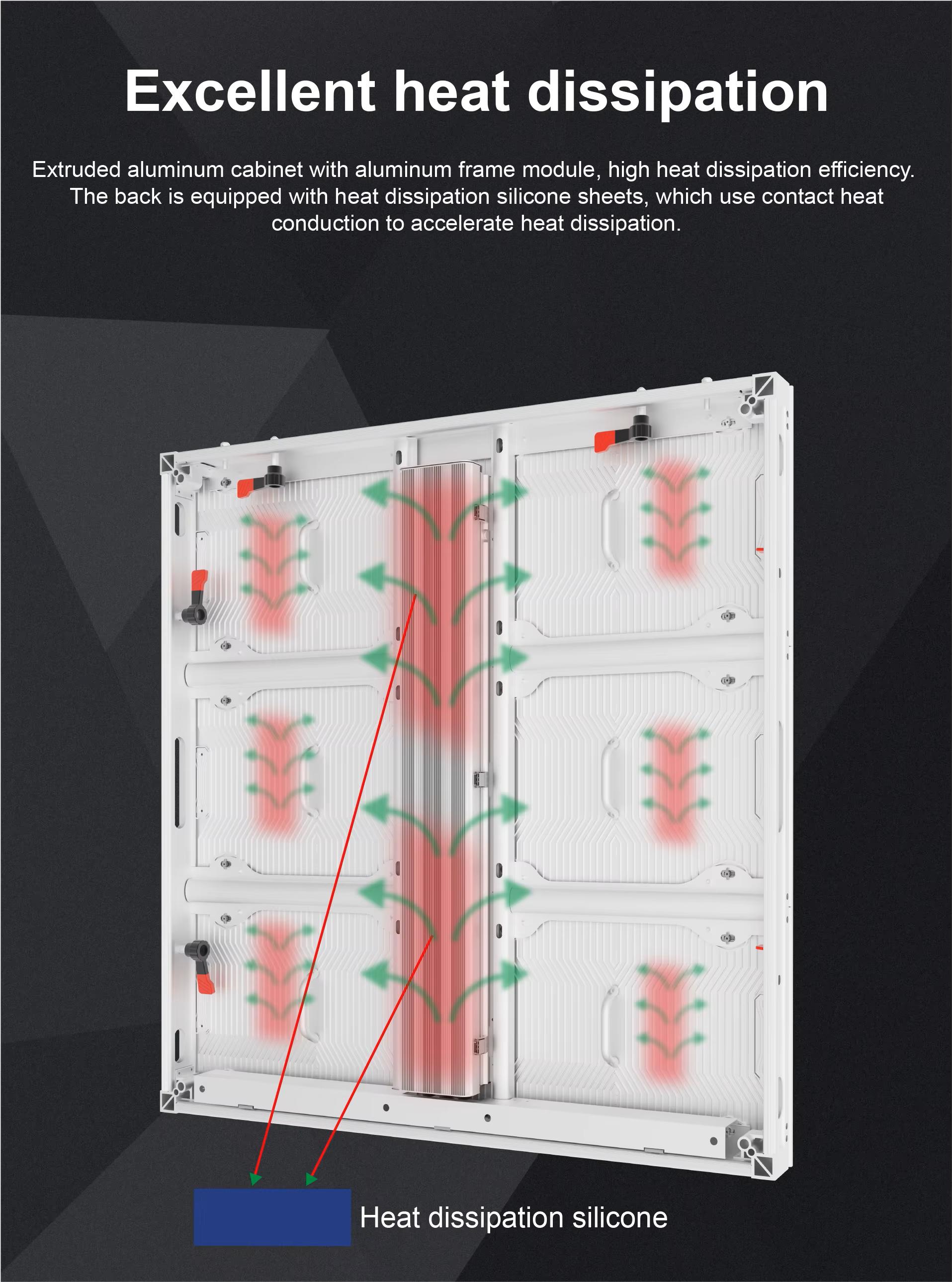

4. Efficient Heat Dissipation System: Equipped with built-in heat dissipation fans, heat pipes, or natural convection heat dissipation structures, the cabinet can quickly dissipate the heat generated by the LED lamp beads and driving chips during operation. This prevents overheating from affecting the service life and performance of the screen, ensuring long-term stable operation.

5. Modular Design for Easy Maintenance: The cabinet adopts a modular structure, and the LED display modules can be quickly disassembled and replaced from the front or back. This simplifies maintenance work, reduces downtime, and lowers maintenance costs. At the same time, the cabinet is equipped with standardized interfaces, facilitating quick connection and debugging.

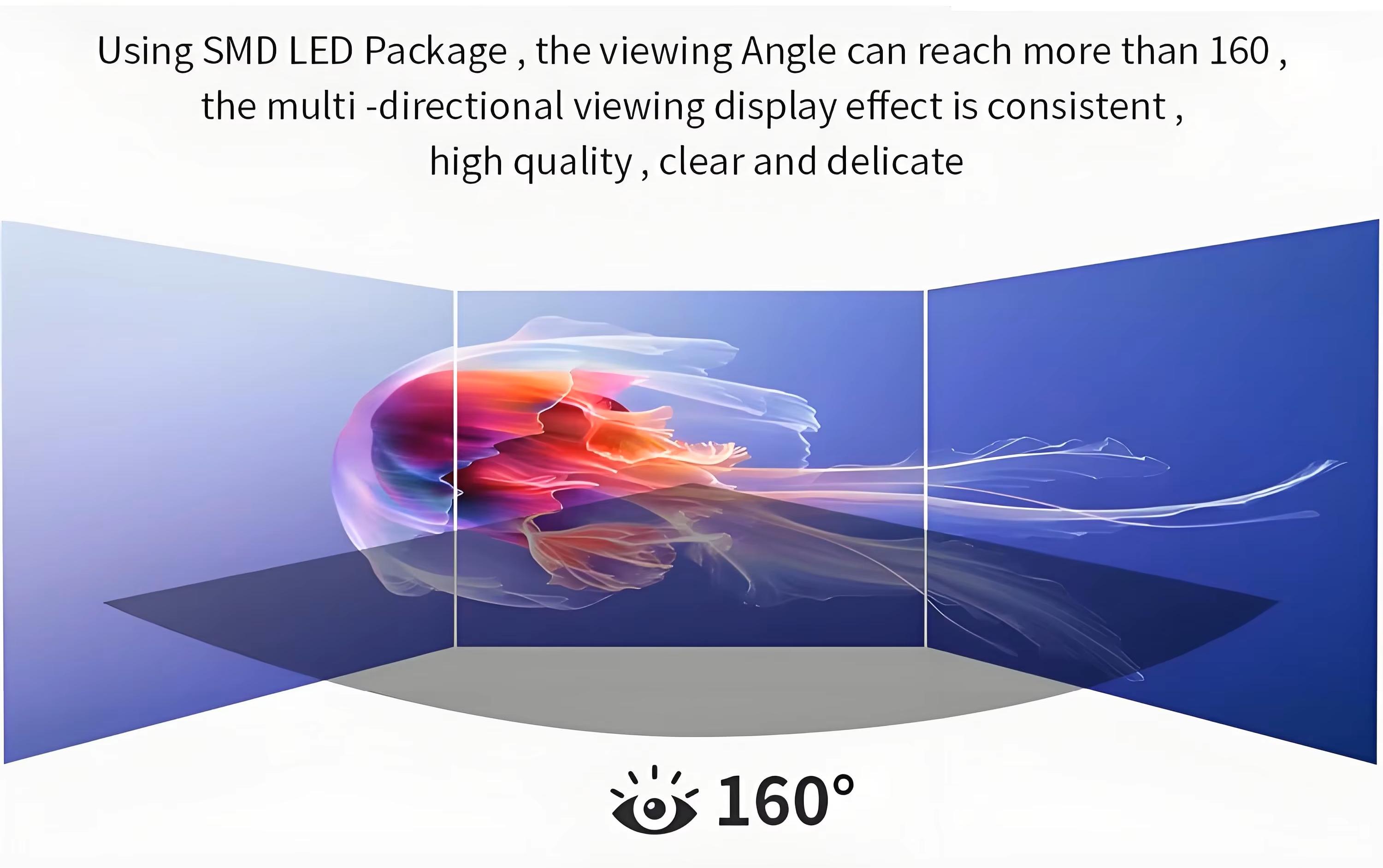

6. Viewing Angle: Horizontal ≥160°, Vertical ≥140°, allowing viewers from different positions to enjoy consistent display effects without color distortion or image degradation.

Cabinet Features

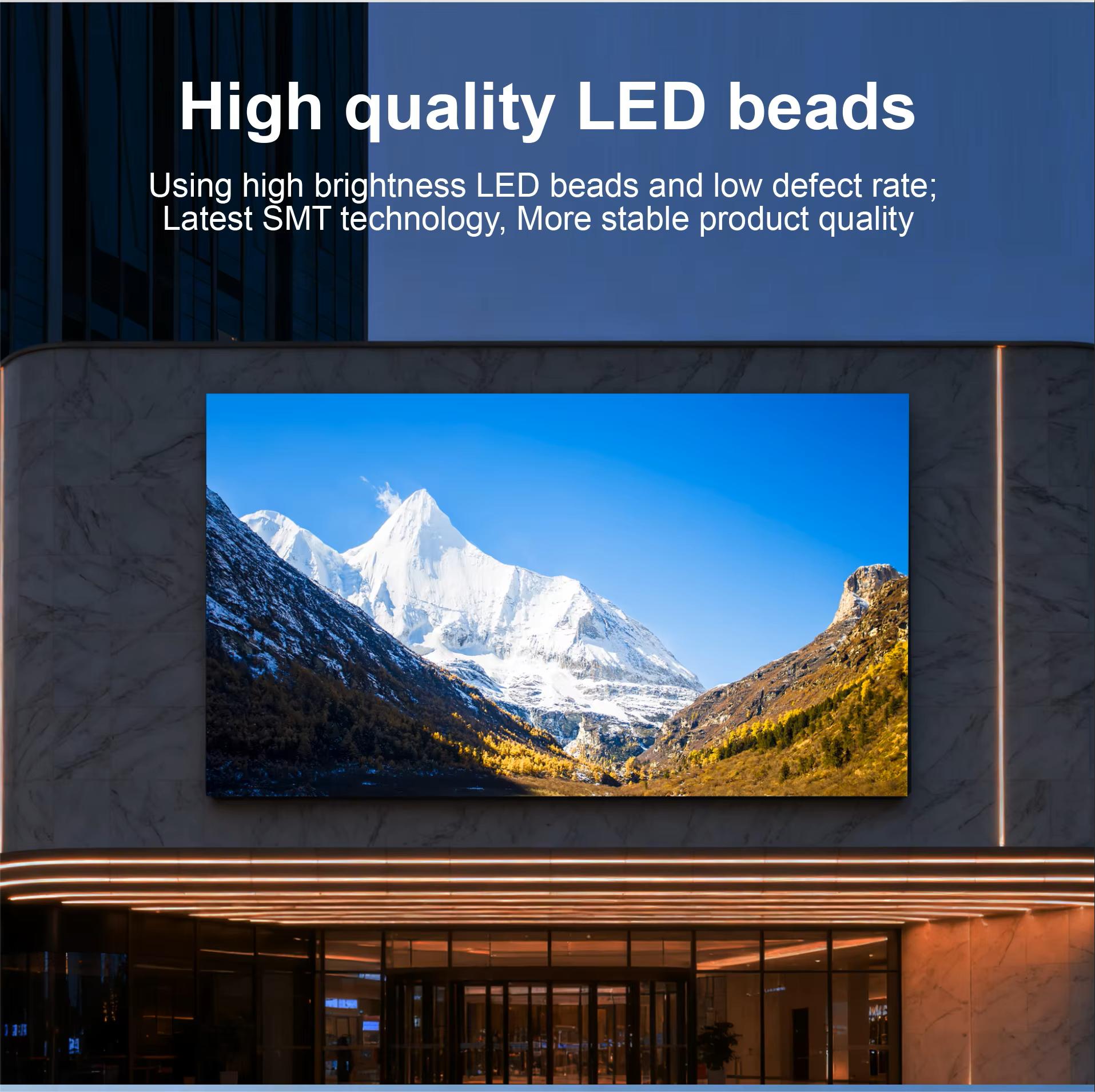

1. High-Quality LED Lamp Beads: Adopting high-brightness, high-stability LED lamp beads (such as SMD3535, SMD2727), with uniform light emission, narrow wavelength range, and high color saturation. The lamp beads have a long service life of up to 100,000 hours, reducing the frequency of replacement and maintenance.

2. True Color Reproduction: Supporting 16.7 million colors and 10-bit color depth, the screen can accurately reproduce the color details of images and videos, achieving natural and realistic color effects. It is compatible with various color gamuts such as RGB and DCI-P3, meeting the needs of different application scenarios such as advertising and film screening.

3. Low Energy Consumption and Environmental Protection: Adopting energy-saving LED lamp beads and intelligent power management system, the screen has low power consumption under the premise of ensuring high brightness. Compared with traditional outdoor display equipment (such as neon lights and light boxes), it can save a lot of electricity costs and reduce carbon emissions, conforming to the concept of green and environmental protection.

Application Scenarios

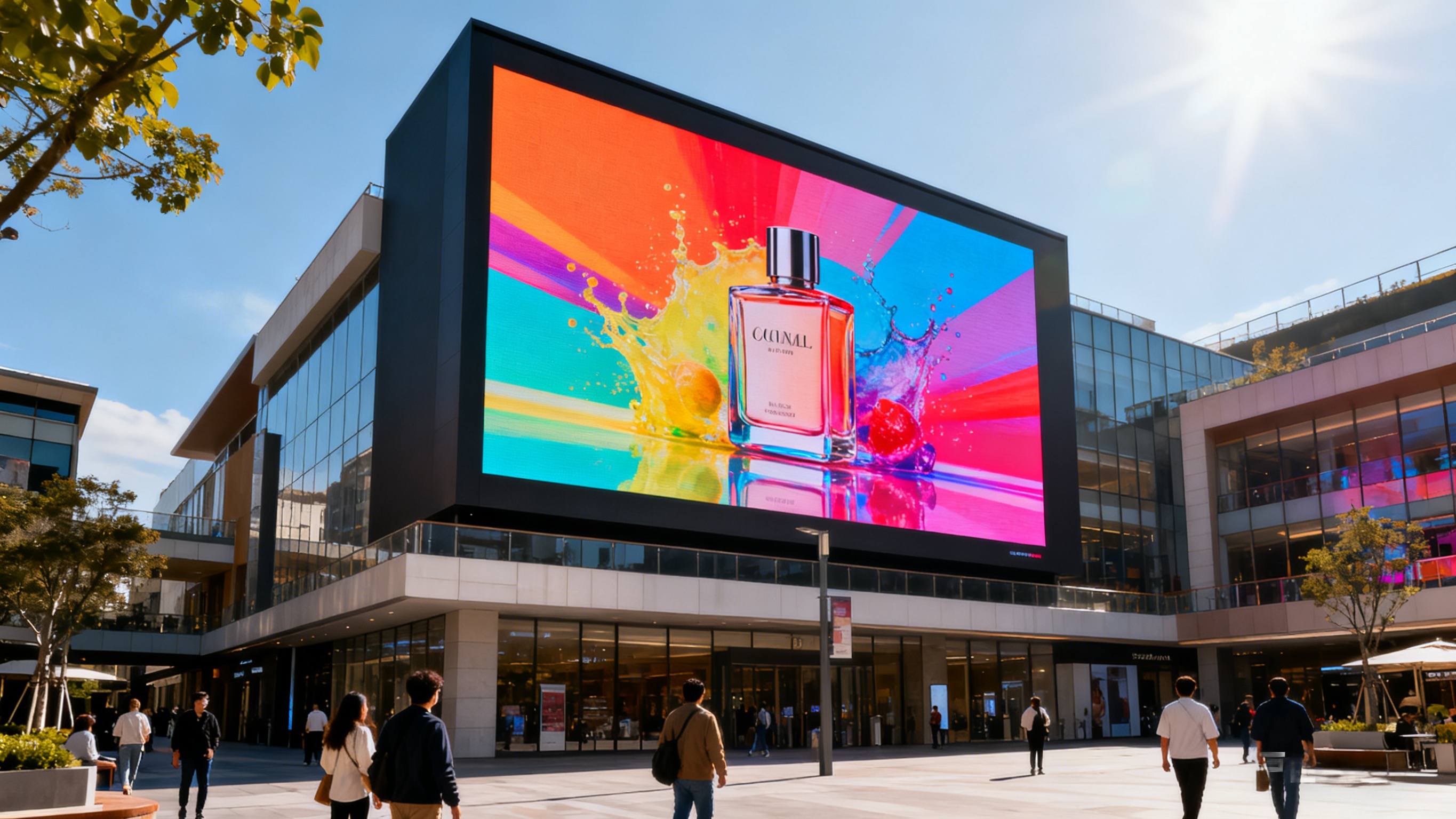

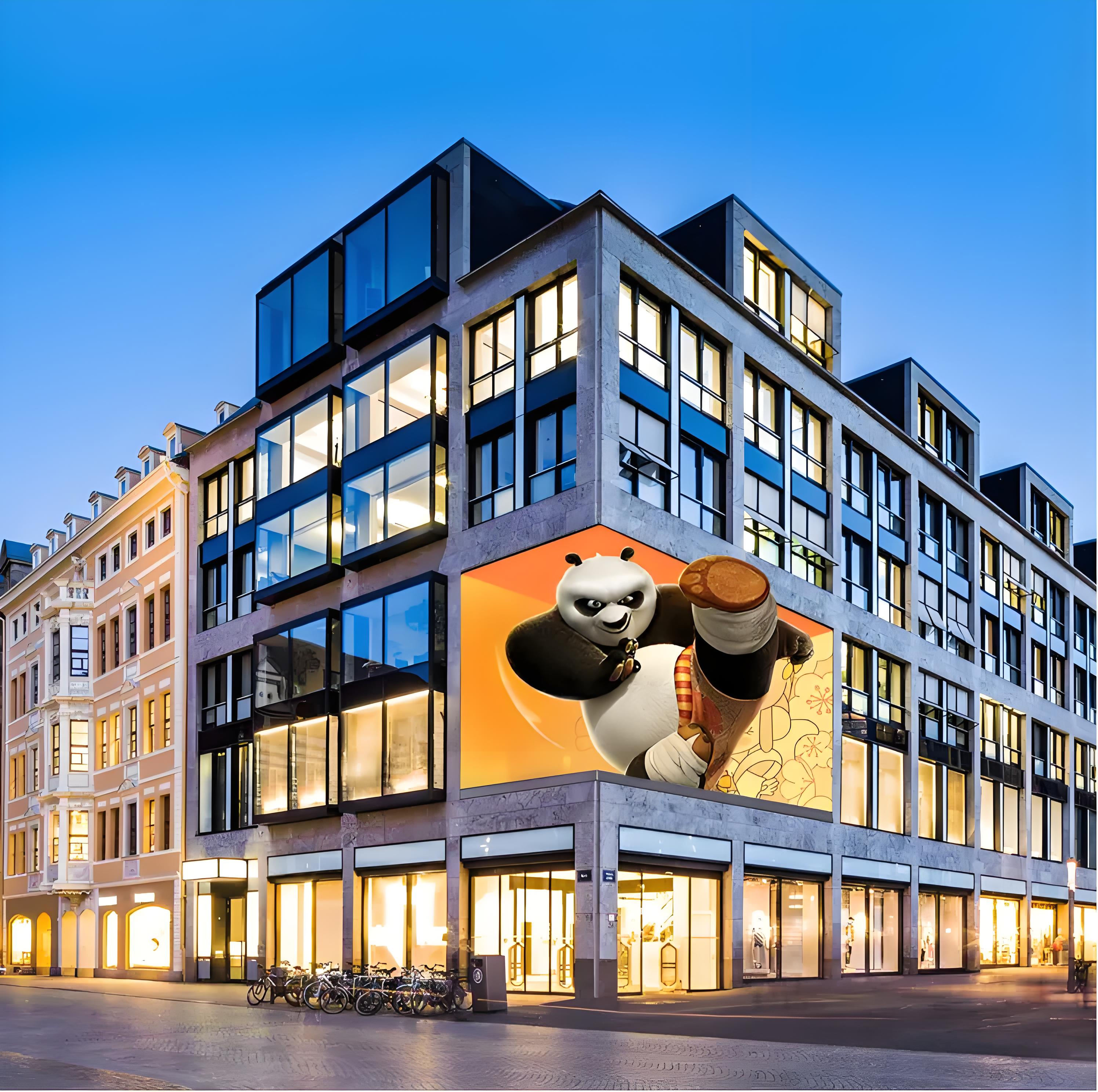

1. Commercial Advertising and Brand Promotion: Installed in commercial plazas, shopping malls, busy streets, and high-end residential areas, the screens are used to play commercial advertisements, product promotions, and brand image videos. Their high brightness and wide viewing angle can attract the attention of passers-by, enhance brand awareness, and promote product sales.

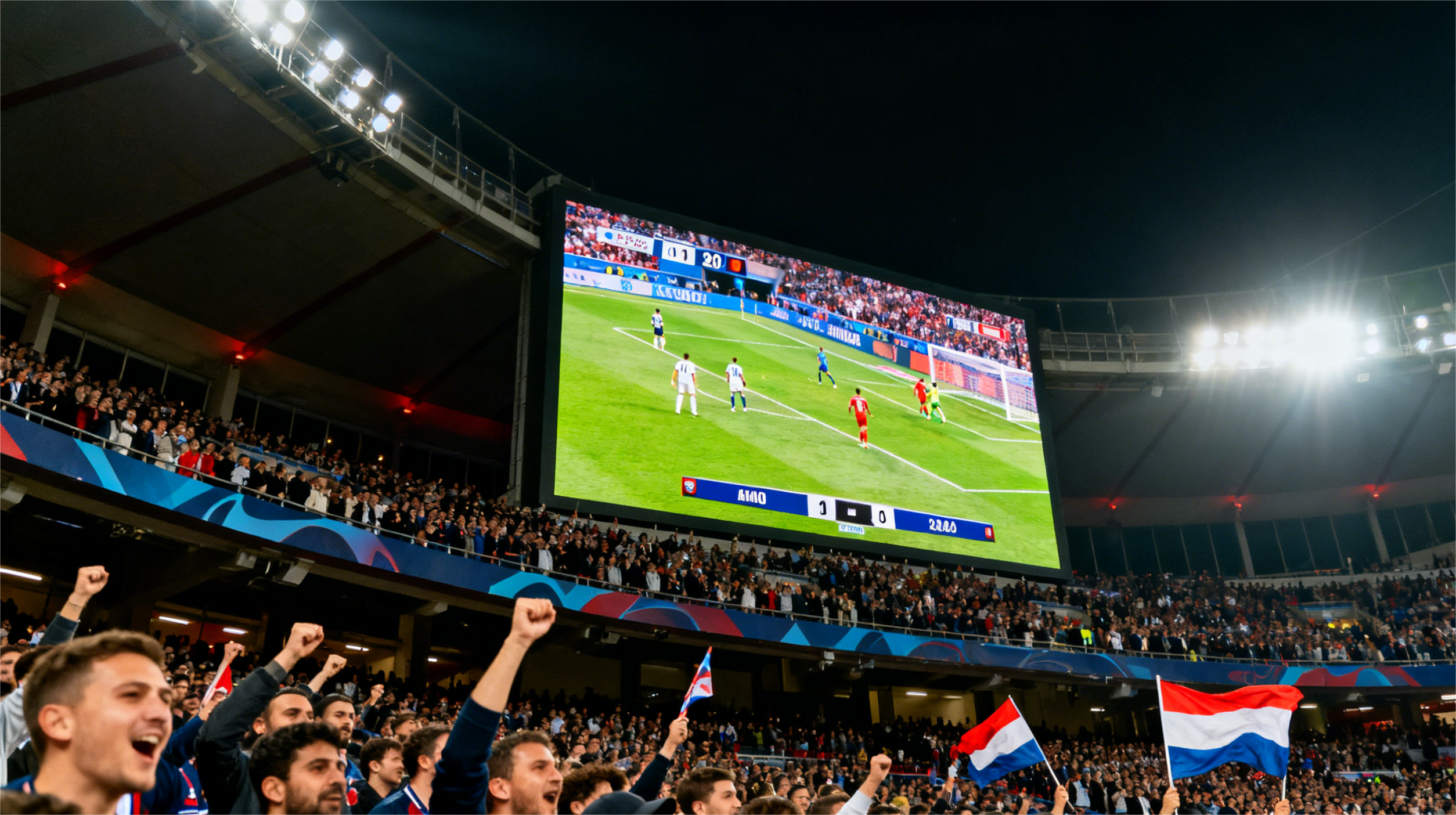

2. Cultural and Sports Events: Used in stadiums, gymnasiums, concert halls, and theater squares, the screens can broadcast live events, real-time scores, player information, and performance pictures. They provide clear and vivid visual experiences for the audience, enhancing the on-site atmosphere.

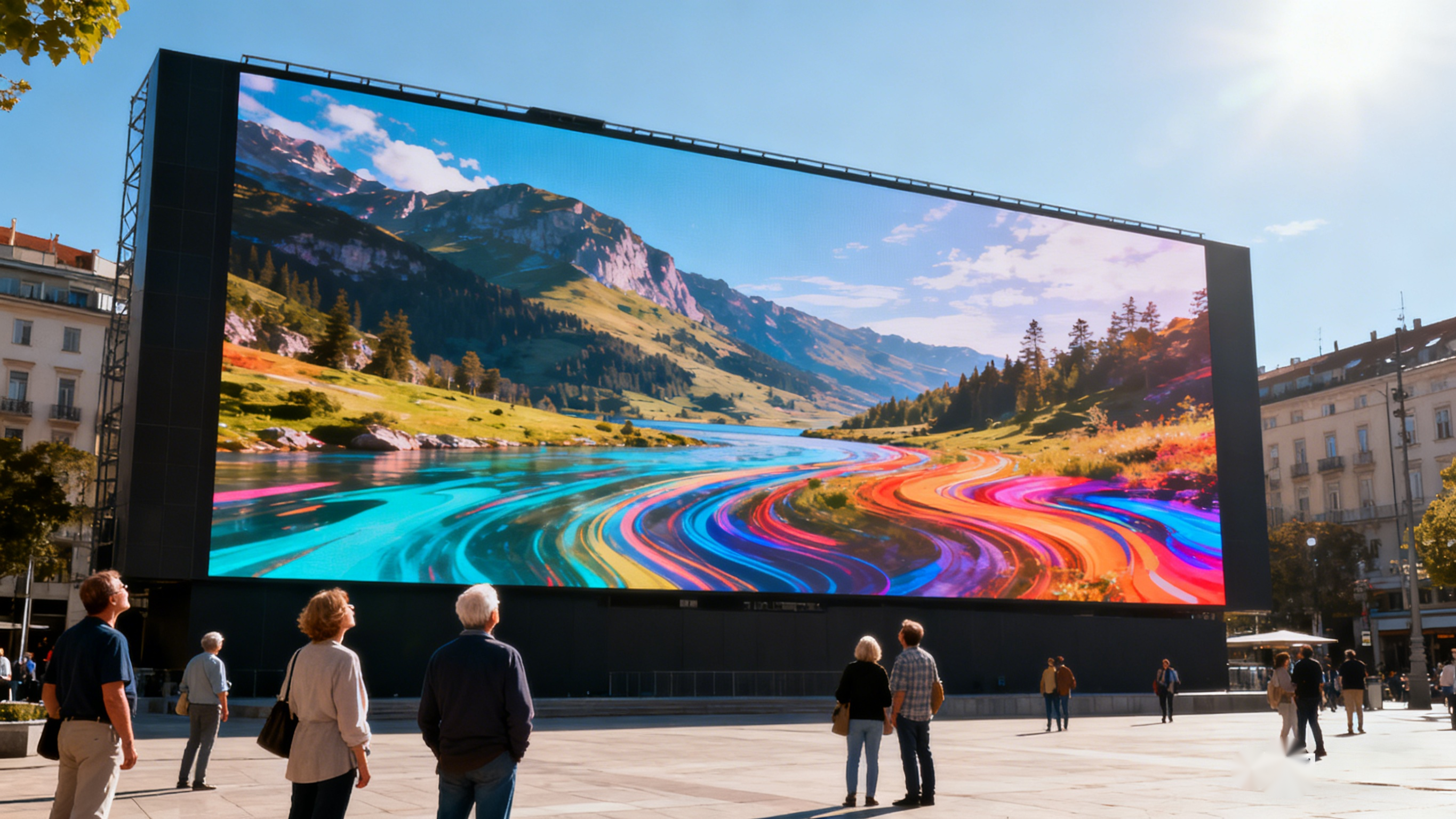

3. Public Information Release: Installed in squares, transportation hubs (airports, railway stations, bus stations), and government service halls, the screens are used to release public information such as weather forecasts, traffic information, emergency notices, and policy promotions. They play an important role in ensuring public safety and facilitating people's lives.

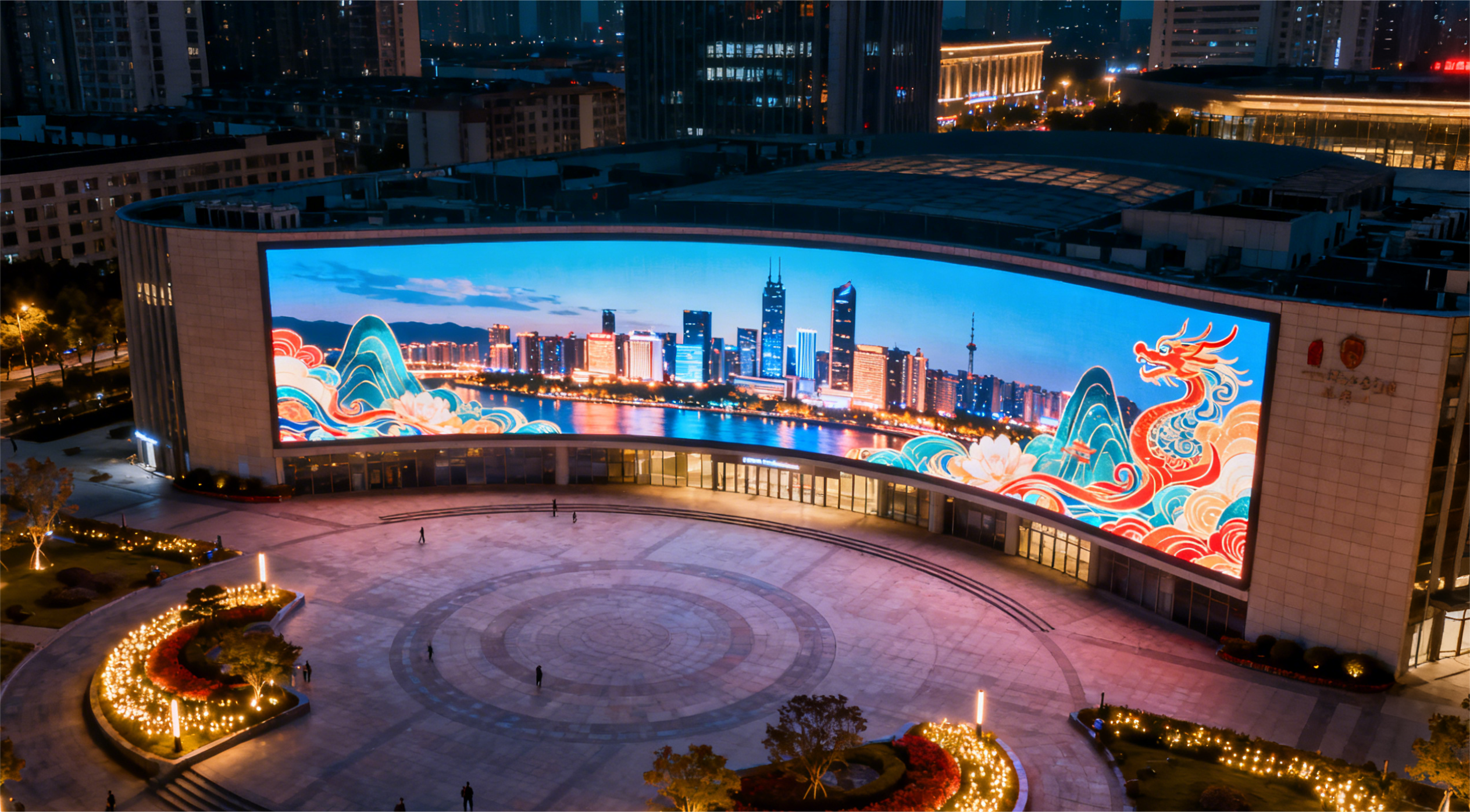

4. Urban Landscaping and Cultural Construction: Used in urban squares, riverside landscapes, and historical and cultural blocks, the screens can be combined with the surrounding environment to play cultural and artistic works, urban image promotional videos, and festive themed content. They not only enrich the cultural life of citizens but also enhance the image and taste of the city.

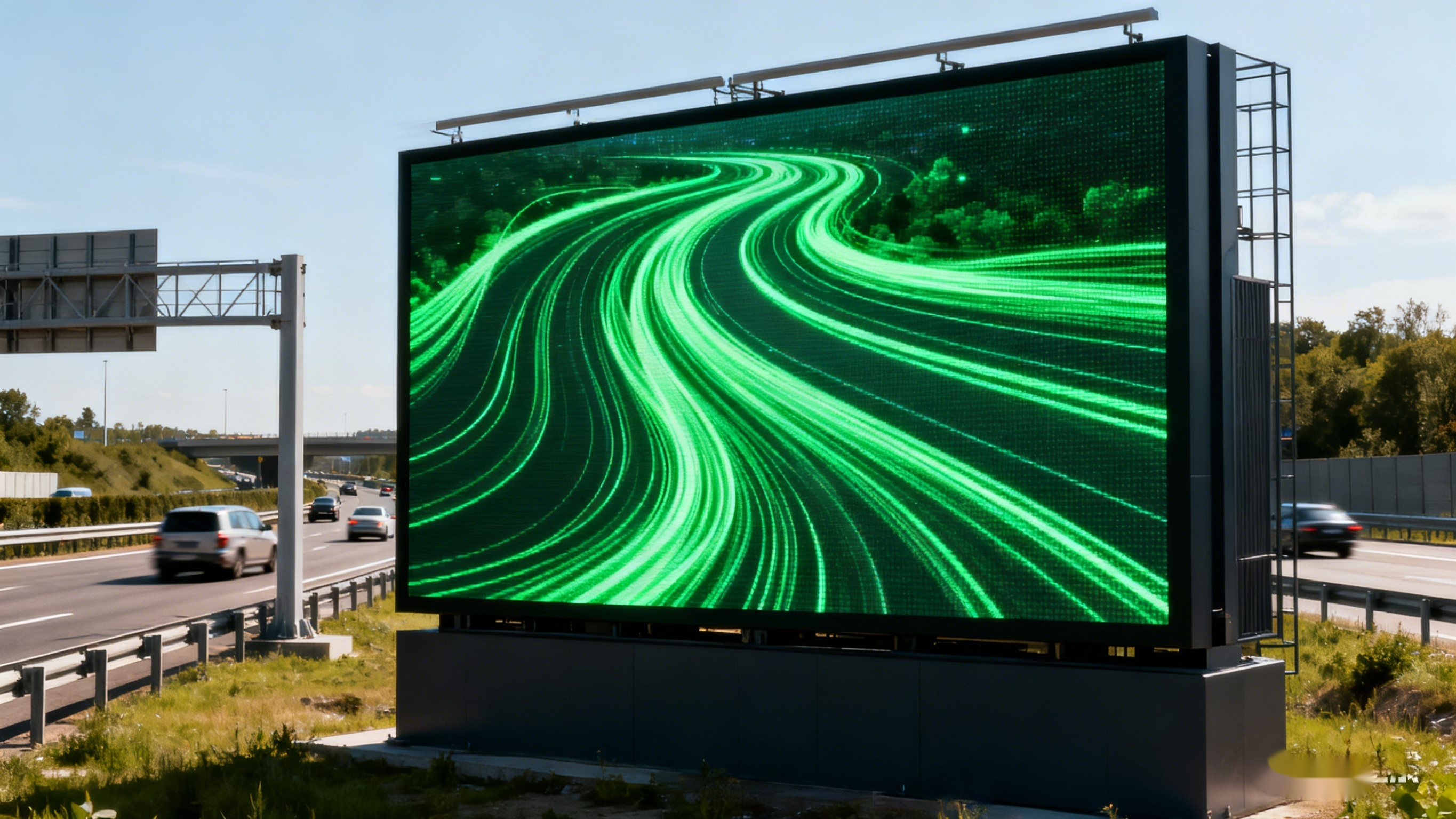

5. Industrial and Mining Enterprises and Transportation Sectors: Installed in factories, ports, highways, and toll stations, the screens are used to display production data, safety warnings, traffic guidance, and toll information. They provide real-time and effective information support for production and transportation, improving work efficiency and safety.

Production Process

We have professional LED display production equipment and assembly personnel. You only need to provide your needs, and we will provide you with comprehensive professional services from scratch. From developing production plans to the production and assembly of displays, we will ensure quality and quantity. You can rest assured to cooperate with us.

LED Display Aging and Testing

Aging and testing of LED display modules involves simulating long-term operation to ensure reliability and stability. This process is critical to identifying and resolving potential issues, ultimately improving the efficiency and stability of the LED display.

Conducting burn-in testing is a critical step in quality control to ensure the overall performance and service life of the LED display.
