Novastar TB10 Plus New Generation Multimedia Player Box For Full Color Advertising LED Display

Short Description:

The TB10 Plus is a new generation of multimedia player created by NovaStar for full-color LED displays. This multimedia player integrates playback and sending capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with our superior cloud-based publishing and monitoring platforms, the TB10 Plus enables users to manage LED displays from an Internet-connected device anywhere, anytime.

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

Introduction

The TB10 Plus can play content from a USB drive, satisfying various playback demands. Multiple protection measures such as terminal authentication and player verification are taken to keep the playback secure.

Thanks to its reliability, ease of use, and intelligent control, the TB10 Plus becomes a winning choice for commercial LED displays and smart city applications such as fixed displays, lamp- post displays, chain store displays, advertisement players, retail store displays, door head displays, shelf displays, and much more.

Certifications

CE, FCC, IC, CQC

Features

Output

●Loading capacity up to 650,000 pixels

Maximum width：2048 pixels, maximum height: 2048 pixels (maximum capacity per Ethernet port: 650,000 pixels)

● Maximum width of an ultra-long screen: 8192 pixels, maximum height of an ultra-long screen: 2048 pixels (maximum capacity per Ethernet port: 650,000 pixels)

●1x Gigabit Ethernet output
●1x Stereo audio output connector

The audio sample rate is fixed at 48 kHz. If NovaStar’s multifunction card is used for audio output, audio with a sample rate of 48kHz is required.

Control
●1x USB 2.0 ( Type A) port
Allows for USB playback, firmware upgrade and storage expansion.

●1x USB (Type B) port
Connects to the control computer for content publishing and screen control.

● 1x Fast Ethernet port

Connects to the control computer, or connects to a LAN or public network for content publishing and screen control.

Performance

● Powerful processing capacity

− Quad-core ARM A53 processor @1.4GHz

− Support for hardware decoding of 4K videos

− 2 GB of RAM

− 32 GB of storage space

● Flawless playback

Support for playback of 1x 4K, 3x 1080p, 8x 720p, 16x 480p, or 20x 360p videos

Functionality

● All-round control plans

− Enables users to publish content and control screens from a computer, mobile phone, or tablet.

− Allows users to publish content and control screens from anywhere, anytime.

− Allows users to monitor screens from anywhere, anytime.

● Wi-Fi AP and Wi-Fi Sta can be turned on at the same time

− Wi-Fi AP
User terminal devices can connect to the built-in Wi-Fi hotspot of the multimedia player. The default SSID is “AP+Last 8 digits of SN” and the default password is printed on the SSID label .
− Wi-Fi AP+Wi-Fi Sta

Users can connect the multimedia player to a Wi-Fi network and turn on the Wi-Fi hotspot at the same time.

● Ultra-long-screen solution playback

● Synchronous playback across multiple screens

Enabling synchronous playback halves the decoding capability of the device.

− NTP time synchronization

− GPS time synchronization (The specified 4G module must be installed.)

− RF time synchronization (The specified RF module must be installed.)

● Support for brightness sensors or temperature and humidity sensors

● Support for 4G modules

− The TB10 Plus ships without a 4G module. Users have to purchase 4G modules separately if needed.

− Network connection priority: Wired network > Wi-Fi network > 4G network

Appearance

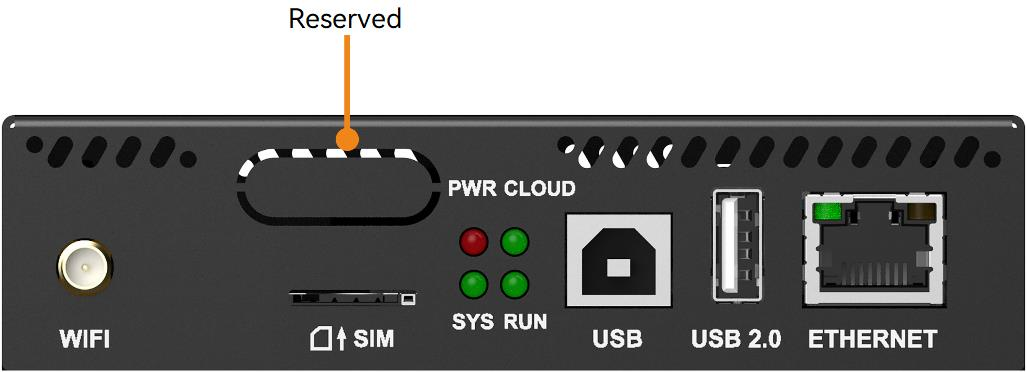

Front Panel

Name	Description
WIFI	Wi-Fi antenna connector (2.4GHz Wi-Fi supported)
Reserved	Sensor connector Connects to a light sensor or temperature and humidity sensor.
SIM	SIM card slot Capable of preventing users from inserting a SIM card in the wrong orientation.
USB	USB(Type B)port Connects to the control computer for content publishing and screen control.
USB 2.0	USB 2.0(Type A)port Allows for USB playback,firmware upgrade and storage expansion(up to 128 GB). Ext4 and FAT32 file systems are supported,with FAT32 allowing a maximum file size of 4GB.exFAT and FAT16 are not supported.
ETHERNET	Fast Ethernet port Standard RJ45 connector(with built-in LEDs)connecting to the control computer or connecting to a LAN or public network for content publishing and screen control.

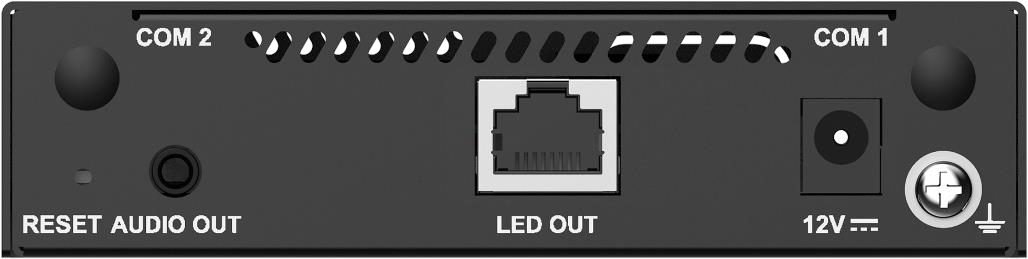

Rear Panel

Name	Description
COM 2	GPS antenna connector
RESET	Factory reset button Press and hold this button for 5s to reset the product to its factory settings
AUDIO OUT	3.5mm audio output connector Note:3-pole audio connectors are supported.
LED OUT	Gigabit Ethernet output Standard RJ45 connector(with no built-in LEDs)
12V-.	Power input connector
COM1	4G antenna connector

Indicators

Name	Color	Status	Description
PWR	Red	Staying on	The power supply is working properly.
SYS	Green	Staying on/off	The operating system is malfunctioning.
		Flashing once every 2s	The operating system is functioning normally.
		Flashing once every second	Failed to reset the USB drive.
		Flashing once every 0.5s	The USB drive is reset successfully.
CLOUD	Green	Staying on	The device is connected to the Internet and the connection is available.
		Flashing once every 2s	The device is connected to VNNOX and the connection is available.
		Flashing once every second	The operating system is being upgraded.
		Flashing once every 0.5s	The device is copying the upgrade package or files from a USB drive.
RUN	Green	Flashing once every 4s	The FPGA has no video source.
		Flashing once every 0.5s	The FPGA is functioning normally.
		Staying on/off	The FPGA loading is abnormal.

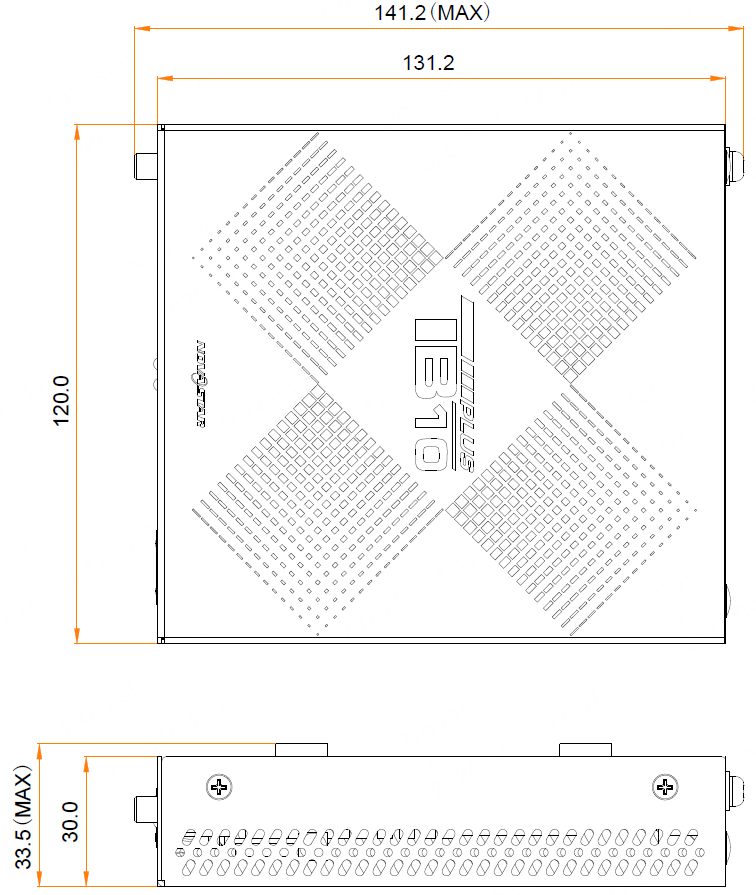

Dimensions

Tolerance: ±0.3 Unit: mm

Specifications

Electrical Parameters	Input voltage	DC 5 V~12 V
Electrical Parameters	Maximum power consumption	15 W
Storage Capacity	RAM	2 GB
Storage Capacity	Internal storage	32 GB
Storage Environment	Temperature	–40°C to +80°C
Storage Environment	Humidity	5% RH to 95% RH, non-condensing
Operating Environment	Temperature	–20ºC to +60ºC
Operating Environment	Humidity	5% RH to 85% RH, non-condensing
Packing Information	Dimensions (L×W×H)	333.0 mm × 196.0 mm × 70.0 mm
Packing Information	Accessorise	1x Wi-Fi omnidirectional antenna 1x Power adapter 2x Racks 4x Phillips countersunk head screws 1x Quick Start Guide 1x Certificate of Approval
Dimensions (L×W×H)	141.2 mm × 120.0 mm × 33.5 mm
Net Weight	465.6 g
Gross Weight	771.2 g
IP Rating	IP20 Please prevent the product from water intrusion and do not wet or wash the product.
System Software	Android 10.0 operating system software Android terminal application software FPGA program

Media Decoding Specifications


Codec	Max Resolution	Format	Remarks
BMP	4096×2304 pixels	BMP	N/A
GIF	4096×2304 pixels	GIF	N/A
JPG	4096×2304 pixels	JPG	N/A
JPEG	4096×2304 pixels	JPEG	N/A
PNG	4096×2304 pixels	PNG	N/A

Video

Codec	Resolution	Max Frame Rate	Max Bit Rate(Ideal Case)	Format
H.265	64×64 pixels to 4096×2304 pixels	60fps	100Mbps	MP4, AVI, RMVB, FLV, MKV, MOV
H.264	64×64 pixels to 4096×2304 pixels	30fps	60Mbps	MP4, AVI, RMVB, FLV, MKV, MOV
MPEG-4	64×64 pixels to 1920×1088 pixels	60fps	29Mbps	MP4, AVI, RMVB, FLV, MKV, MOV
VP9	64×64 pixels to 4096×2304 pixels	30fps	49Mbps	MP4, AVI, RMVB, FLV, MKV, MOV
MJPEG	64×64 pixels to 1920×1088 pixels	22fps	6Mbps	MP4, AVI, RMVB, FLV, MKV, MOV
AVS2	64×64 pixels to 3840×2160 pixels	25fps	20Mbps	MP4, AVI, RMVB, FLV, MKV, MOV
H.263	64×64 pixels to 1920×1088 pixels	60fps	60Mbps	MP4, AVI, RMVB, FLV, MKV, MOV
VP8	64×64 pixels to 1920×1088 pixels	60fps	60Mbps	MP4, AVI, RMVB, FLV, MKV, MOV
MPEG-2	64×64 pixels to 1920×1088 pixels	60fps	60Mbps	MP4, AVI, RMVB, FLV, MKV, MOV
MPEG-1	64×64 pixels to 1920×1088 pixels	60fps	60Mbps	MP4, AVI, RMVB, FLV, MKV, MOV
VC-1	64×64 pixels to 1920×1088 pixels	60fps	60Mbps	MP4, AVI, RMVB, FLV, MKV, MOV
Sorenson Spark	64×64 pixels to 1920×1088 pixels	60fps	60Mbps	MP4, AVI, RMVB, FLV, MKV, MOV
CAVS	64×64 pixels to 1920×1088 pixels	60fps	30Mbps	MP4, AVI, RMVB, FLV, MKV, MOV
