Novastar CX40 Pro 4K LED Controller New Control System COEX Series For Full Color LED Display Screen

Short Description:

The CX40 Pro is a 4K LED display controller in the brand-new control system COEX series of Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar) . This controller offers rich video input connectors (HDMI 2.0, DP 1.2 and 12G-SDI) and supports 5Gbps output via Ethernet port and 40Gbps remote transmission via optical port.
The CX40 Pro can also work with the brand-new software VMP (Vision Management Platform) to provide a better operation and control experience. Featuring a 5.5-inch touch LCD, it makes user operation and control much easier.

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

Certifications

CCC, RoHS, CE, FCC, IC

Features

Inputs and Outputs

. 3 types of inputs
- 2x HDMI 2.0 (with loop through)
- 1x DP 1.2
- 2x 12G-SDI (with loop through)

. 12-bit, 10-bit and 8-bit video inputs
. 3 types of outputs
- 6x 5Gbps Ethernet ports, load capacity up to 9 million pixels
- 1x 40Gbps optical port
- 1x SPDIF digital audio port

. 3 types of controls
- 1x Genlock signal input (with loop through)
- 2x Ethernet control ports
- 1xAuxiliary port

Advanced Functions

. 3 independent layers
Support up to 3x 4K layers and layer priority adjustment in Z order.

. Image scaling
Support 3 image scaling modes: custom, pixel to pixel, and snap to canvas

. Color Replacement
Support free replacement of any color on the image without affecting the performance of other colors. Replacement of highly saturated colors is recommended for better effect.

. 14Ch Color Correction
Support precise adjustment to hue, saturation and brightness of black, white and the 12 derived standard colors of the red, green and blue primary colors.

. Curves
Support adjustment to the image RGBW mapping curves.

. 3D LUT
The 17×17×17 3D LUT .cube files are supported to adjust the video source colors.

. Dynamic Booster
Real-time analysis and dynamic adjustment are made to each frame to significantly improve the display contrast and image details for better visual experience, and effectively control and lower the display power consumption, extending the service life of the LED screen.

. Full Grayscale Calibration
Work with NovaStar’s high-precision calibration system and the C3200 scientific grade camera to generate unique calibration coefficients for each grayscale, ensuring uniformity of each grayscale and dramatically improving the image quality.

. HDR
- Support HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards.
- Support HLG.

. Latency
- Support low latency and the controller load capacity is not reduced. The latency at the controller is 0 frame (less than 1 ms) in Send-Only Controller working mode and 1 frame in All-In-One Controller working mode.
- Support additional latency. Zero to two frames of latency can be added at the controller.

. No rectangle restriction
No rectangle restriction for irregular screens.
When calculating resolutions, blank pixels do not count towards the total capacity. The used load capacity of Ethernet ports is the sum of the pixels of all cabinets.

. Frame Rate Adaptive
The controller can be adaptive to various video input frame rates, including decimal frame rates.
Custom frame rates are also supported and the step size of fine tuning frame rate is as small as 0.01 Hz.

. Two working modes
Support the All-In-One Controller and Send-Only Controller working modes.
- In the Send-Only Controller mode, the latency can be reduced by one frame.
- In the All-In-One Controller mode, the layer and scaling functions are available.

. Display system monitoring
Support monitoring of the device status and screen status. Any fault and alarm information can be reported actively.

Device Controls

. Touch LCD
Come with a 5.5-inch 1080p touch LCD. It is sensitive and rugged, allowing users to control the device easily by tapping on the LCD.

. VMP software control
The device can be connected to the VMP software to provide easy and convenient operations and smart device management.

. Cascading control via Ethernet
The Gigabit Ethernet control ports support TCP/IP protocol and star topology. No switch or router is needed to deploy multiple devices on the same LAN via device cascading as the network switching function is already built in.

Table 1-1 Function limitations

Function	Limitation
Frame Rate Adaptive	This function can be achieved when the CX40 Pro works with the CA50E, CA50C, or XA50 receiving card. Currently supported driver ICs include ICND2055, ICND2065, ICND2069, ICND2076, MBI5264, MBI5264B, and MBI5264C. In addition, the .ncp file generated by the Cabinet Tool from NovaStar must be used.
Dynamic Booster	This function can be achieved when the CX40 Pro works with the CA50E, CA50C, or XA50 receiving card. Before operation, brightness and color gamut correction using the CA410-VP427, CA410-P427 or EYE2-400 color analyzer must be completed.
Full Grayscale Calibration	This function can be achieved when the CX40 Pro works with the CA50E, CA50C, or XA50 receiving card. A C3200 camera is required to perform full-grayscale calibration.
Low Latency	The Low Latency and Genlock functions are mutually exclusive. To enable low latency, please make sure all Ethernet ports load the cabinets vertically and share the same Y coordinate.
HDR	The HDR function supports automatic parsing and manual setting. The properties of 12G-SDI sources, DP1.2 sources and non-standard HDR sources can be manually set to HDR properties. Using the HDR function reduces the CX40 Pro load capacity by less than half if the CX40 Pro works with the CA50E, CA50C, or XA50 receiving card. For details, see theEthernet Port Load Capacitysection.

Appearance

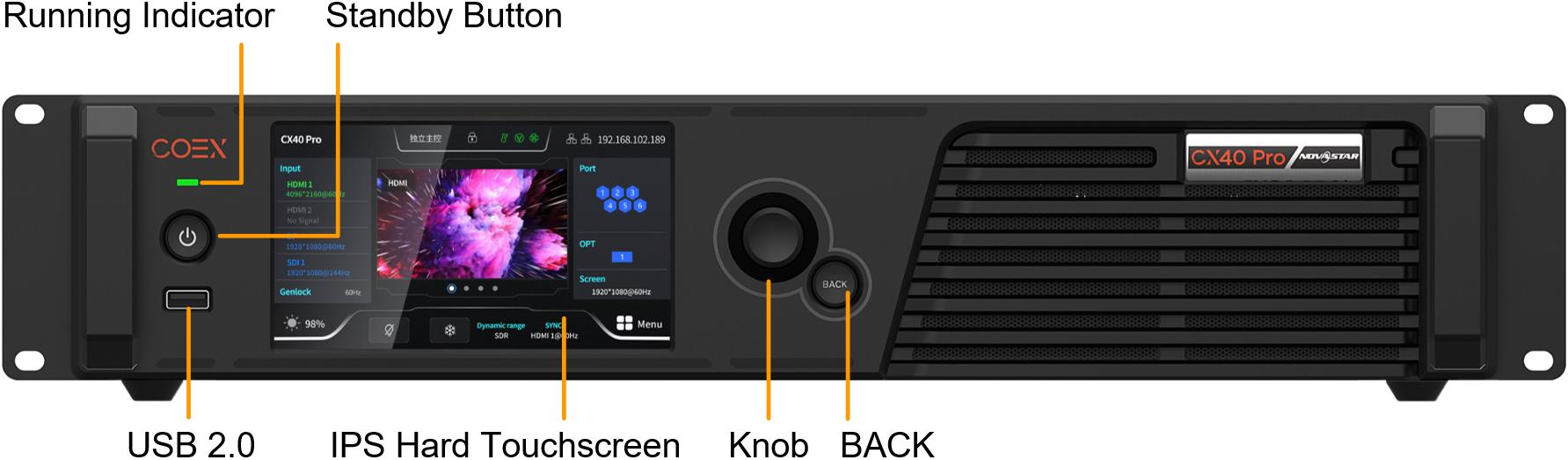

Front Panel

Name	Description
Running Indicator	. Solid red: Standby . Solid blue: The device is being started. . Solid green: The device is running normally. . Flashing red: The device is running abnormally.
Standby Button	. Press the button to power on or power off the device. . Hold down the button for 5s or longer to restart the device.
USB 2.0	. Connect to the USB drive only to export the device diagnostic result. . Only the NTFS and FAT32 file systems are supported. Others are not supported.
IPS Hard Touchscreen	A 5.5-inch 1080p screen used to display the device status, set parameters and send control commands.
Knob	. On the home screen, press the knob to enter the main menu screen. . On the main menu screen, rotate the knob to select a menu item or adjust the parameter value. Press the knob to confirm the operation. . Hold down the knob and BACK button simultaneously for 5s or longer to lock or unlock the touch screen and buttons.
BACK	Go back to the previous menu or cancel the current operation.

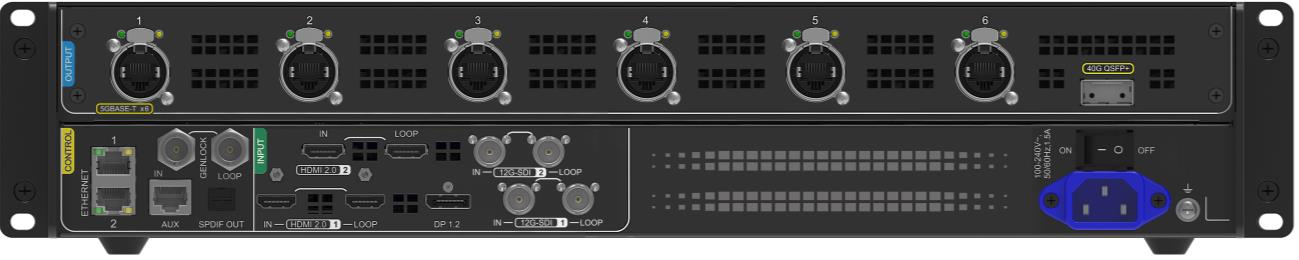

Rear Panel

Inputs
Type	Qty	Description
HDMI 2.0-1 IN	1	Resolutions	Max resolution: 4096×2160@60HzMin resolution: 800×600@60Hz
		Max width/height(Forced)	Max width: 8192 pixels (8192×1080@60Hz)Max height: 8192 pixels (1080×8192@60Hz)
		Frame rates	23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 /71.93 / 72 / 75 / 100 / 119.88 / 120 / 143.86 / 144 / 240 Hz
		HDR	Support HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards.Support HLG.
		EDID management	Support standard resolutions, up to 3840×2160@60Hz. Support custom input resolutions.
		HDCP	HDCP 2.2 compliant, backwards compatible
		Interlaced signal inputs	Not supported
HDMI 2.0-2 IN	1	Resolutions	Max resolution: 4096×2160@60HzMin resolution: 800×600@60Hz
		Max width/height(Forced)	Max width: 8192 pixels (8192×1080@60Hz)Max height: 7680 pixels (1080×7680@60Hz)
		Frame rates	23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 /71.93 / 72 / 75 / 100 / 119.88 / 120 / 143.86 / 144 / 240 Hz
		HDR	Support HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards.Support HLG.
		EDID management	Support standard resolutions, up to 3840×2160@60Hz. Support custom input resolutions.
		HDCP	HDCP 2.2 compliant, backwards compatible
		Interlaced signal inputs	Not supported

DP 1.2	1	Resolutions	Max resolution: 4096×2160@60HzMin resolution: 800×600@60Hz
		Max width/height(Forced)	Max width: 8192 pixels (8192×1080@60Hz)Max height: 8192 pixels (1080×8192@60Hz)
		Frame rates	23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 /71.93 / 72 / 75 / 100 / 119.88 / 120 / 143.86 / 144 / 240 Hz
		HDR	Support HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards.Support HLG.
		EDID management	Support standard resolutions, up to 3840×2160@60Hz. Support custom input resolutions.
		HDCP	HDCP 1.3 compliant
		Interlaced signal inputs	Not supported
12G-SDI IN	2	Standards	Support ST-2082 (12G), ST-2081 (6G), ST-424 (3G) and ST-292 (HD) standard video inputs.Support 3G-Level A/Level B (DS mode).
		Resolutions	Max resolution: 4096×2160@60Hz
		HDR	Support HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards.Support HLG.
		Frame rates	Support frame rates up to 60 Hz.
		Others	Belden 12G SDI standard cables are recommended. Cables up to 50 meters are supported.
Outputs
Type	Qty	Description
Ethernet ports1-6	6	5Gbps Ethernet ports. Max device load capacity: 9 million pixels . The maximum load capacity per port is as follows. For details, see theEthernet Port Load Capacitysection. - 8bit@60Hz: 2,592,000 pixels - 10bit@60Hz: 2,073,000 pixels - 12bit@60Hz: 1,728,000 pixels
Optical port	1	40Gbps optical port
HDMI 2.0 LOOP	2	HDMI loop through. Up to 8 devices can be cabled in one loop.
12G-SDI LOOP	2	SDI loop through. Up to 8 devices can be cabled in one loop.
SPDIF OUT	1	A digital audio output (Reserved)

Controls
Type	Qty	Description
ETHERNET	2	Gigabit Ethernet control ports. Support TCP/IP protocol and star topology.They have the same functions without priority and order, and can be connected to VMP software. No switch or router is needed to deploy multiple devices on the same LAN via device cascading as the network switching function is already built in. Up to 20 CX40 Pro devices can be cascaded.
GENLOCK	1	A pair of Genlock signal connectors. Support Bi-Level and Tri-Level.. IN: Accept the sync signal. . LOOP: Loop the sync signal. For standard Genlock signal generators, up to 20 CX40 Pro devices can be cascaded.
AUX	1	An auxiliary port that connects to the central control device (RS232) (Reserved)
Power
100-240V~,50/60Hz, 1.5A	1	An AC power input connector and switch

Note:

The width of HDMI and DP input sources must be an integer multiple of eight. In addition, the maximum input resolution and maximum width and height must be obtained by setting the graphics card.

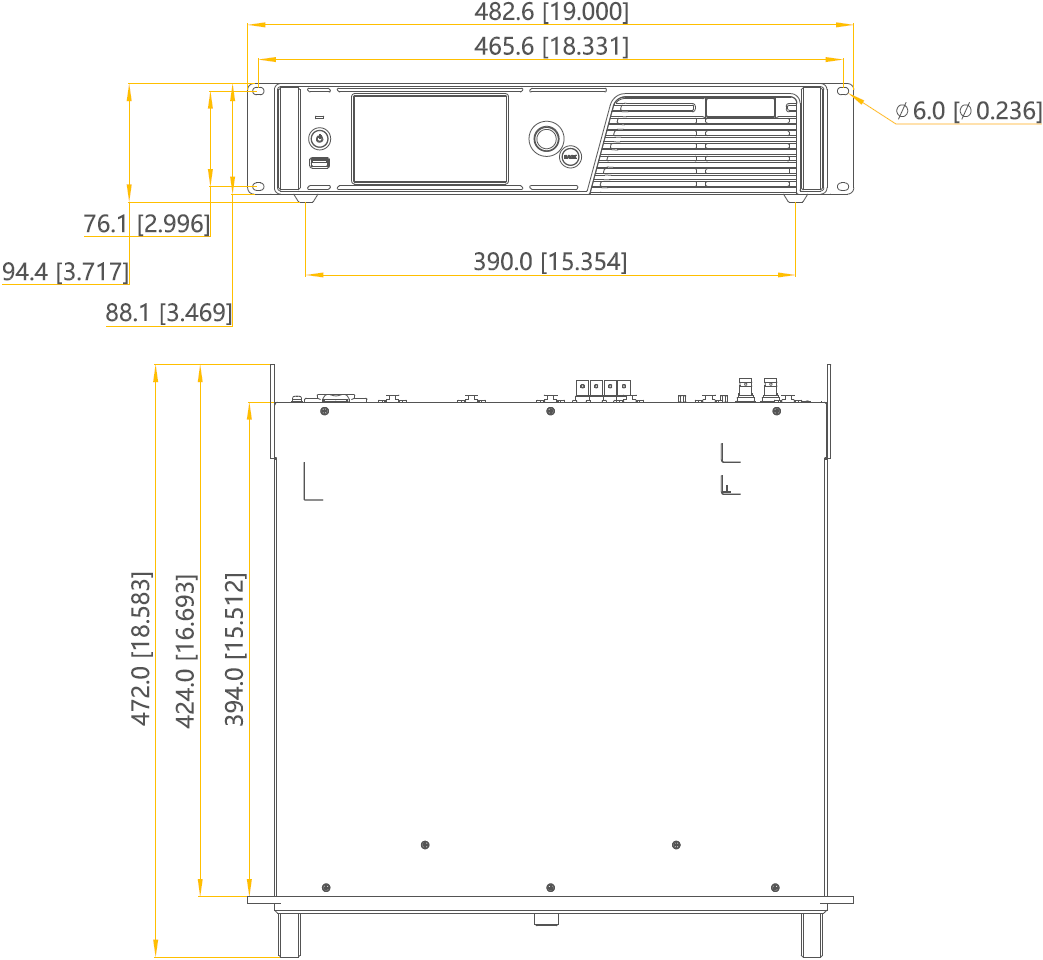

Dimensions

Tolerance: ±0.3[±0.012] Unit: mm[inch]

Specifications

Electrical Specifications	Power supply	AC 100-240V~, 50/60Hz, 1.5A
Electrical Specifications	Power consumption	105 W
Operating Environment	Temperature	- 10ºC to +45ºC
Operating Environment	Humidity	0% RH to 80% RH, non-condensing
Storage Environment	Temperature	-30ºC to +80ºC
Storage Environment	Humidity	0% RH to 95% RH, non-condensing
Physical Specifications	Dimensions	482.6 mm × 94.4 mm × 472.0 mm
Physical Specifications	Net weight	8.1 kg

	Gross weight	11.1 kg Note: It is the total weight of the product, accessories, and packing materials packed according to the packing specifications.
Packing Information	Packing box	660.0 mm × 570.0 mm × 210.0 mm, kraft paper box
	Accessory box	408.0 mm × 290.0 mm × 50.0 mm, white cardboard box
	Accessories	. 1x Power cord . 1x Ethernet cable . 1x HDMI cable . 1x DP cable . 1x Certificate of Approval
IP Rating	IP20 Please prevent the product from water intrusion and do not wet or wash the product.
Noise Level (typical at 25°C/77°F)	45 dB (A)

The amount of power consumption may vary depending on various factors such as product settings, usage, and environment.

Video Source Specifications

Input	Bit Depth	Color Space/Sampling	Max Input Resolution
HDMI 2.0-1	8bit	RGB 4:4:4	4096×2160@60Hz 8192×1080@60Hz
		YCbCr 4:4:4
		YCbCr 4:2:2
	10bit/12bit	RGB 4:4:4	4096×2160@30Hz 4096×1080@60Hz
		YCbCr 4:4:4
		YCbCr 4:2:2	4096×2160@60Hz

Input	Bit Depth	Color Space/Sampling	Max Input Resolution
HDMI 2.0-2	8bit	RGB 4:4:4	4096×2160@60Hz 8192×1080@60Hz
		YCbCr 4:4:4
		YCbCr 4:2:2
	10bit	RGB 4:4:4	4096×2160@30Hz 4096×1080@60Hz
		YCbCr 4:4:4
		YCbCr 4:2:2	4096×2160@60Hz
DP 1.2	8bit	RGB 4:4:4	4096×2160@60Hz 8192×1080@60Hz
		YCbCr 4:4:4
		YCbCr 4:2:2
	10bit/12bit	RGB 4:4:4	4096×2160@30Hz 4096×1080@60Hz
		YCbCr 4:4:4
		YCbCr 4:2:2	4096×2160@60Hz
12G-SDI	10bit	YCbCr 4:2:2	4096×2160@60Hz

Note:

The width of HDMI and DP input sources must be an integer multiple of eight, and the maximum input resolution must be obtained by setting the graphics card.

Ethernet Port Load Capacity

When the CX40 Pro works with the CA50E, CA50C and XA50 receiving cards, the formula of calculating the load capacity per Ethernet port and the detailed parameters are as follows.

. 8bit: Load capacity × 24 × Frame rate < 5G × 0.75

. 10bit: Load capacity × 30 × Frame rate < 5G × 0.75

. 12bit: Load capacity × 36 × Frame rate < 5G × 0.75

Frame Rate / Bit Depth	8bit	10bit	12bit
24 Hz	6,480,000	5,182,500	4,320,000
25 Hz	6,220,800	4,975,200	4,147,200
30 Hz	5,184,000	4,146,000	3,456,000
50 Hz	3,110,400	2,487,600	2,073,600
60 Hz	2,592,000	2,073,000	1,728,000
120 Hz	1,296,000	1,036,500	864,000
144 Hz	1,080,864	864,441	720,576
240 Hz	648,000	518,250	432,000
