Novastar CMS130 All-in-One Controller with 1.3 Million Pixels for HD Videos LED Billboard Sign Board

Short Description:

The CMS130 all-in-one controller is a pure hardware device that is easy to operate. It features different types of high-definition input connectors, and integrates professional LED screen control technologies and video processing capabilities, making on-site installations effortless. Designed with an industrial-grade casing, the CMS130 is well suited for complex operational environments and can be widely used in applications such as malls, hotels, exhibition sies and TV studios.




Product Detail

Product Tags

Features

.  Up to five input connectors: 1x DVI, 1x HDMI 1.3, 1x VGA, 1x USB, 1x CVBS

. Adjustable layer position and size, and input cropping supported

.  Press input source buttons to easily switch between the input sources.

.  External independent audio

.  EDID management supported

.  Personalized image scaling: Full screen, pixel to pixel and custom

 . Quick configuration to easily configure the LED screen

.  2x Ethernet output connectors with a loading capacity of up to 1.3 million pixels

.  Easy preset saving and loading Up to 6 user-defined presets

.  LED screen color adjustment, such as brightness and Gamma

. Controlled via central control devices

Appearance Introduction

Front panel

Novastar CMS130
NO. Area Function
1 Power button Power on or power off the device.
2 LCD screen Display the current device status and settings menu.
3 Knob . Rotate the knob to select a menu item or adjust the parameter value.. Press the knob to confirm the setting or operation.
4 ESC button Exit the current menu or cancel an operation.
5 SCALE A shortcut button for the full screen function. Press the button to make the layer of the lowest priority fill the entire screen.
NO. Area Function
6 Input     source buttons Description for input source buttons:. HDMI: HDMI input source button

When you play the media files saved in the USB drive, this button is used to pause or play the files.

. DVI: DVI input source button

When you play the media files saved in the USB drive, this button is used to play the previous file.

. VGA: VGA input source button

When you play the media files saved in the USB drive, this button is used to play the next file.

. USB: Reserved button

. EXT: Reserved button

. CVBS: CVBS input source button

Status LEDs

. On: An input signal is accessed and used.

. Flashing: The input connector is used, but no input signal is accessed.

. Off: The input signal is not used.

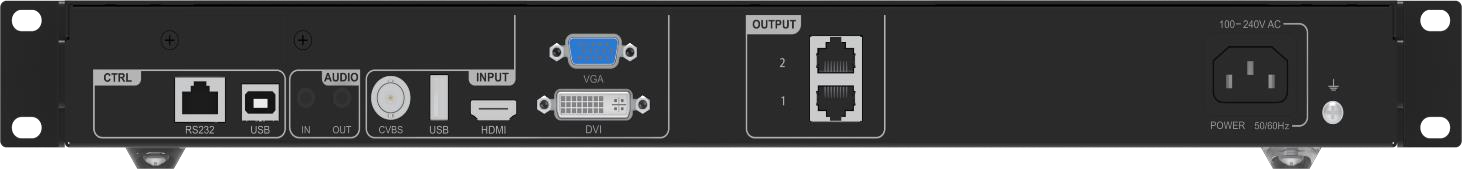

Rear panel

LED video processor CMS130
Input Connectors
Connector Qty Description
DVI-D 1 . VESA standard video inputs with the maximum resolution of 1920× 1080@60Hz, downward compatible. HDCP 1.4 compliant

. Interlaced signal inputs supported

HDMI 1 . HDMI 1.3 standard. Input resolution up to 1920× 1080@60Hz, downward compatible

. HDCP 1.4 compliant

. Interlaced signal inputs supported

VGA 1 Input resolution up to 1920x1080@60Hz, downward compatible
CVBS 1 PAL/NTSC standard video inputs
USB (Type A) 1 1x USB 2.0. Connect to a USB drive.

. 1080p@30fps video files supported

. File  system:  NTFS,  FAT32  and  FAT16  (supported),  exFAT  (FAT64)  (not supported)

. Supported image formats: jpg, jpeg, png and bmp

. Supported video coding: MPEG1/2, MPEG4, Sorenson H.263, H.263, H.264 (AVC1), H.265 (HEVC), RV30/40, Divx and Xvid

. Supported audio coding: MPEG1/2 Layer I, MPEG1/2 Layer II, MPEG1/2 Layer III, AAC-LC, VORBIS, PCM and FLAC

AUDIO 2 Audio input and output
Output Connectors
Connector Qty Description
Ethernet ports 2 2x Ethernet output connectorsConnect to the receiving cards.
Control Connectors
Connector Qty Description
ETHERNET (RS232) 1 Connect to the central control device.
USB (Type B) 1 Connect to the control PC for program updating or debugging.

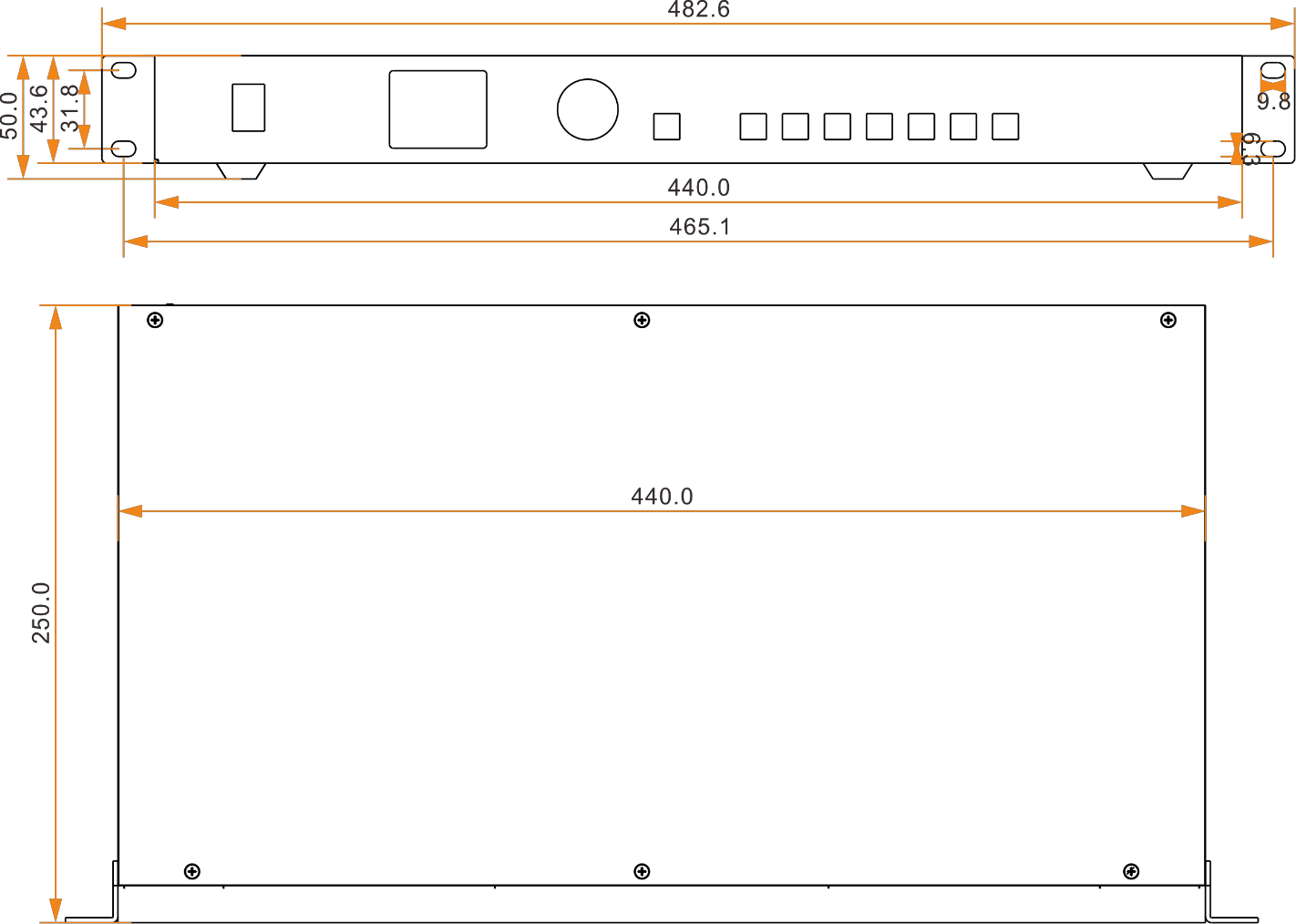

Dimensions

Dimensions

Tolerance: ±0.3 Unit: mm

Applications

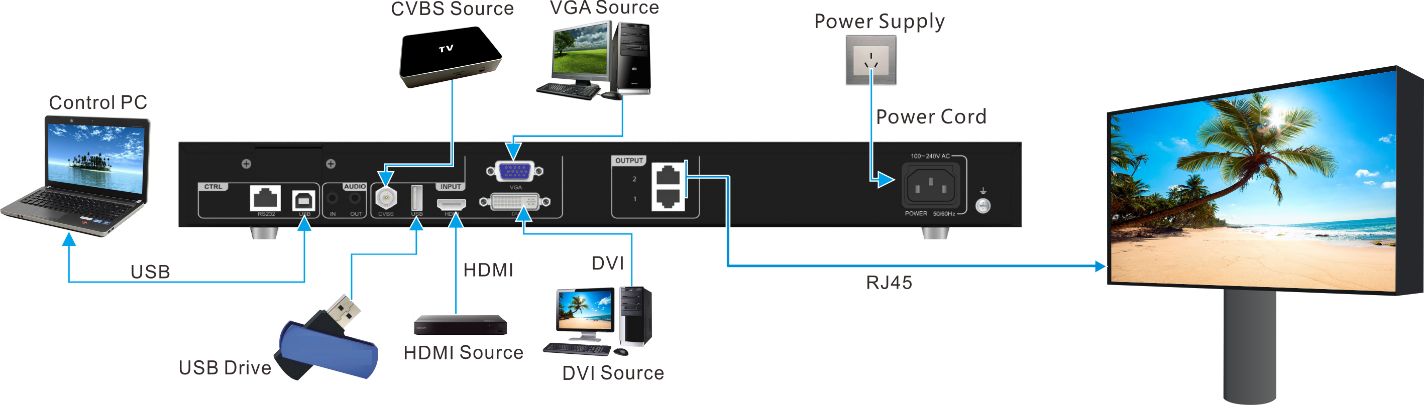

Applications

Specifications

Overall Specifications
ElectricalParameters Power connector 100-240V AC, 50/60Hz
Rated power consumption 12 W
Overall Specifications
OperatingEnvironment Temperature –20°C to +60°C
Humidity 20% RH to 90% RH, non-condensing
Storage humidity 10% RH to 95% RH, non-condensing
PhysicalSpecifications Dimensions 482.6 mm × 250.0 mm × 50.0 mm
Net weight 2.8 kg
Total weight 6 kg
PackingInformation Carrying Case 565mm × 88mm × 328mm
Accessories 1x  Power  cable,  1x  USB  cable,  1x  DVI  cable,  1x  HDMI cable,  1x Certificate of Approval
Large Outer Case 585mm × 353mm × 113mm
Noise Level (typical at 25°C/77°F) 38 dB (A)
