Linsn 4K LED Video Controller Y8 Series 4 layers/6 layers Supports 26million Pixels Most for Ultra Large LED Screen

Short Description:

Y8 is a series of 4K LED controller designed by LINSN. One device supports 26 million pixels most. It supports various input and 40 gigabit outputs to meet requirements for ultra large LED screen.


Product Detail

Product Tags

Y8-406 4layers, 6ports, up to 3.9 million
Y8-410 4layers, 10ports, up to 6.5 million
Y8-412 4layers, 12ports, up to7.8 million
Y8-416 4layers, 16ports, up to10.4 million
Y8-420 4layers, 20ports, up to13 million
Y8-614 6layers, 14ports, up to 9. 1 million
Y8-620 6layers, 20ports, up to13 million
Y8-628 6layers, 28ports, up to18.2 million
Y8-634 6layers, 34ports, up to 22. 1 million
Y8-640 6layers, 40ports, up to 26 million

Functions and features

1.  Various  inputs:  HDMI2.0*2,  DP1.2* 1,  HDMI1.3*4,  VGA* 1,  DVI* 1,  3G-SDI*2(SDI  is optional)

2.  Supports up to 40 gigabit outputs

3.  one device supports up to 26 million pixels

4.  Supports scaling

5.  Multi layers supported and can be positioned randomly

6.  Review output

7.  Scene can be preset

8.  Supports EDID management

9.  Setup via LAN or type-c port

10.  Supports schedule setup

11.  License approval

12.  Output detection

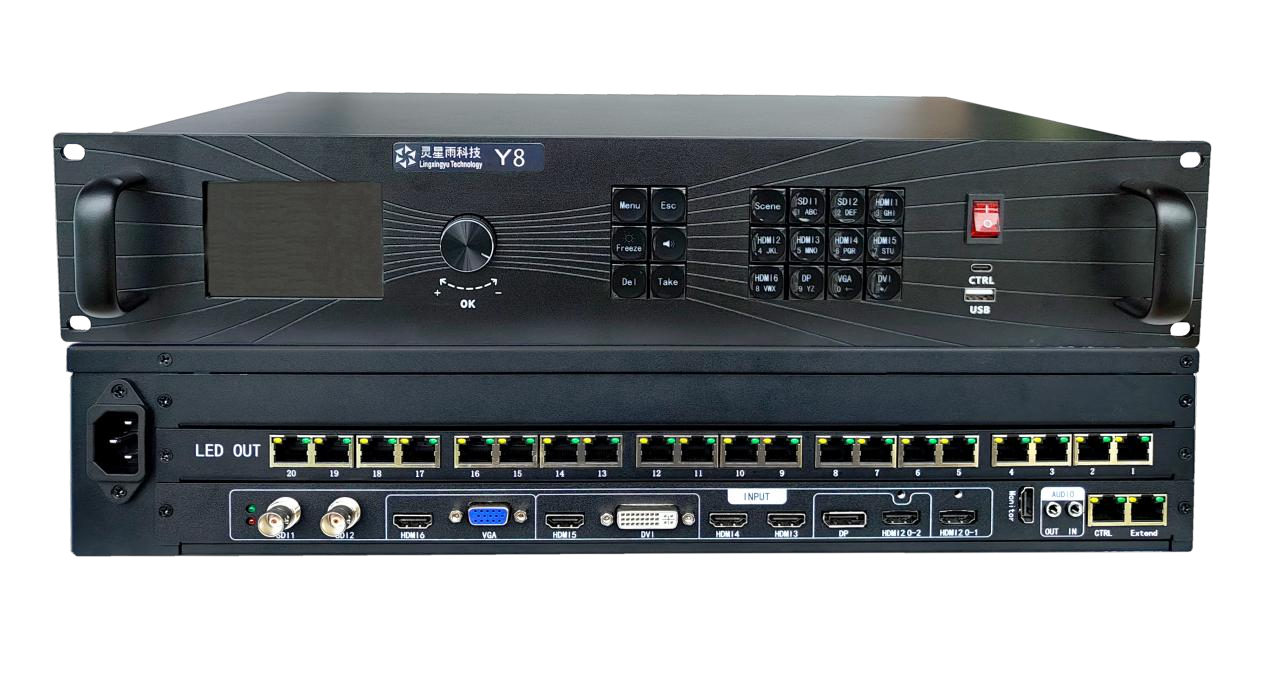

Appearance

4K LED Video Processor

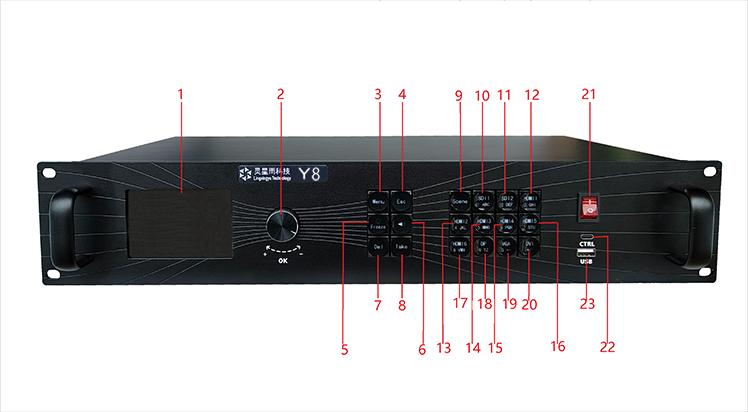

Front

Linsn LED Controller Y8 Series
No Interface Function
1 LCD monitor For displaying menu and current status
2 Control knob Rotate to select and press down to confirm
3 Menu Press down to enter menu
4 Esc Press to exit
5 Brightness/Freeze Press to set brightness or freeze
6 Audio Press to setup audio
7 Del Delete
8 Take Confirmation button for scene
9 Scene Fast entry for scene
10 SDI1/1 ABC SDI1 Input/Number1/letter ABC
11 SDI2/2 DEF SDI2 Input/Number2/letter DEF
12 HDMI1/3 GHI HDMI1 Input/Number3/letter GHI
13 HDMI2/4 JKL HDMI2 Input/Number4/letter JKL
14 HDMI3/5 MNO HDMI3 Input/Number5/letter MNO
15 HDMI4/6 PQR HDMI4 Input/Number6/letter PQR
16 HDMI5/7 STU HDMI5 Input/Number7/letter STU
17 HDMI6/8 VWX HDMI6 Input/Number8/letter VWX
18 DP/9 YZ DPInput/Number9/letterYZ
19 VGA/0/+- VGAInput/Number0/+-
20 DVI/*/ DVIInput/*/
21 Power Switch Turn on/off power
22 CTRL port For setup
23 USB port USB for update

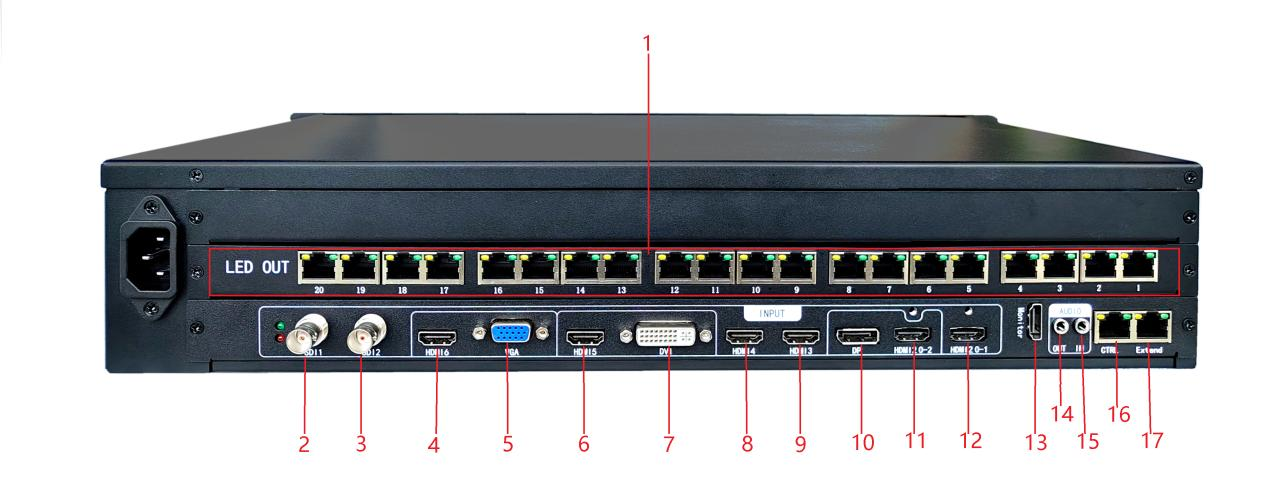

Rear

Linsn Video Processor with 20 Output Ports
No Interface Function
1 LED OUT 20 outputs for connecting receivers, up to 650 thousand pixels each port
2~ 12 Video Input · 2x3G-SDI(optional) 1920x1080@60Hz;· 4xHDMI1.3:up to 1920x1200@60Hz, customize resolution supported

· 1xVGA:up to1920x1080@60Hz, customize resolution supported

· 1xDVI:up to1920x1080@60Hz, customize resolution supported

· 1xDP:up to 4096x2160@60Hz or 7680x1080@60Hz, customize resolution supported

·2xHDMI2.0:up to 4096x2160@60Hz or 7680x1080@60Hz, customized supported

13 Monitor Preview output
14 AUDIO_IN Audio input(reserved)
15 AUDIO_OUT Audio output(reserved)
16 CTRL Network port for setup
17 Extend Reserved

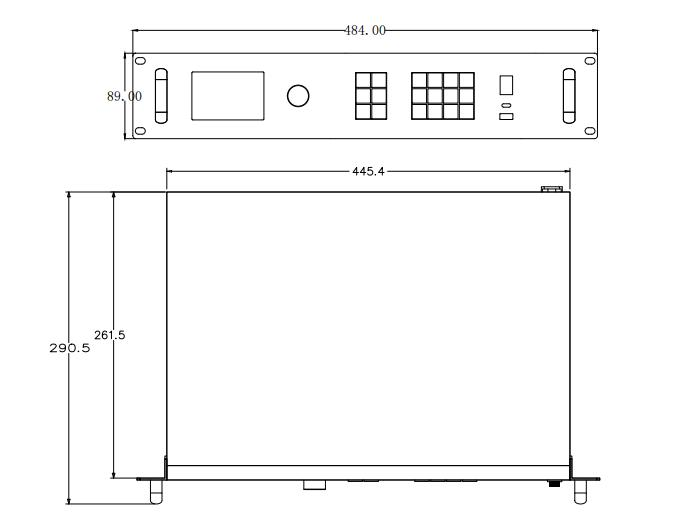

Dimensions

Dimension

Specification

Power Input AC 100-240V ,50/60Hz
Powerconsumption 20W
Working Environment Temp -20℃ ~ 70℃
Hum 0%RH ~95%RH
Dimensions Weight 4.6kg
Dimensions 484mm×290.5mm×89mm
