Indoor P1.953 P2.604 P2.976 P3.91 Rental LED Display Cabinet High Refresh Rate LED Cabinet for Indoor Rental Conference Room Music Stage
Product customization process
As a professional LED display manufacturer, we have many years of manufacturing and sales experience, with a professional pre-sales and after-sales team. You only need to tell us your needs, and we will provide you with professional customized solutions according to your actual situation. You don't need to worry, so if you have any needs, please contact us immediately!

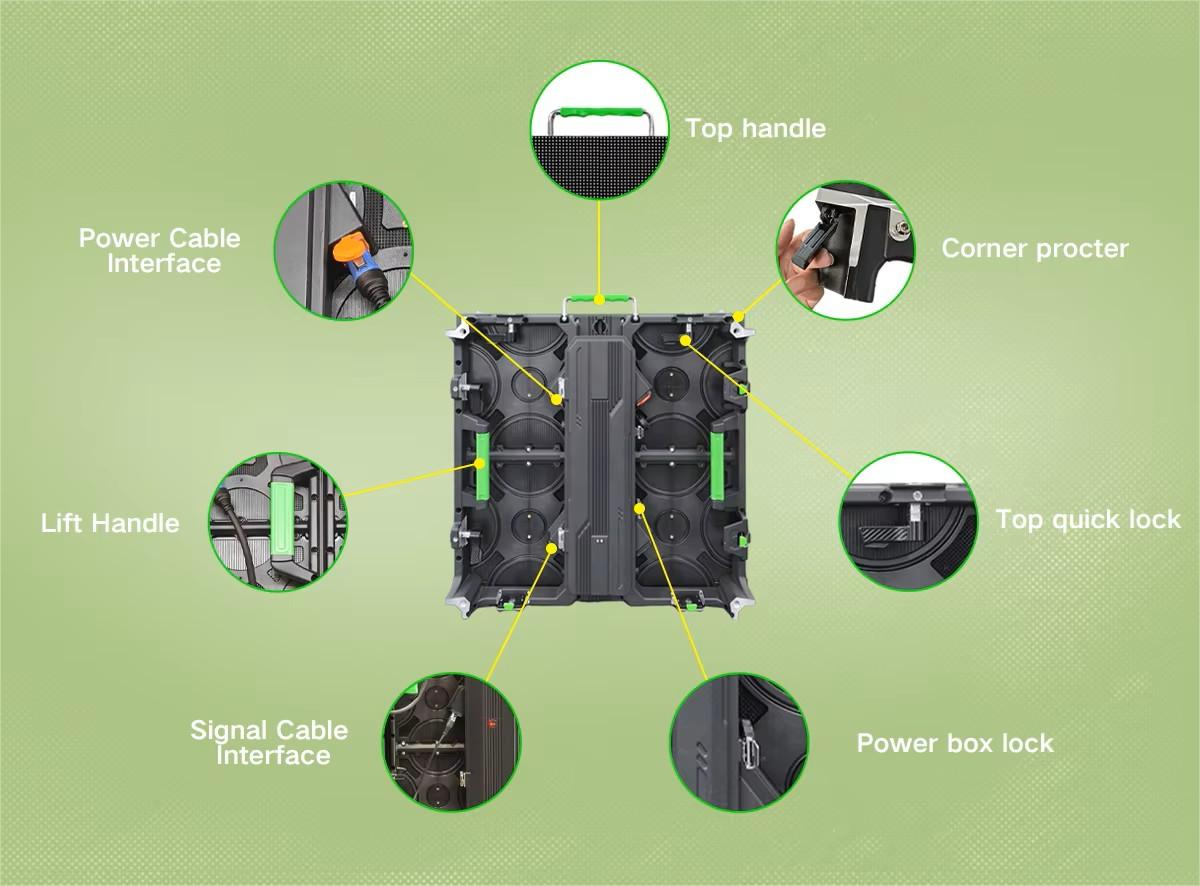

The Choose of Rental LED Cabinets
500*500MM Cabinet
Unmatched Configurational Freedom: Its perfect 1:1 aspect ratio makes it the ideal unit for creating not just standard video walls, but also creative shapes like curves, columns, arches, and even immersive 3D structures. It offers the ultimate creative freedom for stage designers.
500*1000MM Cabinet
Rapid Deployment for Large Walls: This larger format covers more area with a single cabinet. This means fewer total cabinets to install, significantly reducing the number of connections and overall build time for big projects. You can build a massive wall faster and with less labor.
Rental LED Display Module

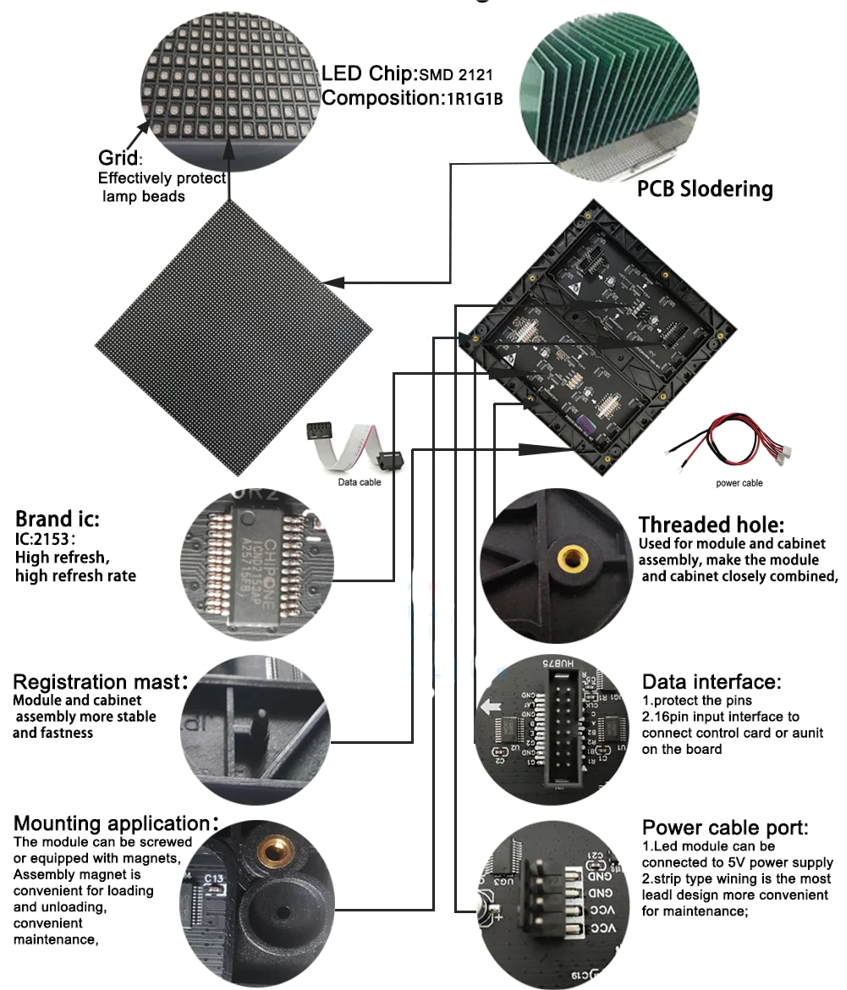

P3.91 Module Diagram
|
Indoor LED Rental Module |
|||||
|
Item |
P1.953 |
P2.604 |
P2.976 |
P3.91 |
P4.81 |
|
Pixel Pitch |
1.953mm |
2.604mm |
2.976mm |
3.91mm |
4.81mm |
|
Pixel Configuration |
SMD1515 |
SMD1515 |
SMD2121 |
SMD2121 |
SMD2121 |
|
Density/㎡ |
262177 |
147456 |
112896 |
65536 |
43264 |
|
Module Resolution |
128Pixel（L）*128Pixel（H） |
96Pixel（L）*96Pixel（H） |
84Pixel（L）*84Pixel（H） |
64Pixel（L）*64Pixel（H） |
52Pixel（L）*52Pixel（H） |
|
Driving Mode |
1/32 S |
1/24 S |
1/28 S |
1/16 S |
1/13 S |
|
Brightness |
≥4,000 cd/㎡ |
≥4,000 cd/㎡ |
≥4,000 cd/㎡ |
≥4,200 cd/㎡ |
≥4,200 cd/㎡ |
|
Best Viewing Distance |
≥2m |
≥3m |
≥3m |
≥4m |
≥5m |
|
Gray Level |
16 bits |
||||
|
Module Size |
250mm*250mm |
||||
|
Cabinet Size |
500*500MM, 500*1000MM |
||||
|
Life Span |
＞100000h |
||||
|
Input Voltage |
AC 200V-240V 50Hz-60Hz |
||||
|
Operation Environment |
Temperature：-10℃-60℃ Humidity：10%-90%RH |
||||
Features
1、Ultra-Lightweight Design: Constructed from advanced magnesium alloy or lightweight aluminum, our cabinets are easy to handle, transport, and install, significantly reducing labor costs and freight expenses.
2、Exceptional Durability: Built to withstand the constant rigors of transportation, setup, and teardown. The robust frame and protective corners resist damage from bumps and impacts.
3、Quick-Lock Assembly System: Our patented quick-lock mechanism allows for rapid, tool-free connection of cabinets. A single crew can build a massive video wall in minutes, not hours.
4、Seamless Splicing: Precision manufacturing ensures cabinets lock together perfectly to create a near-invisible video wall with no distracting lines or gaps, preserving the integrity of your content.

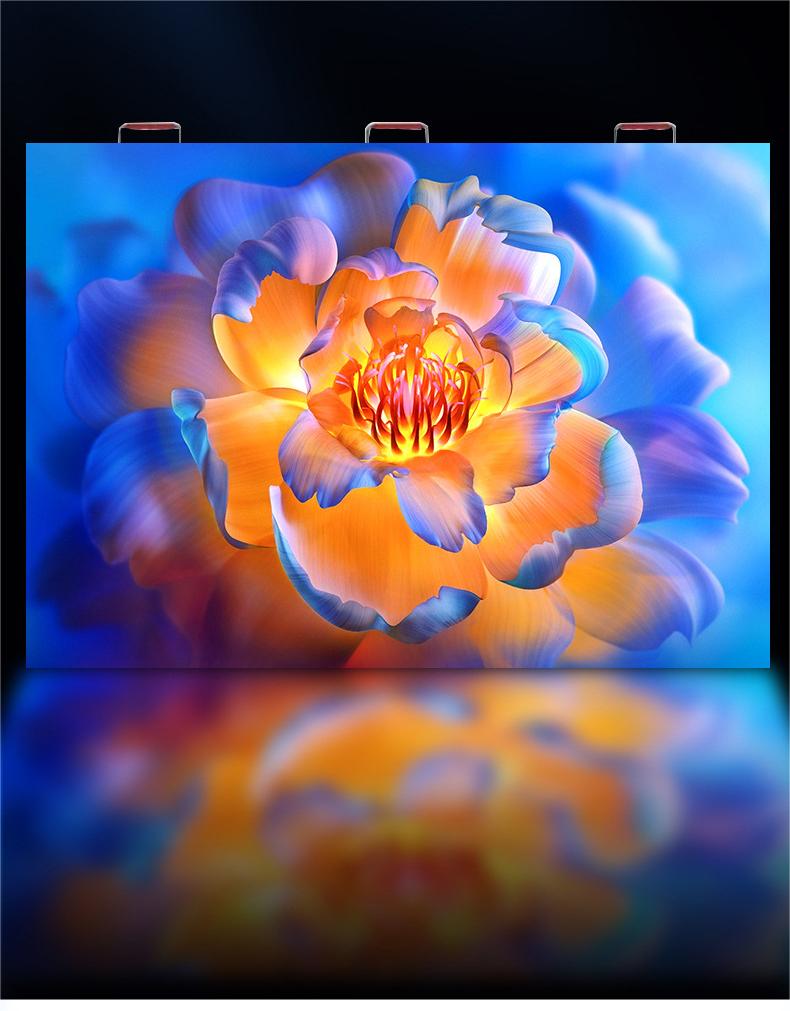

5、Vibrant Color & High Uniformity: Featuring high-quality LEDs with advanced color calibration technology, delivers rich, accurate colors and exceptional brightness uniformity across the entire screen.
6、Wide Viewing Angle: With a viewing angle of up to 160°, everyone in the audience, even those at the far sides, enjoys a perfect, consistent view with no color shift.
7、High Refresh Rate & Gray Scale: Experience buttery-smooth video playback with no flickering under camera shot. A high refresh rate (≥3840Hz) ensures flawless performance for live broadcasts and high-speed content.
Application Scenarios

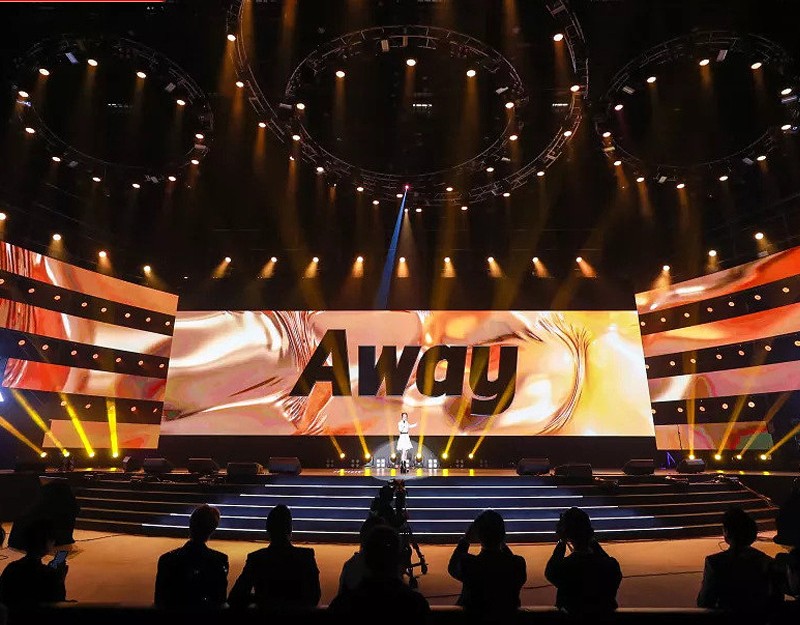

1、Concerts & Music Festivals: Create immersive visual backdrops and enhance the performer's energy with vibrant, large-scale video.

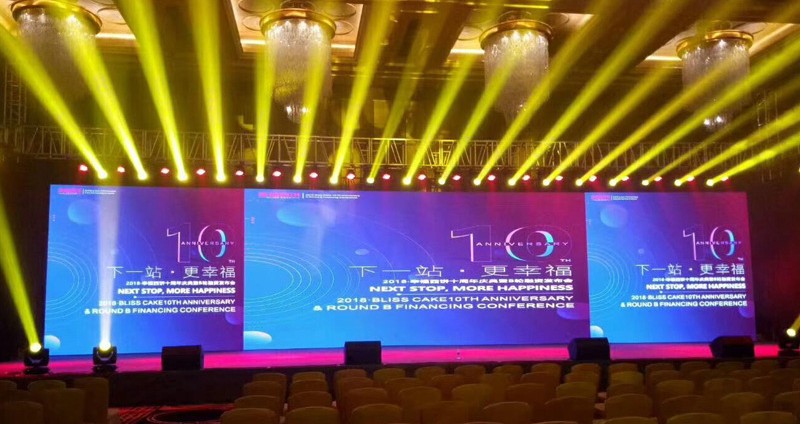

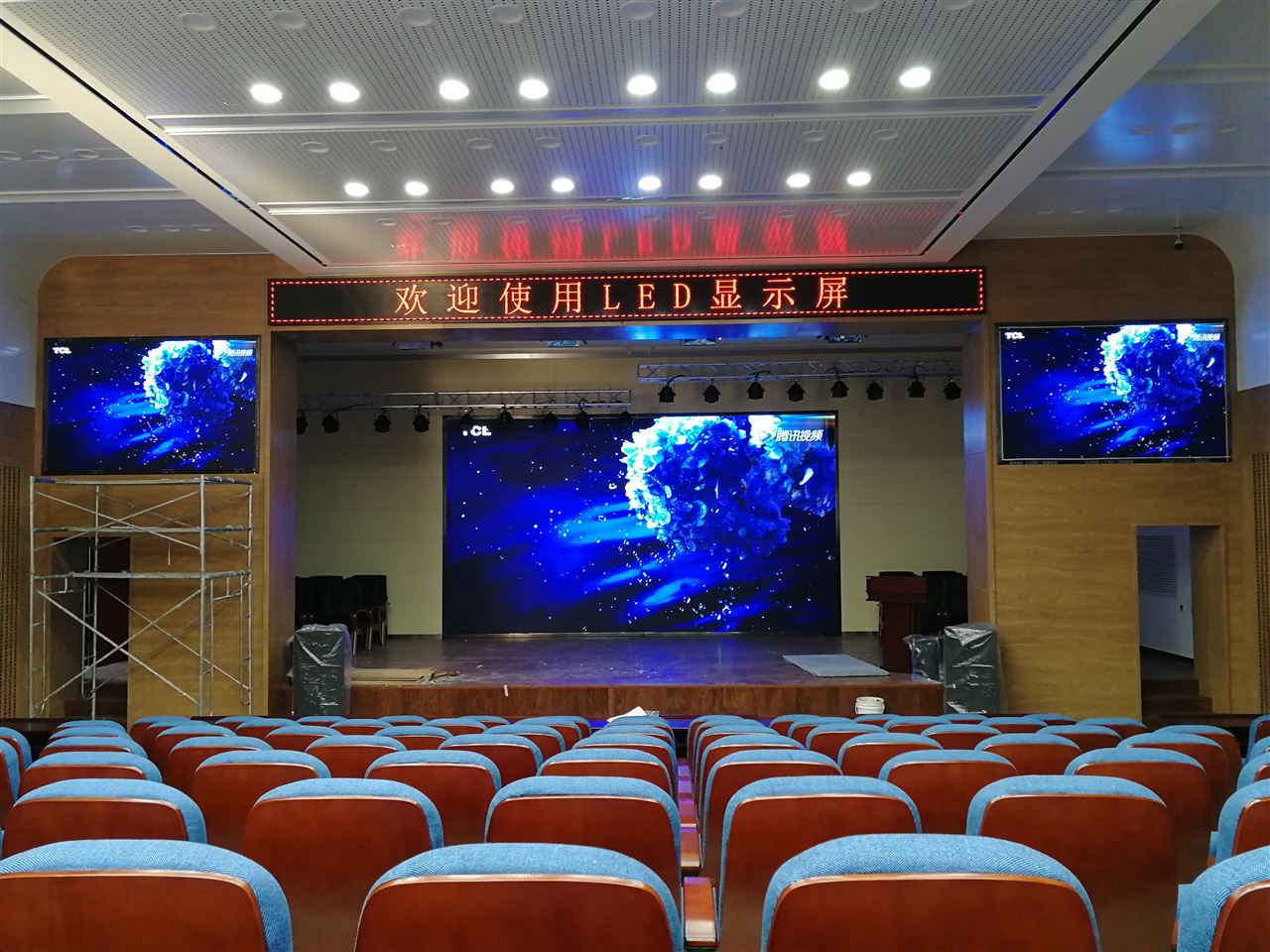

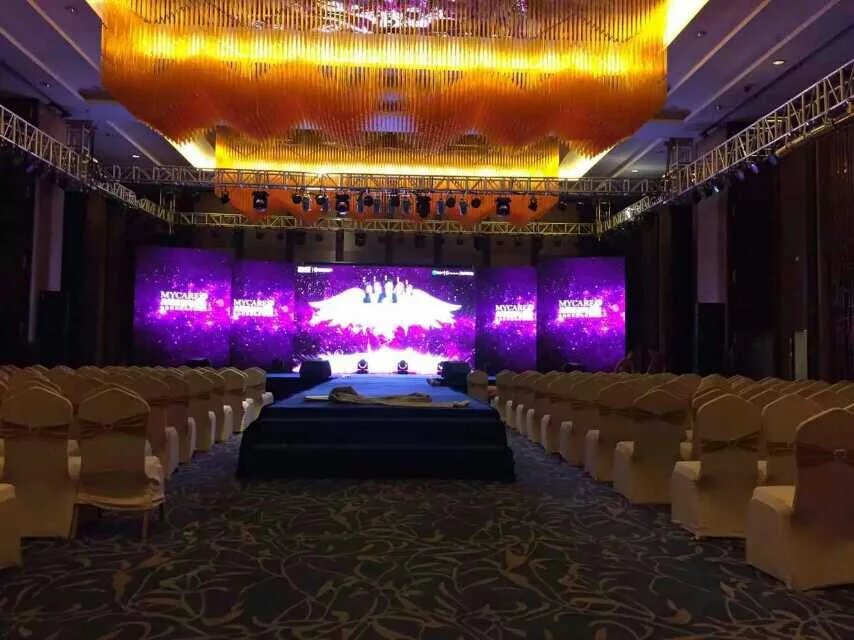

2、Corporate Events & Galas: Display keynote presentations, live feeds, branding, and graphics with crystal-clear clarity for annual meetings and product launches.
3、Exhibitions & Trade Shows: Attract visitors to your booth with dynamic, high-resolution content that stands out from the crowd.
4、Broadcasting & TV Studios: Serve as a reliable, high-quality virtual set or background for live television shows and broadcasts.
5、Conventions & Worship Spaces: Engage large audiences with live video, lyrics, and messages that are visible from every seat.

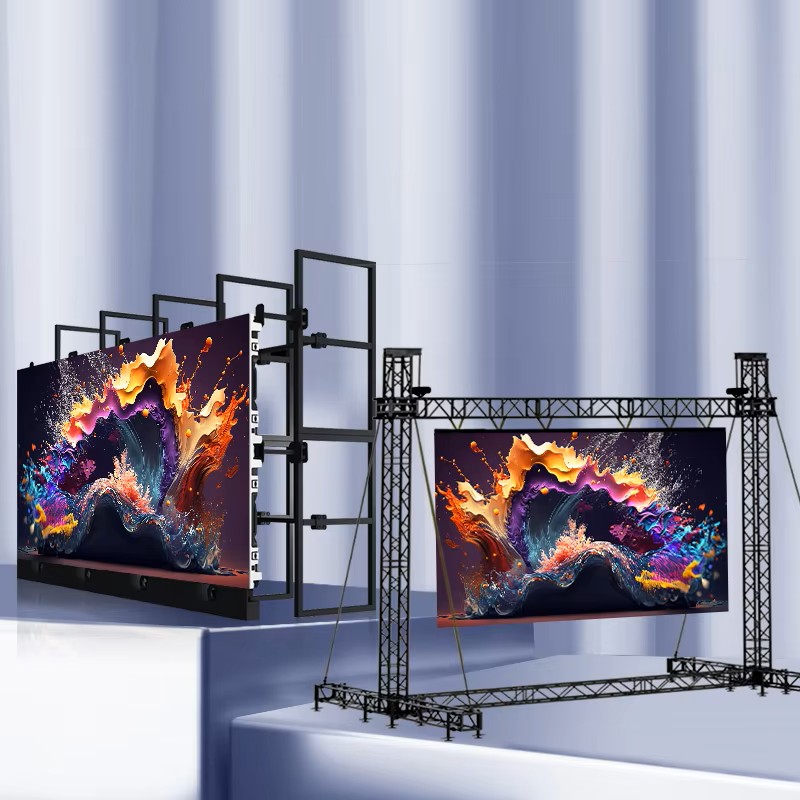

Installation（Stacking/Hanging）

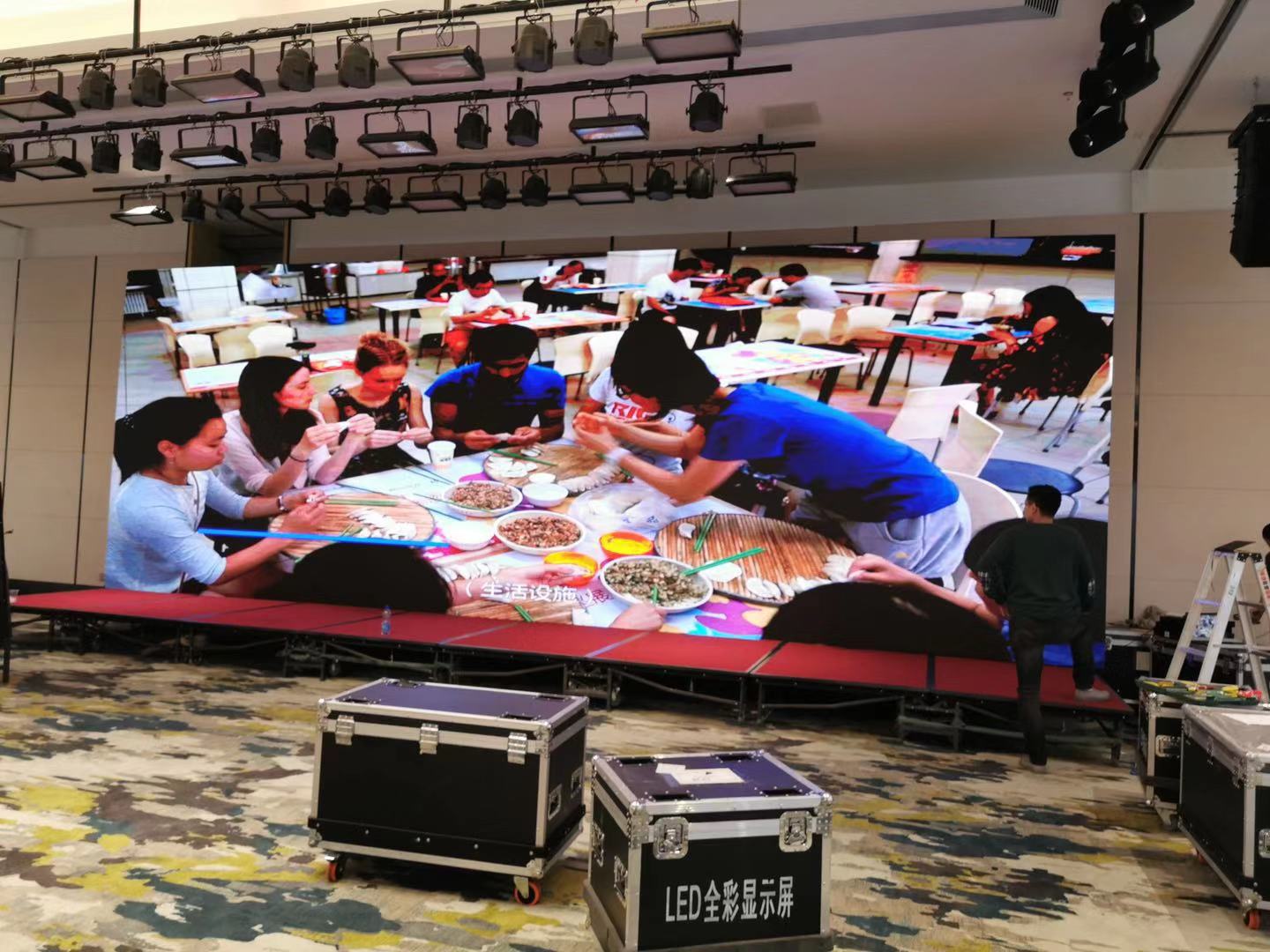

1. Stacking Installation (Ground-Supported)
The go-to method for stability and speed.
Stacking, or ground-stacking, is the most straightforward method for creating a freestanding video wall. Cabinets are simply stacked row-by-row on the ground or a secure base, building upwards and outwards to form the complete display.
Advantages：
1、Rapid Deployment: The quickest way to build a wall. No overhead rigging required.
2、Ease of Use: Requires minimal technical expertise for basic setups.
3、No Venue Limitations: Ideal for venues where hanging points are unavailable, unreliable, or too high.
4、Safety: When combined with a safety truss, the structure is incredibly robust and secure.

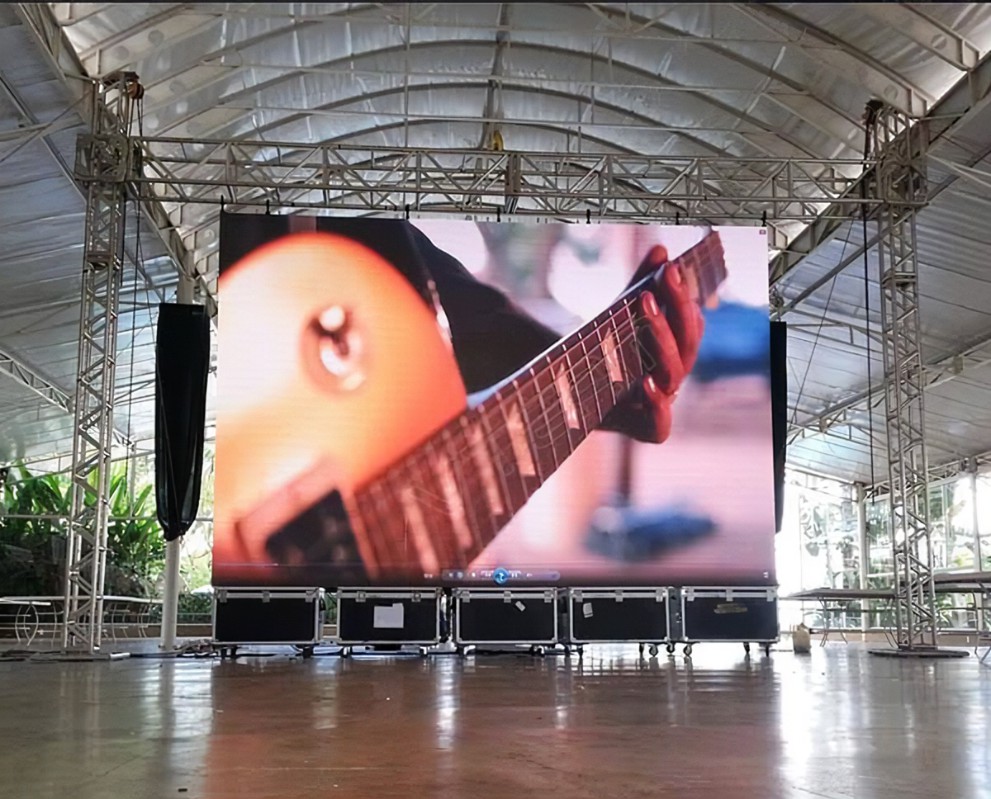

2. Hanging Installation (Flyable Systems)
The professional solution for elevated and large-scale installations.
Hanging, or "flying," the display involves suspending the video wall from an overhead structure, such as a venue's ceiling rigging points or a ground-supported truss.
Advantages:
1、Space-Saving: Frees up valuable floor space underneath the display for audiences, equipment, or other set pieces.
2、Creative Stage Design: Allows for dynamic placements, such as floating screens, angled walls, or integration with complex truss structures.
3、Ideal for Large Venues: The only practical method for installing very large screens high above a stage or audience.
4、Professional Aesthetics: Provides a clean, professional look for large-scale productions.
Display screen connection topology diagram
As a professional LED display manufacturer, if you have any questions related to LED displays, you can contact us and we will provide you with the most professional answers.
Production Process
We have professional LED display production equipment and assembly personnel. You only need to provide your needs, and we will provide you with comprehensive professional services from scratch. From developing production plans to the production and assembly of displays, we will ensure quality and quantity. You can rest assured to cooperate with us.
LED Display Aging and Testing
Aging and testing of LED display modules involves simulating long-term operation to ensure reliability and stability. This process is critical to identifying and resolving potential issues, ultimately improving the efficiency and stability of the LED display.
Conducting burn-in testing is a critical step in quality control to ensure the overall performance and service life of the LED display.
The process of LED display aging test includes the following steps:
1. Verify that all LED display modules are installed correctly.
2. Check for any potential short circuits.
3. Make sure the modules are flat and arranged neatly.
4. Inspect the overall appearance for any damage or defects.
5. Use the online LED control system to light up the display.
This process is essential to evaluate the functionality and quality of the LED display and ensure its reliable and efficient operation.
Package
Flight case
Wooden Case
