Indoor Outdoor Rental Customizable LED Full Color Display for In Key Application Scenarios
Product customization process
As a professional LED display manufacturer, we have many years of manufacturing and sales experience, with a professional pre-sales and after-sales team. You only need to tell us your needs, and we will provide you with professional customized solutions according to your actual situation. You don't need to worry, so if you have any needs, please contact us immediately!
Indoor LED Displays
Best for: Shopping malls, conference rooms, control rooms, TV studios.
✔ Ultra-High Resolution
Pixel pitch range: P1.25 to P4 for razor-sharp imagery
Pixel density up to 250,000 pixels/m² (P1.25)
✔ Optimized Brightness & Comfort
800-1,500 nits balanced for ambient indoor lighting
Anti-glare surface treatment reduces eye strain
✔ Slim & Space-Saving
Cabinet depth as thin as 50mm for wall/flush mounting
Lightweight aluminum alloy frames (≤15kg/m²)
✔ Advanced Color Performance
16-bit processing for 1.07 billion colors
Delta E<3 color accuracy (broadcast-grade)
✔ Seamless Integration
Front-access maintenance design
Silent operation (<30dB) for quiet environments
|
Indoor LED Module Parameters |
||||||
|
Module |
P1.25 |
P1.86 |
P2 |
P2.5 |
P3 |
P4 |
|
Pixel Pitch(mm) |
1.25 |
1.86 |
2 |
2.5 |
3 |
4 |
|
Module Size(mm) |
320*160 |
320*160 |
320*160 |
320*160 |
192*192 |
256*128 |
|
Module Resolution(dots) |
267*133 |
172*86 |
160*80 |
128*64 |
64*64 |
64*32 |
|
Pixel Density(dots/㎡) |
694441 |
289050 |
250000 |
160000 |
111111 |
62500 |
|
Lamp Model |
SMD1010 |
SMD1515 |
SMD1515 |
SMD2121 |
SMD2121 |
SMD3535 |
|
Brightness |
≥500nit |
|||||
|
Driving Mode |
1/64 |
1/43 |
1/40 |
1/32 |
1/32 |
1/32 |
|
Best Viewing Distance |
≥1.25m |
≥1.86m |
≥2m |
≥2.5m |
≥3m |
≥4m |
|
Refresh Frequency |
3840Hz/1920Hz |
|||||
|
Working Temperature |
-10℃~60℃ |
|||||
|
Best Viewing Angle |
H：160° V：160° |
|||||
|
Life Span |
100000h |
|||||
|
Working Humidity |
10%~70% |
|||||
|
IP Level（Front/Rear） |
IP45 |
|||||
Outdoor LED Displays
Best for: Billboards, stadiums, traffic signs, building facades.
✔ Sunlight-Readable Visibility
5,000-10,000 nits peak brightness
Anti-reflective coating maintains clarity at 170° viewing angles
✔ Military-Grade Durability
IP65/IP67 certified against dust/monsoon rains
-30°C to +60°C operating range with automatic thermal management
✔ High Impact Resistance
3mm tempered glass front protection
Wind load resistance up to 60 m/s (hurricane-proof)
✔ Long-Distance Viewing
Pixel pitch P4 to P20 optimized for 10m-100m viewing distances
20:1 contrast ratio even under direct sunlight
✔ Energy Efficient
Smart brightness adjustment (30%-100% auto-dimming)
Power consumption as low as 180W/m²
|
Outdoor LED Module Parameters |
|||||
|
Module |
P4 |
P5 |
P6 |
P8 |
P10 |
|
Pixel Pitch(mm) |
4 |
5 |
6 |
8 |
10 |
|
Module Size(mm) |
320*160 |
320*160 |
192*192 |
320*160 |
320*160 |
|
Module Resolution(dots) |
80*40 |
64*32 |
32*32 |
40*20 |
32*16 |
|
Pixel Density(dots/㎡) |
62500 |
40000 |
27777 |
15625 |
10000 |
|
Lamp Model |
SMD1921 |
SMD1921 |
SMD3535 |
SMD3535 |
SMD3535 |
|
Brightness |
≥6500nit |
||||
|
Driving Mode |
1/10 |
1/8 |
1/8 |
1/5 |
1/2 or 1/4 |
|
Best Viewing Distance |
≥4m |
≥5m |
≥6m |
≥8m |
≥10m |
|
Refresh Frequency |
3840Hz/1920Hz |
||||
|
Working Temperature |
-10℃~60℃ |
||||
|
Best Viewing Angle |
H：160° V：160° |
||||
|
Life Span |
100000h |
||||
|
Working Humidity |
10%~70% |
||||
|
IP Level（Front/Rear） |
IP65 |
||||
Rental LED Displays
Best for: Concerts, exhibitions, live events, temporary installations.
✔ Rapid Deployment System
Tool-less quick-lock cabinet design (<5mins setup per panel)
Ultra-light carbon fiber options (≤12kg/m²)
✔ Tour-Grade Reliability
3,840Hz+ refresh rate eliminates camera scan lines
Shock-absorbing corners and flight case compatibility
✔ Modular Flexibility
Mixable panel sizes (500x500mm to 1000x1000mm)
Curvable configurations (0-15° adjustable angle per module)
✔ Performance Consistency
Brightness uniformity >95% across all panels
Automatic color calibration via built-in sensors
✔ Service-Oriented Features
Hot-swappable power/receiver modules
RFID tagged components for inventory tracking
|
Rental LED Module Parameters |
||||
|
Panel Model |
P2.604 |
P2.976 |
P3.91 |
P4.81 |
|
Pixel Density（Dots/m2） |
147456 |
112896 |
65535 |
43264 |
|
Module Size |
250*250MM |
250*250MM |
250*250MM |
250*250MM |
|
Module Resolution W×H |
96*96 |
84*84 |
64*64 |
52*52 |
|
Scanning Mode |
1/24S |
1/28S |
1/16S |
1/13S |
|
Driving Method |
Constant Current |
|||
|
Frame Frequency |
60Hz |
|||
|
Refresh Frequency |
3840Hz/1920Hz |
|||
|
Display Working Voltage |
220V/110V±10%（Customizable） |
|||
|
Life |
＞100000h |
|||
|
Operation Environment |
Temperature：-10℃-60℃ Humidity：10%-90%RH |
|||
Resolution Of Various Models
The number after P represents the distance between points, and the smaller the number, the clearer it is.
Key Technical Parameters When Choosing LED Display
| Parameter | Why It Matters | Recommended Value |
| Pixel Pitch (P) | Smaller = sharper image | P1.25-P4 (indoor), P3-P10 (outdoor) |
| Brightness (nits) | Visibility under light | 800-1,500 (indoor), 5,000+ (outdoor) |
| Refresh Rate (Hz) | Reduces flickering | ≥1,920Hz (standard), ≥3,840Hz (high refresh) |
| Viewing Angle (°) | Wider = better visibility | 140°-160° horizontal/vertical |
| IP Rating | Dust/water resistance | IP65 (outdoor), IP45 (indoor) |
Engineering Case
In the field of LED display screens, we have a wealth of experience. Here are some cases we have worked on before.

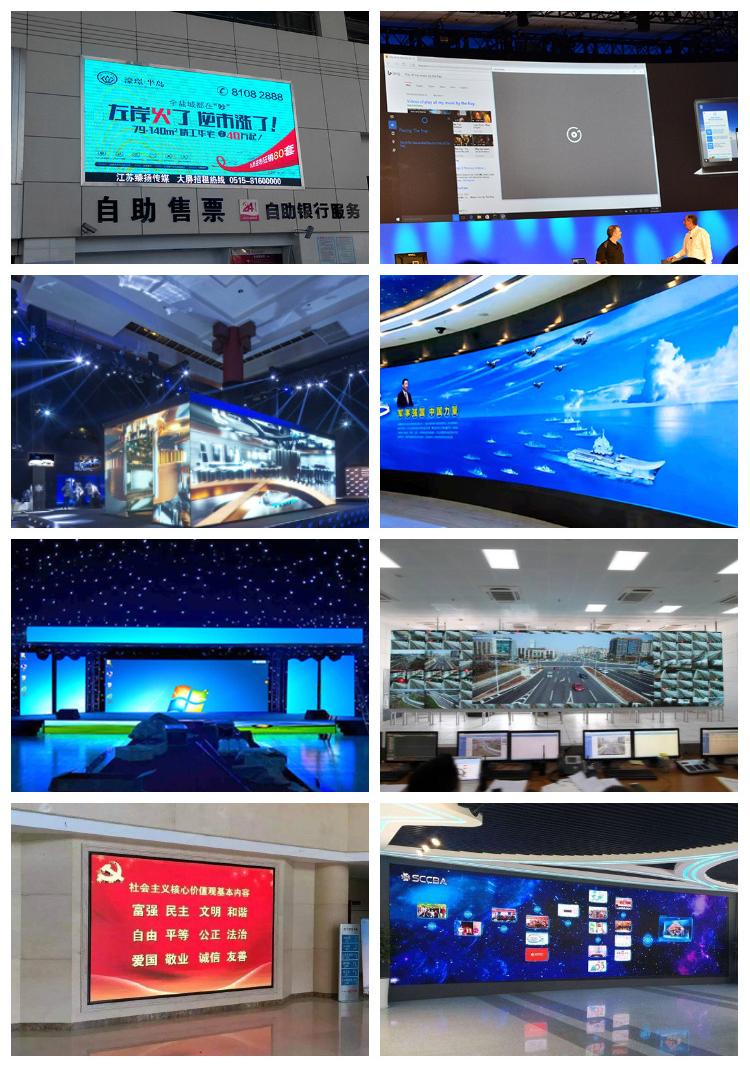

Indoor Engineer Case

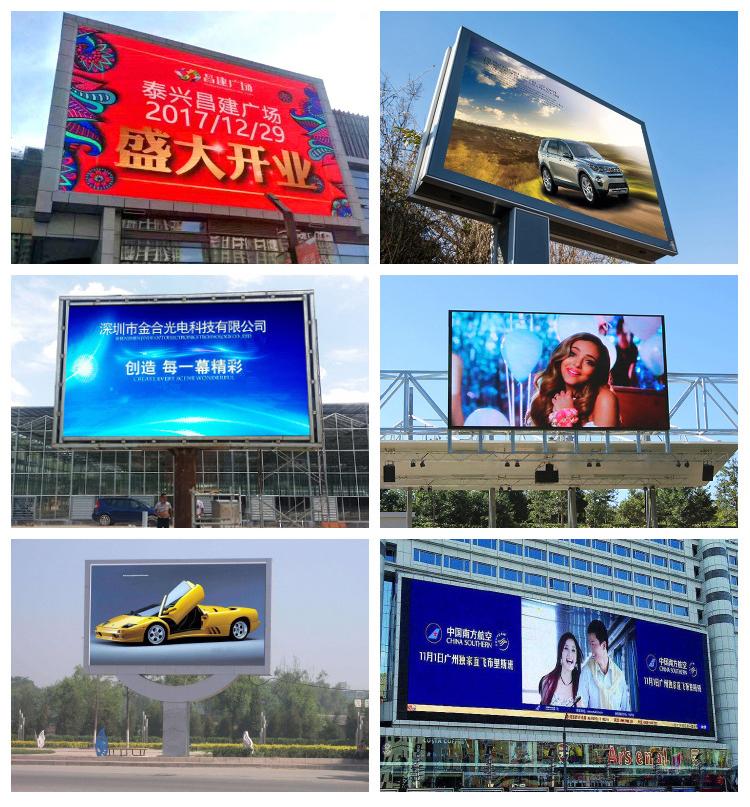

Outdoor Engineer Case

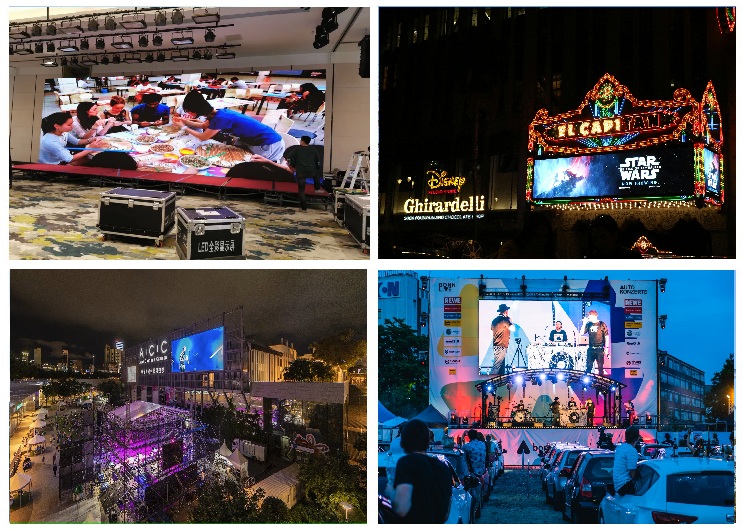

Rental Engineer Case
Features
Our display screen has high contrast and grayscale levels, with clear and natural images and rich colors;
Simultaneously supporting point by point correction function to ensure consistency in color and brightness during use;
It can intelligently adjust brightness, save energy and protect the environment, and protect the eyes;
High refresh rate, non flickering switching, ensuring smooth and stable screen display, and good effect;
High definition wide viewing angle, capable of viewing from multiple angles, non reflective, and not glaring.
Display screen connection topology diagram
As a professional LED display manufacturer, if you have any questions related to LED displays, you can contact us and we will provide you with the most professional answers.

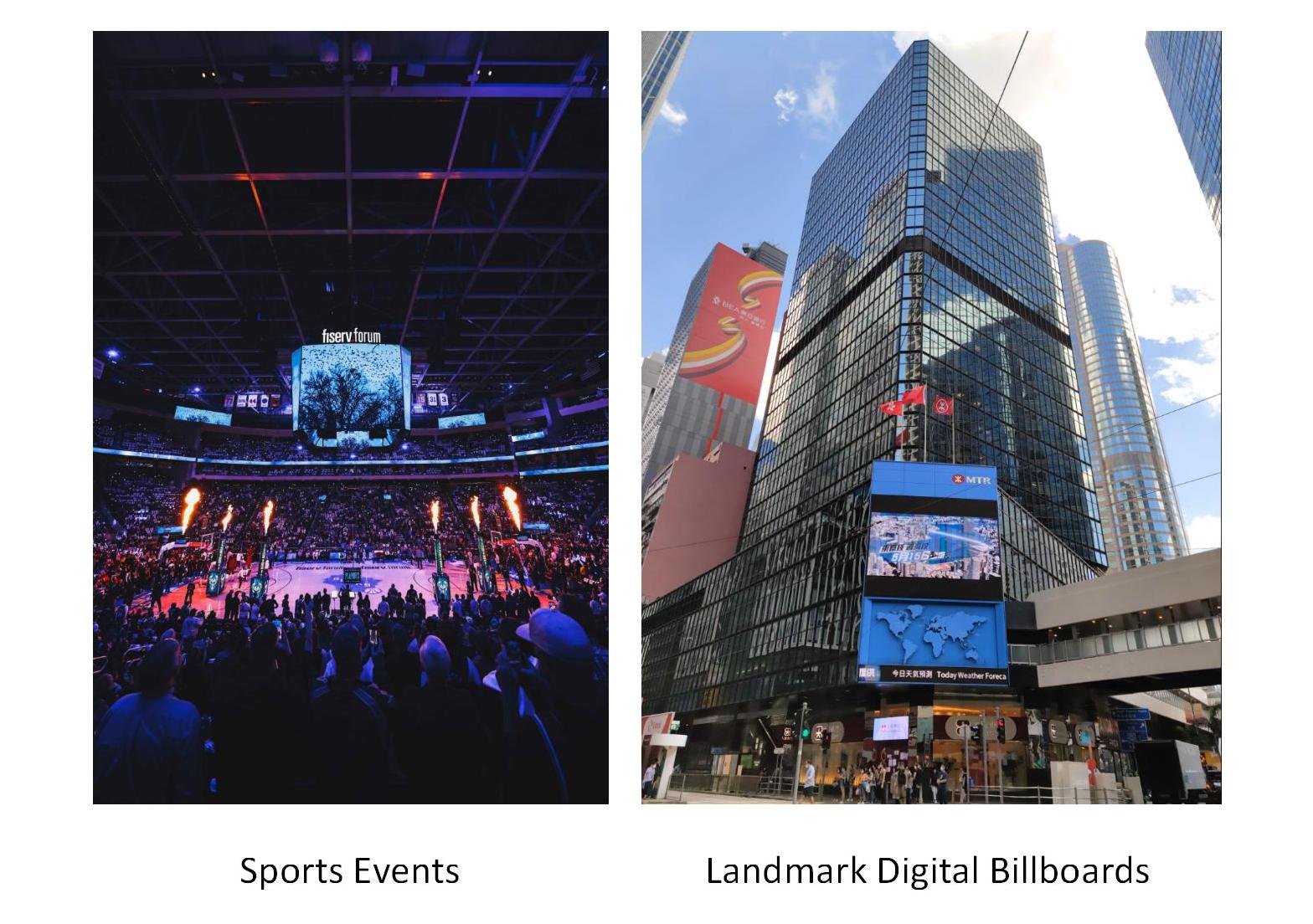

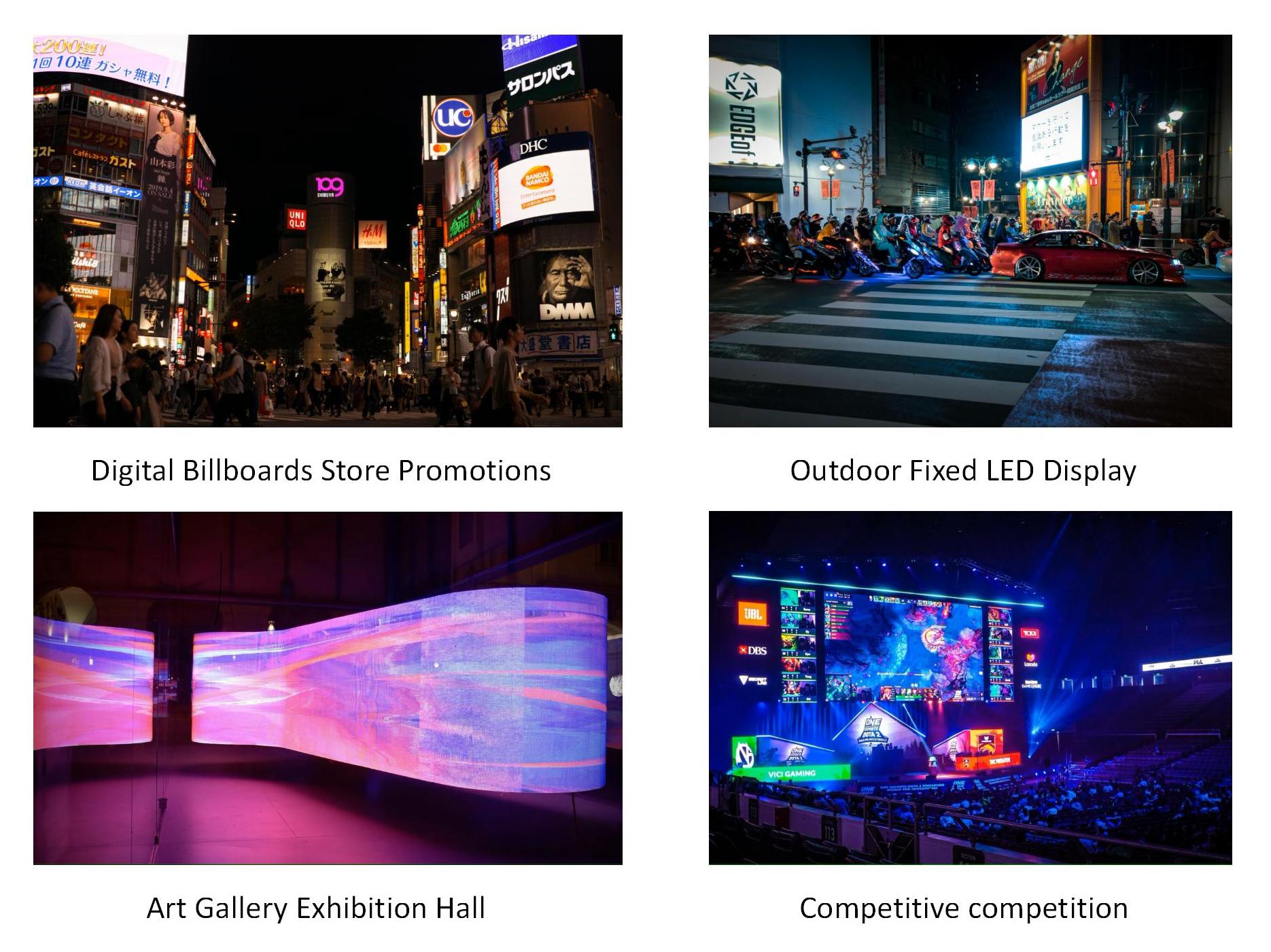

Top Industries Using LED Displays
✅ Advertising & Retail – Digital billboards, store promotions.
✅ Sports & Events – Stadium screens, concert backdrops.
✅ Corporate & Education – Conference rooms, lecture halls.
✅ Transportation – Airport/Train station info boards.
Production Process
We have professional LED display production equipment and assembly personnel. You only need to provide your needs, and we will provide you with comprehensive professional services from scratch. From developing production plans to the production and assembly of displays, we will ensure quality and quantity. You can rest assured to cooperate with us.
LED Display Aging and Testing
Aging and testing of LED display modules involves simulating long-term operation to ensure reliability and stability. This process is critical to identifying and resolving potential issues, ultimately improving the efficiency and stability of the LED display.
Conducting burn-in testing is a critical step in quality control to ensure the overall performance and service life of the LED display.
The process of LED display aging test includes the following steps:
1. Verify that all LED display modules are installed correctly.
2. Check for any potential short circuits.
3. Make sure the modules are flat and arranged neatly.
4. Inspect the overall appearance for any damage or defects.
5. Use the online LED control system to light up the display.
This process is essential to evaluate the functionality and quality of the LED display and ensure its reliable and efficient operation.
Package
Flight case
Wooden Case
