Indoor Outdoor Engineered Fixed Installation LED Displays for Conference Control Rooms Broadcast Studios Retail Spaces

Short Description:

For environments that demand unwavering reliability and impeccable image quality around the clock, our Fixed Installation LED displays are the definitive solution. Unlike their rental counterparts, these displays are meticulously engineered for permanent deployment, offering superior stability, longevity, and performance for mission-critical applications. They are the perfect choice for transforming corporate lobbies, control rooms, broadcast studios, and retail spaces into captivating visual experiences.

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

Built with a robust and rigid cabinet structure, our fixed install panels ensure perfect alignment and seamless splicing for a flawless viewing surface that remains consistent for years. Featuring advanced thermal management and high-quality components designed for 24/7 operation, these displays deliver exceptional brightness, stunning color accuracy, and remarkable uniformity. Discover the ultimate blend of form and function for your most important spaces.

Product customization process

As a professional LED display manufacturer, we have many years of manufacturing and sales experience, with a professional pre-sales and after-sales team. You only need to tell us your needs, and we will provide you with professional customized solutions according to your actual situation. You don't need to worry, so if you have any needs, please contact us immediately!

Indoor LED Module Parameters

Indoor LED Module Parameters
Module	P1.25	P1.86	P2	P2.5	P3	P4
Pixel Pitch(mm)	1.25	1.86	2	2.5	3	4
Module Size(mm)	320*160	320*160	320*160	320*160	192*192	256*128
Module Resolution(dots)	267*133	172*86	160*80	128*64	64*64	64*32
Pixel Density(dots/㎡)	694441	289050	250000	160000	111111	62500
Lamp Model	SMD1010	SMD1515	SMD1515	SMD2121	SMD2121	SMD3535
Brightness	≥500nit
Driving Mode	1/64	1/43	1/40	1/32	1/32	1/32
Best Viewing Distance	≥1.25m	≥1.86m	≥2m	≥2.5m	≥3m	≥4m

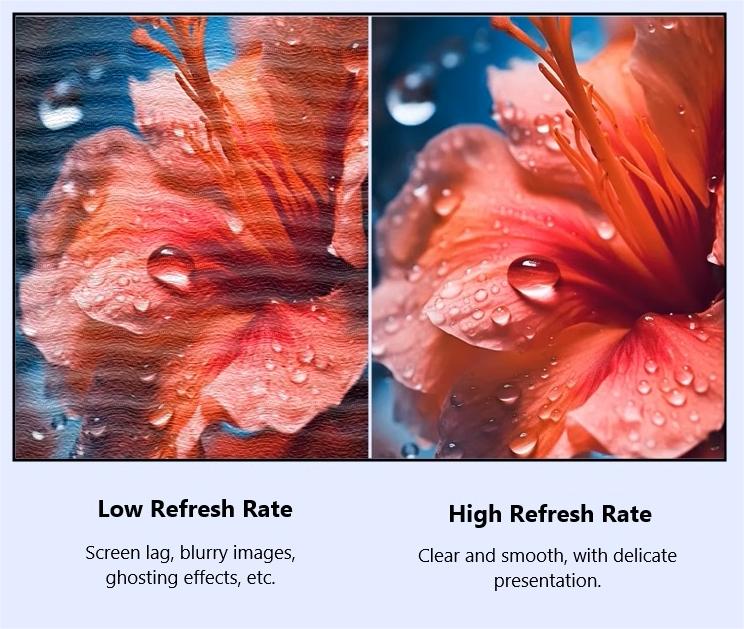

Refresh Frequency	3840Hz/1920Hz
Working Temperature	-10℃~60℃
Best Viewing Angle	H：160° V：160°
Life Span	100000h
Working Humidity	10%~70%
IP Level（Front/Rear）	IP45

Outdoor LED Module Parameters

Outdoor LED Module Parameters
Module	P4	P5	P6	P8	P10
Pixel Pitch(mm)	4	5	6	8	10
Module Size(mm)	320*160	320*160	192*192	320*160	320*160
Module Resolution(dots)	80*40	64*32	32*32	40*20	32*16
Pixel Density(dots/㎡)	62500	40000	27777	15625	10000
Lamp Model	SMD1921	SMD1921	SMD3535	SMD3535	SMD3535
Brightness	≥6500nit
Driving Mode	1/10	1/8	1/8	1/5	1/2 or 1/4
Best Viewing Distance	≥4m	≥5m	≥6m	≥8m	≥10m
Refresh Frequency	3840Hz/1920Hz
Working Temperature	-10℃~60℃
Best Viewing Angle	H：160° V：160°
Life Span	100000h
Working Humidity	10%~70%
IP Level（Front/Rear）	IP65

Features

1. True 4K Ultra High Definition & Beyond

Experience breathtaking clarity with pixel pitches fine enough to achieve genuine 4K UHD resolution and beyond on large-scale displays. Every detail is rendered with stunning precision, making our displays perfect for close-viewing applications like broadcast studios, control rooms, and corporate boardrooms where crystal-clear imagery for data, graphics, and video is absolutely essential.

2. Ultra-Wide Viewing Angle for Universal Visibility

Our advanced LED technology ensures a consistent and flawless image from virtually anywhere in the room. With a wide viewing angle of up to 160 degrees both horizontally and vertically, colors and brightness remain uniform without distortion or color shift. This guarantees that every member of your audience, regardless of their seating position, enjoys the same premium viewing experience.

3. High Color Gamut for Vibrant, Accurate Reproduction

Bring your content to life with a palette of incredibly rich and accurate colors. Our displays cover a high percentage of the Adobe RGB and DCI-P3 color spaces, producing deeper reds, more vibrant greens, and truer blues. This exceptional color fidelity ensures that your visuals are displayed exactly as intended, making them ideal for brand storytelling, high-end retail, and creative studios.

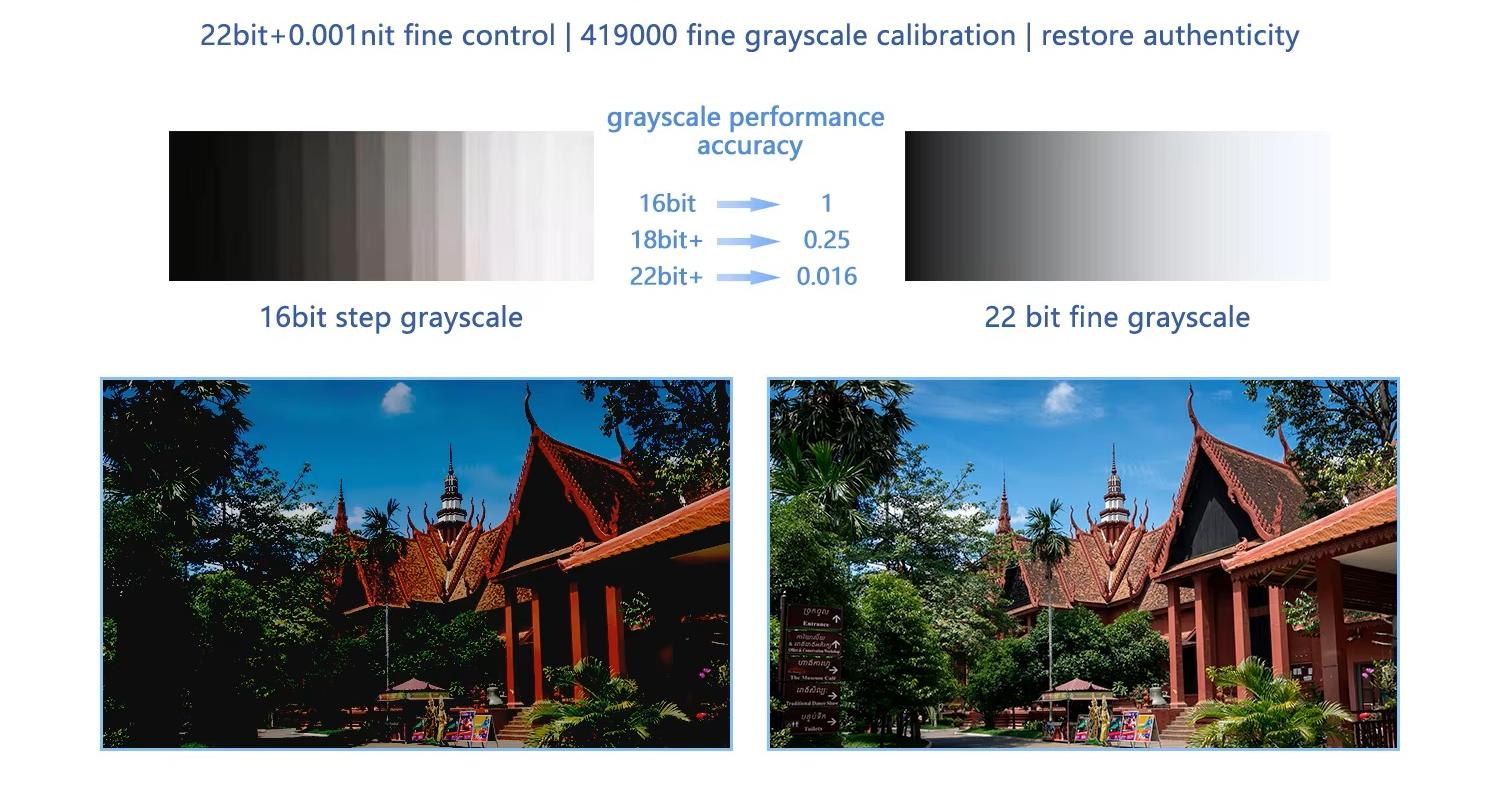

4. Low Brightness with High Gray Scale for Superior Image Depth

Even at lower brightness levels optimized for comfortable indoor viewing, our displays maintain excellent color depth and detail. The high gray scale performance ensures smooth color gradients and eliminates image banding, preserving every subtle nuance in shadows and highlights. This allows for stunning image quality without causing eye strain, even in dimly lit environments.

5. Eco-Conscious & Energy-Efficient Operation

Designed with sustainability in mind, our displays utilize low-power LEDs and intelligent energy-saving technologies that significantly reduce electricity consumption without compromising on performance. This commitment to energy efficiency not only lowers operational costs but also minimizes the environmental footprint of your continuous operations.

6. Seamless Splicing for a Flawless Canvas

Precision-engineered cabinets allow for perfectly aligned installation, creating a vast, continuous canvas with no visible gaps or lines between modules. This seamless technology is crucial for creating immersive video walls where the integrity of the image is paramount, ensuring that your content—not the hardware—captures and holds the audience's attention.

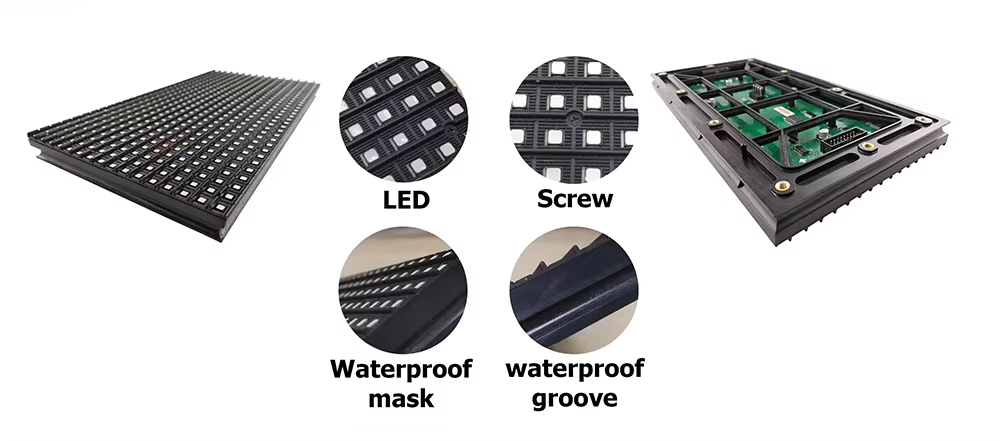

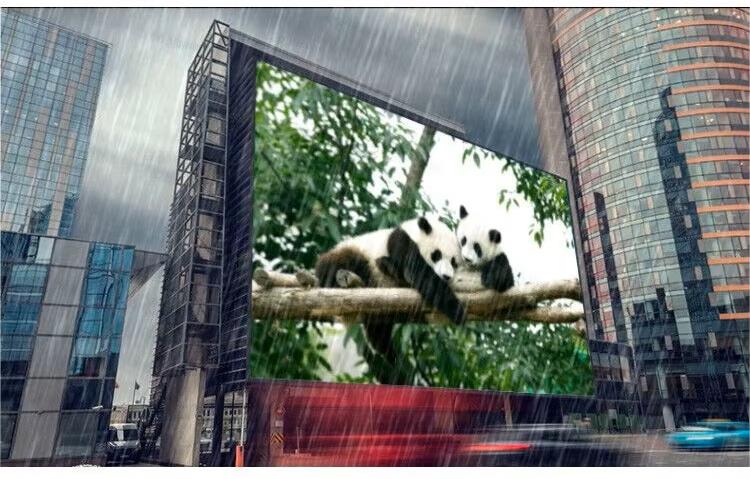

7. IP65 & IP68 Rated Waterproof Protection for Ultimate Reliability

Engineered to withstand the harshest outdoor environments, our fixed installation LED displays feature robust IP65 & IP68 waterproof ratings. This ensures complete protection against dust, rain, snow, and moisture, guaranteeing uninterrupted performance in all weather conditions. The sealed cabinet design, corrosion-resistant materials, and waterproof connectors provide long-term durability and peace of mind for permanent outdoor applications such as stadiums, building facades, and transportation hubs.

LED Fixed Display Screen Installation Case

In the field of LED display screens, we have a wealth of experience. Here are some cases we have worked on before.

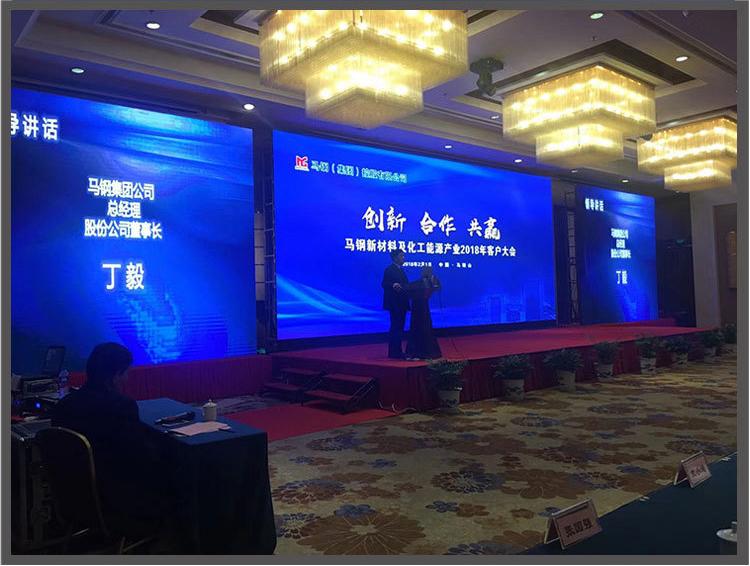

Indoor Engineer Case

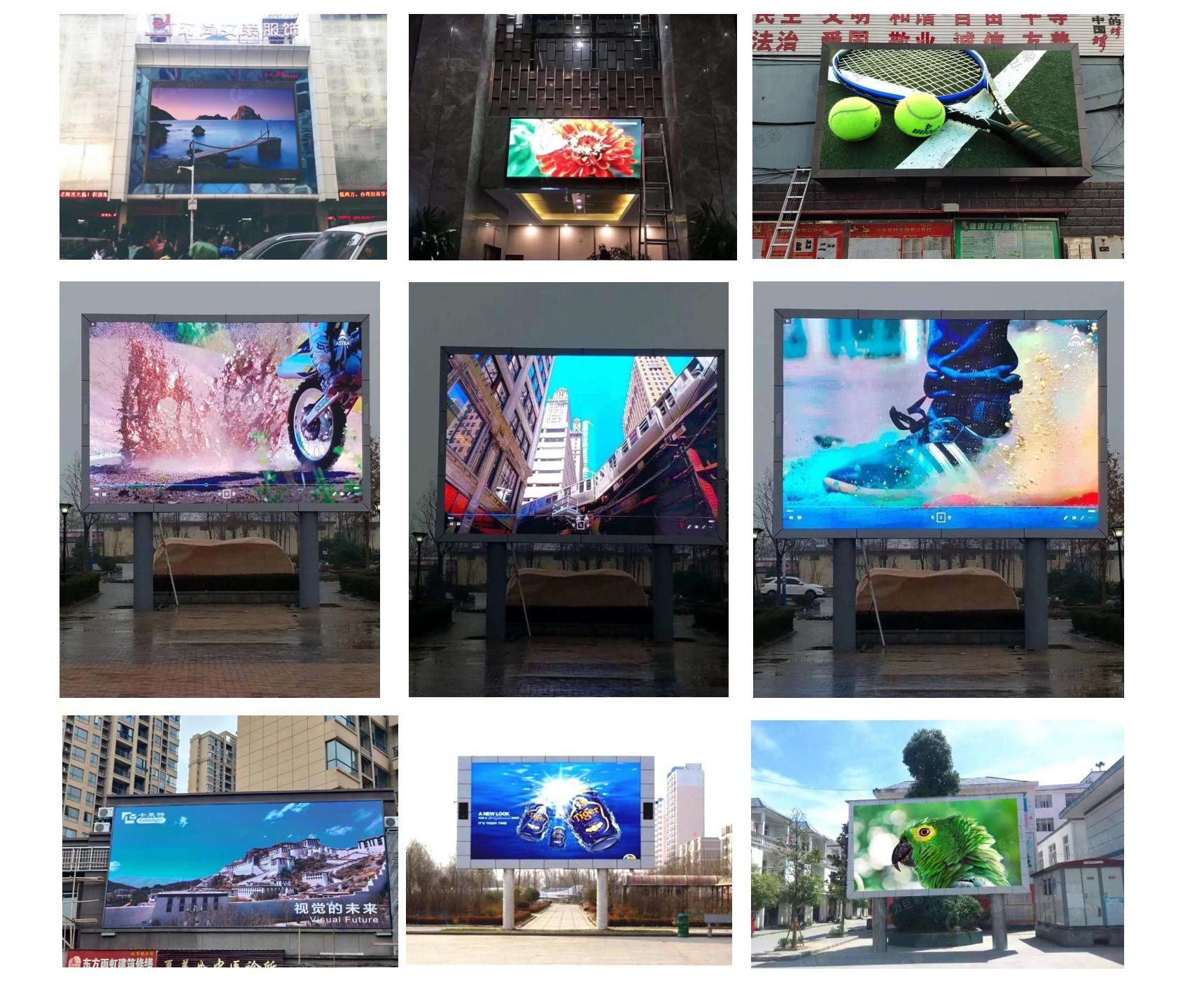

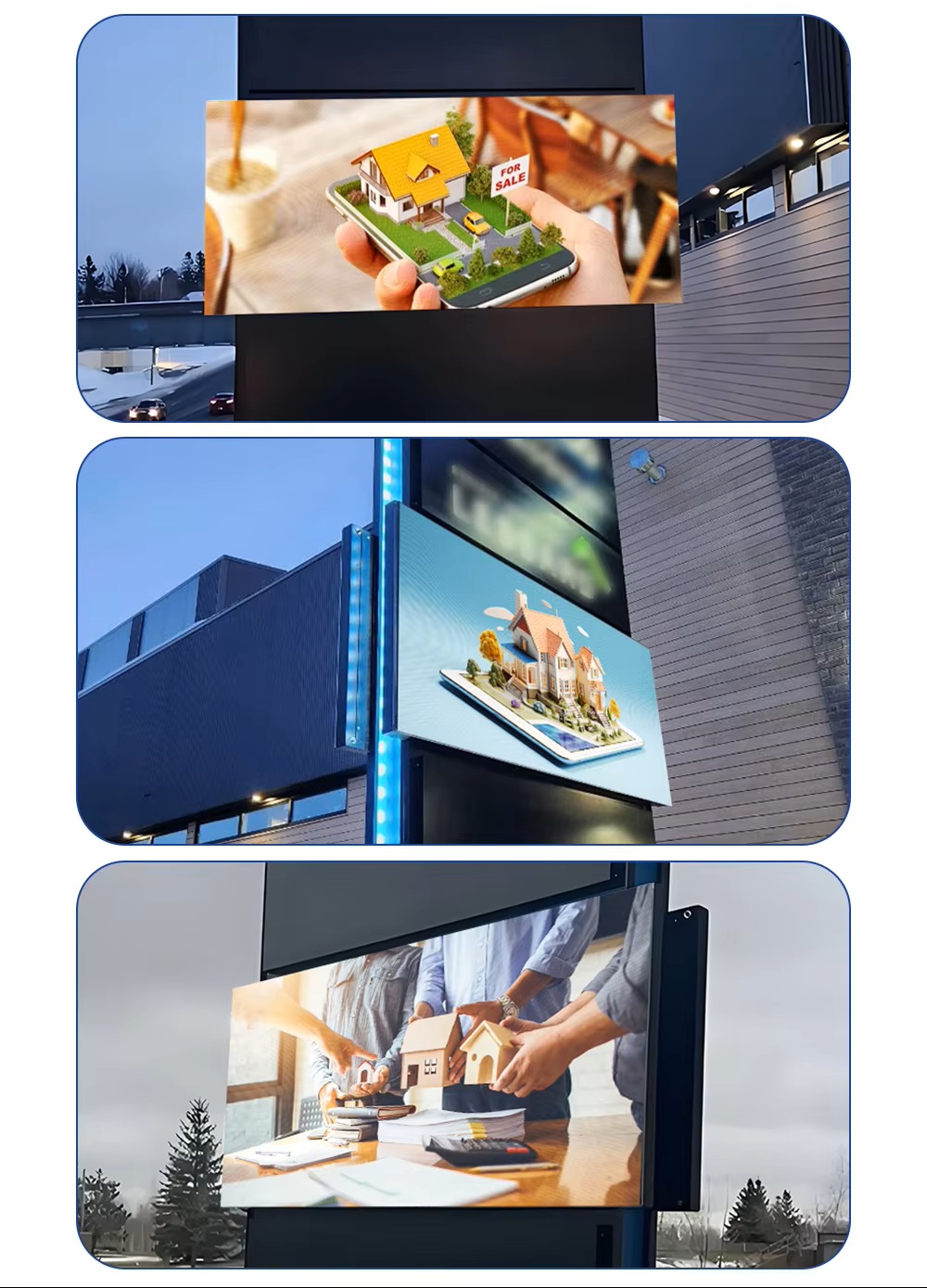

Outdoor Engineer Case

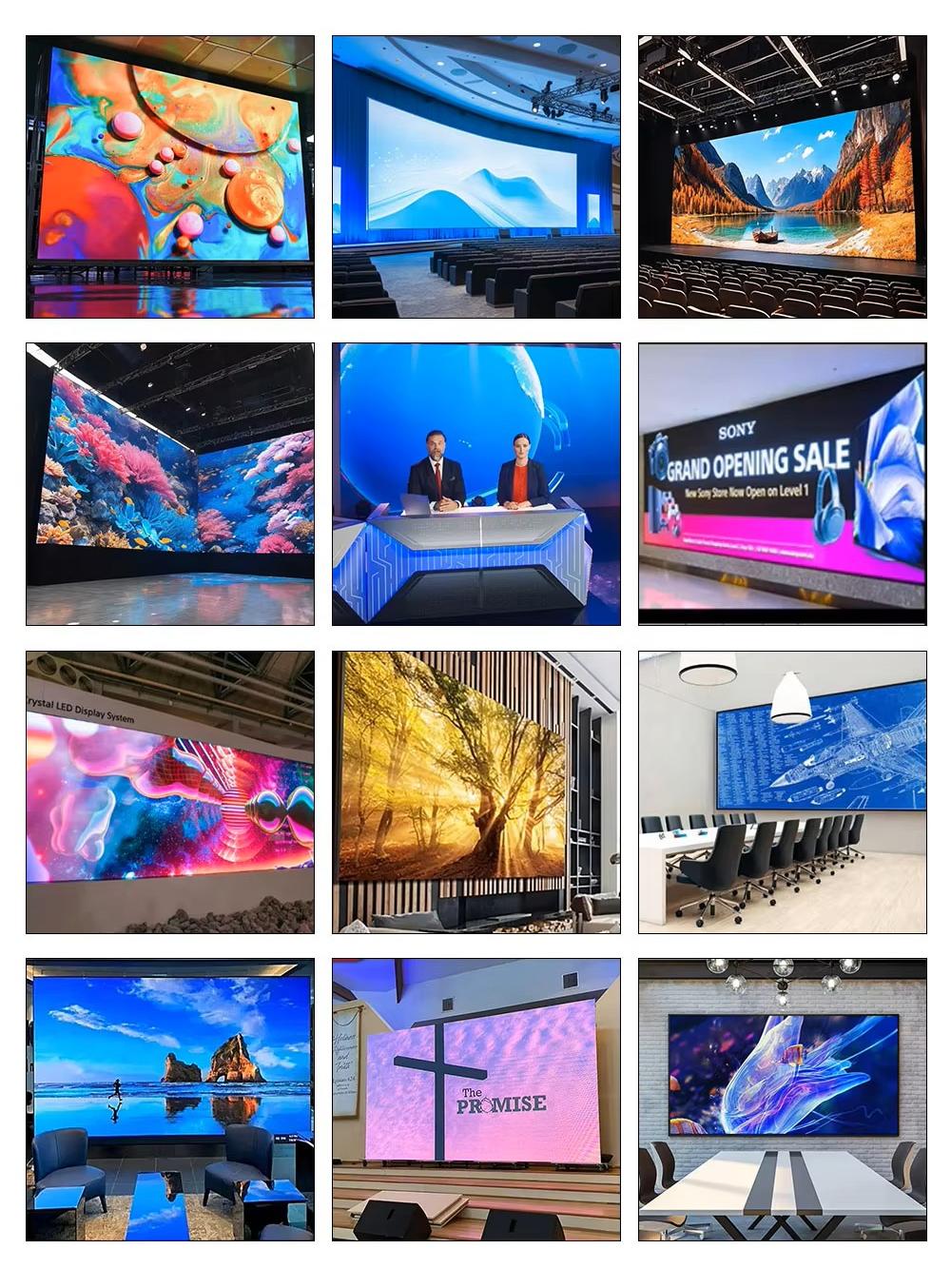

Applications

Our Fixed Installation LED displays are the cornerstone of modern visual communication in environments where reliability and excellence are non-negotiable. Seamlessly integrating into the architecture of a space, they deliver dynamic, impactful content 24/7 for a wide range of professional applications:

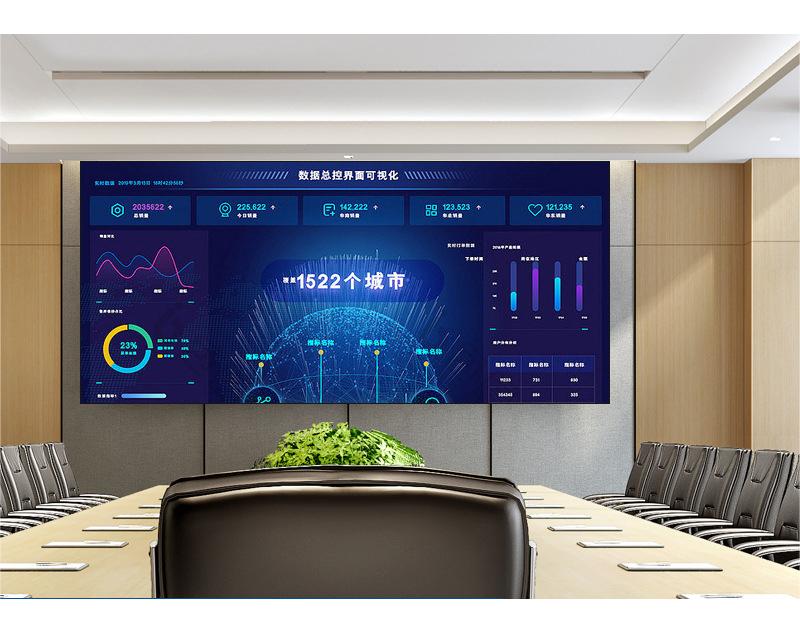

Corporate & Command Environments:

Elevate corporate lobbies, boardrooms, and executive briefing centers with brand storytelling, data dashboards, and high-stakes video conferencing. In security control rooms, traffic management centers, and financial trading floors, they provide mission-critical data visualization with absolute clarity and zero downtime.

Broadcast & Media Studios:

Become the backbone of modern television studios, newsrooms, and broadcast control centers. As ultra-high-definition virtual sets or immersive backgrounds, they offer presenters and producers unparalleled creative flexibility and stunning on-air visuals.

Retail & Hospitality Spaces:

Revolutionize the customer experience in luxury retail stores, shopping malls, hotel lobbies, and casinos. Use them for captivating advertising, wayfinding, brand ambience, and interactive engagements that drive sales and leave a lasting impression.

Worship & Performance Spaces:

Enhance services in modern churches and worship centers with lyrics, live feeds, and immersive graphics. In performing arts theaters and concert halls, they serve as a permanent, high-resolution backdrop for a diverse repertoire of productions.

Display screen connection topology diagram

As a professional LED display manufacturer, if you have any questions related to LED displays, you can contact us and we will provide you with the most professional answers.

Production Process

We have professional LED display production equipment and assembly personnel. You only need to provide your needs, and we will provide you with comprehensive professional services from scratch. From developing production plans to the production and assembly of displays, we will ensure quality and quantity. You can rest assured to cooperate with us.

LED Display Aging and Testing

Aging and testing of LED display modules involves simulating long-term operation to ensure reliability and stability. This process is critical to identifying and resolving potential issues, ultimately improving the efficiency and stability of the LED display.

Conducting burn-in testing is a critical step in quality control to ensure the overall performance and service life of the LED display.
