Indoor LED Fixed Display High Definition LED Screen Perfect for Offices, Malls, Control Centers & Venues

Short Description:

Indoor LED fixed screens are high-performance display solutions for permanent indoor installation. With ultra-fine pixel pitch, seamless splicing, and high color gamut, they deliver vivid, stable visuals. Lightweight, thin, and easy to maintain, they support 24/7 operation and multi-signal compatibility. Ideal for offices, malls, control centers, and venues, they meet diverse visual communication needs efficiently.

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

Overview

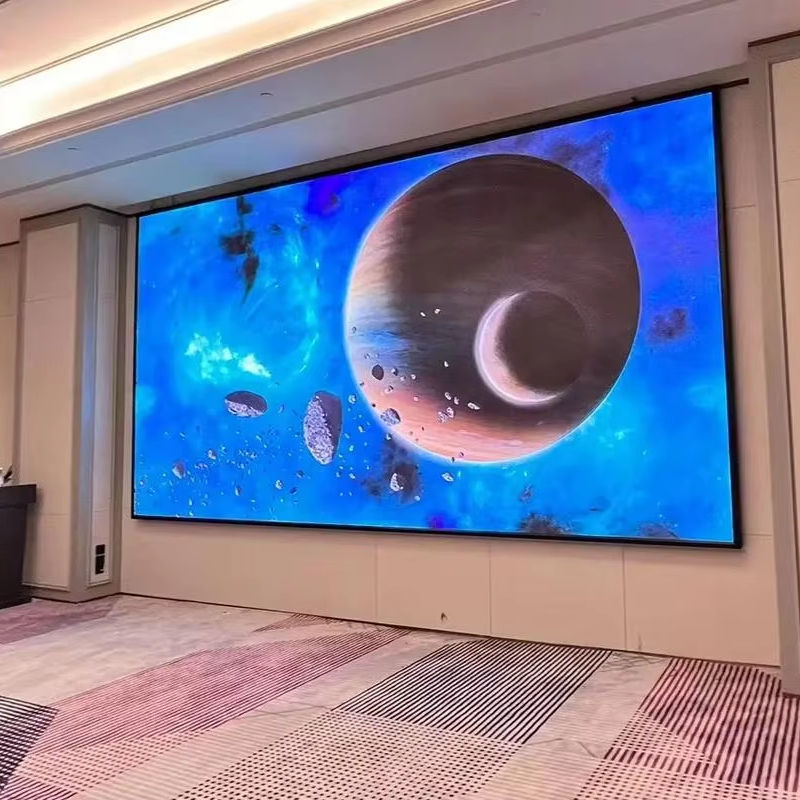

Indoor LED fixed screens are advanced display solutions tailored for permanent installation in indoor environments, combining high-definition visualization, stable performance, and flexible customization. Widely used in commercial spaces, public facilities, and corporate venues, these screens have become the core of modern visual communication systems, delivering vivid images and reliable operation to meet diverse application needs.

Product customization process

As a professional LED display manufacturer, we have many years of manufacturing and sales experience, with a professional pre-sales and after-sales team. You only need to tell us your needs, and we will provide you with professional customized solutions according to your actual situation. You don't need to worry, so if you have any needs, please contact us immediately!

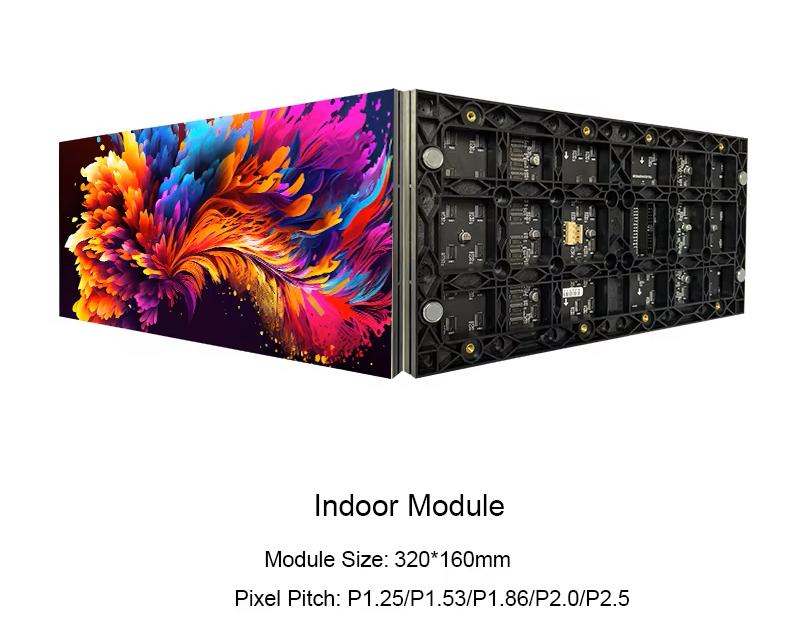

Indoor LED Module

Pixel Pitch: Ranges from 1.25mm to 4mm, covering ultra-fine and conventional specifications. Smaller pixel pitches (1.25mm/1.5mm/1.86mm) are suitable for close-viewing scenarios (e.g., control rooms, meeting rooms), while larger ones (2mm/2.5mm/3.91mm/5mm) fit medium-to-long distance display (e.g., shopping malls, auditoriums). It directly affects resolution and viewing distance.

Indoor LED Module Parameters
Module	P1.25	P1.86	P2	P2.5	P3	P4
Pixel Pitch(mm)	1.25	1.86	2	2.5	3	4
Module Size(mm)	320*160	320*160	320*160	320*160	192*192	256*128
Module Resolution(dots)	267*133	172*86	160*80	128*64	64*64	64*32
Pixel Density(dots/㎡)	694441	289050	250000	160000	111111	62500
Lamp Model	SMD1010	SMD1515	SMD1515	SMD2020	SMD2020	SMD2020
Brightness	≥800nit
Driving Mode	1/64	1/43	1/40	1/64	1/52	1/20
Best Viewing Distance	≥1.25m	≥1.86m	≥2m	≥2.5m	≥3m	≥4m
Refresh Frequency	3840Hz/1920Hz
Working Temperature	-10℃~60℃
Best Viewing Angle	H：160° V：160°
Life Span	100000h
Working Humidity	10%~70%
IP Level（Front/Rear）	IP45

Screen Features

1、Resolution: Customizable based on pixel pitch and screen size. For example, a 1.2mm pixel pitch screen with a 1000×562mm size achieves a resolution of 833×468, supporting 1080P, 4K, and even 8K ultra-high-definition display when spliced.

2、Contrast Ratio: Typically 5000:1, with high dynamic contrast technology available in premium models. It enhances the layering of dark areas and details, making images more realistic.

3、Refresh Rate: ≥3840Hz, meeting the requirements of high-speed dynamic image display. It eliminates flicker and ghosting, ensuring comfortable viewing even for long periods, which is essential for broadcast and monitoring scenarios.

4、Viewing Angle: Horizontal and vertical viewing angles ≥160°, realizing wide-range consistent display. Viewers from any position can get clear and color-accurate images.

5、Operating Voltage: AC 100V-240V, 50/60Hz, with low power consumption design. The average power consumption is 100W-300W/㎡, and the standby power consumption is ≤0.5W/㎡, complying with energy-saving standards.

6、Precision Splicing Design: Uses CNC machining technology, with the flatness error of the cabinet surface ≤0.1mm and the splicing gap ≤0.2mm. It realizes seamless splicing, avoiding the "screen seam" problem and ensuring the integrity of the large-screen image.

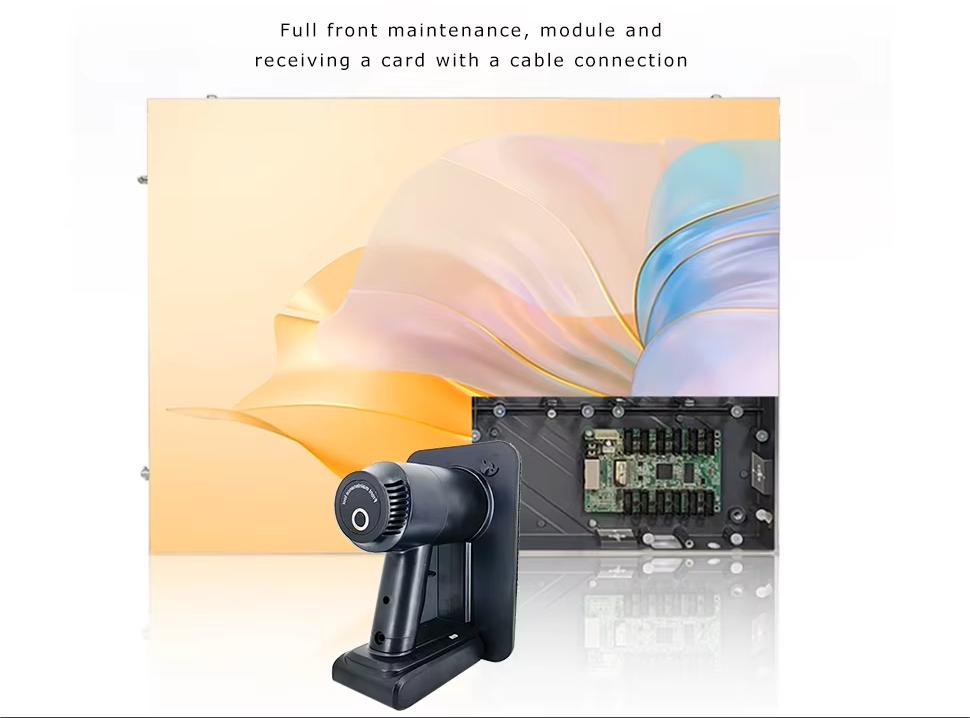

7、Front Maintenance: Supports front maintenance. The front maintenance design allows quick replacement of modules by opening the front panel, reducing maintenance time and costs.

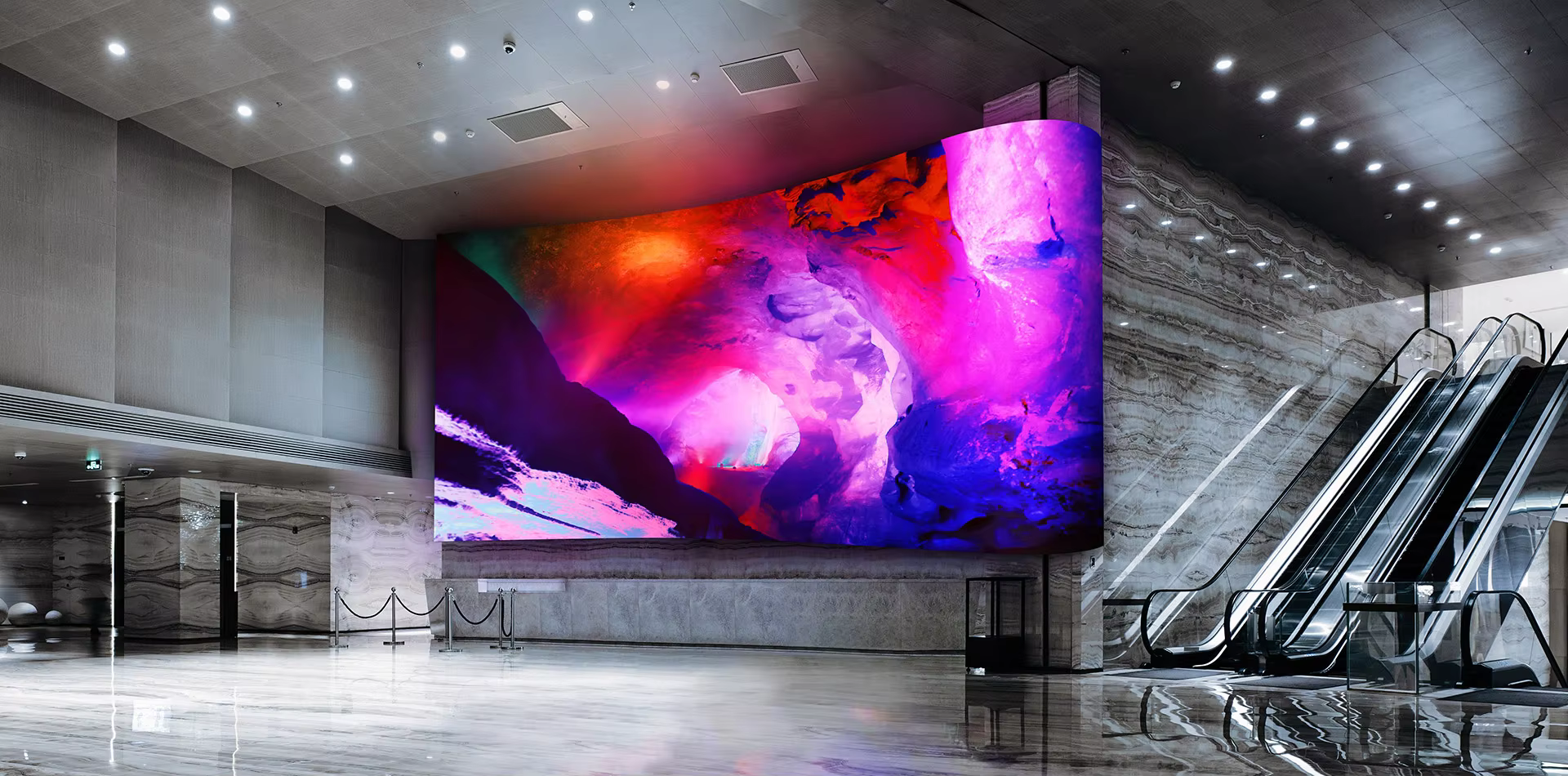

8、Customizable Size and Shape: Supports arbitrary size customization (from several square meters to hundreds of square meters) and can be made into special shapes such as curved surfaces and right angles. It adapts to different installation environments and design needs.

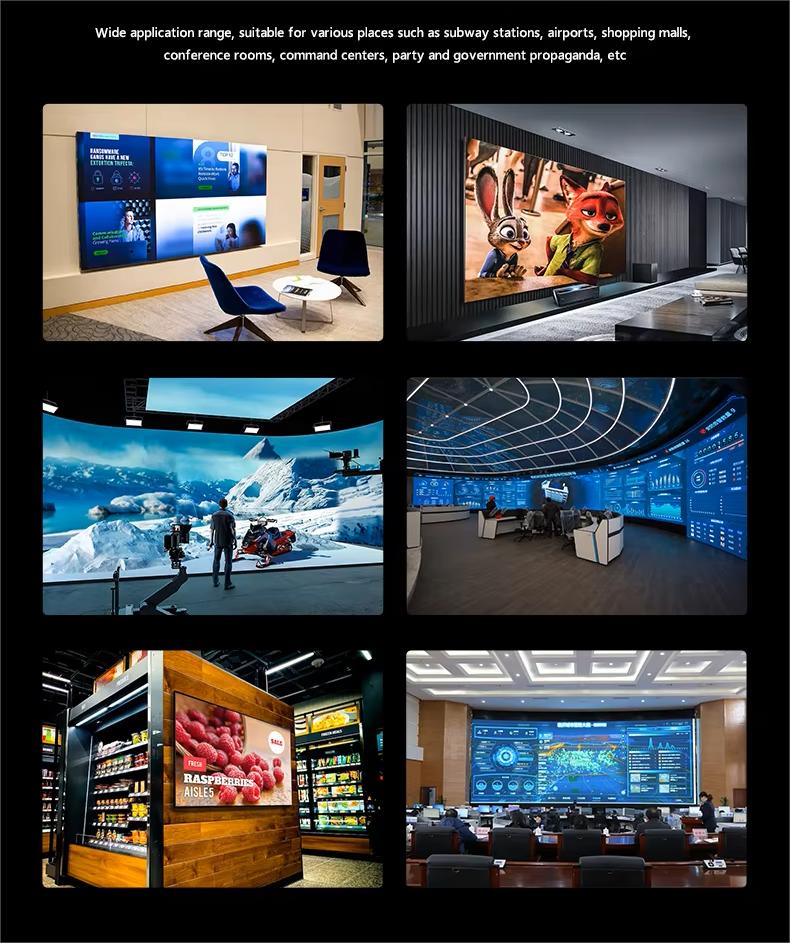

Application Scenarios

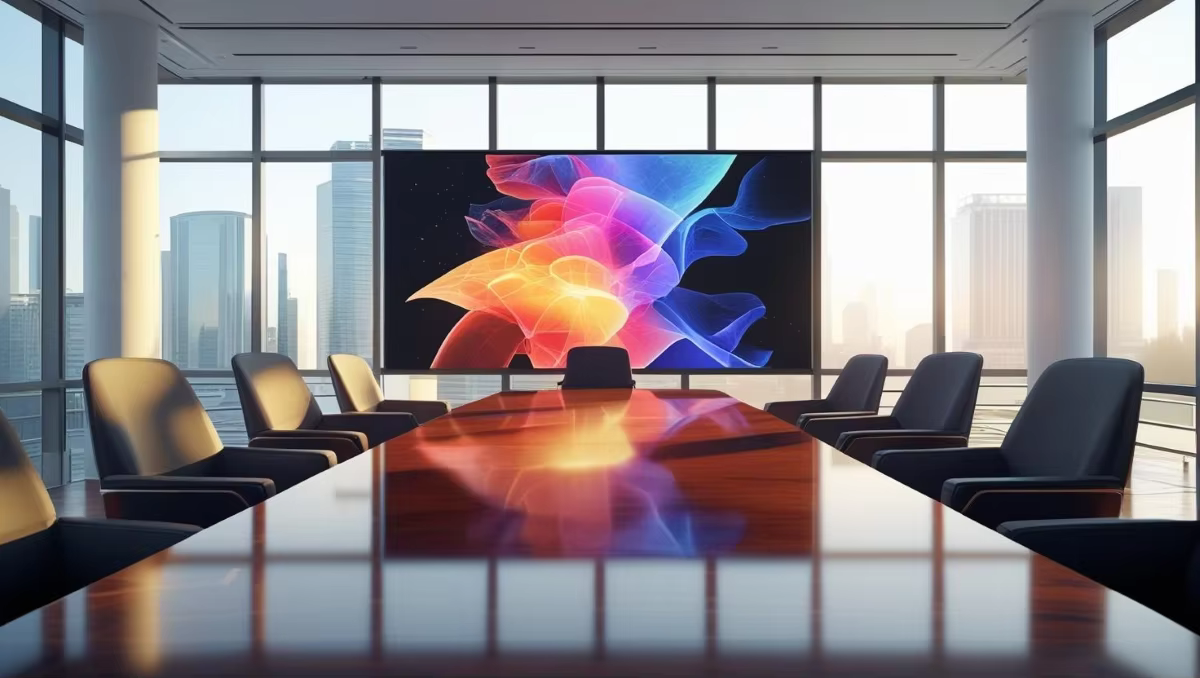

1、Corporate and Office Spaces: Used in meeting rooms, lecture halls, and lobby display walls. It is used for conference presentations, corporate culture promotion, and real-time data display, improving the efficiency of communication and the image of the enterprise.

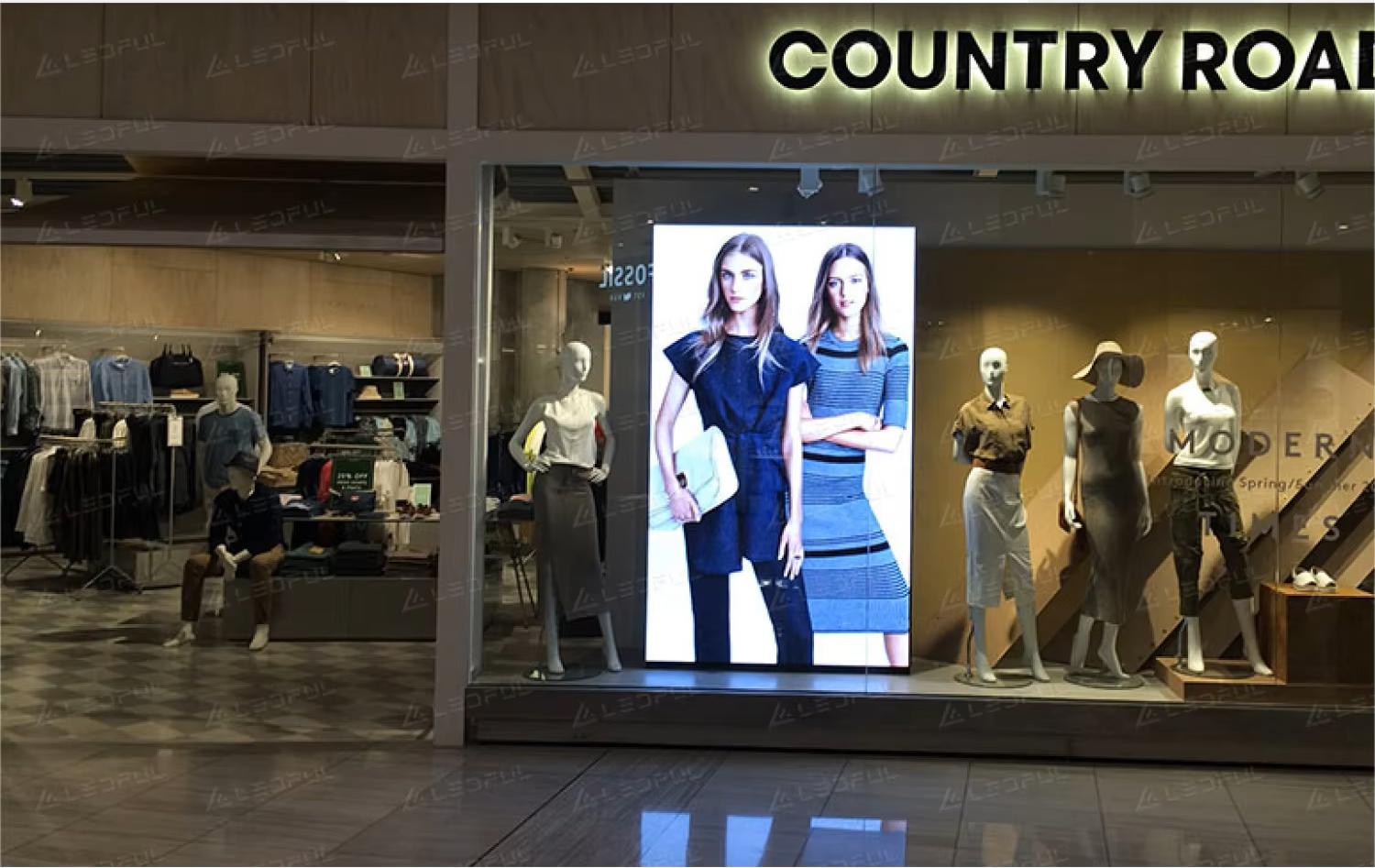

2、Commercial and Retail Spaces: Installed in shopping mall atriums, brand stores, and advertising billboards. It displays product promotions, brand images, and interactive advertisements, attracting customer attention and enhancing the shopping experience.

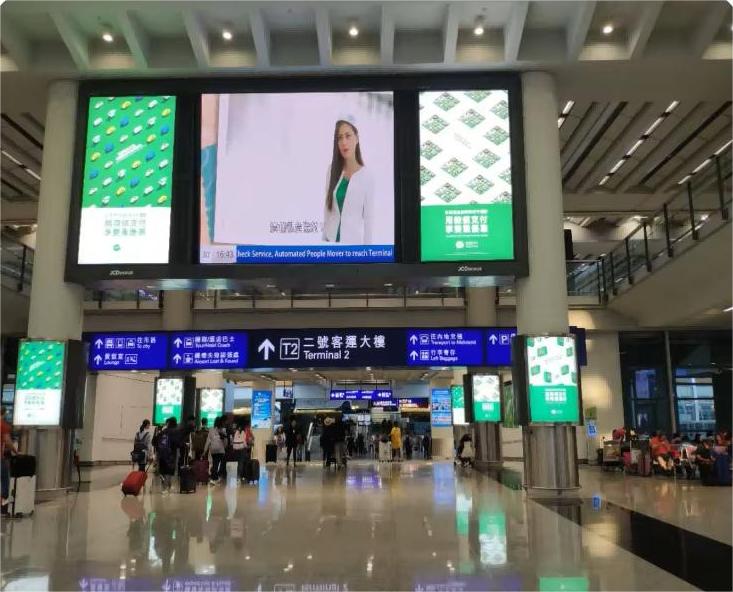

3、Public Facilities: Applied in transportation hubs (airports, high-speed rail stations), hospitals, and government service halls. It provides real-time information (flight/train schedules, medical guidance, policy announcements) to facilitate public life.

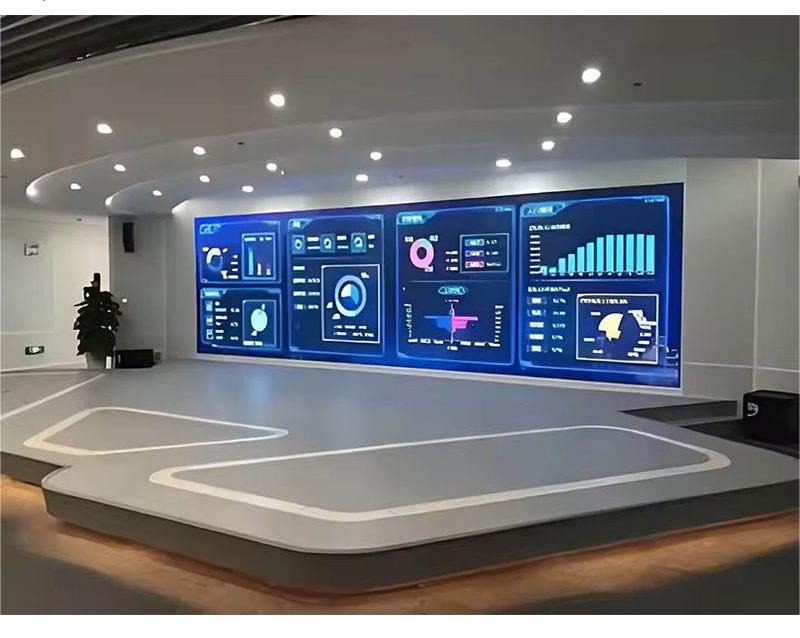

4、Control and Monitoring Centers: Deployed in command centers of public security, transportation, and energy industries. It displays real-time monitoring images, data charts, and early warning information, providing decision support for command and dispatch.

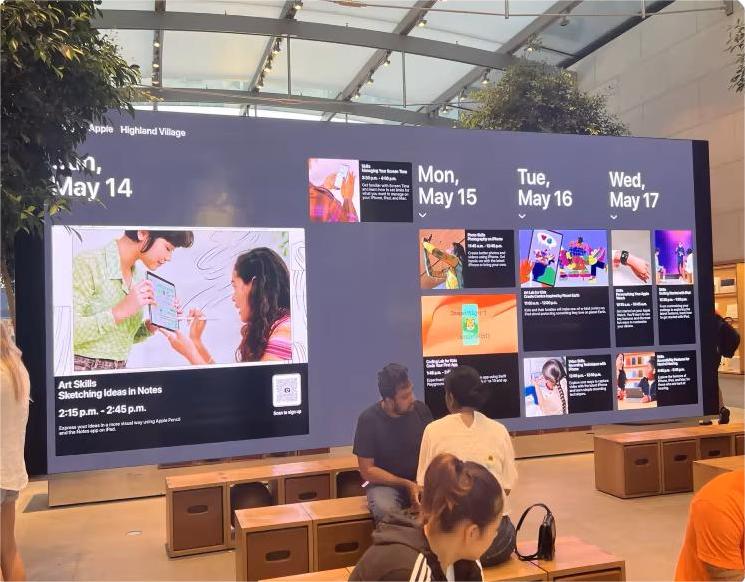

5、Education and Training Institutions: Installed in classrooms, lecture halls, and training rooms. It is used for multimedia teaching, courseware display, and remote teaching, enriching the teaching methods and improving the teaching effect.

Production Process

We have professional LED display production equipment and assembly personnel. You only need to provide your needs, and we will provide you with comprehensive professional services from scratch. From developing production plans to the production and assembly of displays, we will ensure quality and quantity. You can rest assured to cooperate with us.

LED Display Aging and Testing

Aging and testing of LED display modules involves simulating long-term operation to ensure reliability and stability. This process is critical to identifying and resolving potential issues, ultimately improving the efficiency and stability of the LED display.

Conducting burn-in testing is a critical step in quality control to ensure the overall performance and service life of the LED display.
