Indoor Fine Pixel Pitch LED Display Seamless Splicing LED Screens Ideal for Conference & Control Rooms

Short Description:

Our indoor LED small-pitch full-color display (P1.2 to P4) comes with 640×640MM and 640×480MM cabinets. Boasting ultra-high definition, wide color gamut, and 24/7 stable operation, it delivers vivid, detail-rich visuals with no visible pixels even at close range. The seamless splicing, lightweight design, and intelligent control enable flexible installation and easy operation. Suitable for conference rooms, command centers, exhibition halls, theaters, and classrooms, it meets diverse professional needs, offering eye-care, energy-saving, and reliable performance for premium visual experiences.

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

Product customization process

As a professional LED display manufacturer, we have many years of manufacturing and sales experience, with a professional pre-sales and after-sales team. You only need to tell us your needs, and we will provide you with professional customized solutions according to your actual situation. You don't need to worry, so if you have any needs, please contact us immediately!

Overview

Our indoor LED small-pitch full-color display, with core models ranging from P1.2 to P4, is a high-definition visual display solution tailored for professional indoor scenarios. Equipped with standard cabinet sizes of 640×640MM and 640×480MM, this series integrates advanced LED technology, precise optical design, and intelligent control systems, delivering exceptional visual effects, stable performance, and flexible installation to meet the diverse needs of different industries.

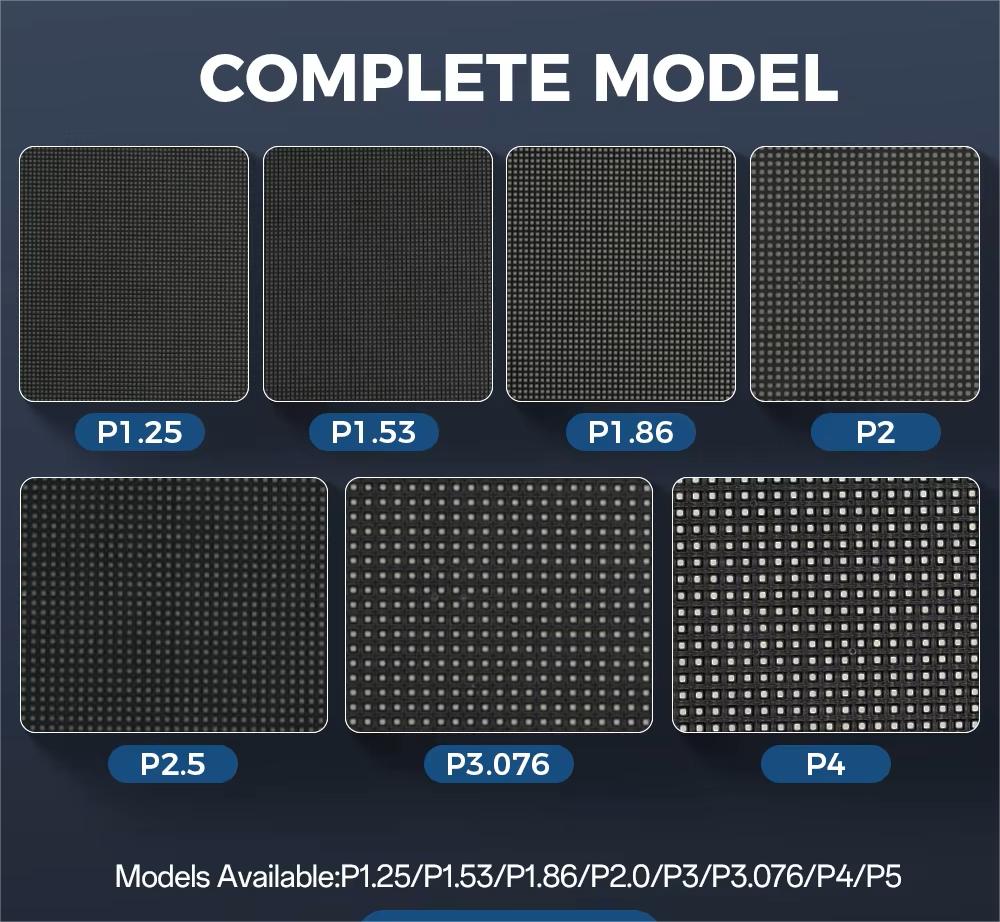

Indoor Fine Pixel Pitch LED Module

Indoor LED Module Parameters
Module	P1.25	P1.86	P2	P2.5	P3	P4
Pixel Pitch(mm)	1.25	1.86	2	2.5	3	4
Module Size(mm)	320*160	320*160	320*160	320*160	192*192	256*128
Module Resolution(dots)	267*133	172*86	160*80	128*64	64*64	64*32
Pixel Density(dots/㎡)	694441	289050	250000	160000	111111	62500
Lamp Model	SMD1010	SMD1515	SMD1515	SMD2020	SMD2020	SMD2020
Brightness	≥500nit
Driving Mode	1/64	1/43	1/40	1/64	1/52	1/20
Best Viewing Distance	≥1.25m	≥1.86m	≥2m	≥2.5m	≥3m	≥4m
Refresh Frequency	3840Hz/1920Hz
Working Temperature	-10℃~60℃
Best Viewing Angle	H：160° V：160°
Life Span	100000h
Working Humidity	10%~70%
IP Level（Front/Rear）	IP45

Advantages of Small Pixel Pitch LED Displays

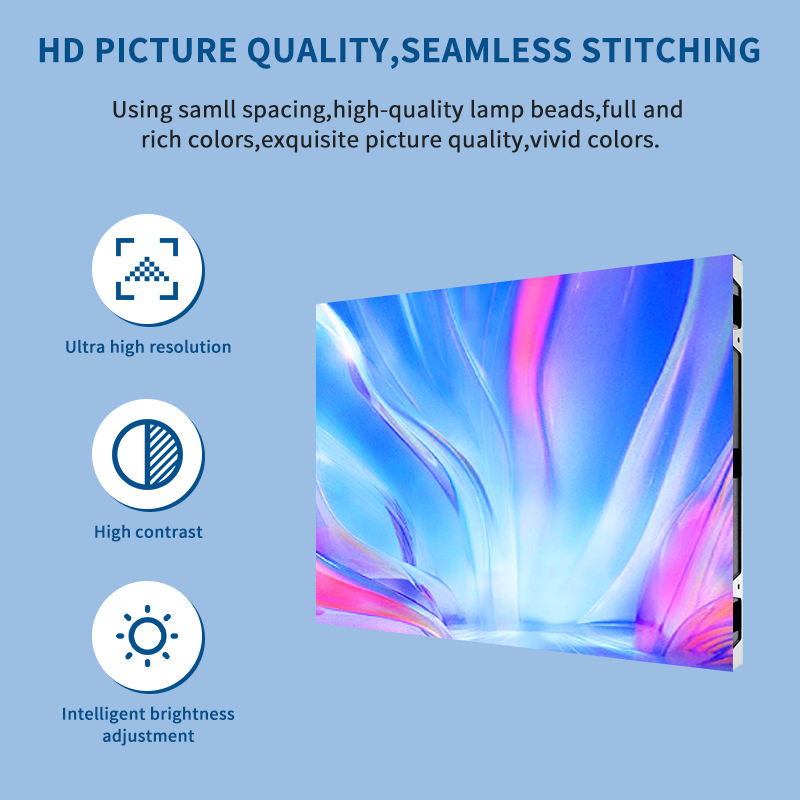

1. Ultra-High Definition & Fine Picture Quality

Covering pixel pitches from P1.2 to P4, the display achieves ultra-high pixel density. For example, the P1.2 model boasts a pixel density of up to 694,444 pixels per square meter, while the P4 model still maintains 62,500 pixels per square meter. This ensures every detail of the image is clearly presented, with no visible pixel granularity even when viewed at close range (as close as 0.5 meters for small-pitch models). The display adopts high-quality SMD LED lamp beads with high brightness consistency, a wide color gamut (covering over 120% NTSC), and a high contrast ratio (up to 1,000,000:1), accurately restoring true colors and presenting vivid, layered images.

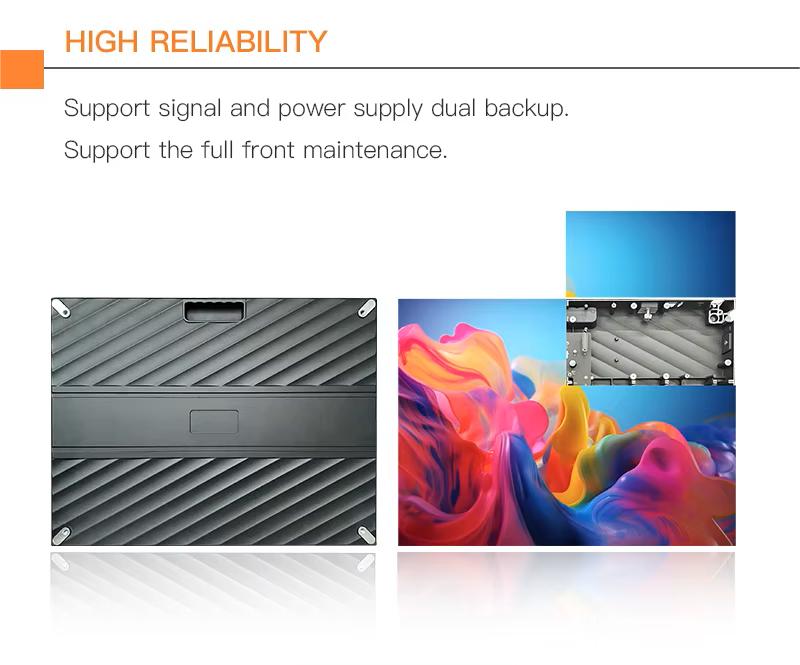

2. Stable & Reliable Core Performance

The display is built with a high-quality LED driver IC and a robust power supply system, supporting 24/7 continuous operation without screen flicker or color distortion. It features low power consumption technology, which reduces energy consumption by 20%-30% compared to traditional LED displays under the same brightness, achieving energy conservation and environmental protection. Additionally, the lamp beads and cabinets undergo strict high-temperature, low-temperature, and vibration tests, ensuring stable operation in various indoor environments with a service life of over 100,000 hours.

3. Flexible Cabinet Design for Easy Installation

The standard cabinet sizes of 640×640MM and 640×480MM are designed to fit most indoor installation scenarios. The cabinets adopt a lightweight and thin design, with a single cabinet weight of only 8-12kg, making transportation and installation convenient. The seamless splicing technology (with a splicing gap of less than 0.1mm) allows the cabinets to be combined into large-size displays of any shape (rectangle, square, curved surface, etc.) according to actual needs, ensuring a smooth and integrated visual effect without obvious splicing seams.

4. Eco-Conscious & Energy-Efficient Operation

Designed with sustainability in mind, our displays utilize low-power LEDs and intelligent energy-saving technologies that significantly reduce electricity consumption without compromising on performance. This commitment to energy efficiency not only lowers operational costs but also minimizes the environmental footprint of your continuous operations.

5. Eye-Care & Comfortable Viewing Experience

Adopting low-blue light technology and a diffuse reflection panel, the display effectively reduces blue light radiation and glare, minimizing eye fatigue even after long-term viewing. The brightness of the display can be automatically adjusted according to the ambient light (300-1500 nits adjustable), ensuring clear visibility in both bright and dark indoor environments without causing visual discomfort.

Application Scenarios

1. Government & Enterprise Conference Rooms

Ideal for government departments, large enterprises, and institutions, the display serves as a core visual device for meetings, presentations, and video conferences. Its high-definition display effect ensures that meeting materials (PPT, videos, data charts) are clearly visible to every participant, while the seamless splicing function supports large-screen display of multi-source information, improving meeting efficiency.

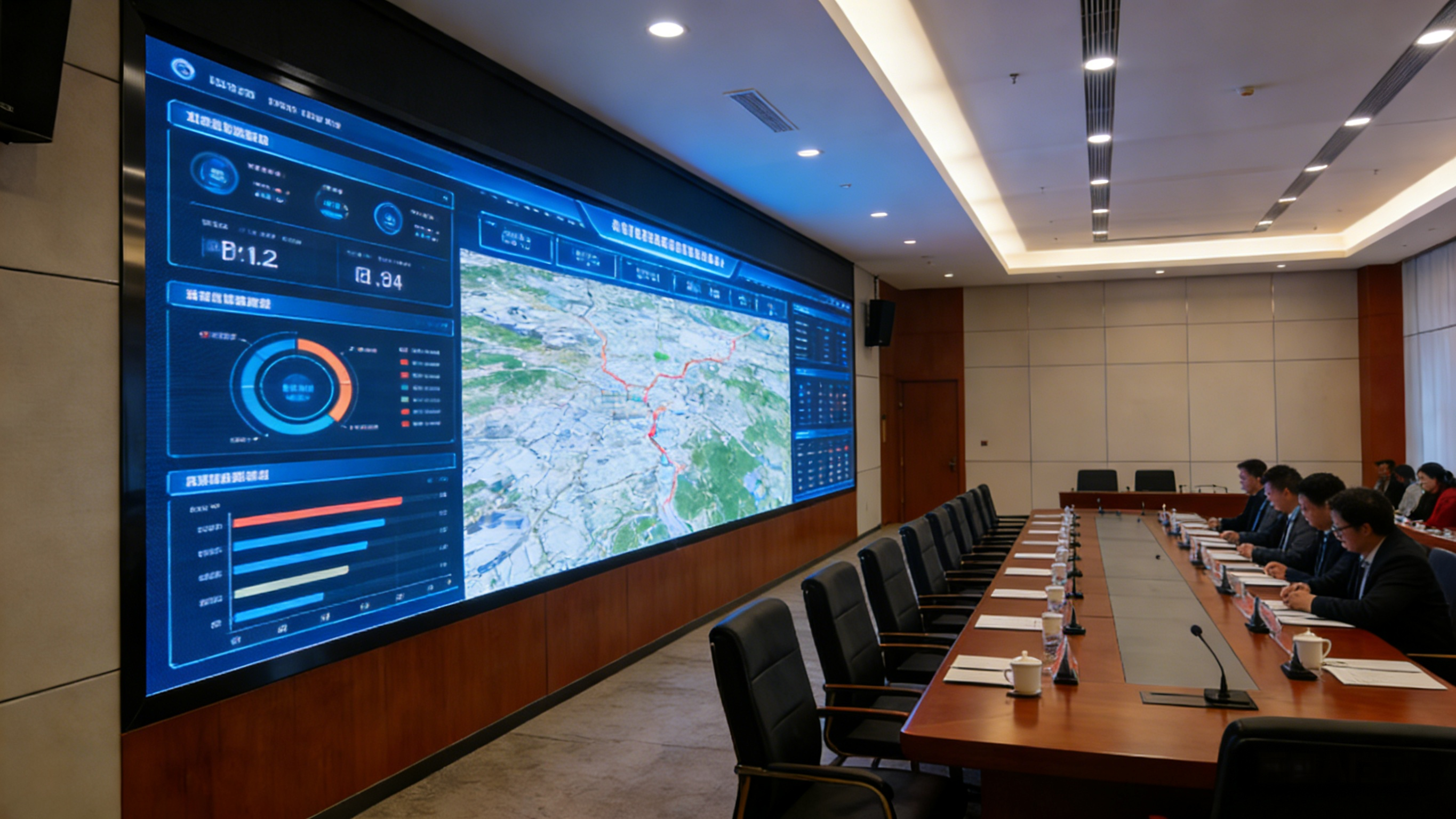

2. Command & Control Centers

In public security, transportation, energy, and other command and control centers, the display provides 24/7 stable high-definition monitoring and data visualization services. It can simultaneously display multiple sets of real-time monitoring images, data charts, and early warning information, enabling commanders to grasp on-site situations in a timely and accurate manner and make quick decisions.

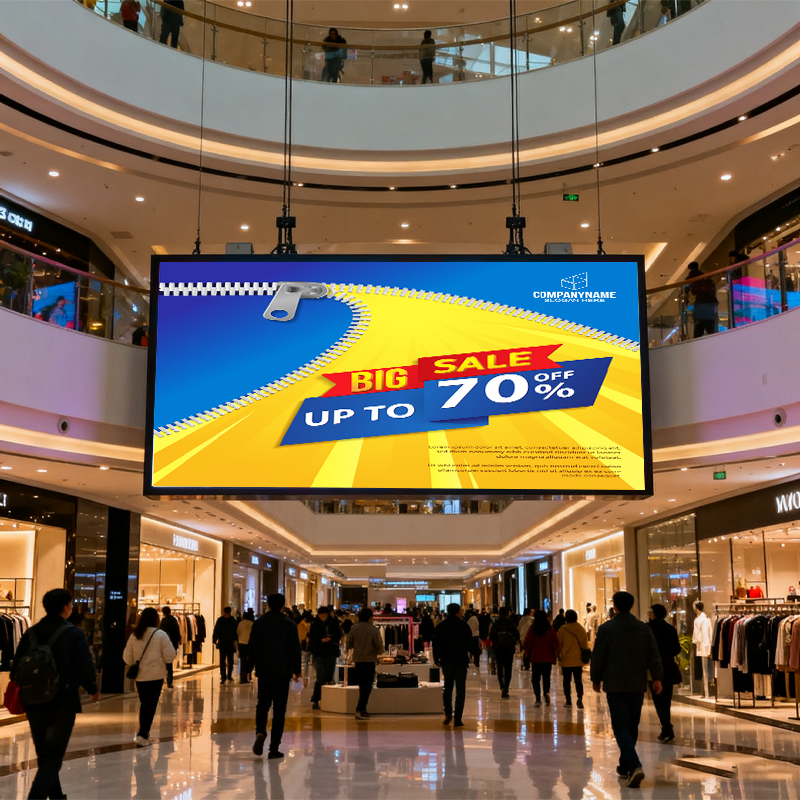

3. Commercial Exhibition & Retail Spaces

In shopping malls, brand stores, and exhibition halls, the display is used for product promotion, brand image display, and interactive experiences. Its vivid color performance and high-definition images can attract customers' attention, enhance the visibility of products and brands, and create a personalized and high-end shopping and exhibition atmosphere.

4. Cultural & Entertainment Venues

In theaters, concert halls, and museums, the display is used for stage background display, cultural relics introduction, and interactive interpretation. The wide color gamut and high contrast ratio can perfectly match the stage atmosphere, creating a immersive audio-visual experience for the audience. In museums, it can display cultural relics details and historical stories in a vivid way, enriching the visiting experience.

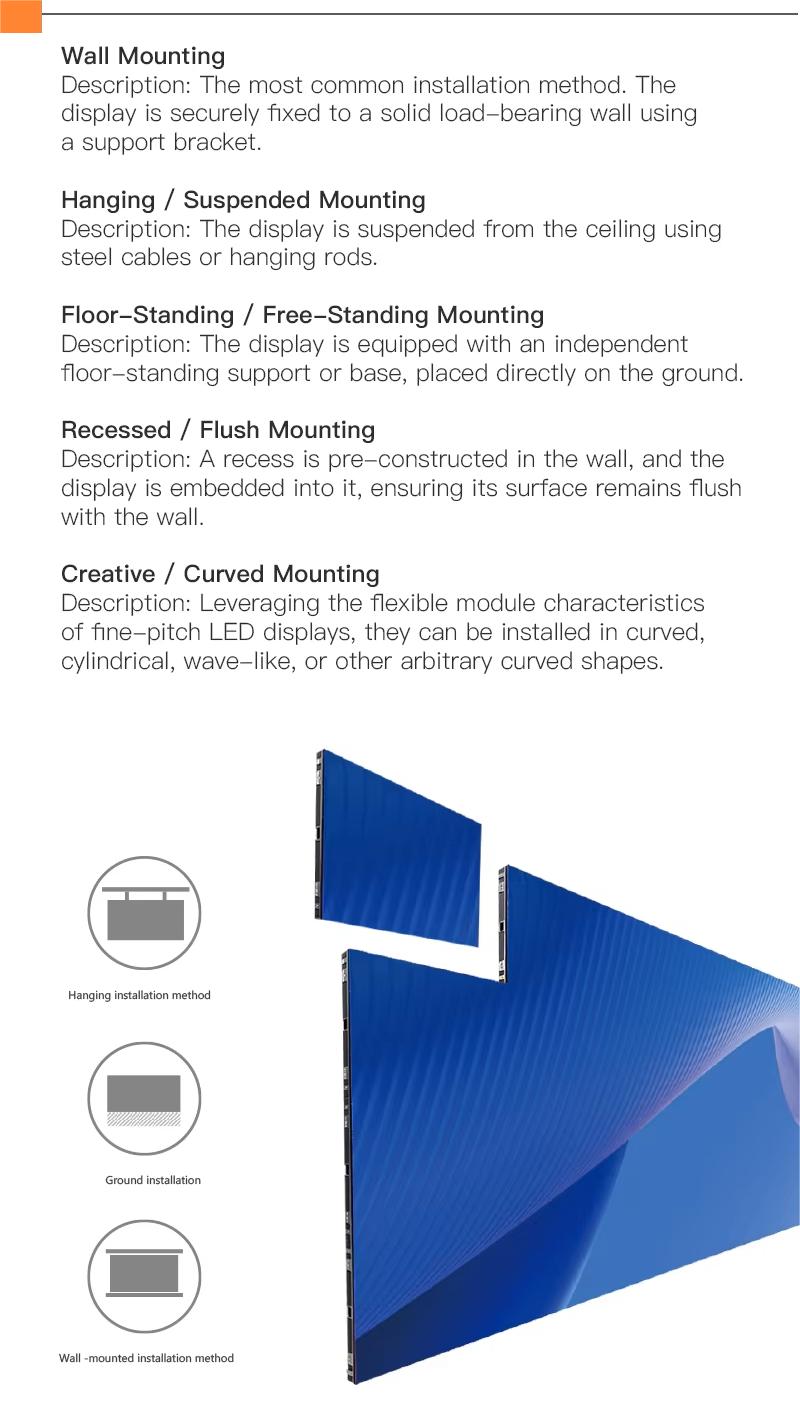

Various installation

Production Process

We have professional LED display production equipment and assembly personnel. You only need to provide your needs, and we will provide you with comprehensive professional services from scratch. From developing production plans to the production and assembly of displays, we will ensure quality and quantity. You can rest assured to cooperate with us.

LED Display Aging and Testing

Aging and testing of LED display modules involves simulating long-term operation to ensure reliability and stability. This process is critical to identifying and resolving potential issues, ultimately improving the efficiency and stability of the LED display.

Conducting burn-in testing is a critical step in quality control to ensure the overall performance and service life of the LED display.
