Huidu T902×2 LED Display Synchronous Sending Box with 8 Network Port for Indoor Outdoor LED Video Wall

Short Description:

HD-T902x2 is a 8 network port synchronous sending box of Huidu,which is equivalent to 4 PCS T901 sending cards and it is used with R series receiving cards. Support multiple T902x2 splicing display.

Supporting computer playback control software HDPlayer and Debugging software HDset.


Product Detail

Product Tags

Configuration List

Product name

Type

Function

Sending card HD-T902x2 Core dashboard, convert and send data.
Receiving card R series receiving cards Connect the screen, show the program to the LED screen
Edit software HDSet Screen debugging and parameter setting of technical parameters.
Debug software HD Show Used for program editing and playback control.
Accessories   DVI cable, USB-B cable, net cable, AC power cable



Control Mode

Synchronous playback computer, television set-top boxes, cameras and other equipment picture.

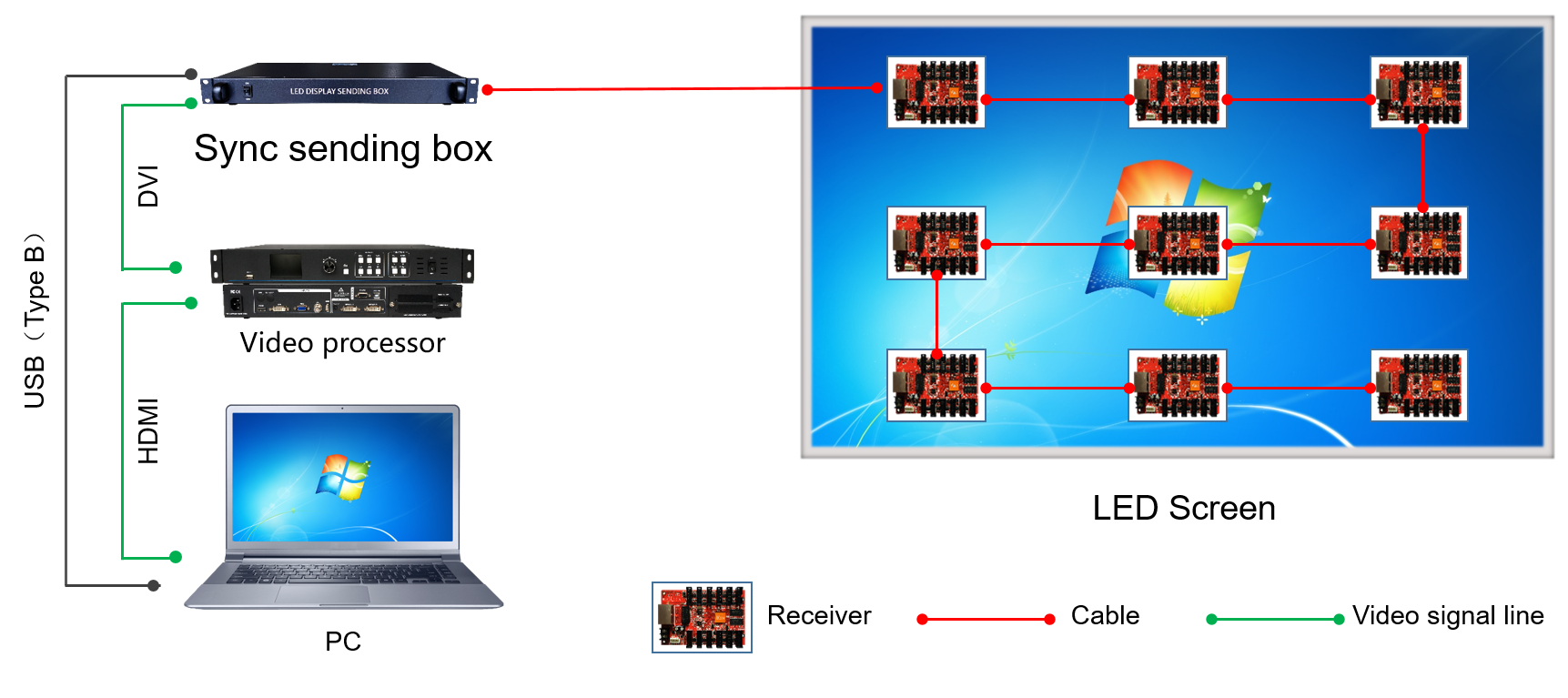

Connection

Product Features

1.  Support 2 dual channel stereo input;

2.  Two DVI video input;

3.  Two USB-B control interface;

4.  Cascading multiple units can be unified control;

5.  Built-in 110V~220V AC to 5V DC transformer;

6.  8 network port output, maximum control of 5.2 million pixels.

System Function List

Function

Parameters

Control range

Connect with video processor maximum control 5.2 million pixels (2560*2048@60Hz)

Widest 7680, Highest 4096

Program update

DVI synchronous display

Audio output

Standard 3.5mm interface dual channel stereo input

Audio input

Need to cooperate with multi-function card to achieve audio output

Communication type

USB-B type interface, Gigabit network port

Play box interface

Input: AC 110~220V 50/60Hz power terminal *1, DVI *2, USB 2.0 *2, dual channel Audio* 2

Output: 1000M RJ45 *8

Operating Voltage

4.5V~5.5V,Input voltage AC 110~220V

Debugging software

HDSet

Player software

HD Show(not necessary)

Power

20W



Dimension

Dimension error ≤1mm

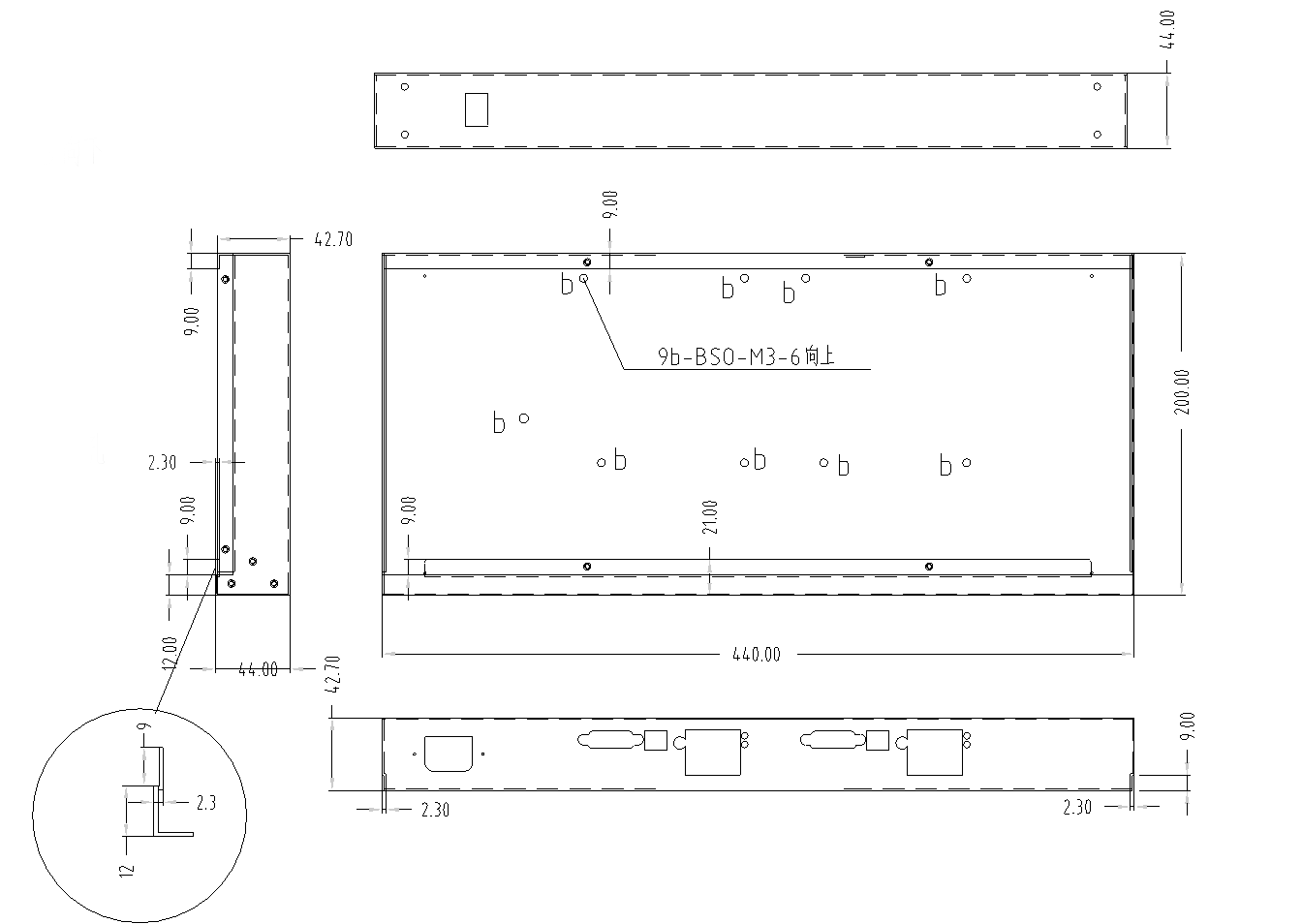

Dimension

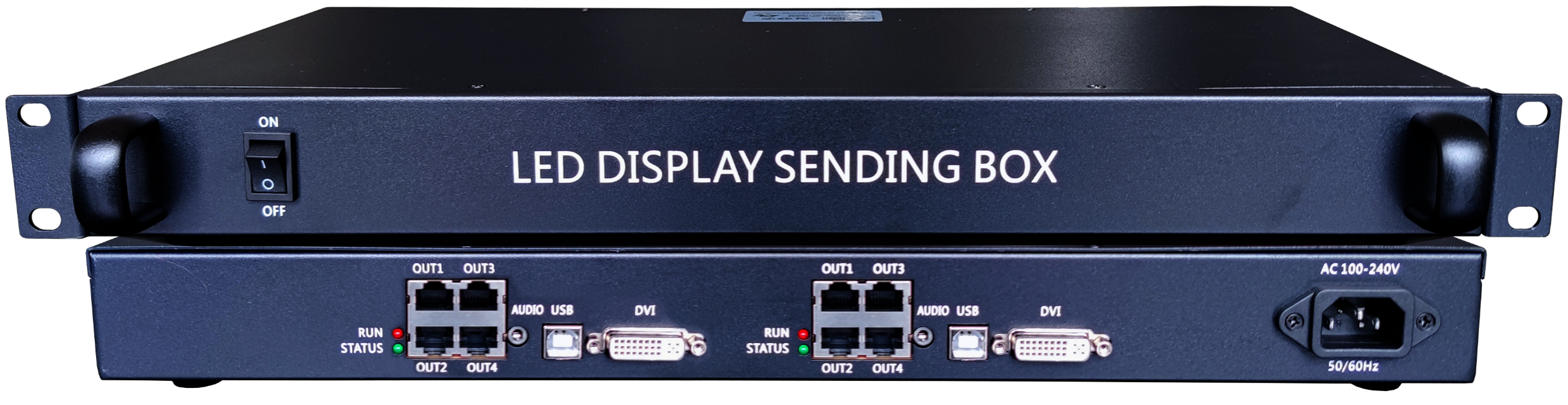

Appearance Description

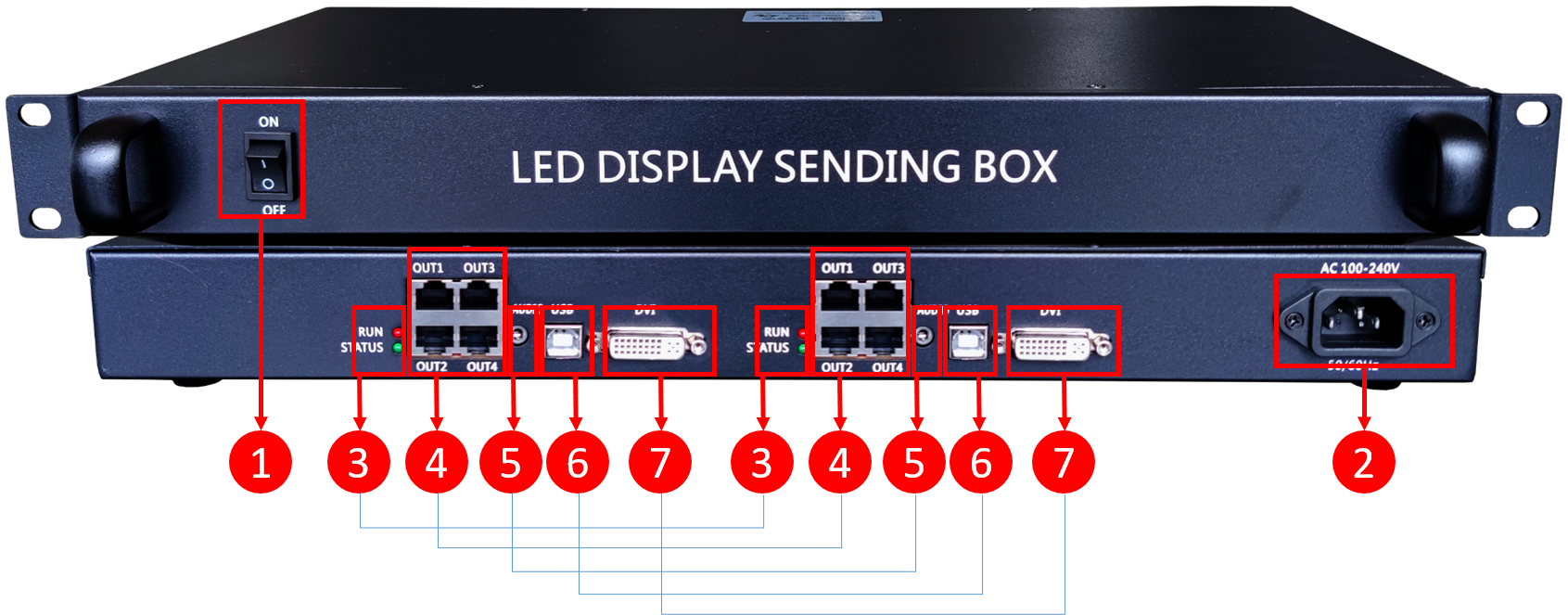

Appearance

1、Power switch:Control the AC of the play box;

2、Power interface:AC 110~220V input;

3、LED Indicator:Working normally, the red light is always on; there is video source input, the green light flashes fast, otherwise it flashes slowly;

4、Network:8 Gigabit Ethernet port outputs, connected to the receiving card;

5、Audio output :Standard 3.5 dual-channel stereo input, transmitted to multi-function card via network cable;

6、USB-B configuration interface :Connect the USB-B male port line to debug;

7、DVI port:Video signal input interface;

Technical Parameters



Minimum

Typical value

Maximum

Rated voltage(V)

110 220 240

Storage temperature(℃)

-40 25 105

Working environment temperature(℃)

-40 25 80

Working environment humidity (%)

0.0 30 95

Net weight(kg)

≈2.38

Certification

CCC、CE、FCC、RoHS、BIS



Attachment: Appearance picture

5
