Huidu T16 4K Synchronous Sending Box with 8.84 Million Pixels 16 Output Ports for Large LED Display

Short Description:

HD-T16 (T16 for short) is a transmitter with powerful video signal reception capabilities, supporting either DP1.4 or HDMI2.0 source inputs. It supports a maximum of 8.84 million (4096×2160) pixels, a maximum width or height of 8192 pixels, and a maximum of 4096×2160@60Hz 4K video signal input, which can greatly meet the configuration requirements of ultra-long, ultra-high and ultra-large screens on site. Integrated 16 Gigabit network port output, can be used in hotels, shopping malls, conference rooms, exhibitions, studios and other occasions that need synchronous playback, while T16 is equipped with Wi-Fi function as standard, supporting wireless control of PC software.

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

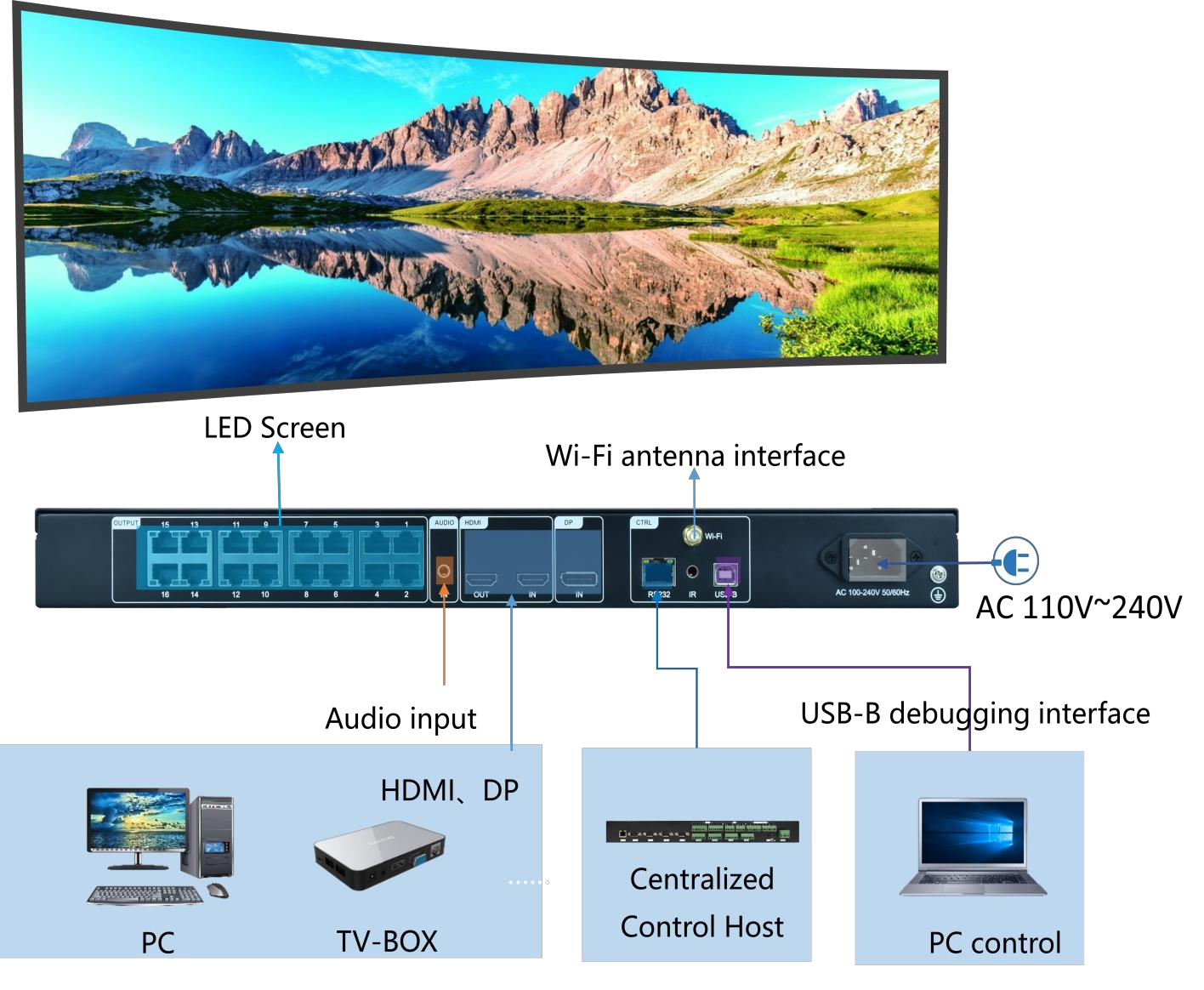

Connection Diagram

Product Features

Input

. Support 1channel of DP1.4, 1 channel of HDMI2.0signal input, two video signals can be switched arbitrarily;

. Support 1 TRS 3.5mm standard two-channel audio input, can be connected to a multi-function card to transmit audio.

Output

. Standard configuration of 16 Gigabit Ethernet ports, directly cascaded to the receiving card;

. 1 channel HDMI OUT, used for display screen program preview;

. The maximum control is 8.84 million pixels (4096x2160), the maximum horizontal support is 8192 pixels, and the maximum vertical support is 8192 pixels.

Function

. Support 4096x2160@60Hz synchronous signal input, point-to-point display;

. Standard Wi-Fi, support PC software wireless control;

. Support key black and freeze function;

. Support multiple units seamless splicing;

. Support infrared remote control (optional).

Dimension

Appearance Description

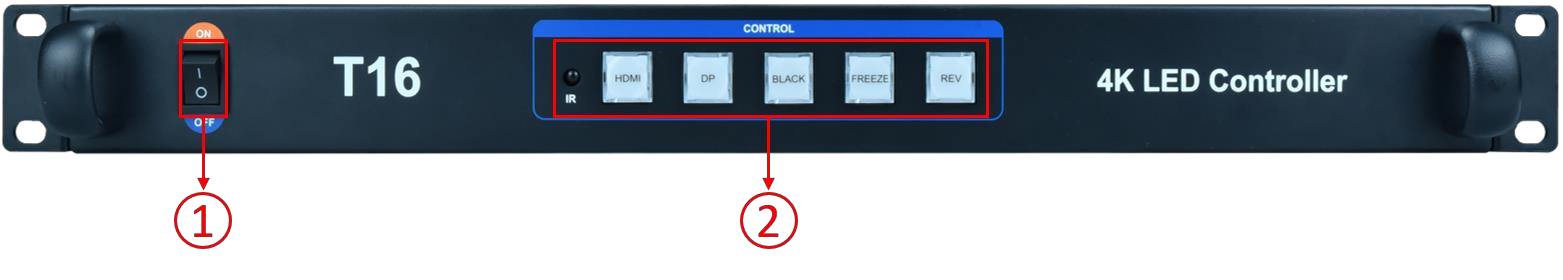

HD-T16 Front panel:

Button description
No.	Name	Description
1	Switch	Control AC Power Input
2	IR	IR: infrared remote control receiver
	HDMI	Select HDMI video signal display
	DP	Select DP video signal display
	BLACK	One key black screen button
	FREEZE	Click to freeze screen
	REV	reserved

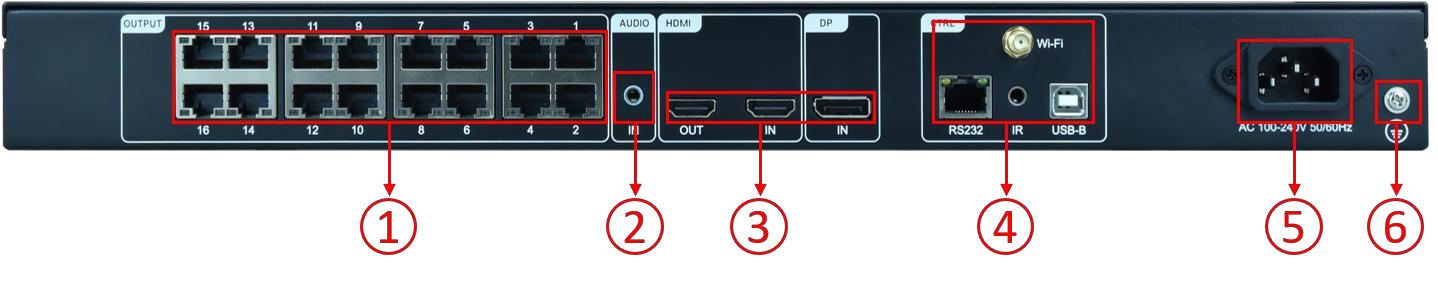

HD-T16 Rear panel:

Input interface
No.	Name	Quantity	Description
2	AUDIO IN	1	TRS 3.5mm two-channel audio input interface
3	HDMI	1	. HDMI2.0 Input interface, interface form: HDMI-A . Signal standard: HDMI 2.0 backward compatible . Maximum input resolution: 4096x2160@60Hz . Customizable resolution: Extreme width: 8192x1080@60Hz; Extreme height: 1080x8192@60Hz
3	DP	1	. DP Input interface, interface form: DP . Signal standard: DP1.4backward compatible . Maximum input resolution: 4096x2160@60Hz . Customizable resolution: Extreme width: 8192x1080@60Hz; Extreme height: 1080x8192@60Hz
5	Power	1	AC 100 ~ 240V, 50/60Hz

Output interface
No.	Name	Quantity	Description
1	Gigabit Ethernet port	16	. Used to cascade receiving cards to transmit RGB data streams . Network port 1 supports audio transmission . Each network port controls 650,000 pixels(max width 4096, max height 2048)
3	HDMI OUT	1	HDMI OUT, Used to monitor what's playing on the display

Control interface
No.	Name	Quantity	Description
4	USB-B	1	Connect to a computer for debugging the device
	RS232	1	RJ45 interface, Centrally controlled by connecting to a central control device
	Wi-Fi	1	Connect a Wi-Fi antenna
	IR	1	It is used to connect an external infrared remote control extension cable

Technical Parameters

Parameter item		Parameter value
Chassis specifications		1U standard
Electrical Specifications	Power supply	AC 100~240V 50/60Hz
Electrical Specifications	Power consumption	30W
Working environment	Working temperature (℃)	-20℃~60℃
Working environment	Working humidity (RH)	20%RH~90%RH (no condensation)
Storage environment	Storage temperature (℃)	-20℃~70℃
Storage environment	Storage humidity (RH)	10%RH~95%RH (no condensation)
Equipment Specifications	Size	W×H×D/480mm×44mm×240mm
Equipment Specifications	Net weight	3.1KG
Packing specifications	Packing size	W×H×D/515mm×82mm×355mm
Packing specifications	Packing weight	4.1KG
