HD-T08F (T08F for short) is a transmitter with powerful video signal reception capabilities, supporting either DP1.4 or HDMI 2.0 source inputs. It supports a maximum of 5.2 million pixels,a maximum width or height of 8192 pixels, and a maximum of 4096×2160@60Hz 4K video signal input, which can greatly meet the configuration requirements of ultra-long, ultra-high and ultra-large screens on site. It supports 2 channel of 10Goptical ports, which  can  be  connected  to  receiving  equipment  via  fiber  optic  cable  to  achieve  long-distance  signal synchronization; Integrated 8 Gigabit network port output, can be used in hotels, shopping malls, conference rooms, exhibitions, studios and other occasions that need synchronous playback, while T08F is equipped with Wi-Fi function as standard, supporting wireless control of PC software.


Whatsapp Email

Product Detail

Product Tags

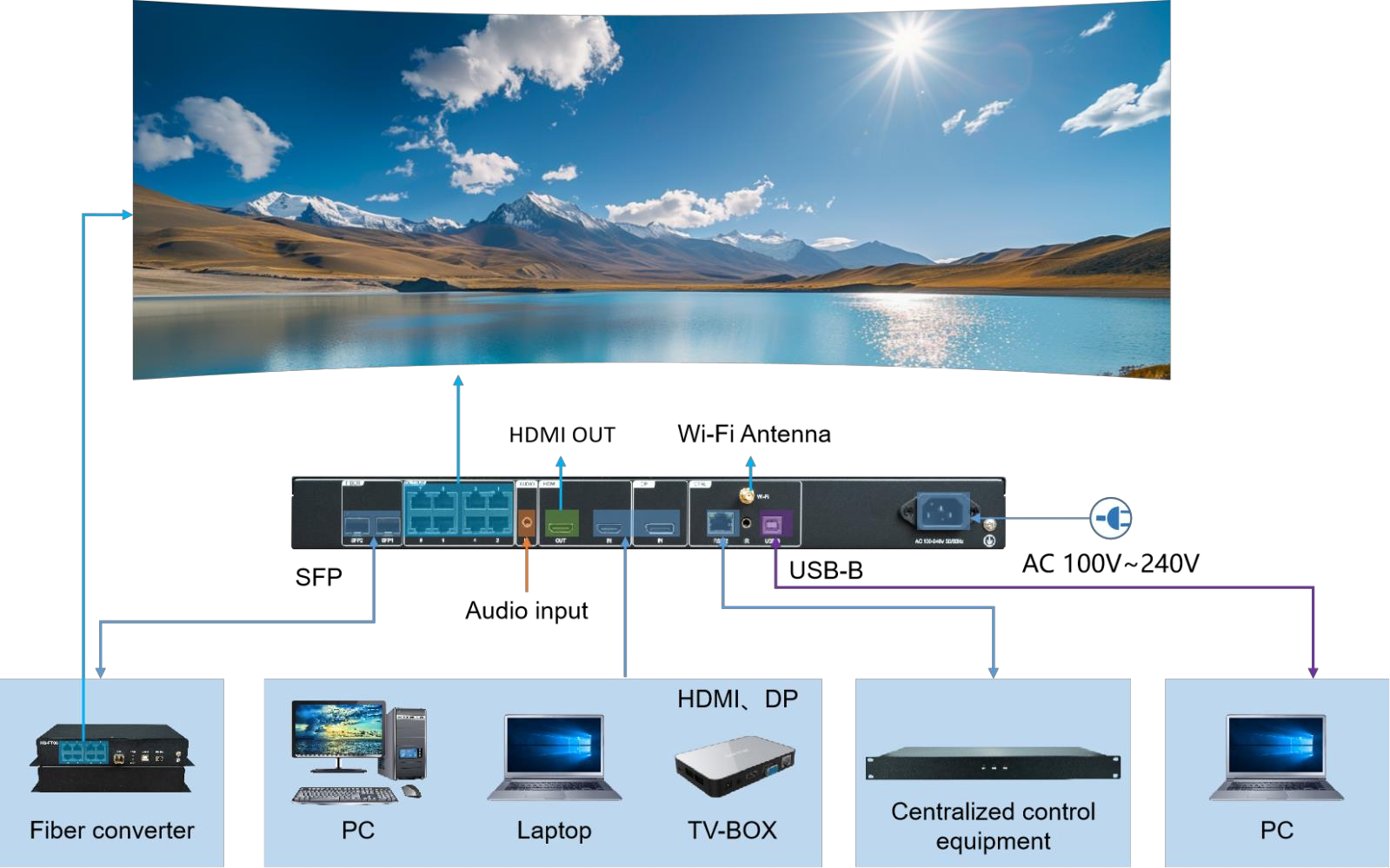

Connection Diagram

Huidu T08F

Product Features

Input:

. Support 1channel of DP 1.4, 1 channel of HDMI 2.0signal input, two video signals can be switched arbitrarily;

. Support 1 TRS 3.5mm standard two-channel audio input, can be connected to a multi-function card to transmit audio.



Output:

. 2 channel of 10Goptical ports copy output, each optical port can transmit data from 8 Gigabit network ports and support signal transmission over long distances;

. Standard configuration of 8 Gigabit Ethernet ports, directly cascaded to the receiving card;

. 1 channel HDMI OUT, used for display screen program preview;

. The maximum loading capacity is 5.2 million pixels, the maximum horizontal support is 8192 pixels, and the maximum vertical support is 8192 pixels.



Function:

. Support 4096x2160@60Hz synchronous signal input, pixel-to-pixel display;

. Standard Wi-Fi, support PC software wireless control;

. Support key black and freeze function;

. Support multiple units seamless splicing;

. Support infrared remote control (optional).

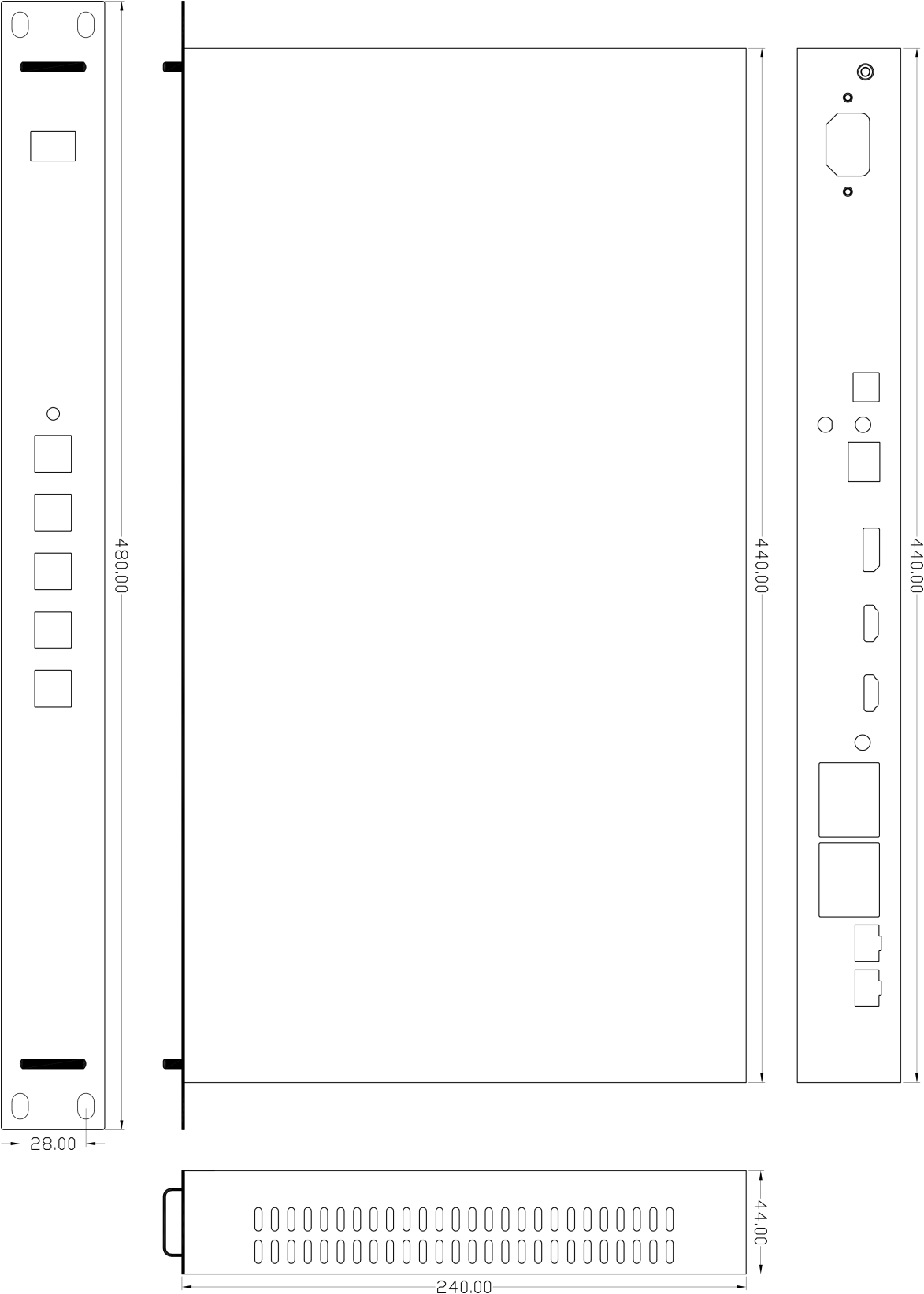

Dimension

Huidu Sending Box T08F

Appearance Description

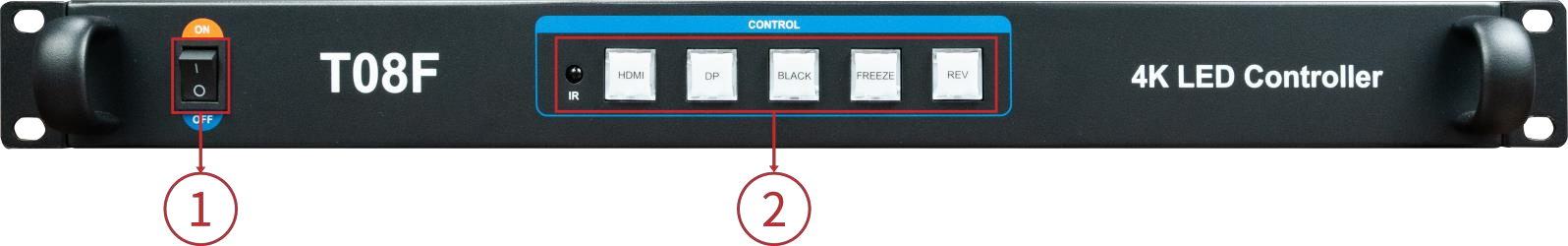

HD-T08F Front panel:

Huidu T08F
Button description
No. Name Quantity
1 Switch Control AC Power Input






2

 IR IR: infrared remote control receiver
HDMI Select HDMI video signal display
DP Select DP video signal display
BLACK One key black screen button
FREEZE Click to freeze screen
REV reserved

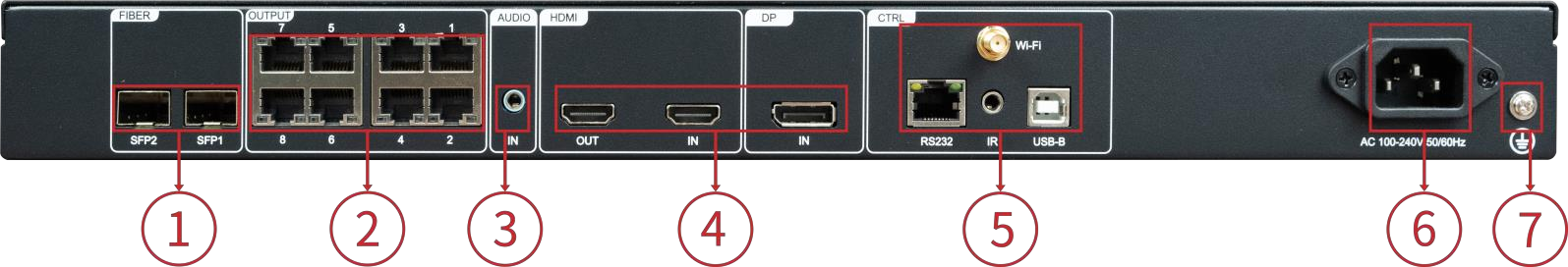

HD-T08F Rear panel:

Huidu T08F
Input interface
No. Name Quantity Description
3 AUDIO IN 1 TRS 3.5mm two-channel audio input interface














4







HDMI







1

 . HDMI2.0 Input interface, interface form: HDMI-A

. Signal standard: HDMI 2.0 backward compatible

. Maximum input resolution: 4096x2160@60Hz

. Customizable resolution

Maximum width: 8192x1080@60Hz  Maximum height: 1080x8192@60Hz






DP







1

 . DP Input interface, interface form: DP

. Signal standard: DP1.4 backward compatible

. Maximum input resolution: 4096x2160@60Hz

. Customizable resolution

Maximum width: 8192x1080@60Hz  Maximum height: 1080x8192@60Hz
6 Power 1 AC 100 ~ 240V, 50/60Hz
7 GND 1 Connect to Ground



Output interface
No. Name Quantity Description




2



Gigabit

Ethernet

port





8

 . Used to cascade receiving cards to transmit RGB data streams

. Network port 1 supports audio transmission

. Each network port controls 650,000 pixels(max width 4096,max height 2048)
4 HDMI OUT 1 HDMIOUT, Used to monitor what's playing on the display


1



SFP



2

 . Single-mode dual-core 10-gigabit optical port, used for ultra-long distance video signal transmission, SFP1, SFP2 copy output

. Each optical port controls 8 network ports



Control interface
No. Name Quantity Description






5

 USB-B 1 Connect to a computer for debugging the device
RS232 1 RJ45 interface, Centrally controlled by connecting to a central control device
Wi-Fi 1 Connect a Wi-Fi antenna
IR 1 It is used to connect an external infrared remote control extension cable



Technical Parameters

Parameter item Parameter value
Chassis specifications 1U standard
Electrical Specifications Power supply AC 100~240V 50/60Hz
Power consumption 30W
Working environment Working temperature (℃) -20℃~60℃℃
Working humidity (RH) 20%RH~90%RH (no condensation)
Storage environment Storage temperature (℃) -20℃~70℃℃℃
Storage humidity (RH) 10%RH~95%RH (no condensation)
Equipment Specifications Size W×H×D/480mm×44mm×240mm
Net weight 3.1KG
Packing specifications Packing size W×H×D/515mm×82mm×355mm
Packing weight 4.1KG
