Huidu T08 Sending Card Box LED Display Controller with 5.2 Million Pixels for Full Color LED Video Wall

Short Description:

HD-T08 (T08 for short) is a transmitter with powerful video signal reception capabilities, supporting either DP1.4 or HDMI 2.0 source inputs. It supports a maximum of 5.2 million pixels,a maximum width or height of 8192 pixels, and a maximum of 4096×2160@60Hz 4K video signal input, which can greatly meet the configuration requirements of ultra-long, ultra-high and ultra-large screens on site. Integrated 8 Gigabit network port output, can be used in hotels, shopping malls, conference rooms, exhibitions, studios and other occasions that need synchronous playback, while T08 is equipped with Wi-Fi function as standard, supporting wireless control of PC software.

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

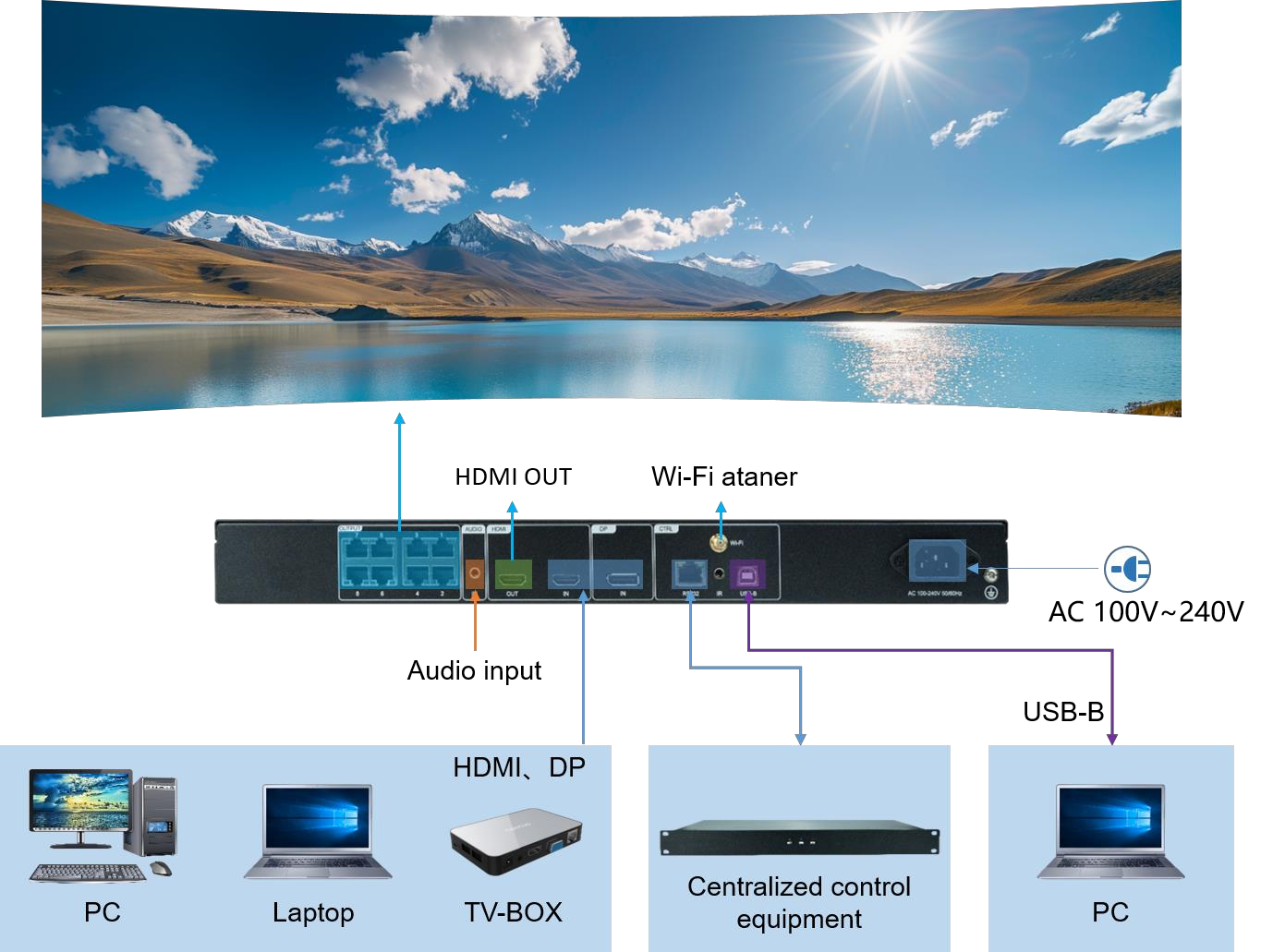

Connection Diagram

Product Features

Input:

. Support 1 channel of DP 1.4, 1 channel of HDMI 2.0 signal input, two video signals can be switched arbitrarily;

. Support 1 TRS 3.5mm standard two-channel audio input, can be connected to a multi-function card to transmit audio.

Output:

. Standard configuration of 8 Gigabit Ethernet ports, directly cascaded to the receiving card;

. 1 channel HDMI OUT, used for display screen program preview;

. The maximum control is 5.2 million pixels, the maximum horizontal support is 8192 pixels, and the maximum vertical support is 8192 pixels.

Function:

. Support 4096x2160@60Hz synchronous signal input, point-to-point display;

. Standard Wi-Fi, support PC software wireless control;

. Support key black and freeze function;

. Support multiple units seamless splicing;

. Support infrared remote control (optional).

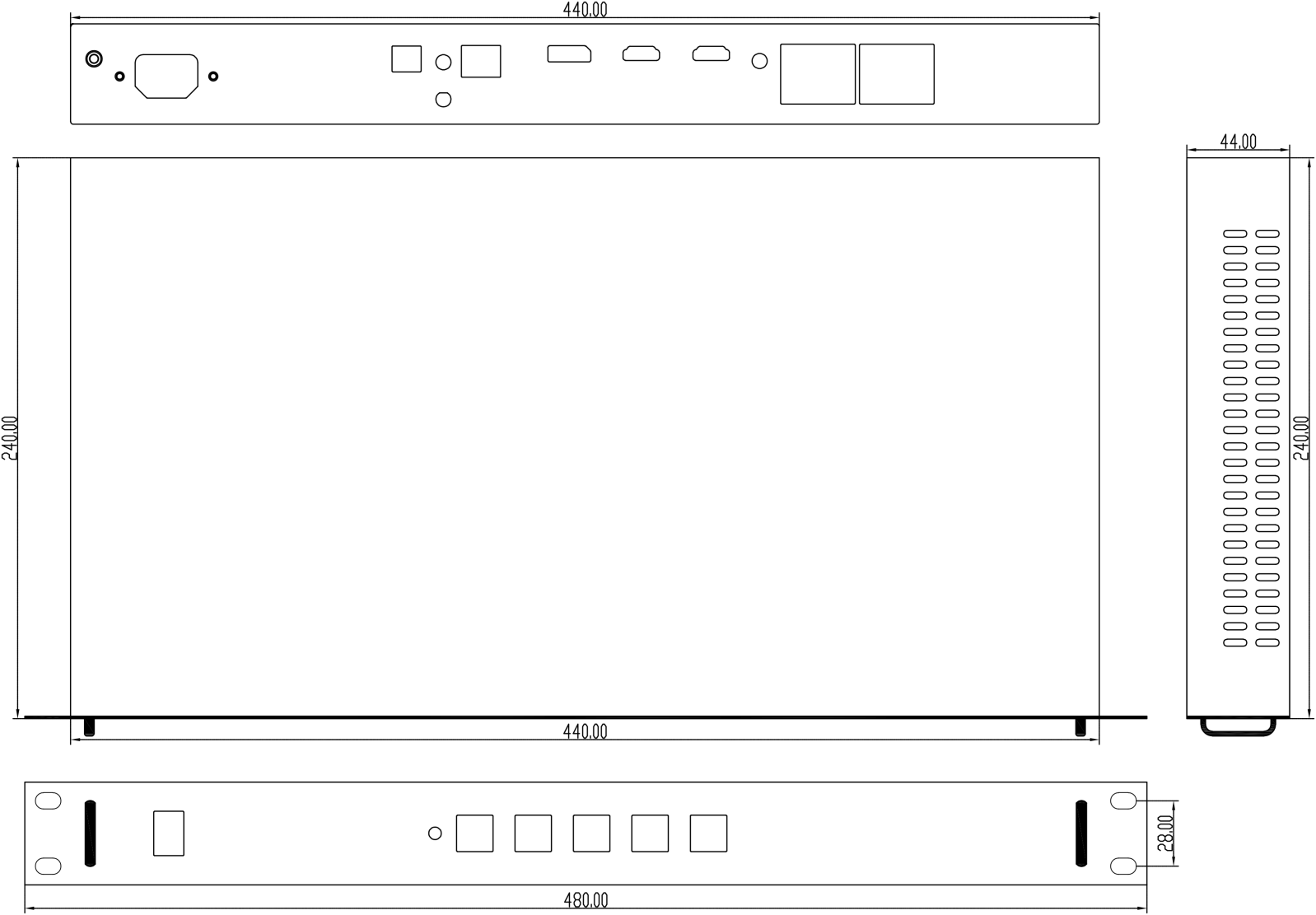

Dimension

Appearance Description

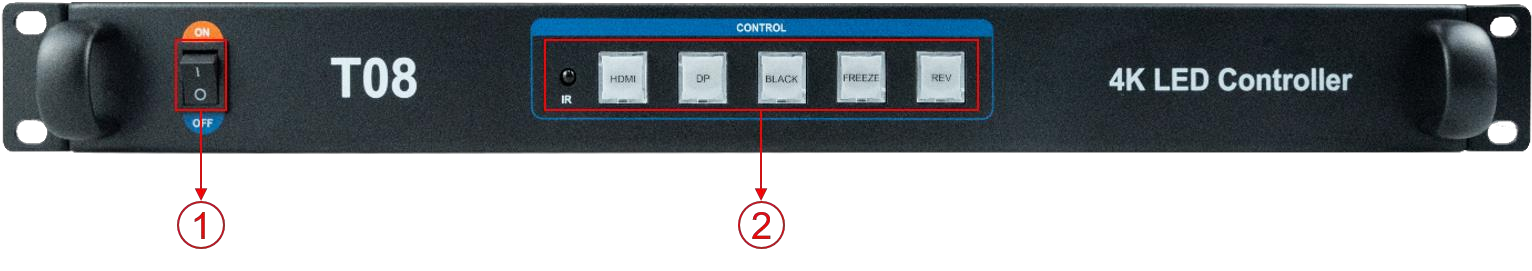

HD-T08Front panel:

Button description
No.	Name	Quantity
1	Switch	Control AC Power Input
2	IR	IR: infrared remote control receiver
	HDMI	Select HDMI video signal display
	DP	Select DP video signal display
	BLACK	One key black screen button
	FREEZE	Click to freeze screen
	REV	reserved

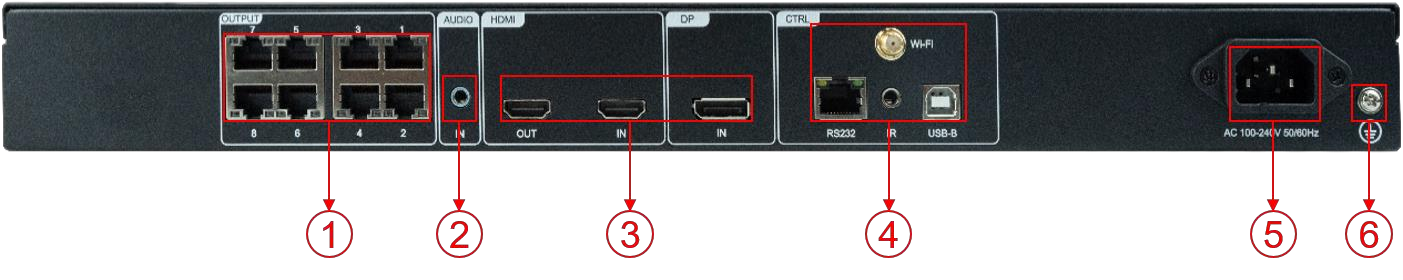

HD-T08 Rear panel:

Input interface
No.	Name	Quantity	Description
2	AUDIO IN	1	TRS 3.5mm two-channel audio input interface
3	HDMI	1	. HDMI2.0 Input interface, interface form: HDMI-A . Signal standard: HDMI 2.0 backward compatible . Maximum input resolution: 4096x2160@60Hz . Customizable resolution Extreme width: 8192x1080@60Hz Extreme height: 1080x8192@60Hz
3	DP	1	. DP Input interface, interface form: DP . Signal standard: DP1.4backward compatible . Maximum input resolution: 4096x2160@60Hz . Customizable resolution Extreme width: 8192x1080@60Hz Extreme height: 1080x8192@60Hz
5	Power	1	AC 100 ~ 240V, 50/60Hz

Output interface
No.	Name	Quantity	Description
1	Gigabit Ethernet port	8	. Used to cascade receiving cards to transmit RGB data streams . Network port 1 supports audio transmission . Each network port controls 650,000 pixels(max width 4096,max height 2048)
3	HDMI OUT	1	HDMI OUT, Used to monitor what's playing on the display

Control interface
No.	Name	Quantity	Description
4	USB-B	1	Connect to a computer for debugging the device
	RS232	1	RJ45 interface, Centrally controlled by connecting to a central control device
	Wi-Fi	1	Connect a Wi-Fi antenna
	IR	1	It is used to connect an external infrared remote control extension cable

Technical Parameters

Parameter item		Parameter value
Chassis specifications		1U standard
Electrical Specifications	Power supply	AC 100~240V 50/60Hz
Electrical Specifications	Power consumption	30W
Working environment	Working temperature (℃)	-20℃~60℃
Working environment	Working humidity (RH)	20%RH~90%RH (no condensation)
Storage environment	Storage temperature (℃)	-20℃~70℃
Storage environment	Storage humidity (RH)	10%RH~95%RH (no condensation)
Equipment Specifications	Size	W×H×D/480mm×44mm×240mm
Equipment Specifications	Net weight	3.1KG
Packing specifications	Packing size	W×H×D/515mm×82mm×355mm
Packing specifications	Packing weight	4.1KG
