Huidu R732 with HUB320 Ports Small Size Receiving Card for Small Pixel Pitch LED Display Screen

Huidu R732 with HUB320 Ports Small Size Receiving Card for Small Pixel Pitch LED Display Screen Featured Image
  • Huidu R732 with HUB320 Ports Small Size Receiving Card for Small Pixel Pitch LED Display Screen
  • Huidu R732 with HUB320 Ports Small Size Receiving Card for Small Pixel Pitch LED Display Screen

Short Description:

R732 is a receiving card used for fine pixel pitch LED screen, the maximum loading capacity is 256*1024 pixels.


Whatsapp Email

Product Detail

Product Tags

Parameters Table

Features Parameters
Fit for sender Dual-mode Player box, Asynchronous controller,Synchronous sending card, 3 in 1 Video processor
Module type Compatible with all common IC module, supported most PWM IC module.
Scan mode Supports any scanning method from static to 1/128 scan
Communication method Gigabit Ethernet
Control range Max Recommend：262,144 pixels (256*1024)Note: P1.538 and P1.25 can be fully loaded with 8 ports
Multi-card connection Receiving card can be put in any sequence
Gray scale 256~65536
Smart setting A few simple steps to complete the smart settings, through the screen layout can be set to go with any alignment of the screen unit board
Test functions Receiving card integrated screen test function, Test display brightness uniformity and display module flatness.
Communication distance Super Cat5,Cat6 network cable within 80 meters
Port 5V DC Power*2,1Gbps Ethernet port*2, HUB320*8
Input voltage 4.0V-5.5V
Power 5W

Connection method

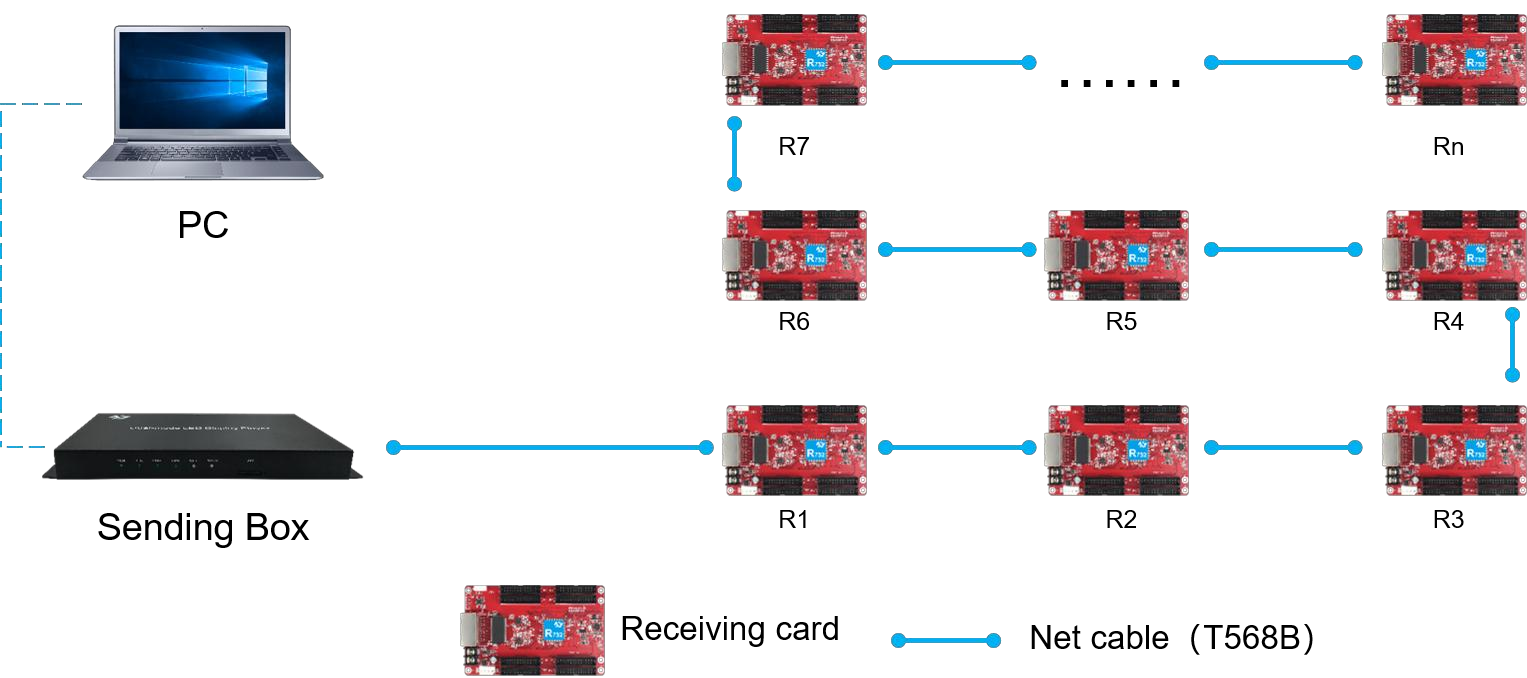

Connection diagram of connecting R732 with sending box

Connection

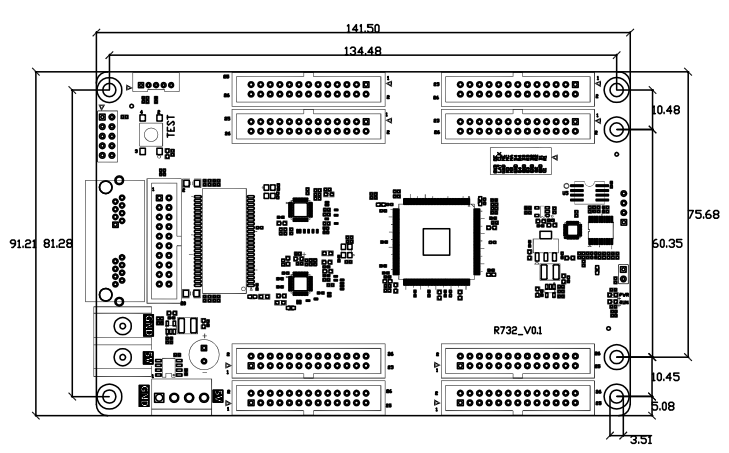

Dimension Chart

Dimensions

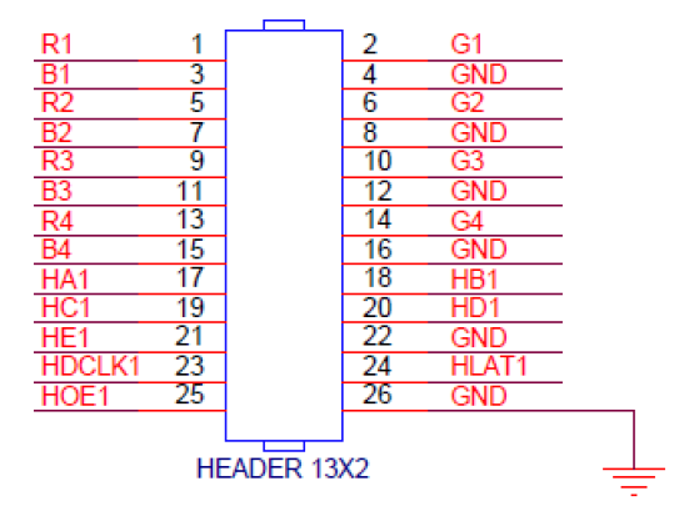

Interface definition

Interface Definition

Technical Parameters

Item Parameter value
Rated Voltage (V) DC 4.0V-5.5V
Working Temperature (℃) -40℃~80℃
Working Environment Humidity (%RH) 0~90%RH
Storage Environment Humidity (%RH) 0~90%RH
Net weight (g) ≈91g



Precaution:

1） Ensure the system long-termstable running, please use the standard power supply.

2） Please do not operate with electricity

3） Due to the production batch and other reasons, there may be aslight error between the photo and the real thing. If in doubt, please confirm with us.

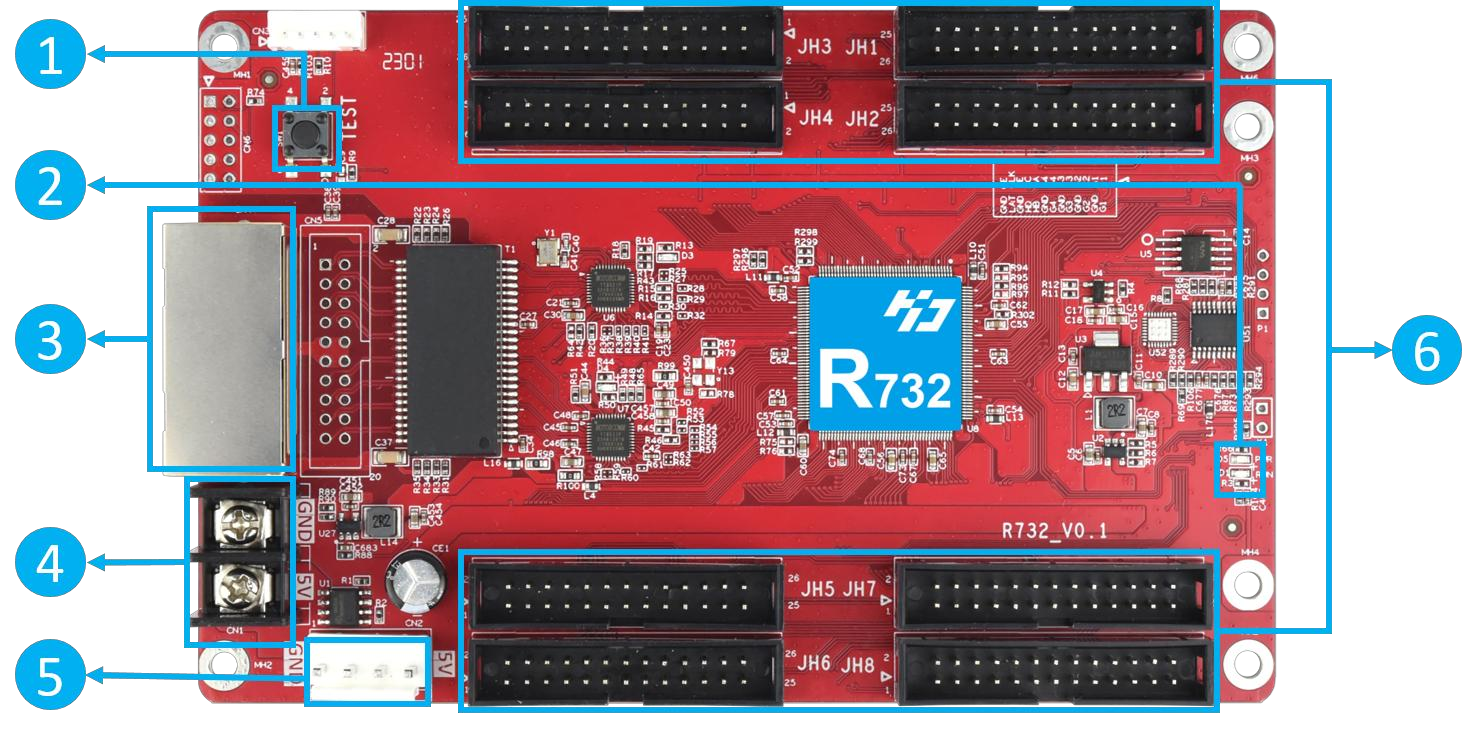

Interface Description

Interface Description



No. Interface Description
1 Test button Used to test display brightness uniformity and display module flatness.




2





Work indicator

 1.    PWR (D5) always on green, the power supply is normal.

2.    PWR(D5)green, 1 second on 1 second off, network connection is abnormal or no video signal; 1 second flash 4 times, the receiver card is working normally, the video signal is normal; 2.5 seconds flash 5 times 1.5 seconds off, the receiver card parameters have been locked.
3 Gigabit Ethernet port Used to connect the sending card or receiving card, the same two network ports are interchangeable.
4 Power interface Can be accessed with 4.0V ~ 5.5V DC voltage.
5 Power interface Can be accessed with 4.0V ~ 5.5V DC voltage; (4, 5 connect one of them is ok.)
6 Flat cable interface HUB320 port, connect to the modules
