Huidu LED Video Processor VP410S 3 in 1 Video Processing Controller for Indoor Outdoor Full Color LED Display

Short Description:

HD-VP410S is a three-in-one video processor that integrates traditional video processor, 4-way Gigabit network port output, and U disk playback functions. It not only simplifies the construction of the on-site environment, but also improves the reliability of the product. It supports 2 channels of synchronous signal input and 1 channel of USB input, and can be used in hotels, shopping malls, conference rooms, exhibitions, studios and other occasions that require synchronous playback; in addition, the device also supports point-to-point input/output to
allow the LED display to display A clearer picture.

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

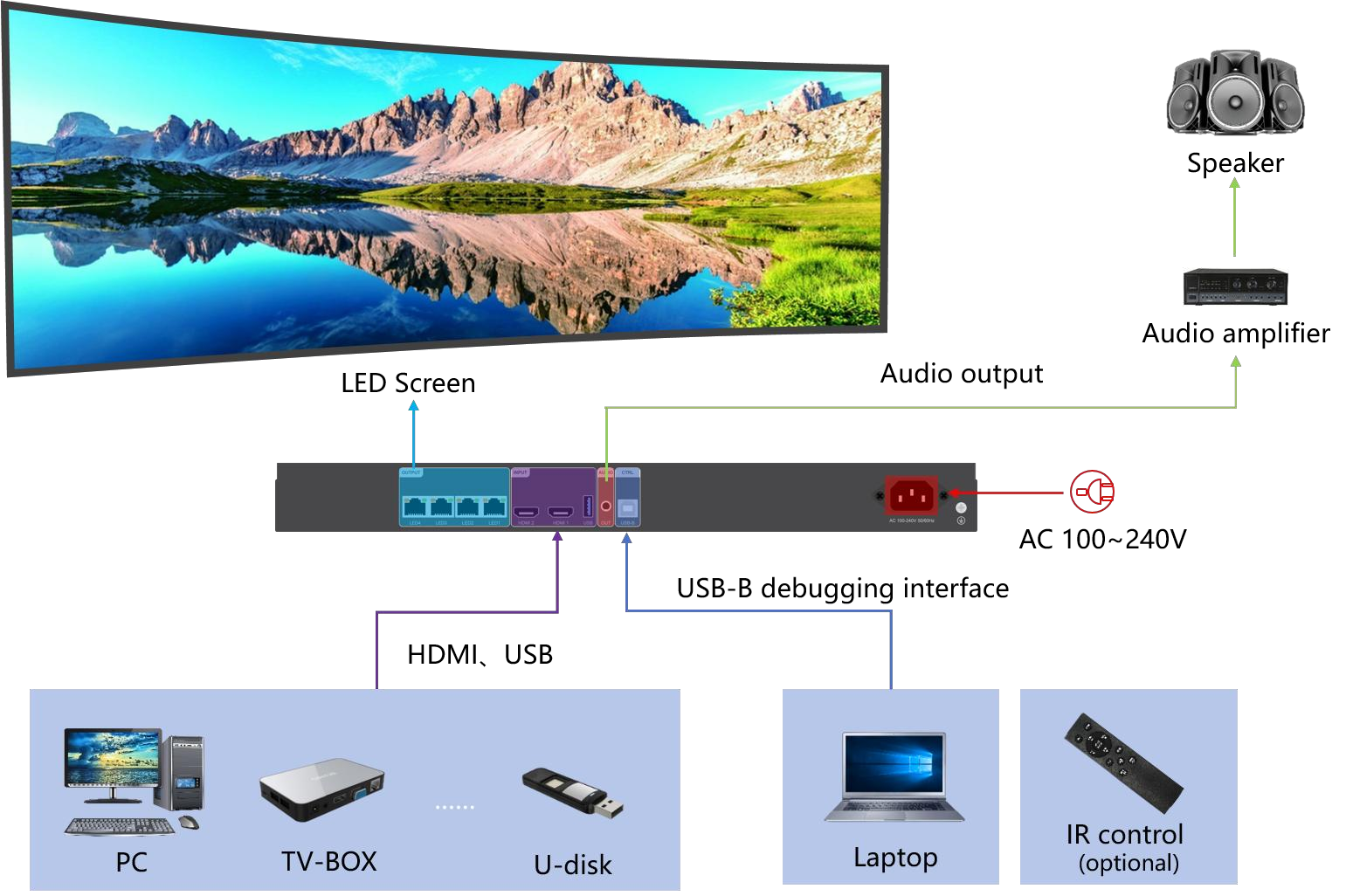

Connection Diagram

Product Characteristics

Input

. Supports 2 channels of HDMI, which can be switched at will;
. 1 channel USB input supports direct playback of videos and pictures in various mainstream formats in the root directory of the USB flash drive, and supports up to 1920× 1080@30Hz high-definition video playback;
. Supports 2 channel HDMI audio input (choose one of two playback).

Output

. Comes standard with 4-way Gigabit network ports, which can be directly cascaded to the receiving card;
. The maximum loading capacity is 2.6 million pixels, with a maximum width support of 3840 pixels or a maximum height support of 2500 pixels;
. 1 channel TRS 3.5mm standard two-channel audio output.

Features

. Support limited transfer to complete;
. Support one-touch brightness adjustment;
. Supports locking buttons to prevent misuse of the display from causing abnormalities;
. Video signals can be switched, cropped, and zoomed arbitrarily;
. Support infrared remote control (optional).

Appearance Description

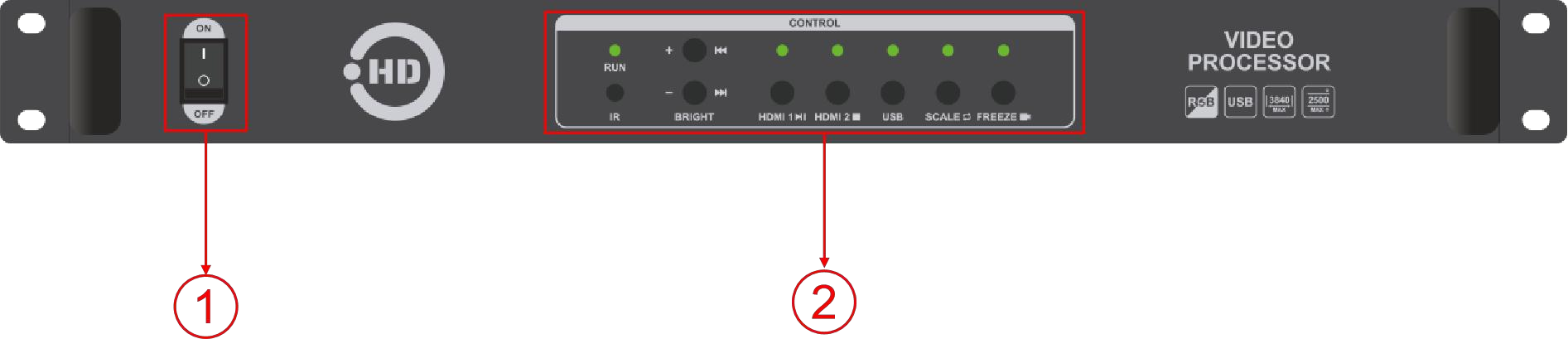

Front panel：

Key Description
No.	Button	Description
1	Power switch	Controls AC power input
2	RUN	Device running status indicator
	IR	Receive infrared remote control
	BRIGHT+	Brightness increases / Play the next program file in the U-disk
	BRIGHT-	Brightness decreases / Play the previous program file in the U-disk
	HDMI1	Select HDMI signal to play/Play the previous U-disk program
	HDMI2	Select HDMI signal to play/Play the next U-disk program
	USB	Select to play U disk program/Stop playing U-disk program
	SCALE	Partial/full screen switch button
	FREEZE	Freeze with one click / Video and image switching playback

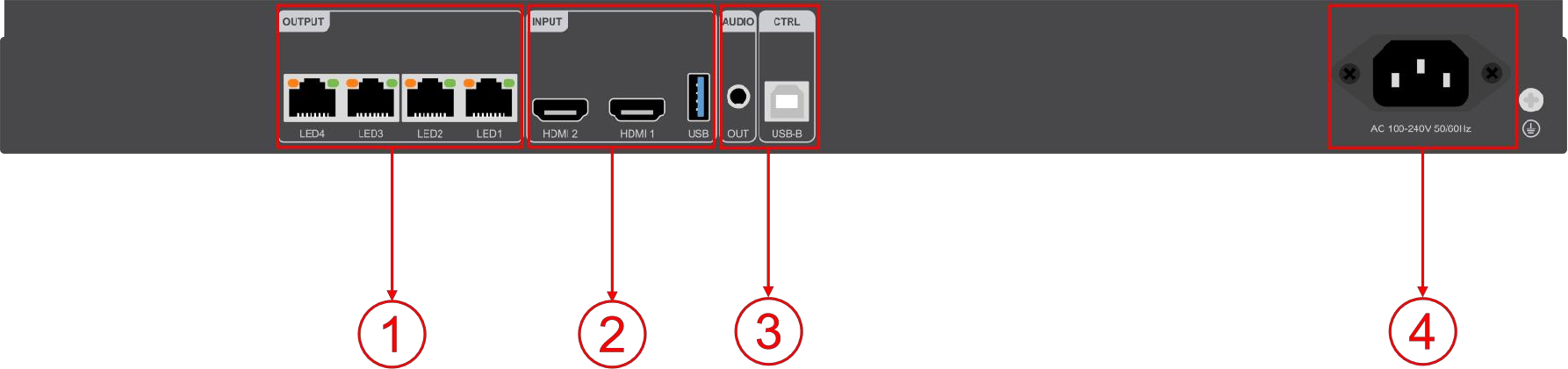

Rear panel：

Input interface
No.	Interface name	Quantity	Description
2	USB	1	USB2.0 input interface, adapted to USB3.0 U-disk can be inserted to play videos and pictures Video file formats: mp4, avi, mpg, mkv, mov, vob and rmvb; Video encoding: MPEG4 (MP4), MPEG_SD/HD, H.264 (AVI, MKV), FLV; Image file formats: jpg, jpeg, png and bmp Video resolution: maximum support 1920× 1080@30Hz
2	HDMI	2	HDMI input interface Interface form: HDMI-A Signal standard: HDMI1.4 backward compatible Resolution: VESA standard, ≤1920× 1080p@60Hz Support audio input
4	Power supply	1	AC 100~240V, 50/60Hz

Output Interface
No.	Interface name	Quantity	Description
1	Gigabit network port	4	Used to cascade receiving cards to transmit RGB data streams; each network port controls a range of 655,360 pixels. Support docking multi-function card
3	AUDIO OUT	1	TRS 3.5mm two-channel audio output interface Connect to audio power amplifier for high-power audio external amplifier

Control interface
No.	Interface name	Quantity	Description
3	USB-B	1	Connect to computer for debugging equipment

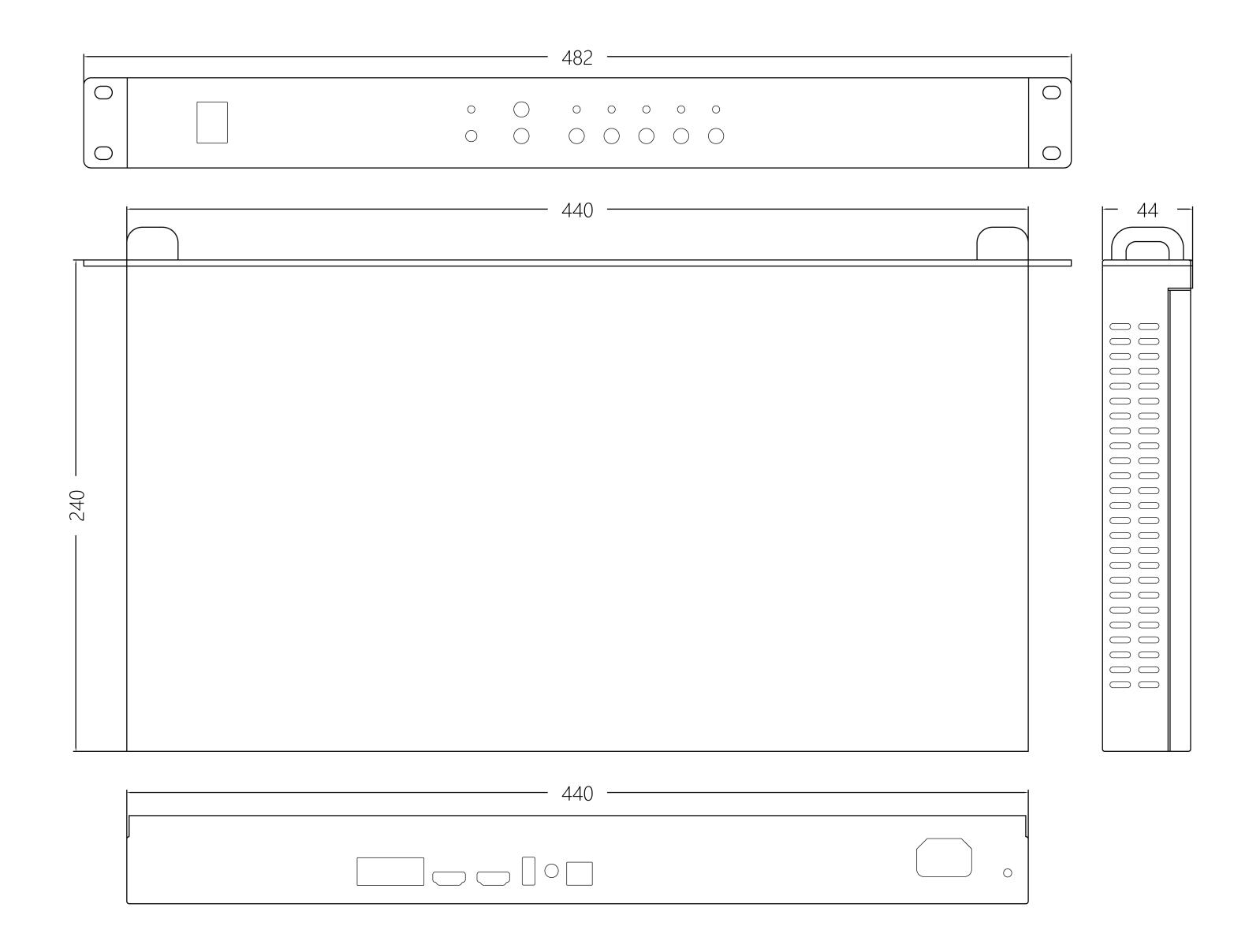

Dimensions

Basic Parameters

Parameter item		Parameter value
Chassis specifications		1U standard
ElectricalSpecifications	Power supply	AC 100~240V 50/60Hz
	Power consumption	14W
Workingenvironment	Working temperature (℃)	-20℃~55℃
	Working humidity (RH)	20%RH~90%RH (no condensation)
Storageenvironment	Storage temperature (℃)	-20℃~60℃
	Storage humidity (RH)	10%RH~95%RH (no condensation)
EquipmentSpecifications	Size	W×H×D/482mm×44mm×240mm
	Net weight	2.4KG
Packingspecifications	Packing size	W×H×D/515mm×82mm×355mm
	Packing weight	3.5KG
