Huidu C08L LED Multimedia Player Card with 8 HUB75E for Ports Light Pole Screens Door Screens Vehicle Screens

Short Description:

HD-C08L is a new generation LED multimedia playback card that integrates 8 HUB75E interfaces, eliminating the need for a computer as a video signal source; It supports the playback of videos, picture, GIF animations, text, WPS documents, tables, clocks, timings and other program contents; It supports 60Hz frame rate output, smooth word movement and remote control of power supply and other functions.

C08L comes standard with WiFi and supports mobile APP-”LedArt” wireless control; It supports access to the “XiaoHui Cloud” platform to easily realize remote cluster management on the Internet; It supports USB interface to update programs; It supports external various environmental monitoring sensors, achieving real-time viewing of environmental monitoring data; C08L is widely used in smart commercial displays and smart city fields, such as light pole screens, door screens, vehicle screens and other advertising and display fields.


Product Detail

Product Tags

Product Features

Input

1. Support 1 channel 100M communication network port, used for debugging parameters, sending programs and accessing the Internet;

2. Support 1 channel USB communication interface, which can be used to update programs and expand capacity;

3. Support 1 channel dedicated interface for temperature sensor, 1 channel dedicated interface for GPS sensor and 1 channel universal sensor input interface.



Output

1. The maximum control range is 196,000 pixels, the maximum width is 2048 pixels , or the maximum height is 1024 pixels;

2. Onboard 8 sets HUB75E interfaces;

3. 1 channel TRS 3.5mm standard two-channel audio output.



Functions

1. Comes standard with 2.4GHz Wi-Fi and supports mobile APP wireless control (supports Wi-Fi-AP, Wi-Fi-STA mode);

2. Onboard 1-channel relay can remotely control the power supply;

3. Supports 2-channel video window playback (supports up to 2 channels of 1080P);

4. Support 4G access to XiaoHui Cloud platform to realize remote management on the Internet (optional);

5. Support UART communication;

6. Supports 1 channel RS-232 or RS-485 communication (optional).

7. Support for Chinese and English voice broadcasting function (optional).

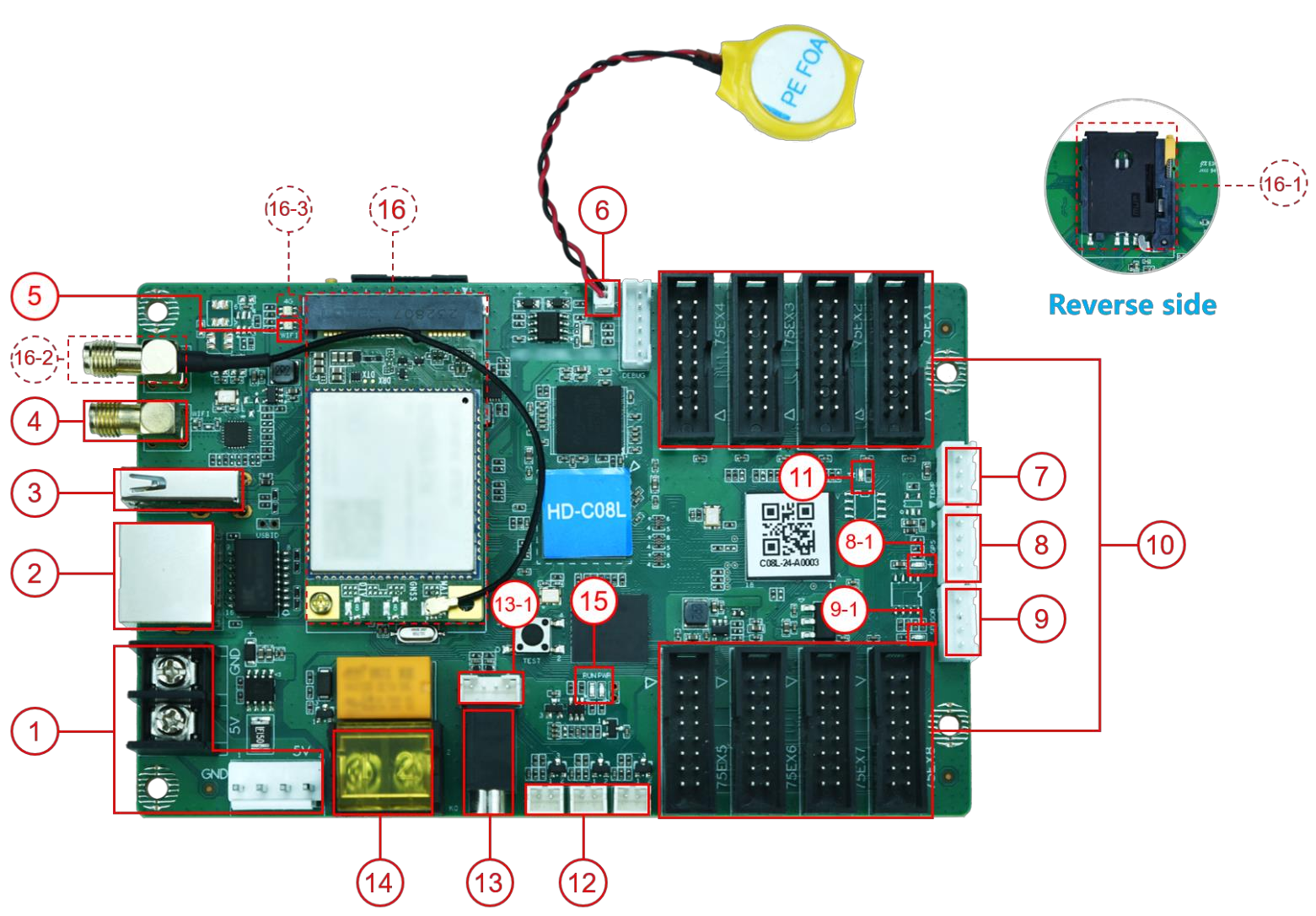

Interface Description

Huidu LED Media Player Card C08L
Serial   number Name Description
1 Power input terminal DC 5V


2



Ethernet network port

100M input network port communication, connect to computer to debugand publish programs, used to access LAN or Internet
3 USB Used to update programs or expand capacity
4 Wi-Fi antenna Connect Wi-Fi antenna to enhance wireless signal
 5  Wi-Fi indicator light AP mode:①The AP mode is normal and the green light flashes;

②The module cannot be detected and the light does not light up;

    ③Cannot connect to the hotspot and the red light flashes;

STA mode:

①STA mode is normal and the green light is always on;

②The bridge cannot connect to the Wi-Fi hotspot and the red light is always on;

③Unable to connect to the server, the yellow light is always on.

6 Battery interface Connect the 2PIN RTC battery
7 TEMP interface Connect a temperature sensor to monitor the surrounding environment temperature in real time
 8  GPS interface ① When detecting that there is no GPS signal, the light does not light up;②When the GPS star search number < 4, the green light flashes;

③When the GPS star search number >= 4, the green light is always on.

8-1 GPS indicator light Connect to GPS module for positioning and time adjustment
9 Sensor interface External temperature, humidity, brightness, wind speed, wind direction, noise, PM2.5, PM10, CO₂and other sensors
9-1 Sensor indicator light The sensor is connected normally, and the indicator light is flashing
10 HUB75E interface Connect HUB75 (B/D/E) interface module
11 Display indicator light If the green light flashes, the FPGA system is running normally; if the green light is on or off, the system is running abnormally.


12



3 sets of CTRL

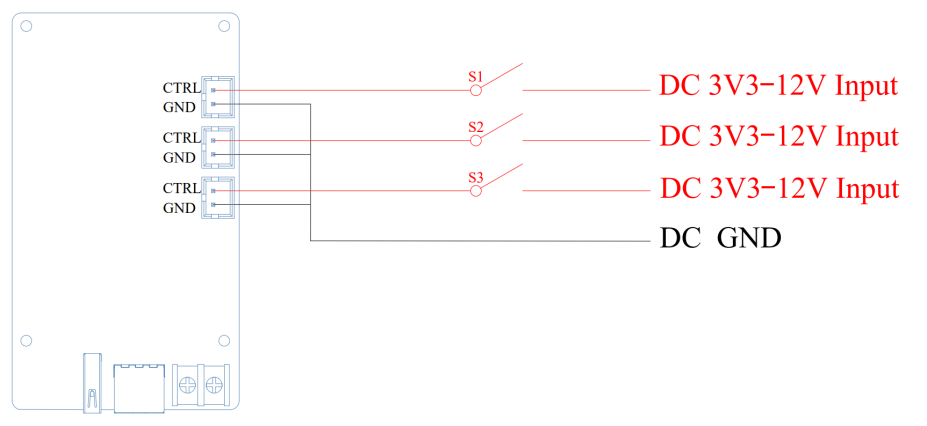

Switching quantity detection, detecting 12V level input, controlling on/off screen小图1





13 TRS Audio output TRS 3.5mm standard two-channel audio output port
















14

















Relay

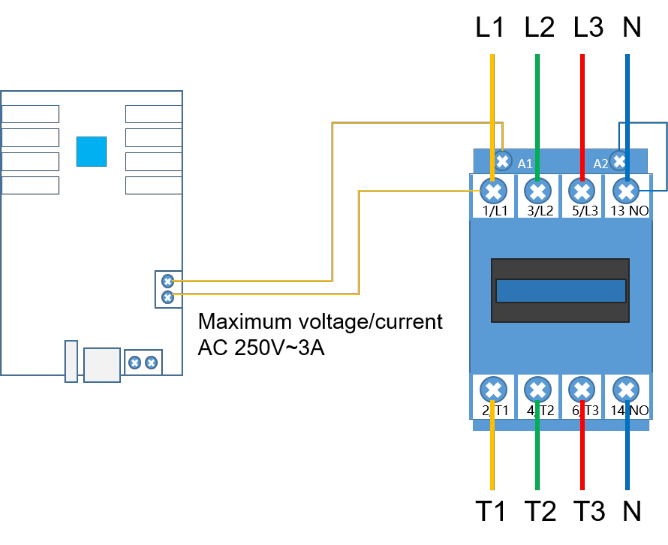

Relay on/off, supports maximum load: AC 250V~3Aor DC 30V-3AThe connection method is as follows:

 小图2



15 System indicator light PWR: Power indicator light, green light is always on, power input is normalRUN: System running light. If the green light flashes, the system is running normally; if the green light is always on or off, the system is running abnormally.
16 PCIE-4G socket 4G module socket (optional function, installed with 4G antenna by default)
16-1 Standard SIM card slot Used to install 4G data card and provide networking function (optional, supports optional eSIM card)
16-2 4G antennainstallation port External 4G antenna to enhance 4G signal






16-3







4G communication indicator light

①The green light is always on, and the connection to the cloud server is successful;②The yellow light is always on and cannot connect to the cloud service;

③The red light is always on, there is no signal or the SIM is in arrears or cannot dial;

④The red light flashes and the SIM cannot be detected;

⑤The light does not light up and the module cannot be detected.

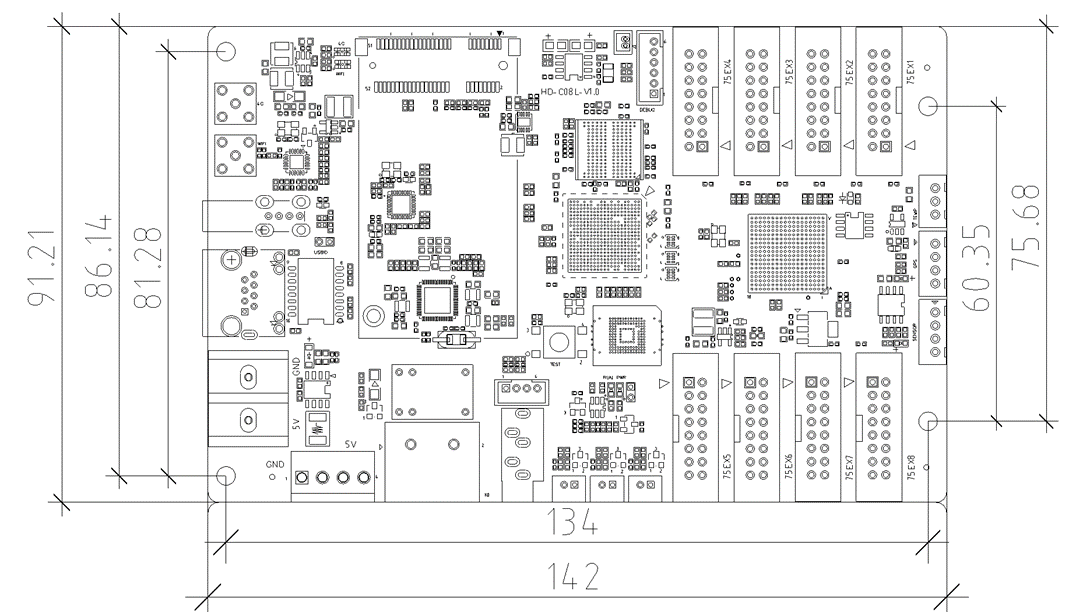

Size Parameters

Size(mm):

Dimensions

Tolerance: ±0.3 Unit: mm

Product Specification

Media Type:

Program schedule Supports sequential playback of multiple programs, timed playback, program insertion, and multi-screen synchronization
Program partition Support any partition of program window
Video format AVI, WMV, MPG, RM/RMVB, VOB, MP4, FLV and other common video formats Supports up to 2 channels of 1080 video playback at the same time
Image Format BMP, GIF, JPG, JPEG, PNG, PBM, PGM, PPM and other common image formats
Audio format MPEG-1 Layer III, AAC, etc.
Text display Single line text, static text, multi-line text, animated words, WPS, etc.
Clock display RTC real-time clock display and management
U disk Plug and play



The parameter:

Electrical parameters Input power DC 5V(4.6V~5.5V)
Maximum power consumption 8W


Hardware parameters



Hardware performance

1.5GHz, Quad-core CPU, Mali-G31GPU

Support 1080p@60fps hard decoding playback

Support 1080p@30fps hardware encoding

Storage Internal storage 4GB (2G available)
Storage environment Temperature -40℃~80℃
Humidity 0%RH~80%RH (no condensation)
Working environment Temperature -40℃~80℃
Humidity 0%RH~80%RH(no condensation)




Packaging Information

Checklist:

1×C08L

1×Wi-Fi antenna

1×certificate

Note: 4G antenna comes with 4G module optional 1PCS

Size 142mm×91.2mm
Net weight 0.114KG


Protection level

The bare board is not waterproof, prevent water from dripping into the product, and do not get the product wet or rinsed
System software Linux4.4 operating system software

FPGA software

Way of Communication

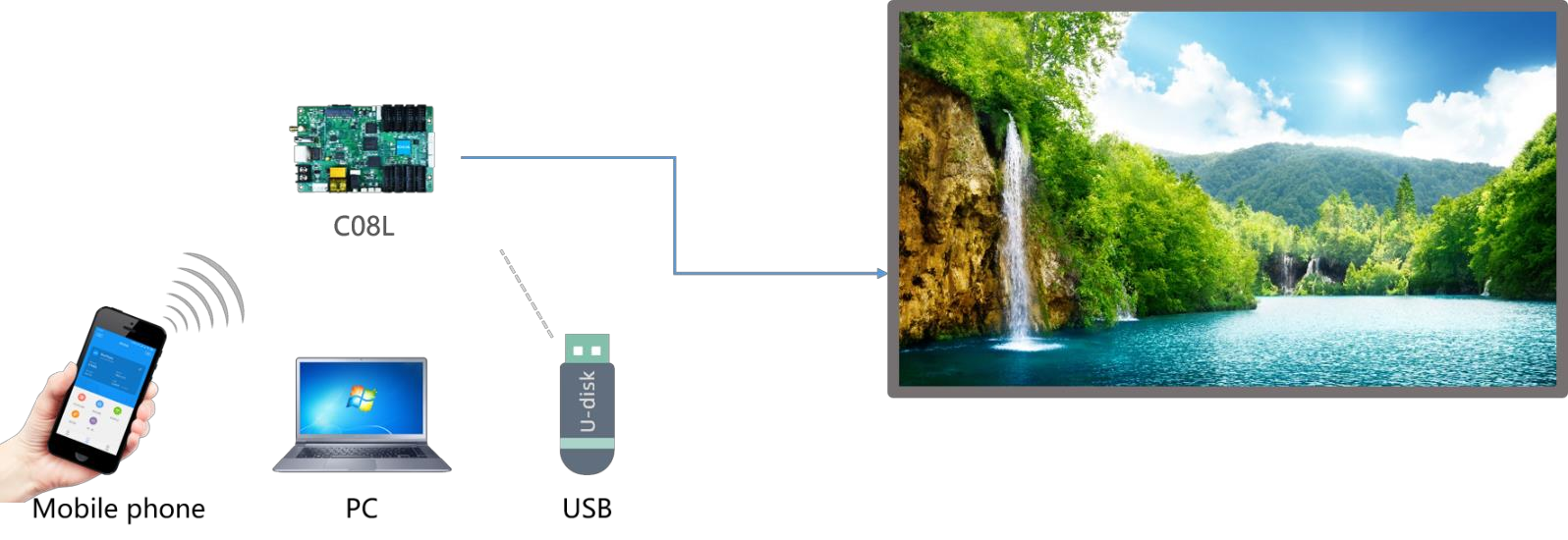

1. Stand-alone control, supports Wi-Fi, network port direct connection, and USB interface for communication.

wifi control

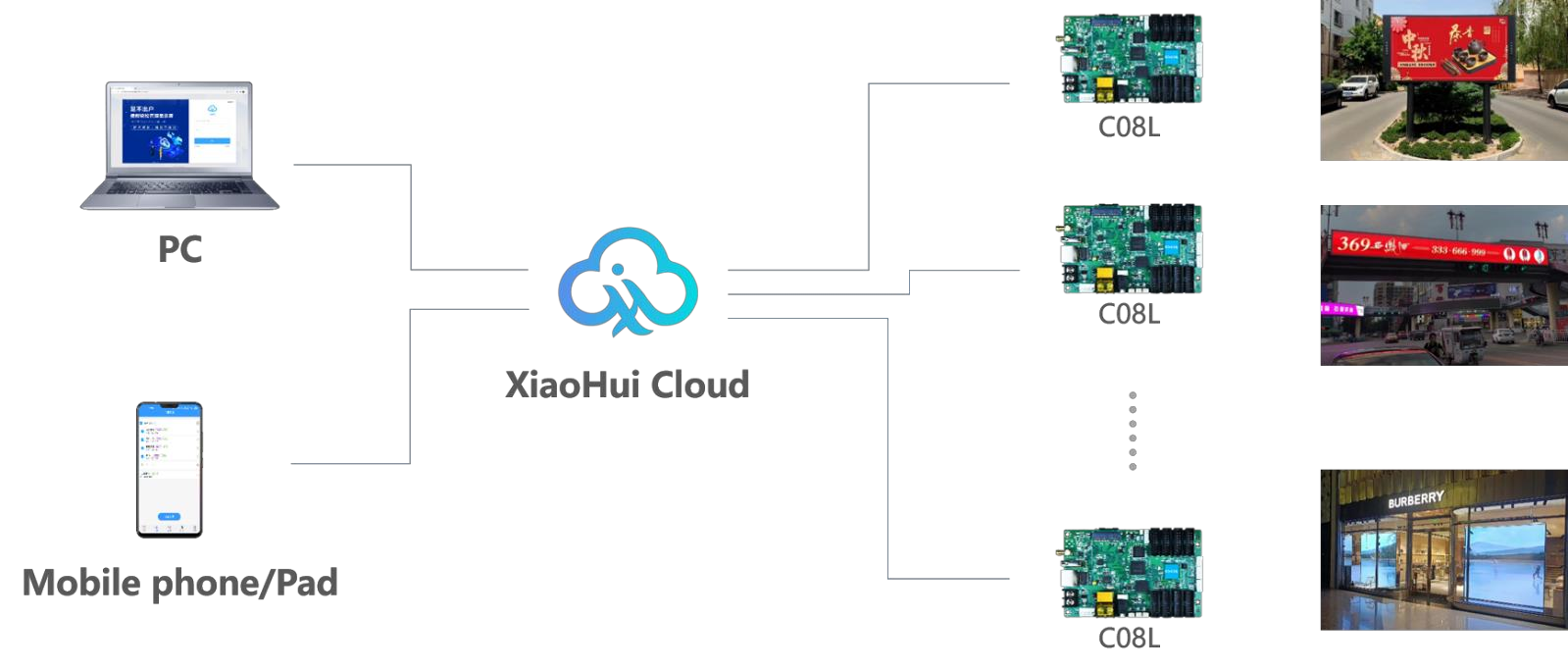

2. Cluster control, supports Internet remote control.

4

System supporting software

Software Type Description
HDPlayer PC LED display screen local management system, used for debugging, program editing, program publishing, etc.
XiaoHui Cloud Web

Cloud based display screen information publishing system, which enables remote cluster management and information publishing of LED displays by logging in through a browser.

LedArt Mobile Phone Supports Android, iOS, and Harmony platforms, enabling control of LED displays and wireless program publishing.

Appearance

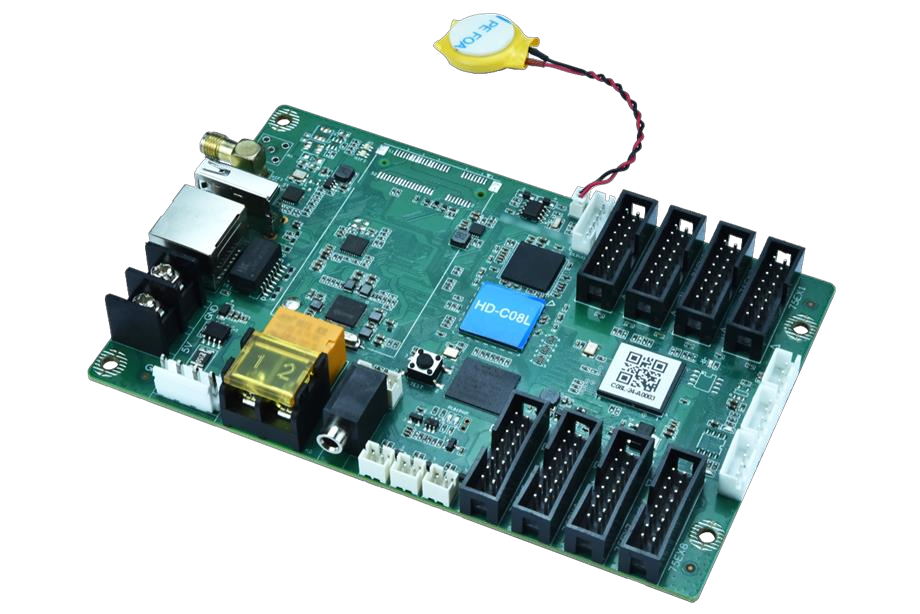

Huidu LED Controller C08L Standard version

Standard version

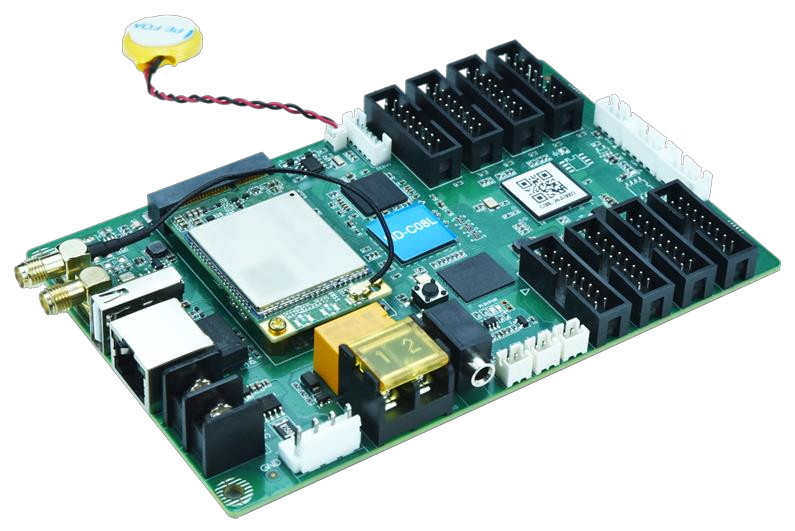

LED Control Card C08L with 4G Module

Optional 4G version
