High-Performance Indoor LED Advertising Display for Indoor Information & Advertising

Short Description:

In the world of dynamic visual displays, innovation never stands still. Introducing LED Flexible Screens – the technology that bends the rules of digital advertising and immersive experiences. No longer confined to flat, rigid surfaces, light and imagination can now flow with curves, columns, and unique architectural forms.

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

Product customization process

As a professional LED display manufacturer, we have many years of manufacturing and sales experience, with a professional pre-sales and after-sales team. You only need to tell us your needs, and we will provide you with professional customized solutions according to your actual situation. You don't need to worry, so if you have any needs, please contact us immediately!

Indoor LED Screens for Advertising

The indoor LED display is designed with professional indoor display technology, delivering superior visual performance. It features a pixel pitch ranging from 1.538mm to 4mm, ensuring ultra-clear images and fine details for close-range viewing. The screen resolution covers 1920×1080 (FHD) to 7680×4320 (8K), adapting to various display sizes (from 40 inches to 200 inches, support for seamless splicing). With a brightness level of 300-800 nits (eye-friendly for indoor environments), it maintains a high contrast ratio of 15000:1, presenting vivid colors and deep blacks. The refresh rate reaches 3840Hz, eliminating flicker and ensuring smooth video playback and dynamic content display. It has a long lifespan of over 100,000 hours and operates stably within a temperature range of 0℃ to 40℃. Supported input interfaces include HDMI 2.0, USB 3.0, Ethernet, Wi-Fi 6, and DP, enabling easy connection with computers, media players, and mobile devices.

Indoor LED Module Parameters
Module	P1.25	P1.86	P2	P2.5	P3	P4
Pixel Pitch(mm)	1.25	1.86	2	2.5	3	4
Module Size(mm)	320*160	320*160	320*160	320*160	192*192	256*128
Module Resolution(dots)	267*133	172*86	160*80	128*64	64*64	64*32
Pixel Density(dots/㎡)	694441	289050	250000	160000	111111	62500
Lamp Model	SMD1010	SMD1515	SMD1515	SMD2121	SMD2121	SMD3535
Brightness	≥500nit
Driving Mode	1/64	1/43	1/40	1/32	1/32	1/32
Best Viewing Distance	≥1.25m	≥1.86m	≥2m	≥2.5m	≥3m	≥4m
Refresh Frequency	3840Hz
Working Temperature	-10℃~60℃
Best Viewing Angle	H：160° V：160°
Life Span	100000h
Working Humidity	10%~70%
IP Level（Front/Rear）	IP45

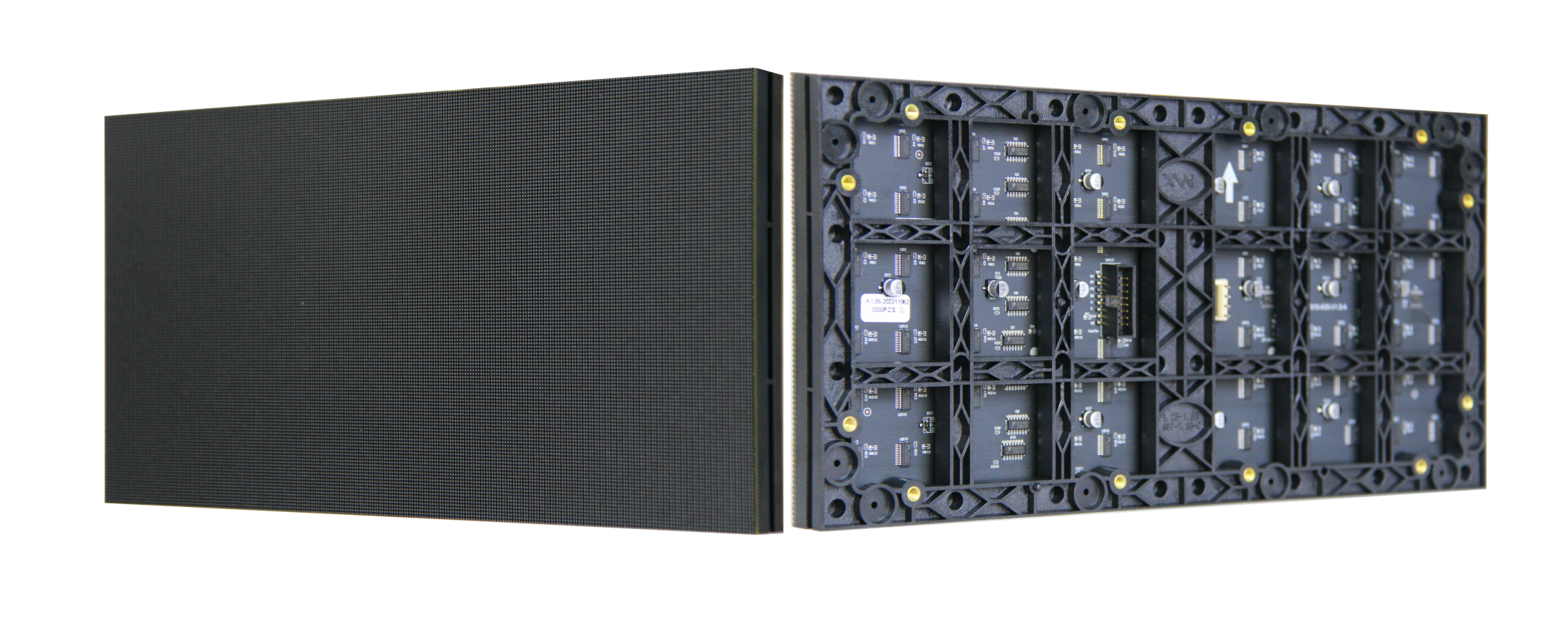

Indoor LED Module P1.86

Cabinet Introduction

Indoor LED cabinets are the key structural and display units for indoor LED screens, integrating performance and usability.

1.Adaptive Brightness Performance

Features an adjustable brightness range of 300-800 nits, matching different indoor ambient light conditions (dim meeting rooms, bright shopping malls). Equipped with intelligent light sensors for automatic brightness adjustment, ensuring clear display effects while reducing eye fatigue and energy consumption. With over 98% brightness uniformity, it maintains consistent visual experience across the entire screen.

2. Vivid & Accurate Color Reproduction

Covers 99% DCI-P3 professional color gamut and 100% sRGB color space, restoring true-to-life colors for advertising, cultural content, and videos. Boasts 16-bit color depth for smooth color transitions and no banding, while strict factory color calibration ensures consistent color performance across multiple cabinets, ideal for high-definition display needs.

3. Easy Installation & Maintenance

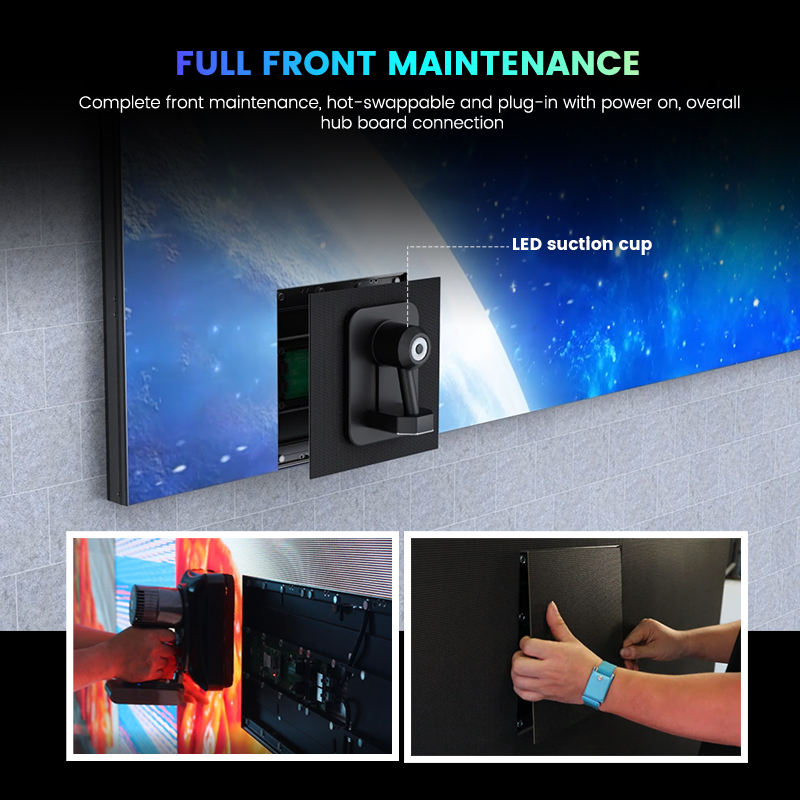

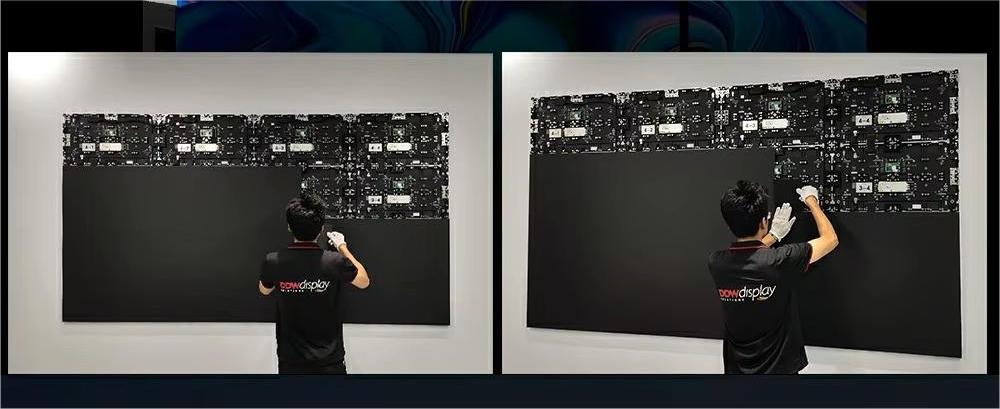

Adopts modular splicing with precise positioning pins and quick-locking buckles for fast, tool-free assembly. Supports both front and rear maintenance modes, with detachable modules and hot-swappable power/signal components for convenient troubleshooting without turning off the entire screen. Standardized interfaces and clear labeling simplify connection and daily maintenance, reducing downtime and labor costs.

Features

1、Ultra-thin and seamless splicing design: Thickness as low as 15mm, supporting arbitrary splicing to form large-size displays without visual gaps, adapting to different indoor space layouts.

2、Wide viewing angles & high color accuracy: Adopts SMD (Surface Mount Device) full-color technology, with 170° horizontal and vertical viewing angles, ensuring consistent image quality from any position. It covers 99% of the DCI-P3 color gamut, restoring true-to-life colors.

3、Intelligent control & energy-saving: Supports remote control via mobile apps, PC software, or cloud platforms, enabling real-time content updates, brightness adjustment, and device monitoring. It has low power consumption (50-150W per square meter) and automatic brightness adjustment based on indoor ambient light, reducing energy consumption.

4、Stable & reliable performance: Equipped with intelligent heat dissipation technology, ensuring long-term stable operation without overheating. It supports 24/7 continuous work, suitable for high-frequency use scenarios.

5、Multi-content compatibility: Supports various content formats (images, videos, text, animations, live streams) and multi-screen synchronization, meeting single or large-scale display needs.

Usage Scenarios

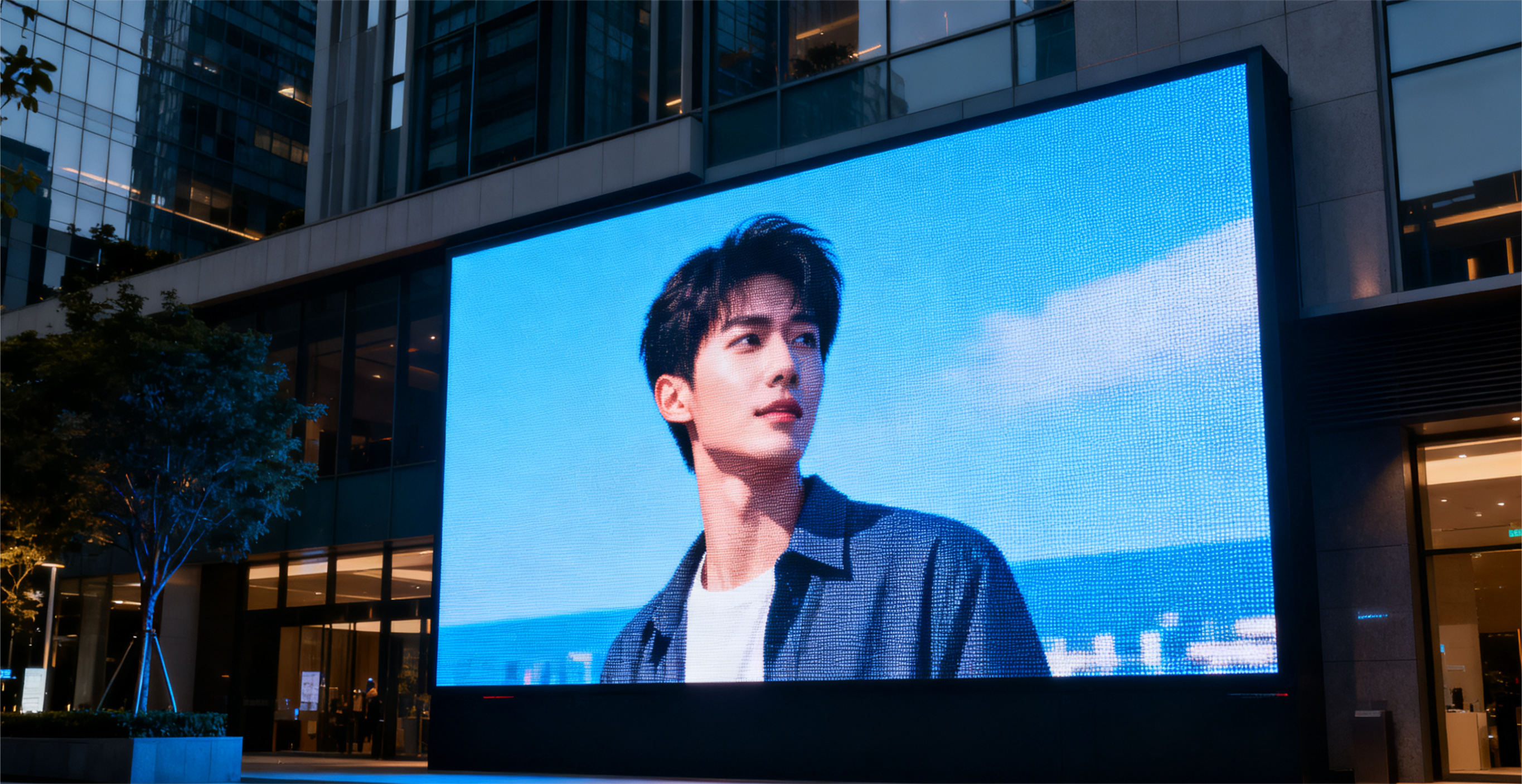

1. Commercial Advertising & Promotion

- Display dynamic promotional videos, product posters, and limited-time discount information

- Showcase brand stories, corporate images, and new product launches to enhance brand influence

- Play targeted ads based on peak customer flow periods (e.g., retail store rush hours)

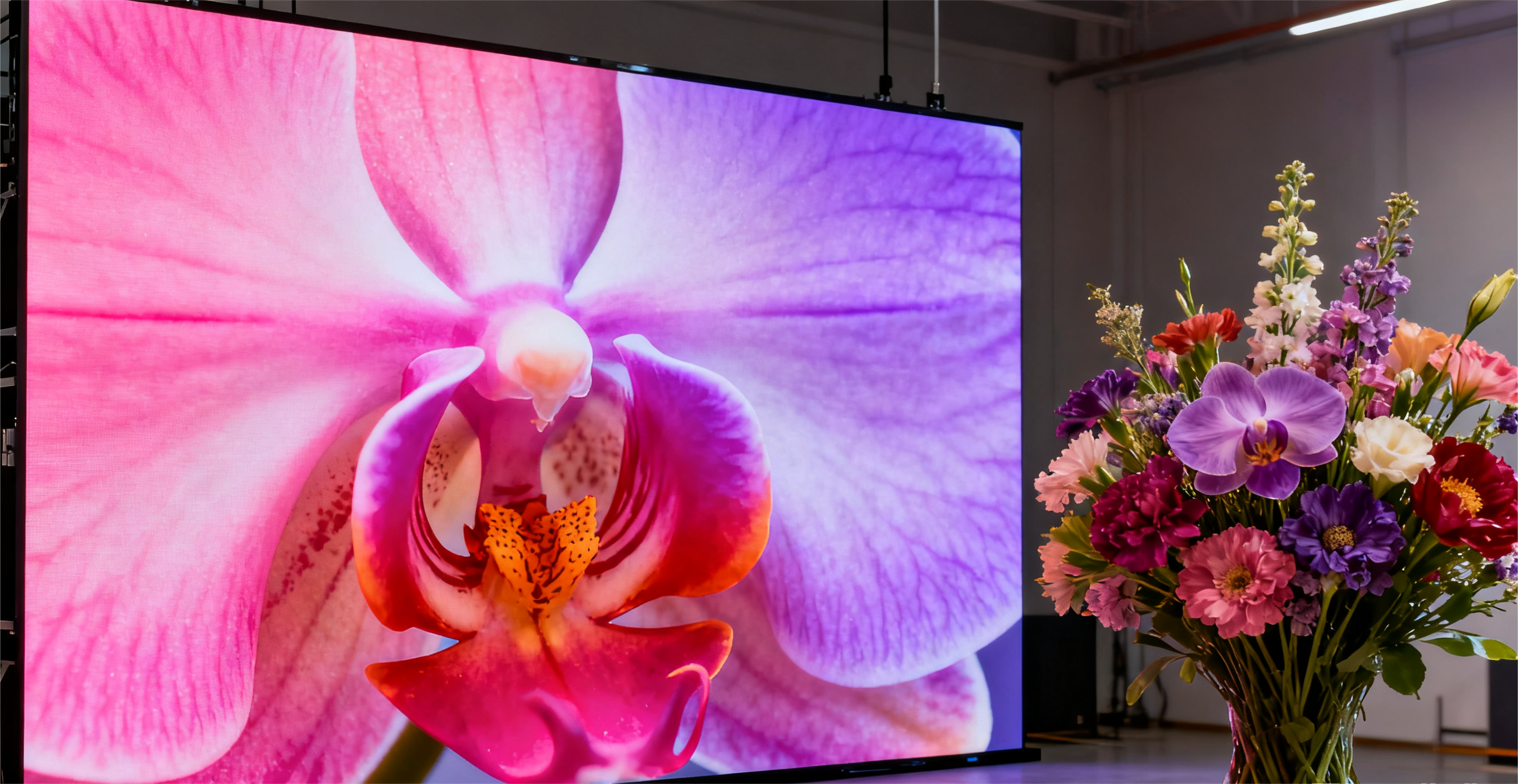

2. Corporate & Office Communication

- Post company announcements, meeting schedules, and internal notice updates

- Display welcome messages for visitors, corporate culture, and core values in lobbies

- Support video conferences, data visualization, and presentation playback in conference rooms

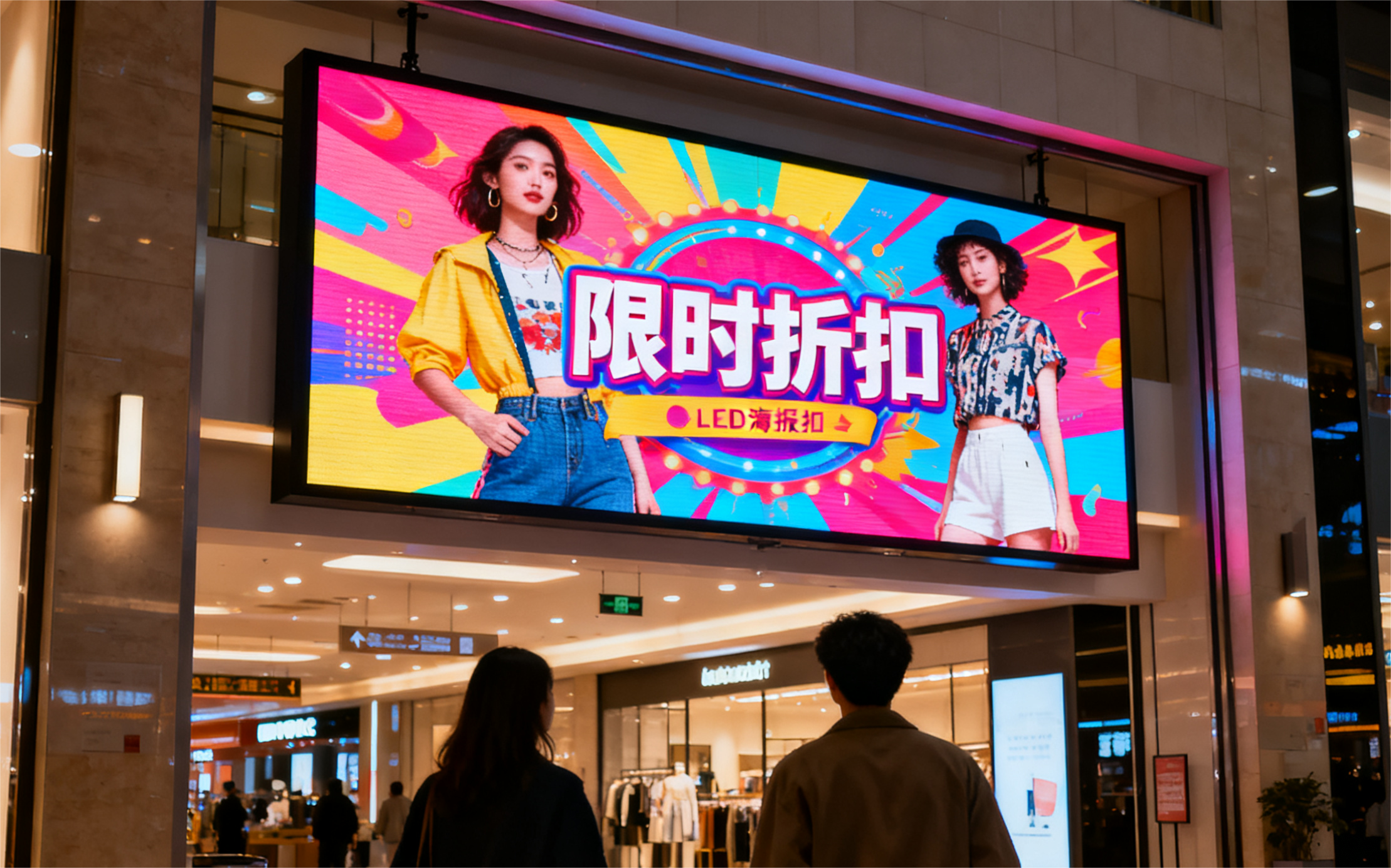

3. Retail & Merchandising

- Present product details, specifications, usage guides, and real-time pricing

- Update new arrival notifications, inventory status, and cross-selling recommendations

- Guide customer flow with directional promotions (e.g., "New collection at the 2nd floor")

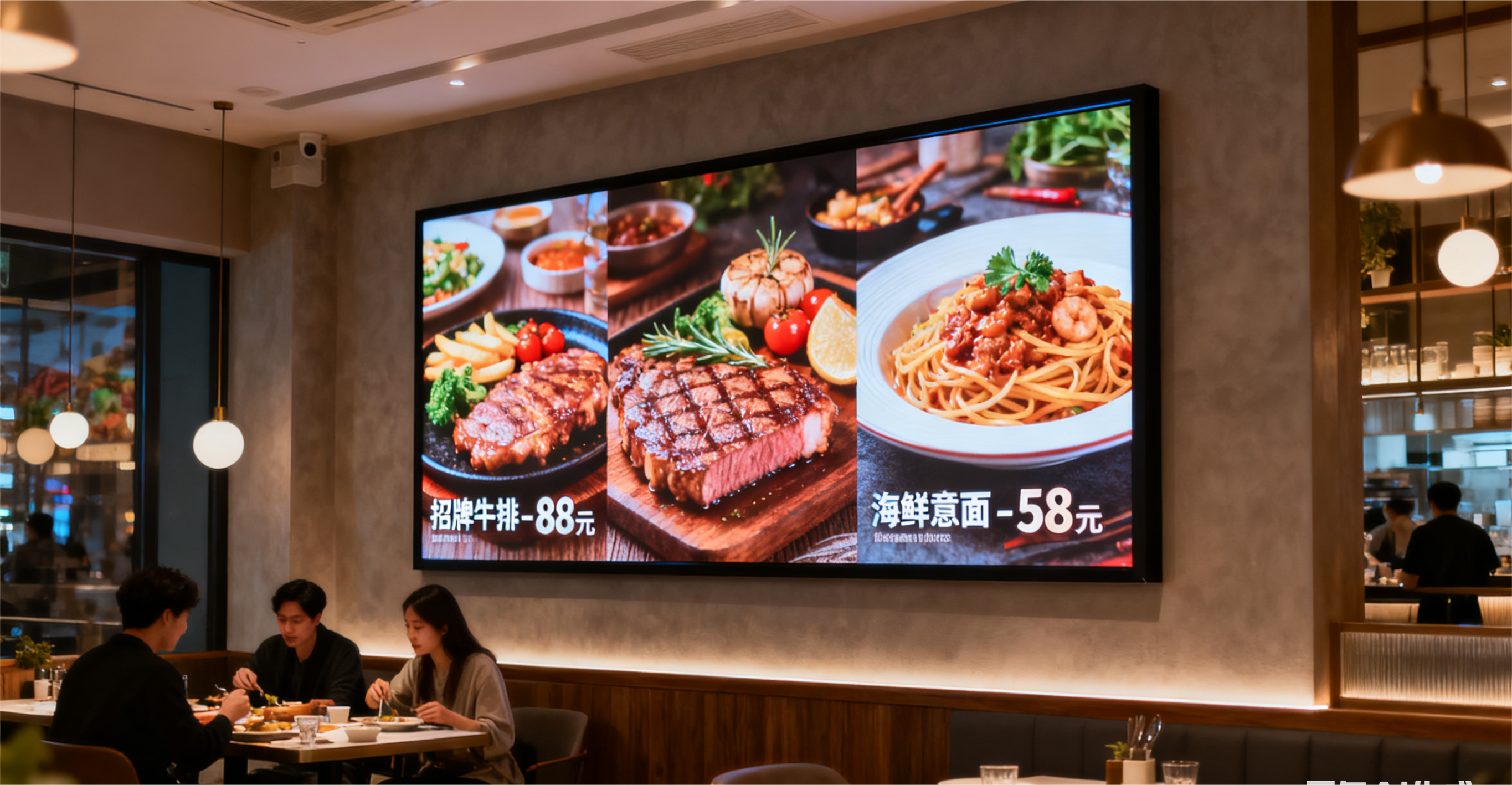

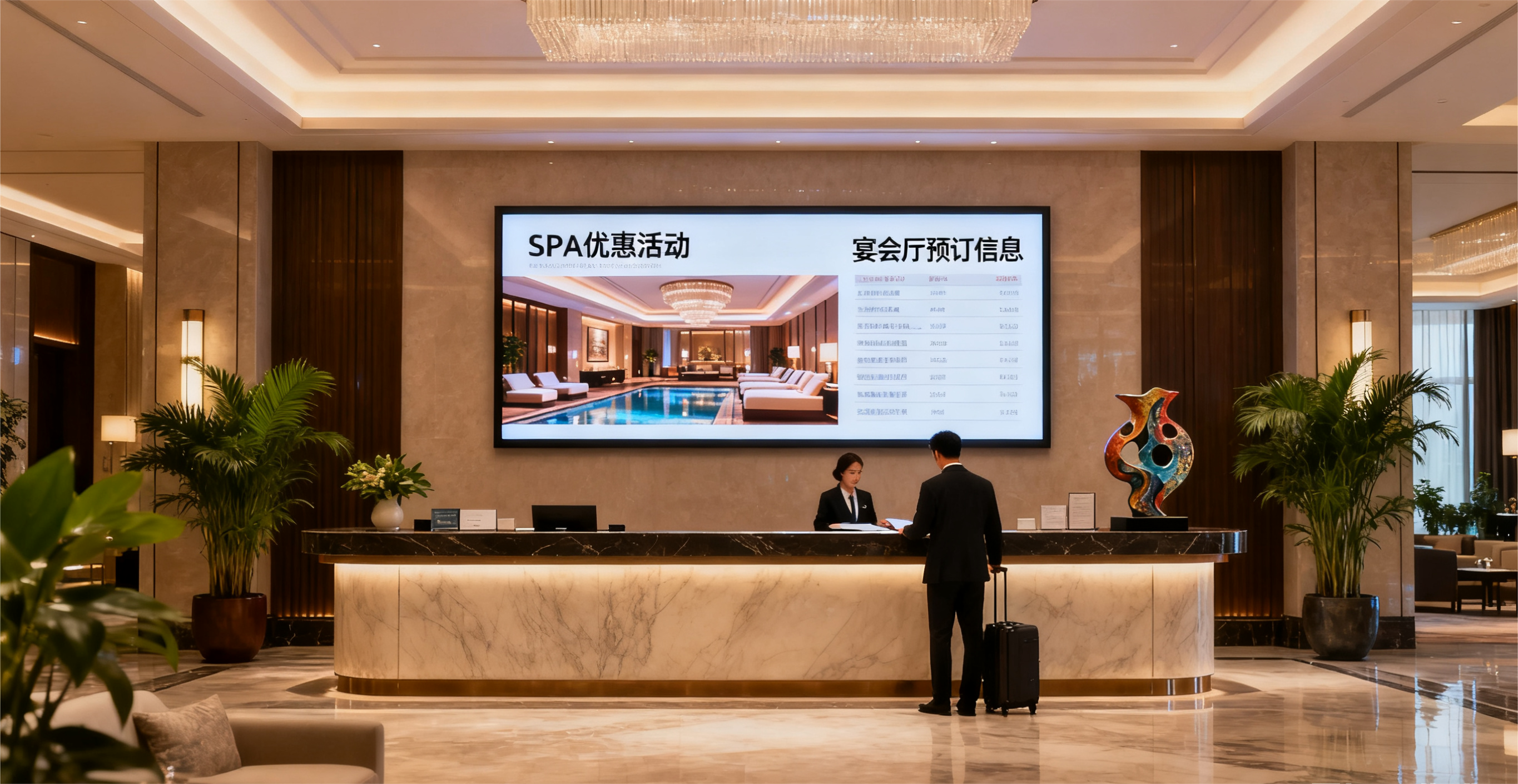

4. Catering & Hospitality

- Display digital menus, food images, ingredient introductions, and daily specials

- Show hotel service information, event schedules, and guest welcome messages

- Play background videos and brand culture content in restaurants, cafes, and hotels

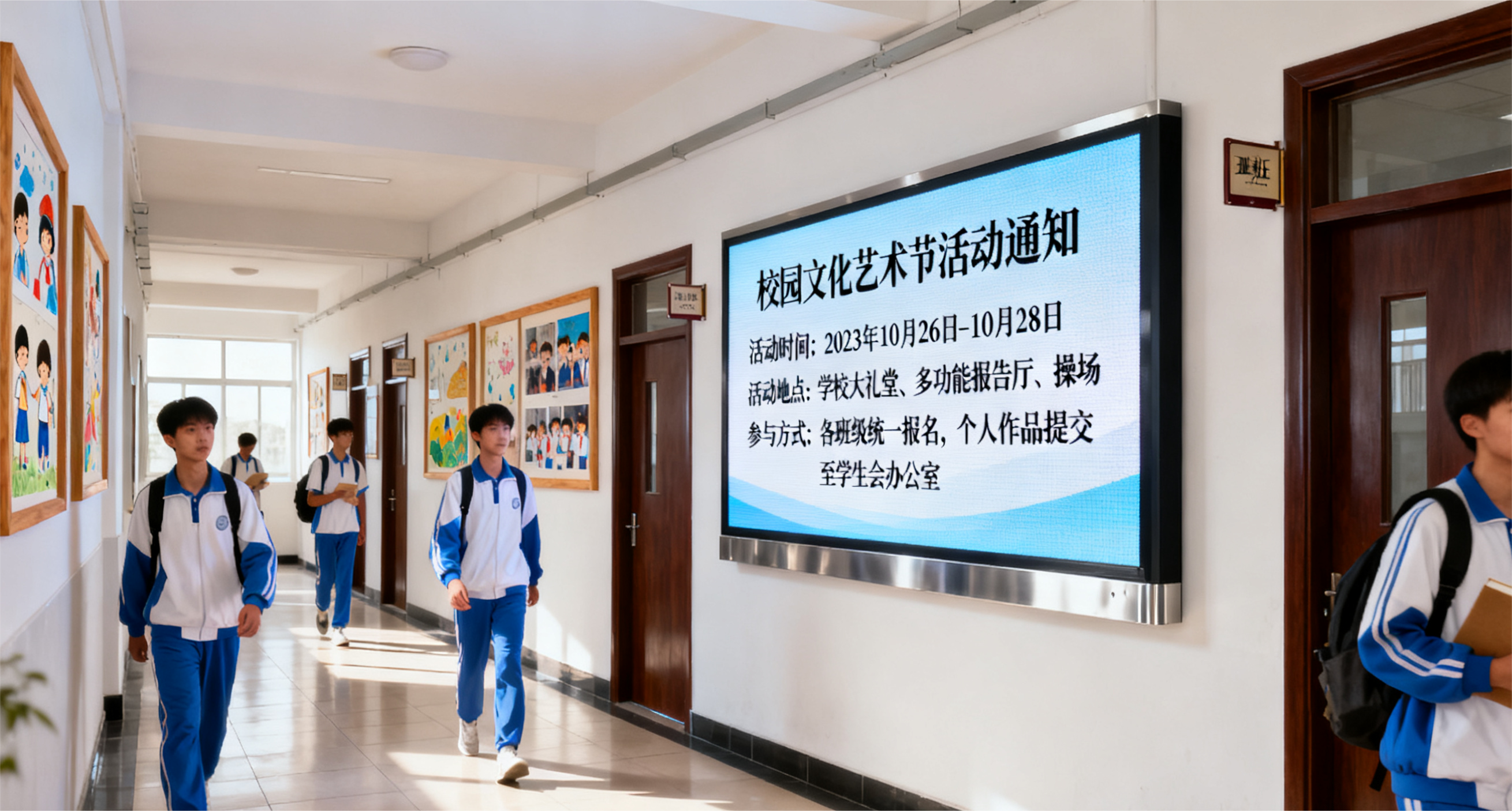

5. Education & Culture

- Release campus notices, event schedules (sports meets, cultural festivals), and exam reminders

- Display teaching aids, courseware, and student achievement showcases in classrooms and auditoriums

- Present exhibit introductions, cultural content, and interactive information in museums and libraries

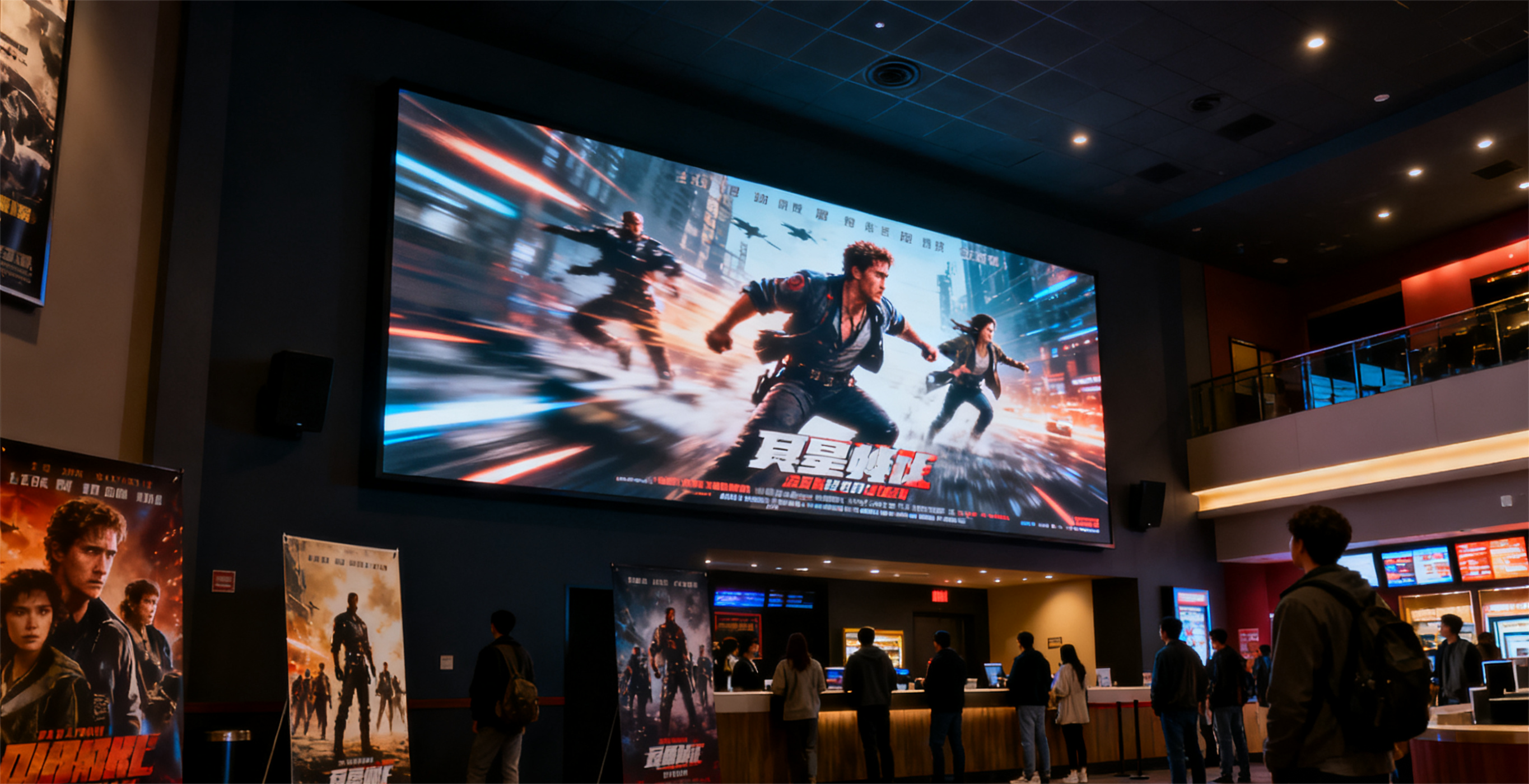

6. Entertainment & Venues

- Play movie trailers, session schedules, and actor introductions in cinemas

- Display stage backgrounds, performer information, and interactive content in theaters and concert halls

- Show game guides, activity rules, and real-time scores in game centers and sports venues

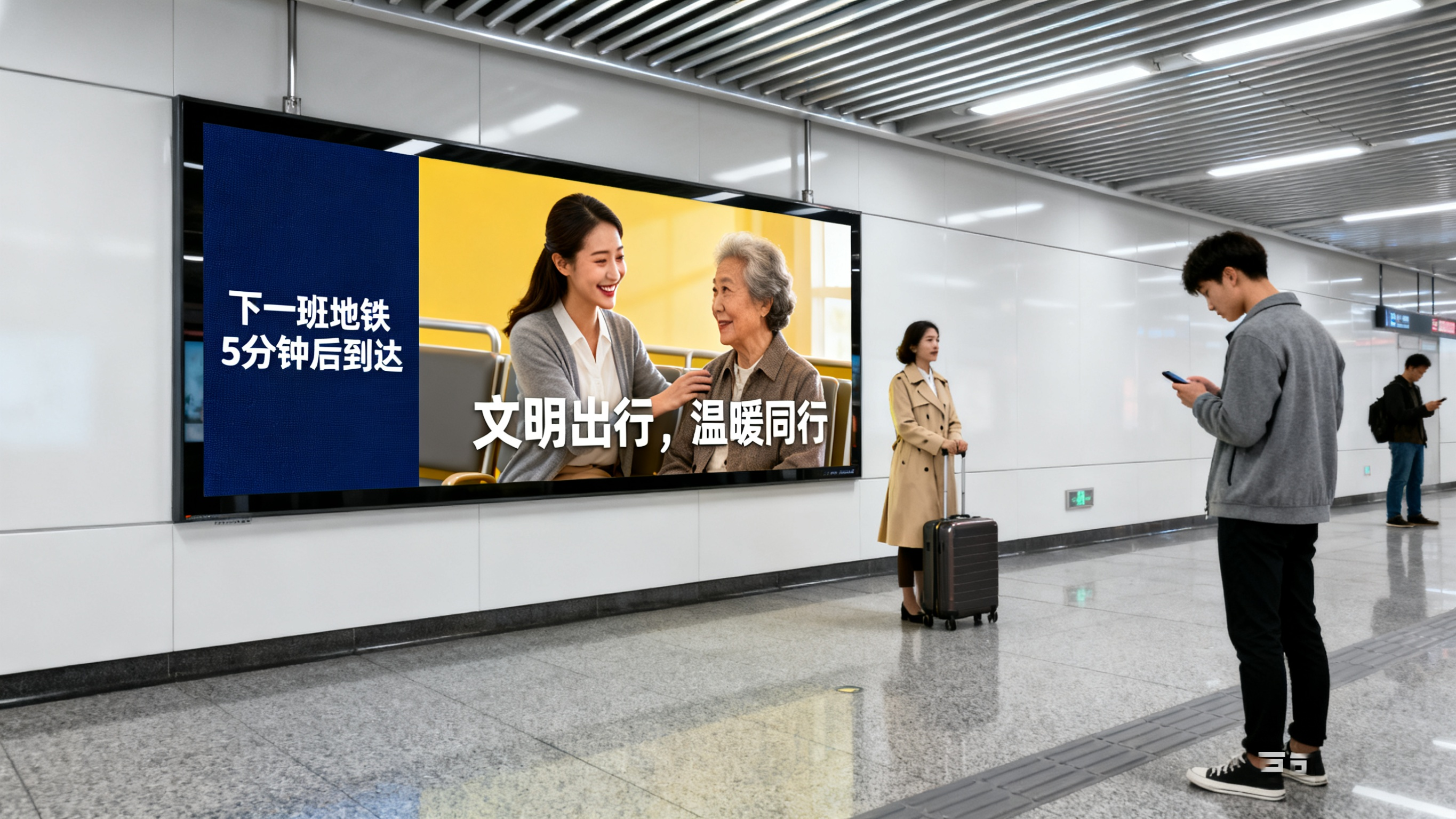

7. Public Information Dissemination

- Release public welfare advertisements, safety tips (fire prevention, emergency response)

- Display real-time information (weather, traffic, public transport updates) in public areas

- Disseminate policy announcements and service guidelines in government service halls

Production Process

We have professional LED display production equipment and assembly personnel. You only need to provide your needs, and we will provide you with comprehensive professional services from scratch. From developing production plans to the production and assembly of displays, we will ensure quality and quantity. You can rest assured to cooperate with us.

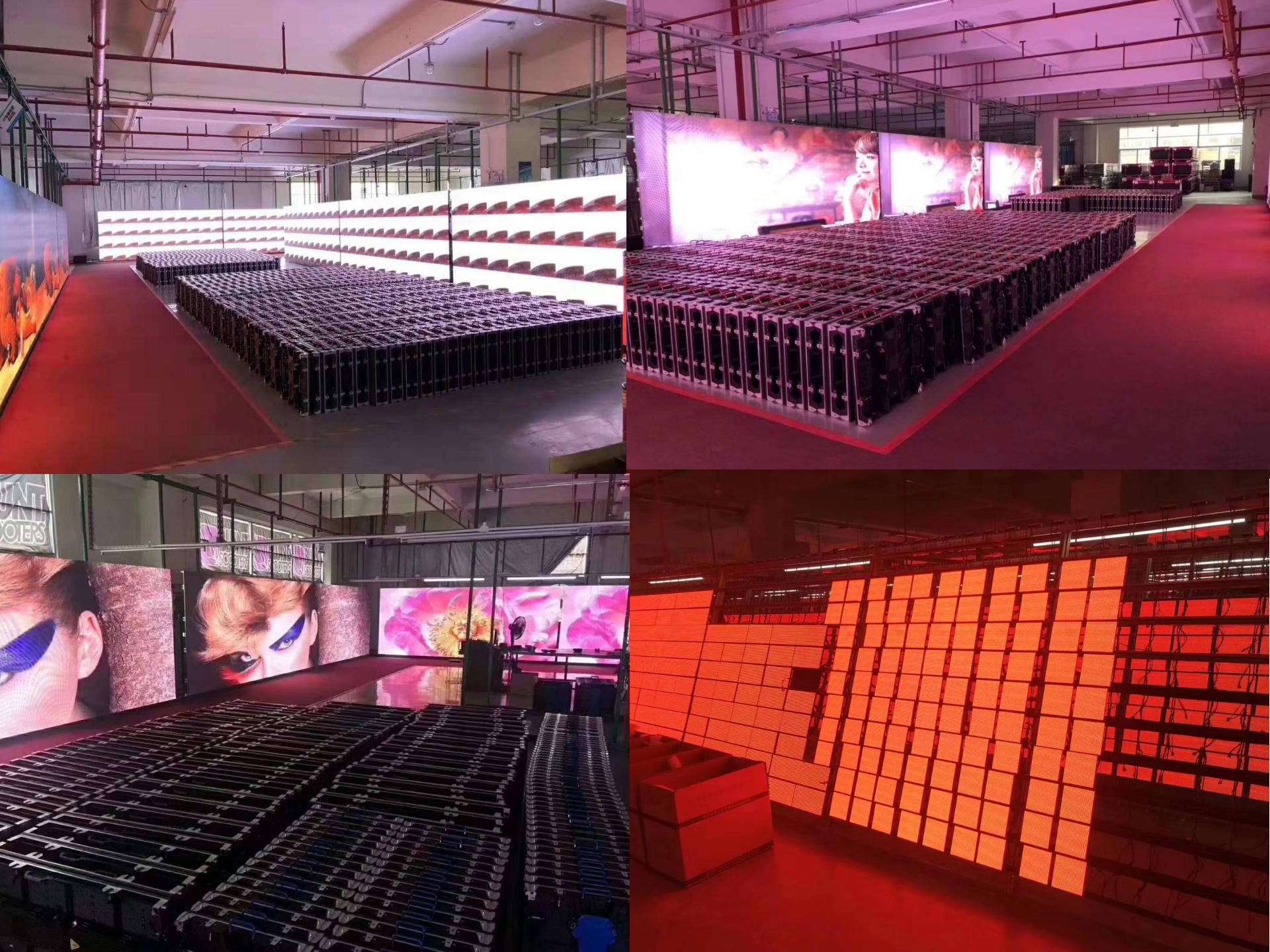

LED Display Aging and Testing

Aging and testing of LED display modules involves simulating long-term operation to ensure reliability and stability. This process is critical to identifying and resolving potential issues, ultimately improving the efficiency and stability of the LED display.

Conducting burn-in testing is a critical step in quality control to ensure the overall performance and service life of the LED display.
