High-Impact Outdoor LED Advertising Display with Waterproof IP65 Level Cabinet for Commercial Districts & City Landmarks

Short Description:

High-brightness outdoor LED displays shine brightly under direct sunlight, boasting seamless splicing and easy front/rear maintenance. Ideal for city landmarks, enterprise zones and high-traffic areas, they offer flexible sizing, stable performance and dynamic ad playback to elevate your brand’s outdoor presence powerfully.

INQUIRY NOW Whatsapp Email

Product Detail

Product Tags

Product customization process

As a professional LED display manufacturer, we have many years of manufacturing and sales experience, with a professional pre-sales and after-sales team. You only need to tell us your needs, and we will provide you with professional customized solutions according to your actual situation. You don't need to worry, so if you have any needs, please contact us immediately!

Overview

The LED module is the heart of any outdoor billboard, and our P3-P10 range is optimized to balance clarity, viewing distance, and cost-effectiveness—key considerations for impactful advertising. These modules are built to thrive in outdoor environments while ensuring your brand ads are displayed with exceptional quality:

Outdoor LED Rental Module

Outdoor LED Module Parameters
Module	P3.076	P4	P5	P6.67	P8	P10
Pixel Pitch(mm)	3.076	4	5	6.67	8	10
Module Size(mm)	320*160	320*160	320*160	192*192	320*160	320*160
Module Resolution(dots)	104*52	80*40	64*32	32*32	40*20	32*16
Pixel Density(dots/㎡)	105656	62500	40000	27777	15625	10000
Lamp Model	SMD1515	SMD1921	SMD1921	SMD3535	SMD3535	SMD3535
Brightness	≥6500nit
Driving Mode	1/13	1/10	1/8	1/8	1/5	1/2 or 1/4
Best Viewing Distance	≥3m	≥4m	≥5m	≥6.67m	≥8m	≥10m
Refresh Frequency	3840Hz/1920Hz
Working Temperature	-10℃~60℃
Best Viewing Angle	H：160° V：160°
Life Span	100000h
Working Humidity	10%~70%
IP Level（Front/Rear）	IP65

Features

1、Brightness & Visibility: 5500-7500 nits of high brightness, ensuring your ads remain vivid and readable even under direct sunlight. Equipped with automatic light-sensing dimming technology, the modules adjust brightness in real time according to ambient light conditions—enhancing visibility at dawn/dusk and reducing energy consumption at night.

2、Image Stability: Refresh rate ≥3840Hz, eliminating flicker during video playback and camera shooting. This ensures smooth, professional-grade visuals, which is crucial for maintaining a premium brand image and avoiding audience eye fatigue.

3、Weather & Corrosion Resistance: IP65 waterproof and dustproof rating, fully sealed to withstand rain, snow, dust, and extreme temperature fluctuations (-25℃ to 55℃). The surface is coated with anti-UV and anti-corrosion materials, preventing discoloration and module damage even after long-term outdoor exposure.

4、Color Reproduction: 16.7 million true colors with a color gamut of ≥92% NTSC and a contrast ratio of ≥6000:1. This ensures accurate, vibrant color rendering—whether displaying brand logos, product images, or dynamic promotional videos—making your ads more attractive and memorable.

5、Seamless Splicing & Sealing: Precision-machined splicing edges ensure seamless connection between cabinets, eliminating visual gaps and delivering a uniform, large-format display. The integrated seamless sealing technology matches the IP65 rating of the modules, preventing water and dust from entering the cabinet and protecting internal components.

Advantages of Outdoor Advertising LED Displays

1、High Visibility & Strong Attraction: High brightness, vivid colors, and dynamic video playback grab audience attention more effectively than static ads. The ability to display moving images, animations, and even interactive content makes your brand message more engaging and memorable.

2、Weather Resistance & Long Lifespan: With IP65 protection and high-quality components, the screens can withstand extreme weather conditions (heavy rain, snow, high temperature, strong wind) and have a lifespan of up to 100,000 hours (about 11 years of 24/7 operation), ensuring long-term return on investment.

3、Wide Adaptability: Available in custom sizes and shapes (rectangle, circle, curved, irregular) to fit different outdoor spaces. Whether it's a large-scale fixed billboard on a city landmark or a portable rental screen for a music festival, our solutions can be tailored to your needs.

4、Energy Efficiency & Environmental Friendliness: Adopting high-efficiency LED chips and intelligent dimming technology, the screens consume less energy than traditional lighting and advertising media. The dimming function automatically adjusts brightness according to ambient light, reducing energy waste and light pollution.

Application Scenarios

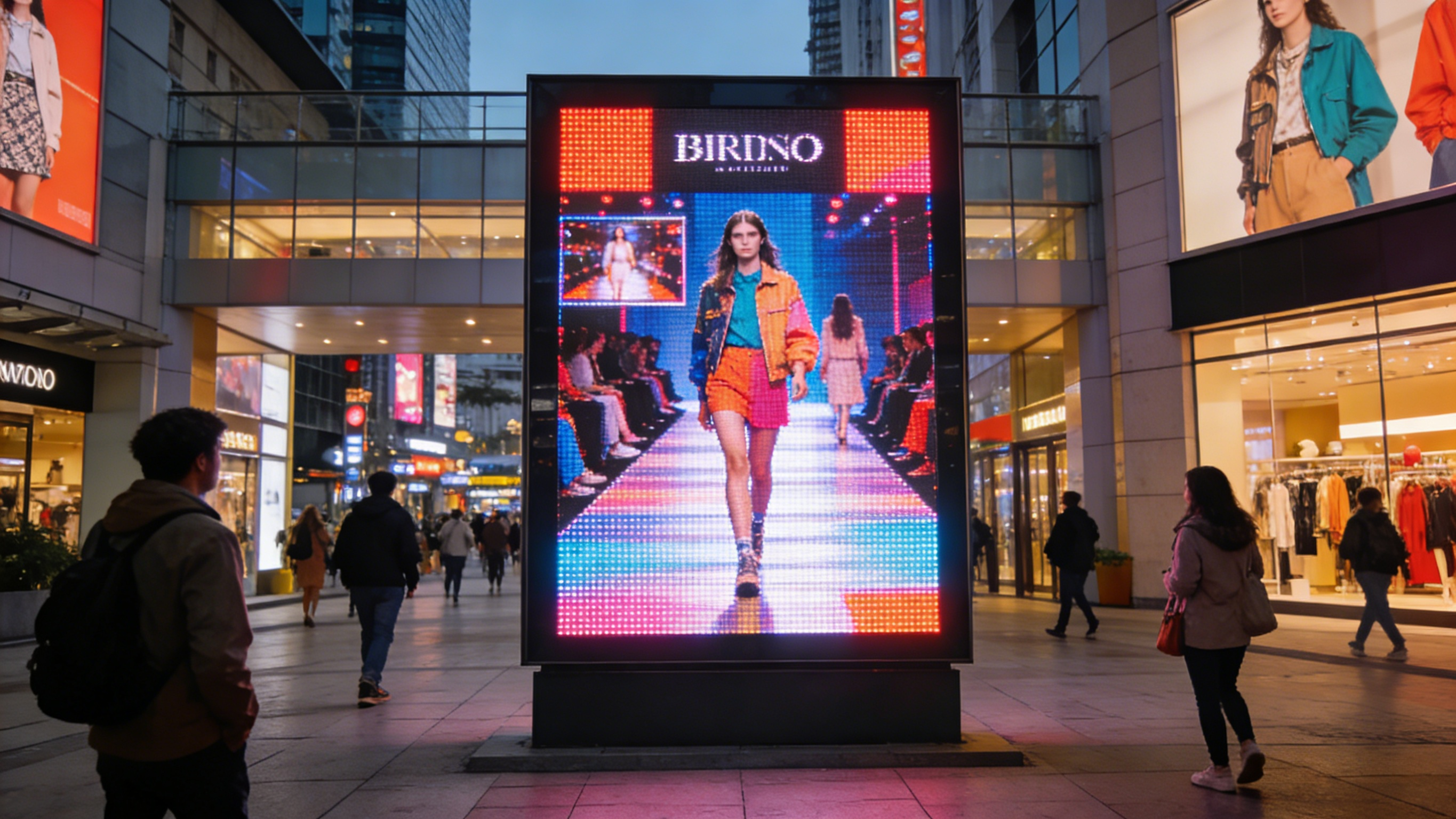

1、Urban Commercial Districts & Shopping Malls: Installed at shopping mall entrances, pedestrian streets, and commercial plazas (using P3-P4 modules for close-range viewing). Ideal for promoting retail brands, fashion products, food and beverage, and shopping mall promotions—directly reaching shoppers and pedestrians with high purchasing intent.

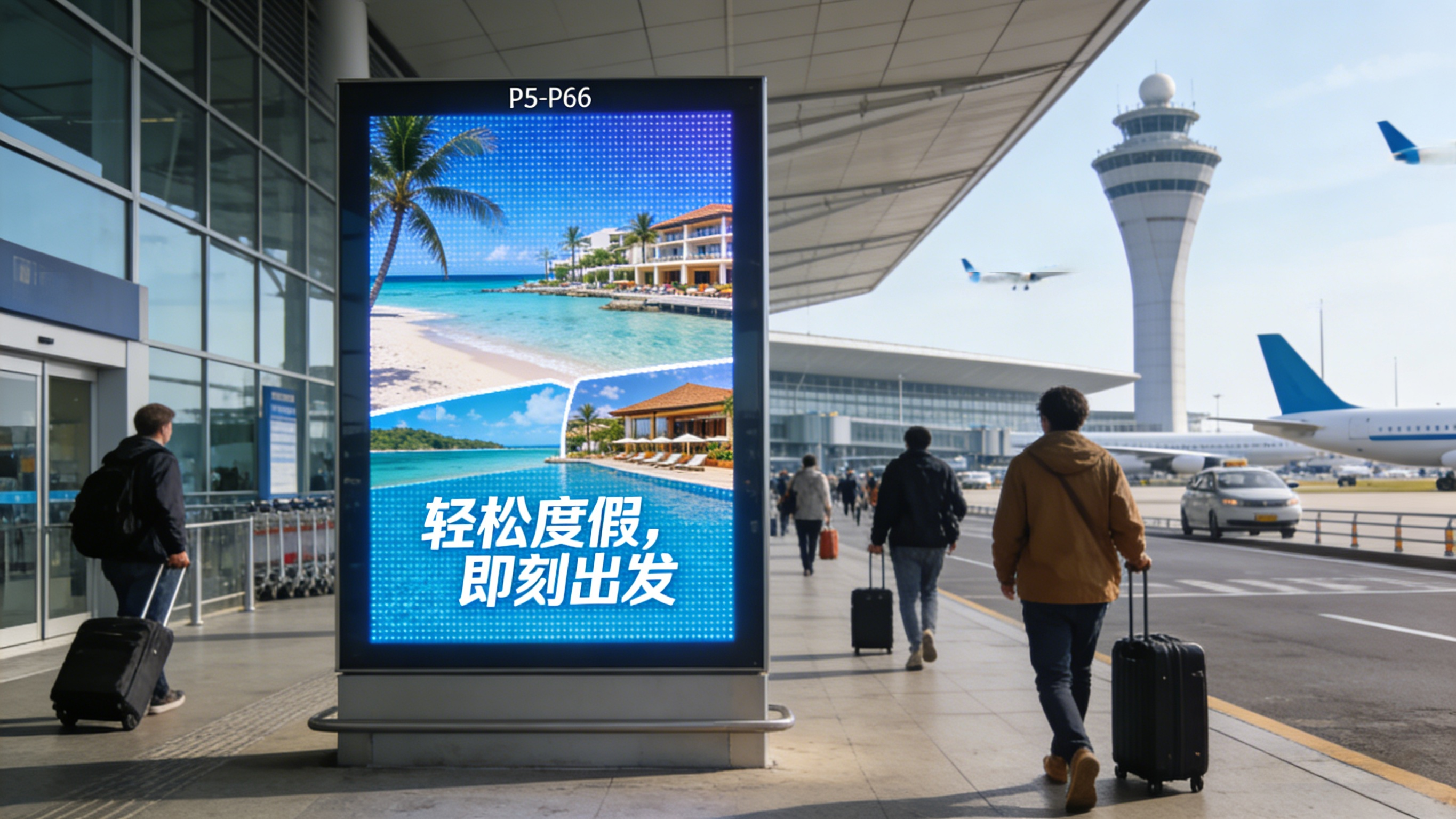

2、Transportation Hubs: Airports, railway stations, bus terminals, and subway exits (using P5-P6 modules for medium-distance viewing). Target commuters, business travelers, and tourists with ads for travel services, hotels, restaurants, and consumer electronics—capitalizing on high foot traffic and captive audiences.

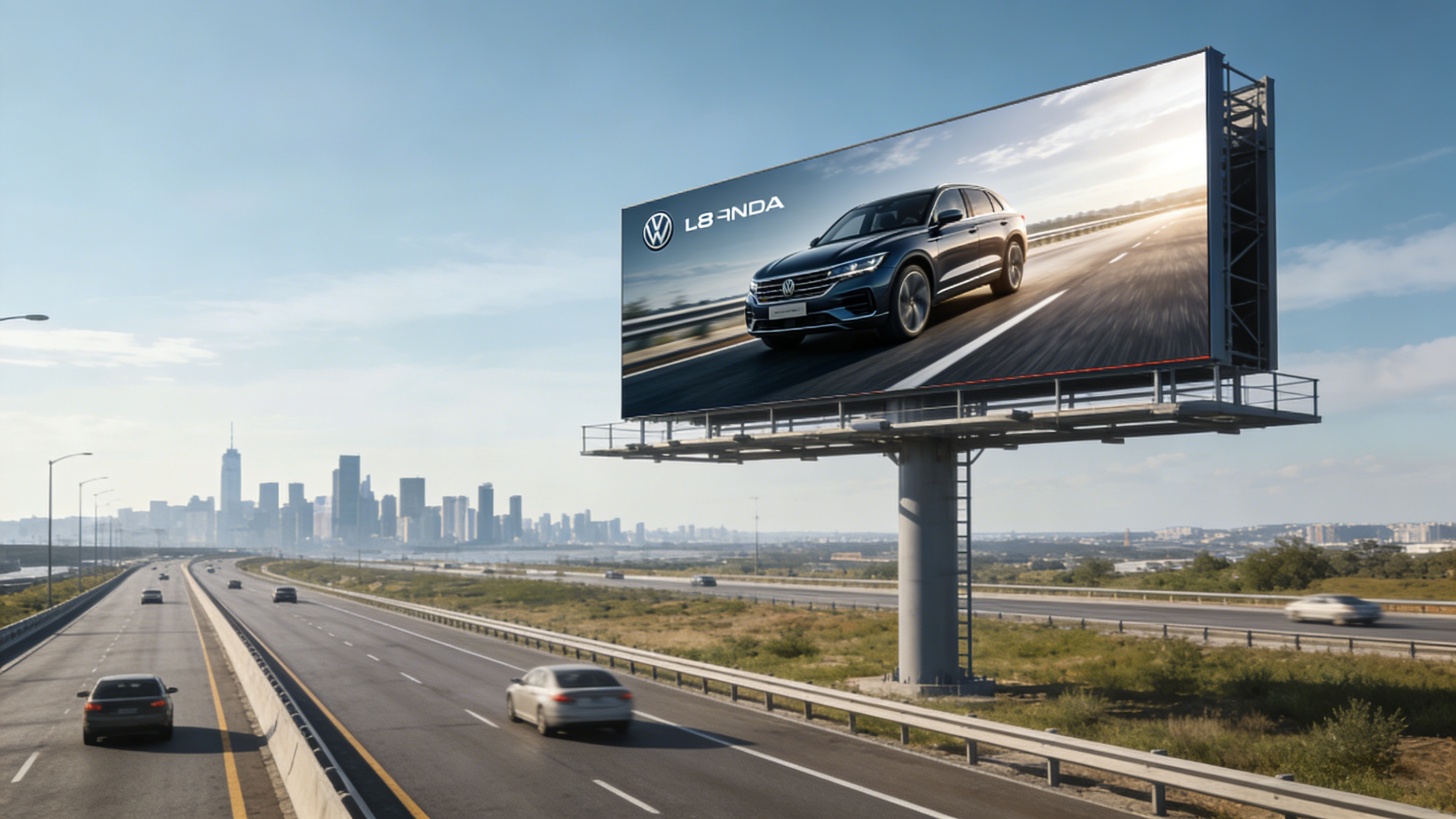

3、Highways & Urban Arterials: Large-format billboards along highways, ring roads, and main avenues (using P8-P10 modules for long-distance visibility). Suitable for brand awareness campaigns, automotive brands, real estate projects, and travel destinations—reaching drivers and passengers in transit.

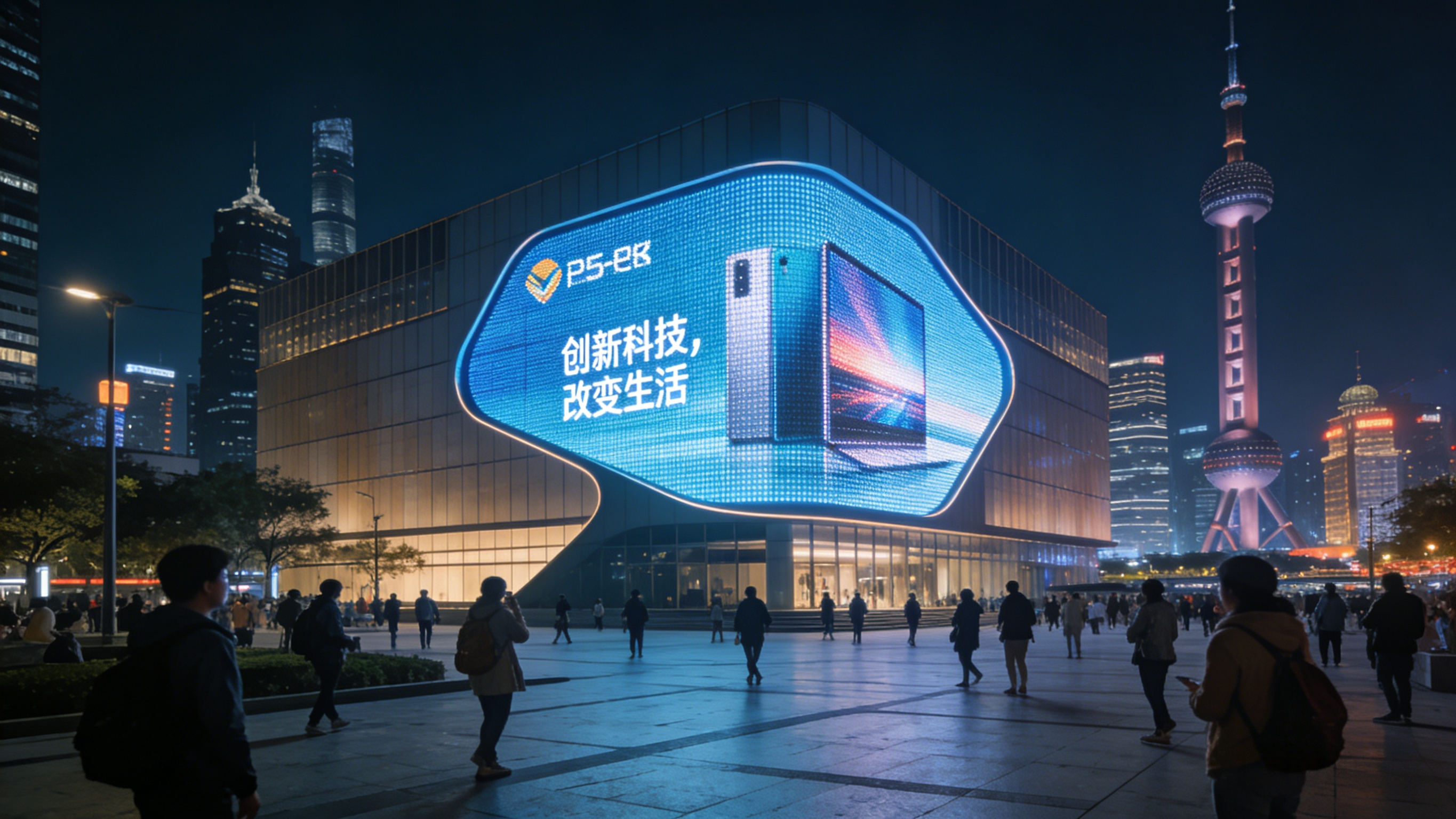

4、City Landmarks & Public Squares: Iconic billboards on skyscrapers, stadium perimeters, and public squares (custom sizes with P5-P8 modules). Perfect for building brand prestige and national visibility—often seen by millions of residents and tourists, and easily shared on social media.

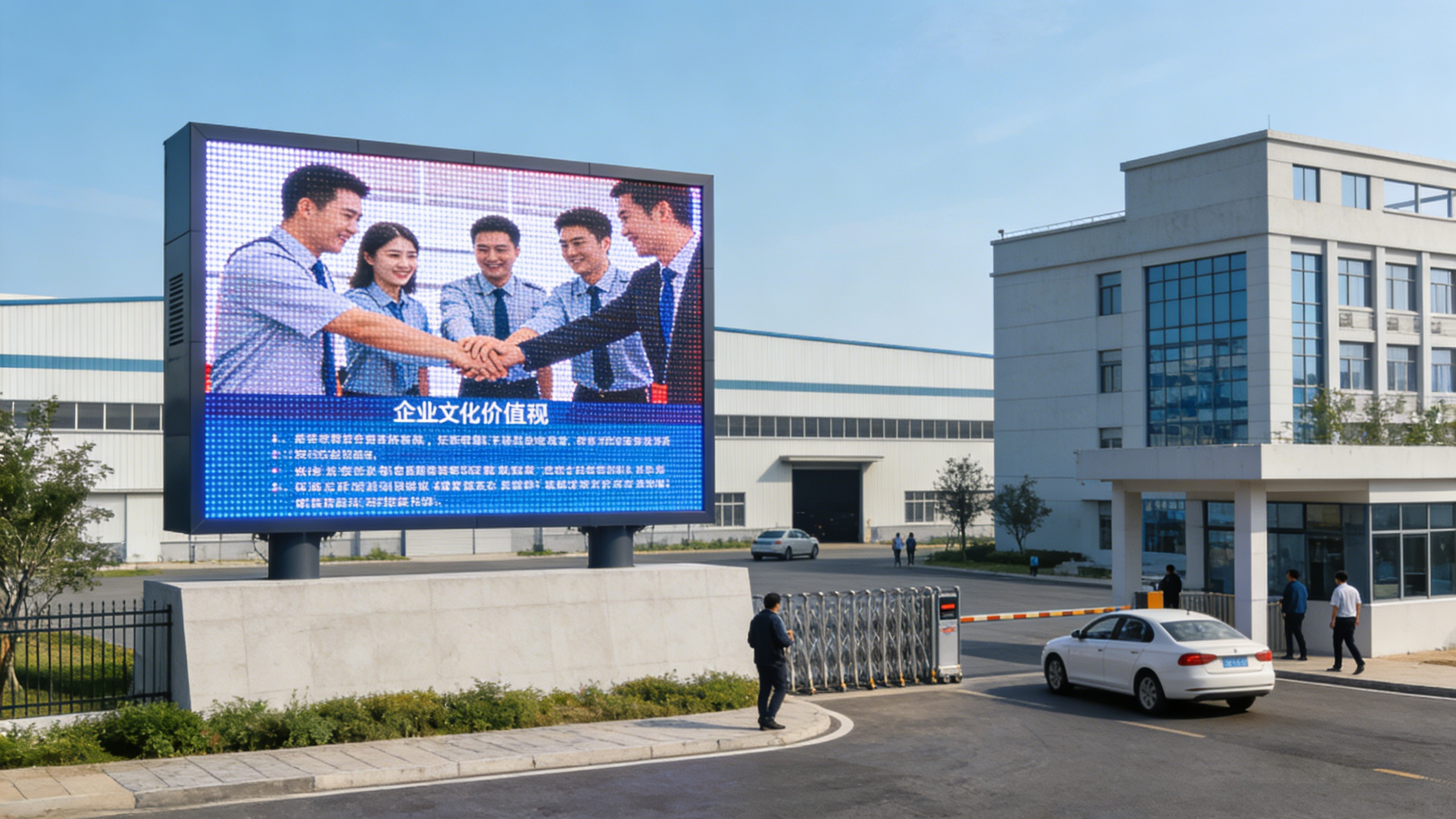

5、Industrial Parks & Enterprise Zones: Installed at the entrances of industrial parks, corporate headquarters, and business centers (using P6-P8 modules). Used to display brand images, corporate culture, and product information—impressing clients, partners, and employees.

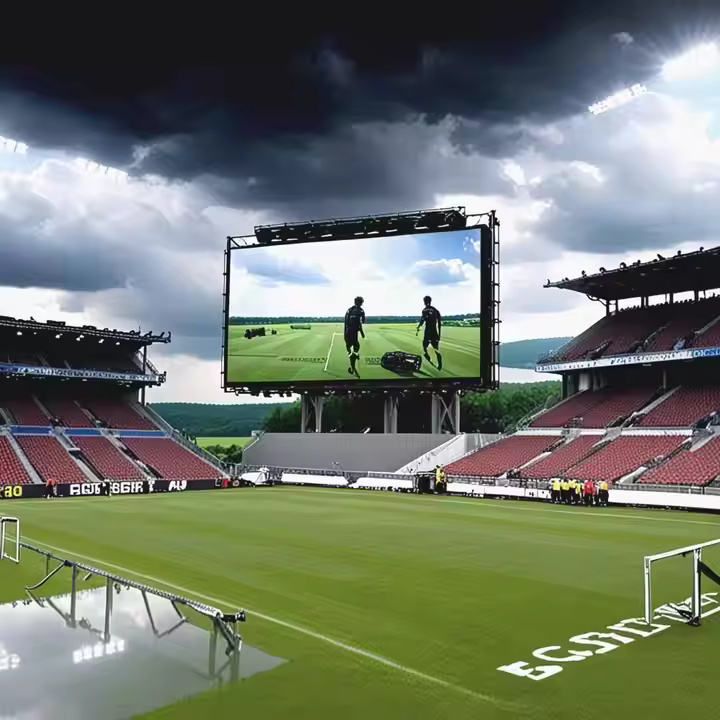

6、Event Venues (Semi-Permanent Installation): Sports stadiums, concert halls, and exhibition centers (using P3-P6 modules). Display brand sponsorship ads, event information, and live content during matches, concerts, and trade shows—reaching a focused, engaged audience.

Various installation

Production Process

We have professional LED display production equipment and assembly personnel. You only need to provide your needs, and we will provide you with comprehensive professional services from scratch. From developing production plans to the production and assembly of displays, we will ensure quality and quantity. You can rest assured to cooperate with us.

LED Display Aging and Testing

Aging and testing of LED display modules involves simulating long-term operation to ensure reliability and stability. This process is critical to identifying and resolving potential issues, ultimately improving the efficiency and stability of the LED display.

Conducting burn-in testing is a critical step in quality control to ensure the overall performance and service life of the LED display.
