Colorlight X8m Ultra 4K Video Processor with 5.24 Million Pixels for Full Color LED Display
Features
Input
. Supports up to 4096 ×2160@60Hz resolution
. 4K input ports: 1 × DP1.2, 1 × HDMI2.0
. 2K input ports: 4 × HDMI1.4
. 1 × USB drive port
Output
. Load capacity up to 5.24 million pixels
. 8 ×Gigabit Ethernet ports
Audio
. 1 ×independent audio input
. 1 ×independent audio output
. Supports for HDMI and DP audio decoding and output
Function
. Supports up to 6 windows, one layer for each window, layers overlap each other
-1 ×4 input: simultaneously supports for 4 HD input ports and 5 windows
-2 ×4 inputs: supports for 2 windows
| Number of 4K signal layerin the canvas | Maximum number oflayers | Description of thelargest layer |
| 1 | 5 | 1 ×4k＋4 × HD |
| 2 | 2 | 2 ×4K |
| 0 | 6 | 6 × HD |
. Navigate and resize windows, with a minimum window size of 64 ×64
. Crop with ease and seamlessly switch video signals, resize cutting frame, with a minimum window size of 64 ×64
. Different types of receiving cards enable precise color management and adjustable color gamut
. Genlock synchronization: supports for internal vsync locking, signal source input, and auto-genlock according to layers
. Supports for adjustment of the brightness and color temperature, supports for precise color temperature
. Supports for 3D (Optional)
. Better grayscale at low brightness: effectively maintains the complete display of grayscale under low brightness
. Supports for saving and loading of 128 preset scenes
. Supports for playback and upgrading via USB drive
. Supports for OSD (Optional)
Control
. USB port for control and cascading
. RS232 Protocol control
. Supports for LAN port control
. Supports for control with apps
Configuration
Operating environment of the video control system includes:
. Operating system: Windows Server 2016 (No restrictions).
. CPU: Dual-core 2.5GHz or better
. Memory: 8GB RAM or above
. SSD: 150GB or above
Appearance

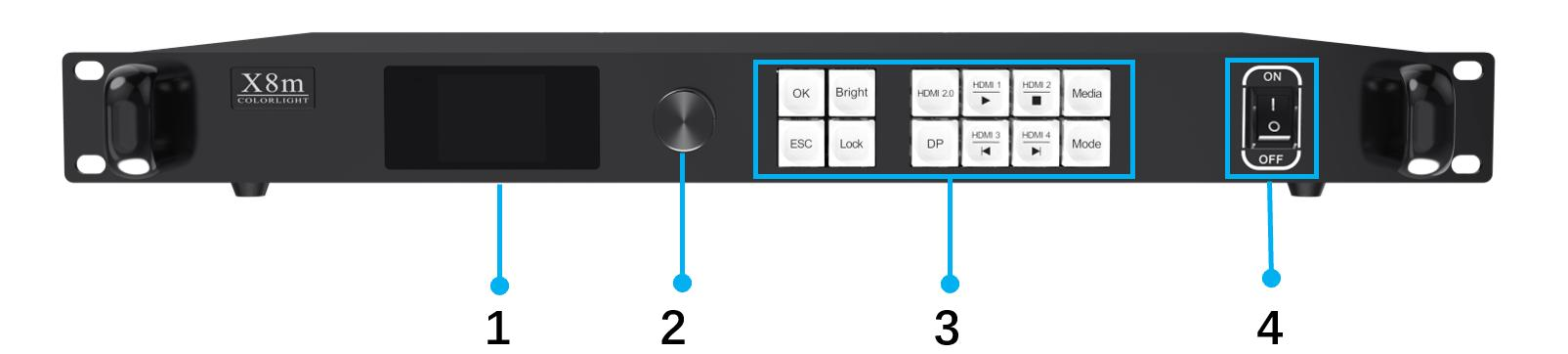

Front Panel
| No. | Item | Description |
| 1 | LCD | Display the operation menu and system information |
| 2 | Knob | . Press to enter sub menu or confirm your selection. Rotate the knob to select menu item or adjust parameters |
|
3 |
Function Buttons |
. OK: Confirm. Bright: Adjust screen brightness
. ESC: Exit the current operation or back to previous menu . Lock: Lock front panel buttons . HDMI 2.0 / DP / HDMI 1 / HDMI 2 / HDMI 3 / HDMI 4: - Switch signals - In USB drive playback mode, these buttons serve respectively as play . Media: Play media . Mode: Select preset scenes |
| 4 | Switch | Switch On/Off |
, pause
, previous
, and next

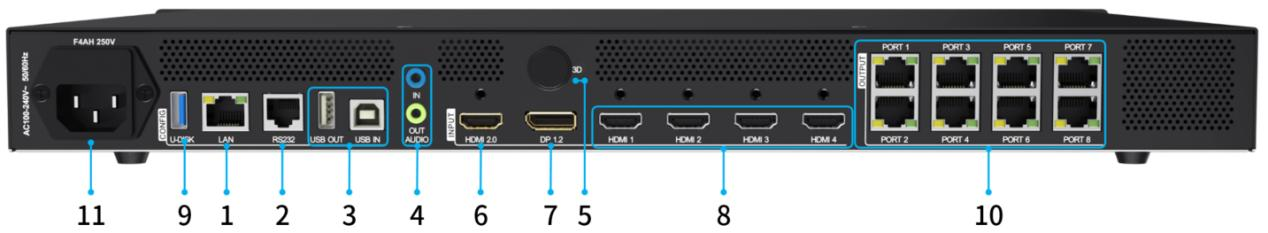

.Rear Panel
| Control | ||
| 1 | LAN | Connects to LAN using RJ45 port |
| 2 | RS232 | Connects to central control using RJ11(6P6C) port* |
|
3 |
USB IN | Connects to computer to adjust parameters or cascade input using USB2.0 Type B port |
| USB OUT | Cascading output using USB2.0 Type A port | |
| Audio | ||
|
4 |
AUDIO IN | 3.5mm port, receives audio signal from computer and other devices |
|
AUDIO OUT |
3.5mm port, sends audio signal to active speaker and other devices
(Supports for HDMI and DP audio decoding and output) |
|
| 3D | ||
| 5 | 3D* | Outputs 3D sync signal (Active 3D glasses needs to be purchased separately as an optional accessory) |
| Input | ||
|
6 |
HDMI 2.0 |
. 1 × HDMI2.0 input, downward compatible with HDMI1.4 and HDMI1.3
. Maximum input resolution: 4096× 2160@60Hz, minimum input resolution: 800 × 600@60Hz, maximum pixel clock: 600MHz . Custom resolution: - Maximum width: 8,192 pixels (8192 × 1080@60Hz) - Maximum height: 8,192 pixels (1080 ×8192@60Hz) . Supports for independent EDID settings, adopts EDID Standard Version 1.3. . Supports for audio input . HDR not supported . Interlaced signal input not supported |
| 7 | DP 1.2 | . 1 × DP1.2 input
. Maximum resolution: 4096 × 2160@60Hz, minimum resolution: 800 × 600@60Hz, maximum pixel clock: 600MHz . Custom resolution: - Maximum width: 8192 pixels (8192 × 1080@60Hz) - Maximum height: 8192 pixels (1080 ×8192@60Hz) . Supports for independent EDID settings, adopts EDID Standard Version 1.3. . Supports for audio input . HDR not supported . Interlaced signal input not supported |
|
8 |
HDMI 1 HDMI 2 HDMI 3 HDMI 4 |
. 4 × HDMI1.4 input
. Maximum resolution: 1920× 1200@60Hz, minimum resolution: 800×600@60Hz, maximum pixel clock: 165MHz . Custom resolution: - Maximum width: 4096 pixels (4096 × 512@60Hz) - Maximum height: 4096 pixels (512 ×4096@60Hz) . Supports for independent EDID settings, adopts EDID Standard Version 1.3. . Supports for HDCP1.4 . Supports for audio input . Interlaced signal input not supported |
|
9 |
U-DISK |
. USB drive port, supports for playback of videos/images in USB drive
. Supported USB drive includes NTFS, tFAT32, exFAT, other types are not supported yet . Image file formats: .jpeg, .png, .webp, .gif, .bmp . Maximum image resolution: 4096 ×2160@60Hz . Video file formats: .3gp, .avi, .flv, .m4v, m kv, .mp4, .tp, .ts, .vob, .wmv, .mpeg - Video coding: MPEG-1/2, MPEG-4, H.264/AVC, H.265/HEVC, GOOGLE VP8, MOTION JPEG - Audio coding: MPEG Audio, Windows Media Audio, AAC Audio, AMR Audio . Video resolution: - Maximum: 4096×2160@60Hz (video file formats include: H.264/AVC, MVC, H.265/HEVC) - Maximum: 1920× 1080@60Hz (video file formats include: MPEG-1/2, MPEG-4, GOOGLE VP8, VC-1) |
| Output | ||
|
10 |
PORT 1-8 |
. 8× 1G LAN port output
. Load capacity per port: - Single LAN port: 655,360 pixels - Outputs 8bit@60Hz: 650,000 pixels - Outputs 8bit@120Hz: 320,000 pixels - Outputs 8bit @240Hz: 160,000 pixels . Total load capacity: - Total load capacity: 5.24 million pixels - Outputs 8bit@60Hz: 5.24 million pixels - Outputs 8bit@120Hz: 2.62 million pixels - Outputs 8bit@240Hz: 1.31 million pixels - Maximum 16,384 in width, 8,192 pixels in height . Communication distance: The recommended maximum cable (CAT5e) run length is 100 meters . Supports for redundancy |
| Power | ||
| 11 | AC100-240V | Power input, 100-240V, 50/60Hz, with built-in fuse |

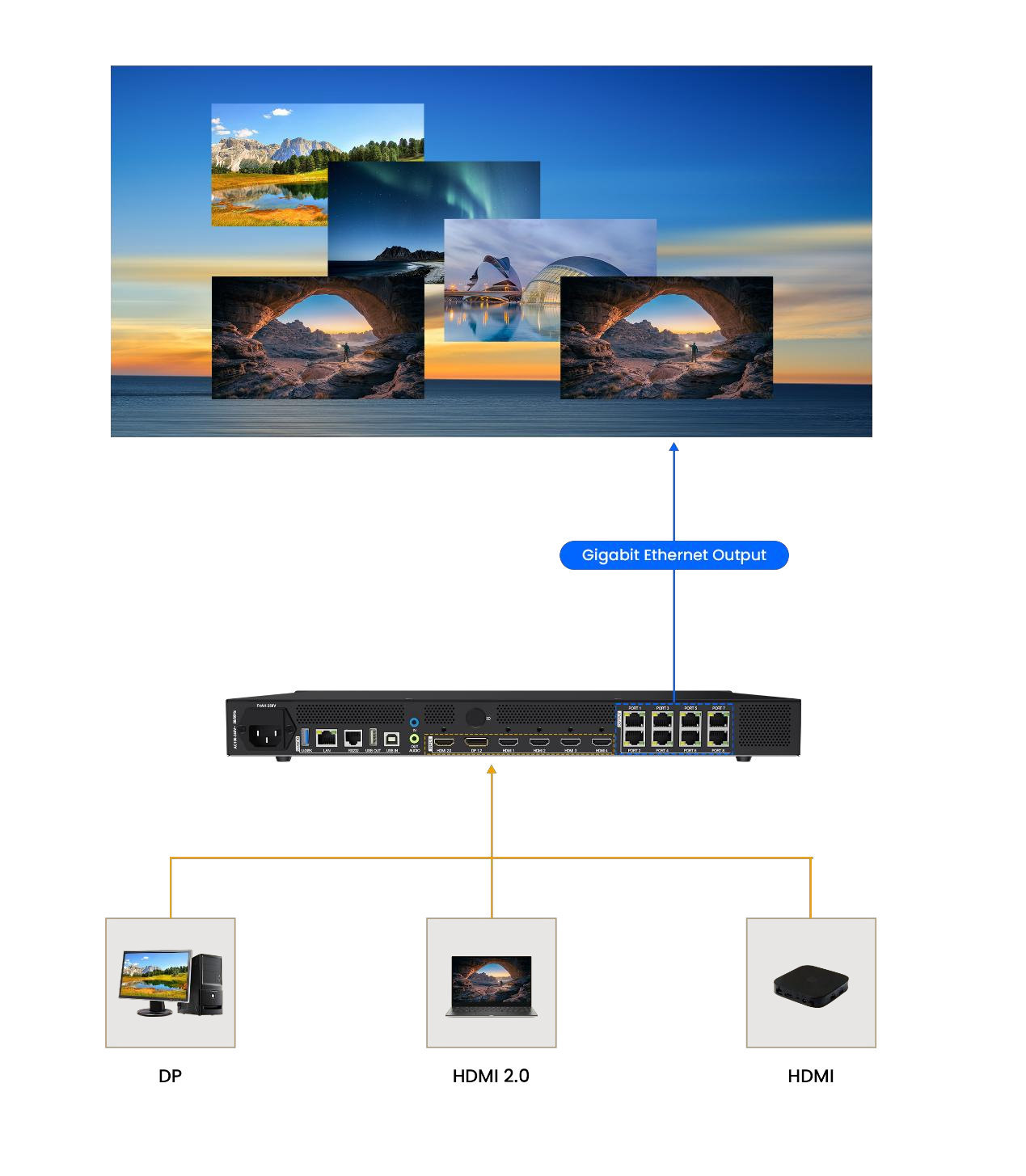

Application Scenarios
Signal Format
| HDMI2.0 | |||||
| Input | Color
Space |
Sampling | Bit
Depth |
Maximum Resolution | Frame Rate |
| 4K | YCbCr | 4:2:2 | 8bit | 4096×
2160@60Hz |
23.98, 30, 50, 59.94, 60 |
| YcbCr/RGB | 4:4:4 | 8bit | |||
| 2K | YcbCr | 4:2:2 | 8bit | 1920×
1200@60Hz |
23.97, 24, 30, 50, 59, 94, 60, 100, 120, 144 |
| YcbCr/RGB | 4:4:4 | 8bit | |||
| HD | YcbCr | 4:2:2 | 8bit | 1280×
1200@60Hz |
23.97, 24,30, 50, 59, 94, 60, 100, 120, 144, 240 |
| YcbCr/RGB | 4:4:4 | 8bit | |||
| DP1.2 | |||||
| 4K | YcbCr | 4:2:2 | 8bit | 4096×
2160@60Hz |
23.98, 30, 50, 59.94, 60 |
| YcbCr/RGB | 4:4:4 | 8bit | |||
| 2K | YcbCr | 4:2:2 | 8bit | 1920×
1200@60Hz |
23.97, 24, 30, 50, 59, 94, 60, 100, 120, 144 |
| YcbCr/RGB | 4:4:4 | 8bit | |||
| HD | YcbCr | 4:2:2 | 8bit | 1280×
1200@60Hz |
23.97, 24, 30, 50, 59, 94, 60, 100, 120, 144, 240 |
| YcbCr/RGB | 4:4:4 | 8bit | |||
| HDMI 1.4 | |||||
|
2K |
YcbCr | 4:2:2 | 8bit | 1920×
1200@60Hz |
29.97, 59.94, 30, 50, 60 |
| YcbCr/RGB | 4:4:4 | 8bit | |||
| YcbCr | 4:2:2 | 8bit | 1920×
1080@60Hz |
29.97, 59.94, 30, 50, 60 | |
| YcbCr/RGB | 4:4:4 | 8bit | |||
* The above shows only some of the standard definition.
YcbC4420, 10bit, 12bit not supported
Other specification
| Dimensions（W×H×D） | |
| Main unit | 482.6 mm (19") ×44.0 mm (1.7") ×360.0 mm (14.2"), no foot pads |
| Packing | 550.0 mm (21.6") × 115.0 mm (4.5") ×490.0 mm (19.3") |
| Weight | |
| Net | 4.24kg (9.35lbs) |
| Gross | 4.86kg (10.71lbs) |
| Electrical characteristics | |
| Power supply | AC100-240V, 50/60Hz |
| Rated power | 52W |
| Operating environment | |
| Temperature | -20℃ to 50℃ (-4° F to 122° F) |
| Humidity | 0%RH to 80%RH, non-condensing |
| Storage environment | |
| Temperature | -30℃ to 80℃ (-22° F to 176° F） |
| Humidity | 0%RH to 90%RH, non-condensing |
| Certifications | |
| CE, FCC, IC, UKCA* If the product does not have the relevant certifications required by country or region where it is to be sold, please contact
Colorlight to confirm or address the problem. Otherwise, the customer shall be responsible for the legal risks or Colorlight has the right to claim compensation. |
|

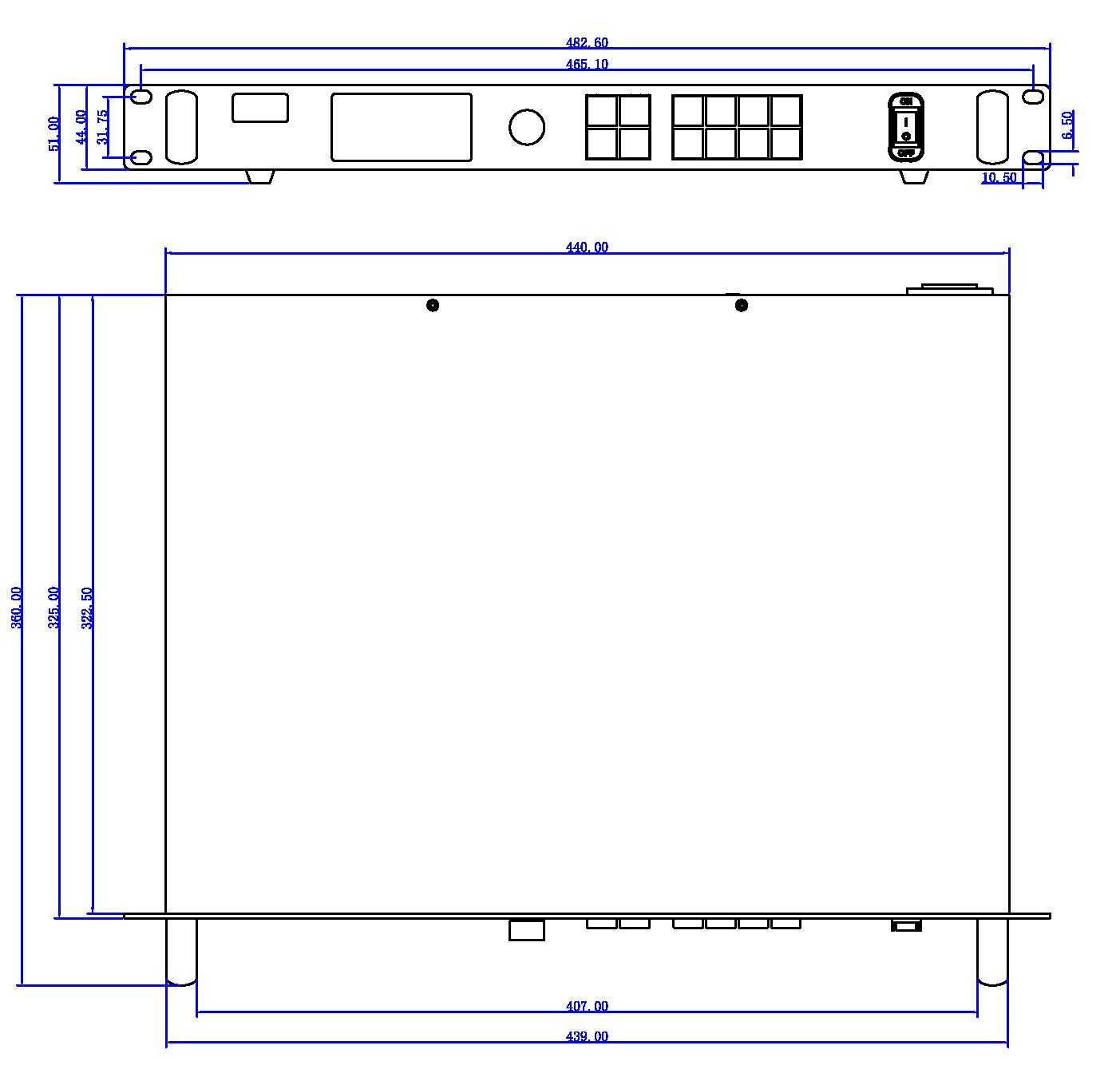

Reference Dimensions
Unit：MM
