Colorlight X12m Ultra 4K Video Processor with 7.86 Million Pixels for Large LED Video Wall

Short Description:

X12m is an Ultra-4K LED video controller with powerful video signal input and processing capabilities. It supports both 4K and 2K video signal inputs and Ethernet port output mode. With a load capacity of 7.86 million pixels, the device is designed to meet diverse customer needs across various video display applications. Thanks to its versatile and practical features, X12m offers an ideal solution for flexible screen control and high-quality image display.


Product Detail

Product Tags

Features

Input

. Maximum resolution: 4096 ×2160@60Hz

. 2 ×4K input ports: 1 × DP1.2, 1 × HDMI2.0

. 4 ×2K input ports: 4 × HDMI1.4

. 1 × USB port



Output

. Maximum load capacity: 7.86 million pixels

. 12×Gigabit Ethernet ports



Audio

. 1 ×independent audio input

. 1 ×independent audio output

. Supports HDMI and DP audio decoding and output



Function

. Supports up to 6 windows at once, each with 1 layer, and allows for overlapping layers

-1 ×4K input: simultaneously supports 4 HD inputs for up to 5 windows

-2 ×4K inputs: supports 2 windows only

Number of 4K Signal

Layers in Canvas

Maximum Number of

Layers

Maximum Layers

Description

1 5 1*4K+4*HD
2 2 2*4K
0 6 6*HD



. Navigate and resize windows, with a minimum window size of 64 ×64

. Free cropping and seamless switching of video signals; crop box adjustable, with a minimum size of 64 ×64

. Precise  color  management,  allowing  for  color  gamut  adjustment  (Works  with receiving cards supporting this function)

. Genlock  synchronization  supports  locking  to  internal  VSync  or  input  signal; automatic Genlock (according to layers) is also available

. Supports brightness and precise color temperature adjustment

. Supports 3D (Optional)

. Better  grayscale  at  low  brightness,  effectively  preventing  grayscale  loss  in  low brightness conditions

. Supports saving and loading of 128 preset scenes

. Supports playback and upgrading via a USB drive

. Supports Bluetooth remote control (Optional)



Control

. Supports control and cascading via USB ports

. Supports RS232 Protocol control

. Supports LAN port control

. Supports control via mobile apps

Appearance

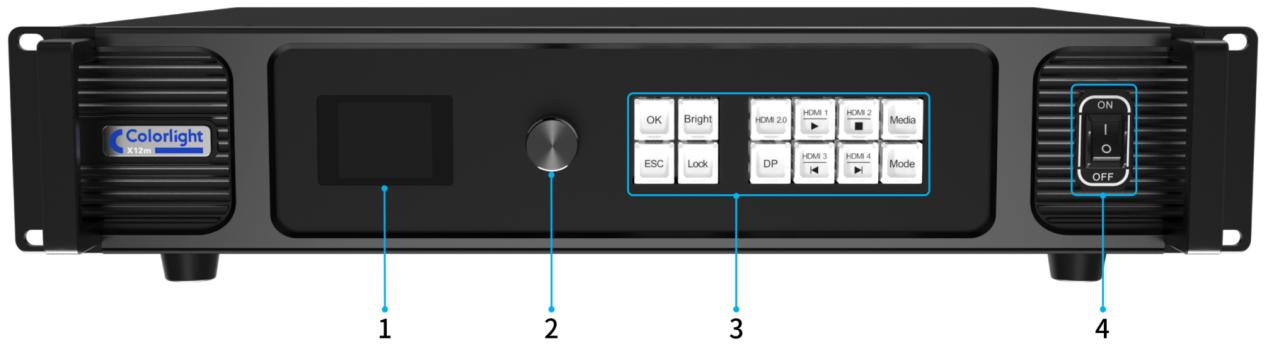

Front Panel

1
No. Item Description
1 LCD Display the operation menu and system information
2 Knob . Press the knob to enter sub menu or confirm your selection

. Rotate the knob to select menu item or adjust the parameters





3





Function Buttons

OK: Confirm

Bright: Adjust screen brightness

ESC: Exit the current operation or back to previous menu

Lock: Lock front panel buttons

HDMI 2.0 / DP / HDMI 1 / HDMI 2 / HDMI 3 / HDMI 4:

- Switch between input signal sources

- In USB drive playback mode, these buttons serve respectively as play  , stop   , previous  , and next   .

Media: Play media files

Mode: Select from preset scenes

4 Switch Power On/Off Switch

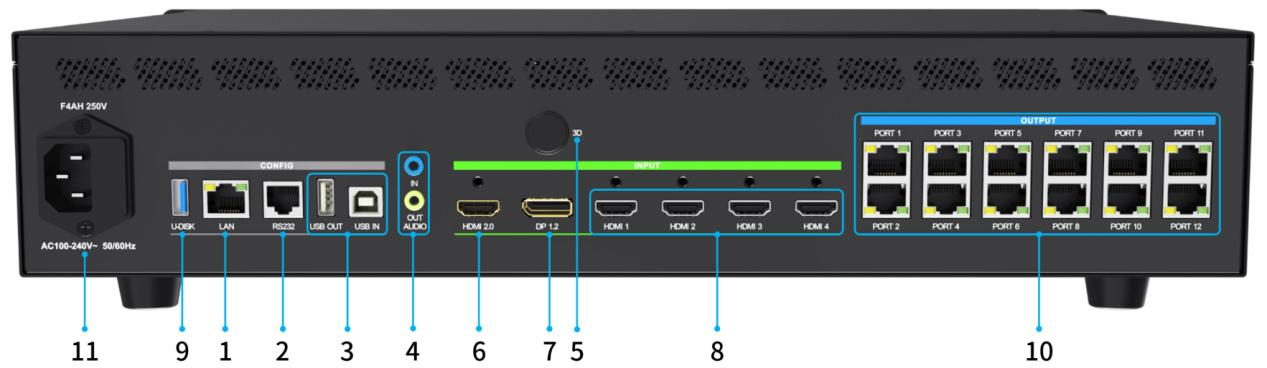

Rear Panel

2
Control
1 LAN RJ45 port for LAN connection
2 RS232 RJ11 (6P6C) port* for central control connection
 3 USB IN USB2.0   Type   B   port   for   parameter   adjustment   when connected to a PC or for cascading input
USB OUT USB2.0 Type A port for cascading output
Audio
 4 AUDIO IN 3.5mm port for receiving audio signals from PC and other devices
 AUDIO OUT 3.5mm port for outputting audio signals to active speaker and other devices(Supports HDMI and DP audio decoding and output)
3D
 5  3D* Outputs 3D sync signal(Active 3D glasses needs to be purchased separately as an optional accessory)
Input












6













HDMI 2.0

. 1 × HDMI2.0 input, downward compatible with HDMI1.4 and HDMI1.3. Maximum input resolution: 4096 ×2160@60Hz;

Minimum input resolution: 800 ×600@60Hz;

Maximum pixel clock: 600MHz

. Custom resolution:

-  Maximum width: 8,192 pixels (8192 × 1080@60Hz)

-  Maximum height: 8,192 pixels (1080 ×8192@60Hz)

. Supports independent EDID settings, following the EDID V1.3 standard

. Supports audio input

. HDR not supported

. Interlaced signal input not supported















7















DP 1.2

. 1 × DP1.2 input. Maximum resolution: 4096 ×2160@60Hz;

Minimum resolution: 800×600@60Hz;

Maximum pixel clock: 600MHz

. Custom resolution:

-  Maximum width: 8,192 pixels (8192 × 1080@60Hz)

-  Maximum height: 8,192 pixels (1080 ×8192@60Hz)

. Supports independent EDID settings, following the EDID V1.3 standard

. Supports audio input

. HDR not supported

. Interlaced signal input not supported















8











HDMI 1

HDMI 2

HDMI 3

HDMI 4

. 4 × HDMI1.4 inputs. Maximum resolution: 1920× 1200@60Hz;

Minimum resolution: 800×600@60Hz;

Maximum pixel clock: 165MHz

. Custom resolution:

-  Maximum width: 4,096 pixels (4096 × 512@60Hz)

-  Maximum height: 4,096 pixels (512 ×4096@60Hz)

. Supports independent EDID settings, following the EDID V1.3 standard

. Supports HDCP1.4

. Supports audio input

. Interlaced signal input not supported















9















U-DISK

. USB port for video/image playback from a USB drive. File systems: NTFS, FAT32, exFAT

. Image file formats: JPEG, PNG, WEBP, GIF, BMP

. Maximum image resolution: 4096 ×2160

. Video file formats: 3GP, AVI, FLV, M4V, MKV, MP4, TP, TS, VOB, WMV, MPEG

-    Video    coding:     MPEG-1/2,    MPEG-4,     H.264/AVC, H.265/HEVC, GOOGLE VP8, MOTION JPEG

- Audio coding: MPEG Audio, Windows Media Audio, AAC Audio, AMR Audio

. Video resolution:

-   Maximum  4096  × 2160@60Hz  (Supported  formats:

H.264/AVC, MVC, H.265/HEVC)

-   Maximum   1920  ×  1080@60Hz   (Supported  formats: MPEG-1/2, MPEG-4, GOOGLE VP8, VC-1)



Output




















10





















PORT 1-12

. 12× 1G Ethernet ports

. Load capacity per port:

- Single Ethernet port: 655,360 pixels

- 8bit@60Hz: 650,000 pixels

- 8bit@120Hz: 320,000 pixels

- 8bit@240Hz: 160,000 pixels

. Total load capacity:

- Total load capacity: 7.86 million pixels

- 8bit@60Hz: 7.86 million pixels

- 8bit@120Hz: 3.93 million pixels

- 8bit@240Hz: 1.96 million pixels

- Maximum 16,384 in width or 8,192 pixels in height

. Communication  distance:  The  recommended  maximum cable (CAT5e) run length is 100 meters.

. Supports redundancy

Power
11 AC100-240V A port for power input; 100-240V~, 50/60Hz; with built-in fuse

* The image shown is for illustration purpose only and may not be an exact representation of the product due to production process. Please refer to the actual product.

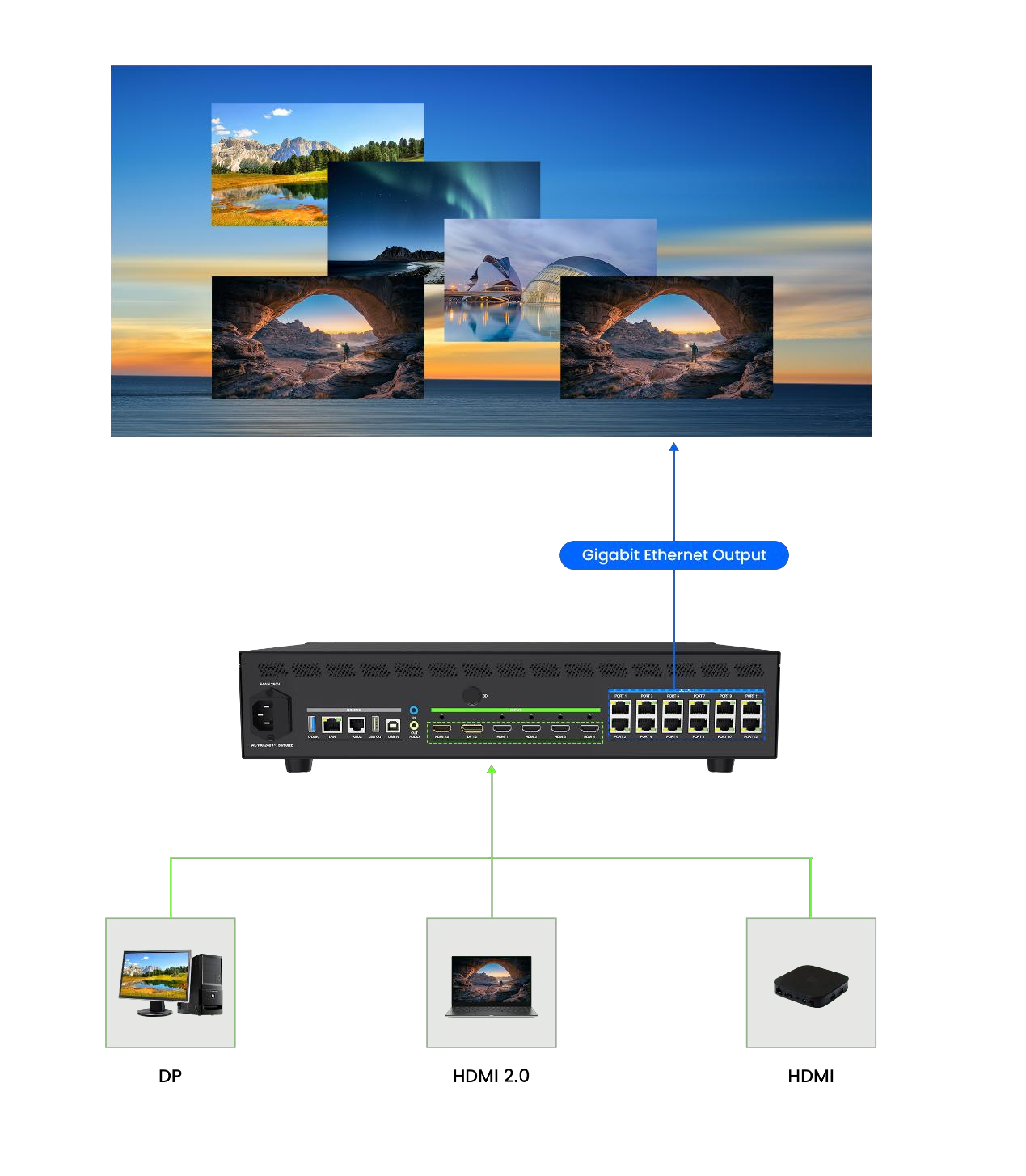

Application Scenarios

3

Other specification

Dimensions(W×H×D)
Device 482.6 mm (19") ×88.0 mm (3.5") ×369.1 mm (14.5"), no rubber feet
Packing 550.0 mm (21.7") × 168.0 mm (6.6") ×480.0 mm (18.9")
Weight
Net 2.46 kg (5.42 lbs)
Electrical parameters
Power supply AC 100-240V, 50/60Hz
Rated power 58W
Operating environment
Temperature -20℃ ~50℃ (-4° F~122° F)
Humidity 0% RH~80% RH, non-condensing
Storage environment
Temperature -30℃ ~80℃ (-22° F~176° F)
Humidity 0% RH~90% RH, non-condensing
Certifications
CE, FCC, IC, UKCA

* If the product does not have the relevant certifications required by the countries or regions where it is to be sold, please contact Colorlight to confirm or address the problem. Otherwise, the customer shall be responsible for the legal risks, or Colorlight has the right to claim compensation.

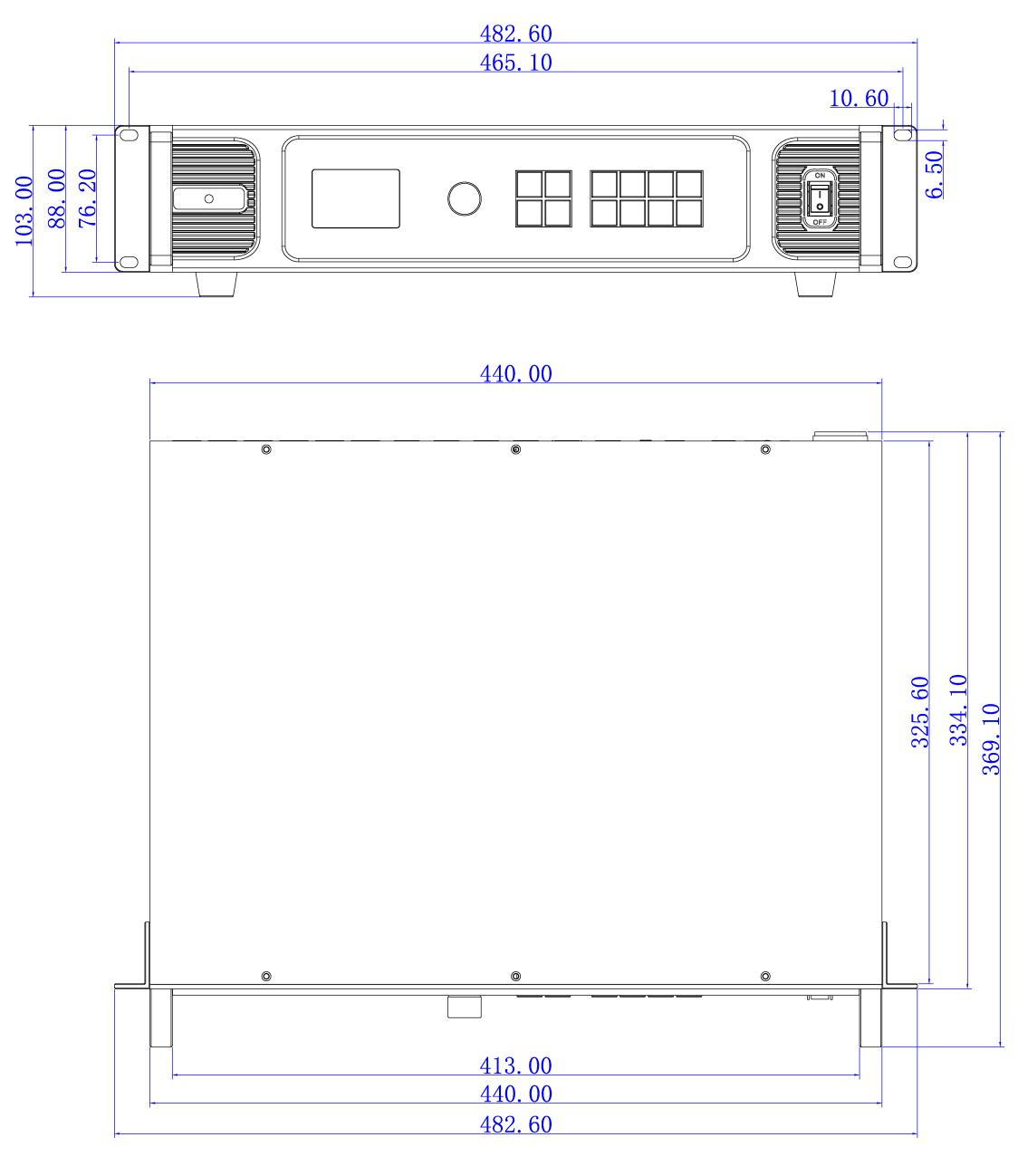

Reference Dimensions

Unit:MM

4
