Overview

The AX08 is AI Media Station. Equipped with 8 Gigabit Ethernet ports, it handles a maximum load of 5.2 million pixels. It supports multi-layer displays and 8K video decoding, along with LAN/WiFi network access for cloud networking management. Additionally, it supports document presentation, video playback, multi-terminal wireless screen casting, infrared touch frames, electronic whiteboards, cameras, microphones, and meeting systems.
Running on the Android 13 system, the AX08 integrates various Android applications and provides synchronous /asynchronous sending functions. Featuring robust interactivity and smart control, it can be mounted on a wall or placed on a desktop without requiring modifications to the screen structure. It is ideal for LED displays in multifunctional classrooms, conference rooms, exhibition halls, lecture halls, and banquet halls, ensuring optimal display performance.

Features

System functions

● 8-core chip with 8nm advanced process technology, delivering outstanding performance
● Up to 8K Video decoding and H.264/H.265/AV1/VP9/AVS2 compliant
● Android 13 based, supporting third-party app installations
● Colorlight Infi-bit grayscale extension technology
● 8 Gigabit Ethernet port outputs, supporting up to 5.2 million pixels, with a maximum width of 7680 pixels
● 2×HDMI signal inputs, 1xUSB-C DP Alt Mode signal output and 1×HDMI 2.0 signal output
● Multiple HDMI signal layers, supporting picture-in-picture and picture-by-picture
● Annotation upon even external inputs including OPS and HDMI signals
● Support wireless display, multi-terminal wireless screen casting, reverse control
● Compatible with generic infrared touch frames for smooth electronic whiteboard
● Meeting systems compatible with meeting peripherals(Requires third party meeting apps)
● Display preset modes for various scenarios such as presentation, remote meetings, and video playback
● LAN/WiFi for network management
● Embedded file manager for easy management for on-board and USB drive files
● USB drive plug and play or store and play
● Automatic LED brightness adjustment (Optional with ambient light sensor)
● Support 4K UI display
● Powerful AI computing power
● Low power consumption on standby mode
● Fan-less design for ultra-quiet environment, eliminates maintenance of dust buildup and mechanical failure, leading to lower operational costs and less downtime, no wearing out moving parts

Smart Playback and Control

● Infrared/Bluetooth dual mode remote control for flexible and intuitive operation
● File browsing and document editing with a remote control, mouse, or keyboard
● Multi-Platform software control (WebUI, PC PlayerMaster, ColorlightCloud CMS, Mobile phone LED Assistant)
● Playlist assets including videos, images, text, time, and weather, HDMI signals, etc.
● Central control devices via serial port or network

Smart Playback and Control

● 2×HDMI inputs
● 1×HDMI 2.0 output and 1×USB-C DP Alt Mode output
● 8×Ethernet port outputs with a maximum load capacity of 5.2 million pixels
● USB 2.0, USB 3.0, and USB-C ports for connecting peripherals like mouse, keyboard, USB-disk, and camera
● Gigabit Ethernet connection for remote intelligent control and management
● WiFi 6 wireless communication, dual-band and dual-mode (AP and STA)
● Bluetooth 5.2 for connecting Bluetooth remote controls, mice, keyboards, and speakers
● 1×SPDIF output for PCM, Dolby, and DTS audio signals
● 1×3.5mm audio jack for HiFi audio
● Sensor port for monitoring ambient temperature, humidity, and brightness (Sensors are optional)

Comparison between AX06 and AX08

Comparison

Appearance

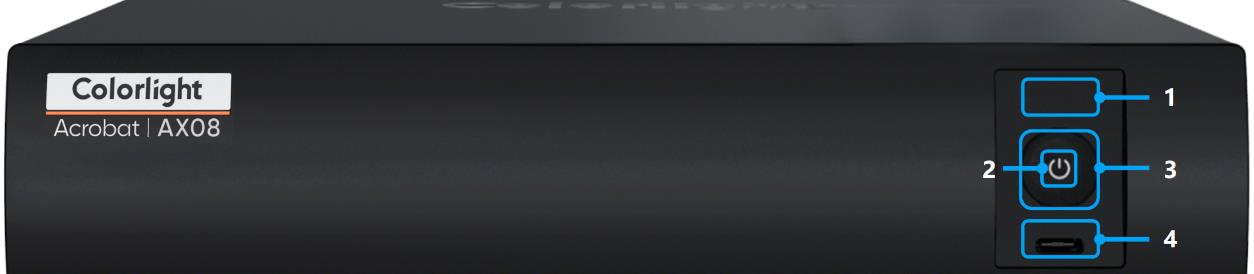

Front panel

Colorlight AX08
No. Name Description
1 Infrared  Receiver Receive infrared remote control signals
2 Status LEDs Solid red: Power supply normal

Solid blue: Device running

3 Power Switch Press: Sleep/Wake

Press and hold: Power On/Off

 4  USB Type- C Debugging and setting display parameters.

Connect to mouse, keyboard, USB-disk, 4K screen dongle, and other USB devices.

Connect to USB-C display monitor.

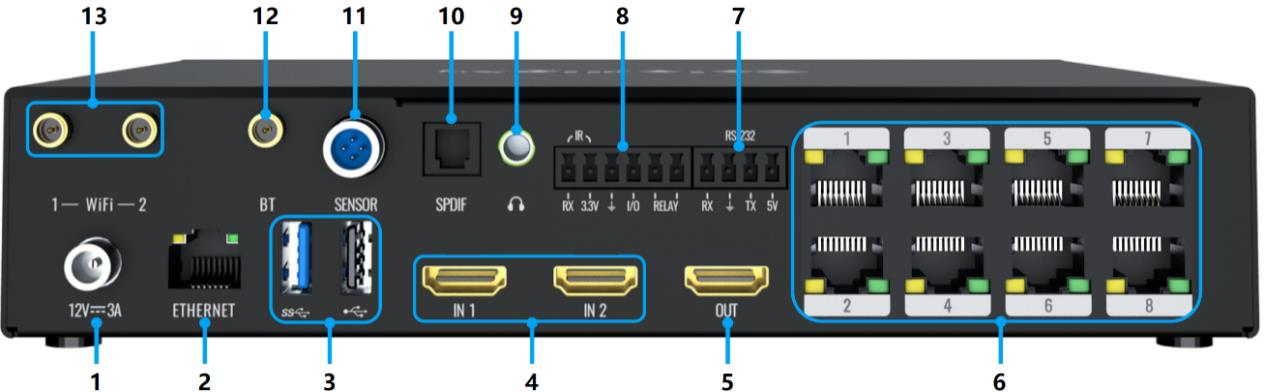

Rear panel

Colorlight AX08
Power
1 DC12V/3A Connect to the power adapter
Control
2 ETHERNET Gigabit Ethernet port for wired network connection


3



USB-A

USB 2.0 and USB 3.0 ports for connecting USB devices like USB-disks, mice, and keyboards.

Supported USB-disk formats: NTFS, FAT32, and exFAT

7 4-PIN

Phoenix

RS232: Connect to central control devices




8



6-PIN

Phoenix

1×IR IN: Connect to the infrared receiver for remote control signals

1×I/O: Input/output for programmable control functions

1× RELAY: Connect to the relay to control device switch

1× GND: For ground connection



11



SENSOR

Connect to the sensor to monitor environmental parameters   (brightness, smoke, temperature, and humidity)

Input


4

IN 1 HDMI 2.0 input, supports HDCP 1.4/2.2

Supports 3840x2160@60Hz, YUV444

IN 2 HDMI 1.4 input, supports HDCP 1.4/2.2

Supports 3840x2160@30Hz, YUV444

Output
5 HDMI 2.0 1× HDMI 2.0, supporting 3840x2160@60Hz and YUV444
6 1~8 8× RJ45 Gigabit Ethernet ports for connecting the screen receivers
9 AUDIO 1× 3.5mm Jack, supporting HiFi audio
10 SPDIF 1× SPDIF, supporting PCM, Dolby, and DTS audio signals
Antenna
12 BT Connect to Bluetooth antenna
13 WiFi 1/2 Connect to WiFi antennas



Specifications

Physical
Device Dimensions (W×H×D) 220mm(8.66")×188mm(7.40")×47mm(1.85")(w/o antennas and mounting bracket)
Package Dimensions (W×H×D) 332mm(13.07")×245mm(9.65")×115mm(4.53")
Storage
DDR 8GB
EMMC 128GB
Electrical
Power Supply DC 12V/3A
Power Consumption 28W
Operating Environment
Temperature -20℃(-4°F)~60℃(140°F)
Humidity 0%RH-85%RH,non-condensing
Packing Information




Packing List

1×AX081×Dual Mode Remote controller (IR&BT)

1×HDMI cable

1×Type-C cable

3×Antennas

4×Mounting bracket

1×Power adapter

Reference dimensions

Unit: mm

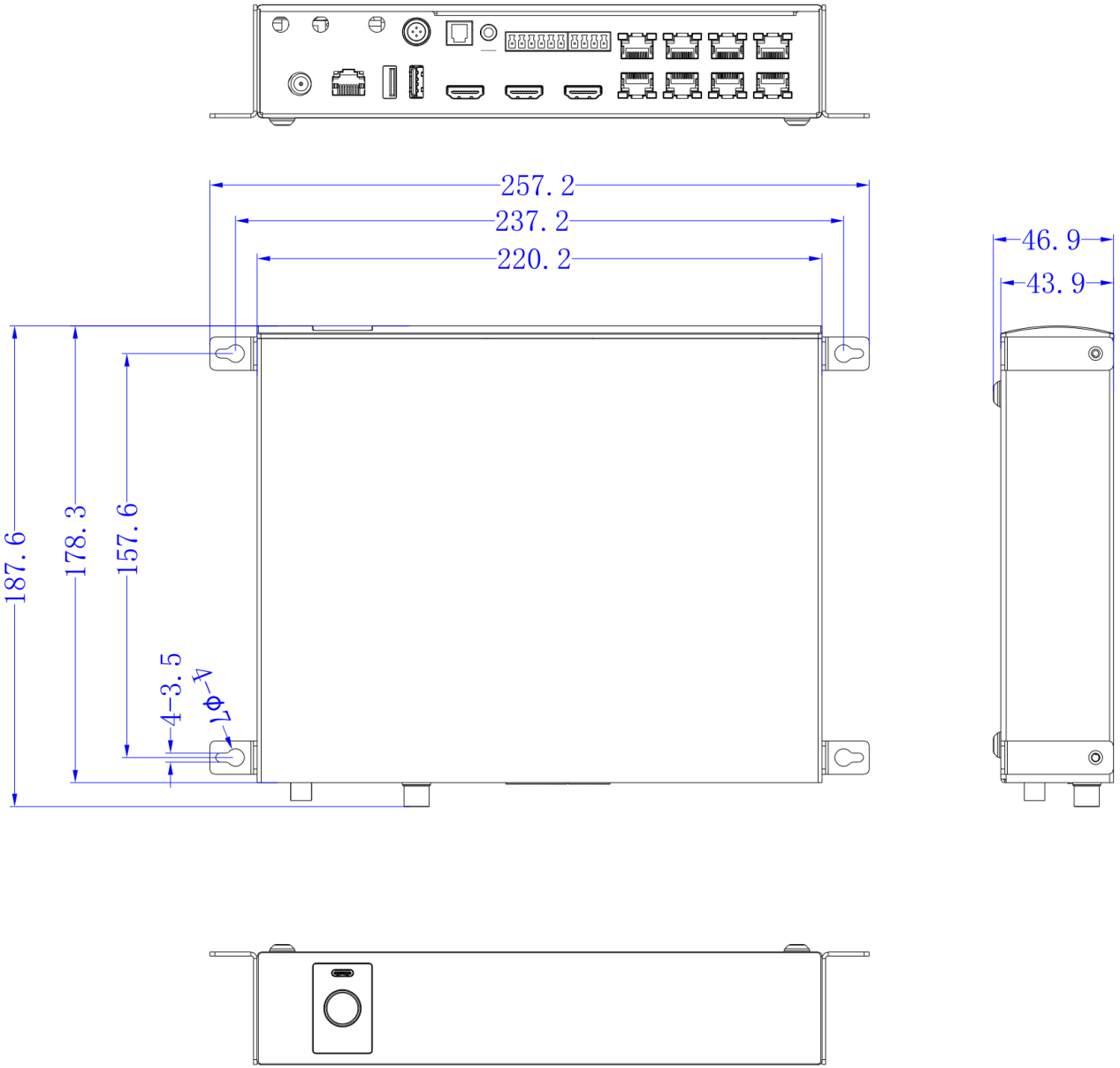

AX08

Dimension

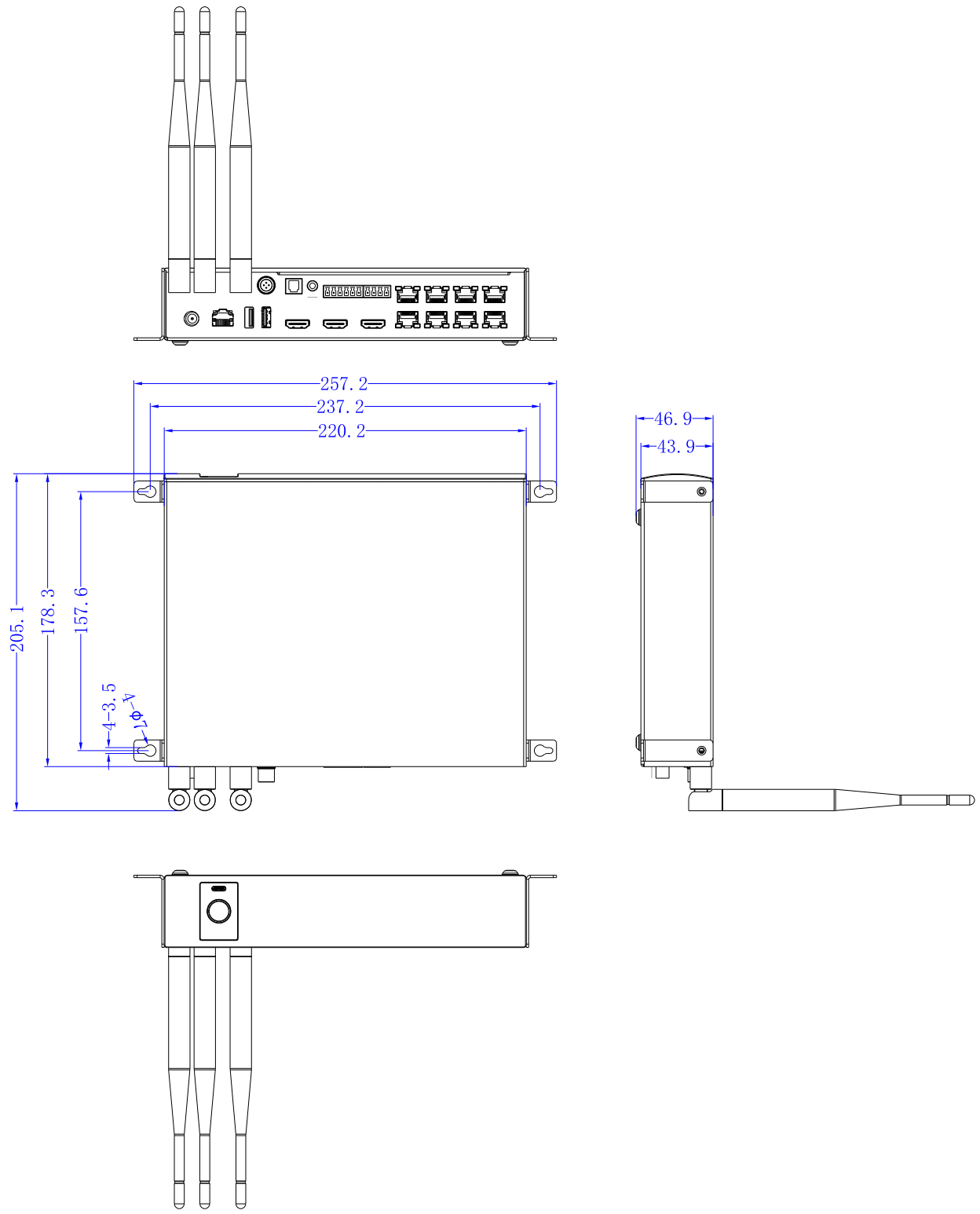

AX08 with WiFi antenna

AX08 with Antenna

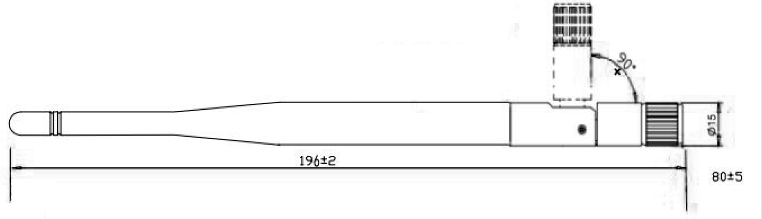

WiFi antenna

WIFI Antenna

Ear Hook Installation Instructions

Prepare Tools and Accessories
Anti-static wrist strap or anti-static gloves.

Phillips Screwdriver.
Left and right earhooks (4 per unit).

Instructions
Left and right earhooks are included in the product packaging.
When installing the earhooks, simply remove and reuse the existing screws on both sides of the device. Do not replace them with longer screws to avoid damaging the device.
Operation Steps

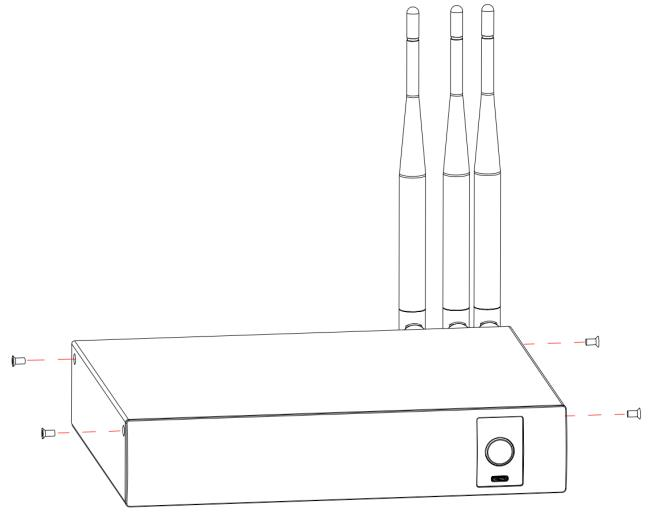

1.Wear an anti-static wrist strap or anti-static gloves. If wearing an anti-static wrist strap, ensure that one end is properly grounded and the other end is in good contact with the wearer's skin.

2.Use a Phillips screwdriver to remove the four screws on the left and right sides of the device.

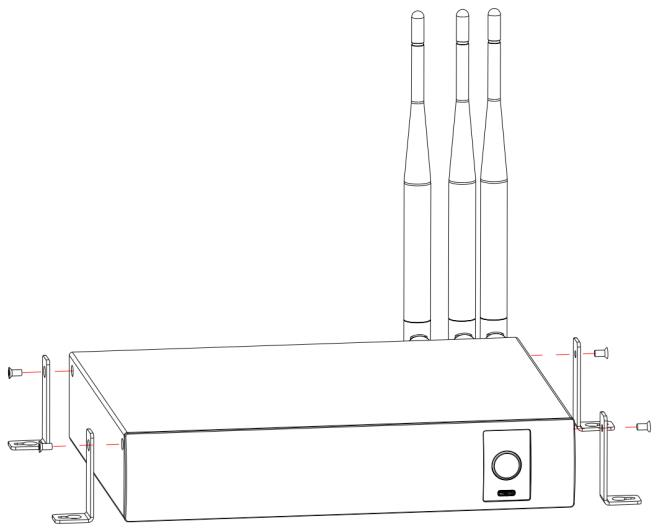

AX08 1

3.Align the rack ear holes with the device screw holes and secure them with screws.

AX08 2
