【2026.3.13, SHENZHEN】 – With the rapid development of indoor visual display technology, traditional rigid LED modules are gradually unable to meet the market’s demand for personalized, immersive, and diversified display scenarios. To address this gap, a new series of indoor flexible LED modules has been officially launched. Different from conventional rigid LED panels and even ordinary LED displays, this new product integrates advanced structural design and optoelectronic technology, showing unique characteristics and obvious competitive advantages. Below is a detailed analysis of its core features and advantages.
1. Display Principle and Structural Characteristics & Advantages
① Principle: The indoor flexible LED modules adopt high-performance LED beads as independent pixel units, which can emit light independently without relying on an additional backlight source—similar to traditional LED displays but with a more flexible structural design. Each LED bead is precisely integrated on a flexible substrate, realizing synchronous light emission and color control, ensuring clear and stable display effects.
② Structure: Unlike the fixed structure of traditional rigid LED modules, the new product uses high-strength FPC (Flexible Printed Circuit) substrates and food-grade silicone encapsulation. Its structure is lightweight and flexible, without the limitation of a rigid circuit board, which allows the modules to be bent freely according to installation needs. The overall structure is simple yet robust, with internal components tightly encapsulated to avoid damage caused by bending or external impact.
Advantages: The flexible structural design breaks the installation limitations of traditional rigid LED modules, which can only be installed on flat surfaces. It can seamlessly fit various irregular indoor surfaces, such as arc walls, cylindrical columns, concave-convex decorative panels, and curved ceilings. Meanwhile, the fully sealed structure (IP65 front protection level) effectively isolates dust and moisture, ensuring stable operation in complex indoor environments.
2. Visual Performance: Color Expression and Display Effect
① Color Expression: The modules adopt the RGB three-primary-color lighting mode, which can directly mix various colors with high color saturation, presenting more vivid and realistic image effects than ordinary LED displays. With advanced color correction technology, the color consistency is significantly improved (ΔE < 2), and the color gamut covers 98% of NTSC, which can meet the high requirements for color accuracy in fields such as professional exhibition, luxury retail, and art display.
② Display Effect: Equipped with SMD 2121/3528 high-grade LED chips (optional Epistar/San'an chips) and COB packaging technology, the modules have a pixel pitch ranging from P0.8mm to P4.8mm, supporting ultra-high-definition display. The refresh rate reaches 4800Hz, which effectively avoids smearing and flicker, making it particularly suitable for displaying high-speed dynamic content such as promotional videos and interactive animations. In addition, the 160° horizontal/vertical viewing angle ensures consistent visual effects from any perspective, solving the problem of color distortion in traditional LED displays at large viewing angles.
3. Installation, Power Consumption and Cost Performance
① Installation: With a thickness of only 8mm and a weight of 280g per panel (320×160mm standard size), the modules are 60% lighter and 50% thinner than traditional rigid LED modules, greatly reducing the load-bearing pressure on installation surfaces. The integrated magnetic adsorption and quick-lock connection design enables tool-free installation, reducing on-site construction time by 40% and lowering labor costs. The modular design also supports arbitrary splicing, facilitating flexible expansion and later maintenance.
② Power Consumption: Compared with traditional rigid LED modules and LCD displays, the new indoor flexible LED modules have obvious energy-saving advantages. The LED beads used have high luminous efficiency, consuming less electricity for the same brightness. In addition, the intelligent energy-saving control system supports automatic brightness adjustment and low-power standby, reducing power consumption by 30% compared to conventional LED modules. Unlike LCD displays, which still consume power for backlight when displaying black images, the LED modules can achieve true black display, further saving energy.
③ Cost Performance: Although the initial investment cost is slightly higher than that of ordinary LED modules, the product has a service life of up to 50,000 hours (MTBF ≥ 20,000 hours), which is much longer than traditional LED and LCD displays, reducing the frequency of equipment replacement and overall use cost. For high-end indoor scenarios that pursue personalized display, its flexible adaptability and high-quality visual effects can bring higher added value, showing excellent cost performance in the long run.
4. Application Scenarios and Enterprise Advantages

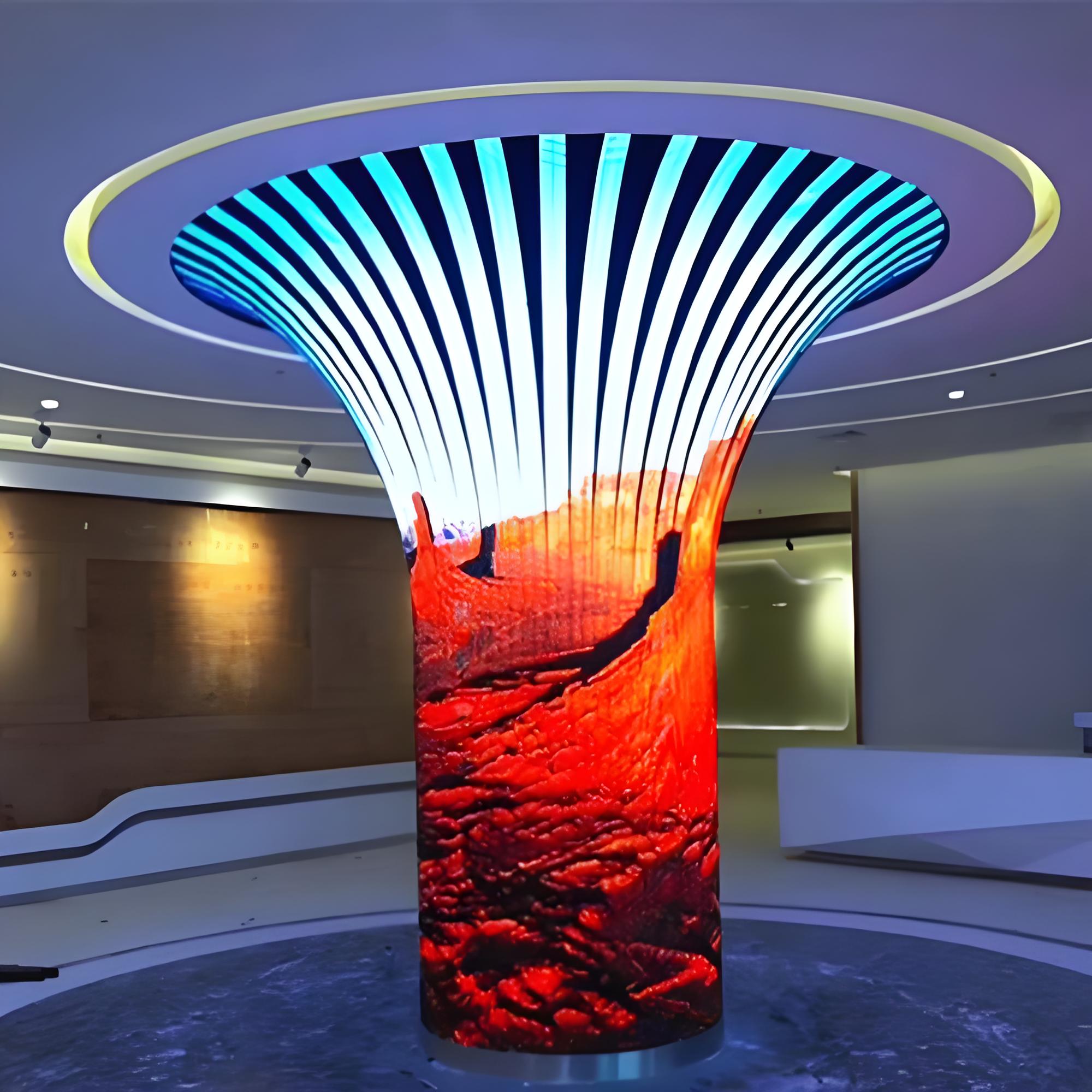

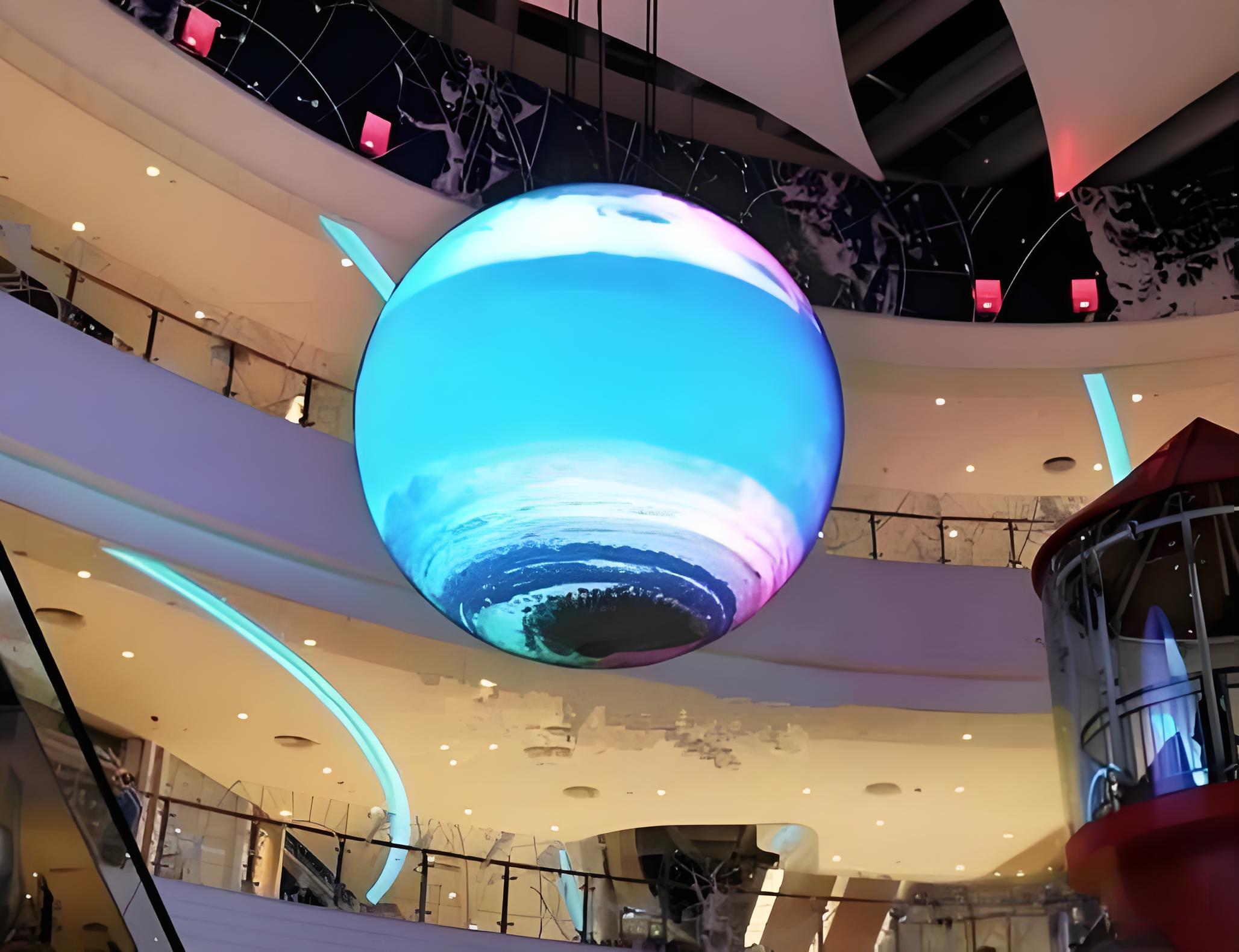

Due to its unique flexible characteristics and excellent performance, the indoor flexible LED modules are widely applicable to various high-end indoor scenarios, including high-end commercial spaces, corporate headquarters, museums, art galleries, luxury retail stores, hotel lobbies, and large-scale event venues. Customized services are provided according to different industry needs, including custom pixel pitch, panel size, bending angle, and color temperature (2700K-6500K adjustable), fully meeting the personalized needs of different projects.
Post time: Mar-13-2026
