As architectural aesthetics and commercial digital signage keep upgrading, LED crystal film screens have emerged as a disruptive new display technology that subverts traditional transparent LED panel limits. Unlike bulky rigid transparent cabinets, crystal film screens adopt flexible transparent PET/PI substrate and laser-etched invisible circuit technology, bringing ultra-thin, adhesive, bendable and invisible display capabilities to all glass-based spaces. This innovative product has rapidly gained recognition among brand operators, architectural designers and engineering integrators worldwide, becoming a mainstream customized display solution for glass curtain walls, retail shop windows and special curved glass structures.

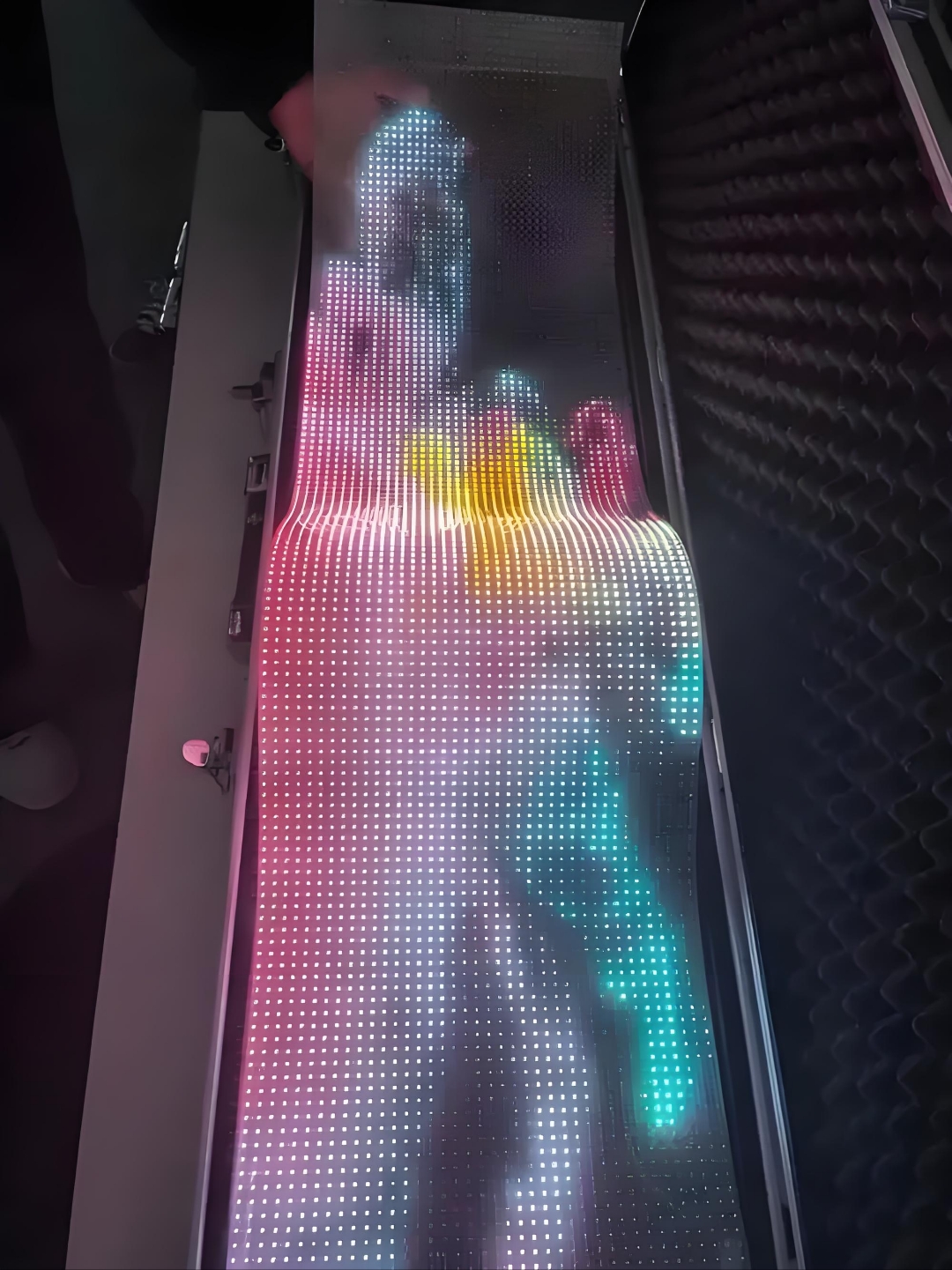

LED crystal film screen, also known as adhesive transparent film display, is constructed by mounting miniature SMD RGB chips on high-transmittance flexible film base through vacuum encapsulation. It abandons heavy aluminum frames and metal backshells required by conventional transparent LED screens, and can be directly pasted on the inner side of any flat or curved glass surface with dedicated environmental adhesive. When the screen is powered off, the film is nearly invisible, maintaining full natural light transmission and original building visual effect; once activated, it outputs vivid full-color videos, brand images and real-time information without blocking the view behind the glass. This dual invisible-and-display feature perfectly solves the long-standing conflict between advertising media layout and indoor lighting in glass architectural spaces.
The product owns a complete set of standardized core technical parameters that balance visual performance and installation practicability. The mainstream pixel pitches available on the market cover P8, P10, P16 and P20 to match different viewing distances. The whole film thickness is controlled within 1–3mm, with unit weight only 1–3.5kg per square meter, bringing negligible load pressure to glass and building structures. Its light transmittance reaches 85%–95%, far exceeding traditional grille transparent screens. Equipped with 16-bit grayscale and refresh rate up to 3840Hz, it delivers flicker-free video suitable for camera shooting, with horizontal and vertical viewing angles both hitting 160 degrees to eliminate side color deviation. Adjustable brightness ranges from 800 to 2000 nits, adapting to indoor soft light and semi-outdoor strong light environments. The working temperature spans -20℃ to 55℃, with an average service life exceeding 100,000 hours. The standard single film size is 960×256mm, and the material supports arbitrary on-site cutting to fit irregular glass outlines.
Four core differentiated strengths make LED crystal film screens irreplaceable compared with other transparent display products. First, ultra-light adhesive installation without steel structures. No complicated frame welding or load-bearing brackets are needed; construction workers only need to clean the glass surface and attach the film roll, cutting construction period and engineering cost by more than half. Second, outstanding flexible shaping capacity. The soft substrate supports 180-degree repeated bending, perfectly fitting cylindrical glass columns, arc shop windows and curved curtain walls that rigid panels cannot cover, enabling unique 3D surround visual effects. Third, invisible integration and space preservation. There are no protruding components or exposed circuits after installation; all power and signal lines are hidden at glass edges, retaining the minimalist design sense of high-end commercial and office spaces without occupying indoor usable area. Fourth, low maintenance and long service stability. The whole film adopts integrated waterproof and dustproof encapsulation; single damaged pixels can be independently replaced without disassembling the entire wall, and the anti-UV film substrate avoids yellowing or brightness attenuation after long-term lighting exposure.

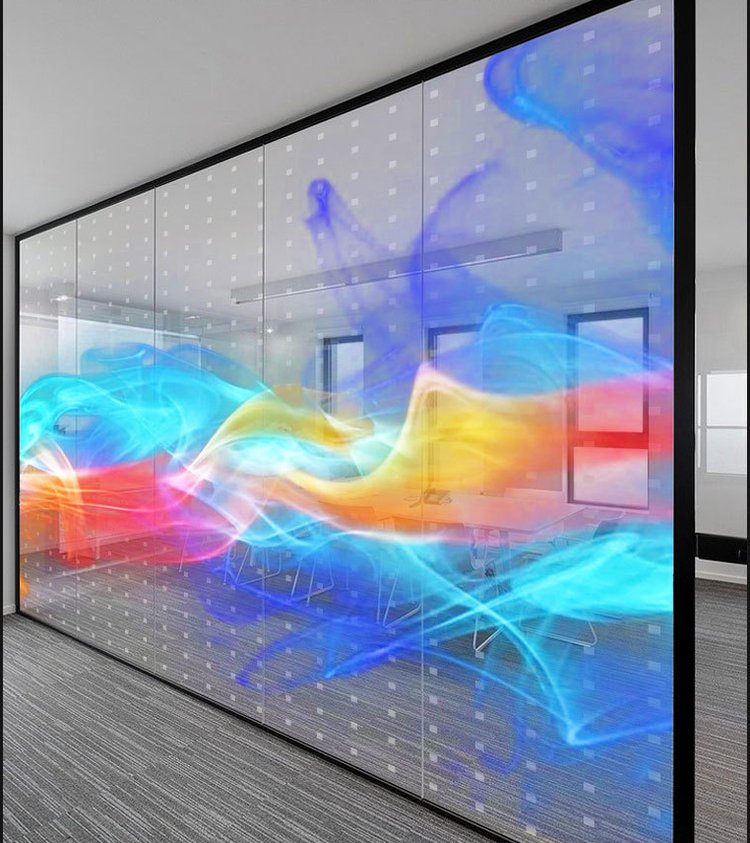

The application boundary of LED crystal film screens continues expanding across commercial, architectural, transportation and cultural sectors. In luxury retail and shopping mall scenarios, brand flagship stores install crystal films on front glass windows to play product promotion videos while keeping physical commodities visible to passers-by, greatly lifting store attraction and conversion rates; escalator glass guardrails and atrium glass railings also adopt this film to deliver mall activity advertisements without blocking pedestrian sightlines. For high-rise building glass curtain wall projects, crystal films are pasted on exterior glass to form large night media facades, becoming city landmark light shows without destroying daytime building appearance. Corporate office lobbies and exhibition halls use curved glass crystal film walls to display corporate culture and exhibition content, creating futuristic immersive visiting experience. Transportation hubs including airport glass partitions, subway car windows and high-speed rail waiting area glass panels adopt low-brightness customized versions for passenger information release. In addition, scenic spot glass viewing platforms, hotel full-glass partition walls and automobile show booth transparent backgrounds are all fast-growing emerging application fields for crystal film display technology.
Industry analysts point out that the global LED crystal film screen market will maintain an annual compound growth rate of over 11% in the next five years, driven by the booming demand for smart city construction and offline commercial digital transformation. With continuous breakthroughs in micro-film circuit and mini LED chip technology, next-generation crystal film products will achieve smaller pixel pitches, higher transparency and roll-to-roll mass production to further reduce procurement costs. Integrated linkage with AI light sensors, cloud remote content release and naked-eye 3D rendering will also enrich interactive display functions. As a lightweight, aesthetic and high-value display medium, LED crystal film screens will keep reshaping the presentation logic of all glass space scenes, and become an essential matching product for modern architectural and commercial space design.
