With the continuous iteration of LED display technology, the market’s demand for high reliability, high-definition display and diversified application scenarios is constantly rising. As an innovative upgrade of traditional LED modules, GOB (Glue on Board) modules have emerged and gradually become a new favorite in the display industry. Different from conventional SMD or COB LED modules, GOB modules integrate advanced packaging technology and optimized structural design, showing unique characteristics and significant competitive advantages, and boasting broad application prospects in various fields. Below is a detailed analysis of its core features, advantages and application prospects.
1. Display Principle and Structural Characteristics & Advantages
① Principle: GOB modules adopt the core principle of LED light emission—converting electrical energy into light energy through the PN junction of semiconductor chips, with each LED chip emitting light independently without relying on an additional backlight source. On this basis, GOB technology uses high-transparency epoxy resin to fully encapsulate the LED chips and circuit boards, forming a seamless integrated structure, which not only ensures stable light emission but also optimizes the overall optical performance.

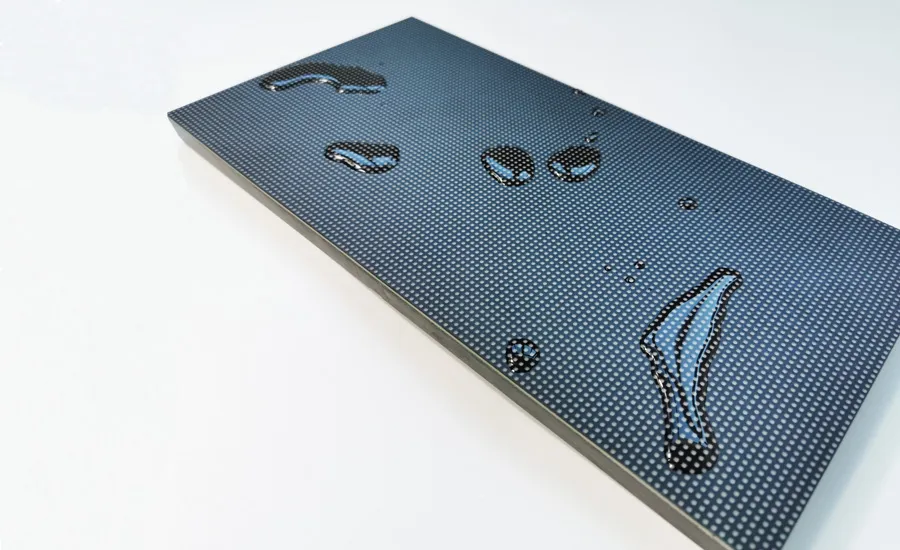

② Structure: Unlike the exposed chip design of traditional SMD modules and the partial encapsulation of COB modules, GOB modules feature a full encapsulation structure. The LED chips are directly bonded to the PCB board, and the entire surface is covered with a layer of high-hardness, high-transparency glue. This structure eliminates the gaps between chips and modules, making the surface of the module smooth and flat, while enhancing the structural strength and impact resistance of the product.
Advantages: The full encapsulation structure of GOB modules effectively solves the problems of chip damage, dust accumulation and water seepage that often occur in traditional LED modules. It achieves an IP67 protection level, which can resist dust, moisture, impact and corrosion, ensuring stable operation in complex indoor and semi-outdoor environments. At the same time, the seamless design avoids the "grid effect" of traditional modules, making the display screen more integrated and improving the overall visual experience.
2. Visual Performance: Color Expression and Display Effect
① Color Expression: GOB modules adopt the RGB three-primary-color lighting mode, which can directly mix various colors with high color saturation, presenting more vivid and realistic image effects than traditional SMD modules. With advanced color correction technology, the color consistency is significantly improved (ΔE < 1.5), and the color gamut covers up to 100% of NTSC, which can meet the high requirements for color accuracy in fields such as professional film and television production, art exhibition and high-end commercial display.
② Display Effect: Equipped with high-grade LED chips and optimized optical design, GOB modules have a pixel pitch ranging from P0.6mm to P5mm, supporting ultra-high-definition display. The refresh rate reaches 4800Hz, which effectively avoids smearing and flicker, making it particularly suitable for displaying high-speed dynamic content such as live sports events, promotional videos and interactive animations. In addition, the high-transparency encapsulation glue enhances the light diffusion effect, with a 170° horizontal/vertical viewing angle, ensuring consistent and undistorted visual effects from any perspective, which is better than traditional LED modules.
3. Installation, Power Consumption and Cost Performance
① Installation: GOB modules adopt a lightweight and thin design, with a thickness of only 7mm and a weight 50% lighter than traditional COB modules, greatly reducing the load-bearing pressure on installation surfaces. The modular design supports arbitrary splicing, and the seamless connection between modules further improves the integrity of the display screen. It can be flexibly installed on flat surfaces, arc walls, cylindrical columns and other irregular surfaces, adapting to various installation needs of different scenarios.
② Power Consumption: Compared with traditional LED modules and LCD displays, GOB modules have obvious energy-saving advantages. The LED chips used have high luminous efficiency, consuming less electricity for the same brightness, and the full encapsulation structure reduces light loss, further improving energy utilization efficiency. The intelligent energy-saving control system supports automatic brightness adjustment and low-power standby, reducing power consumption by 35% compared to conventional LED modules. Unlike LCD displays, which still consume power for backlight when displaying black images, GOB modules can achieve true black display, further saving energy.
③ Cost Performance: Although the initial investment cost of GOB modules is slightly higher than that of ordinary SMD modules, the product has a service life of up to 60,000 hours (MTBF ≥ 25,000 hours), which is much longer than traditional LED and LCD displays, reducing the frequency of equipment replacement and overall use cost. With the continuous maturity of GOB technology and the expansion of production scale, its cost is gradually decreasing, showing excellent cost performance in the long run, especially suitable for large-scale display projects.
4. Broad Application Prospects
Benefiting from its unique structural advantages and excellent performance, GOB modules have broad application prospects in various fields, and are gradually replacing traditional LED modules in many high-end scenarios, keeping pace with the development trend of the LED display industry toward high quality and diversification.
In the field of commercial display, GOB modules are widely used in high-end shopping malls, luxury stores, hotel lobbies and commercial complexes. Their seamless display effect and high-definition visual performance can effectively attract customers’ attention, display product information and brand image, and enhance the commercial value of the space. In the field of cultural and artistic display, they are applied to museums, art galleries and exhibition halls, providing immersive display effects for cultural relics, works of art and exhibition content, and enriching the visiting experience of the audience.
In the field of public services, GOB modules are used in government service halls, transportation hubs (airports, high-speed rail stations, subway stations) and other places to display service guidelines, real-time information and public welfare announcements, with stable performance and clear display, helping to improve service efficiency and public satisfaction. In the field of entertainment and sports, they are applied to stage backdrops, stadiums and concert halls, showing high-speed dynamic images and on-site pictures, enhancing the on-site atmosphere and audience experience.
In addition, with the continuous development of technologies such as 5G, AI and virtual reality, GOB modules will be further integrated with these technologies, and their application scenarios will be continuously expanded, such as VR/AR interactive display, intelligent control display systems and other emerging fields, bringing new development opportunities for the LED display industry. It is expected that in the next few years, GOB modules will occupy an increasing market share and become a mainstream product in the LED display industry.
