As the global LED display industry moves toward tougher environmental conditions, frequent on-site transportation, lower maintenance workload and longer service life, GOB LED displays have rapidly grown into one of the most competitive high-protection display solutions on the market. Short for Glue on Board, GOB technology improves the traditional SMD packaging structure by sealing LED chips and solder joints under a layer of optical-grade resin, effectively closing the gap between exposed-chip SMD screens and costly COB systems. With outstanding shock resistance, water and dust protection, moisture-proof performance and stable optical output, GOB screens are now widely adopted in stage rental, retail entertainment, outdoor engineering, transportation hubs and other demanding applications.
A GOB LED display is built on conventional SMD full-color LED modules. After chips, driver ICs and solder joints are soldered onto the PCB, a vacuum resin dispensing process covers the entire lamp surface with high-transparency epoxy glue, which cures into a smooth, continuous protective film. This one-piece encapsulation wraps every LED bead, the gaps between beads and the surrounding solder points together, rather than relying only on the tiny plastic housing of each SMD package. Unlike conventional outdoor glue-filled screens that may appear hazy or color-shifted, modern GOB coatings use optically matched transparent material designed to preserve light output, viewing angle and color consistency. Compared with COB technology, GOB keeps the mature SMD module structure, leaving module-level and single-bead maintenance more accessible and more cost-effective.
The most defining advantage of GOB screens is their comprehensive physical sealing protection. The resin layer turns the module surface into a unified shield that blocks dust, rain, moisture and fine sand from entering the gaps between LED beads and solder joints, delivering a high front protection rating that meets the requirements of both outdoor fixed projects and intensive rental use. It also forms a strong cushion against impact and friction: during repeated truck loading, stage assembly, crowd contact and accidental collision, lamp beads are far less likely to be pressed loose, chipped or sheared off than on exposed SMD modules. For indoor entertainment venues such as bars, clubs, KTV rooms and restaurant halls, the sealed surface prevents grease, cigarette residue, dust and fingerprints from clogging the lamp gaps, keeping the picture uniform over years of operation and making the front face easy to wipe clean.
GOB encapsulation also brings strong all-weather stability in harsh climates. The resin barrier resists humidity, salt spray, mildew and corrosion, allowing the screen to perform reliably near coastal areas, in rainy southern regions, in humid industrial buildings and under long outdoor exposure. Treated materials resist ultraviolet degradation and aging, reducing the risk of surface yellowing, brightness decay and color drift after years under sunlight. With a wide operating temperature range, stable constant-current driving and improved electrostatic protection, GOB modules maintain normal brightness and color behavior through hot summers, cold winters and rapid temperature changes. This environmental robustness greatly lowers failure rates caused by moisture ingress, solder oxidation and corrosion, which are common root causes of dead lamps in ordinary exposed SMD screens.
Many buyers worry that resin coating will blur the image, but modern GOB process is engineered to preserve display quality. The optical-grade glue closely matches the refractive behavior of LED packaging, so brightness, contrast and color mixing remain close to the original SMD module level. GOB screens retain wide horizontal and vertical viewing angles, high refresh rate, multi-level grayscale and rich color reproduction, supporting smooth video playback, sharp text and natural imagery for both indoor close viewing and outdoor long-distance viewing. The smooth flat surface also creates even light emission across the whole panel, eliminating local dark spots caused by accumulated dust inside ordinary lamp gaps. High-quality GOB production lines control dispensing thickness, bubble removal and curing precision strictly, ensuring consistent uniformity across large spliced walls.
Another major benefit lies in extended service life and reduced maintenance burden. By protecting chips, bonding wires and solder joints from mechanical stress, moisture and static damage, GOB construction effectively reduces dead LEDs, loose solder points and premature component failure, supporting an extended rated service life and lower long-term operating cost. When faults do appear, the SMD-based architecture allows conventional module replacement and targeted repair, avoiding the higher repair complexity and cost associated with fully integrated COB panels. Project integrators benefit from fewer on-site call-backs, operators enjoy less downtime during commercial performance, and rental companies gain better protection for screens that are repeatedly disassembled, transported and reinstalled.

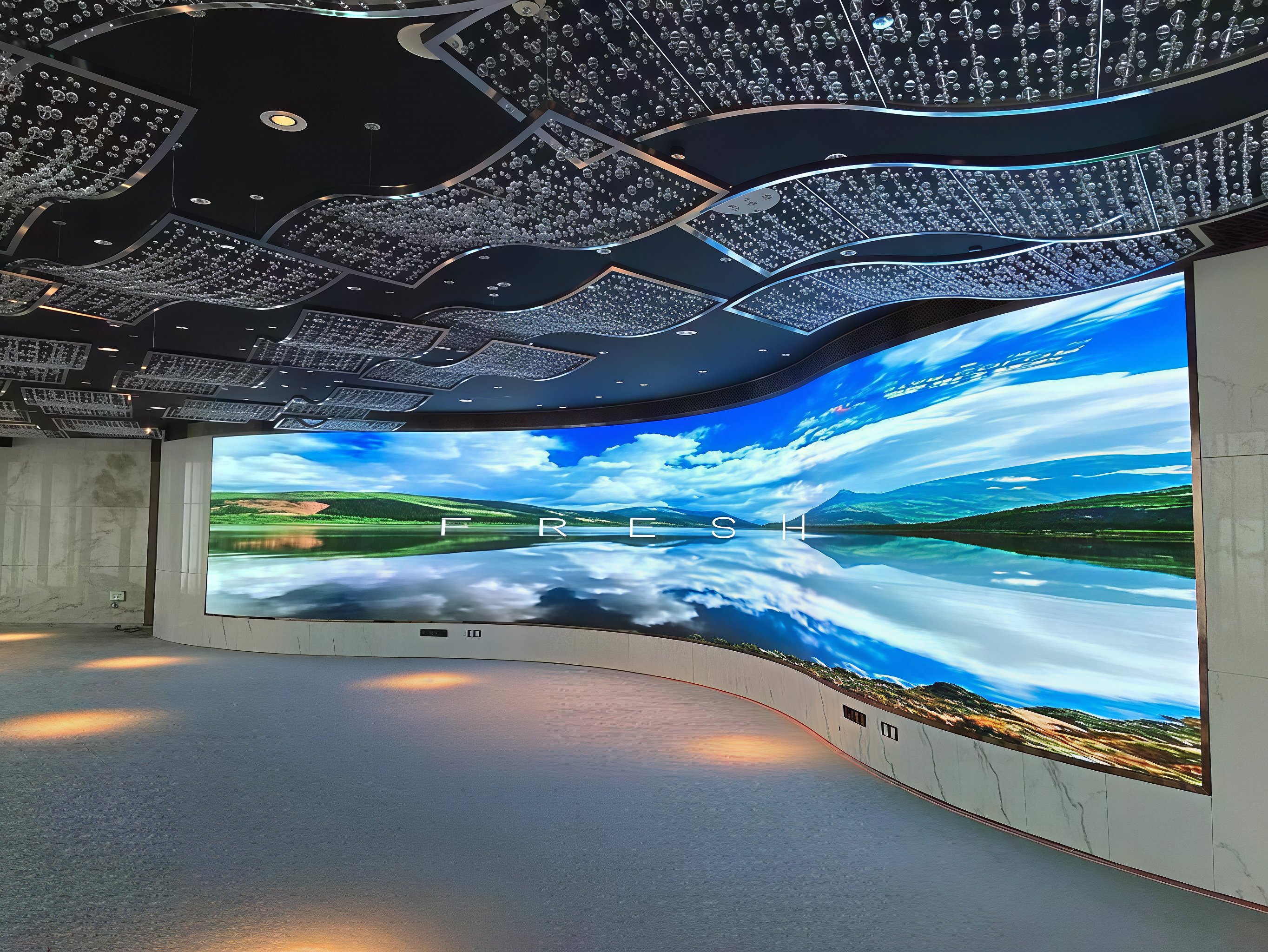

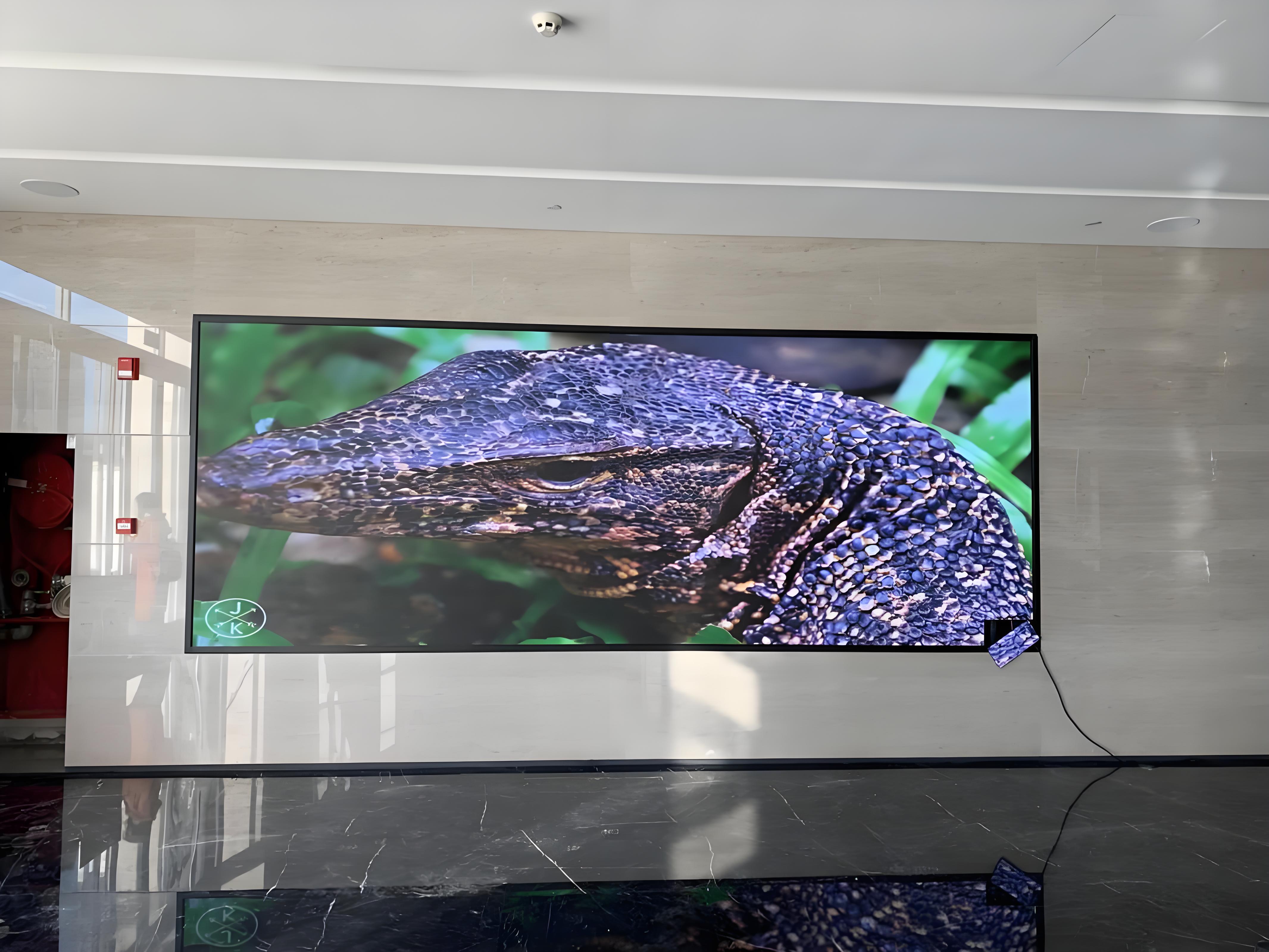

Thanks to these strengths, GOB LED displays cover a broad range of real-world scenarios. They are a standard choice for touring stage sets, concert backdrops, exhibition booths and event rental walls, where frequent handling and collision resistance are critical. In commercial interiors, GOB screens are installed in flagship stores, shopping mall atriums, bar and nightclub interiors, banquet halls, conference rooms and command centers, where dust, grease, touch and frequent cleaning are daily conditions. Outdoors, they serve advertising billboards, building media facades, sports perimeter boards, scenic landscape screens and coastal public displays, where rain, salt air and temperature swings must be endured continuously. Fine-pitch GOB modules support close-view indoor spaces, while larger-pitch models provide high-brightness performance for outdoor long-distance viewing.
Looking ahead, the GOB market is expected to expand as resin formulas become thinner, more transparent and more resistant to yellowing, and as automated vacuum dispensing raises batch consistency. Combined with high refresh driver technology, smart brightness control and modular cabinet design, GOB displays will continue to occupy a valuable position in durable, low-maintenance display projects. For rental operators, engineering contractors and commercial owners who prioritize long service life, stable protection and lower after-sales cost, GOB technology offers a balanced solution that protects the hardware without sacrificing the visual quality audiences expect from modern LED displays.
Post time: Oct-30-2026
