As the global LED display industry advances toward high precision, lightweight design, and efficient installation, the 640×640mm die-casting aluminum cabinet has emerged as a game-changer in both fixed and rental LED display applications. Combining advanced die-casting technology, optimized structural design, and superior material performance, this standardized cabinet size is rapidly replacing traditional iron and sheet metal cabinets, becoming the mainstream choice for LED display manufacturers and project integrators worldwide. Driven by the growing demand for seamless splicing, quick installation, and long-term reliability, the 640×640mm die-casting aluminum cabinet is reshaping the industry’s development pattern and setting new benchmarks for LED display performance and usability.
Technological Innovation: The Core Advantages of 640×640mm Die-Casting Aluminum Cabinets

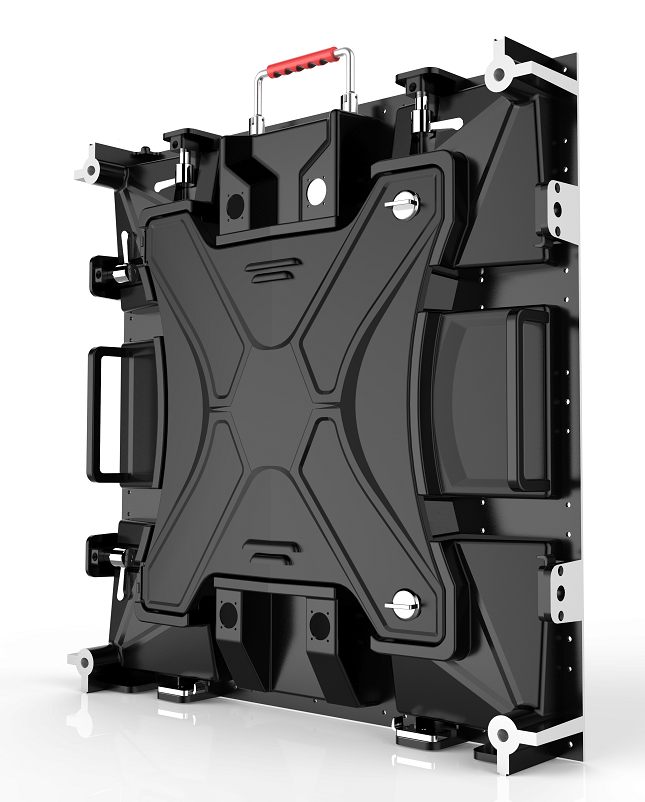

The 640×640mm die-casting aluminum cabinet stands out for its integrated design, which leverages high-pressure die-casting technology to mold aluminum alloy into a single, sturdy structure—eliminating the need for complex assembly and reducing potential structural weaknesses. Unlike traditional iron cabinets, which are heavy and prone to deformation, die-casting aluminum cabinets offer a range of core advantages that address industry pain points and meet diverse project requirements.
Firstly, lightweight and high strength. Made from high-quality aluminum alloy, the 640×640mm die-casting cabinet weighs 40% less than traditional iron cabinets, with a single cabinet typically weighing between 8-13kg—light enough for single-person handling, significantly reducing labor intensity during installation and transportation. Despite its lightweight design, the die-casting process ensures exceptional structural strength and toughness, resisting deformation and damage even in high-frequency rental or long-term fixed installation scenarios.
Secondly, ultra-high precision for seamless splicing. Equipped with CNC machining technology, the 640×640mm die-casting aluminum cabinet achieves a dimensional tolerance of ±0.05mm and a flatness of ≤0.15mm, enabling pixel-level seamless splicing with gaps less than ±0.1mm. This precision eliminates the "mosaic effect" common in traditional cabinets, delivering a uniform, integrated visual experience—critical for high-definition LED displays in conference rooms, stage backgrounds, and commercial advertising screens.
Thirdly, efficient heat dissipation and energy conservation. Aluminum’s inherent excellent thermal conductivity, combined with integrated heat dissipation ribs and optimized internal airflow design, allows the cabinet to efficiently dissipate heat generated by LED modules without the need for additional fans. This passive heat dissipation design not only reduces power consumption by up to 40% compared to traditional solutions but also lowers noise levels and extends the lifespan of LED modules to over 100,000 hours.

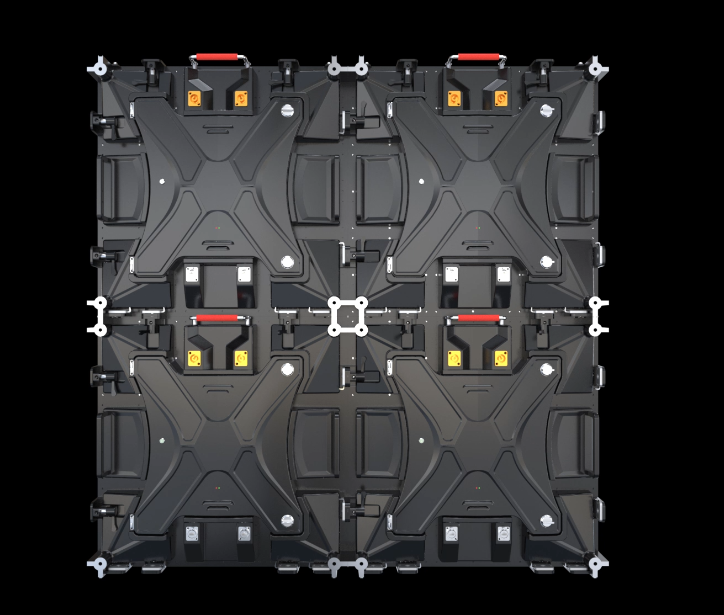

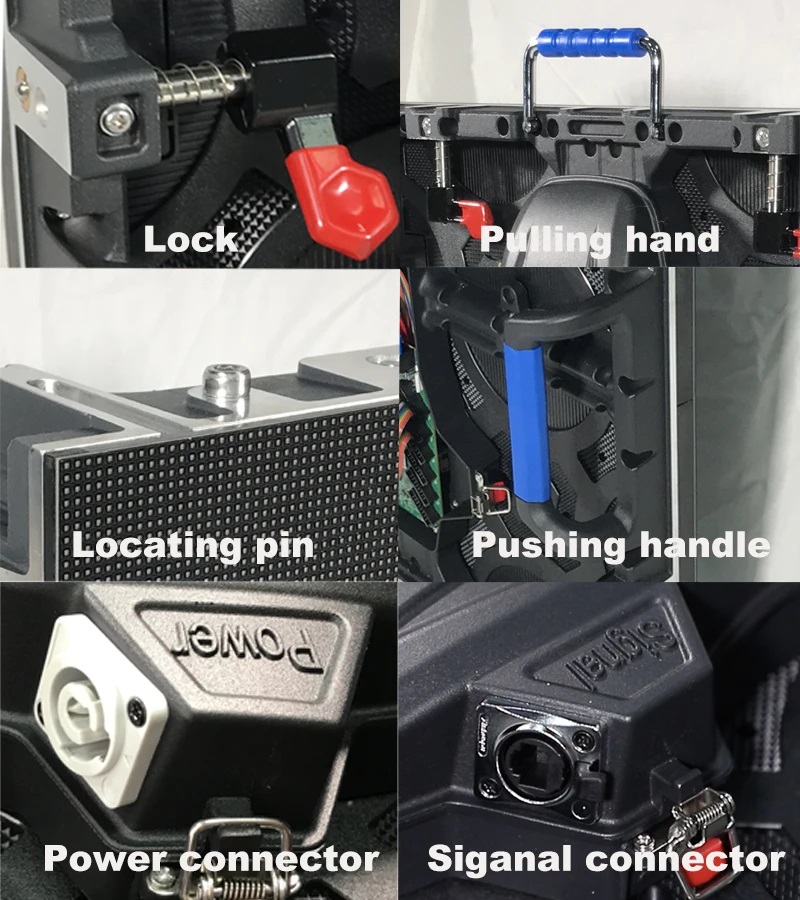

Fourthly, quick installation and easy maintenance. The 640×640mm cabinet features a standardized design that is fully compatible with 320×160mm LED modules—the most popular module size in the market—allowing flexible pixel pitch adjustment by simply replacing modules. Equipped with quick-locking mechanisms, the cabinet can be installed or disassembled in as little as 10 seconds per unit, significantly improving project efficiency for rental scenarios such as concerts, exhibitions, and events. Additionally, front and rear maintenance designs enable tool-less module replacement, reducing maintenance time by 30% and lowering operational costs.
Other notable advantages include strong anti-electromagnetic interference, which fully wraps internal components to ensure stable signal transmission, and corrosion resistance, making the cabinet suitable for both indoor and outdoor applications (with IP65 protection rating for outdoor models). The hidden wiring design also enhances the cabinet’s aesthetic appeal by hiding power and signal connections, creating a clean, professional display surface.
Market Application: Penetrating Diverse Scenarios, Driving Industry Growth
The versatility and performance of the 640×640mm die-casting aluminum cabinet have made it widely applicable across various indoor and outdoor LED display scenarios, driving its rapid adoption in the global market. According to industry data, the global die-casting aluminum cabinet market is expected to grow at a CAGR of 11.8% from 2026 to 2030, with the 640×640mm size accounting for over 40% of total shipments by 2028.
In rental and event scenarios—such as stage performances, concerts, product launches, and weddings—the cabinet’s lightweight design and quick installation features enable efficient on-site setup and teardown, allowing rental companies to reuse equipment across multiple events and reduce transportation costs. The 640×640mm size also supports flexible screen shape customization, adapting to curved, irregular, or large-format displays.
In fixed installation scenarios, the cabinet is widely used in corporate lobbies, conference rooms, shopping malls, control centers, and cultural venues. Its seamless splicing and high precision make it ideal for high-definition displays, while its long-term stability and low maintenance requirements reduce operational costs for businesses and institutions. For example, in shopping malls and commercial districts, 640×640mm die-casting aluminum cabinets are used to build dynamic advertising screens, delivering vivid visuals that attract customer attention and boost brand exposure.
In outdoor applications, weather-resistant versions of the 640×640mm die-casting aluminum cabinet (with IP65 protection) are used for outdoor billboards, sports stadium perimeter displays, and smart city information screens. The corrosion-resistant aluminum material and sealed design ensure stable operation in harsh environments—from high temperatures and heavy rain to sandstorms—while the efficient heat dissipation system prevents overheating during long-term outdoor use.
Industry Impact: Standardization Promotes Industry Upgrading
The widespread adoption of the 640×640mm die-casting aluminum cabinet is driving the LED display industry toward standardization, integration, and high quality. In the past, the market was fragmented with various cabinet sizes, leading to compatibility issues, high production costs, and inefficient installation. The 640×640mm size has emerged as a de facto standard, enabling manufacturers to streamline production, reduce costs, and improve product consistency.
This standardization has also benefited project integrators and end-users, as it simplifies procurement, installation, and maintenance processes. With compatible modules and cabinets, users can easily expand or upgrade their LED displays without replacing the entire system, reducing investment costs. Additionally, the shift to die-casting aluminum cabinets aligns with the global trend toward lightweight, energy-efficient, and sustainable products—meeting environmental regulations and reducing carbon footprints.
Industry insiders note that the 640×640mm die-casting aluminum cabinet has accelerated the phase-out of low-quality, heavy iron cabinets, promoting the industry’s shift toward high-end, professional solutions. Head LED display manufacturers are now focusing on optimizing the 640×640mm cabinet design, integrating intelligent features such as cloud-based monitoring and fault early warning to further enhance usability and reliability.
Future Outlook: Intelligent Integration and Scenario Expansion
Looking ahead, the 640×640mm die-casting aluminum cabinet industry will continue to evolve with technological innovation and market demand. With the integration of AI, IoT, and 5G technologies, future cabinets will feature intelligent functions such as real-time temperature monitoring, remote maintenance, and automatic brightness adjustment—further reducing operational costs and improving performance.
In terms of material and process upgrades, manufacturers will focus on developing lighter, more durable aluminum alloys and optimizing die-casting processes to further reduce weight and improve precision. The integration of solar energy technology is also expected to become a new trend, enabling outdoor cabinets to leverage renewable energy and reduce reliance on grid power.
As smart city construction accelerates and the demand for high-definition LED displays grows, the 640×640mm die-casting aluminum cabinet will continue to penetrate new scenarios—including medical imaging, virtual shooting, and industrial control—expanding its market share and solidifying its position as a core component of modern LED display systems.
“The 640×640mm die-casting aluminum cabinet is not just a product upgrade; it represents a paradigm shift in the LED display industry,” said an industry expert. “Its combination of precision, lightweight design, and efficiency addresses the core needs of users across diverse scenarios, and it will remain the mainstream choice for years to come, driving the industry toward a more intelligent, sustainable, and professional future.”
